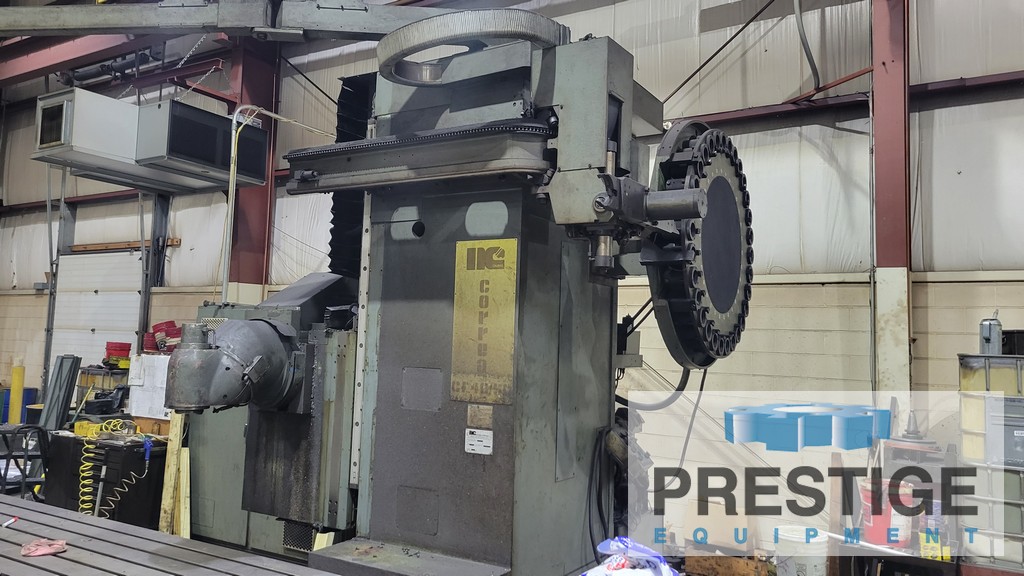

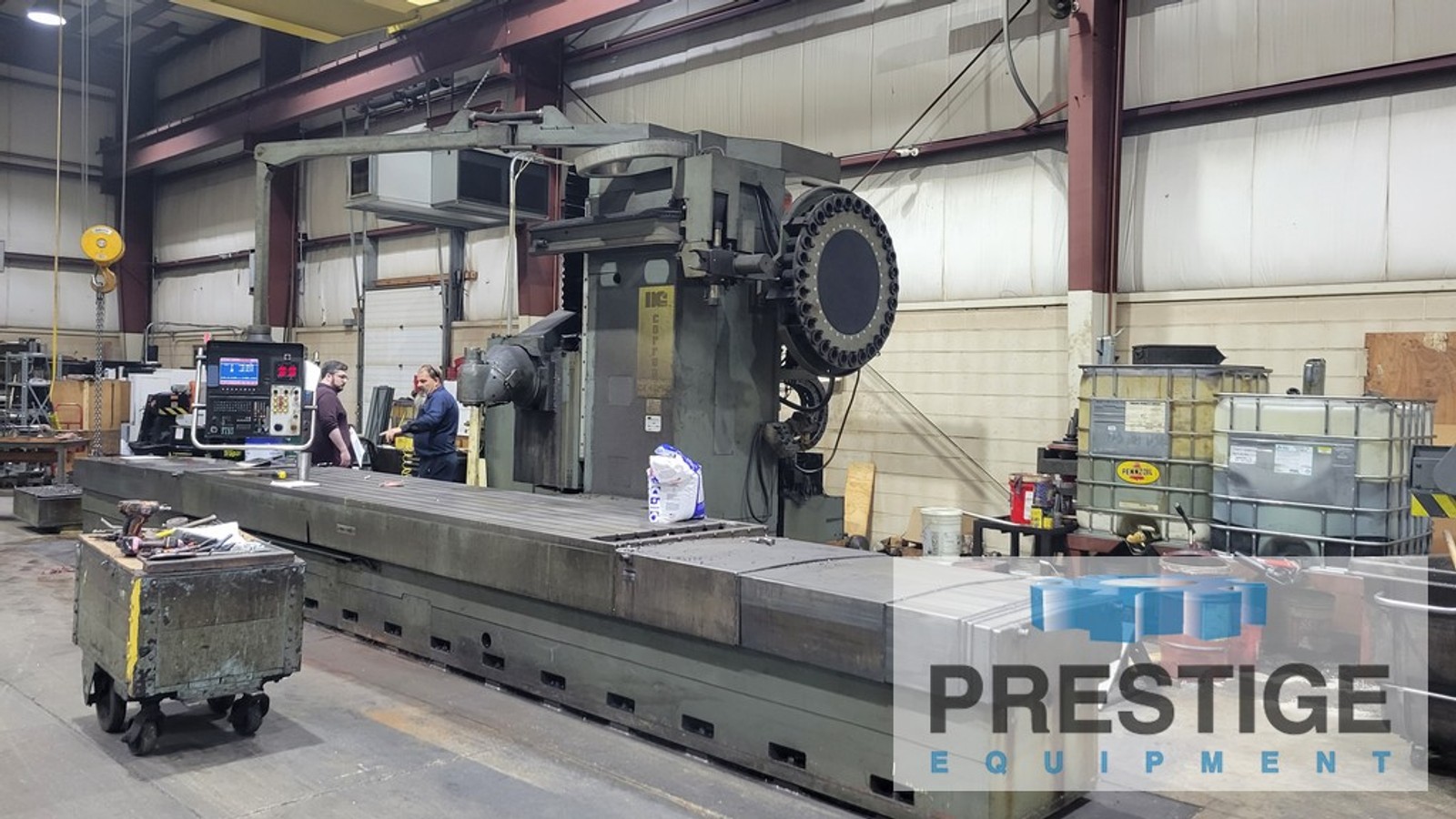

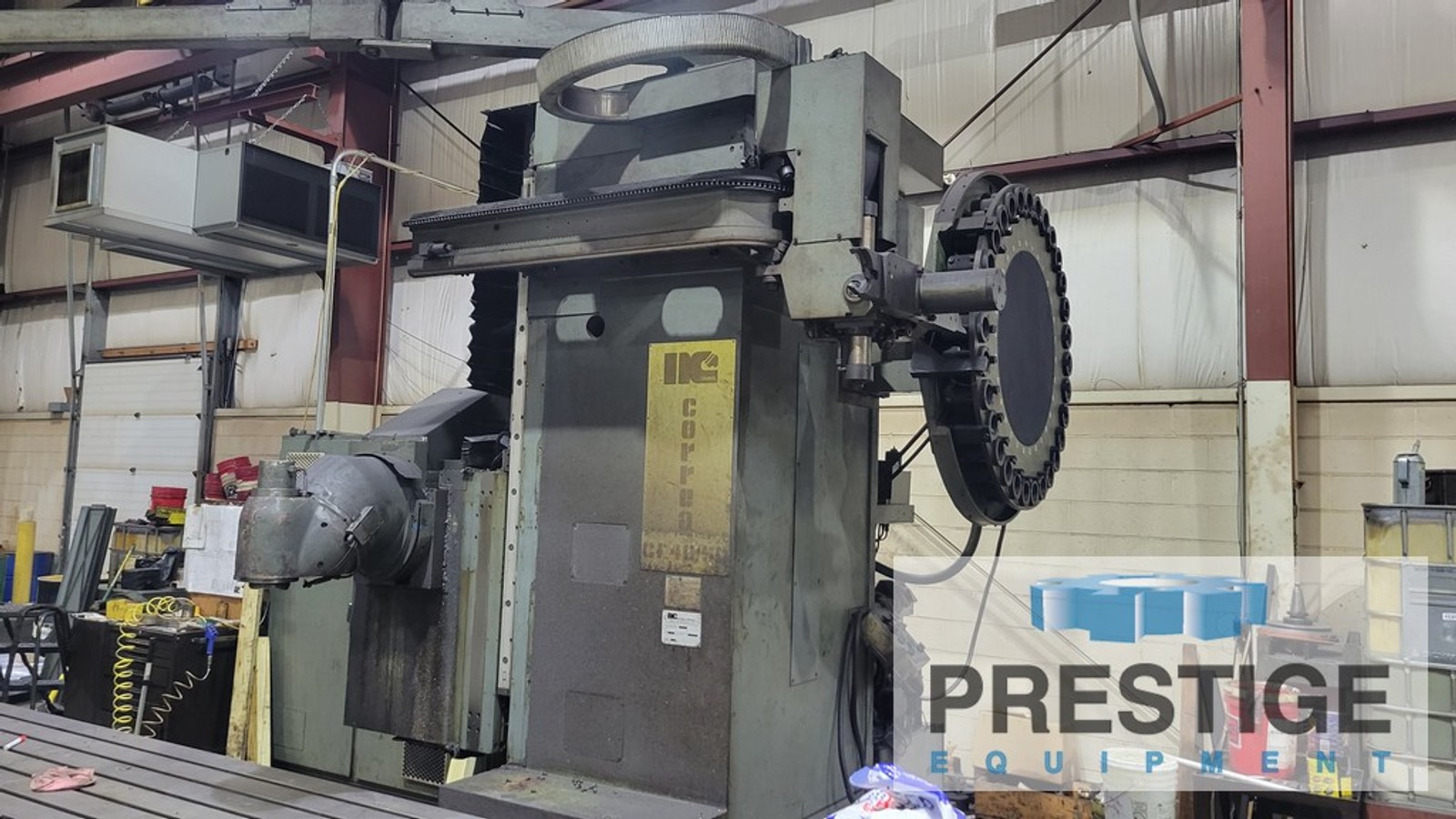

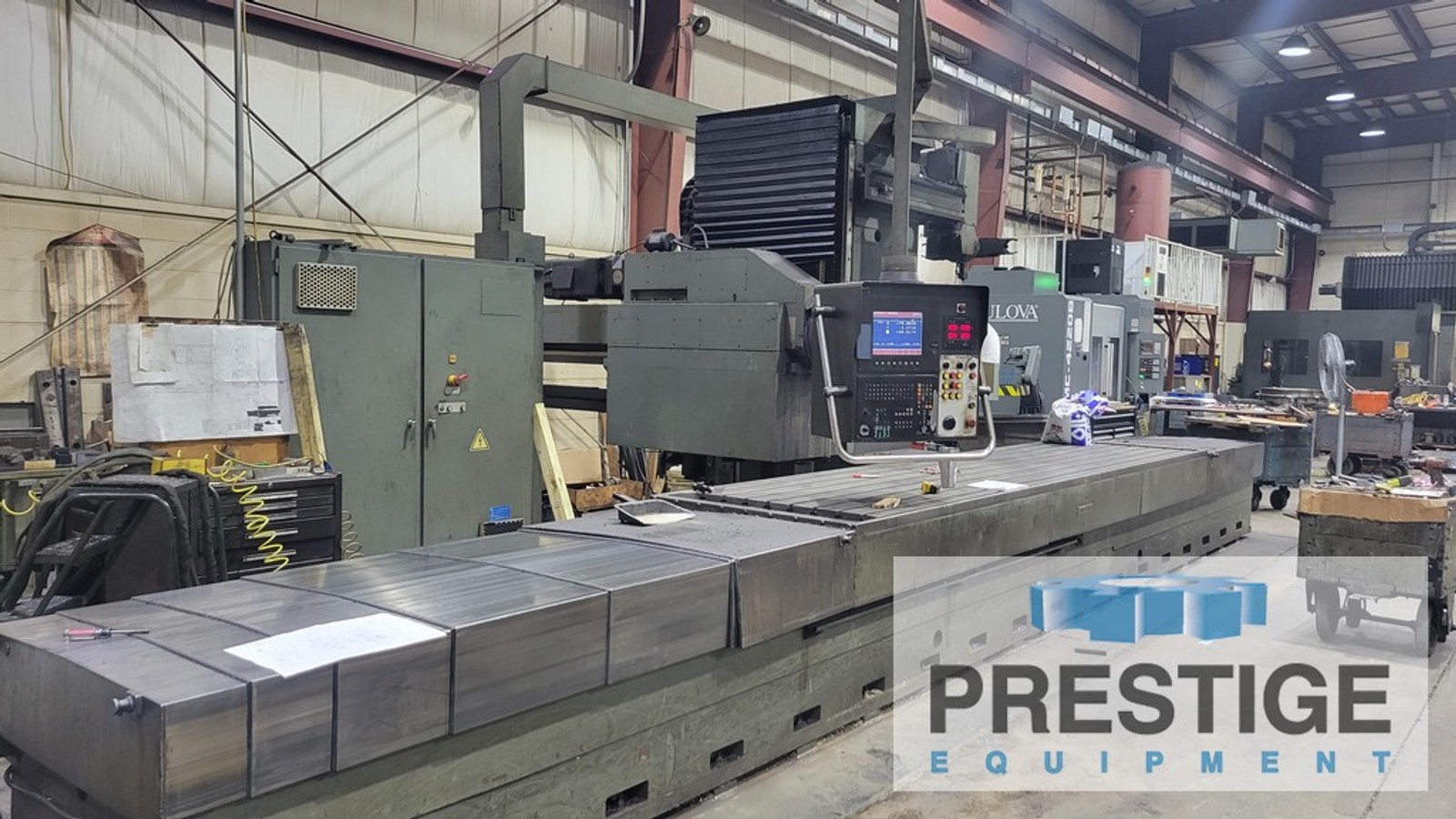

Correa CF40/50 Universal Bed-type Machining Center, X-196", Y-60", 30-ATC, Universal Head, Heidenhain 415 CNC, #32745

Manufacturer

Correa

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

32745

Model

CF40/50

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32745
Correa CF40/50 Universal Bed-Type Machining Center

FEATURES:
Heidenhain 415 CNC Control

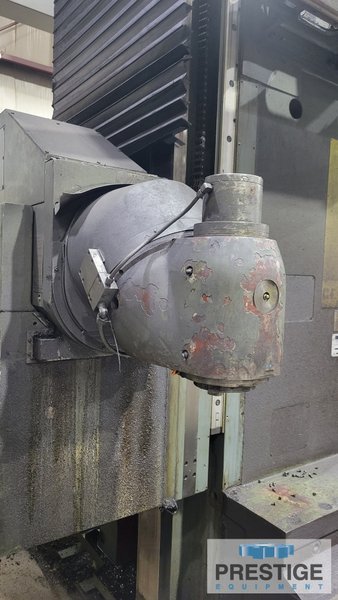

Auto Indexing Universal Right Angle Head

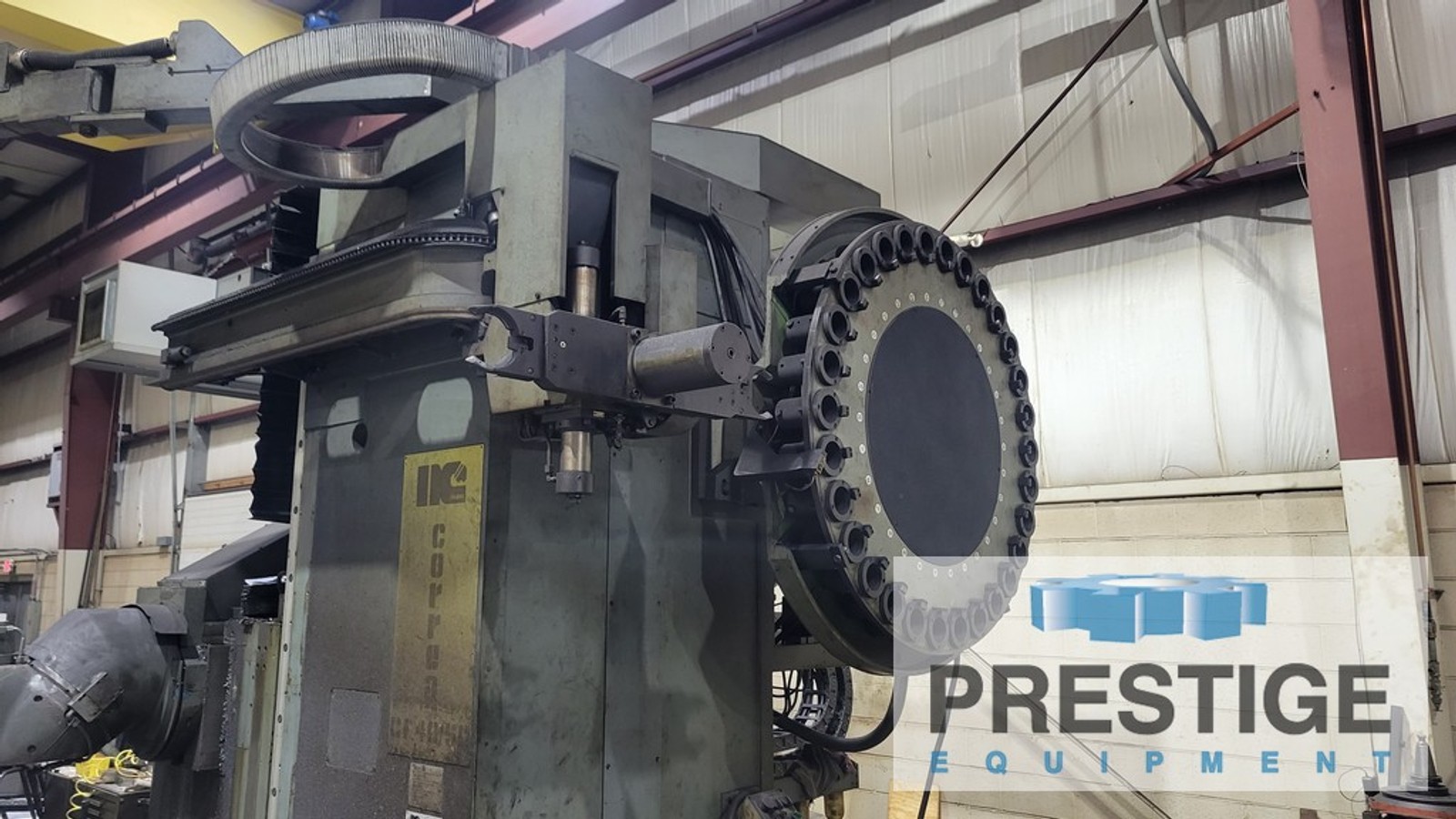

30-Station Automatic Tool Changer

SPECIFICATIONS:
X-Axis, Table Travel .................. 196"
Z-Axis, Head Travel Up & Dopwn ........ 60"
Y-Axis, Ram Travel ................... 47"
Table Size ............................ 196" x 43"
B-Axis Spindle Tilt ................... 3 Degrees
C-Axis Spindle Rotation ............... 3 Degrees
Spindle Taper ......................... #50
Spindle Speed With 2-Axis Head ........ 2500 RPM
Spindle Drive Motor ................... 40 HP AC

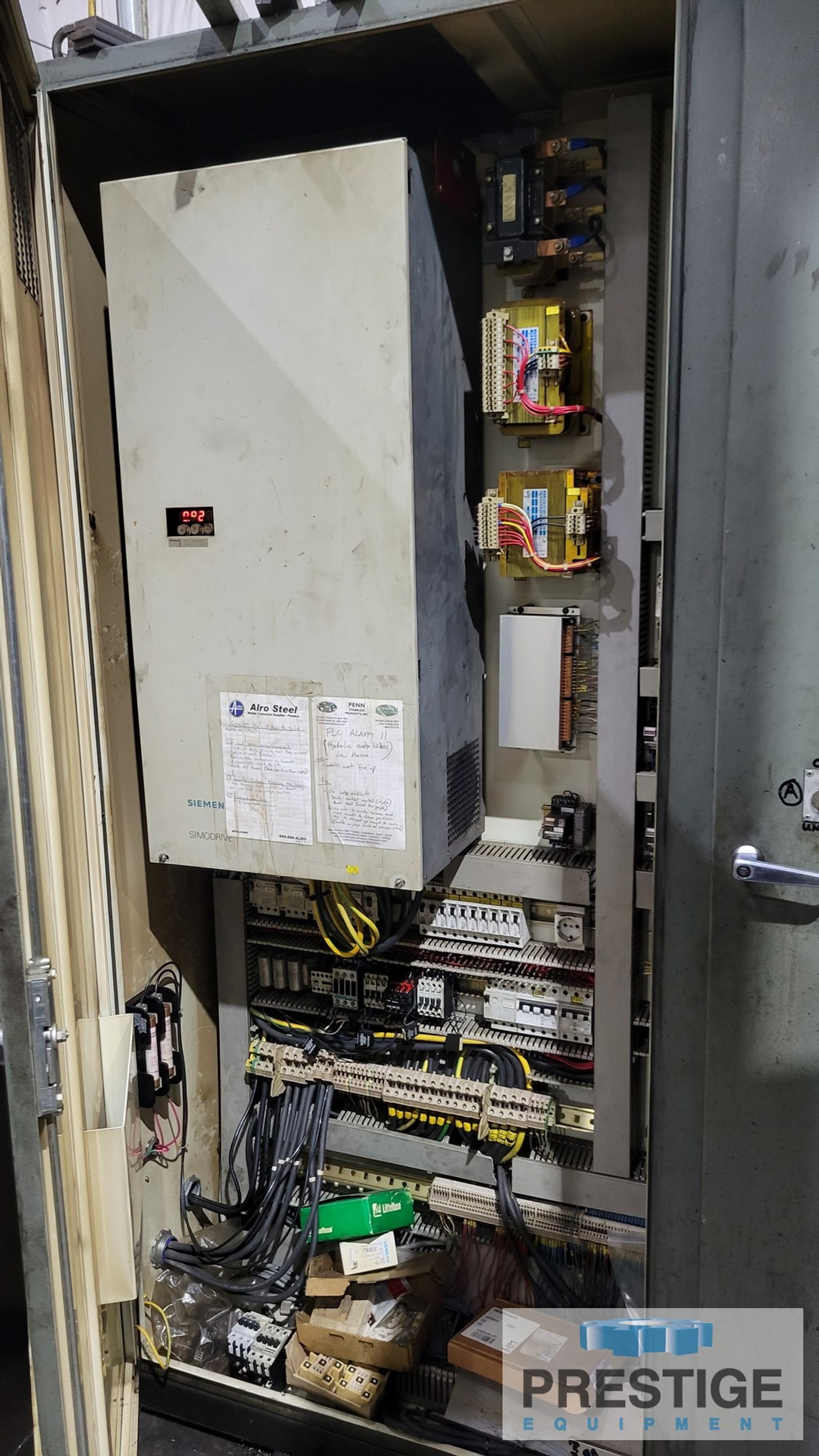

Electrics ............................. 440/3/60

EQUIPPED WITH:

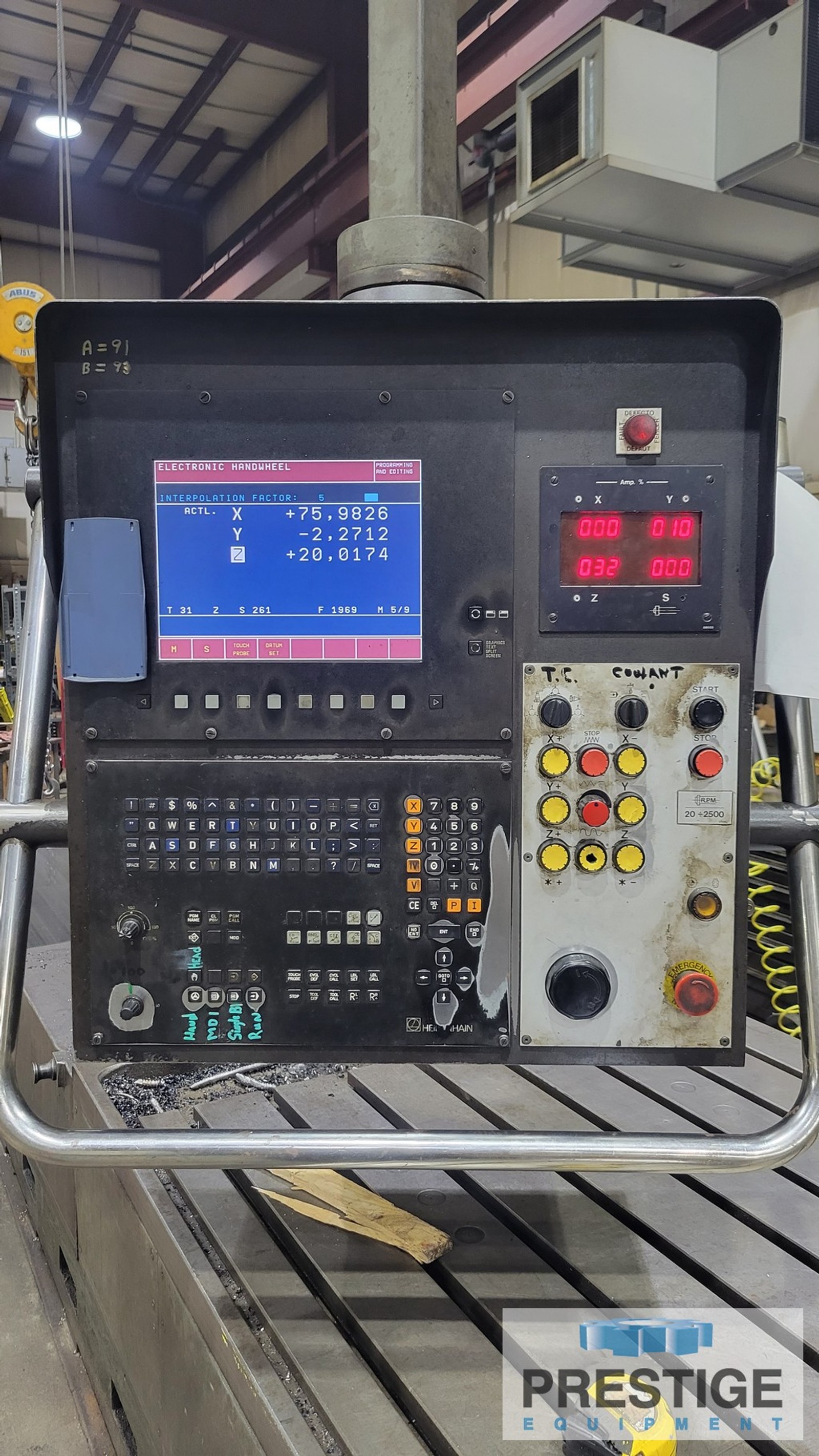

Heidenhain 415 CNC Control

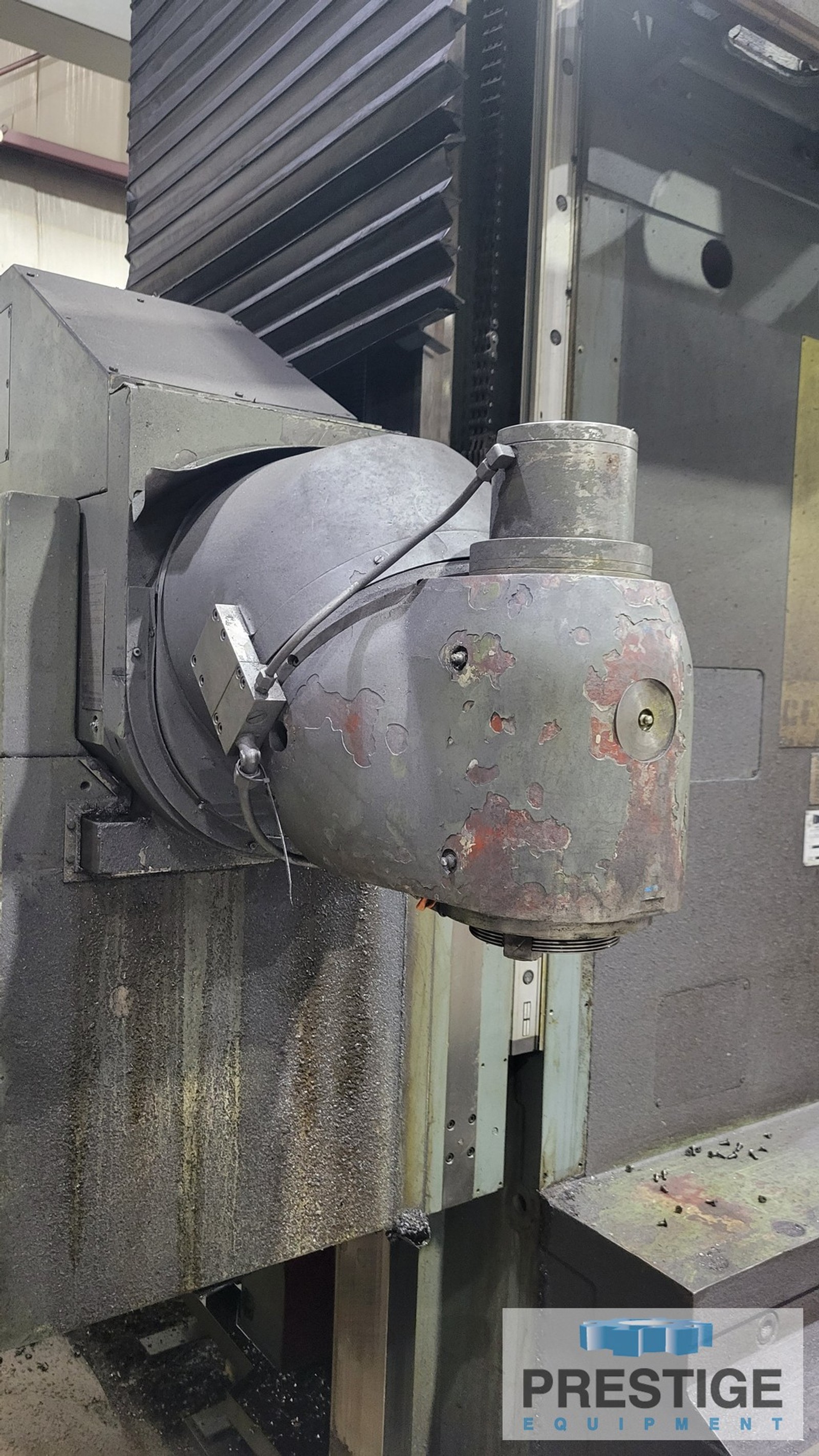

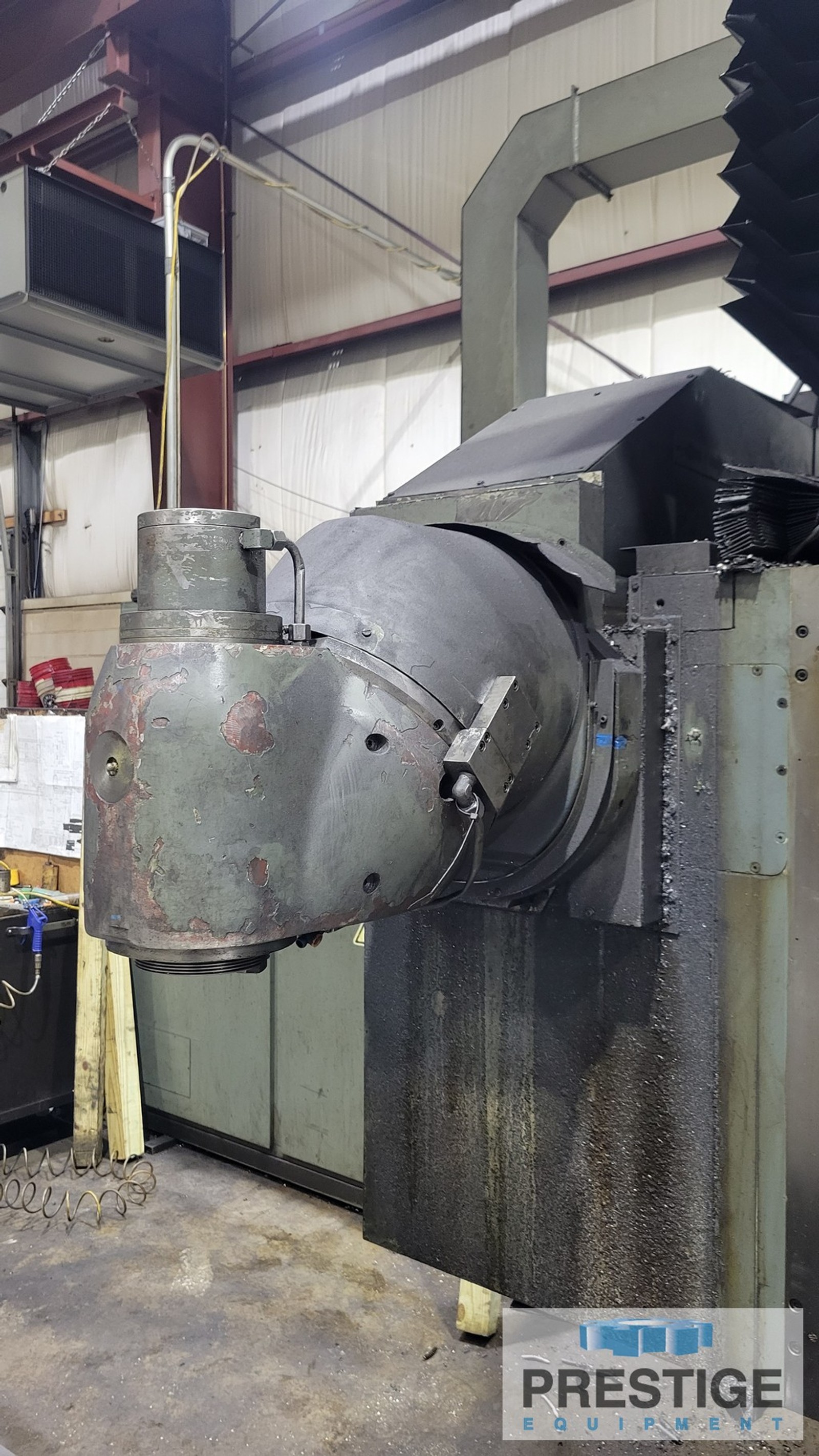

2-Axis Auto Indexing Universal Angle Head
30-Station Automatic Tool Changer
Chip Conveyor

NOTE:
ATC Currently Not Working
Auto Index Head Needs New Proximity Switch

No Video Available
