Grieve Inert Atmosphere Cabinet Oven, 2014 Model IB-550

Manufacturer

Grieve

Category

Furnaces & Ovens

Type

OVENS, BATCH

Stock

3170

Model

IB0550

Dealer Location

Connecticut

Request a Quote
View Contact Information

Spec Sheet

TYPE: INERT ATMOSPHERE CABINET OVEN
SIZE I.D.: 24”WIDE X 36”LONG X 24”HIGH
SIZE O.D.: APPROX. 5’W X 7’L X 8’H
MODEL: IB-550
MAXIMUM TEMP.: 550 F
ELECTRICS: 460 VOLTS, 9 KW, 3 PHASE

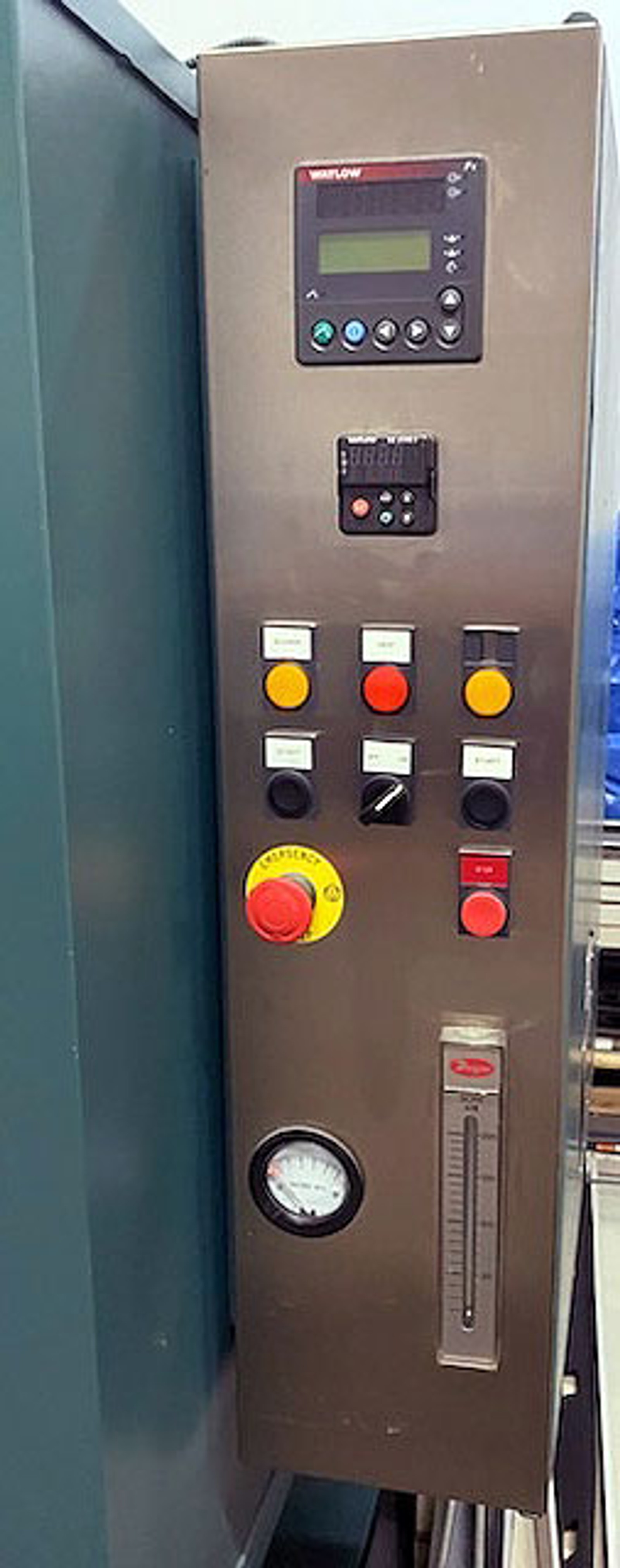

CONTROLS: WATLOW F4 DIGITAL PROGRAMMABLE TEMPERATURE CONTROL, DIGITAL
INDICATING OVER TEMPERATURE AND INERT ATMOSPHERE FLOW METER
MOUNTED IN ENCLOSED PANEL ON SIDE WALL.

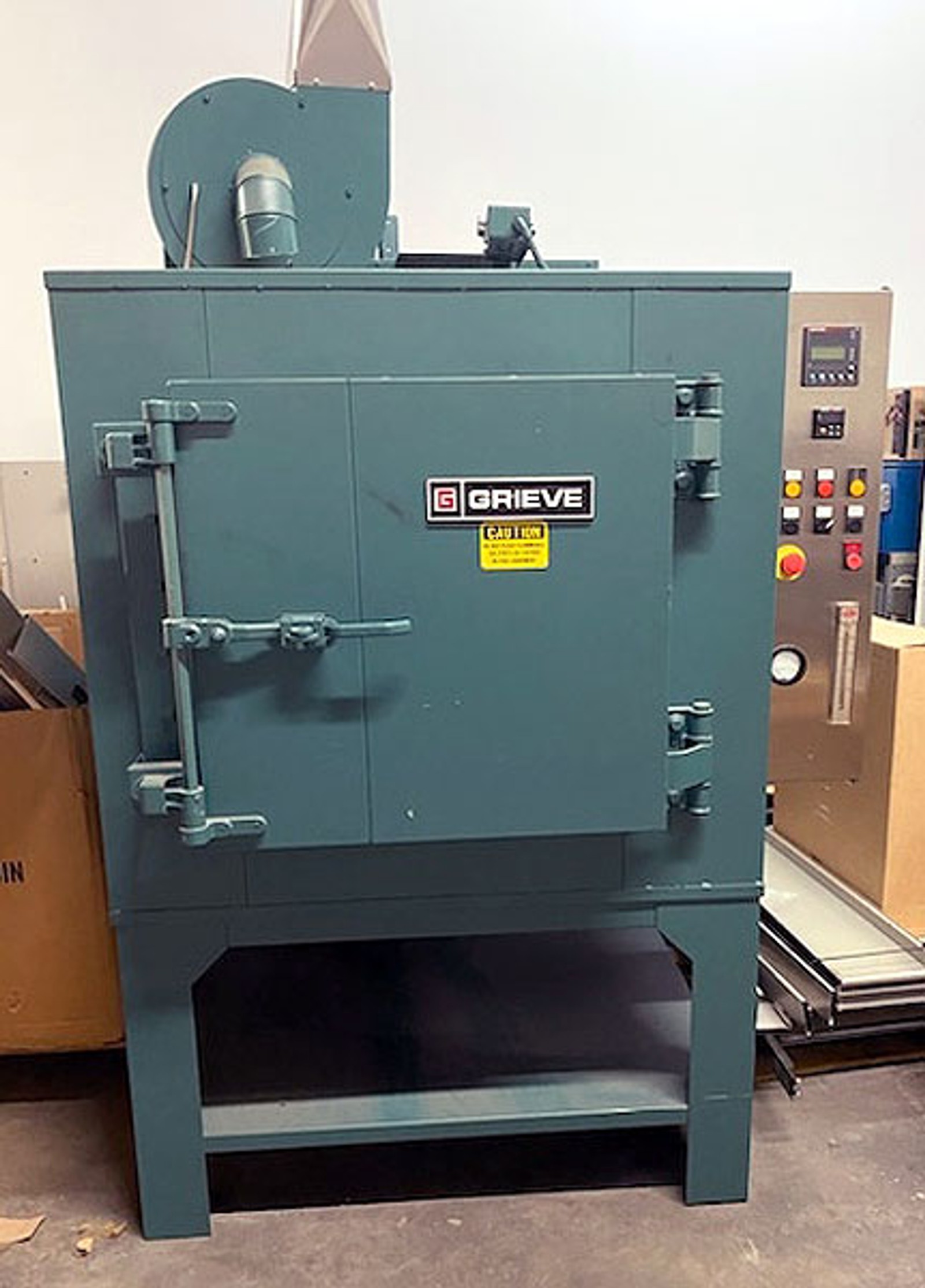

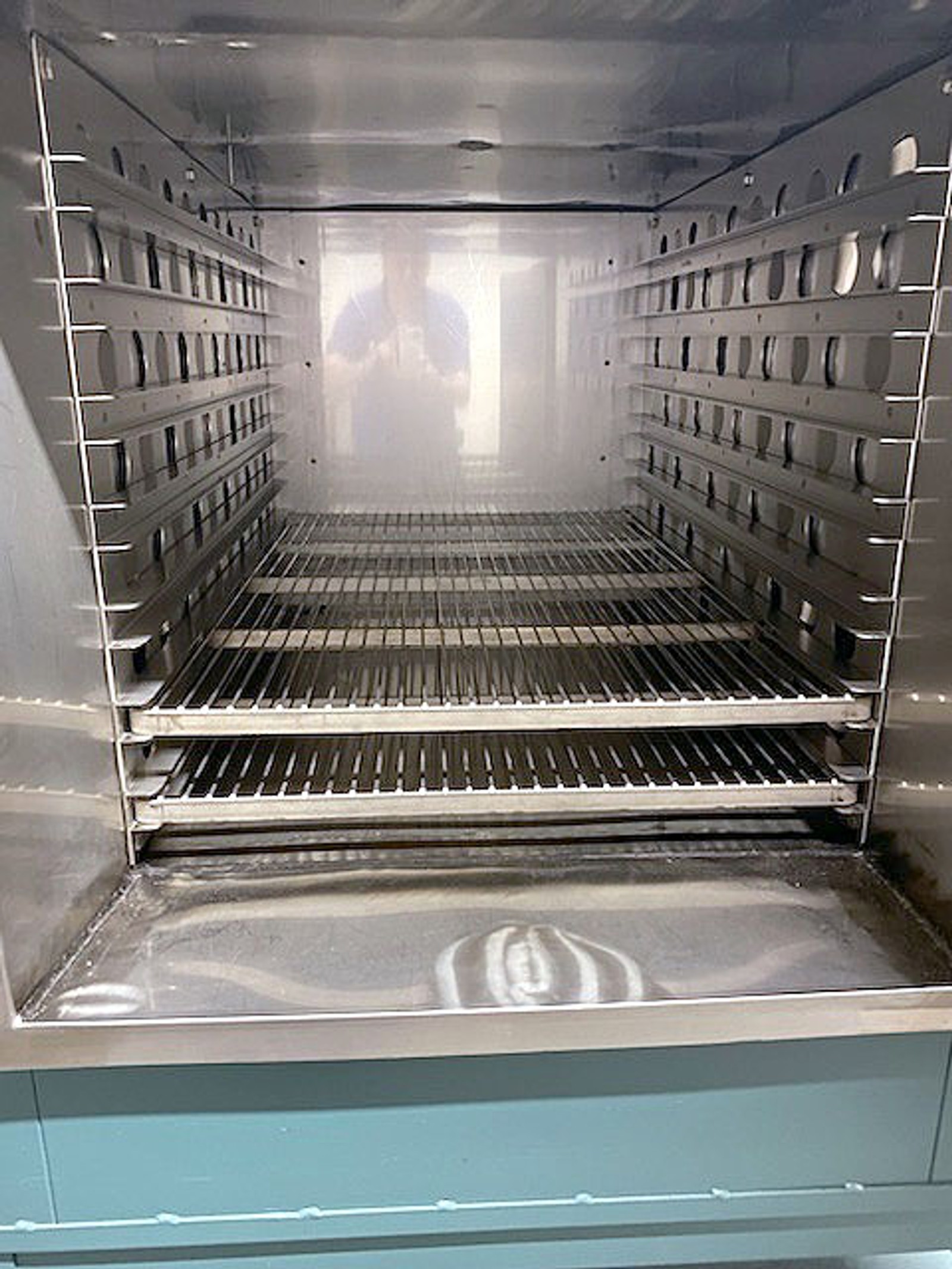

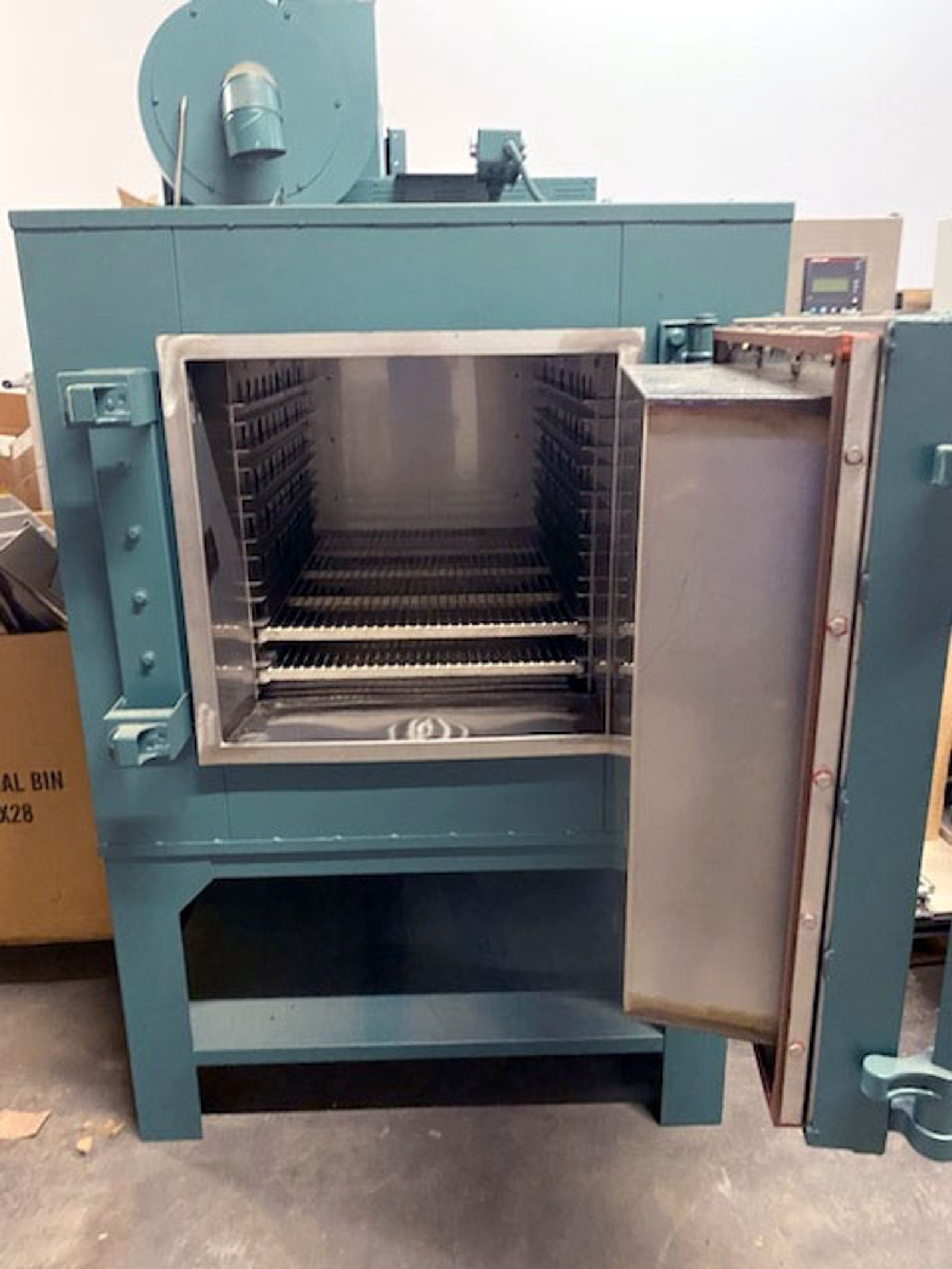

GENERAL: SINGLE SIDE SWING DOOR WITH PRESSURE LATCHES AND STAINLESS

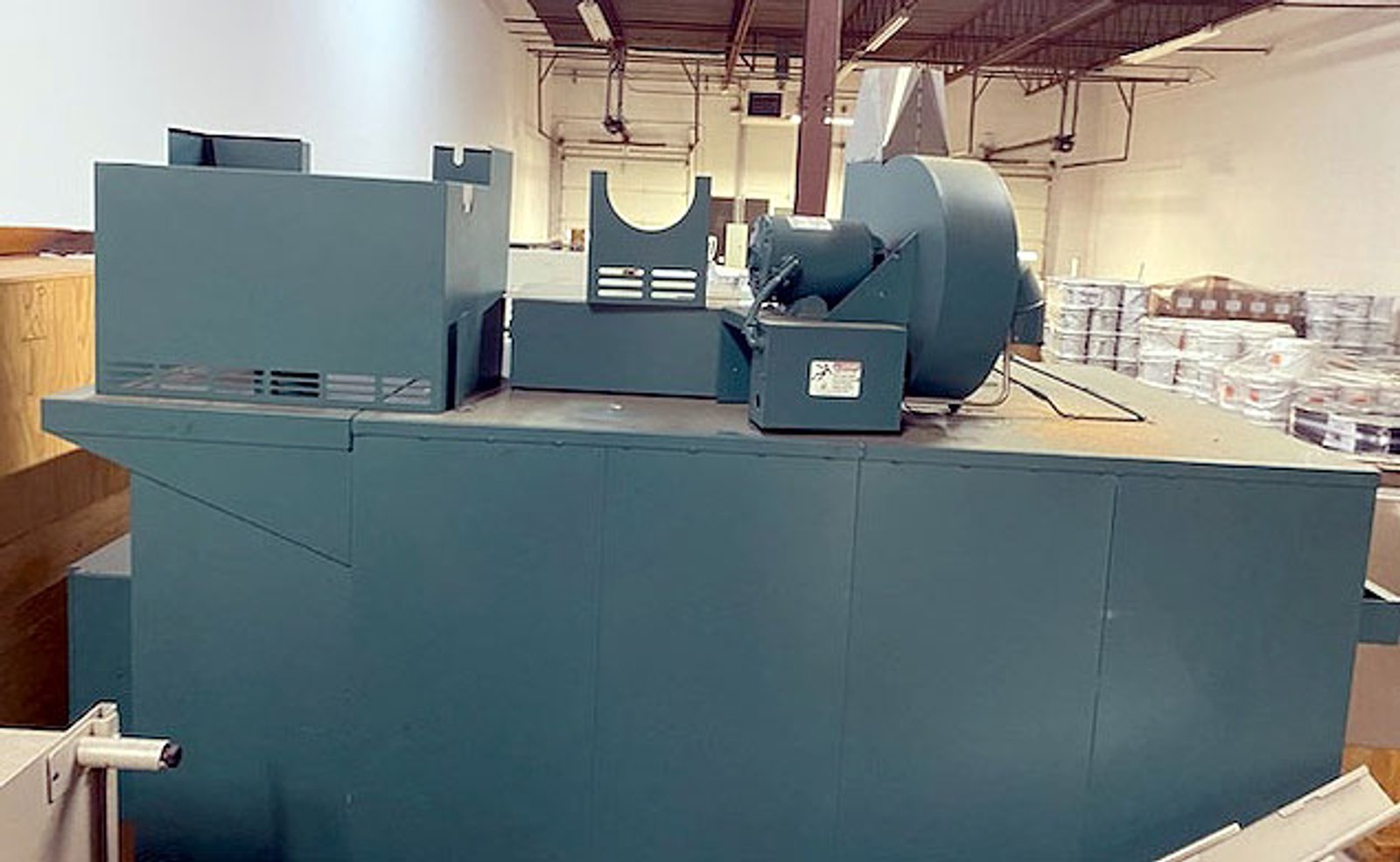

STEEL INTERIOR. HEATING ELEMENTS AND CIRCULATING FAN ARE IN A
PROTECTED CHAMBER BEHIND WORK AREA. HEATED AIR IS CIRCULATED

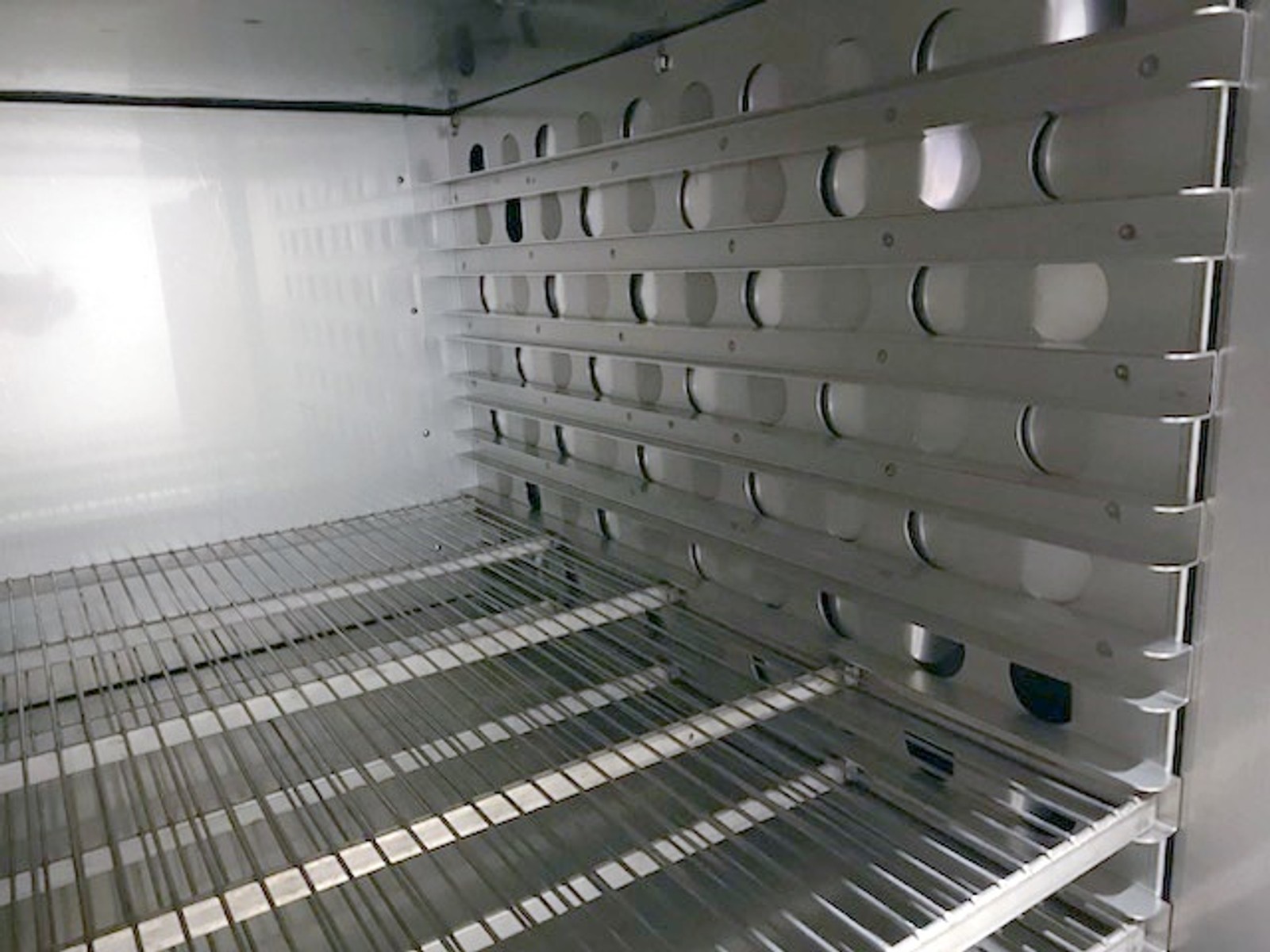

HORIZONTALLY. PROVISIONS FOR (7) SHELVES,(2) SHELVES INCLUDED.
POWER TO HEATING ELEMENTS IS THROUGH SCR CONTROL. CAN BE USED
WITH INERT ATMOSPHERE AND IS EQUIPPED WITH A COOLING BLOWER
THAT WILL COOL WORK CHAMBER WHILE UNDER ATMOSPHERE.
MANUFACTURED IN 2014 FOR $30,000 HAS SEEN LITTLE OR NO USE.

WEIGHT: APPROX 1400 LBS
