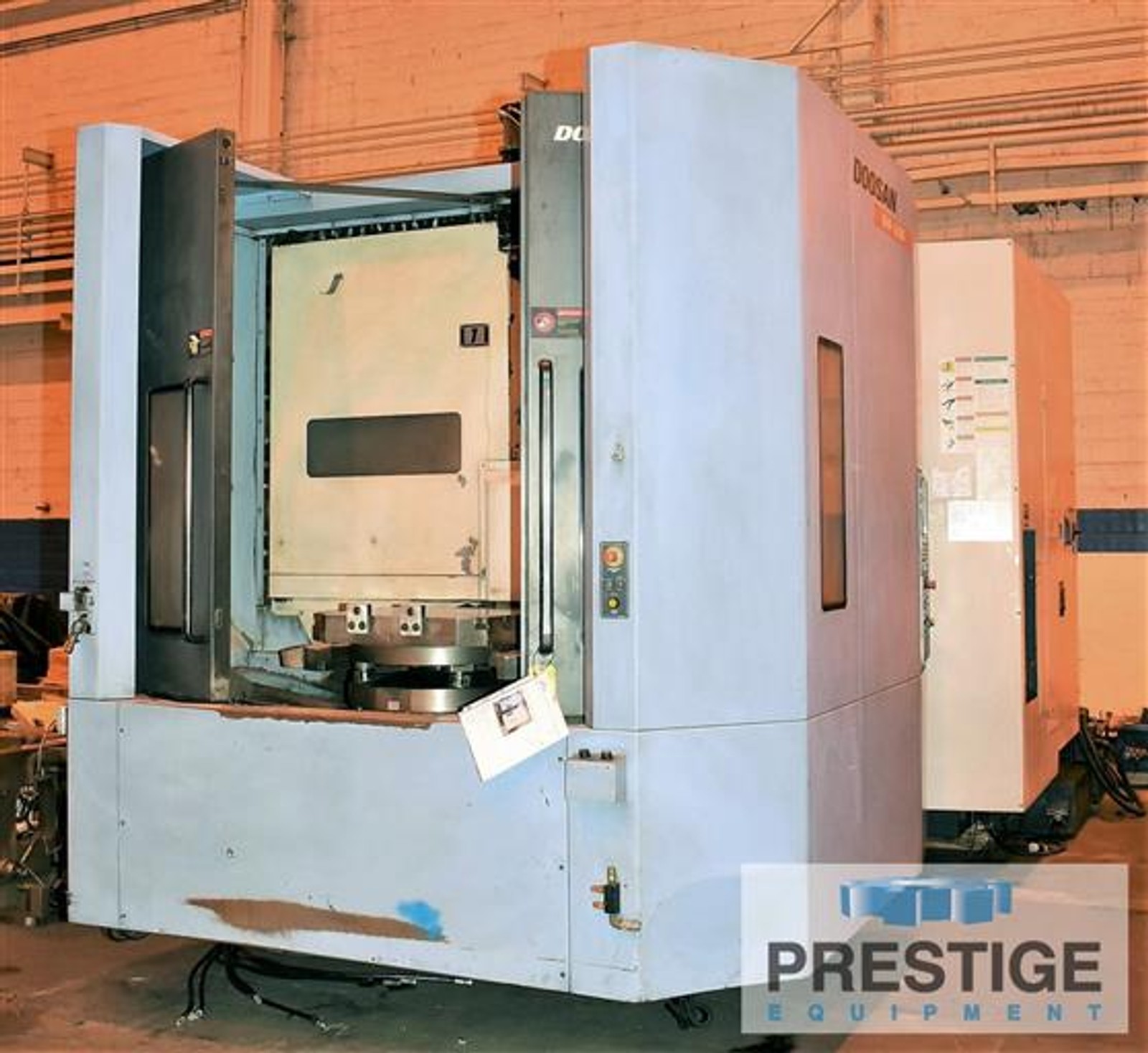

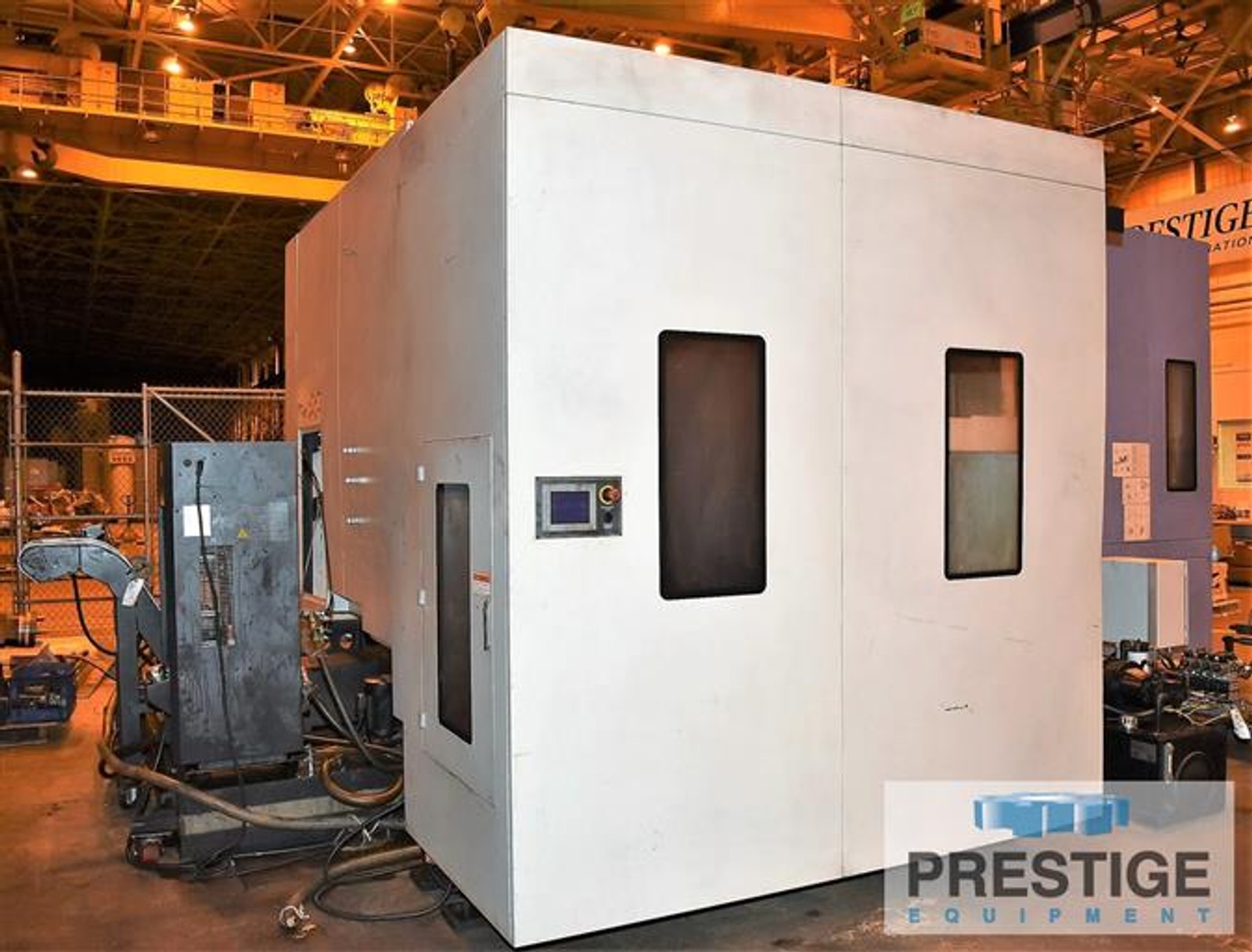

Doosan NHP6300, X-41", Y-35", 25" x 25", 2 APC, 1 Deg., 10,000 RPM, 90 ATC, Fanuc 31iMB, 2014, #32230

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

32230

Model

NHP-6300

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32230
Doosan NHP-6300 CNC Horizontal Machining Center

FEATURES:

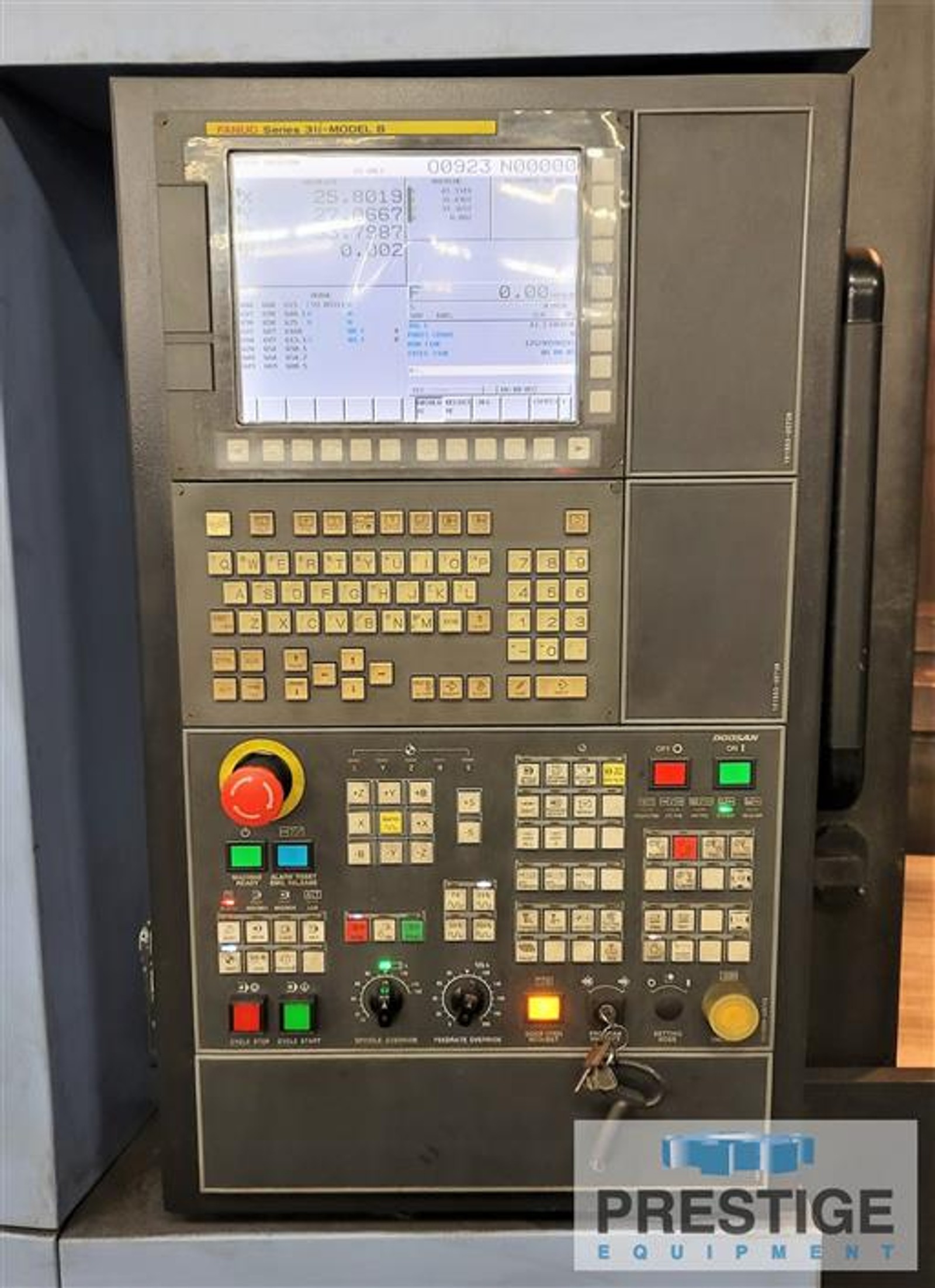

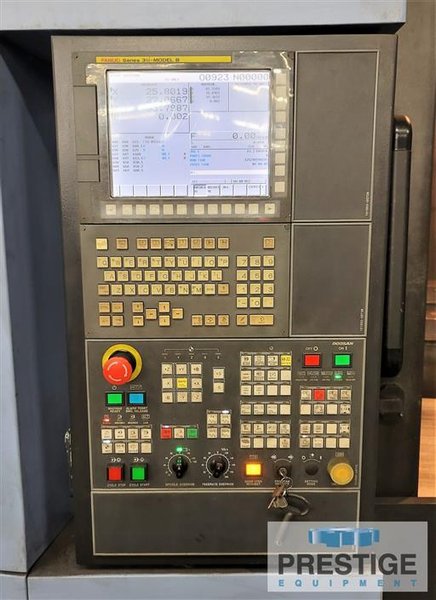

FANUC 31i-B 4-Axis CNC Control
Dual 24.8" x 24.8" Pallets

SPECIFICATION:
X-Axis Travel ......................... 41.34"
Y-Axis Travel ......................... 35.43"
Z-Axis Travel ......................... 39.37"
Spindle Nose To Pallet ................ 3.94"-43.34"
Number Of Pallets ..................... 2

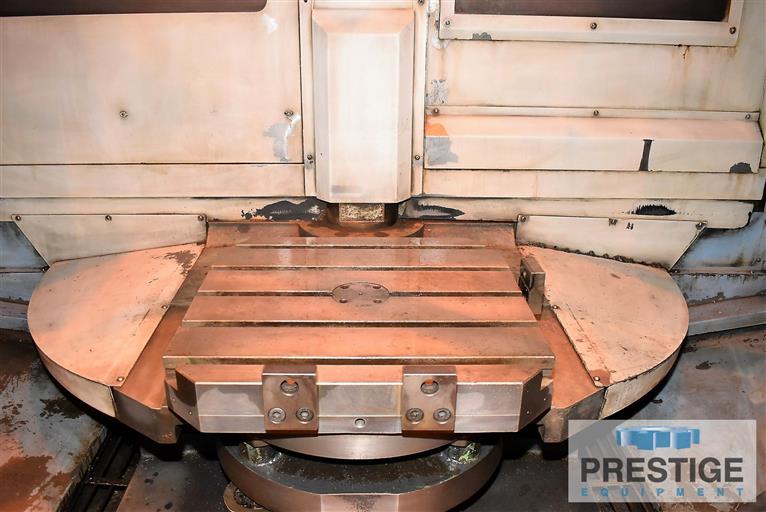

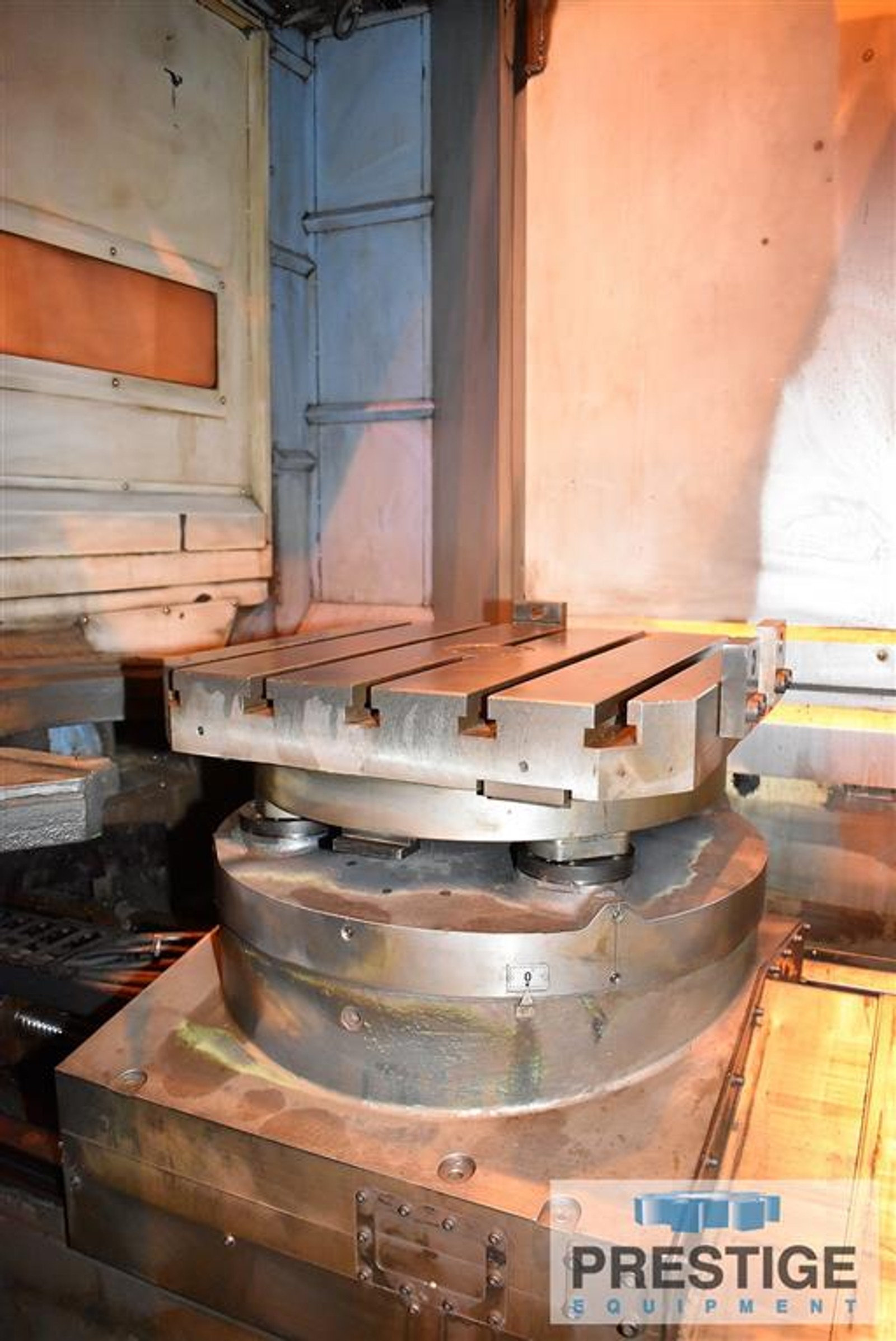

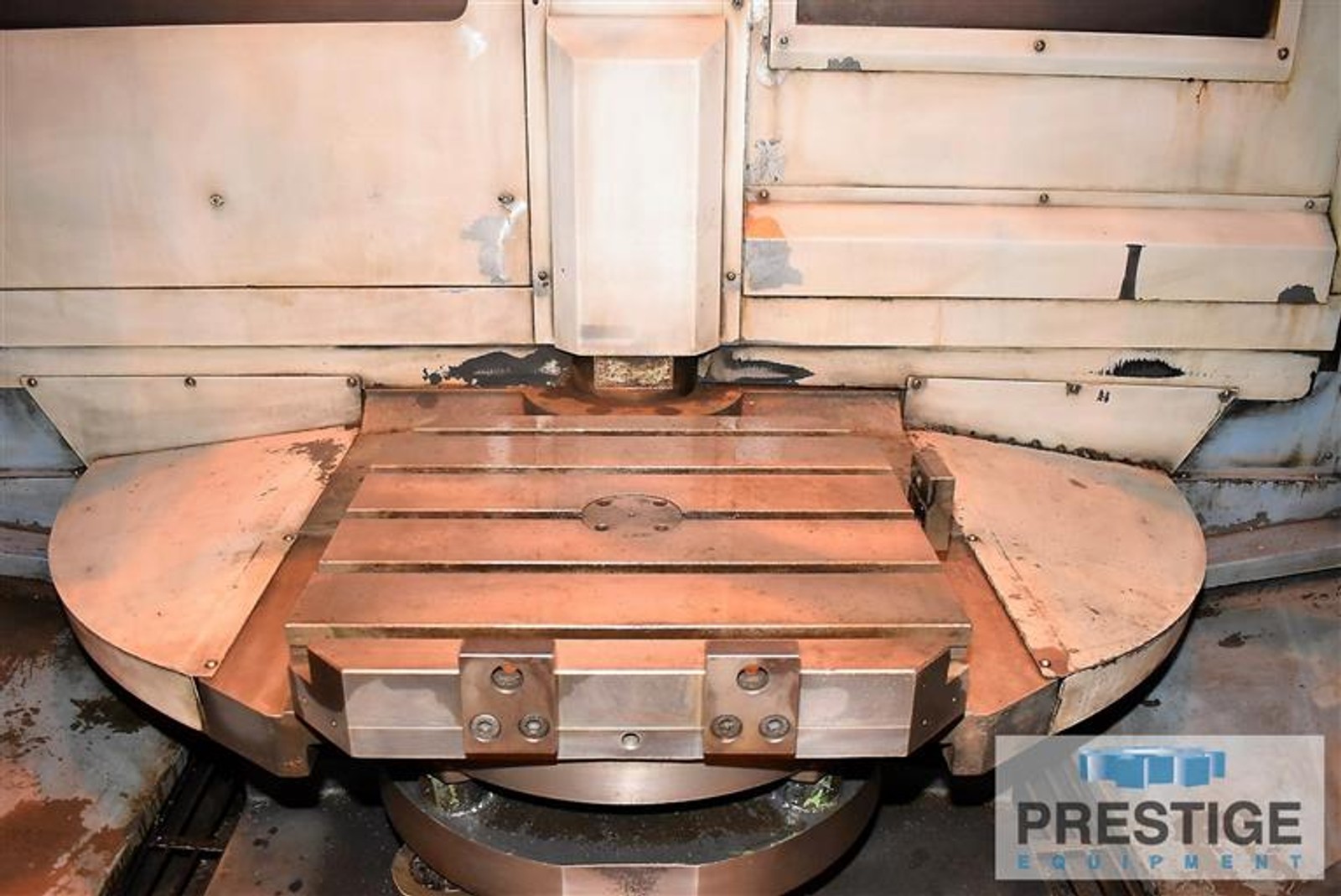

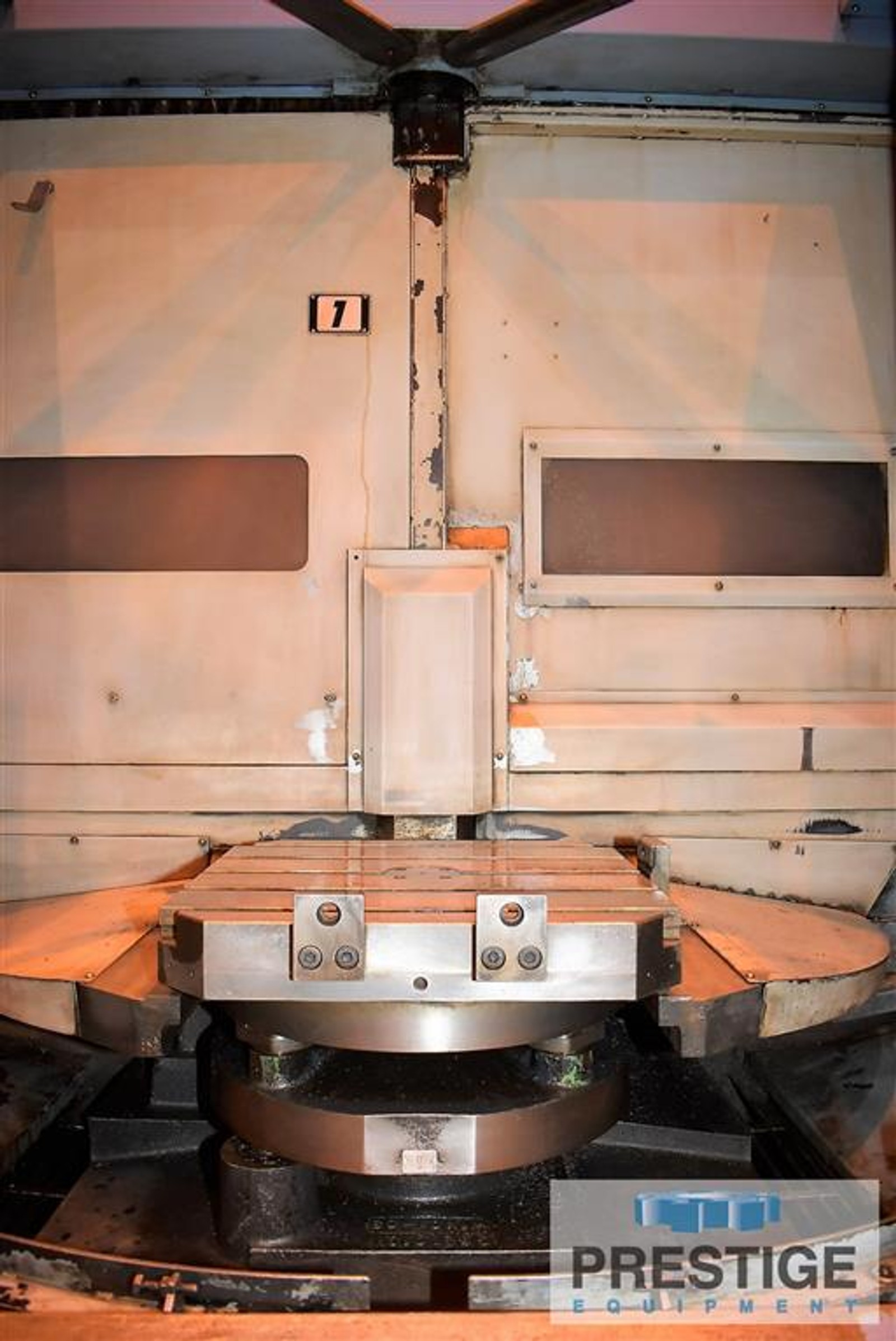

Pallet Size ........................... 24.8" x 24.8"
Pallet Rotation ....................... 1 Degree
Max. Workpiece Weight ................. 3306 Lbs.
Spindle Speeds ........................ 10,000 RPM
Spindle Motor ......................... 50 HP

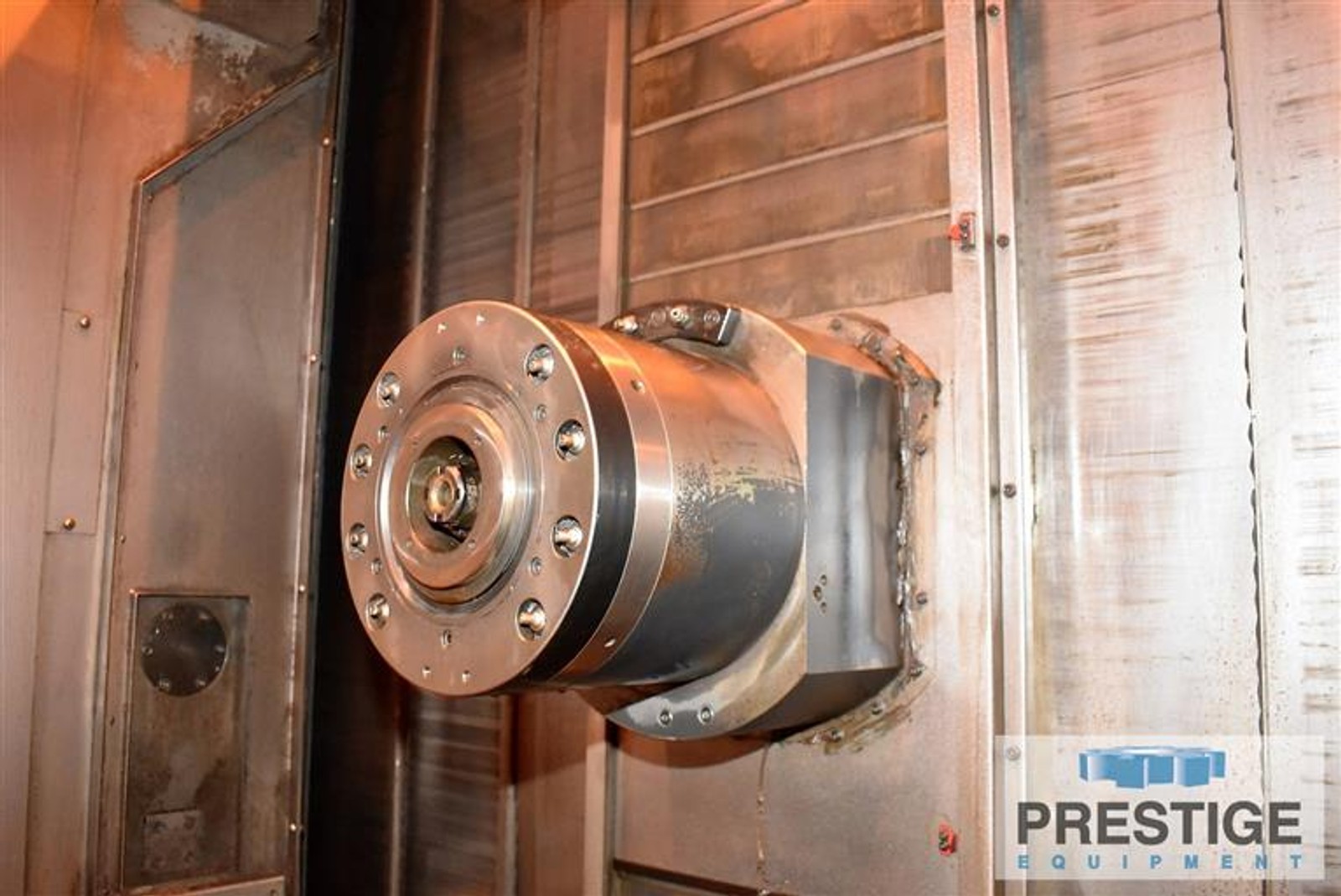

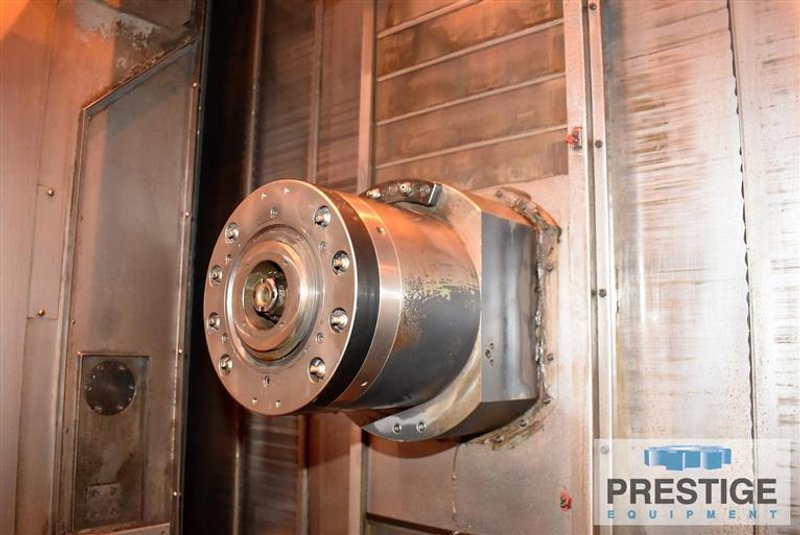

Spindle Taper ......................... HSK-100A
Spindle Nose - Pallet ................. 2.9" - 38.3"
Spindle Nose - Table Center ........... 3.9" - 43.3"

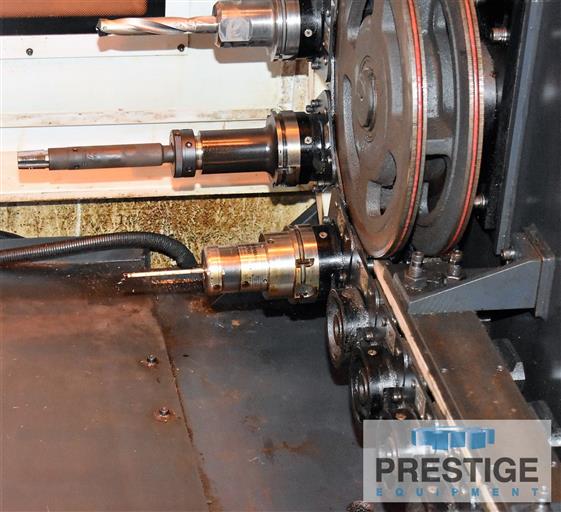

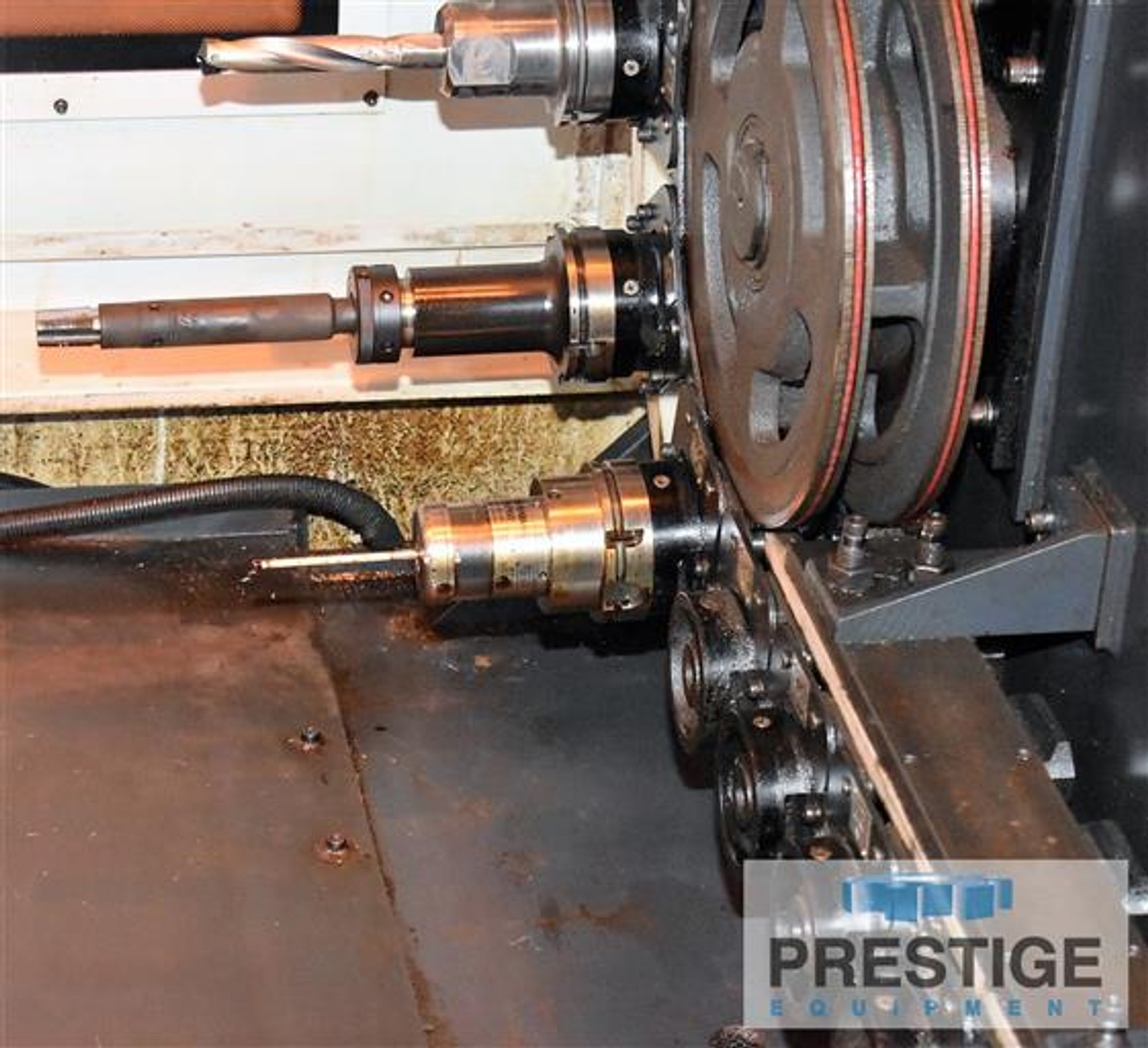

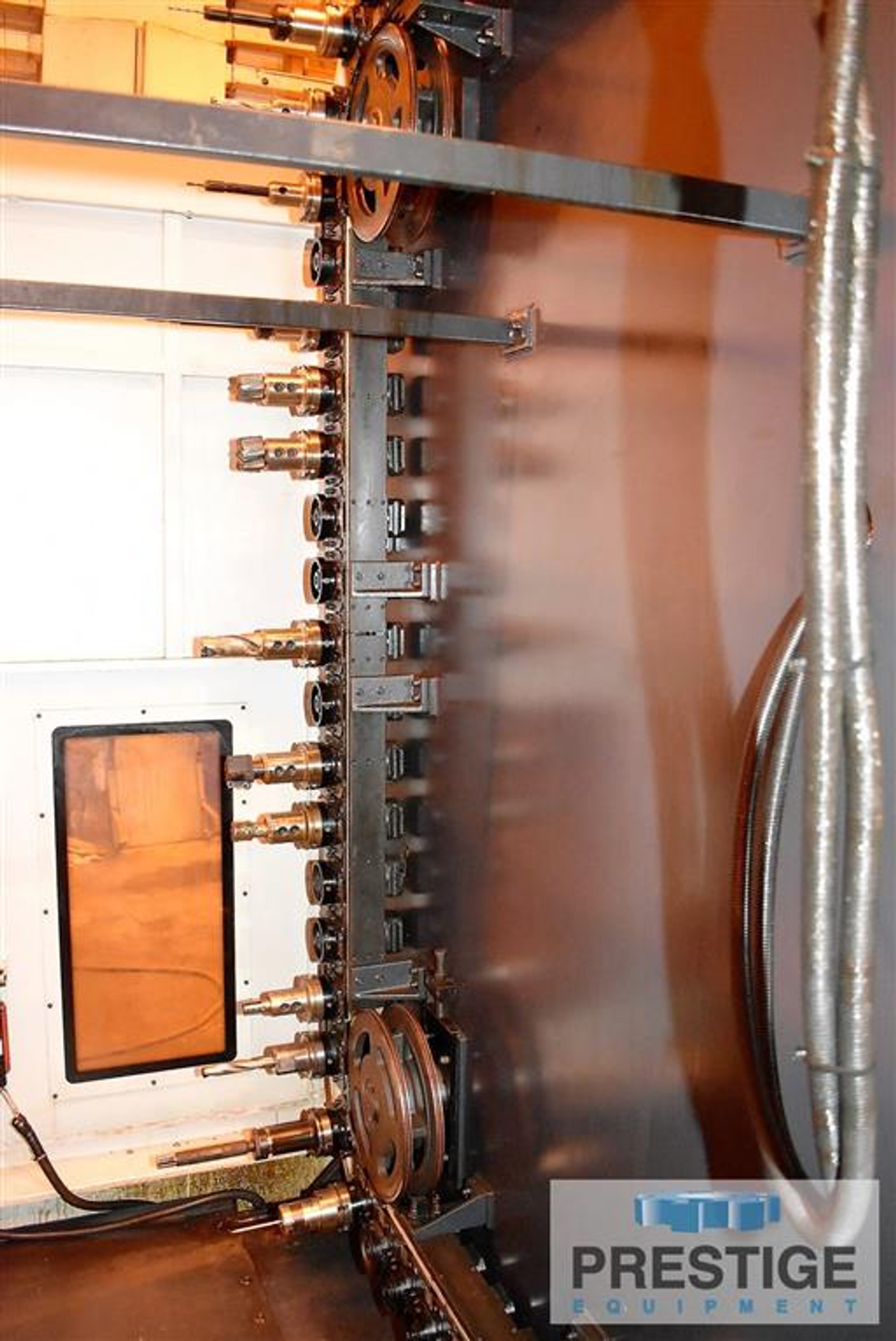

Tool Changer .......................... 60 ATC
Rapid Traverse, X/Y/Z ................. 2,362 IPM
Max. Cutting Feed ..................... 1,181 IPM
Spindle Motor ......................... 50 HP
Dimensions ............................ 257" x 154" x 138"
Approx. Weight ........................ 39,682 Lbs.

EQUIPPED WITH:
FANUC 31i-B 4-Axis CNC Control
Dual 24.8" x 24.8" Pallets
Renishaw Probe
Coolant Through Spindle
Flood Coolant
