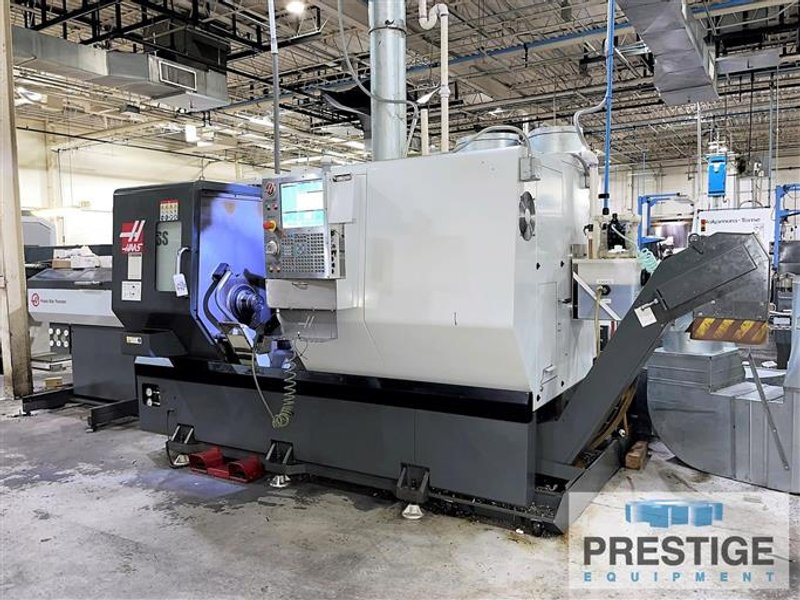

Haas DS-30SS, 31" Swing, Sub-Spindle, 12-Pos. Turret, 4800 RPM, Bar Feed, 1000 PSI Coolant, Haas CNC, 2016, #32282

Manufacturer

HAAS

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32282

Model

DS-30SS

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32282

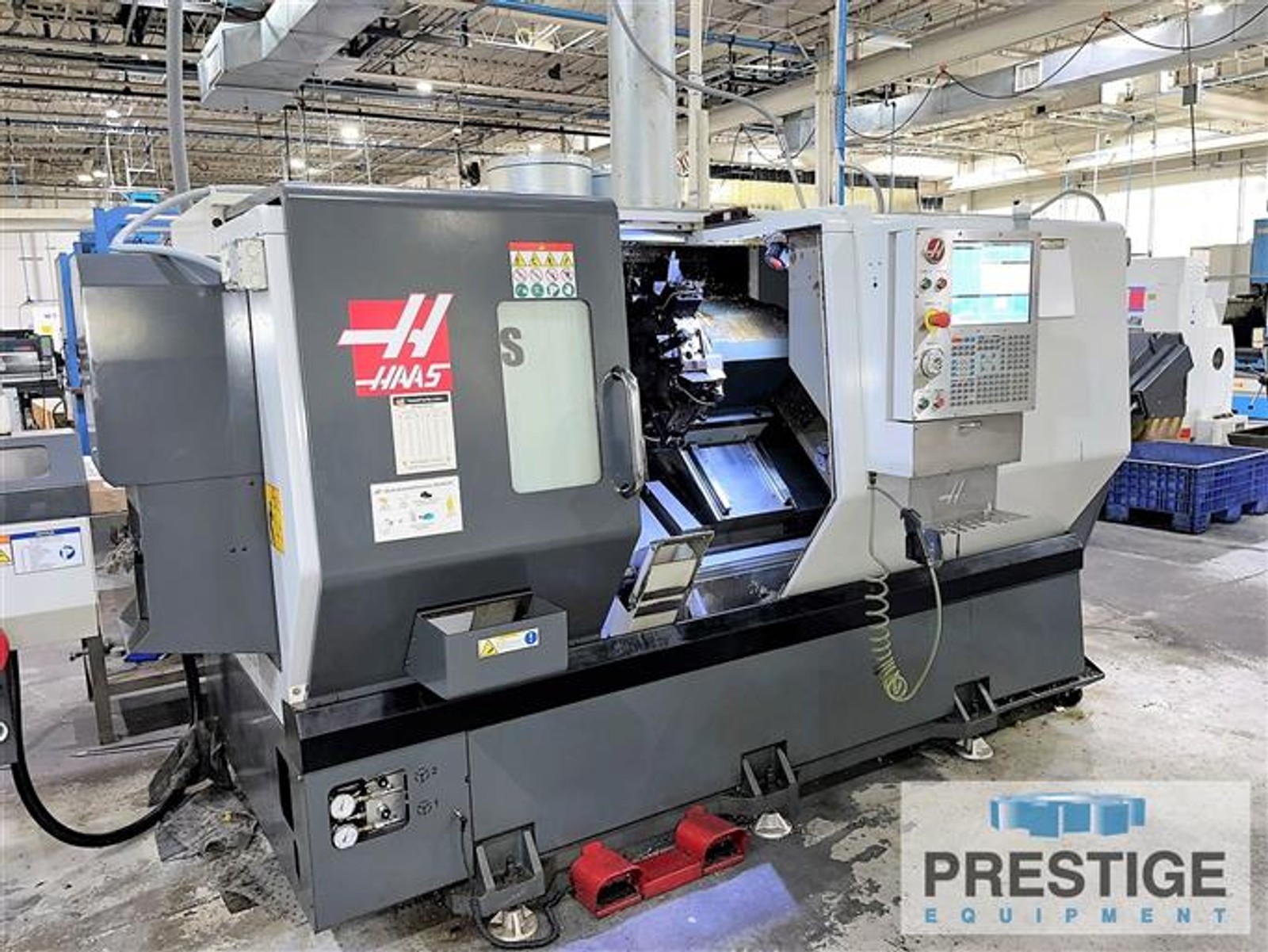

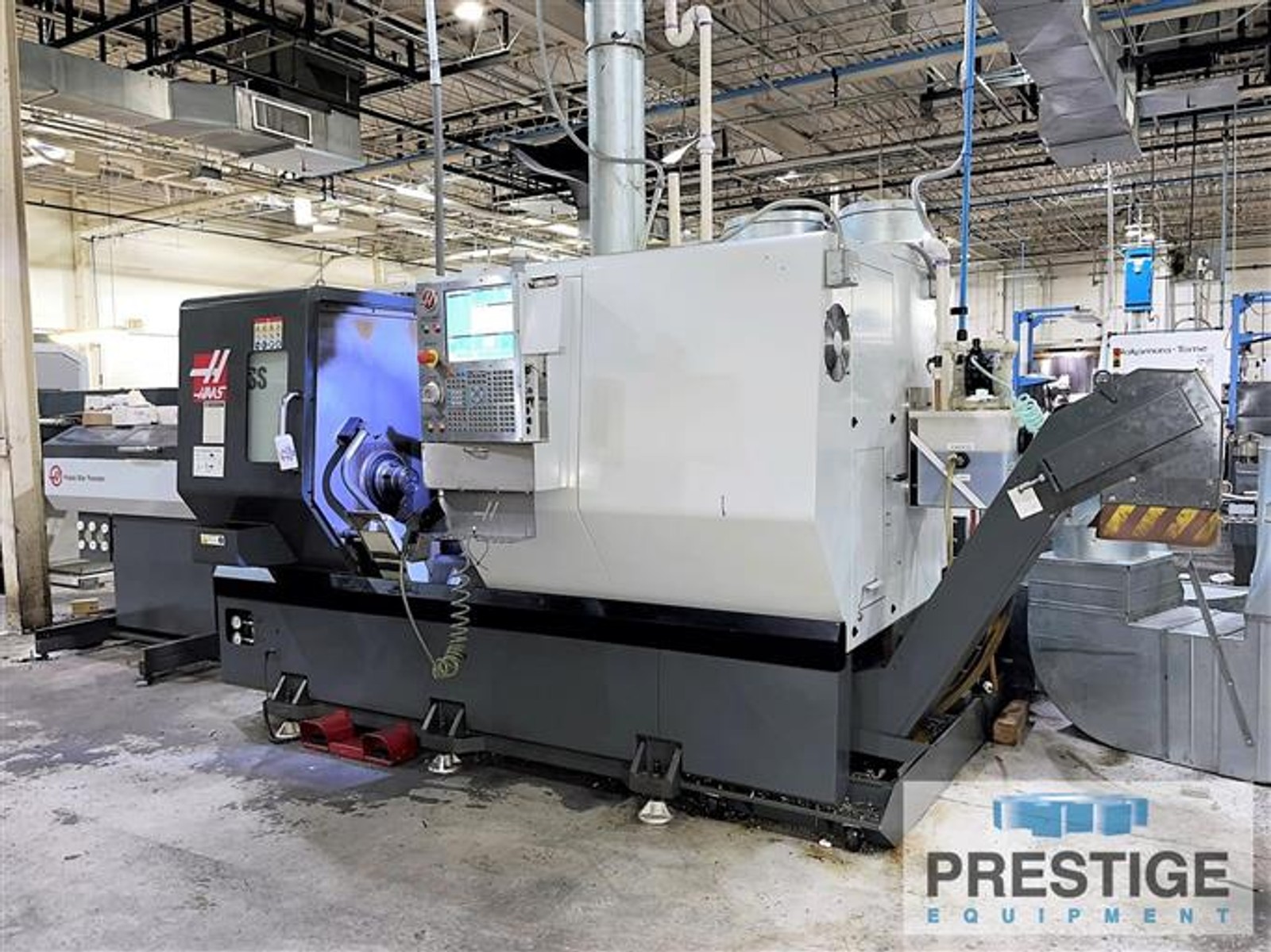

HAAS DS-30SS Dual Spindle CNC Lathe

FEATURES:
Haas CNC Control
Main Spindle

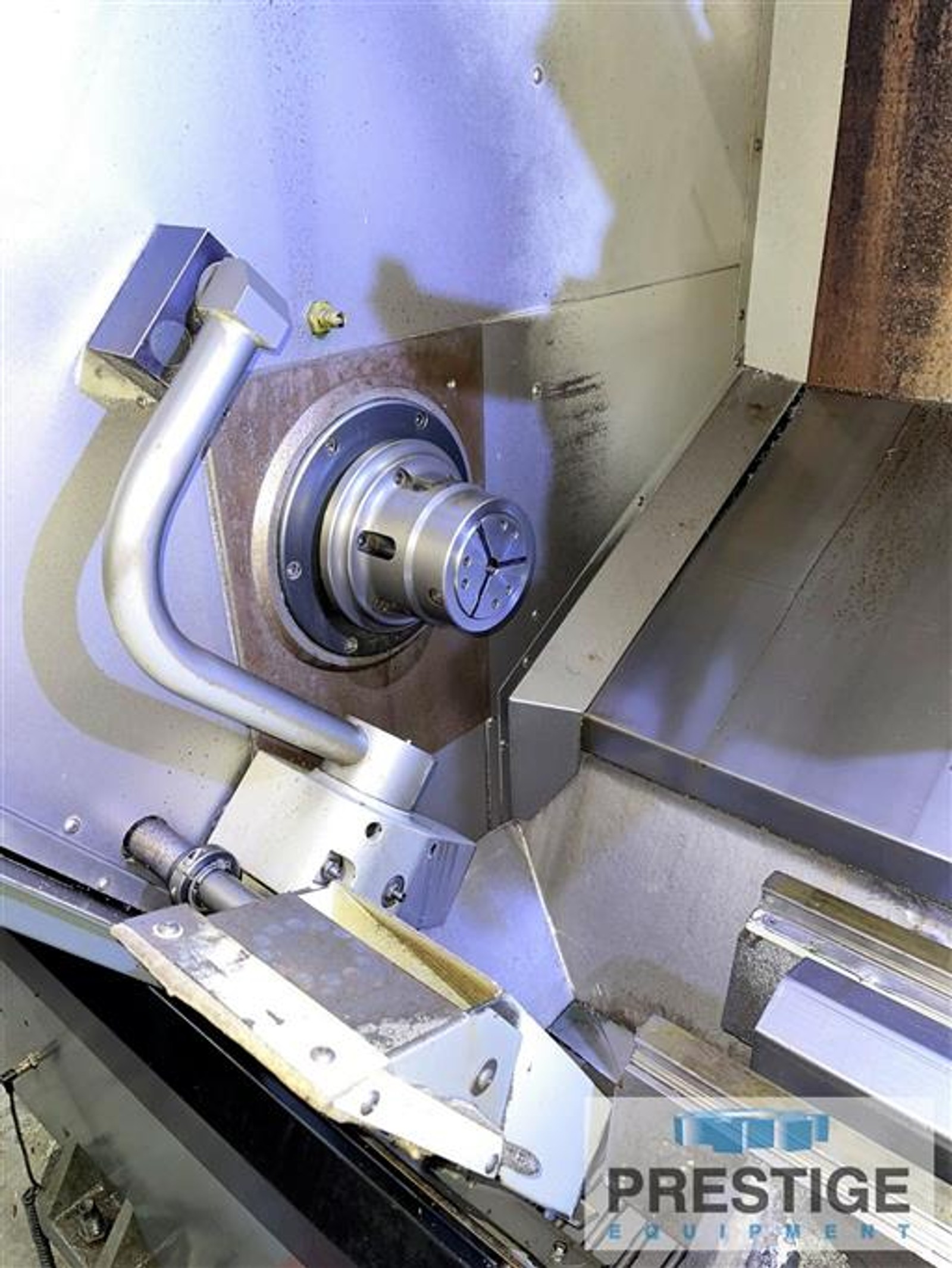

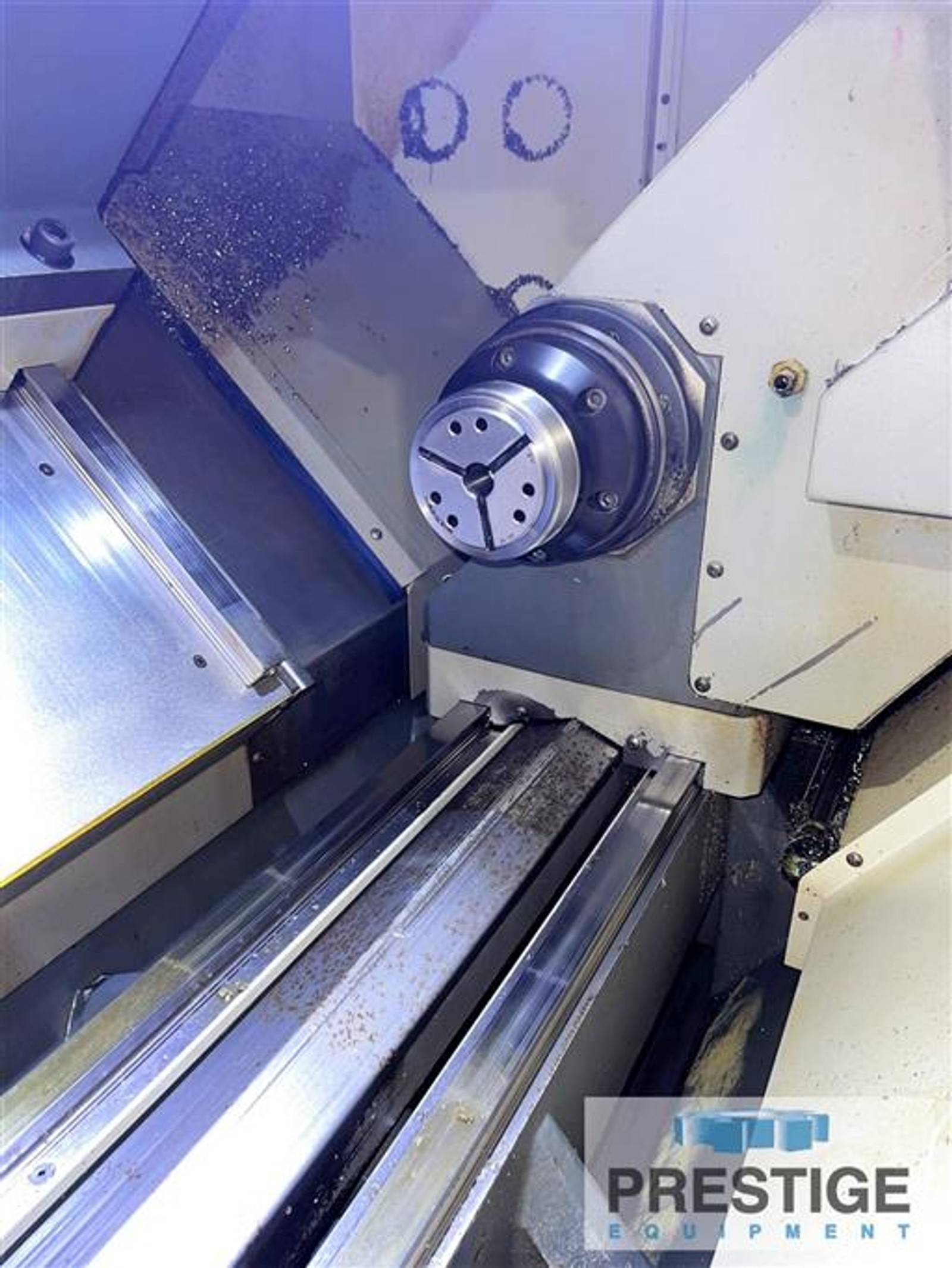

Sub-Spindle

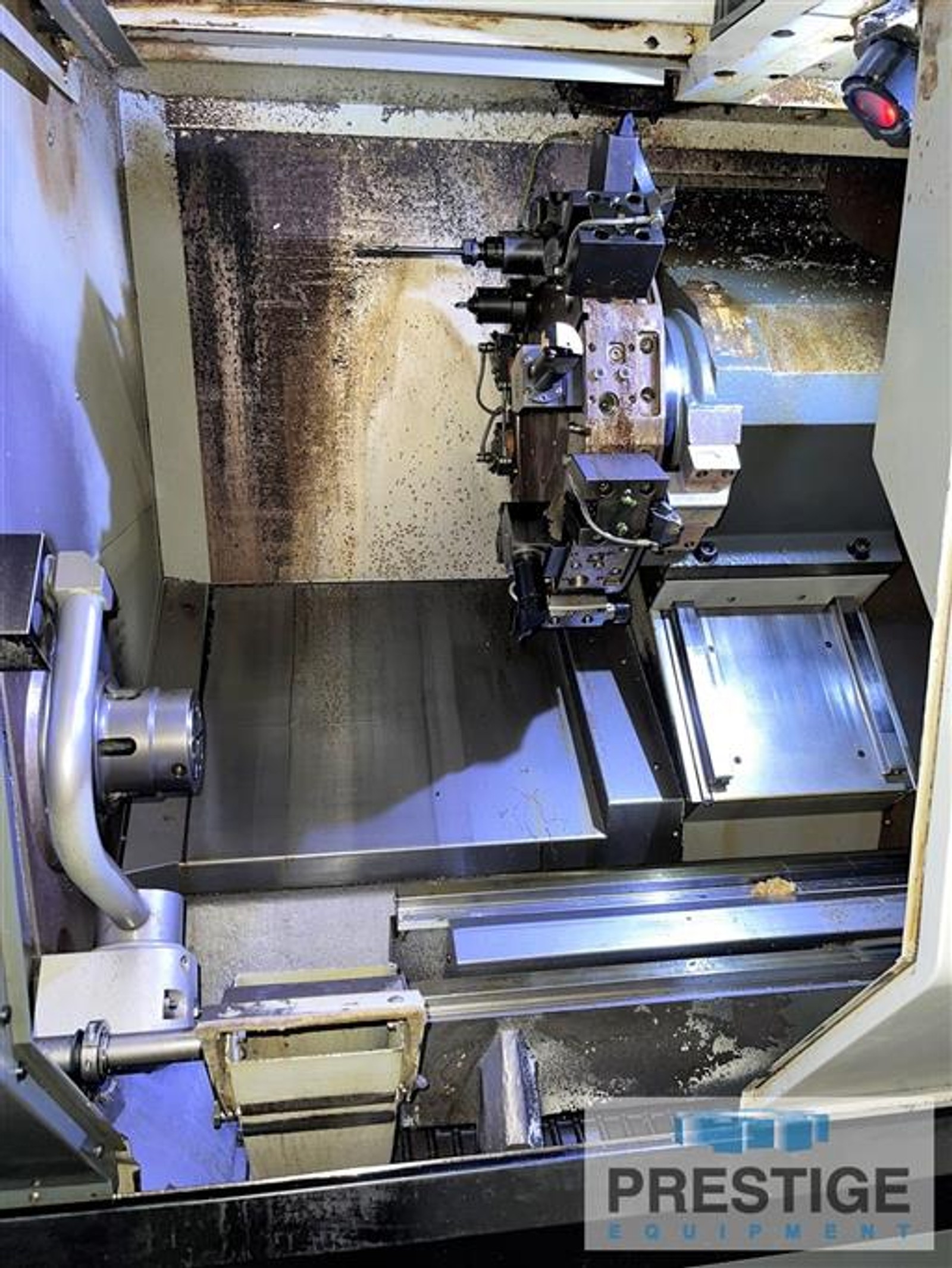

12-Station Turret

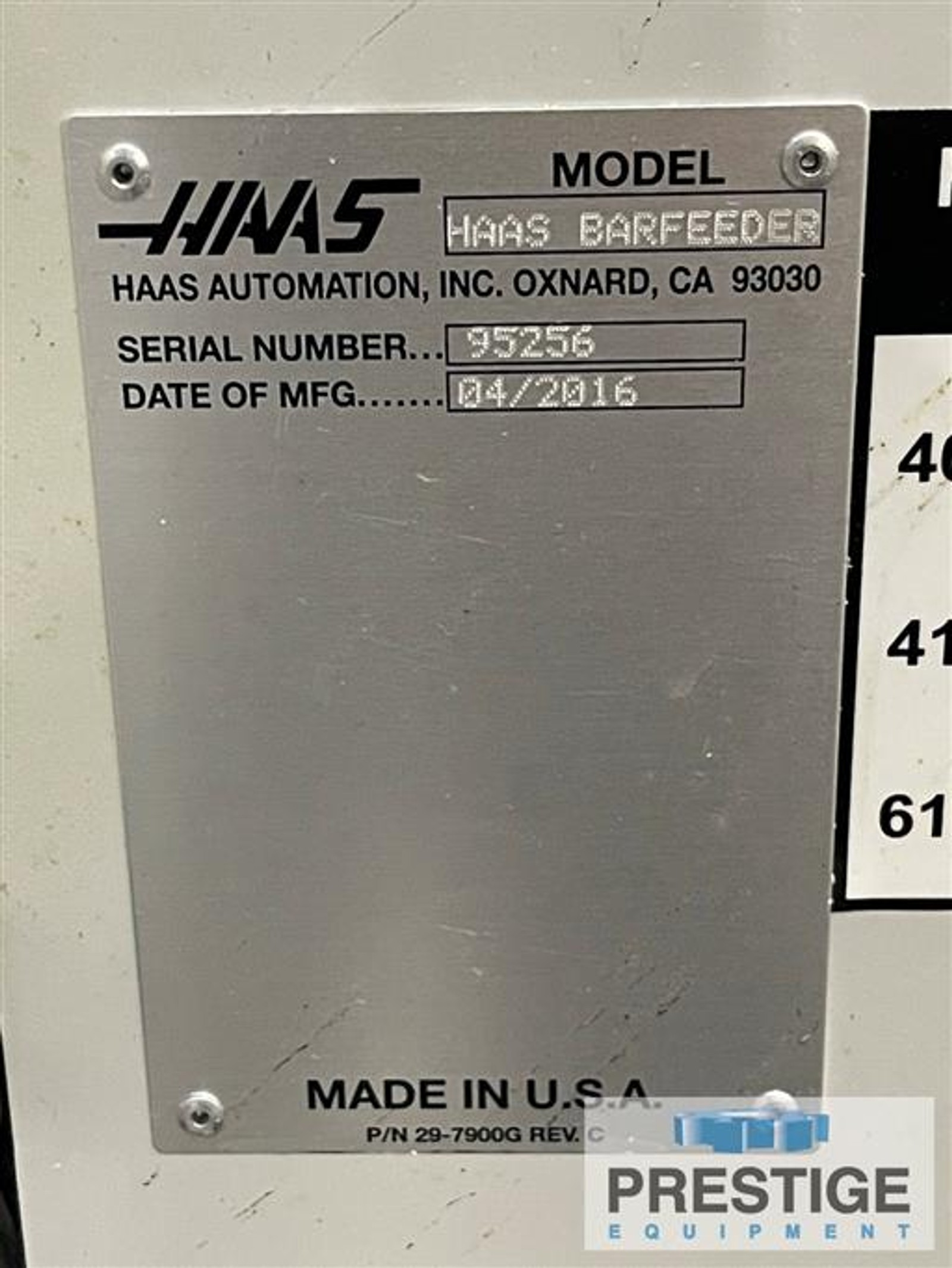

Haas Magazine Bar Feed
Renishaw Probe
Chip Conveyor

SPECIFICATIONS:
Swing Over Bed ........................ 31.75"
Swing Over Cross Slide ................ 20.75"
Maximum Turning Diameter .............. 16"
Maximum Turning Length ................ 26.11"
X-Axis Travel ......................... 12.5"
Z-Axis Travel ......................... 26"
Spindle Speed, Main/Sub Spindle ....... 4,800 RPM
Spindle Bore, Draw Tubes Installed .... 2.05"
Spindle Nose, Main .................... A2-6
Spindle Motor, Main ................... 30 HP
Spindle Nose, Sub ..................... A2-5
Spindle Motor, Sub .................... 20 HP

EQUIPPED WITH:
Haas CNC Control
Main Spindle & Sub-Spindle

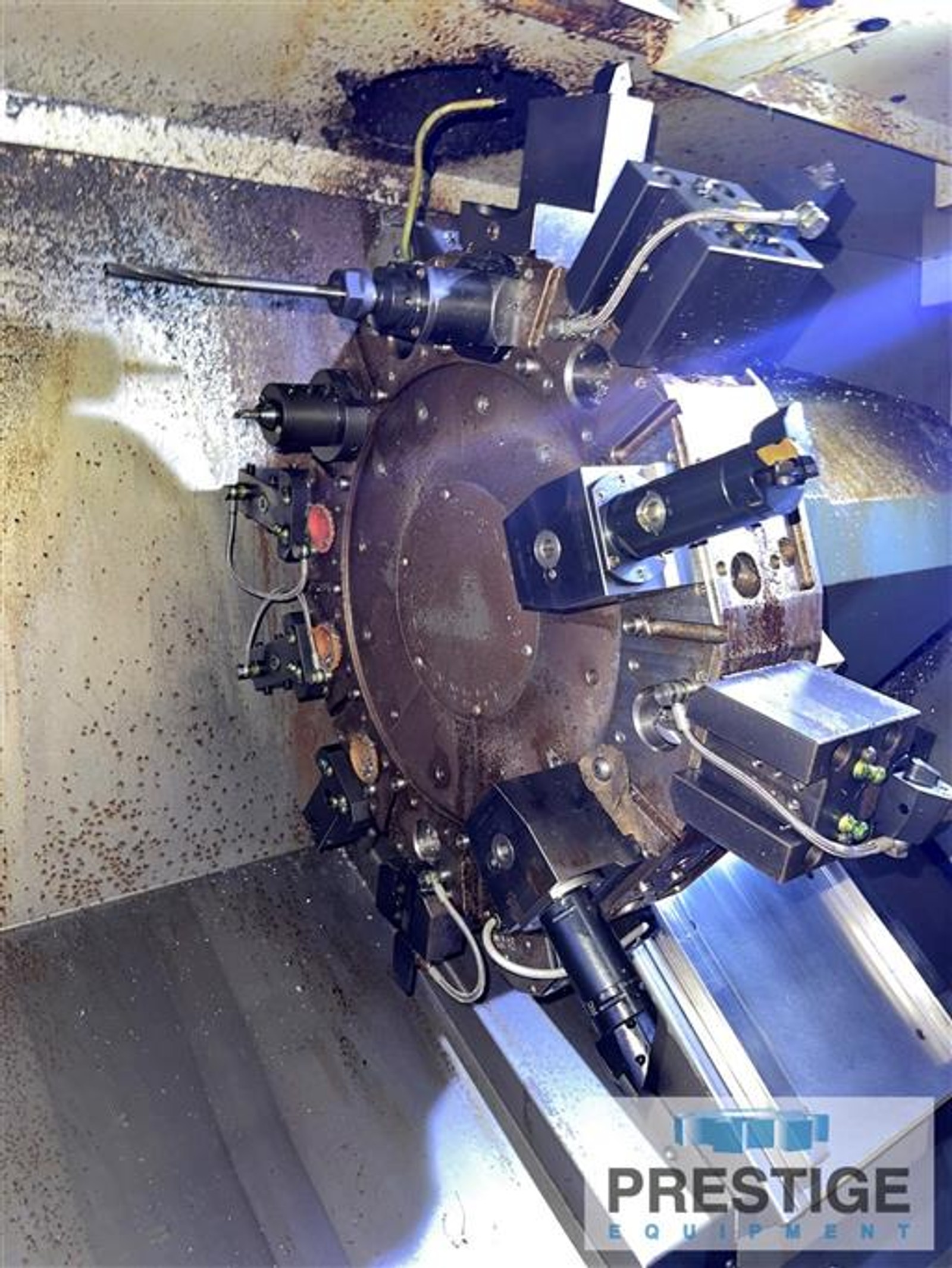

12-Station Turret

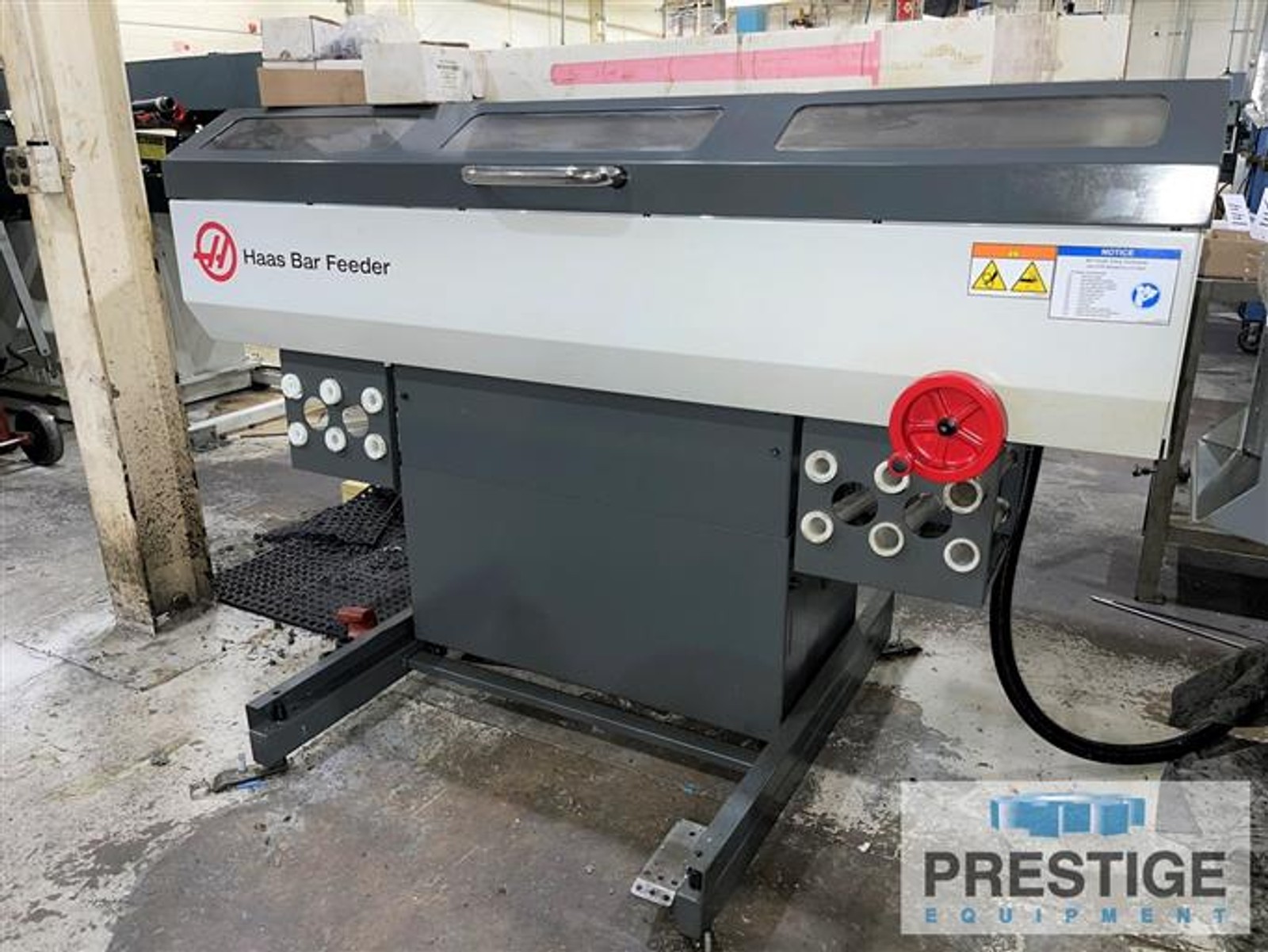

Haas Magazine Bar Feed
Renishaw Probe

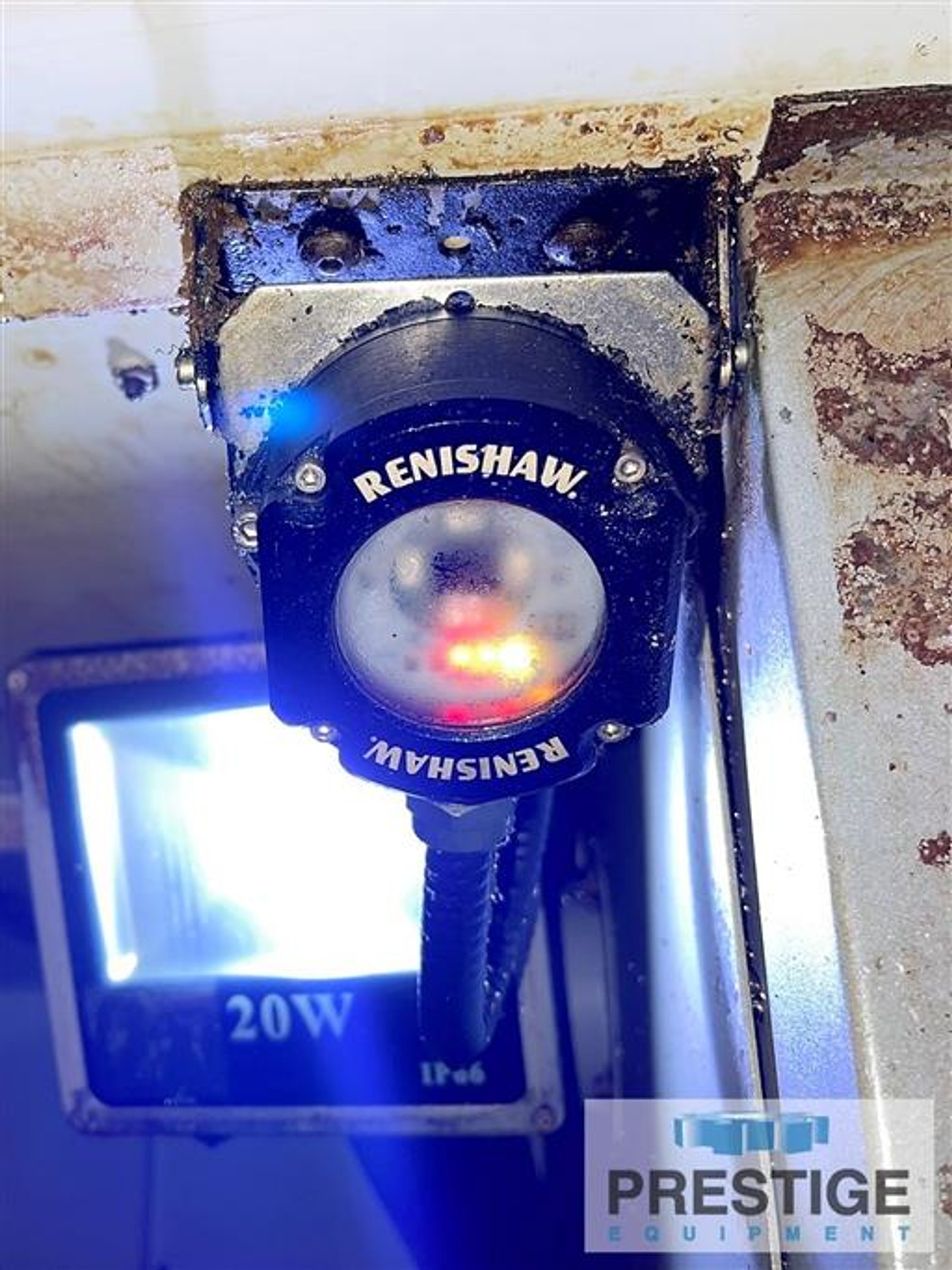

Tool Eye
Auto Chip Blast
1000 PSI Coolant
Rigid Tapping
Spindle Orientation
Parts Catcher

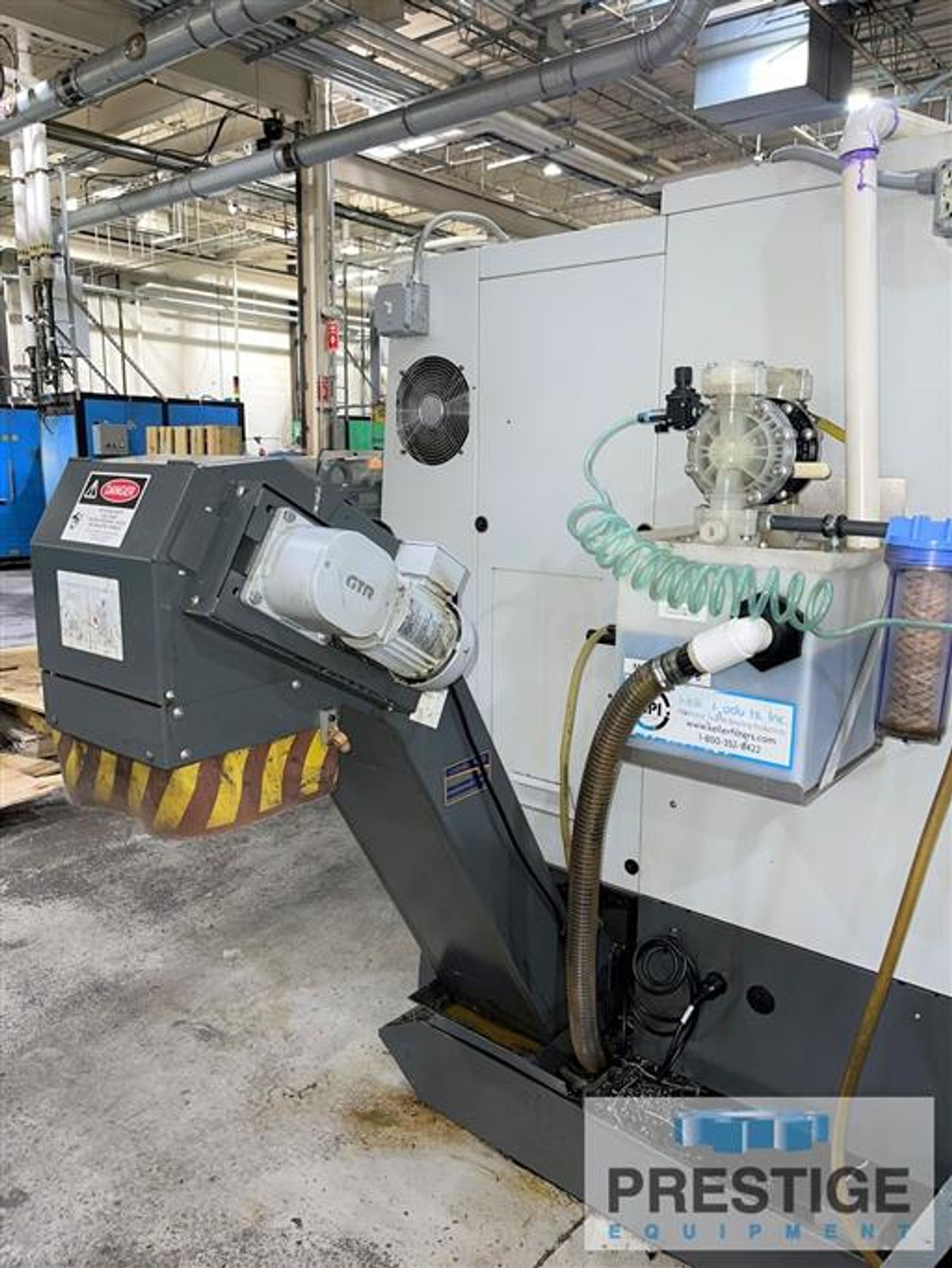

Hennig Chip Conveyor

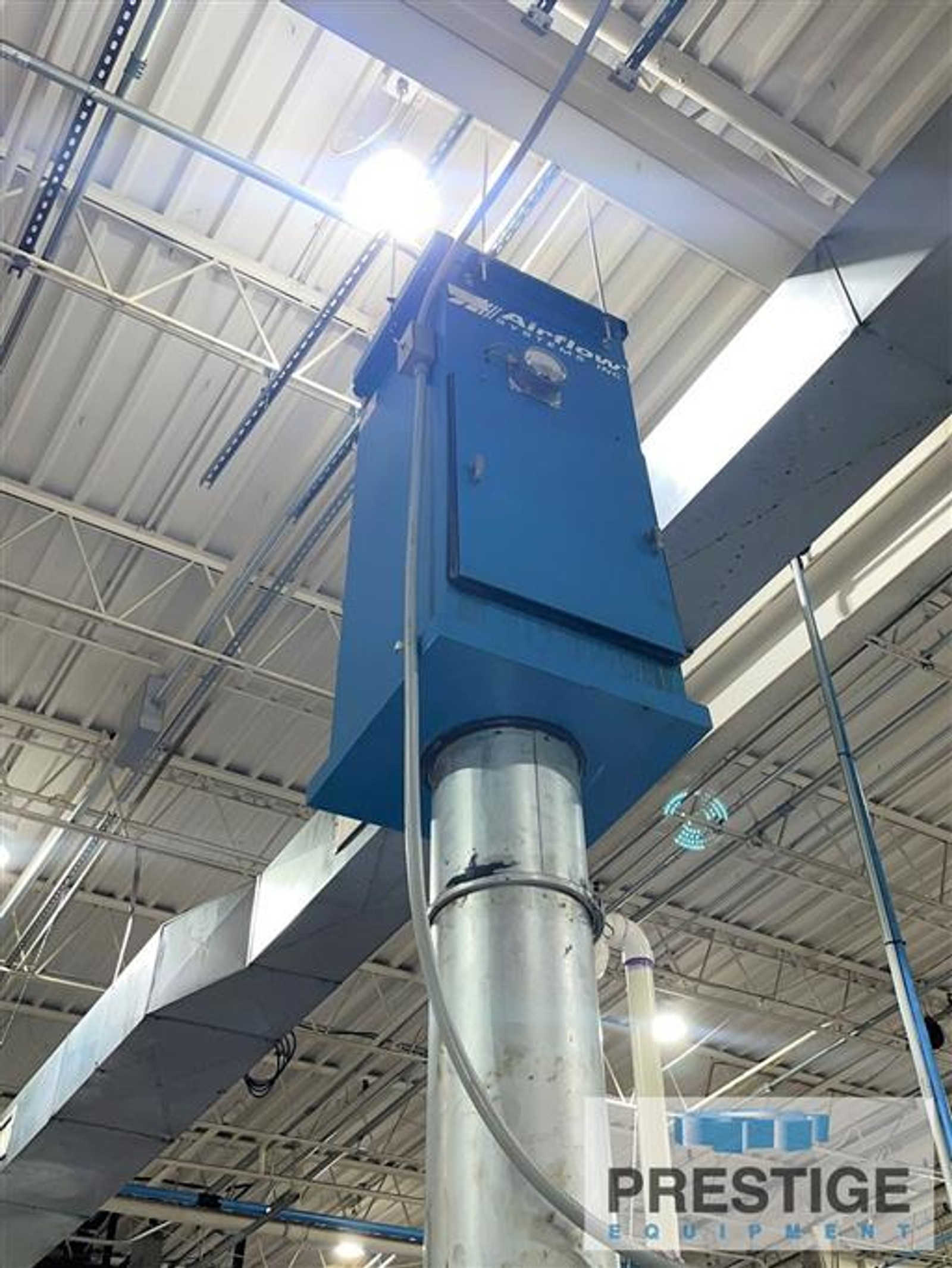

Airflow Systems Mist Filter

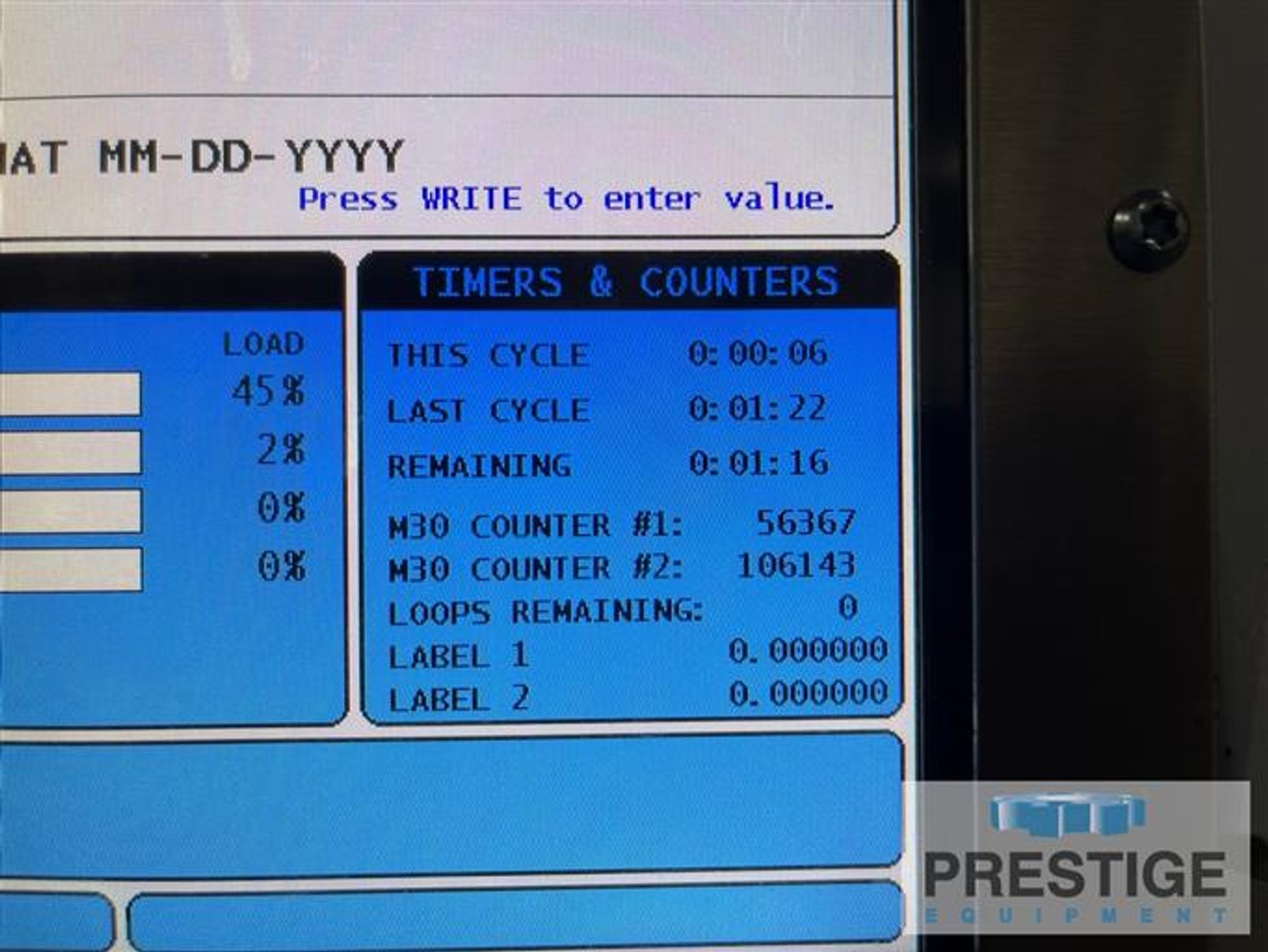

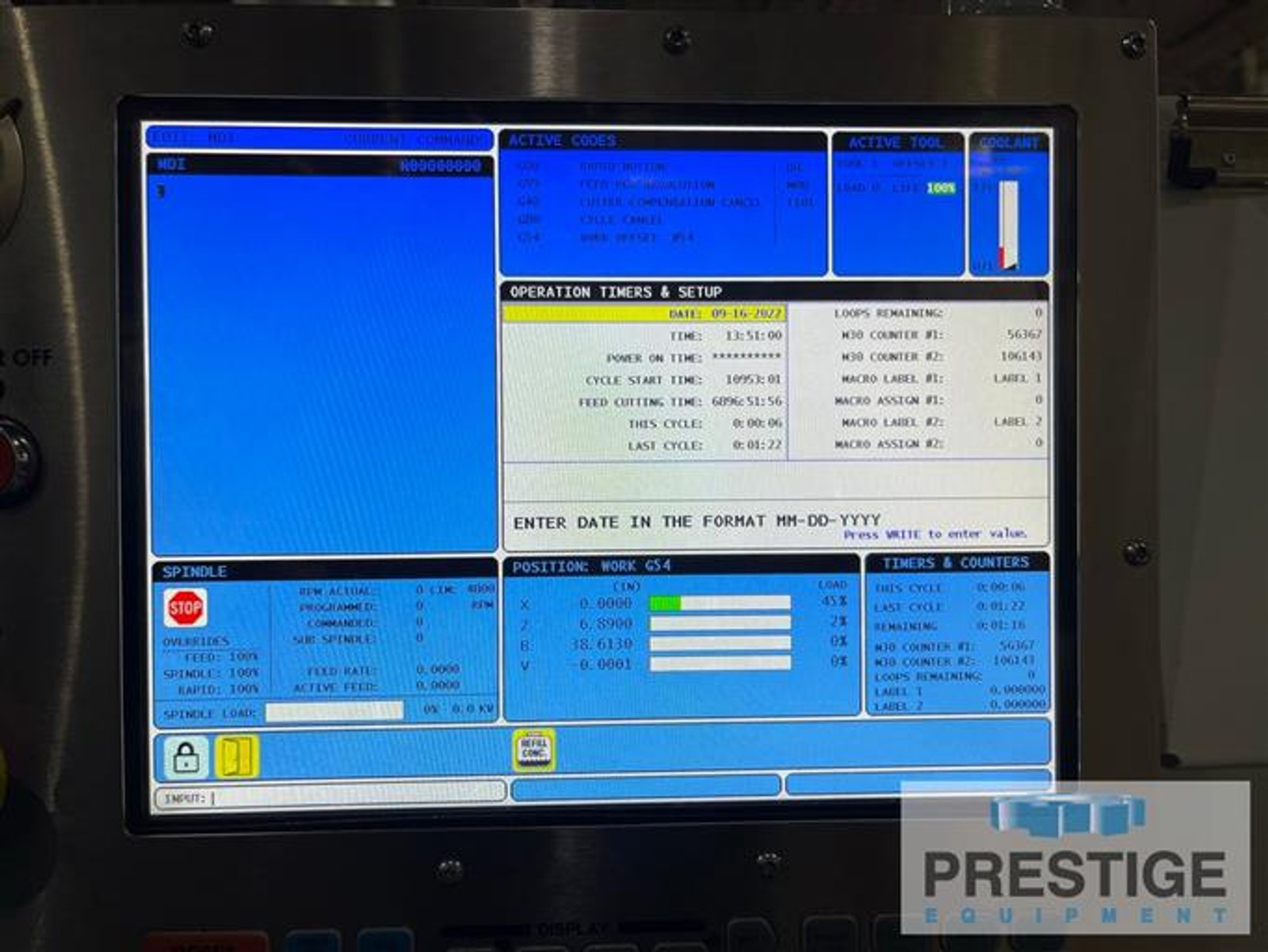

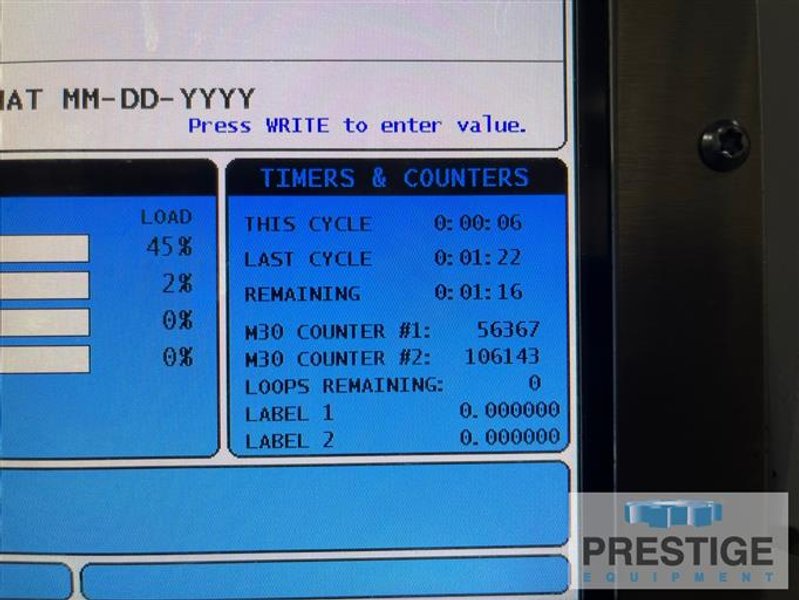

HOURS:
10,953 Cycle Start Time
6896 Feed Cutting Time

LOCATION:
Philadelphia, PA
