Hyundai Wia L210-LSA, 22" Swing, Sub-Spindle, 12-Pos. Turret, HP Cool, LNS Bar Feed, Fanuc i, 2013, #32280

Manufacturer

HYUNDAI WIA

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32280

Model

L210-LSA

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32280

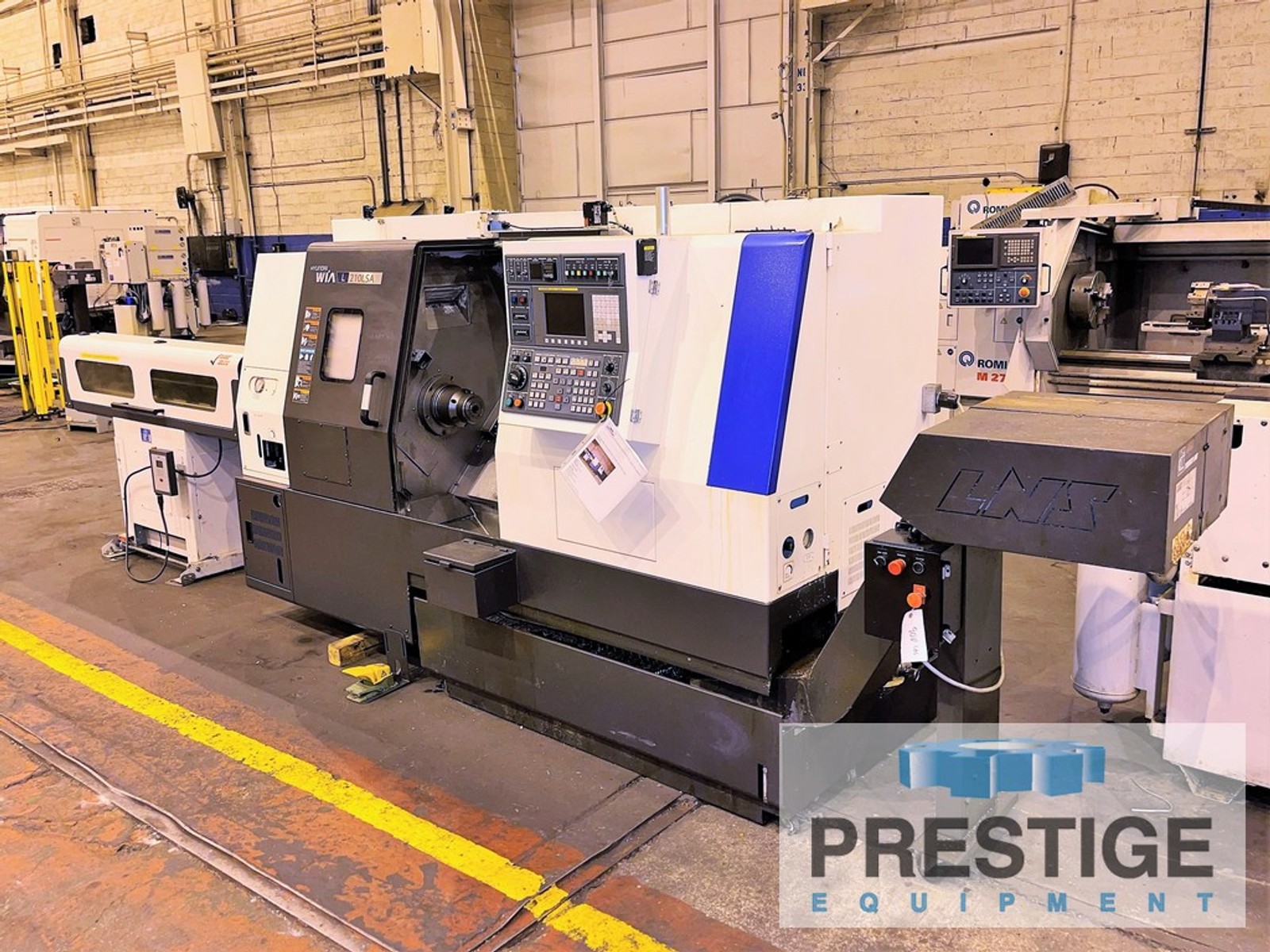

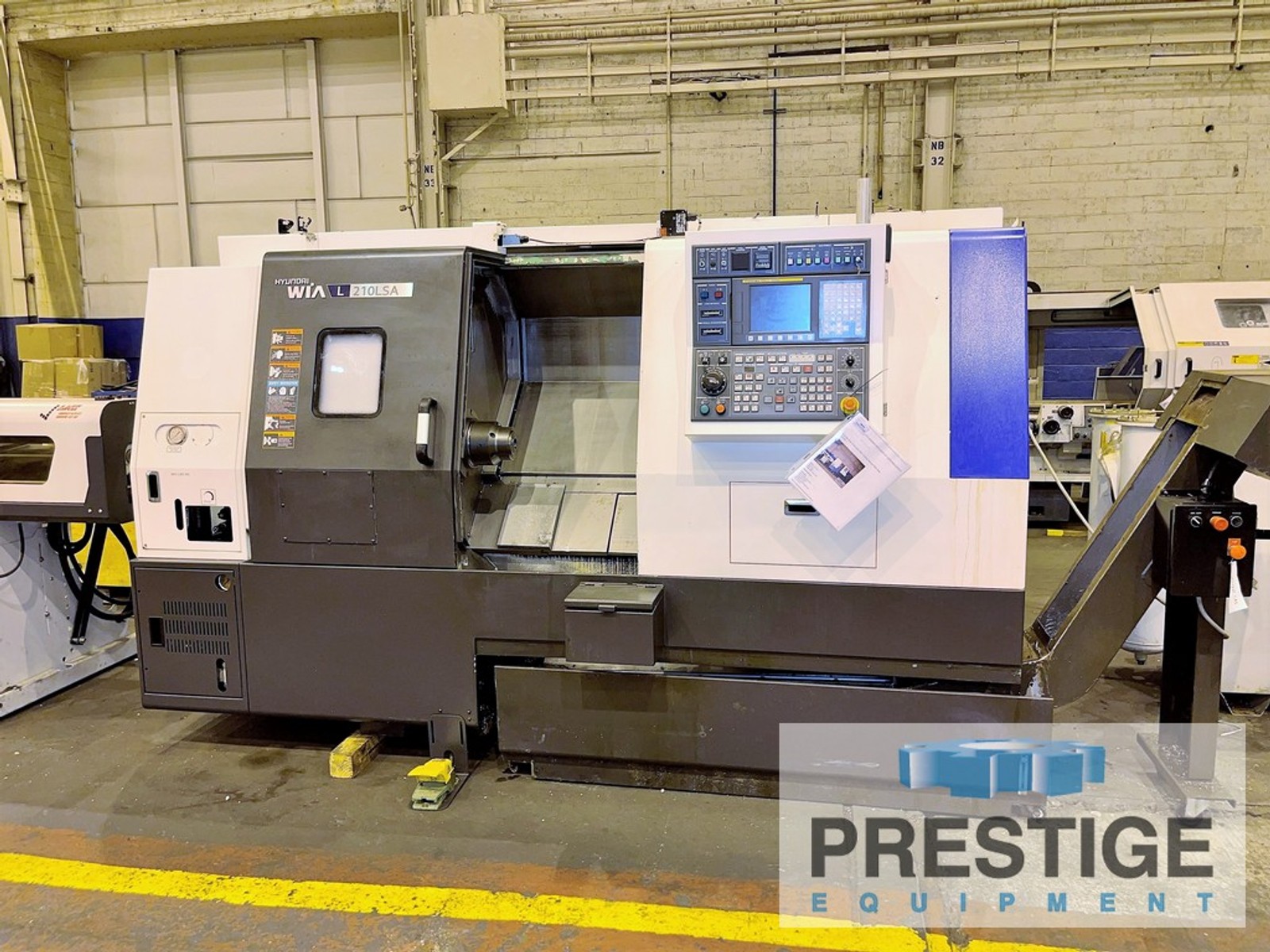

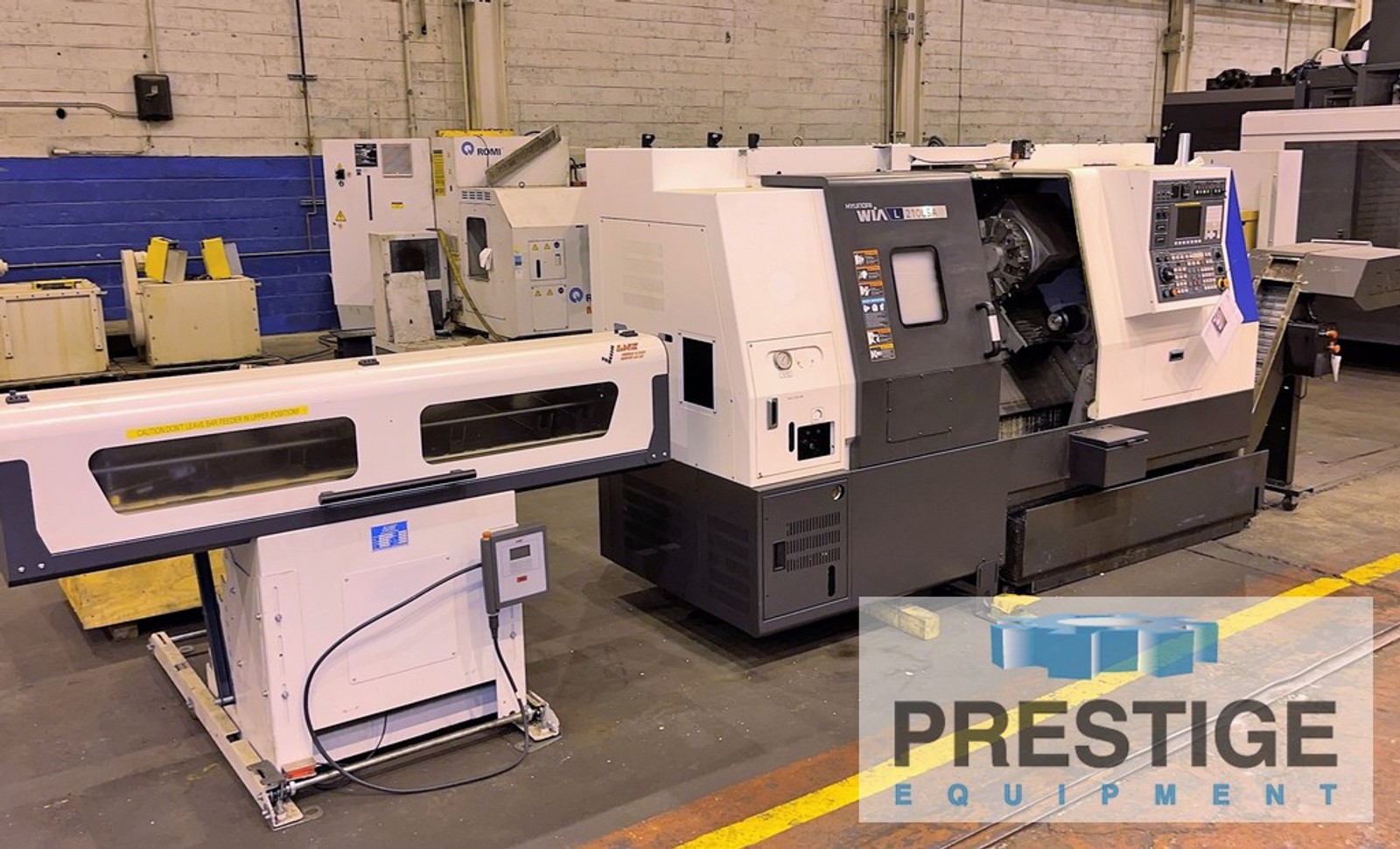

Hyundai Wia L210-LSA CNC Turning Center With Sub-Spindle

FEATURES:

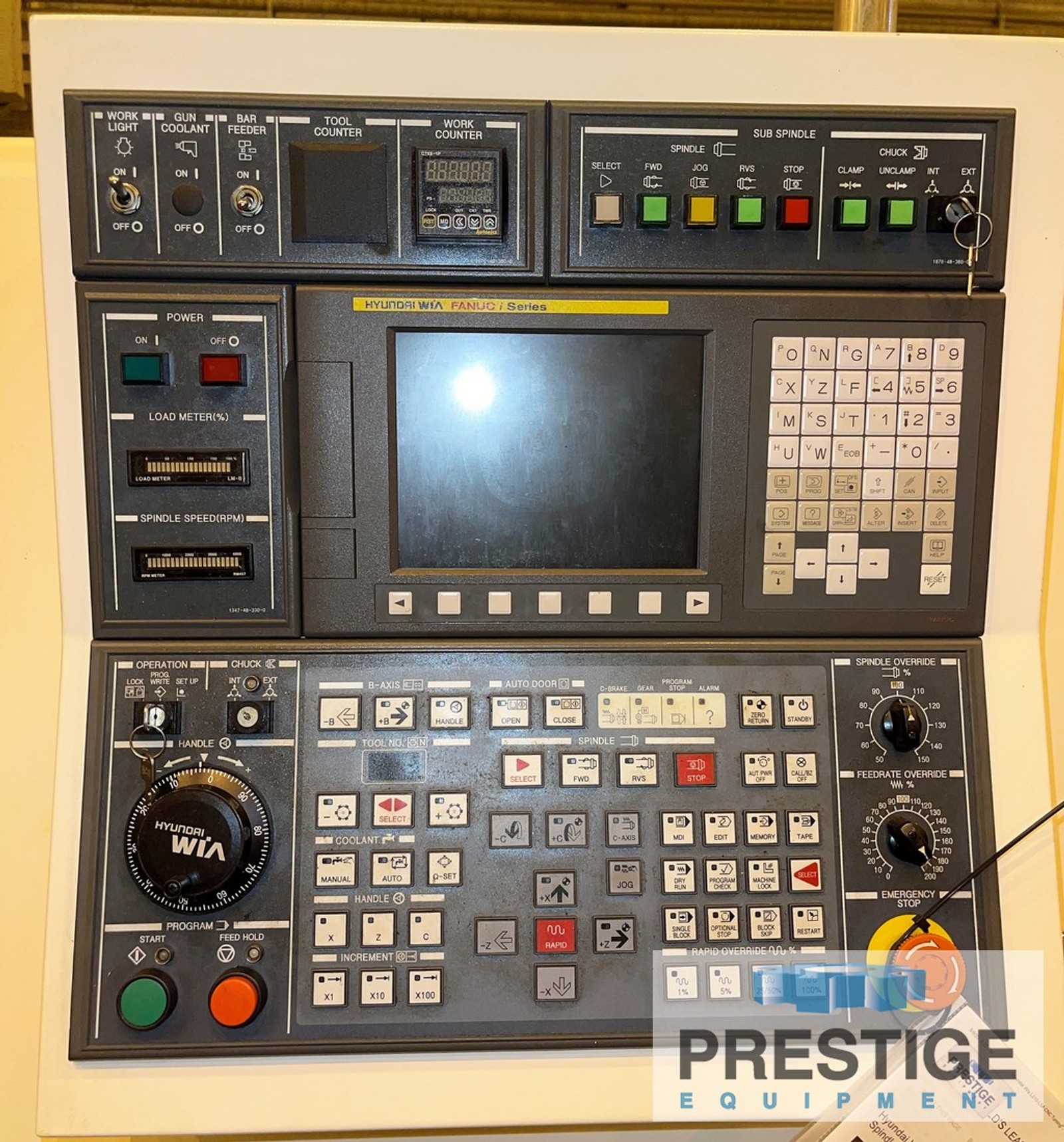

Fanuc i-Series CNC Control
Main & Sub Spindle
12-Position Turret
LNS Servo QLS-80 S2 Bar Feed

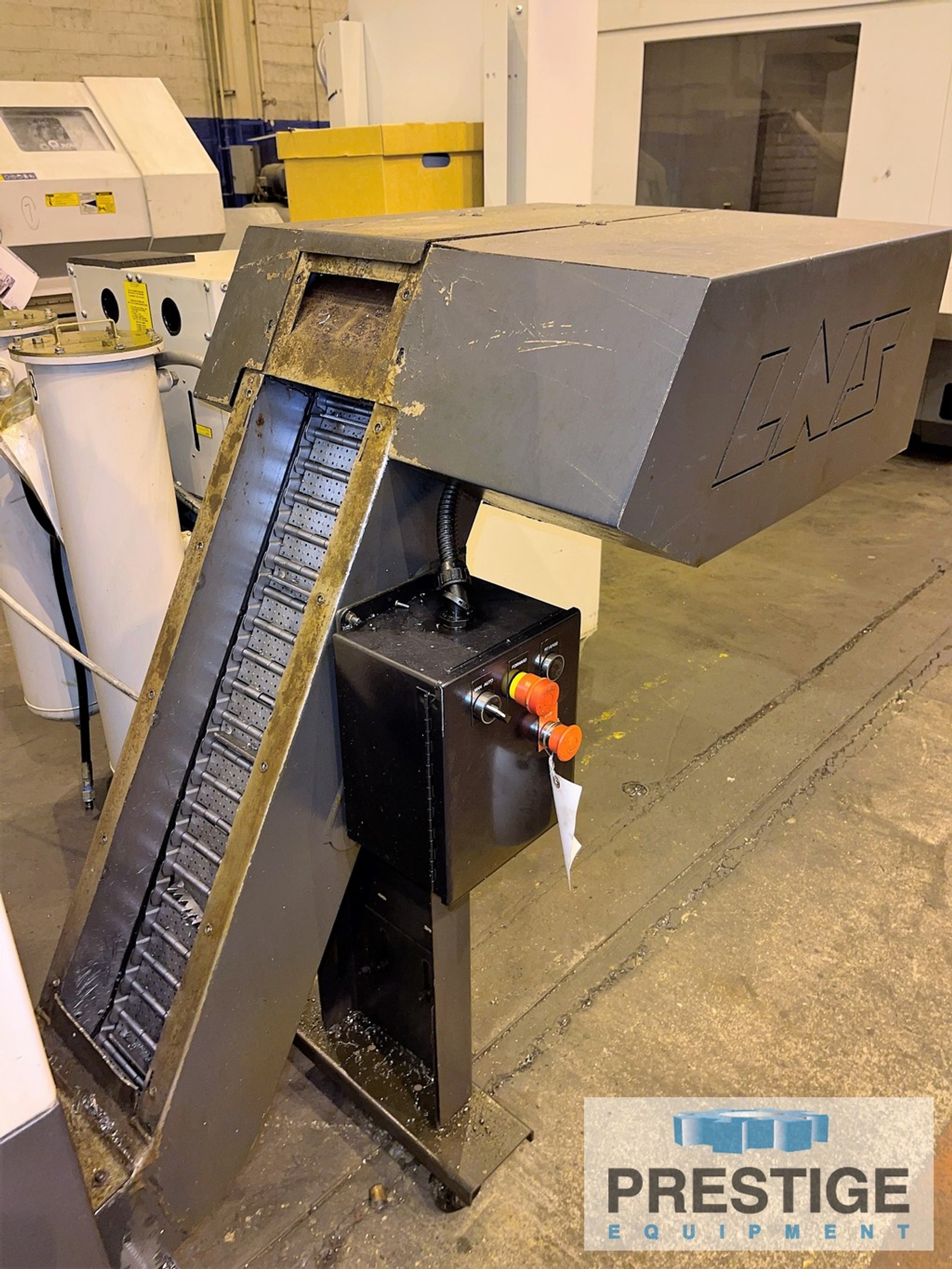

Chip Conveyor
Chip Blaster

SPECIFICATIONS:
Swing Over Bed ........................ 21.7"
Swing Over Carriage ................... 13.8"
Maximum Turn Diameter ................. 13.8"
Maximum Turning Length ................ 20.9

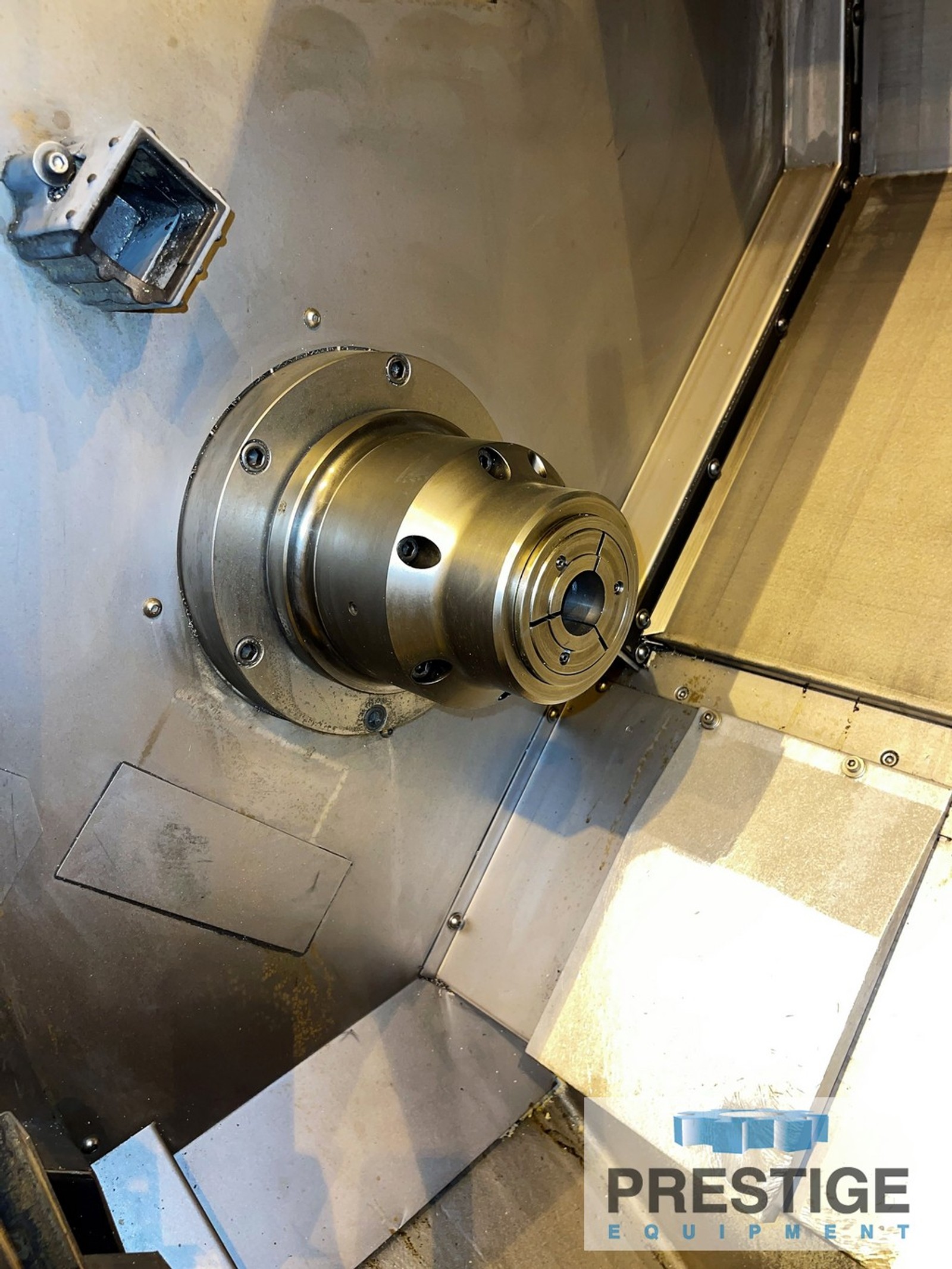

MAIN SPINDLE:
Bar Capacity .......................... 2.6"
Spindle Bore .......................... 3.07"
Spindle Speed ......................... 4000 RPM
Spindle Motor ......................... 20 HP / 15 HP
Spindle Nose .......................... A2-6

SUB-SPINDLE:
Bar Capacity .......................... 1.3"
Spindle Bore .......................... 1.7"
Spindle Speed ......................... 6000 RPM
Spindle Motor ......................... 5 HP / 3 HP
Spindle Nose .......................... Flat 4.33"

TRAVELS:
X-Axis Travel ......................... 8.3"
Z-Axis Travel ......................... 21.7"
B-Axis Travel ......................... 29.5"

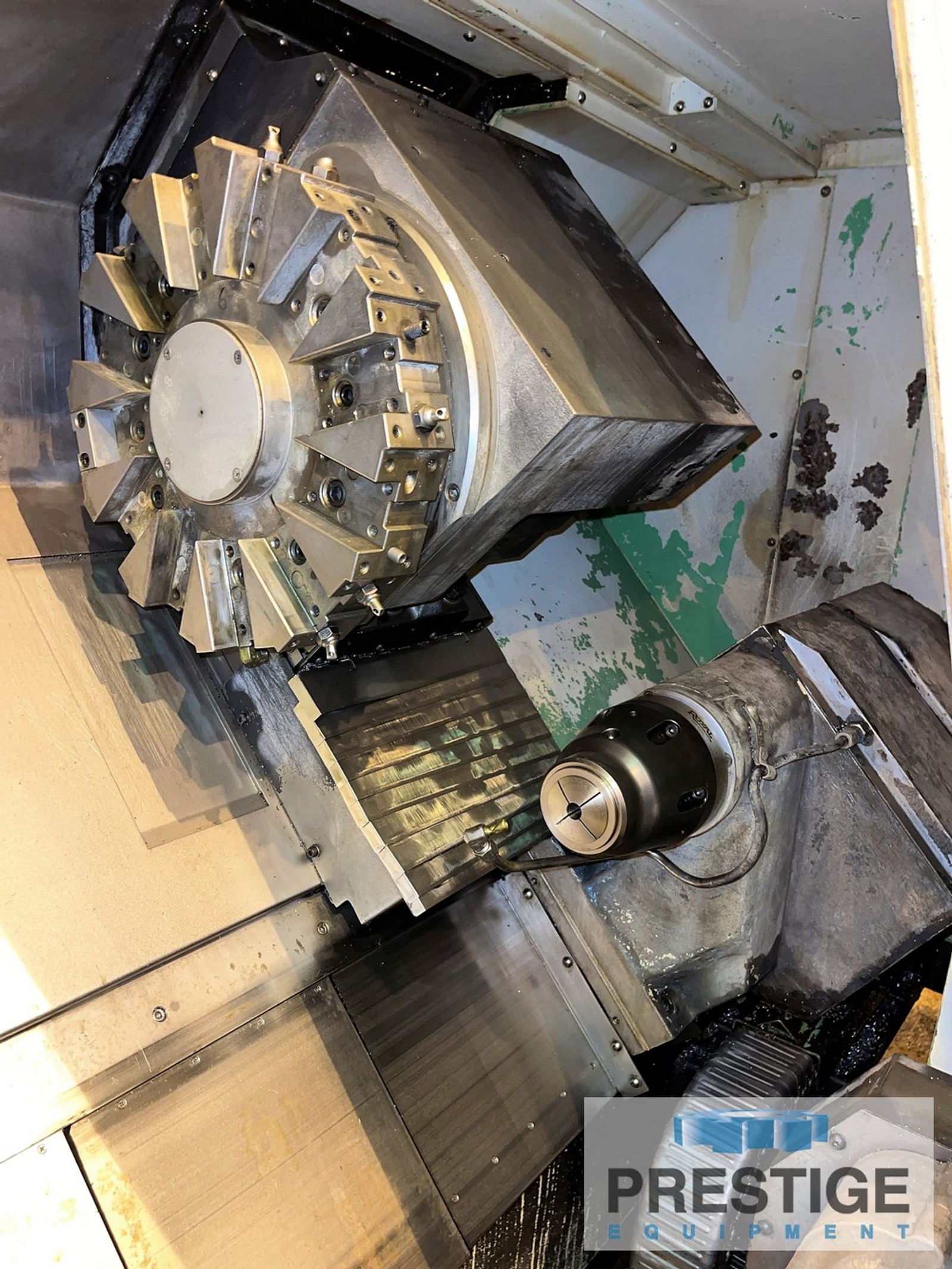

TURRET:
Number of Stations .................... 12
0.D. Tool Size ........................ 1" x 1"
I.D. Tool Size ........................ 1.6"

DIMENSIONS & WEIGHTS:
Floor Space, Machine Only ............. 114.2" x 65"
Machine Height ........................ 73.6"
Machine Weight ........................ 9,480 Lbs.

EQUIPPED WITH:
Fanuc i-Series CNC Control
Main Spindle
Sub-Spindle
12-Position Auto Indexing Turret
LNS Servo QLS-80 S2 Bar Feed
Chip Conveyor

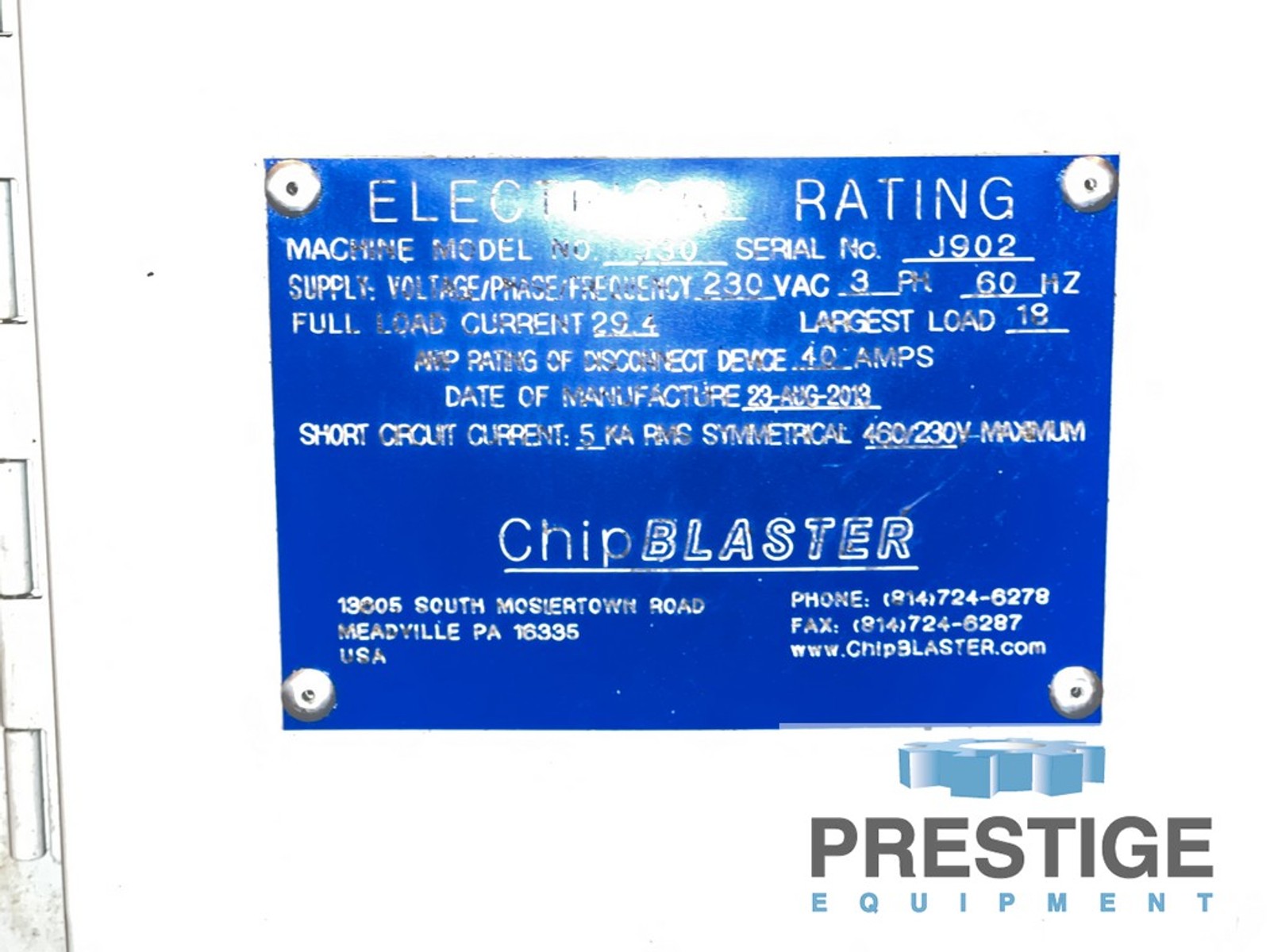

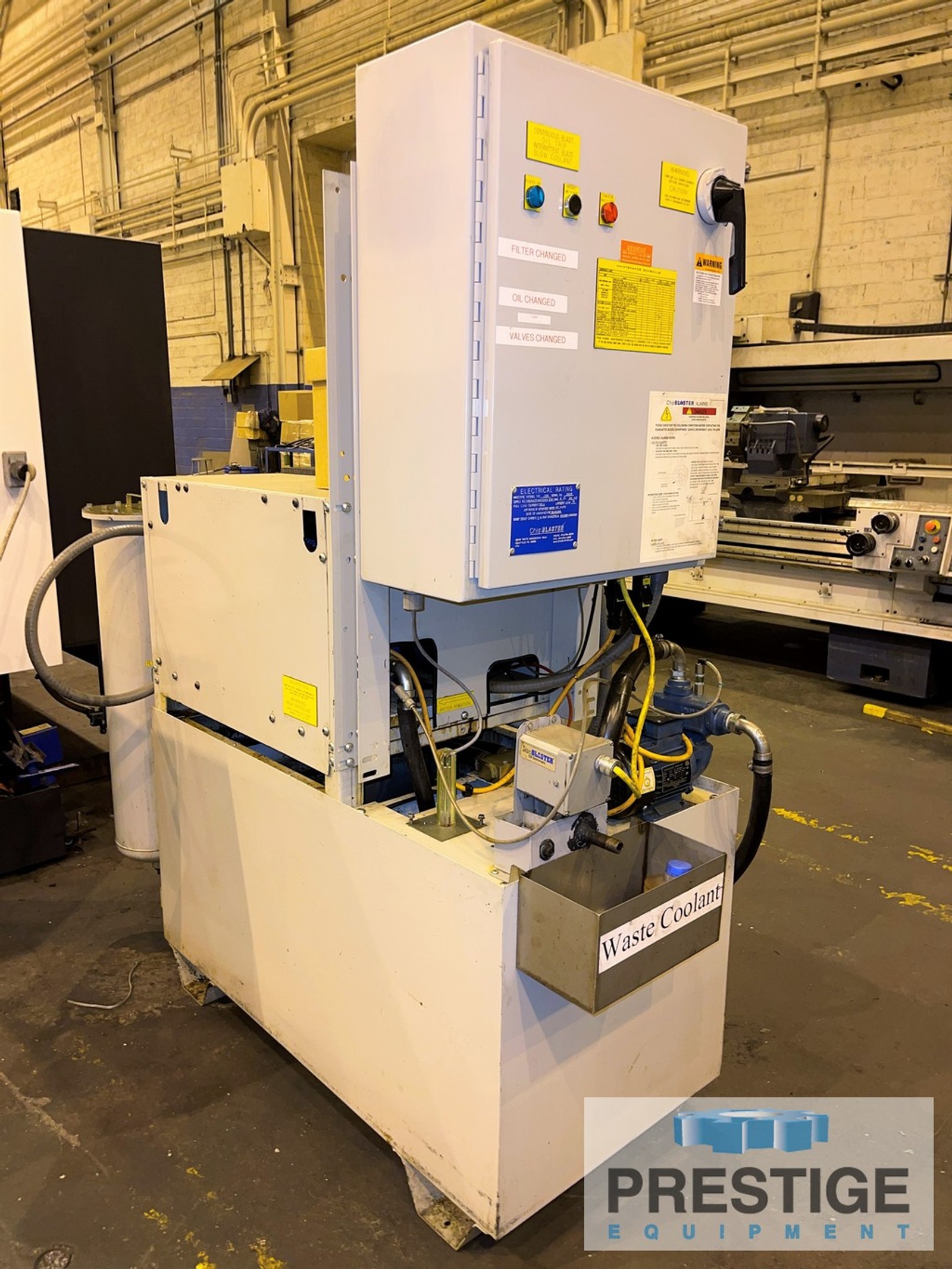

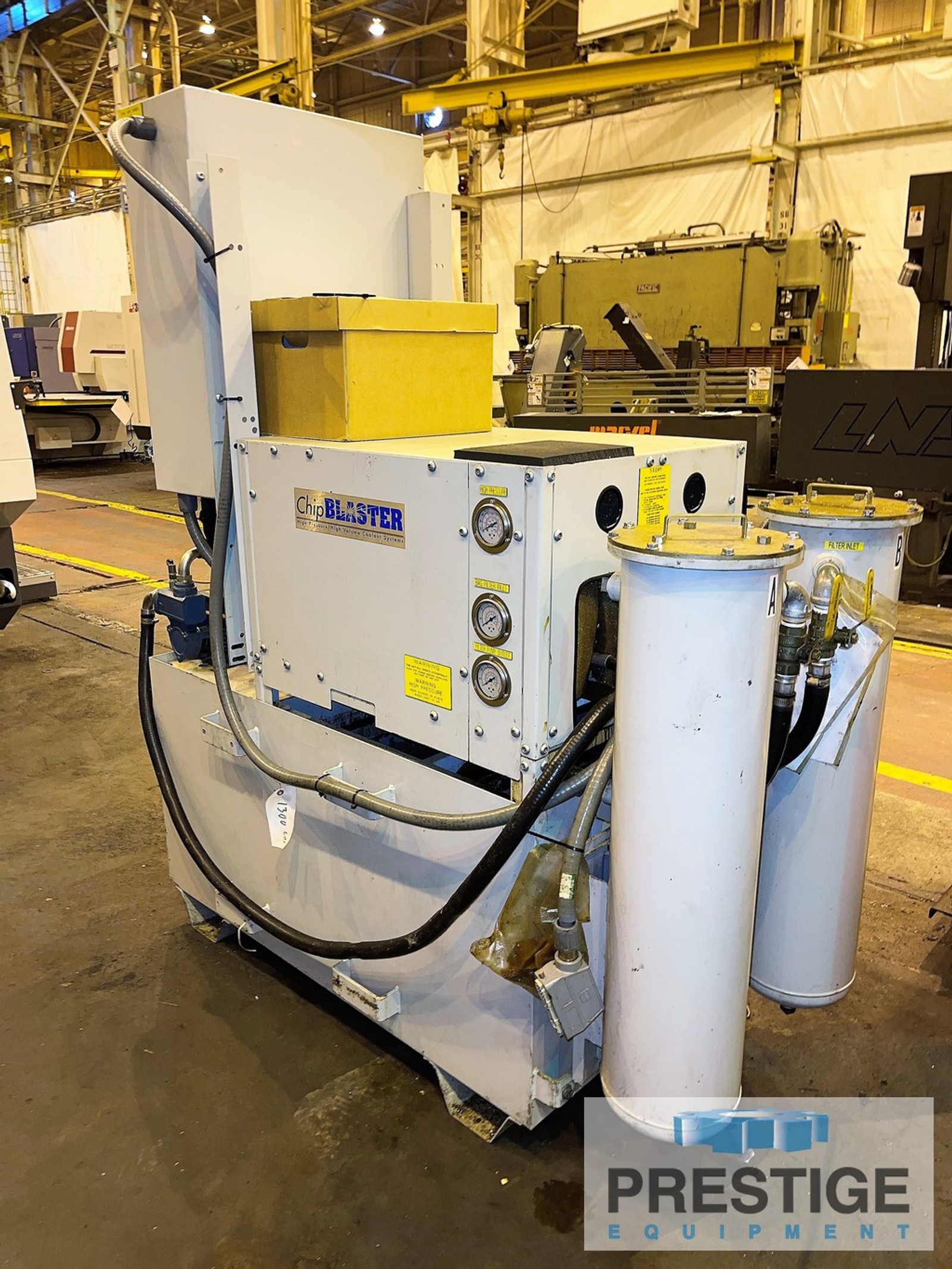

Chip Blaster High Pressure Coolant System
Tooling

NOTE:
Under Power In Philadelphia, PA
