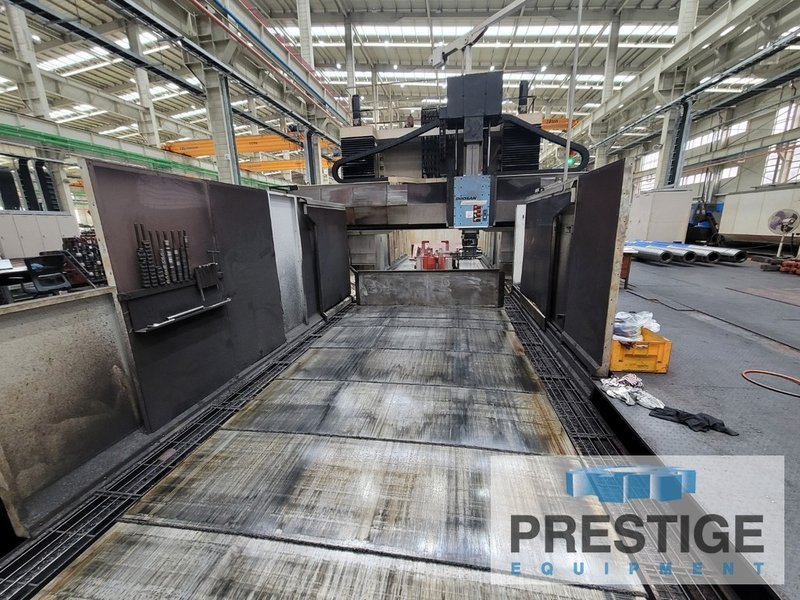

Doosan DCM 3260F Bridge Mill, X-246" Y-145", Fanuc 31iB, 60 ATC, 90 Deg. Head, 125" B/C, 2015, #32837

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32837

Model

DCM 3260F

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32837

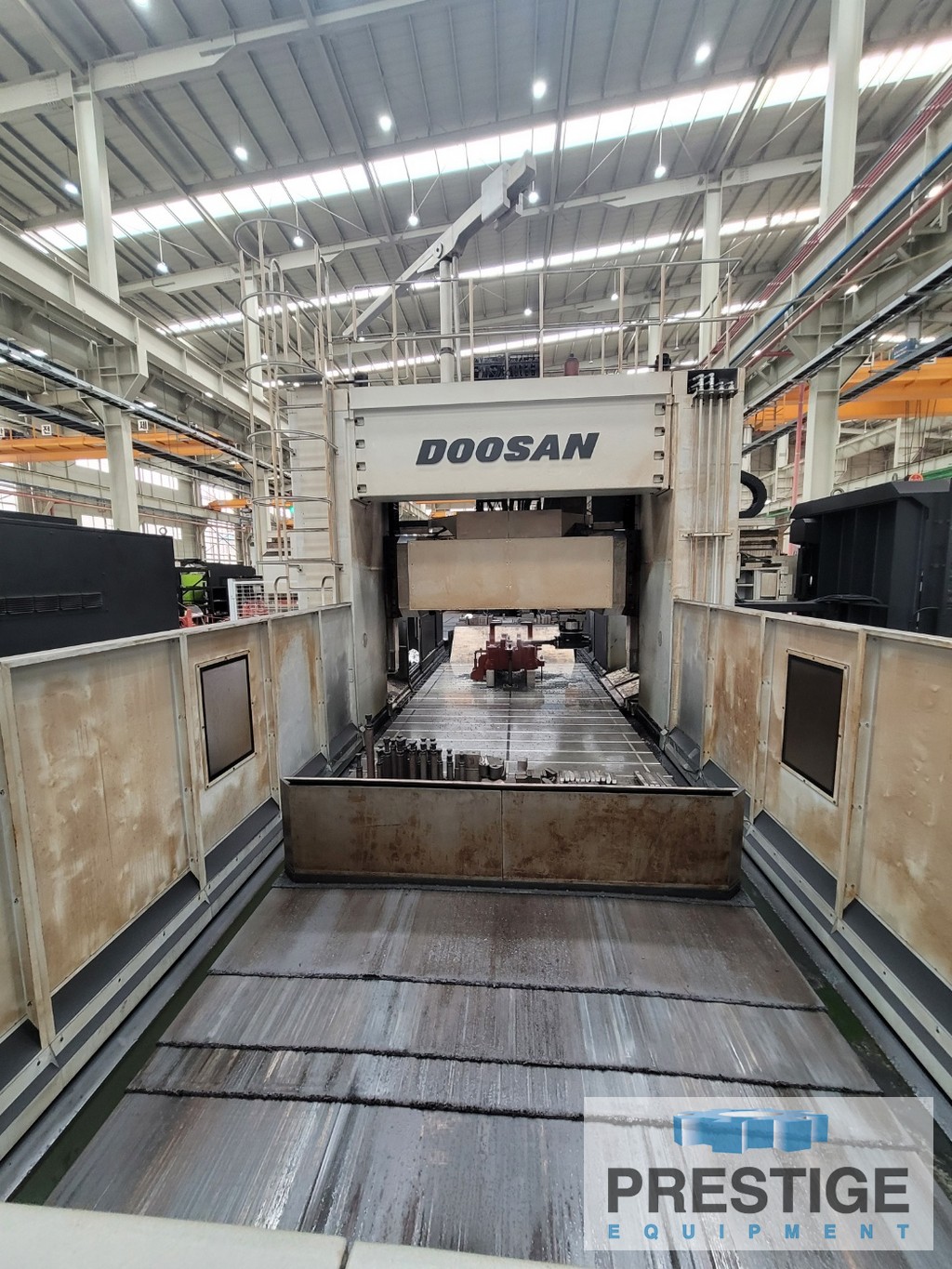

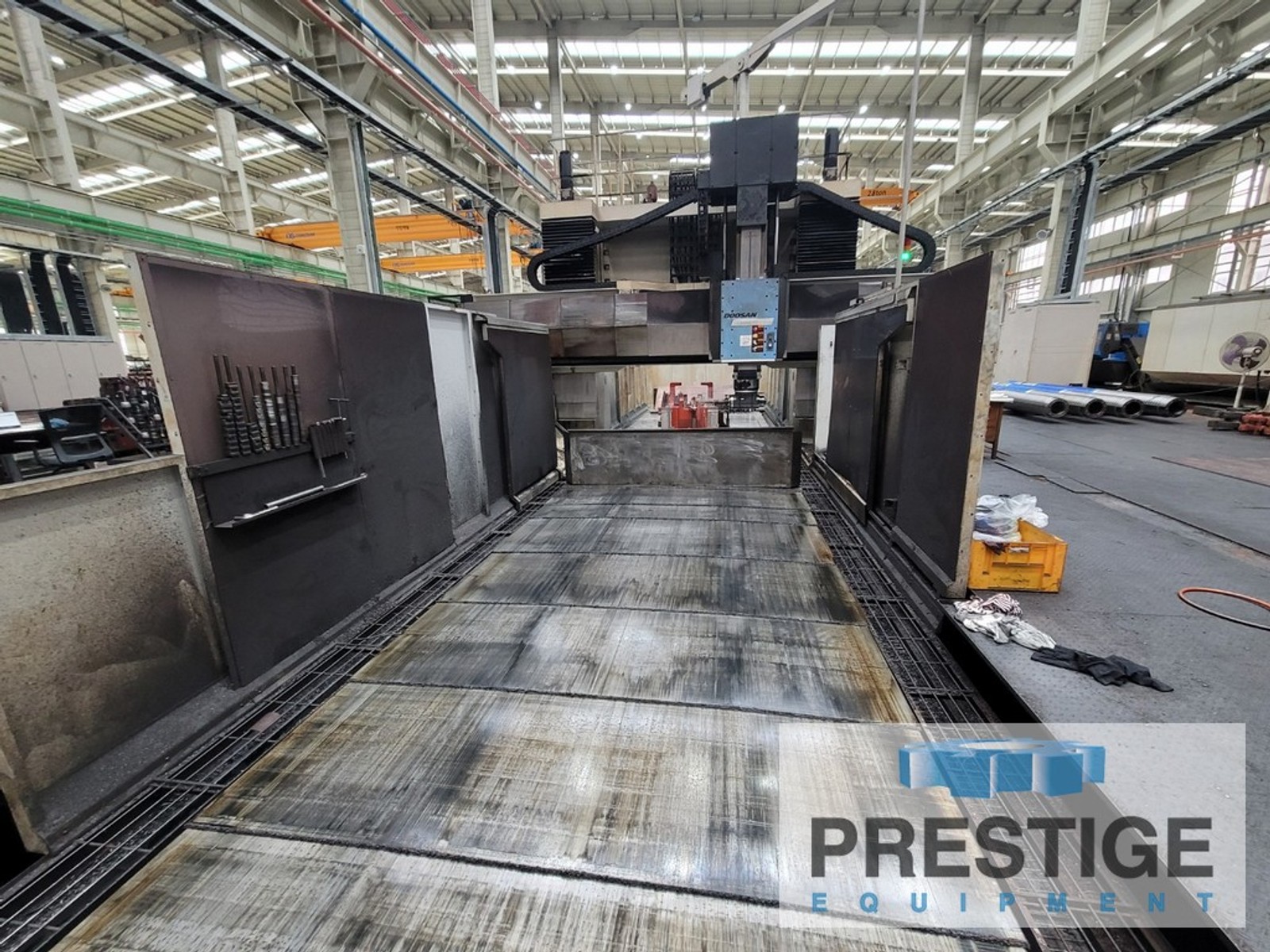

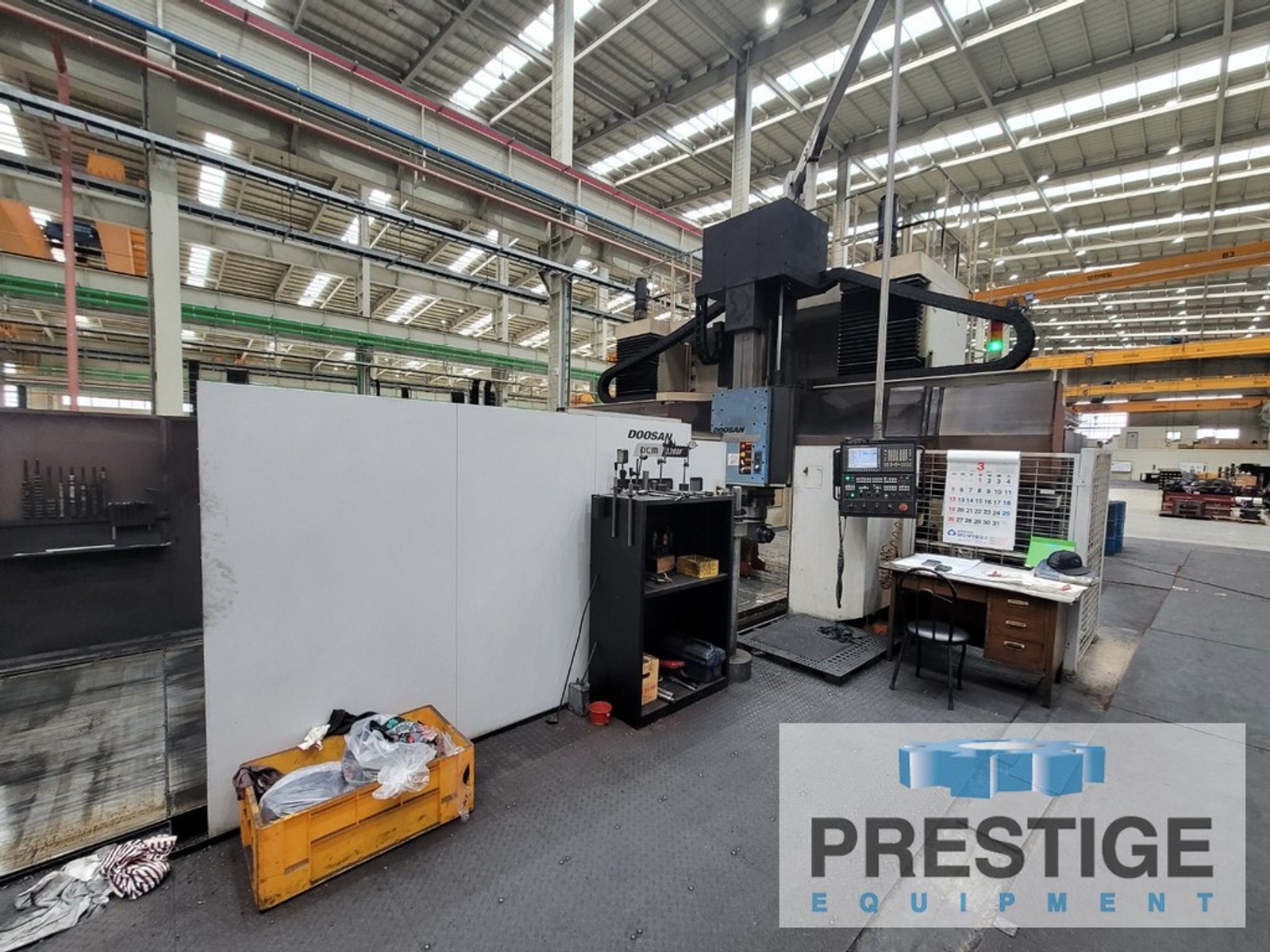

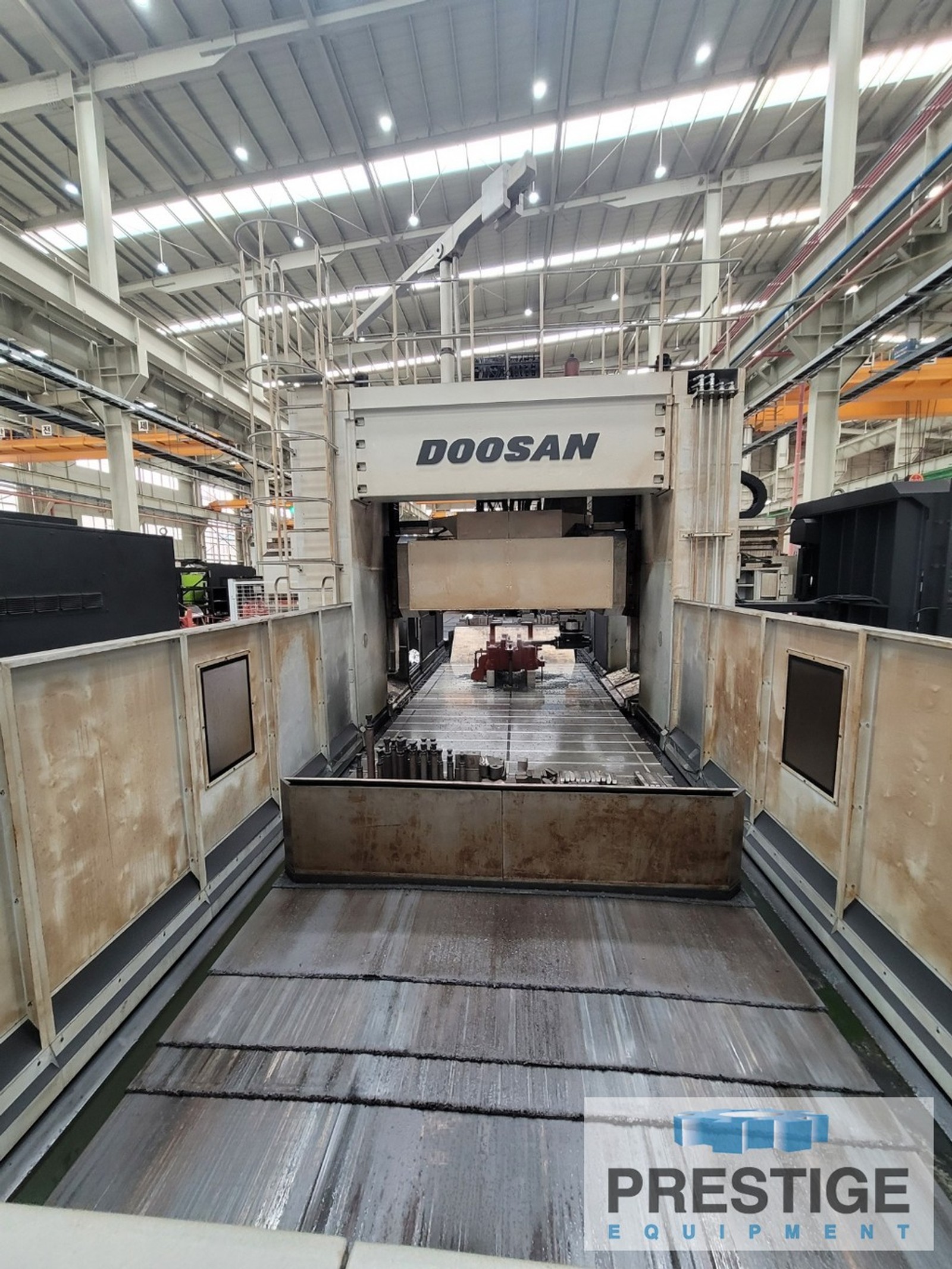

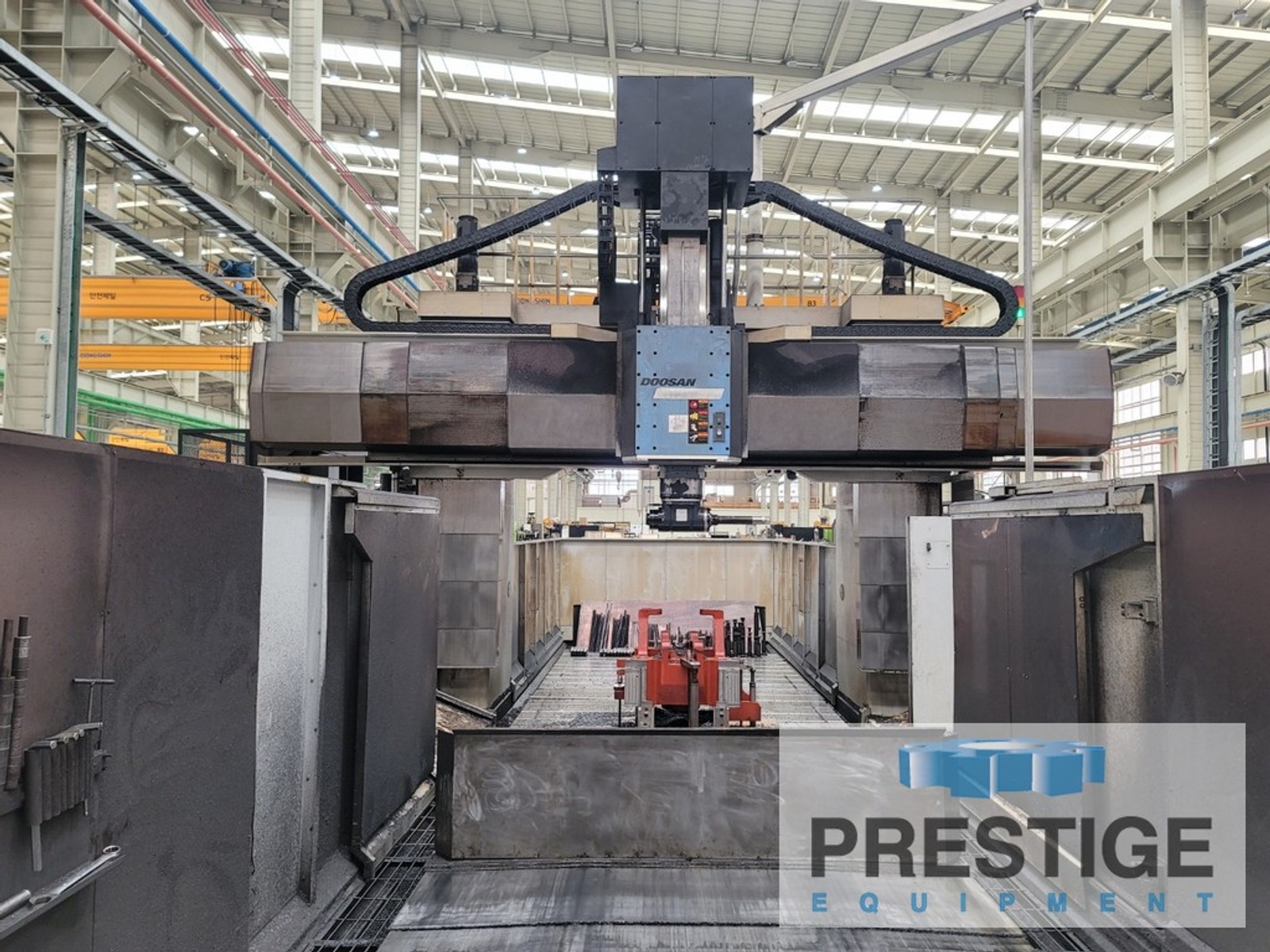

Doosan DCM 3260F Heavy Duty CNC Bridge Mill

FEATURES:

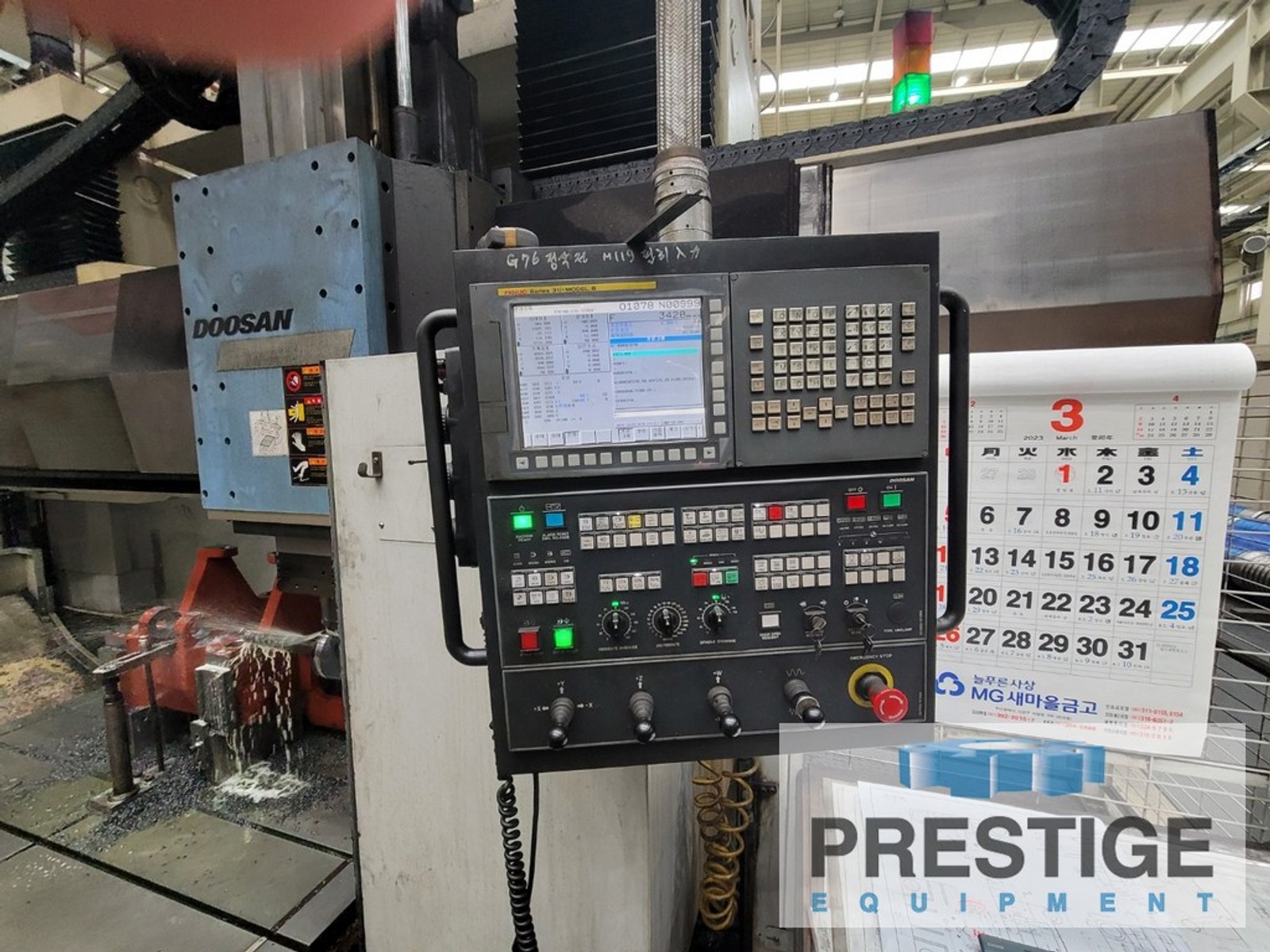

Fanuc 31iB CNC Control

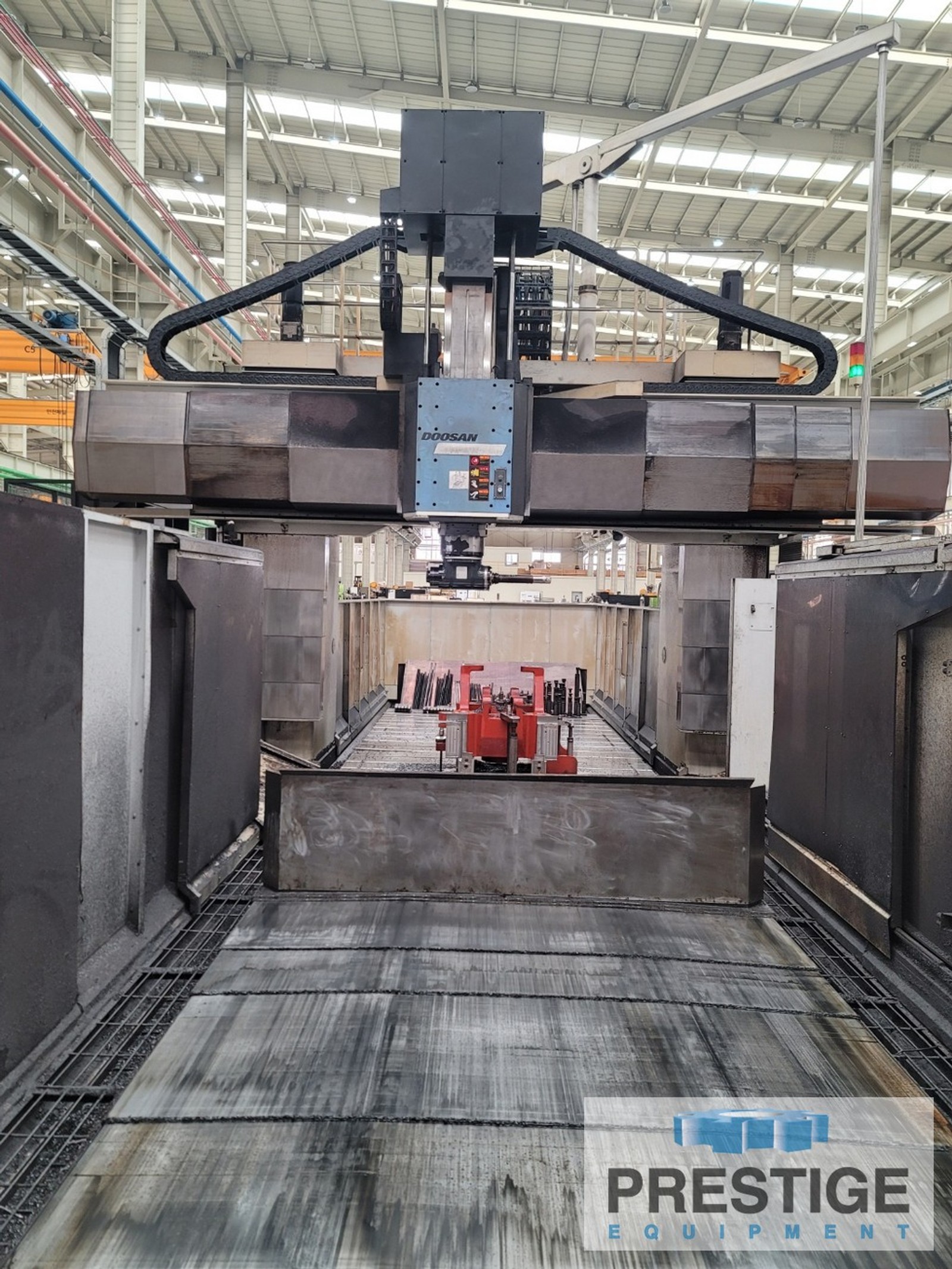

90 Degree Manual Rotating Head

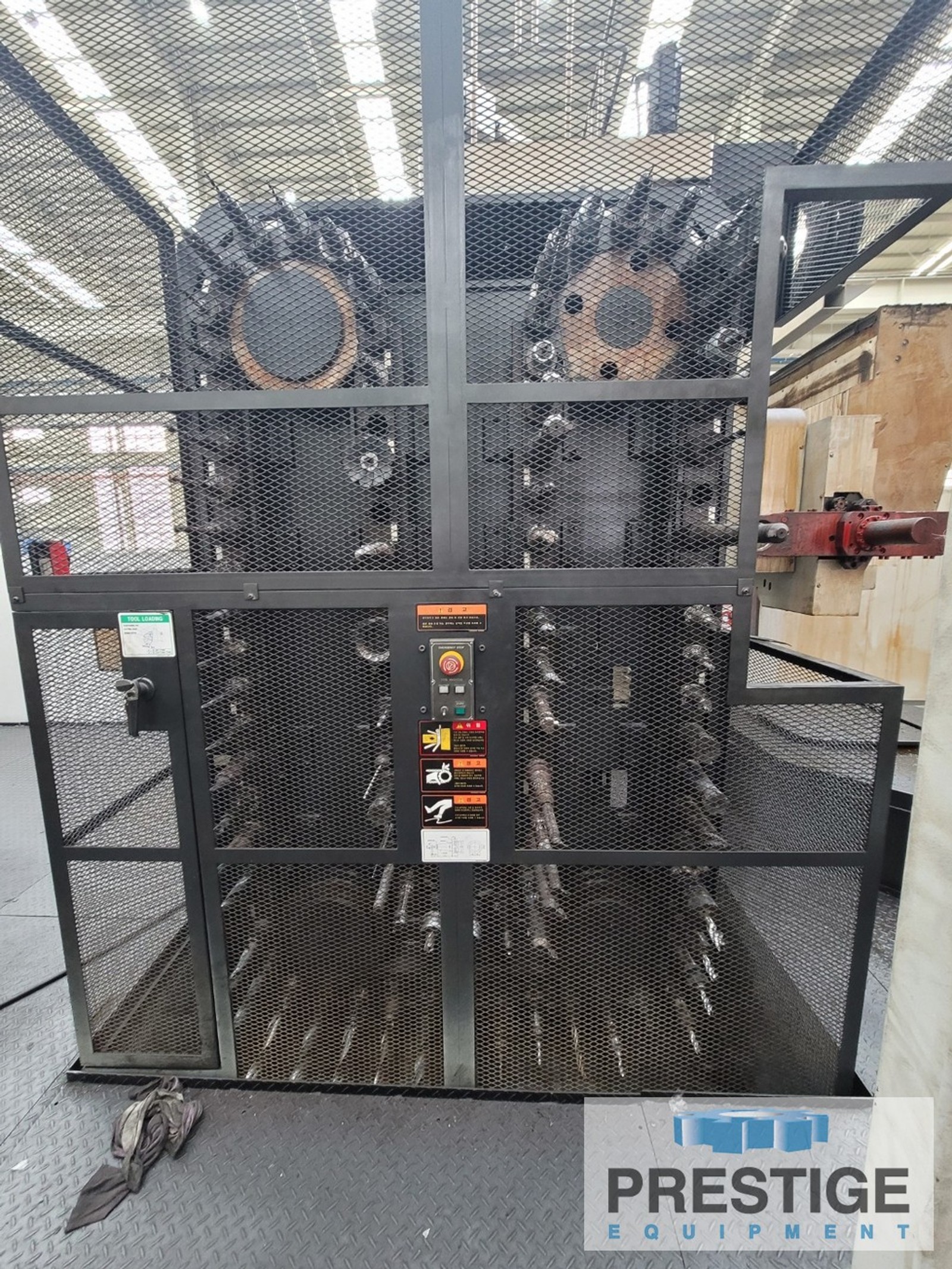

60-Station Automatic Tool Changer
Chip Conveyor

TRAVELS:
X-Axis Table Travel .................. 246.06"
Y-Axis Head Cross Travel ............. 145.66"
Z-Axis Ram Vertical Travel ........... 27.56"
W-Axis Cross Rail Vertical Travel .... 43.31"
SPECIFICATIONS:
Width Between Columns ................ 125.98"
Working Surface ...................... 106.29" x 246.06"
Table Load Capacity .................. 72,000 Lbs.
Table to Spindle Nose ................ 64.96"
Ram Size ............................. 14.96" x 14.96"
Spindle Speeds (2-Range) ............. 0-6,000 RPM
Spindle Taper ........................ BT-50
Spindle Drive Motor .................. 33.5/29.5 HP

EQUIPPED WITH:
Fanuc 31iB CNC Control
90 Degree Manual Rotating Head
60-Station Automatic Tool Changer
Chip Conveyor
