Cincinnati Milacron 30V Long Bed, 5-Axis, 34" X, 94" Y, 32" Z, Heidenhain 510C CNC, #32859

Manufacturer

CINCINNATI

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

32859

Model

30V 5-Axis

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32859

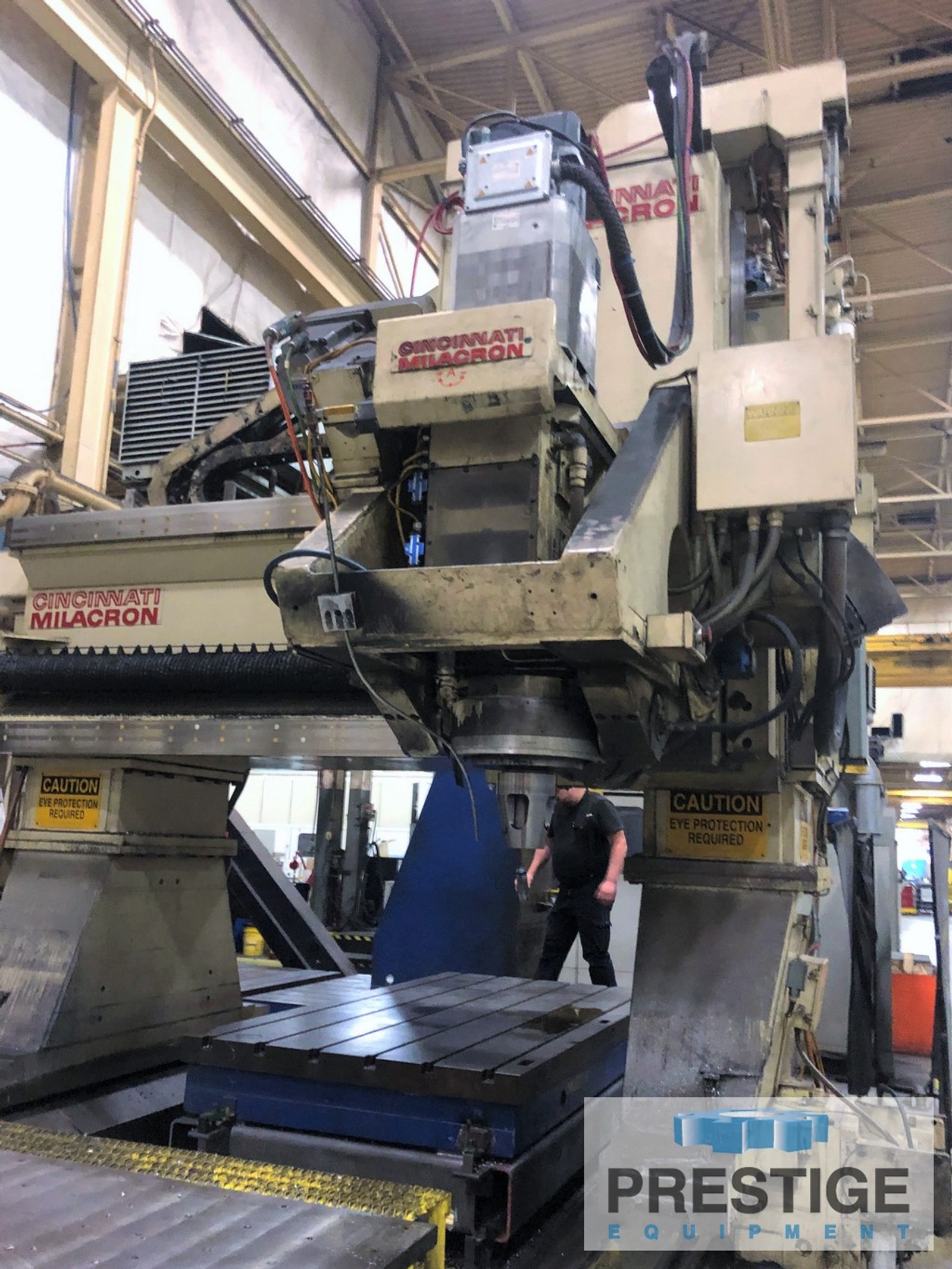

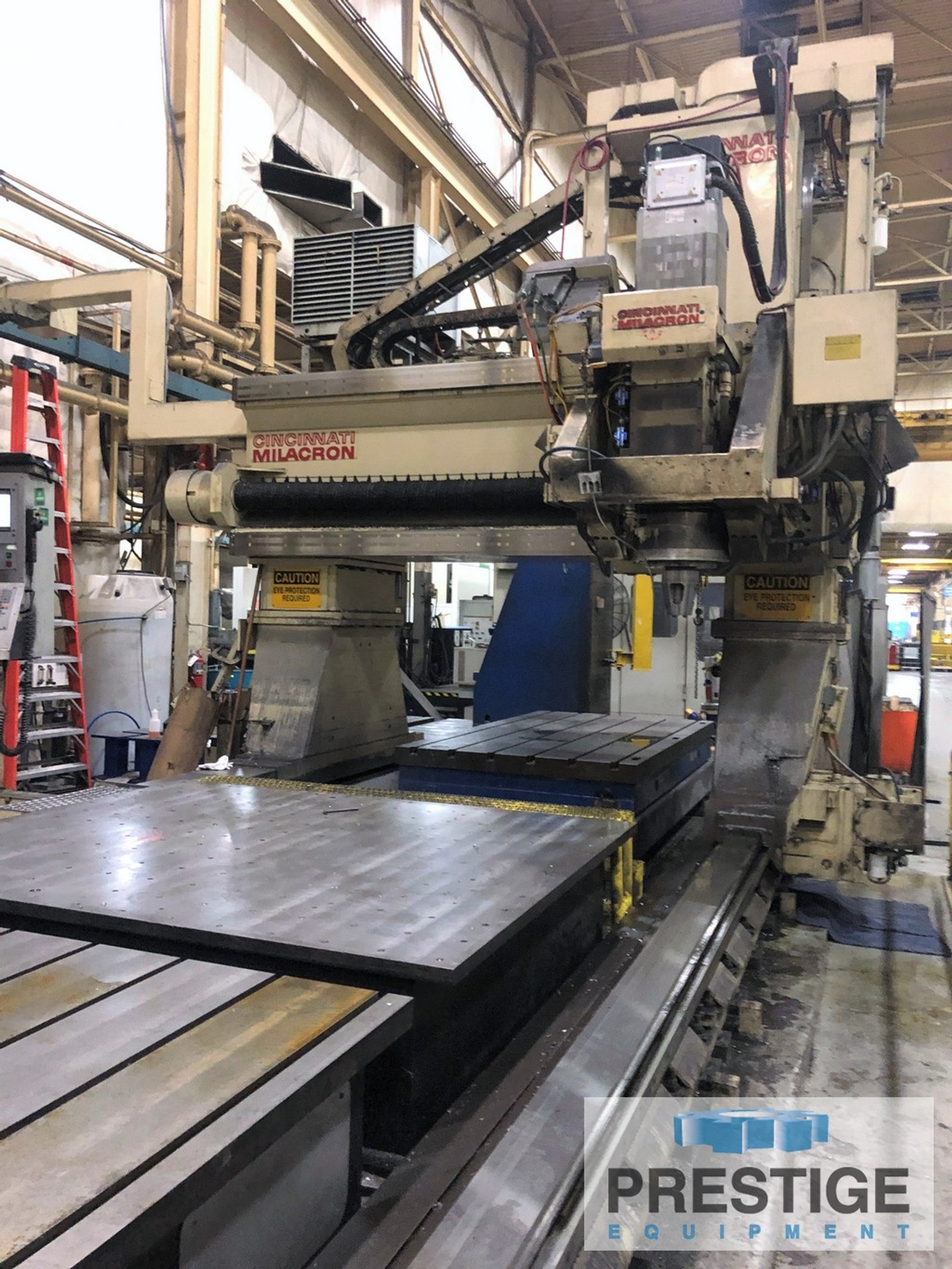

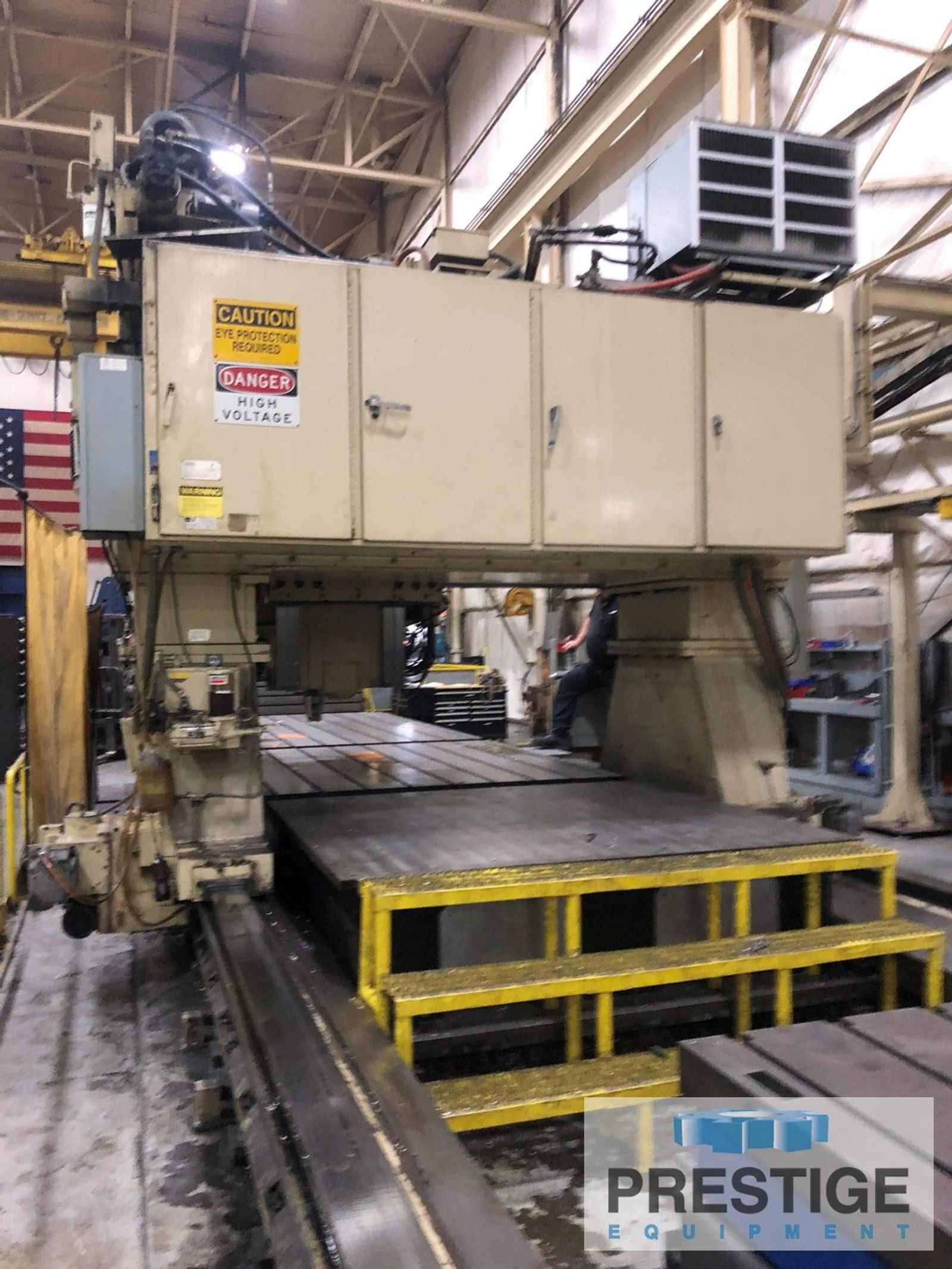

Cincinnati Milacron 30V Long Bed 5-Axis Double Column CNC Vertical Profiler

FEATURES:

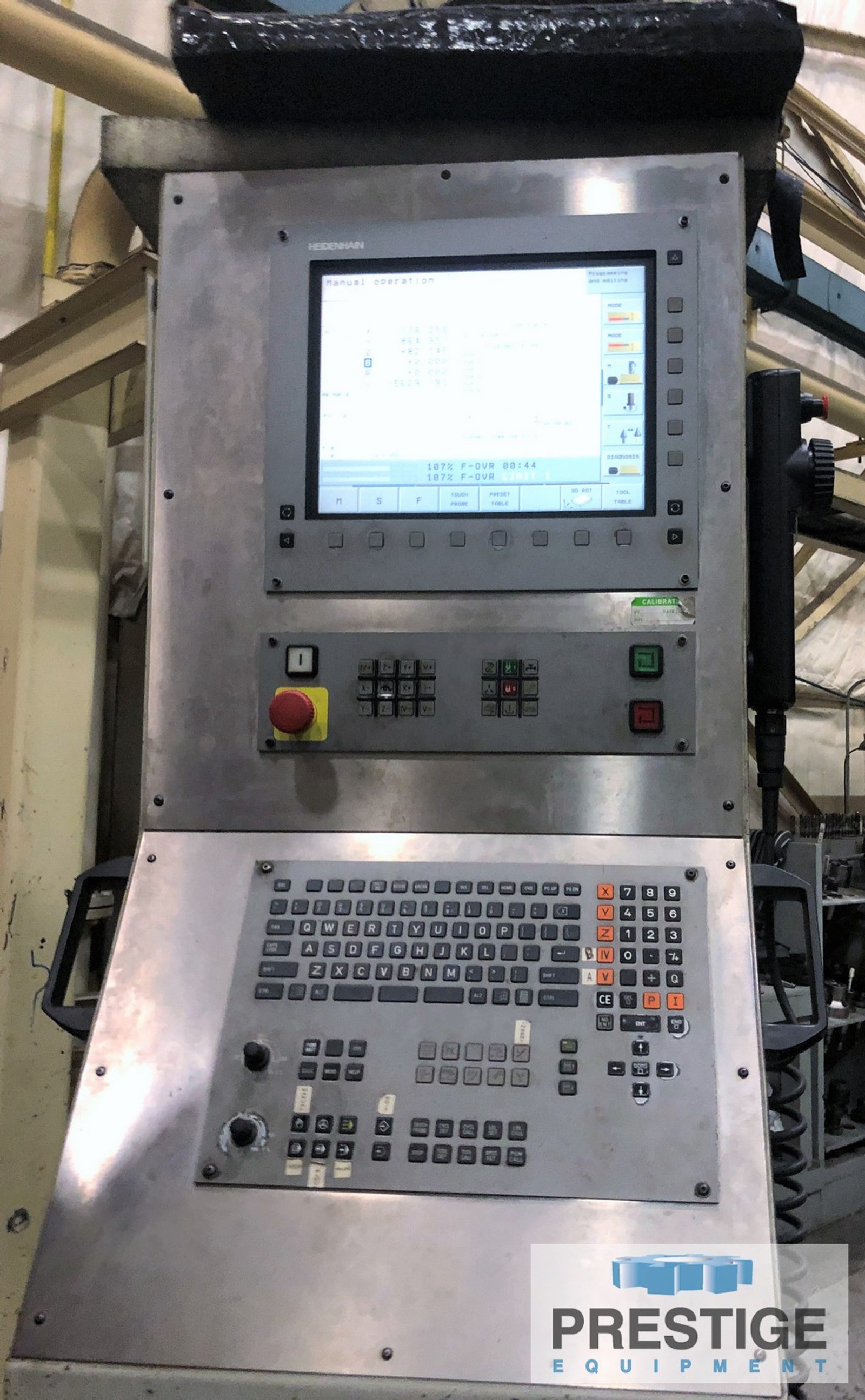

Heidenhain 510C Control
Remote Hand Pendant
Siemens Drives

CAPACITY:
X-Axis Travel ......................... 340"
Y-Axis Travel ......................... 94"
Z-Axis Travel ......................... 29"
Distance Between The Columns .......... 94"
A-Axis Tilt ........................... +/- 30 Deg.
B-Axis Swivel ......................... +/- 30 Deg.
Maximum Spindle Speed ................. 4,000 RPM
Spindle Taper ......................... CAT 50
Spindle Motor ......................... 50 HP

EQUIPPED WITH:
Heidenhain 510C Control
Remote Hand Pendant
Siemens Drives
Various Work Tables
460 Volt 3/60

NOTE:
Inspect in Plant
