5.12" Doosan DBC-130LII, X-157", Y-98", Z-78", W-27.5",86" x 78" R.Tab, 2.5K RPM, C.T.S, 60ATC, Fanuc 31iB, 2014, #32850

Manufacturer

Doosan

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32850

Model

DBC-130LII

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32850

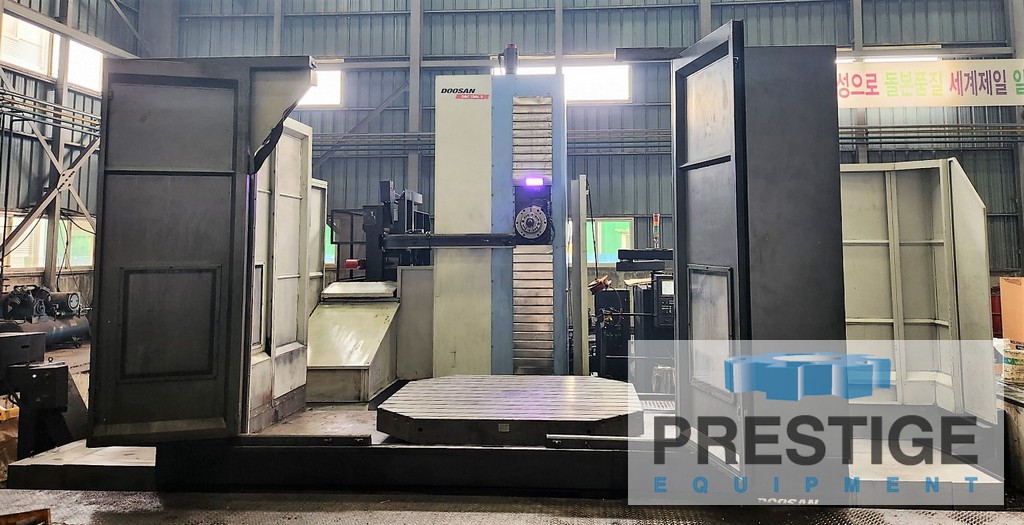

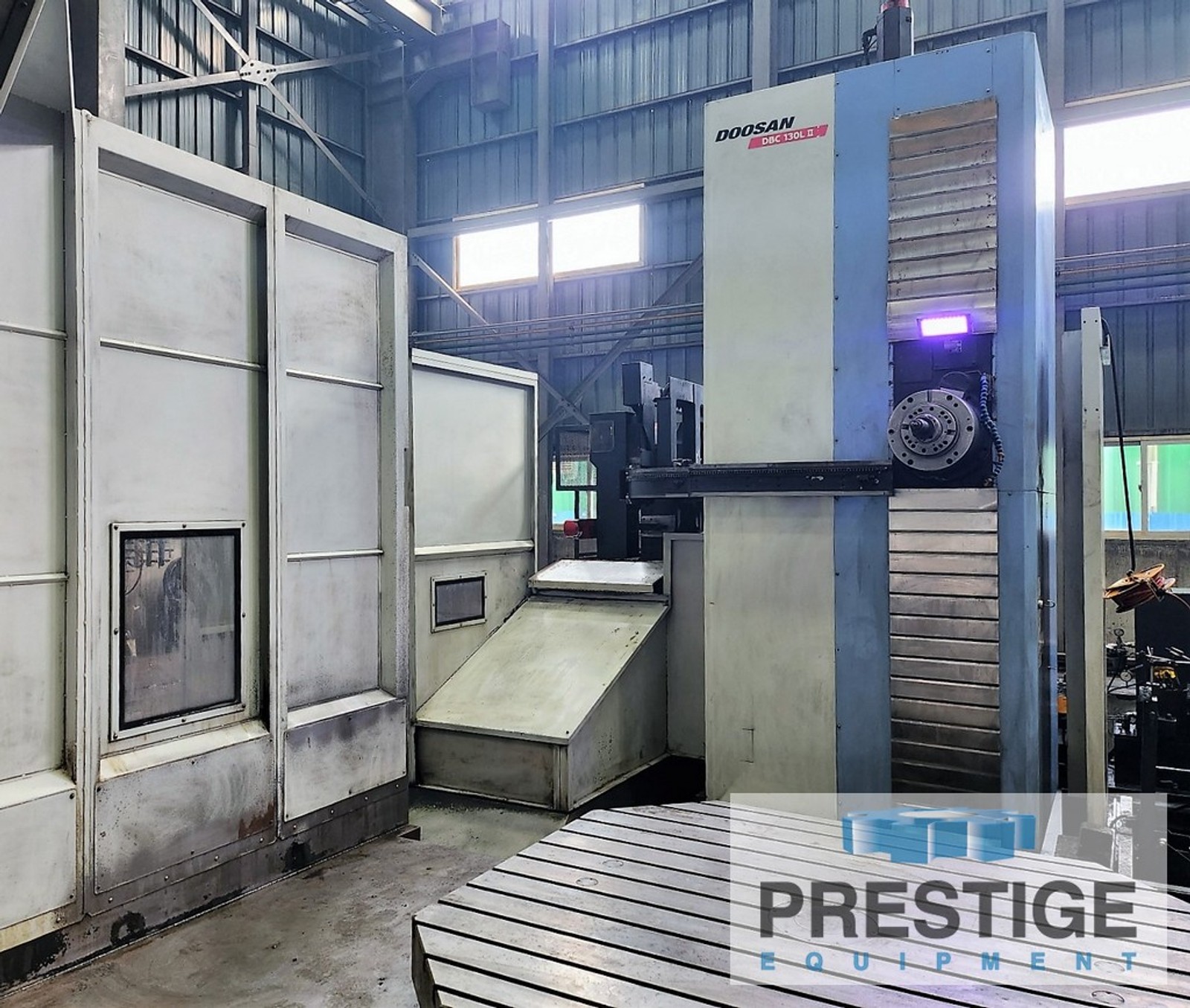

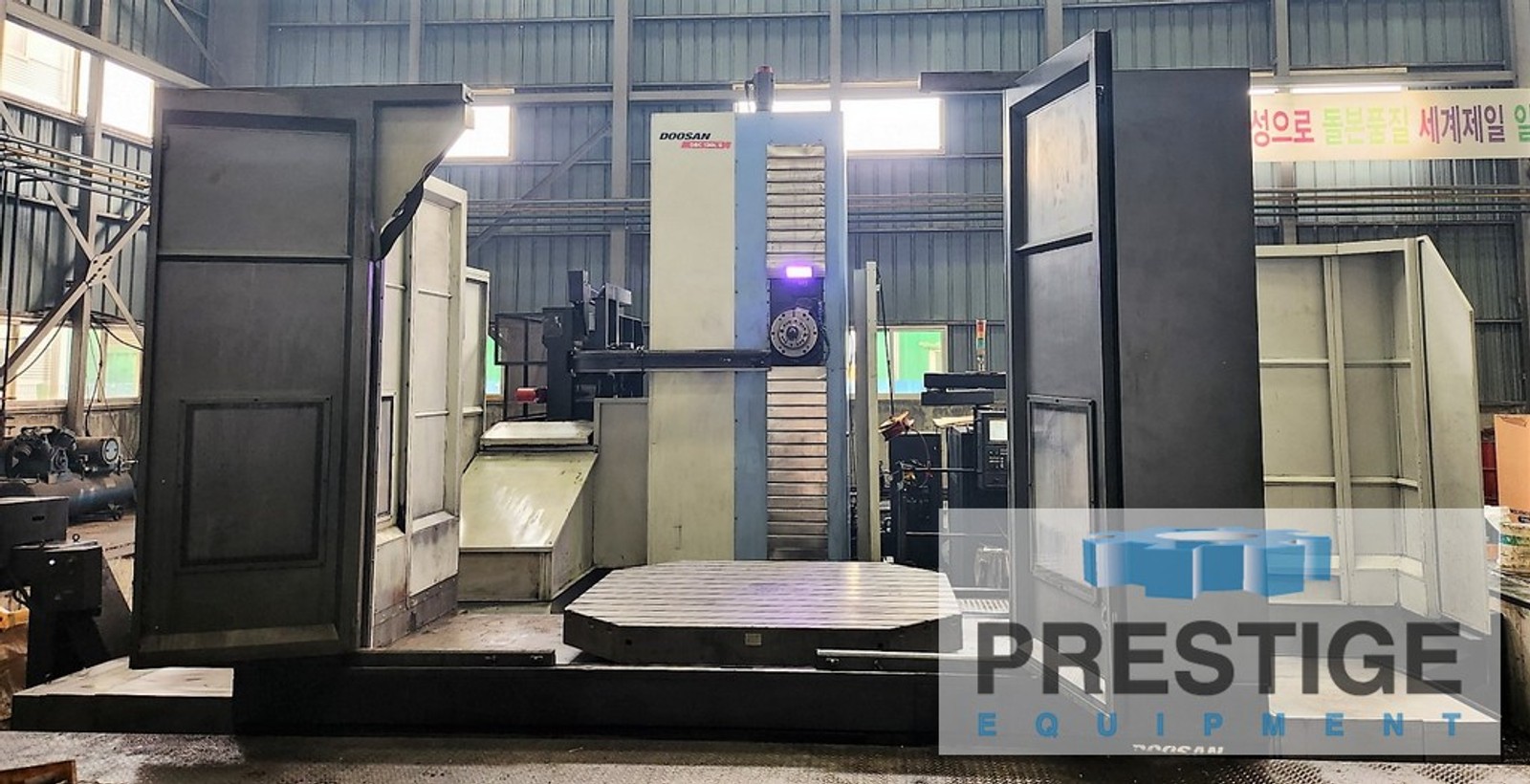

5.12" Doosan DBC-130LII CNC Table Type Horizontal Boring Mill

FFEATURES:

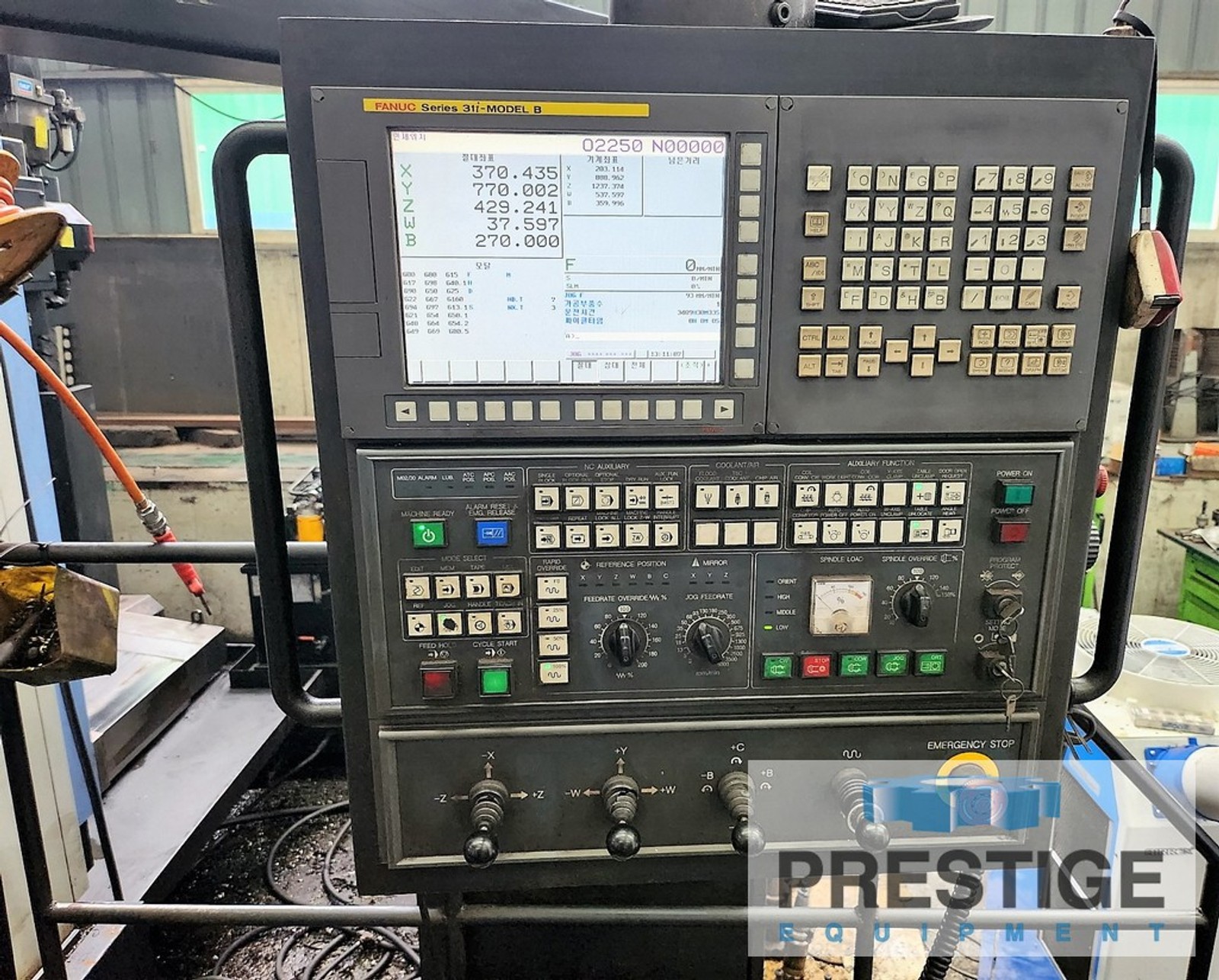

Fanuc 31iB 4-Axis CNC Control
60 Station Automatic Tool Changer
B-Axis Contouring Rotary Table
Thru Spindle Coolant

CAPACITY:

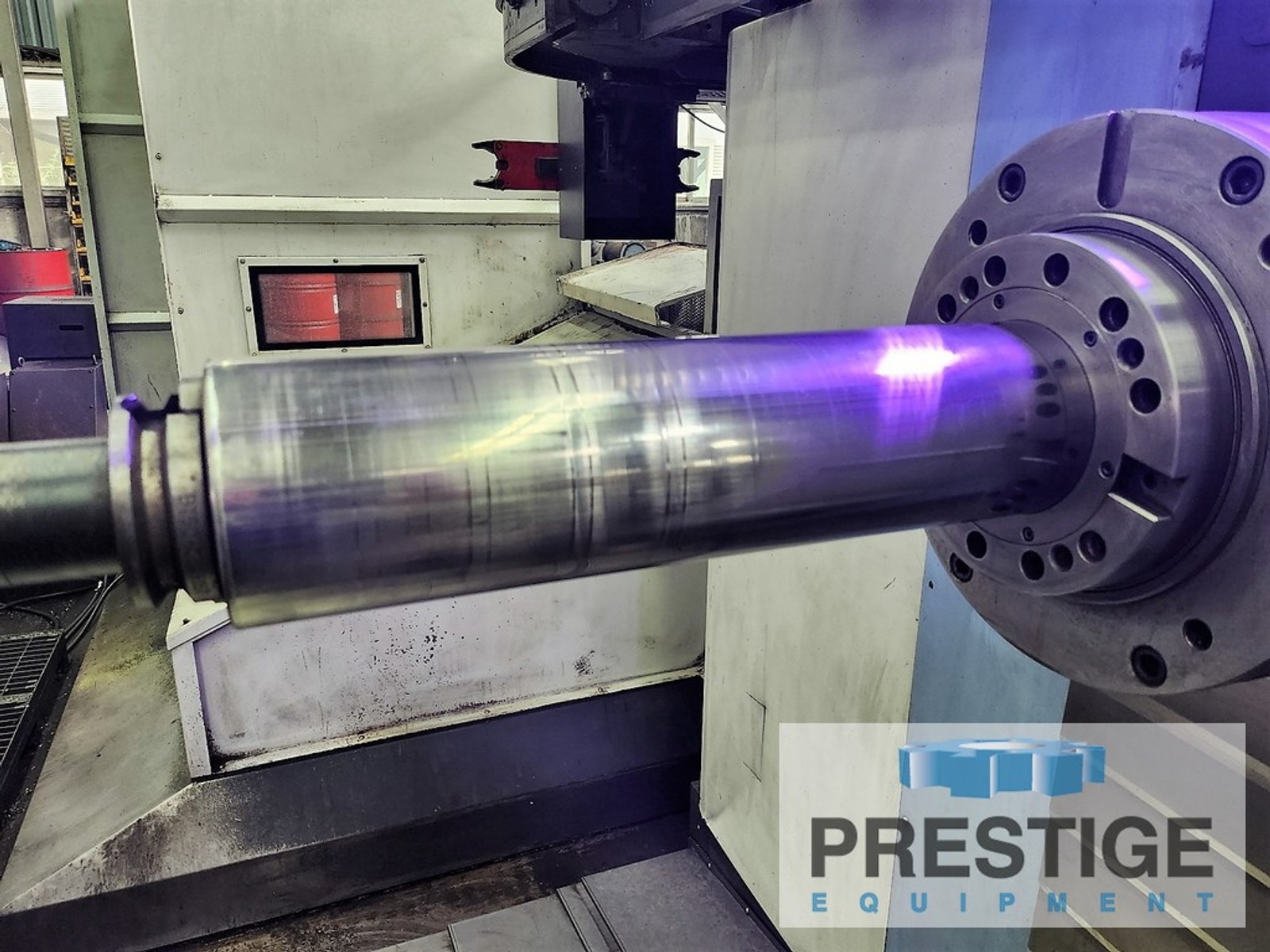

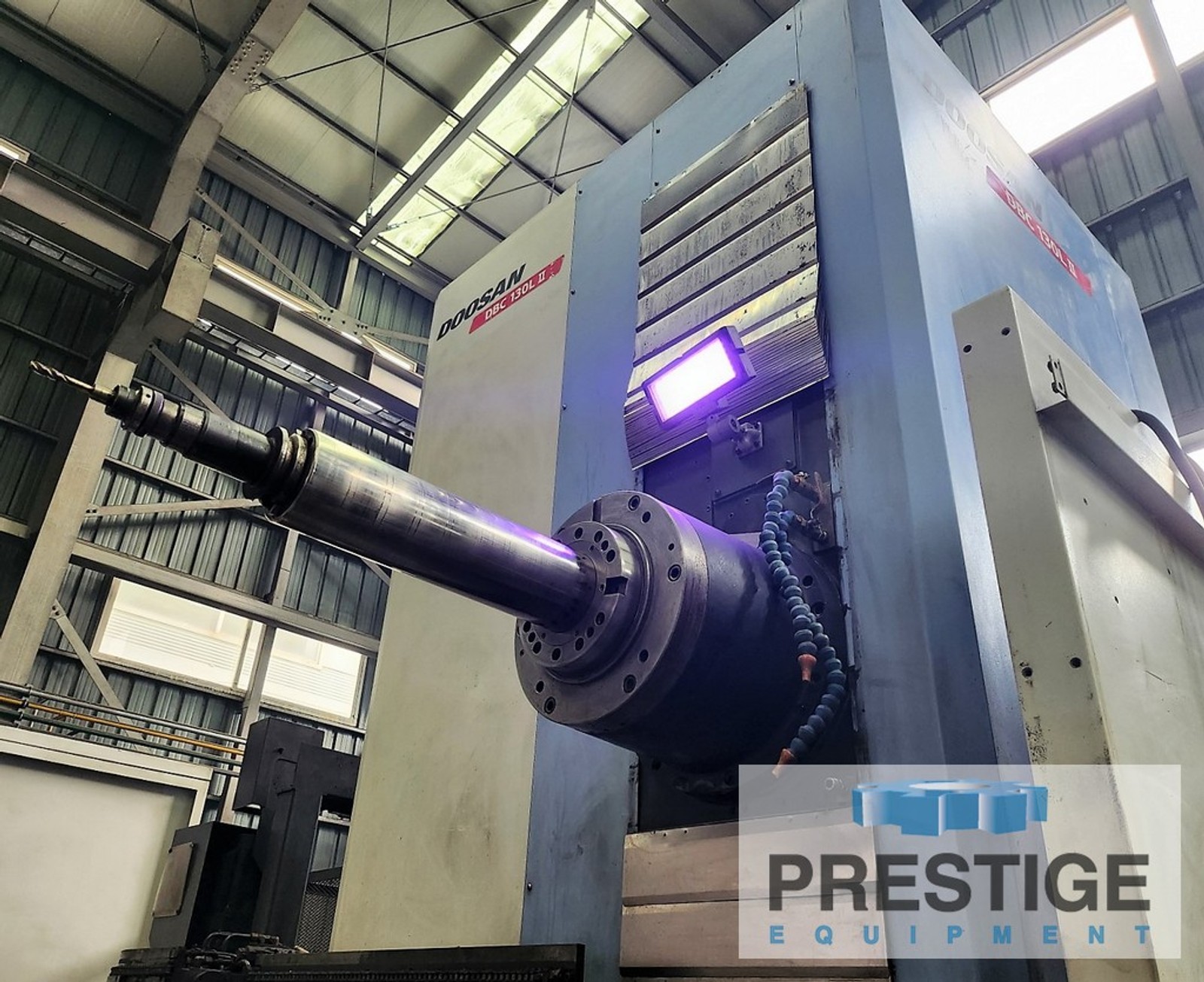

Spindle Diameter ...................... 5.12"
Taper In Spindle ...................... #50
Vertical Headstock Travel,Y-Axis ...... 98.42"
Table Cross Travel, X-Axis ............ 157.48"
Spindle Travel, W-Axis ................ 27.55"
Column Infeed Travel, Z-Axis .......... 78.74"
Distance Spindle Center to Table Top .. 0-90.55"
Distance Spindle Nose - Table Center .. 29.52"-108.26"

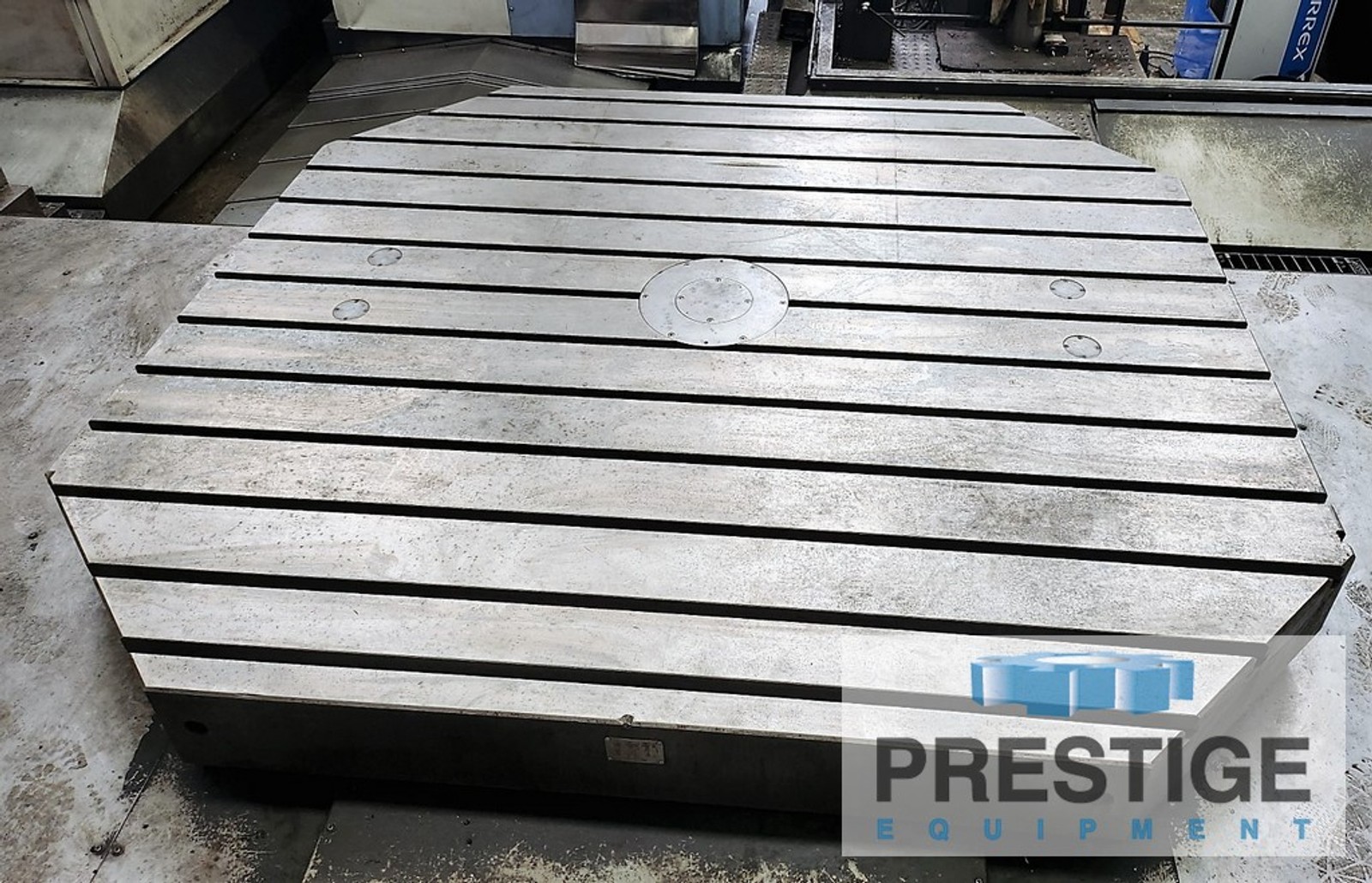

Table Size, B-Axis .................... 86.61" x 78.74"
Rotary Table Weight Capacity .......... 28,659 Lbs.
B-Axis Table Rotation ................. 0.001 Degree
Spindle Speeds ........................ to 2500 RPM
Rapid Traverse Rate ................... 393.70 IPM
Cutting Feedrate ...................... 1-157.48 IPM
Overall Height ........................ 212.6"
Floor Space ........................... 307.1" x 370.1"
Estimated Machine Weight .............. 110,231 Lbs

EQUIPPED WITH:
Fanuc 31iB 4-Axis CNC Control
60 Station Automatic Tool Changer
B-Axis Contouring Rotary Table
Scales on X/Y/Z Axes

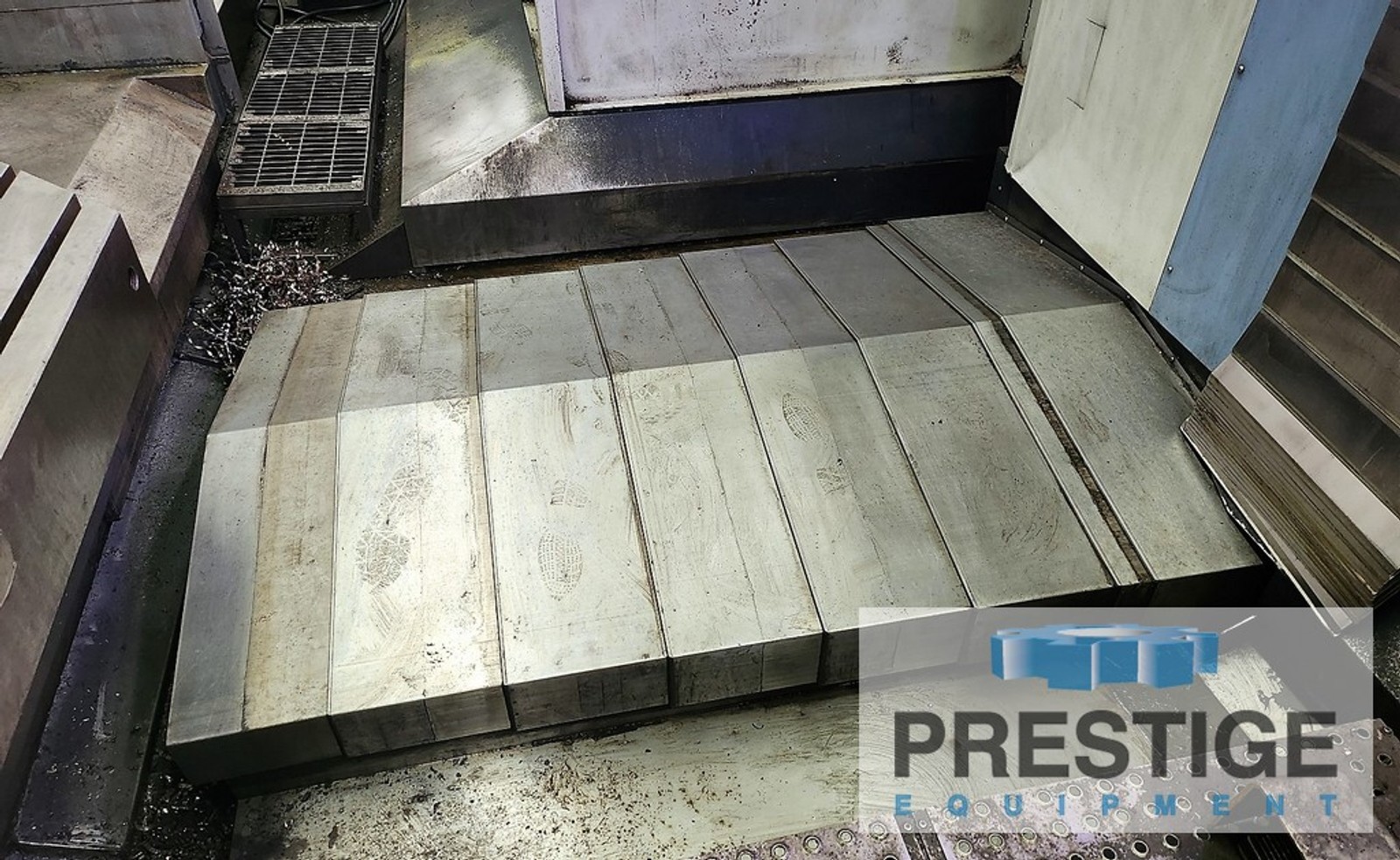

Way Covers
Spindle Thru Coolant
Chip Conveyor
35 HP/ 30 HP Spindle Motor
