300-ton Niagara SE2-300-84-48 UH, 330 ton Straight Side Double Crank Mechanical Metal Stamping P

Manufacturer

NIAGARA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2850

Model

SE2-300-84-48 UH

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 300
Stroke - 8 inches
Shut Height - 32 inches
Adjustment - 11 inches
Bed Size - 84" LR x 48" FB
Ram Area - 84" LR x 48" FB
SPM - 35-70 VSPM


Standard Specification

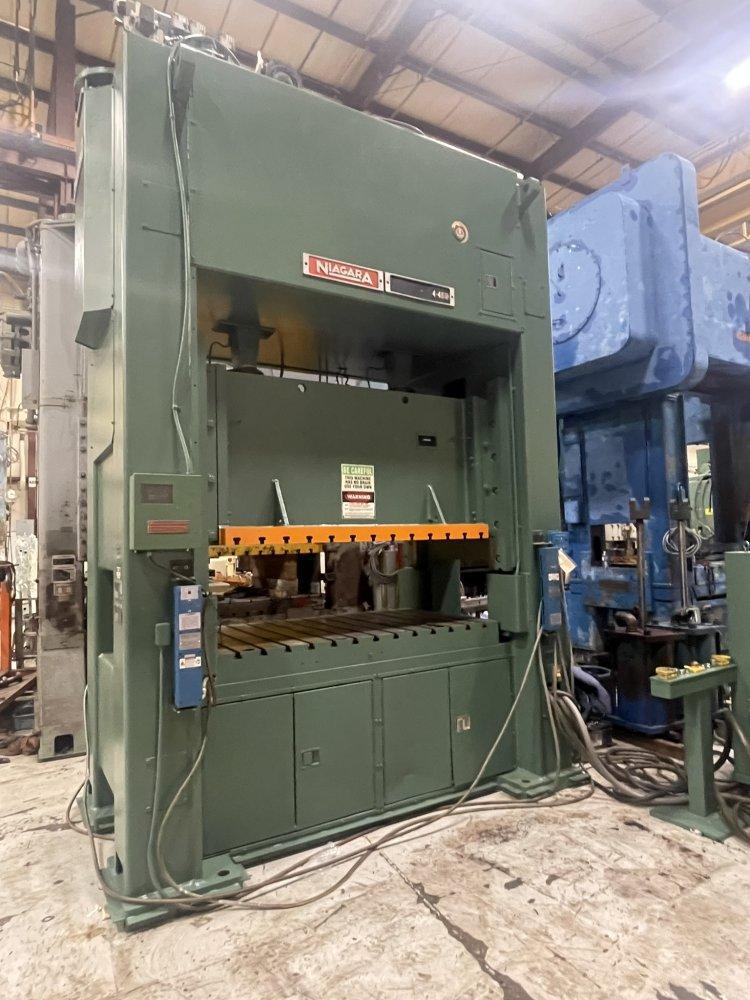

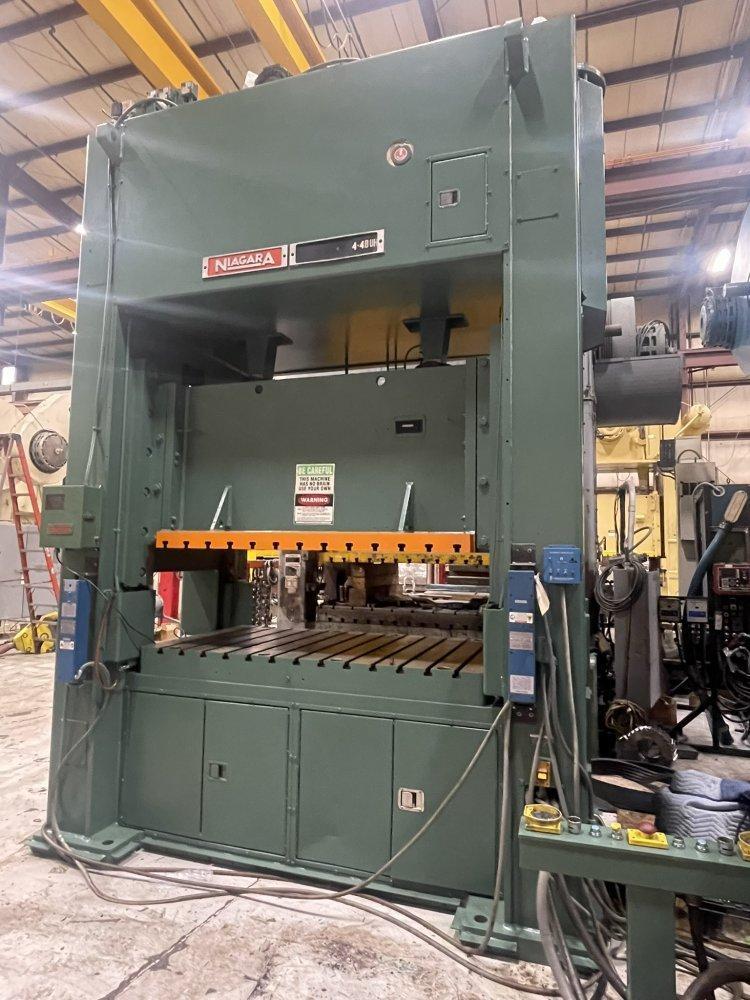

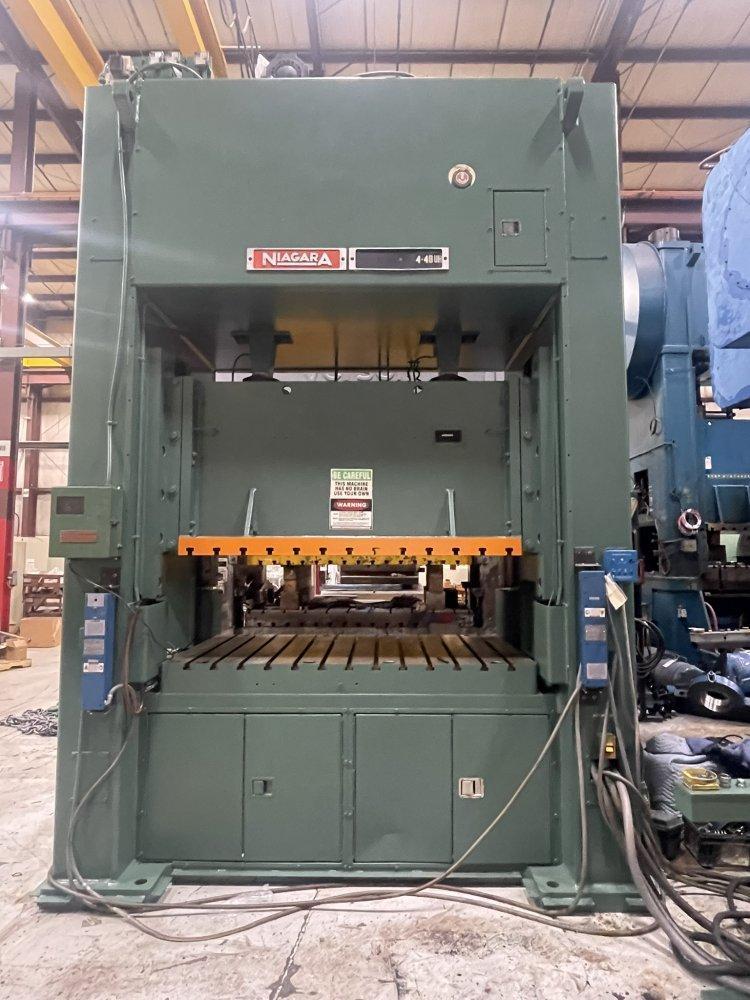

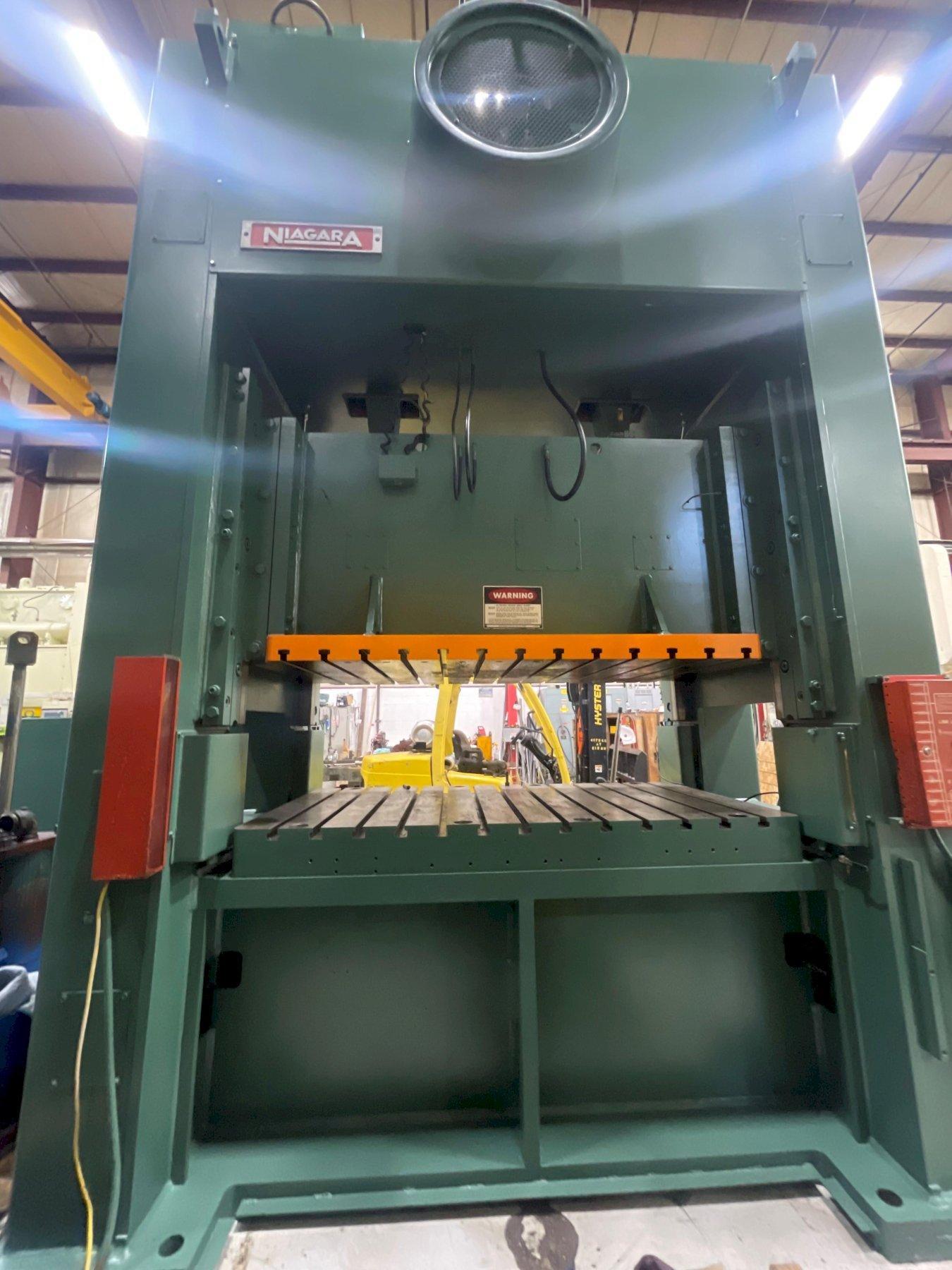

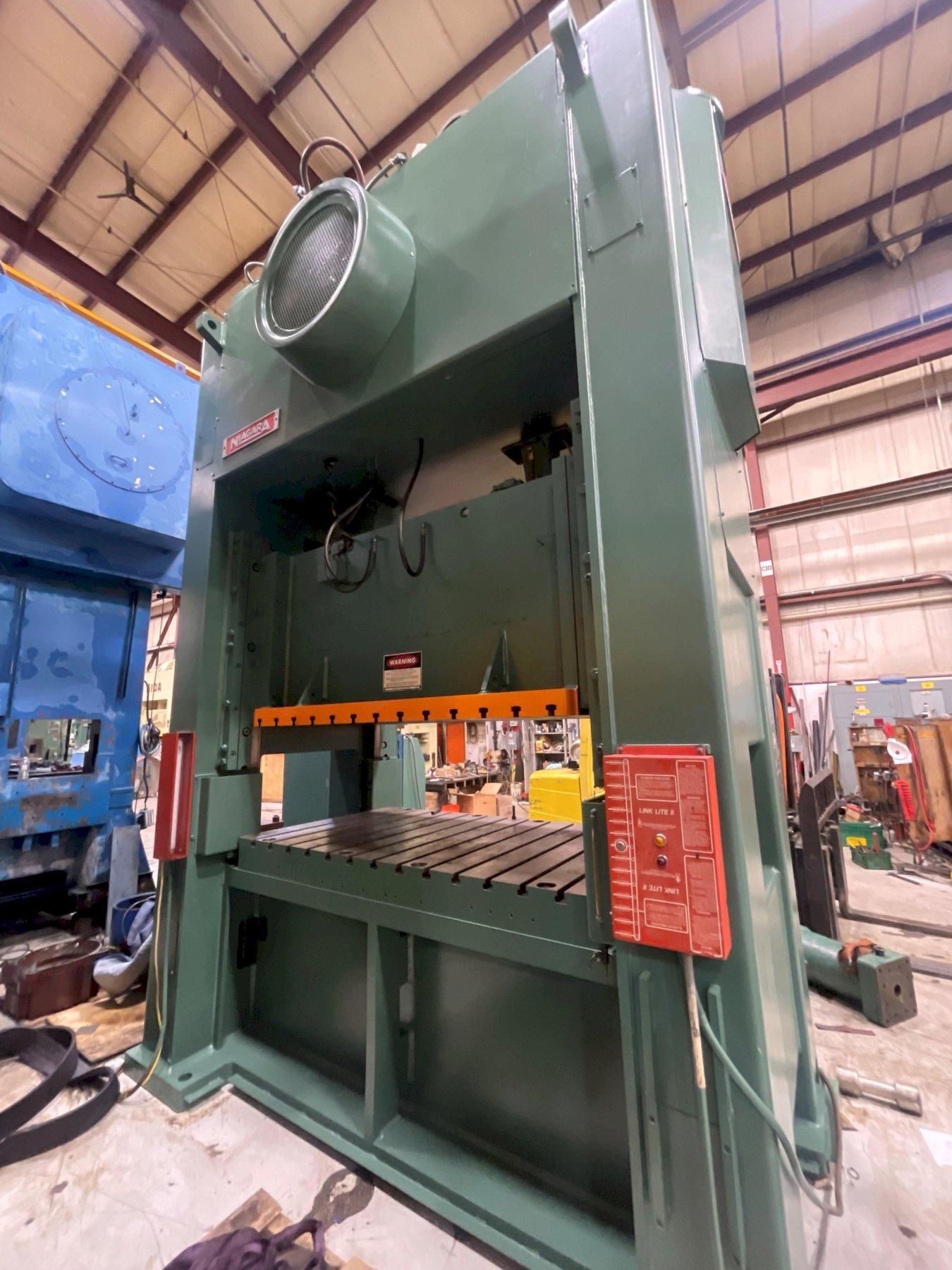

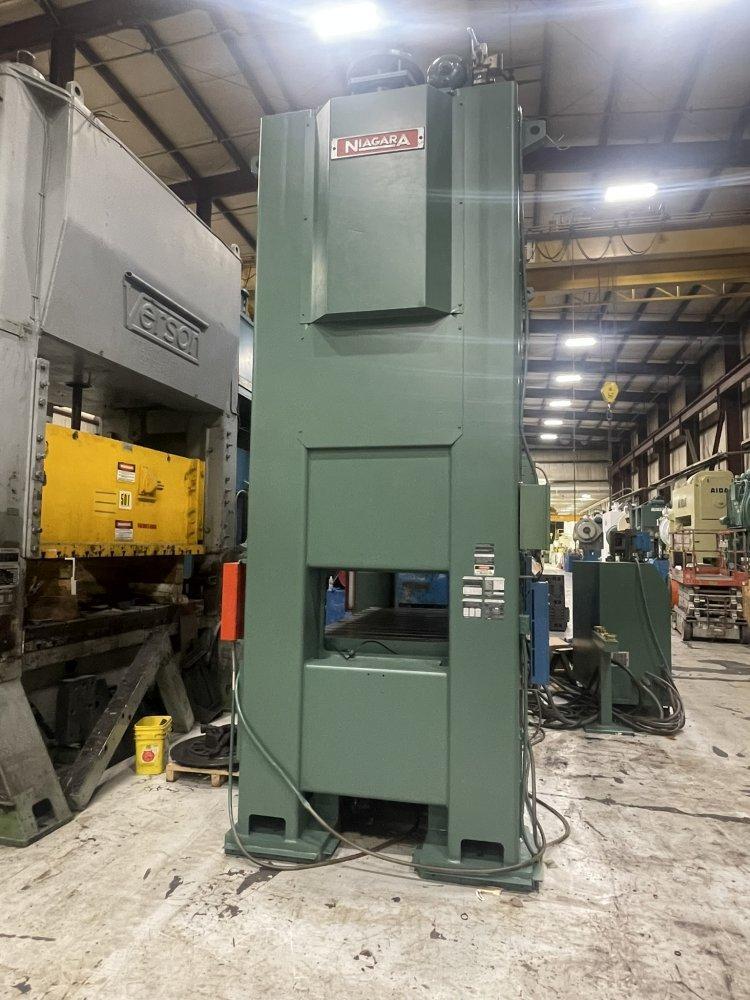

Used 300-ton Niagara Straight Side Mechanical Press
Model SE2-300-84-48 UH
300-ton Metric Capacity
330-ton U.S. Capacity
8" Stroke
32" Shut Height On Bed
25" Die Height Over Bolster
11" Motorized Adjustment
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
35-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Oil Recirculating Lube System
Hydraulic Overloads

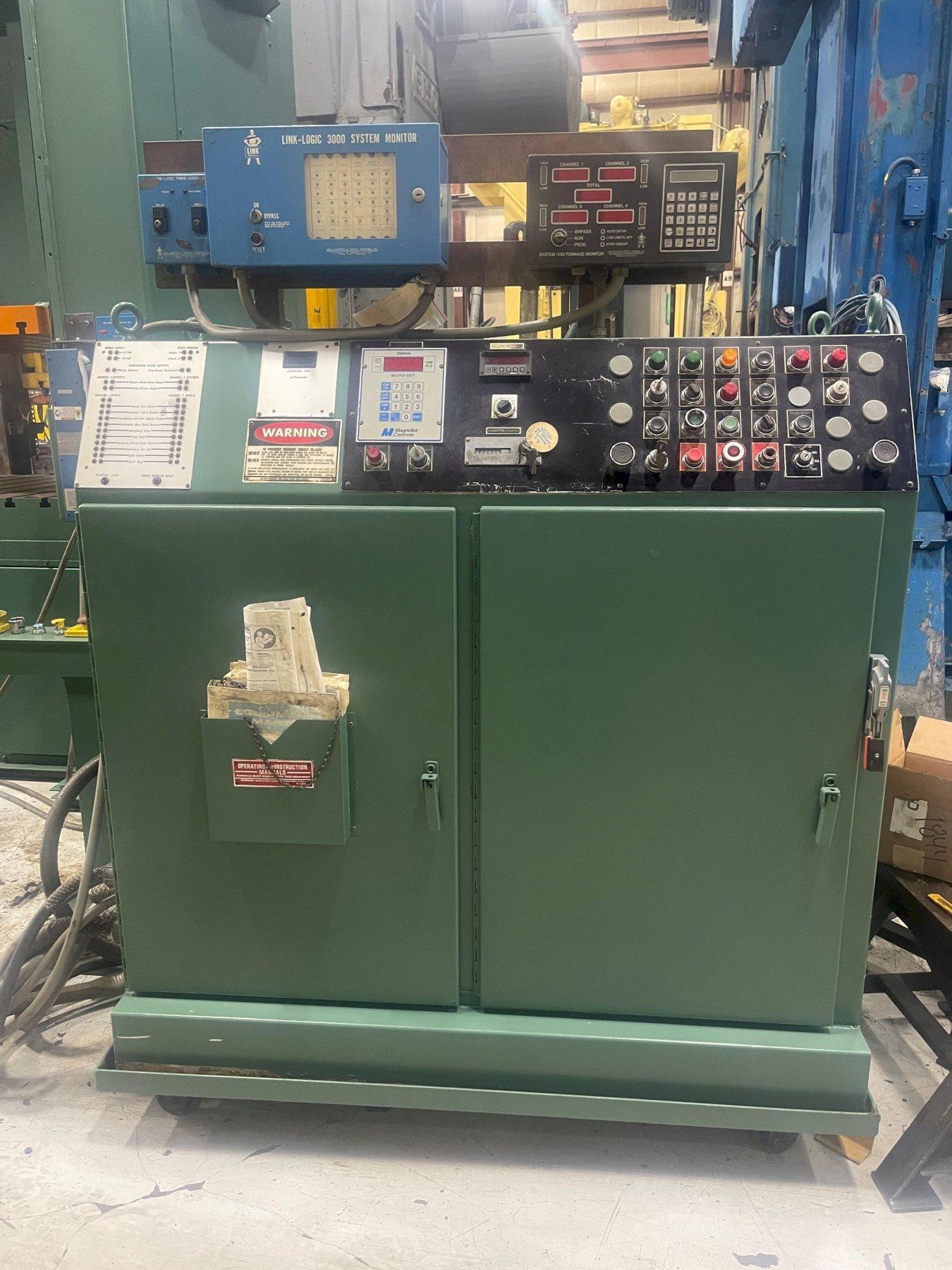

Free Standing Console Control
7" Thick Bolster
50 HP Main Drive Motor
460 volt / 3 PH / 60 HZ
Link-Logic 3000 System Monitor
Gemco Micro-Set 1995 PLS
Link Systems 1100 Tonnage Monitor
OmniLink Press Control
T-Slotted Ram and Bolster
32" Wide Windows
Floor Standing

Approximate Weight 76,000 lbs.
Overall Height: 199" Tall

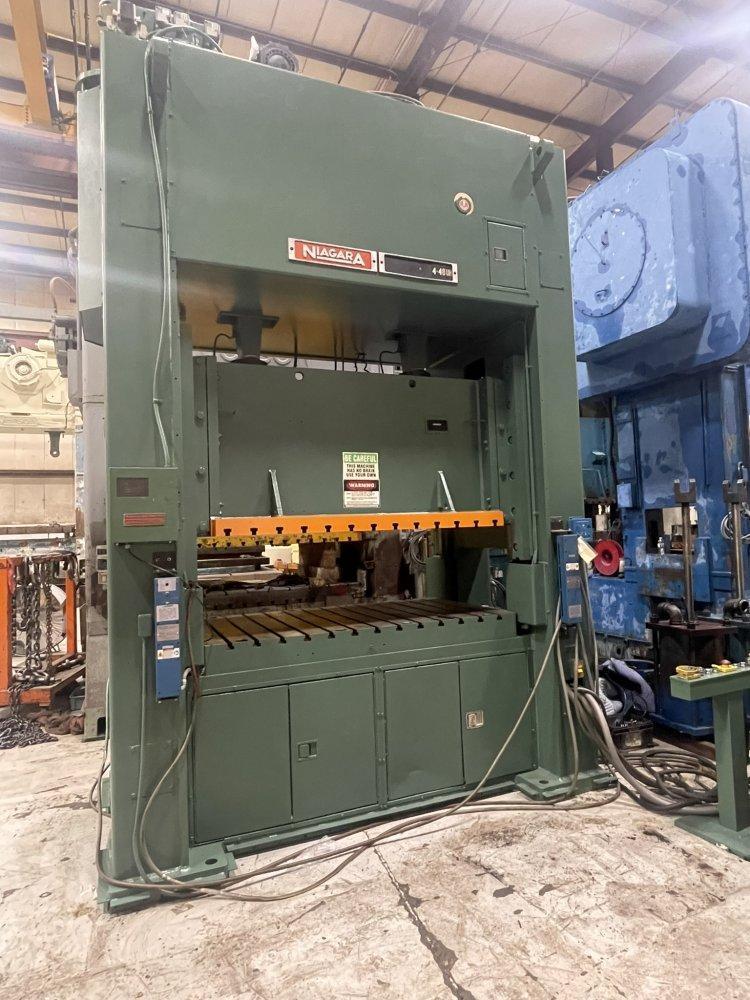

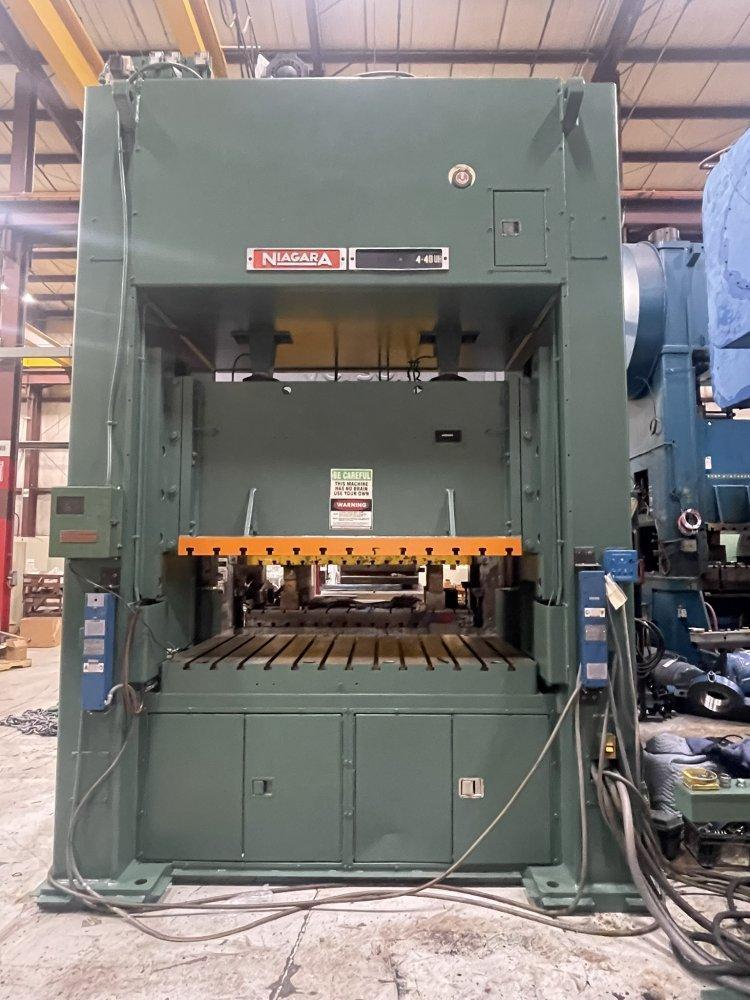

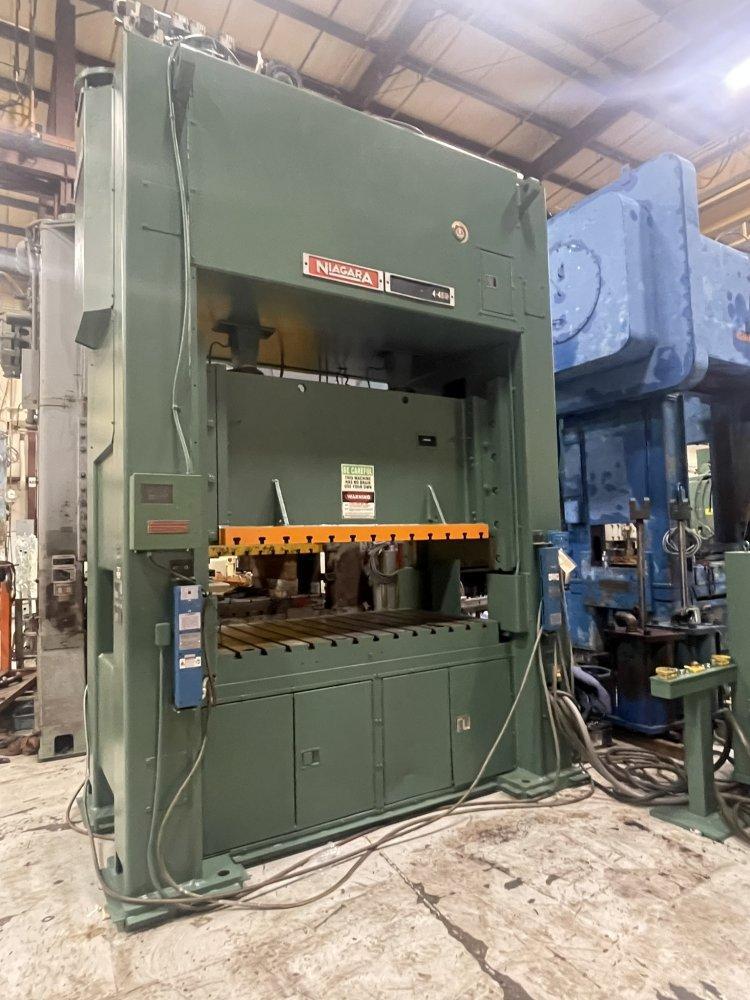

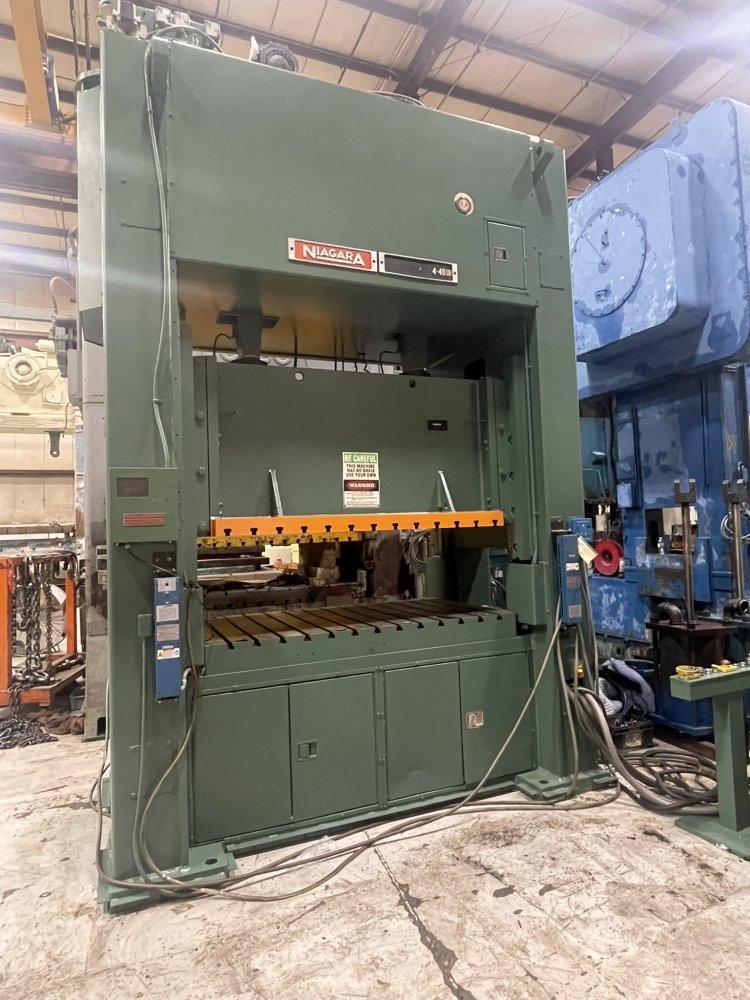

This 300-ton Niagara Straight Side Mechanical Press can be seen under power in the S&G Press Livonia Michigan Warehouse!
300 ton Press For sale: this used 300-ton Clearing Niagara SE2-300-84-48UH Straight Side Mechanical Metal Stamping Press.
This heavy-duty press delivers 300 metric tons of force, ideal for demanding industrial applications.
Key features include an 8-inch stroke, 32-inch shut height, and hydraulic overloads for enhanced protection.
With adjustable speeds from 35 to 70 strokes per minute, the Niagara SE2-300-84-48 offers reliable, high-capacity performance for a variety
of metal stamping needs.
