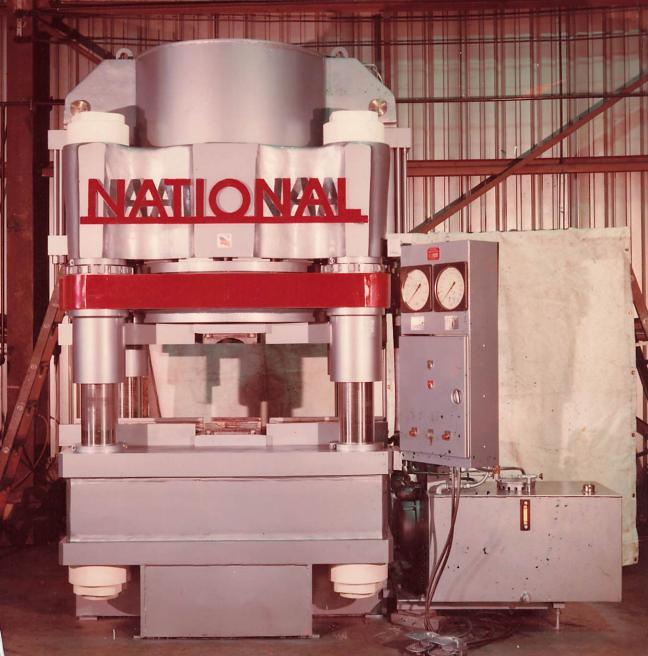

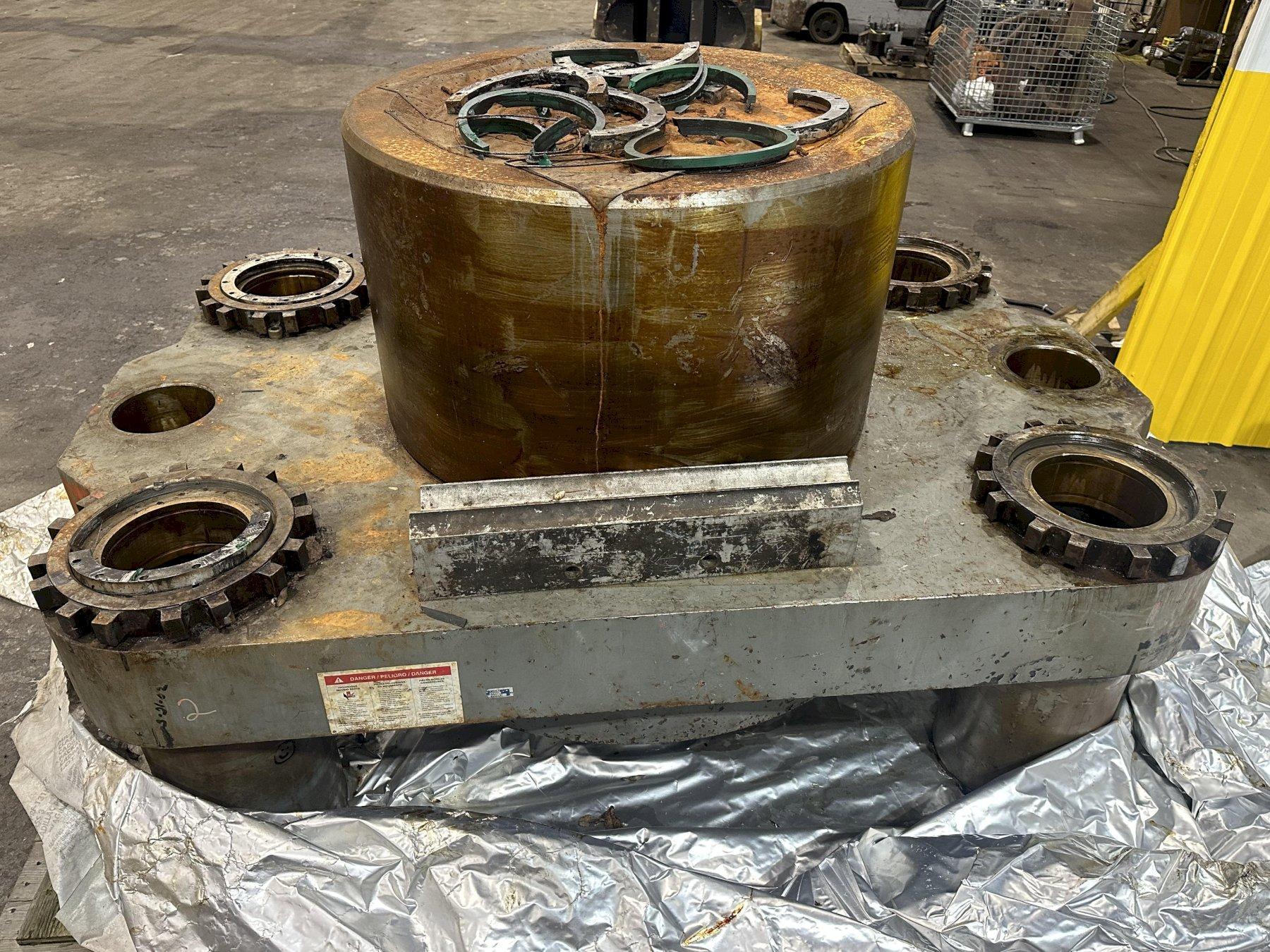

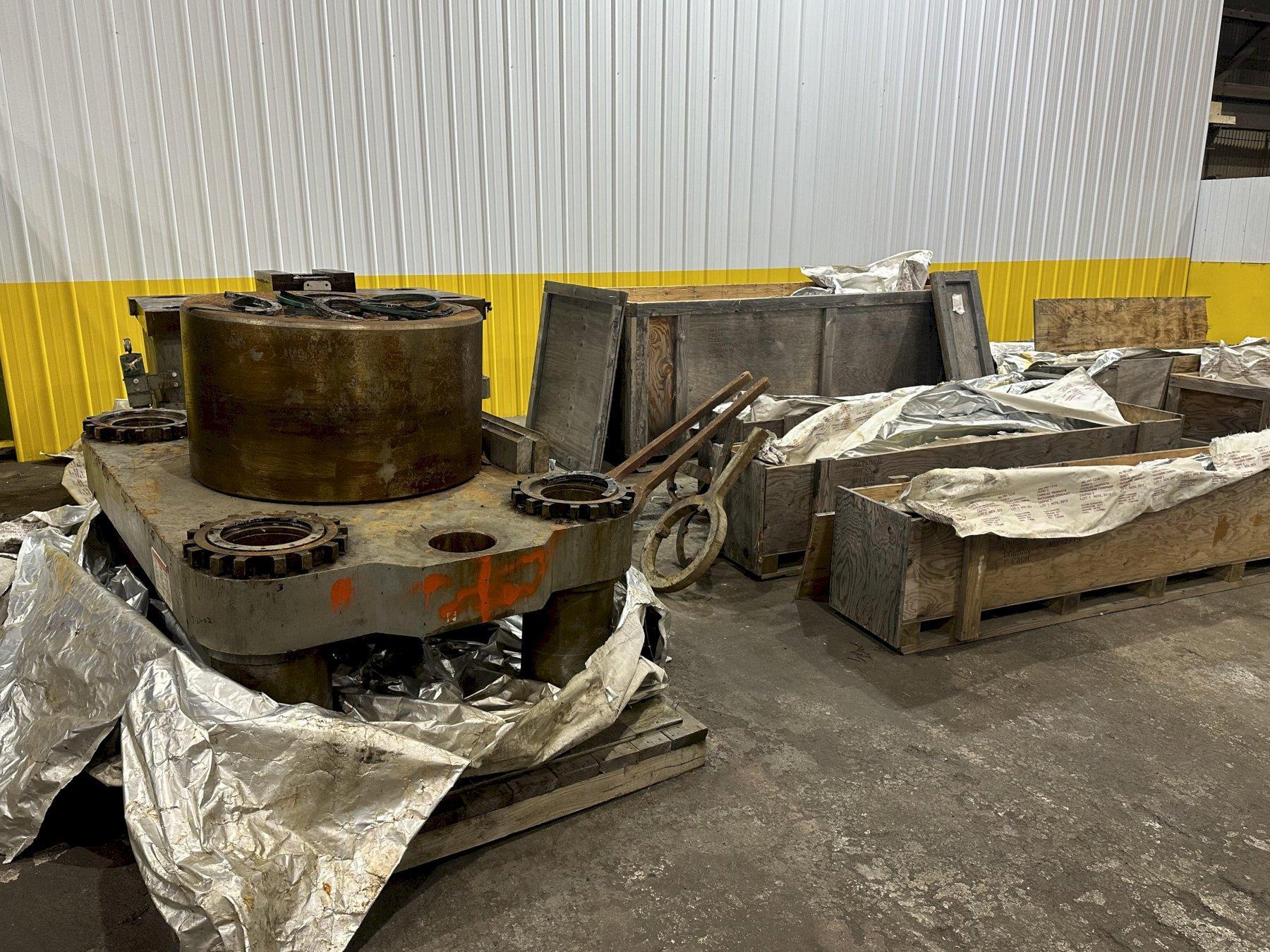

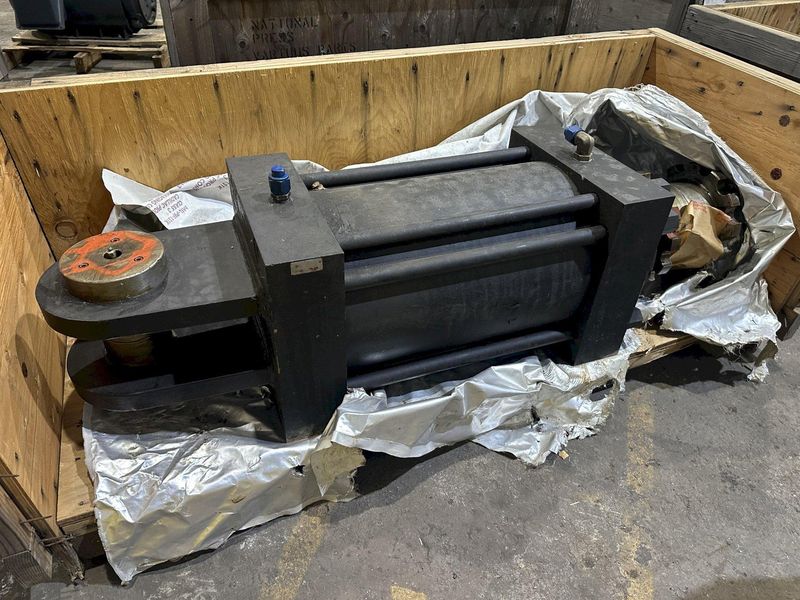

3000 TON NATIONAL (CROSBY GROUP) 4-POST HYDRAULIC PRESS / WIRE ROPE SWAGING MACHINE: STOCK #1945

Manufacturer

National

Category

Presses

Type

PRESSES, SWAGING

Stock

19450

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

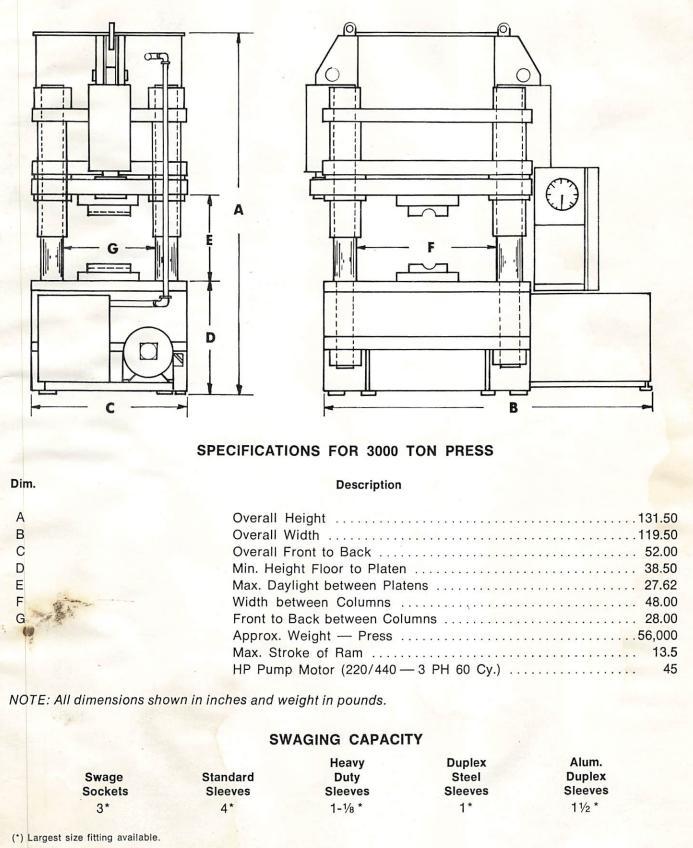

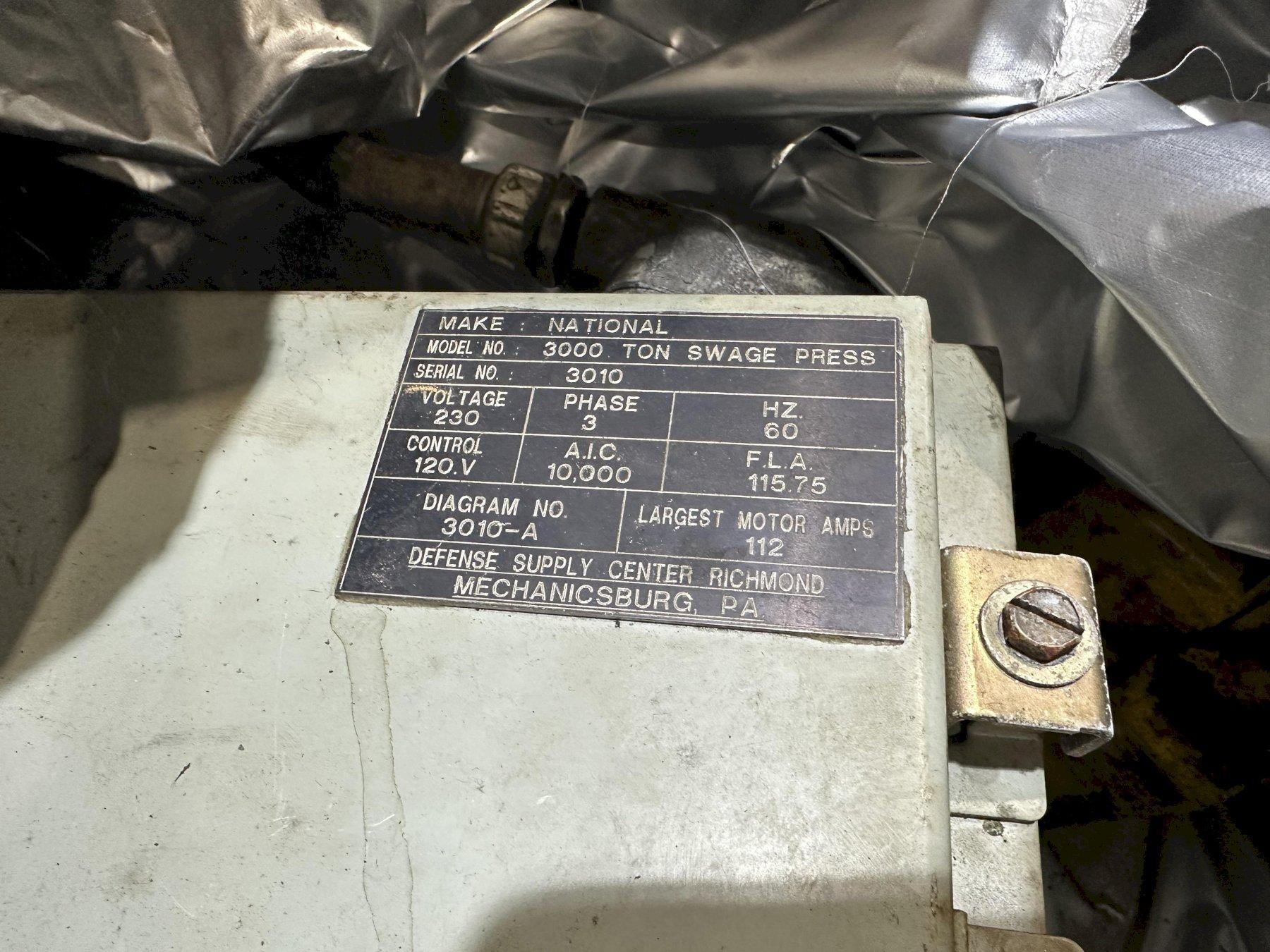

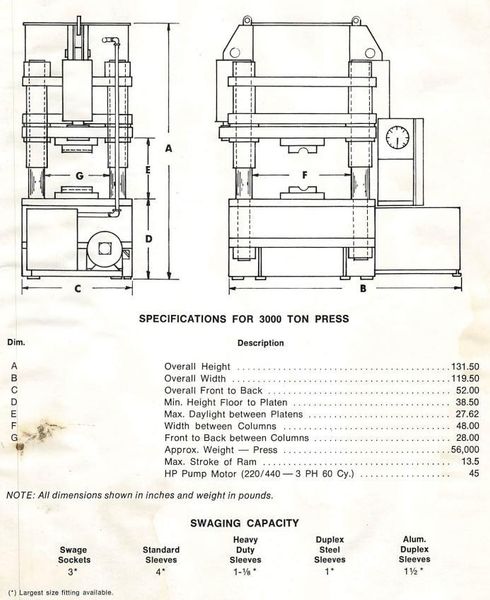

SERIAL ..................... 3009
US NAVY REBUILD ............ 1991

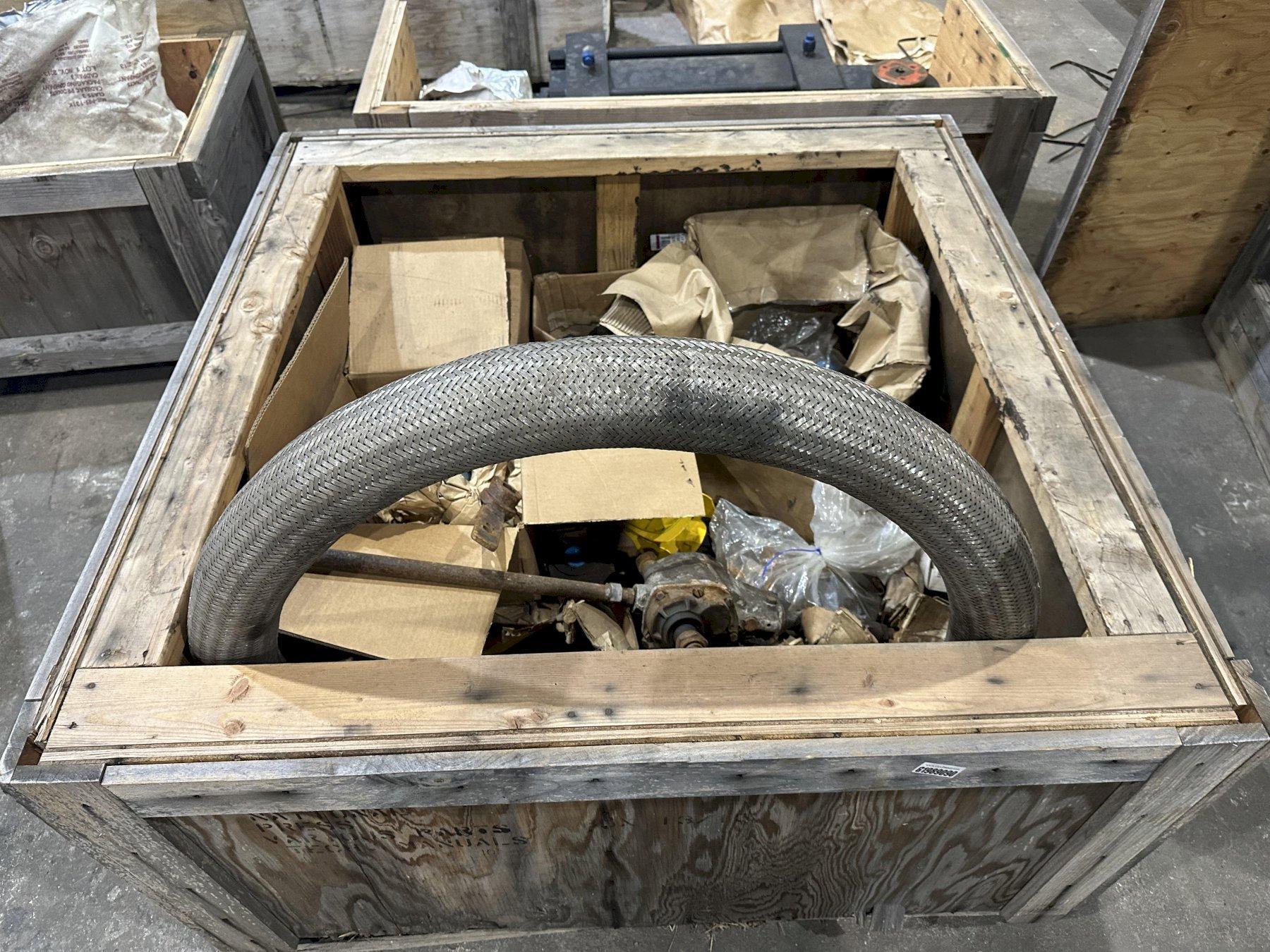

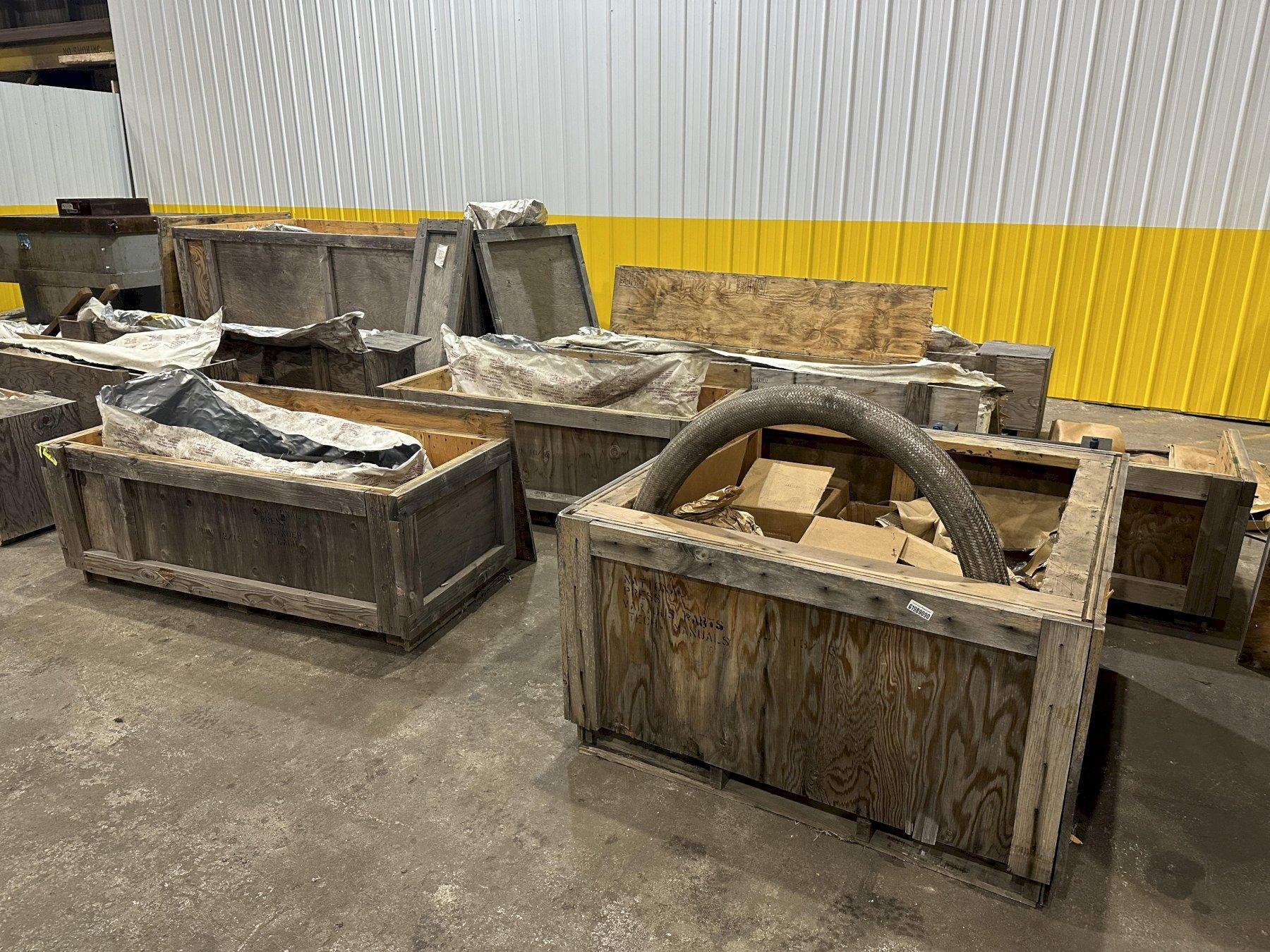

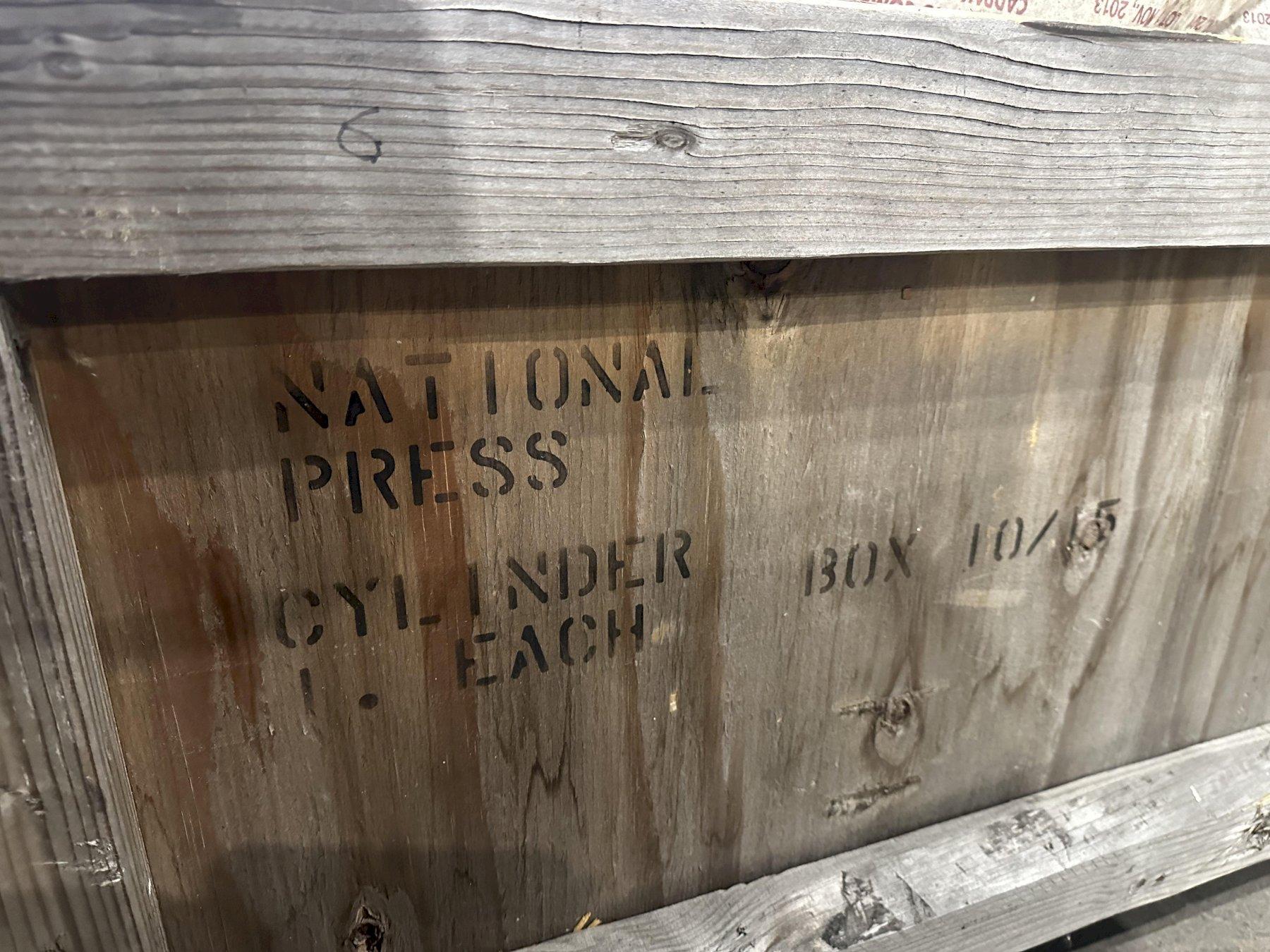

NAVY PACKED & STORED ....... 2013
MODEL ...................... 300T
TONNAGE CAPACITY ........... 3000 TON

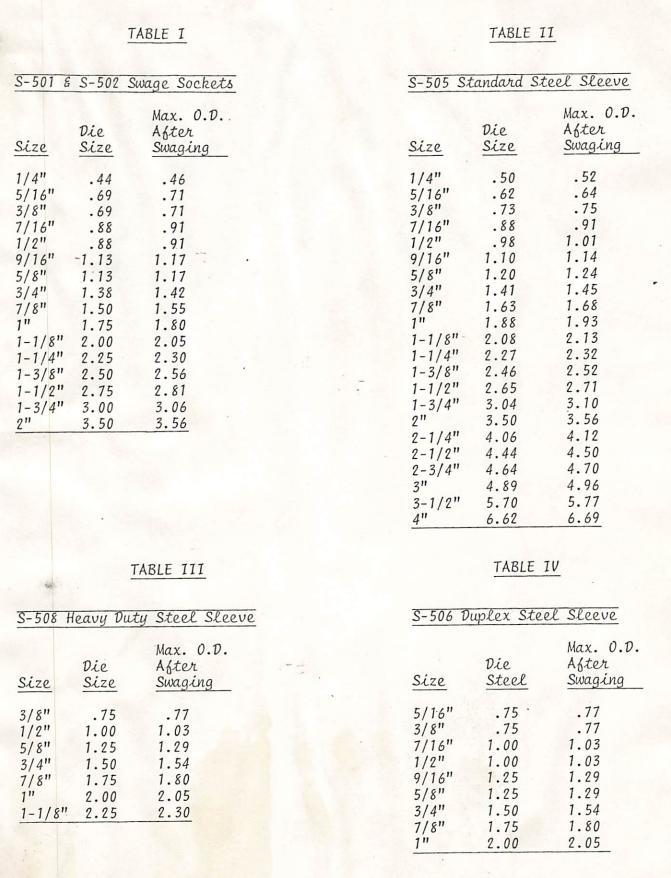

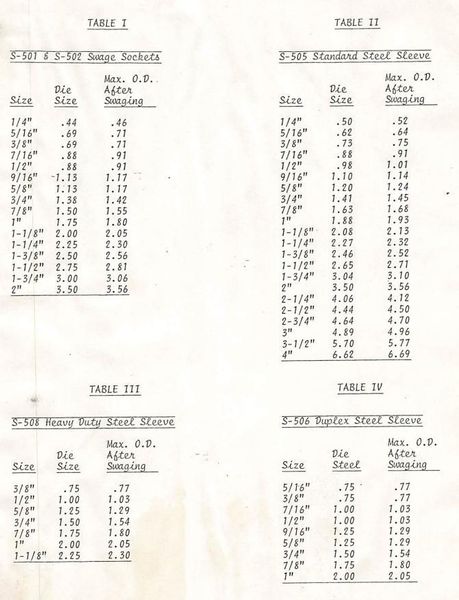

SWAGING CAPACITY:
SWAGE SOCKETS .............. 3"
STANDARD SLEEVES ........... 4"
HEAVY DUTY SLEEVES ......... 1-1/8"
DUPLEX STEEL SLEEVES ....... 1"
ALUMINUM DUPLEX SLEEVES .... 1-1/2"
STROKE OF RAM .............. 13-1/2"
FLOOR TO PLATEN (MINIMUM) .. 38-1/2 MIN
DAYLIGHT BETWEEN PLATENS ... 27.62"
LENGTH BETWEEN COLUMNS ..... 48" L-R, 28" F-B

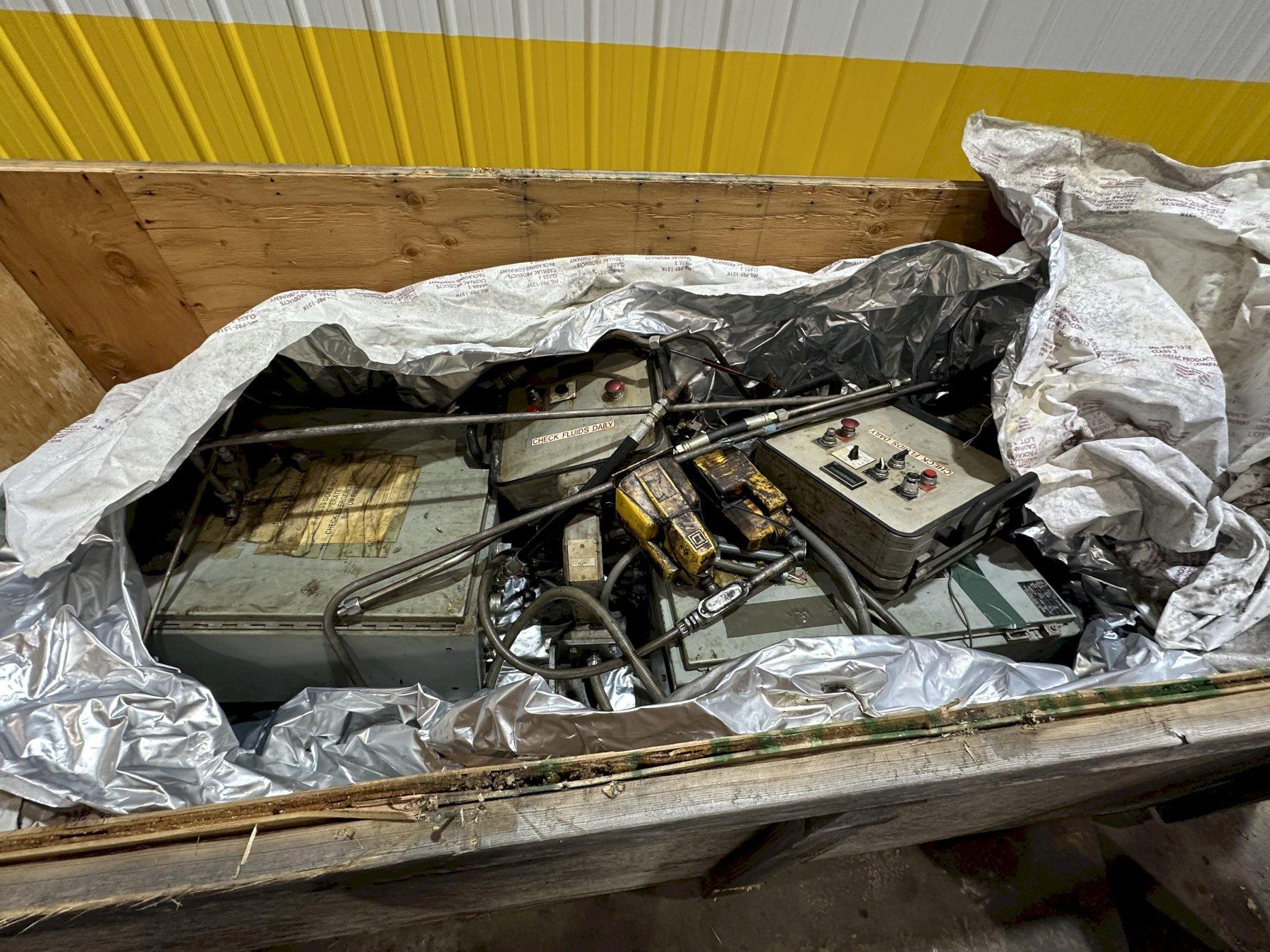

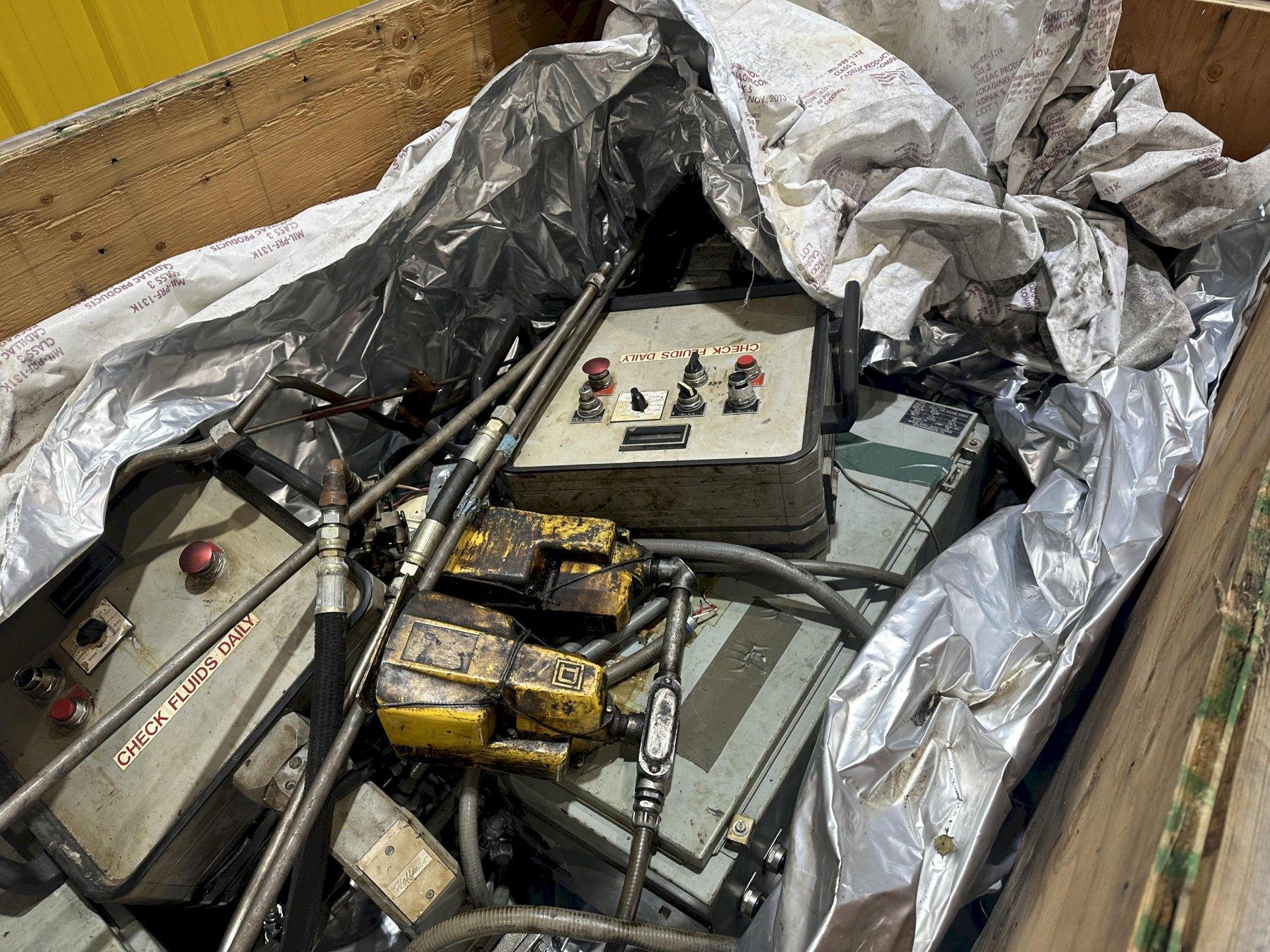

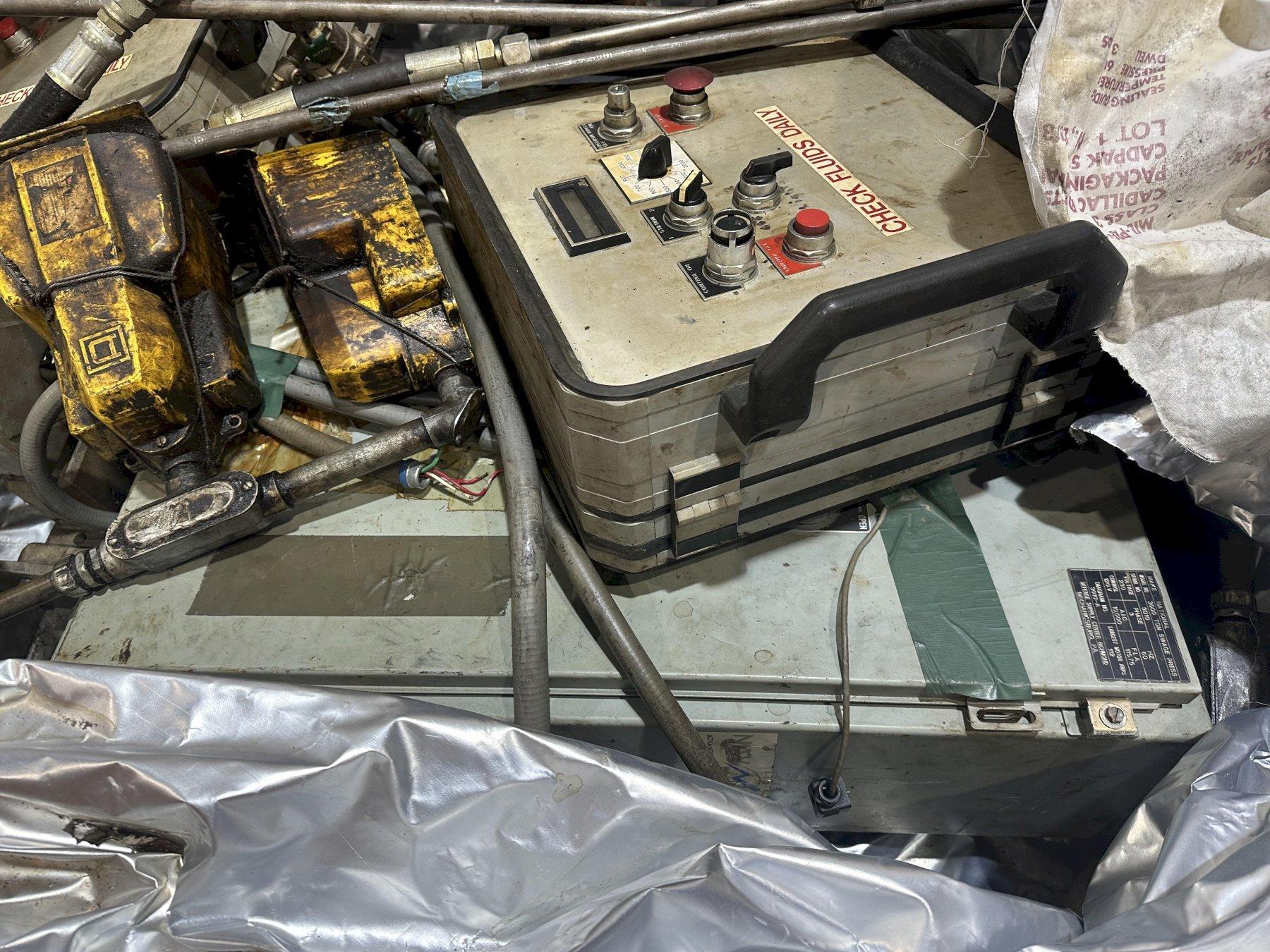

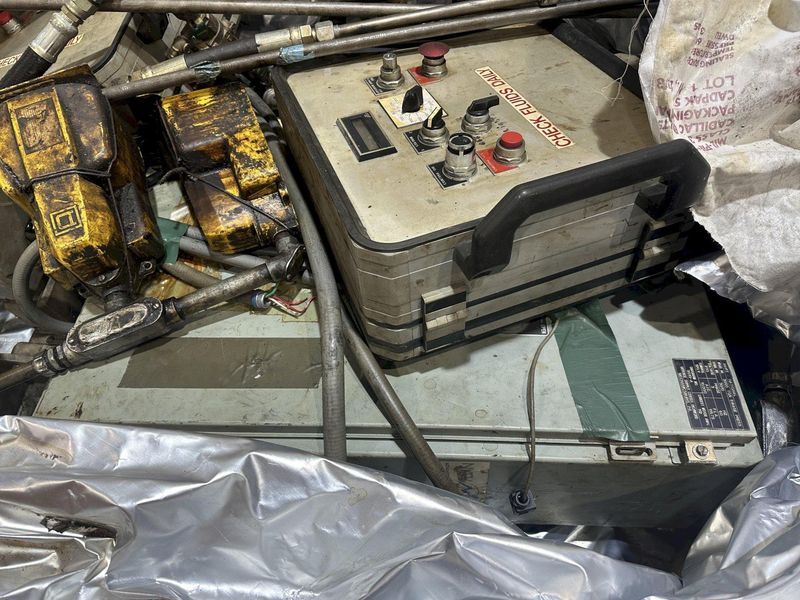

CONTROL STATION ............ YES
OIL RESERVOIR .............. 145 GALLONS

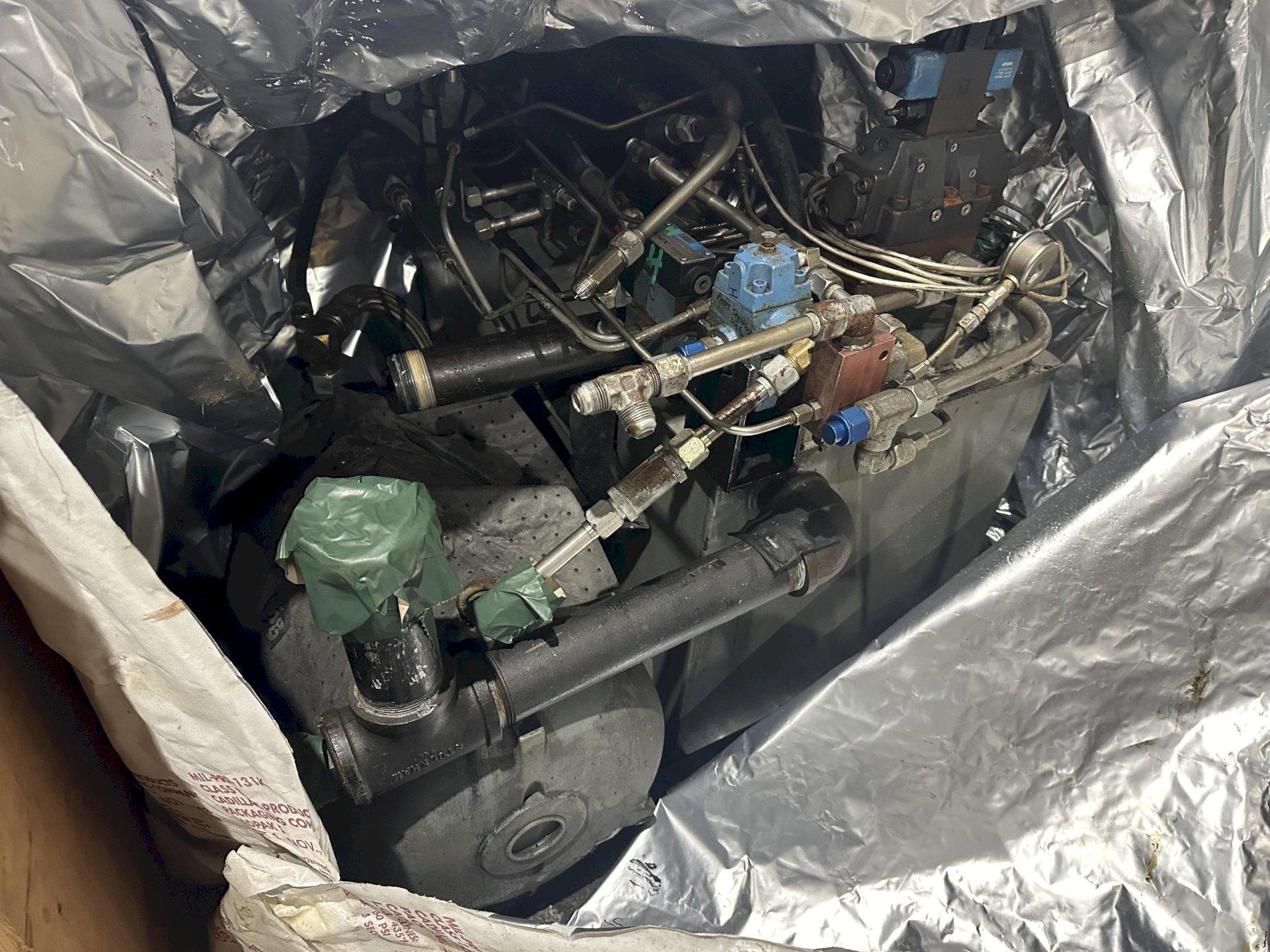

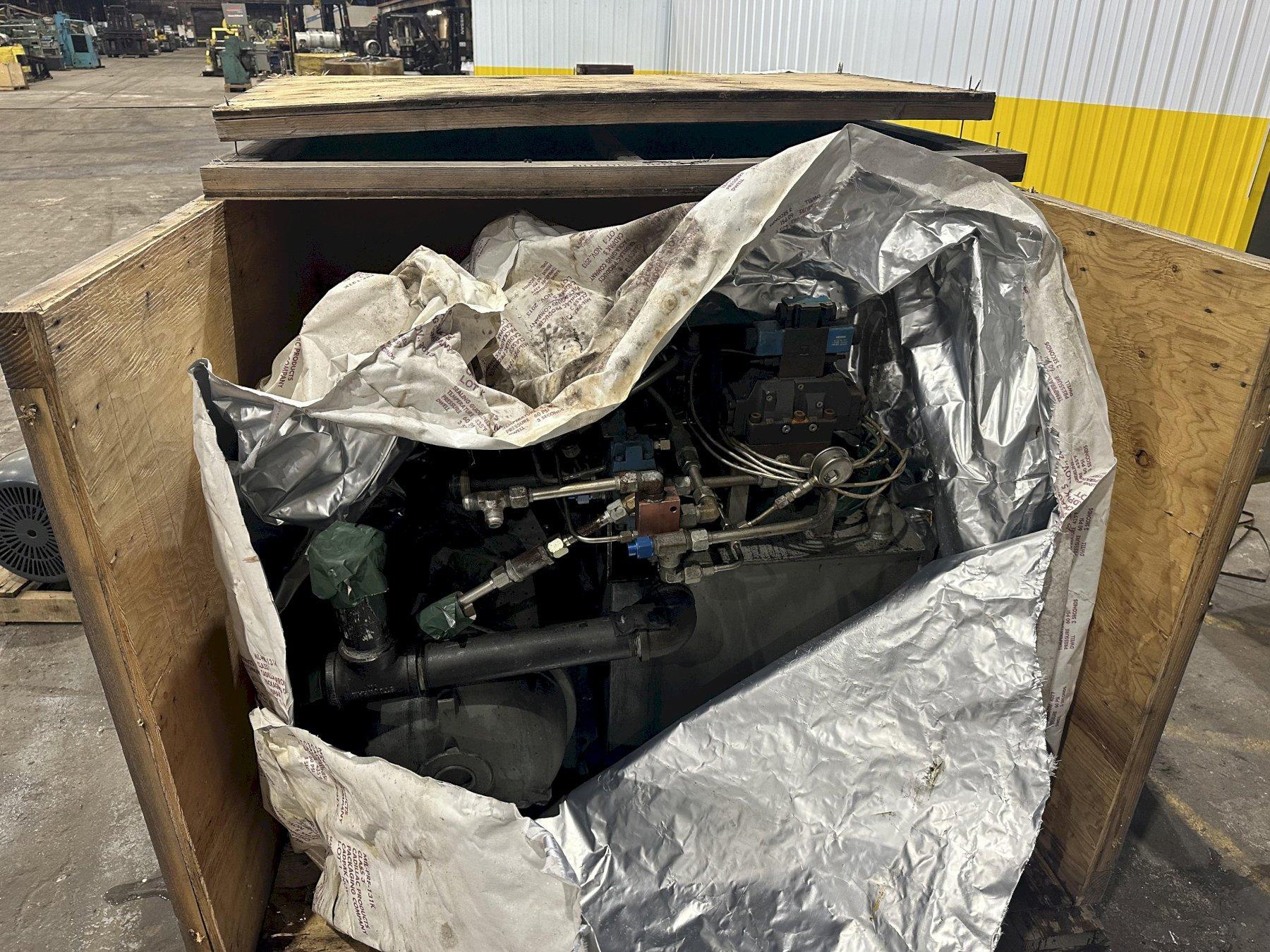

HYDRAULIC UNIT & PUMP ...... RACINE HYDRAULICS
HYDRAULIC PUMP MOTOR ....... 45 HP

Features of National Hydraulic Swaging Machines offer a number of advantages for high production sling shops:

  • A dual hydraulic system which combines the use of high speed and low pressure to bring dies into position; and the
    low speed and high pressure necessary for ideal swaging control.
  • Adjustable tonnage control, so tonnage can be set to match die block Working Load Limit.
  • Four column wide stance which provides the operator ample working clearance between columns and a large area for in-
    process sling storage.
  • Vertical swage action which gives an equalized press on the fitting to produce uniform high quality.

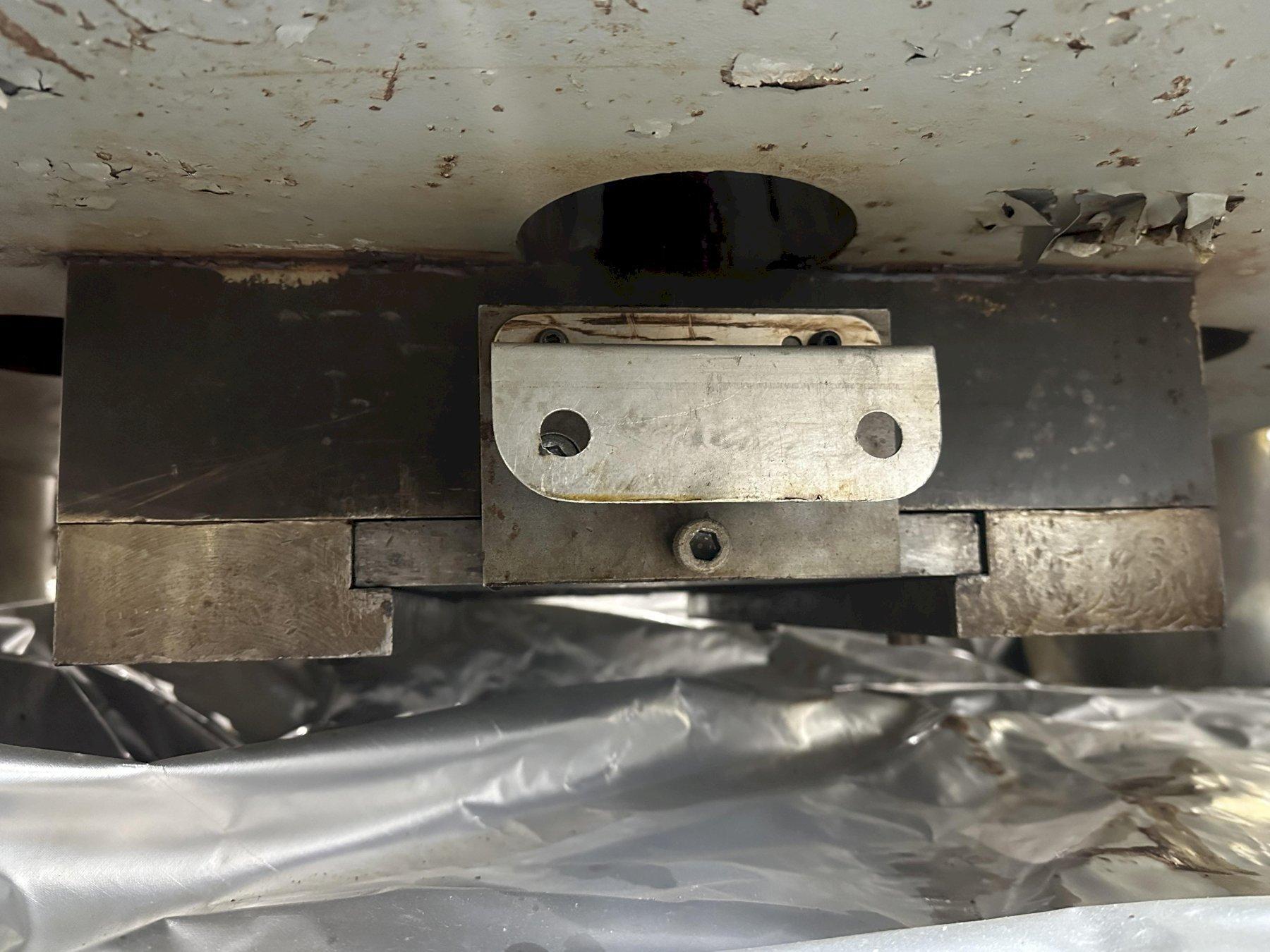

  • Self locating spring locks snap the shoe-type dies into place for quick set-up and change.

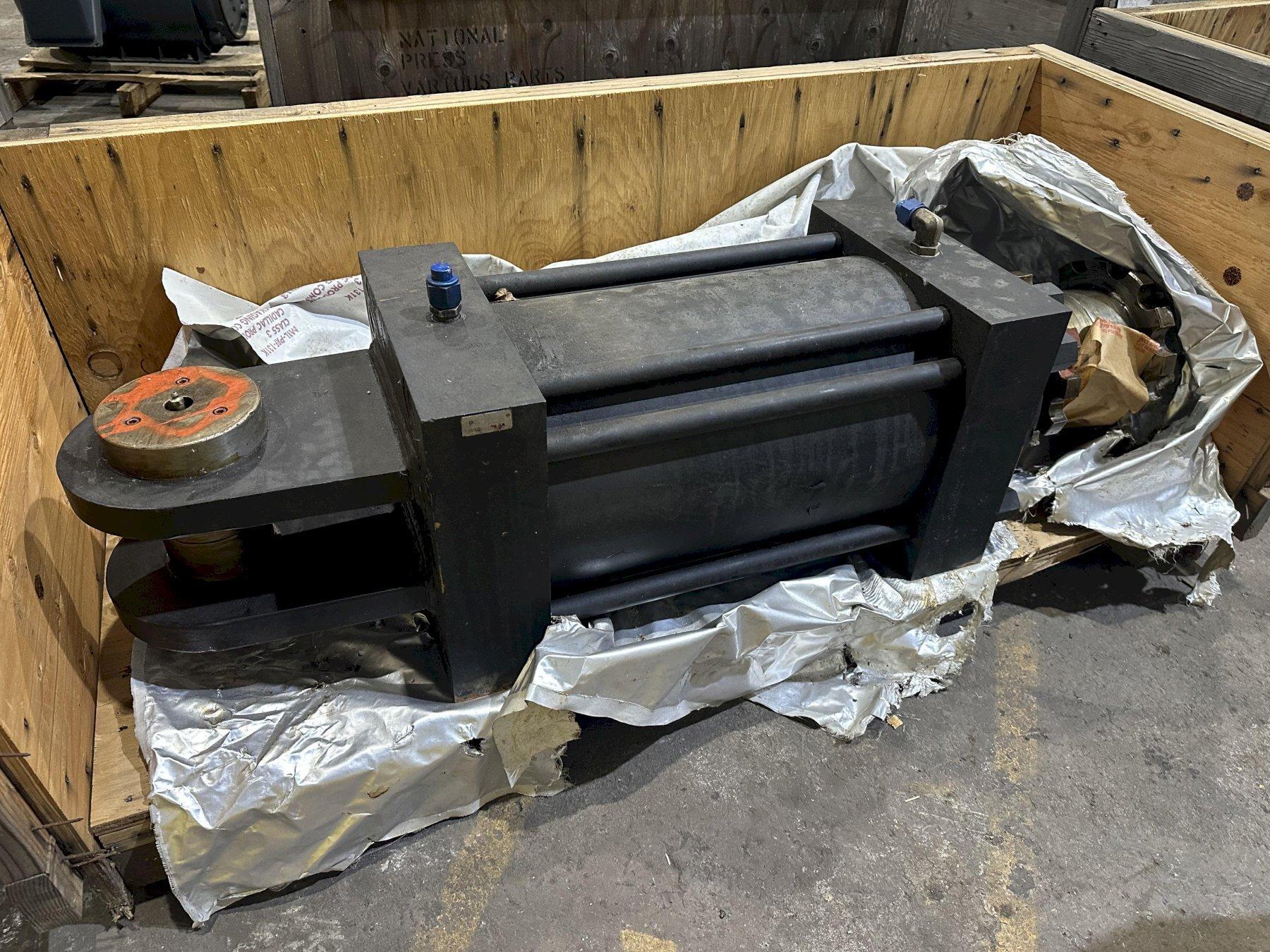

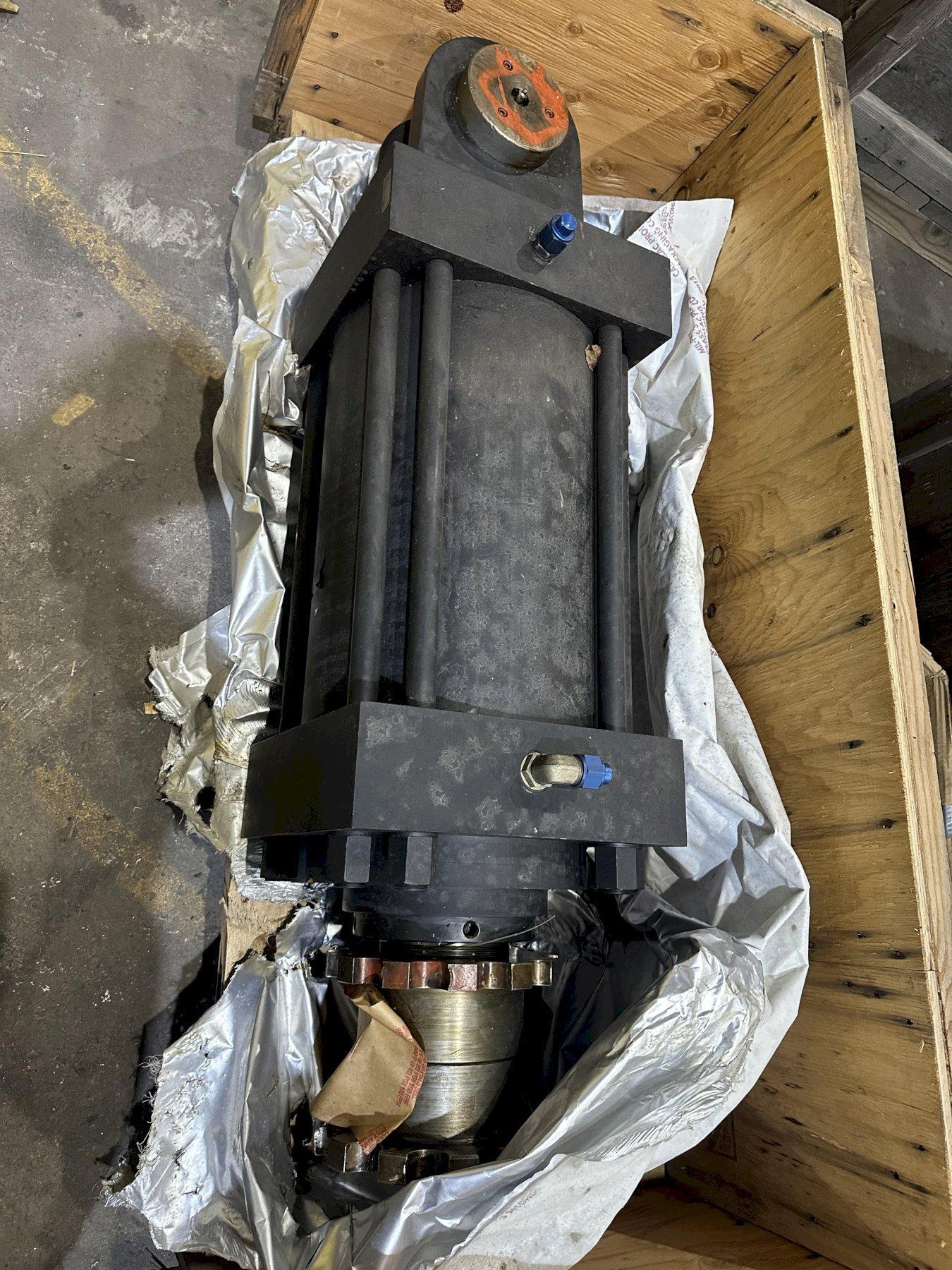

  • The National four column wide stance Hydraulic Swaging Machines, each equipped with an up-acting ram, have two

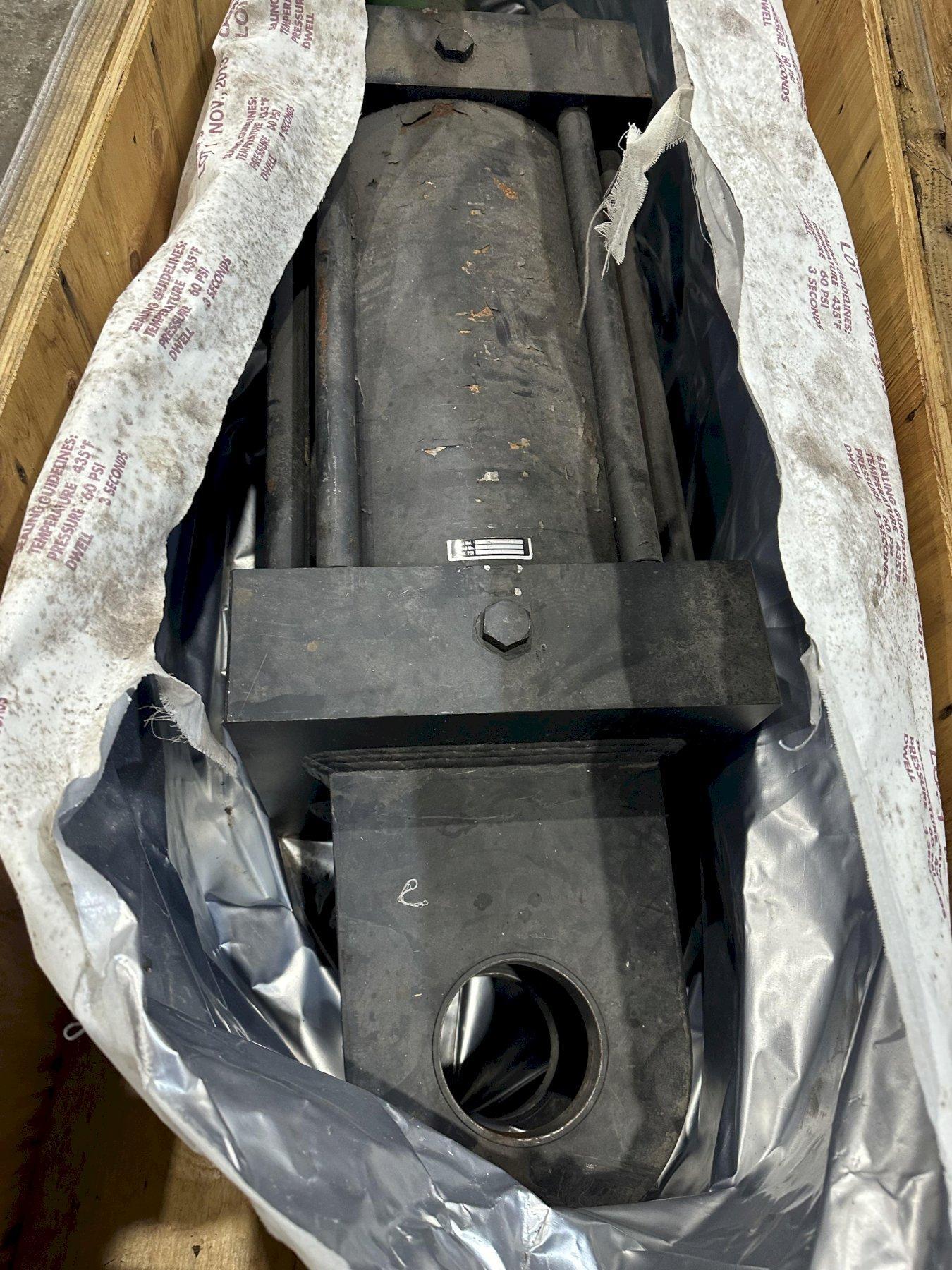

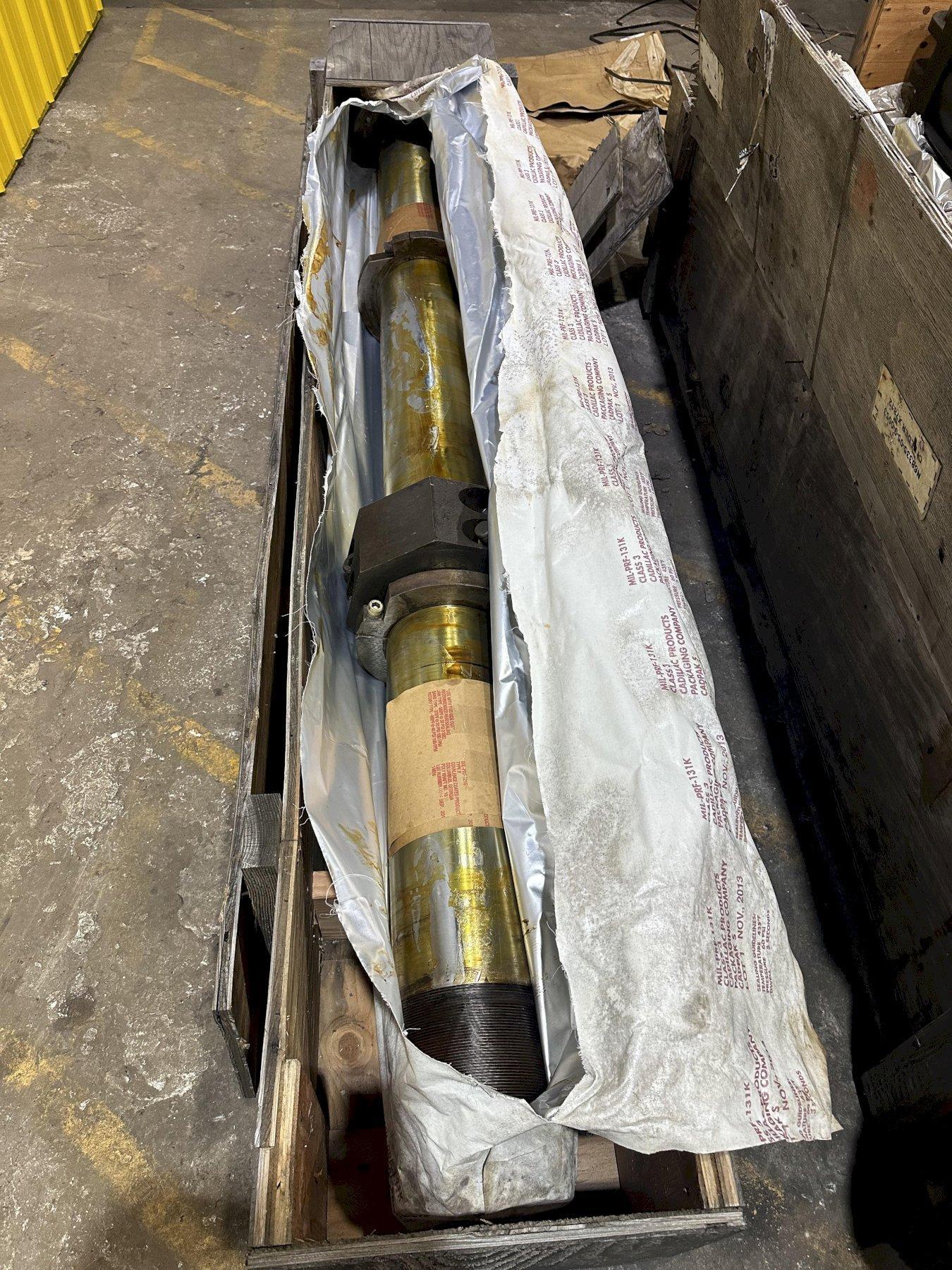

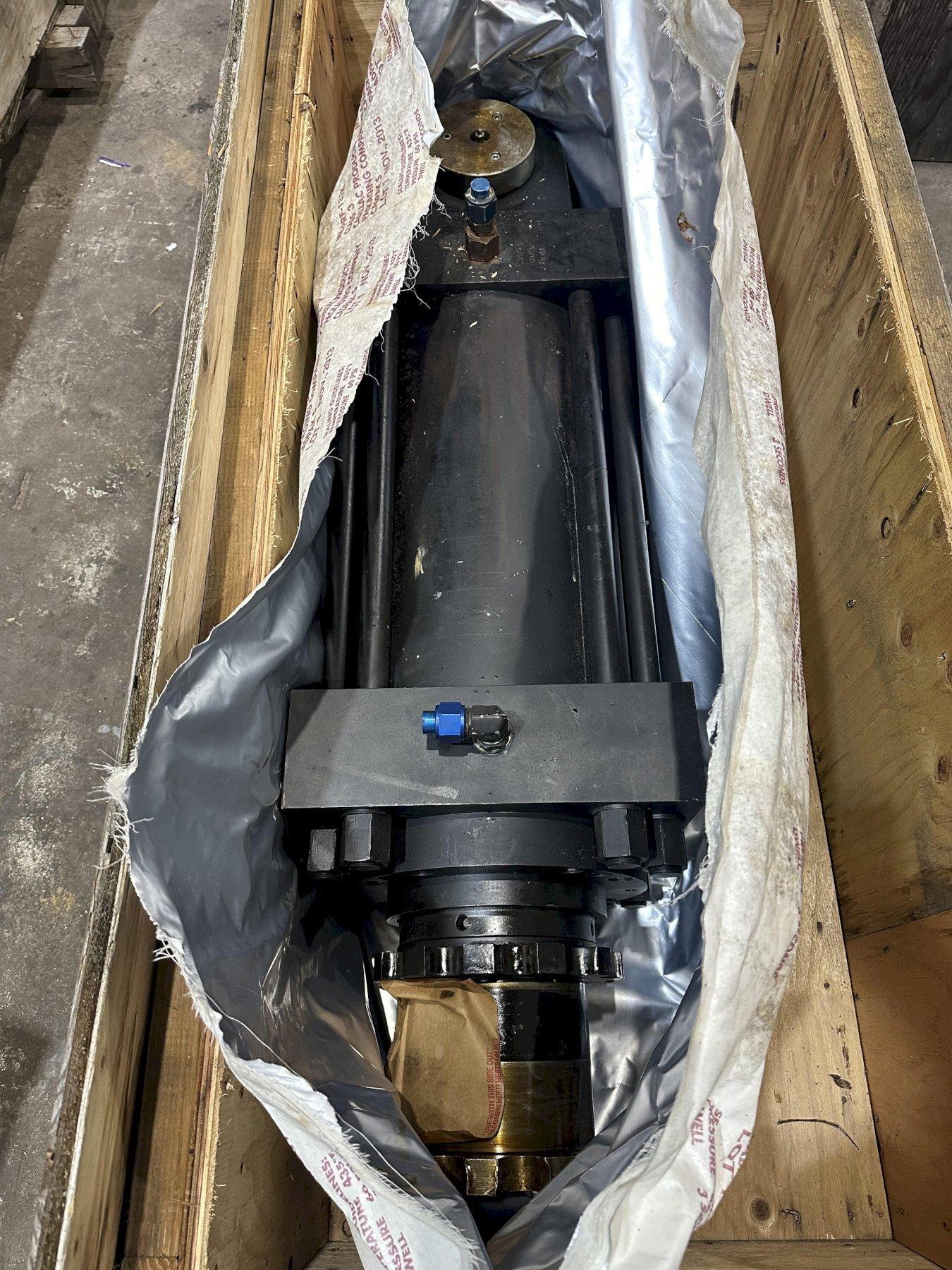

    side cylinders for fast approach and return of the main ram.
