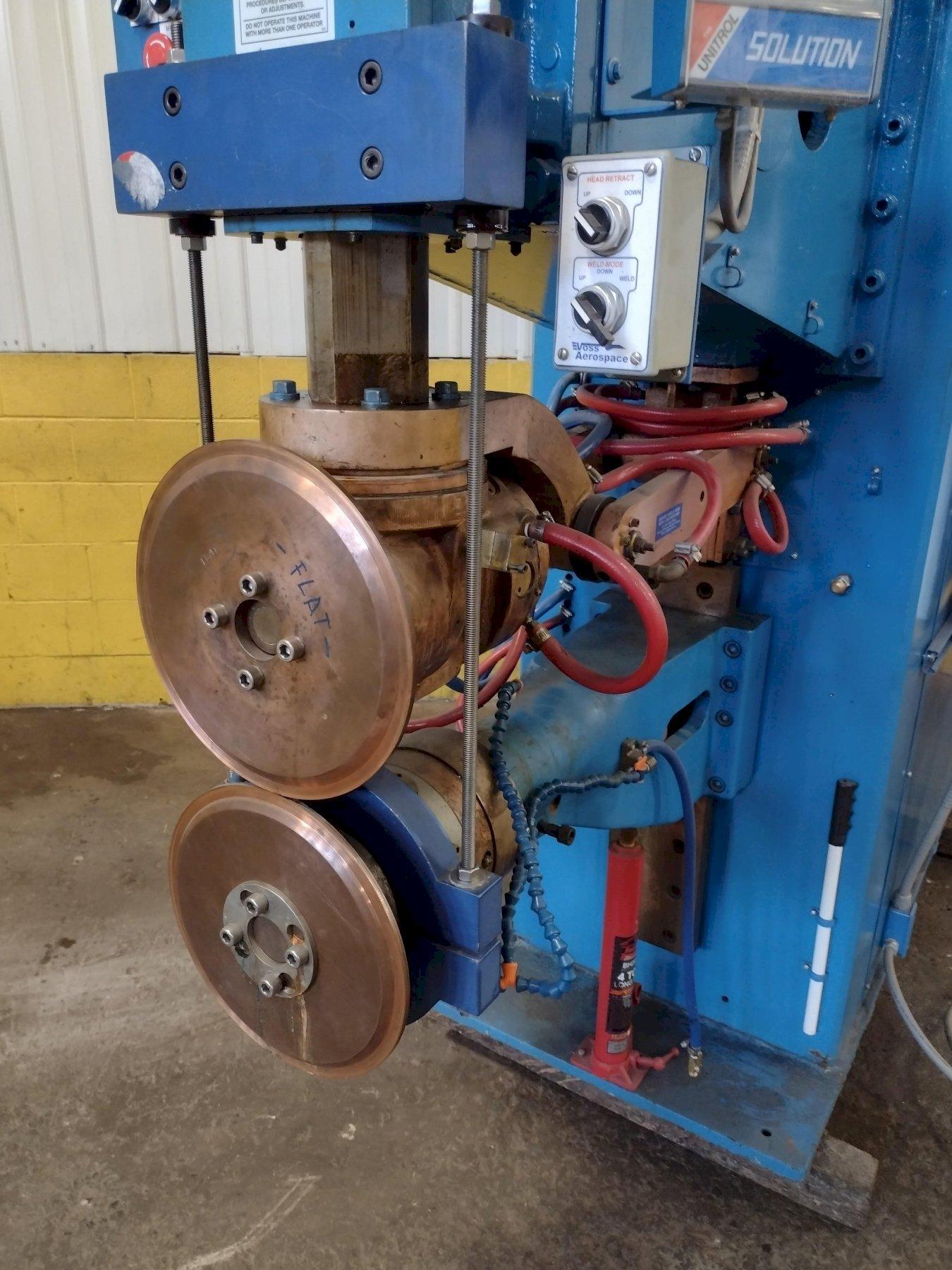

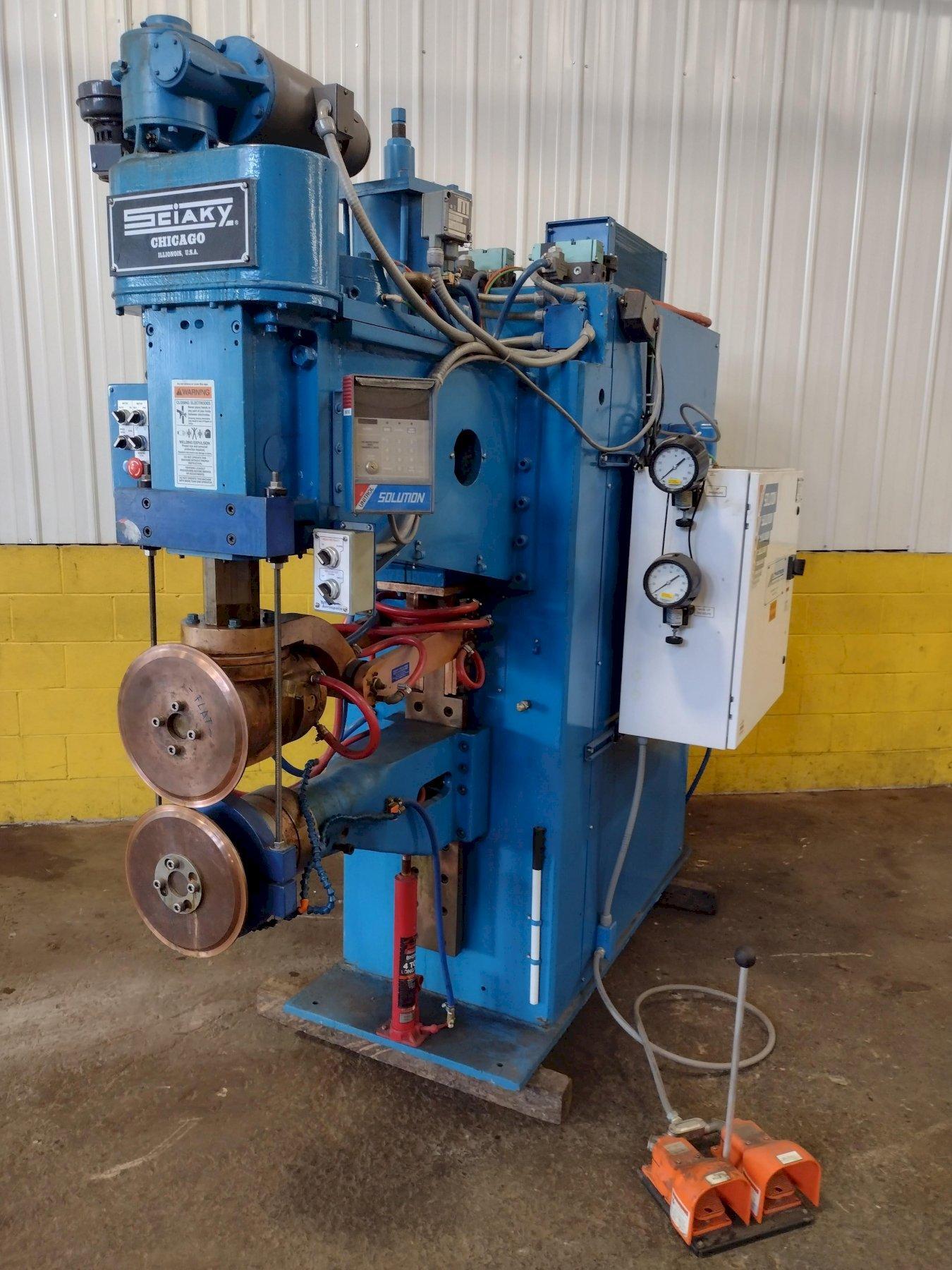

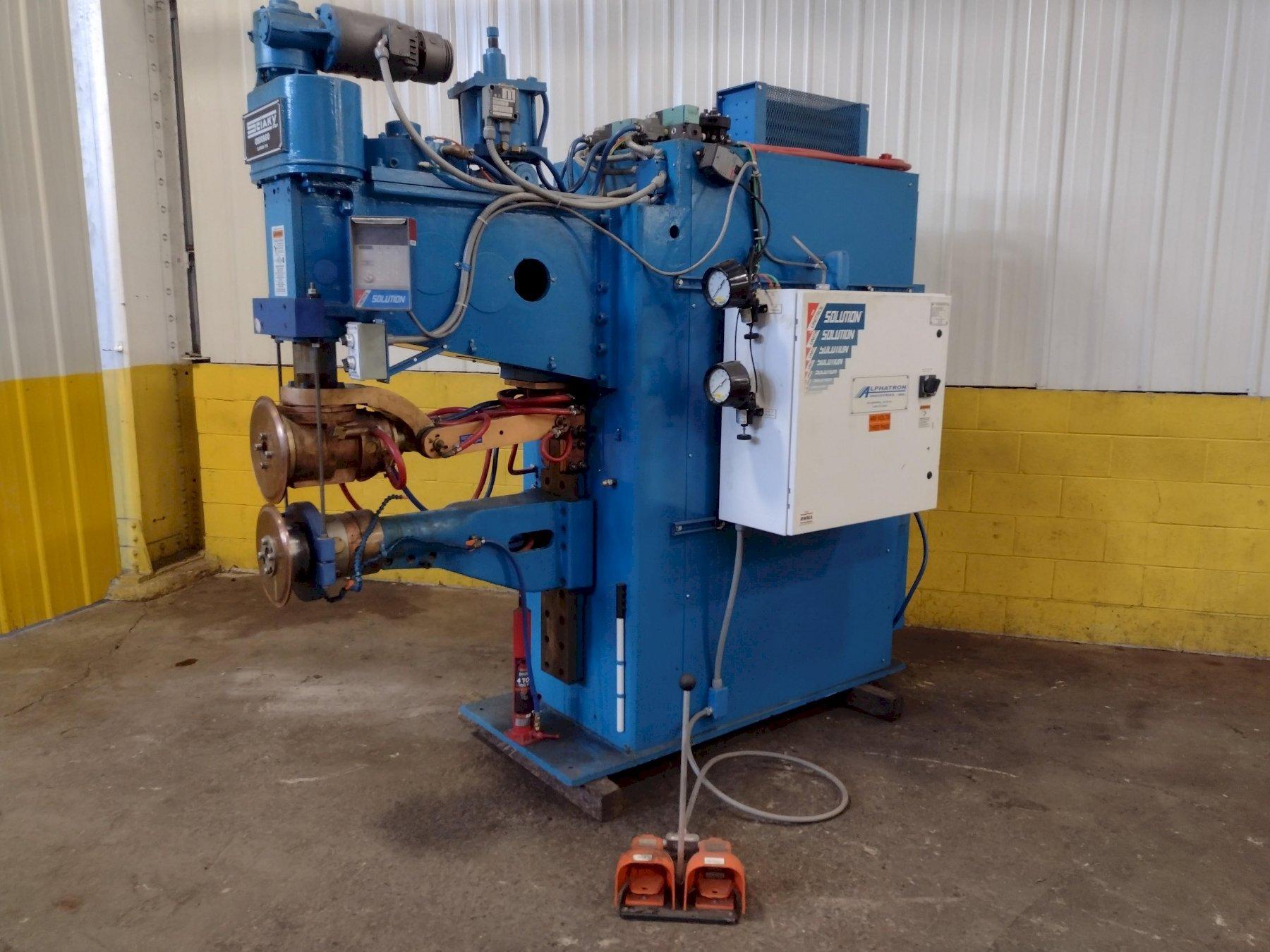

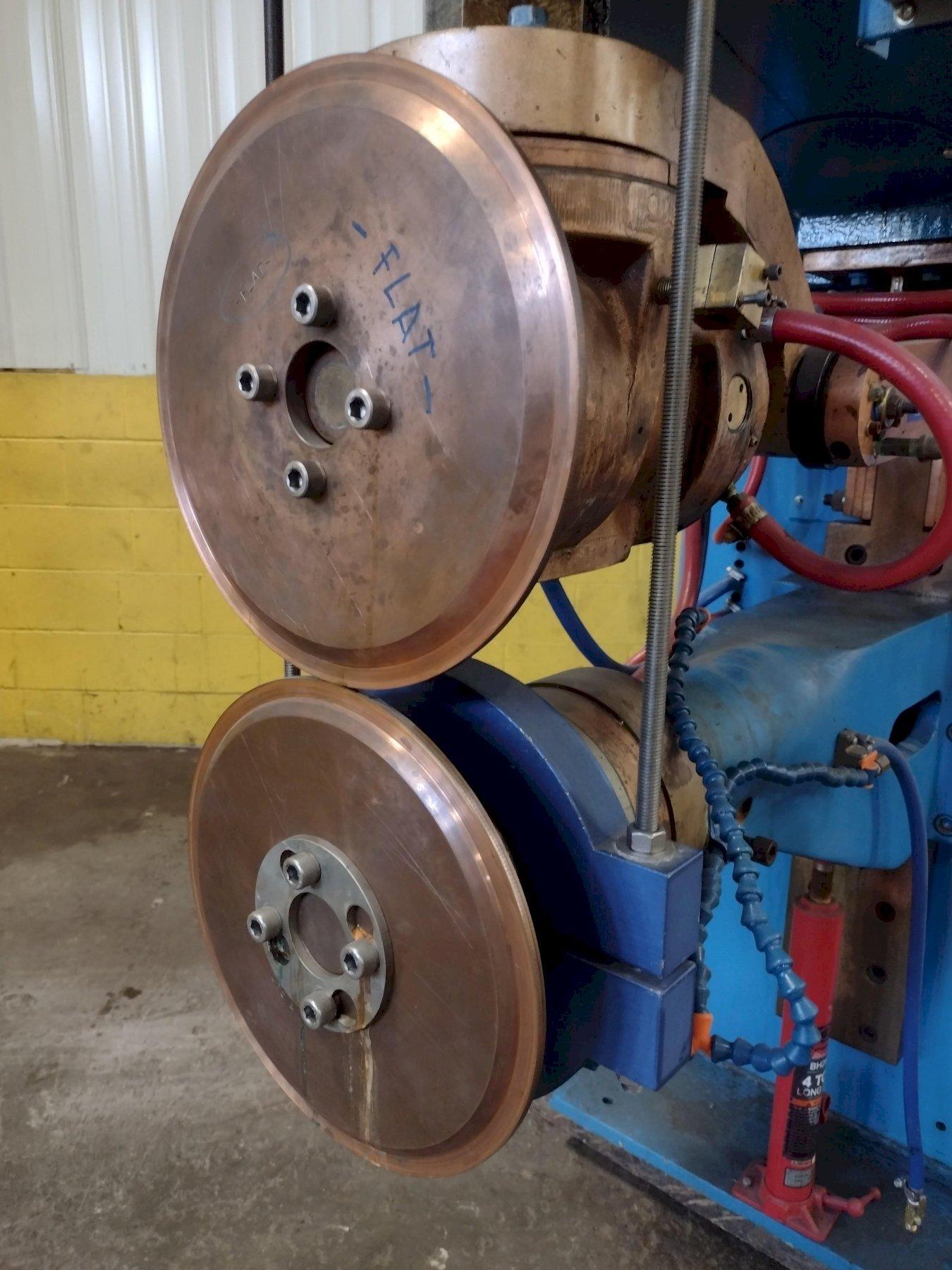

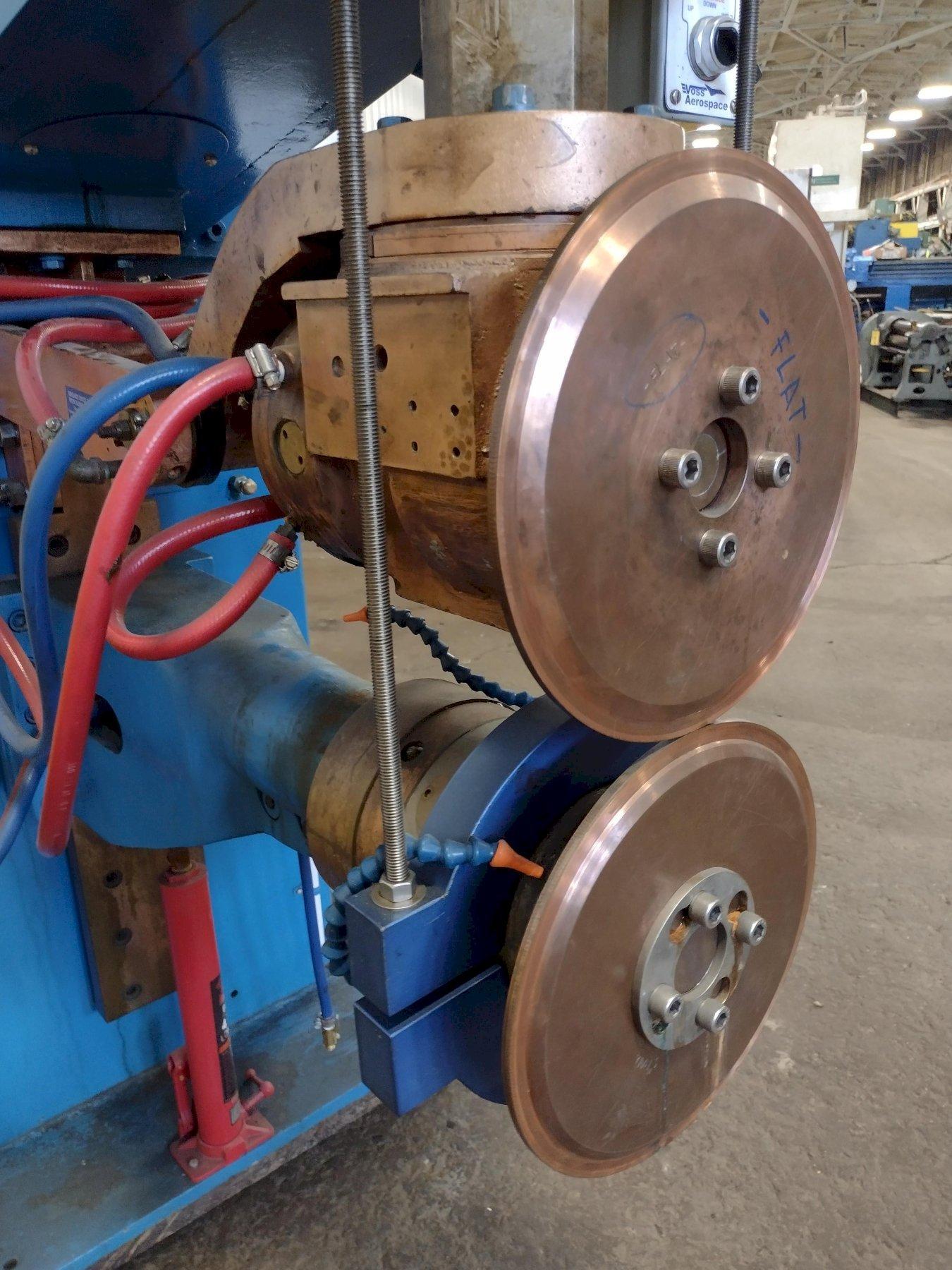

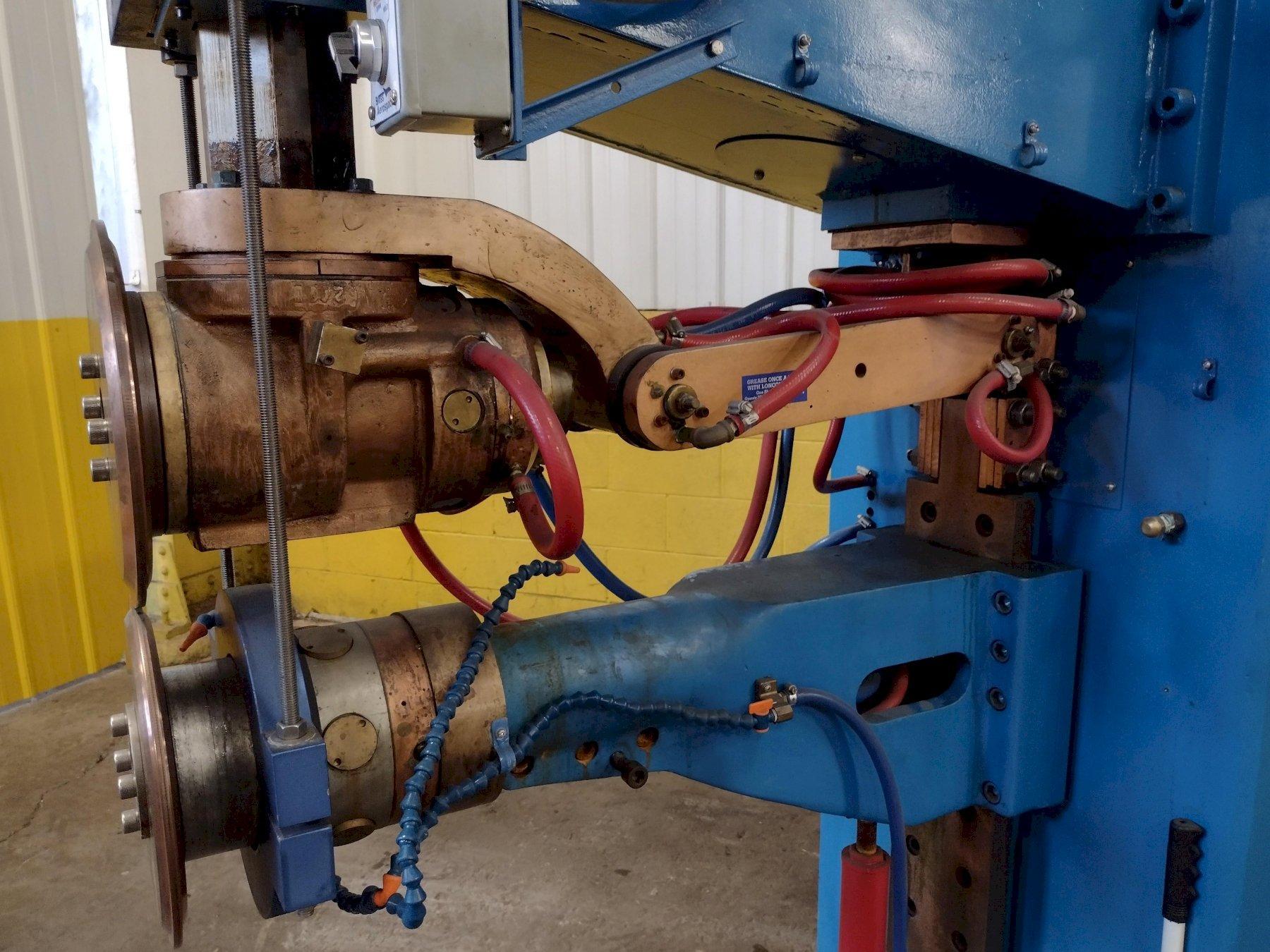

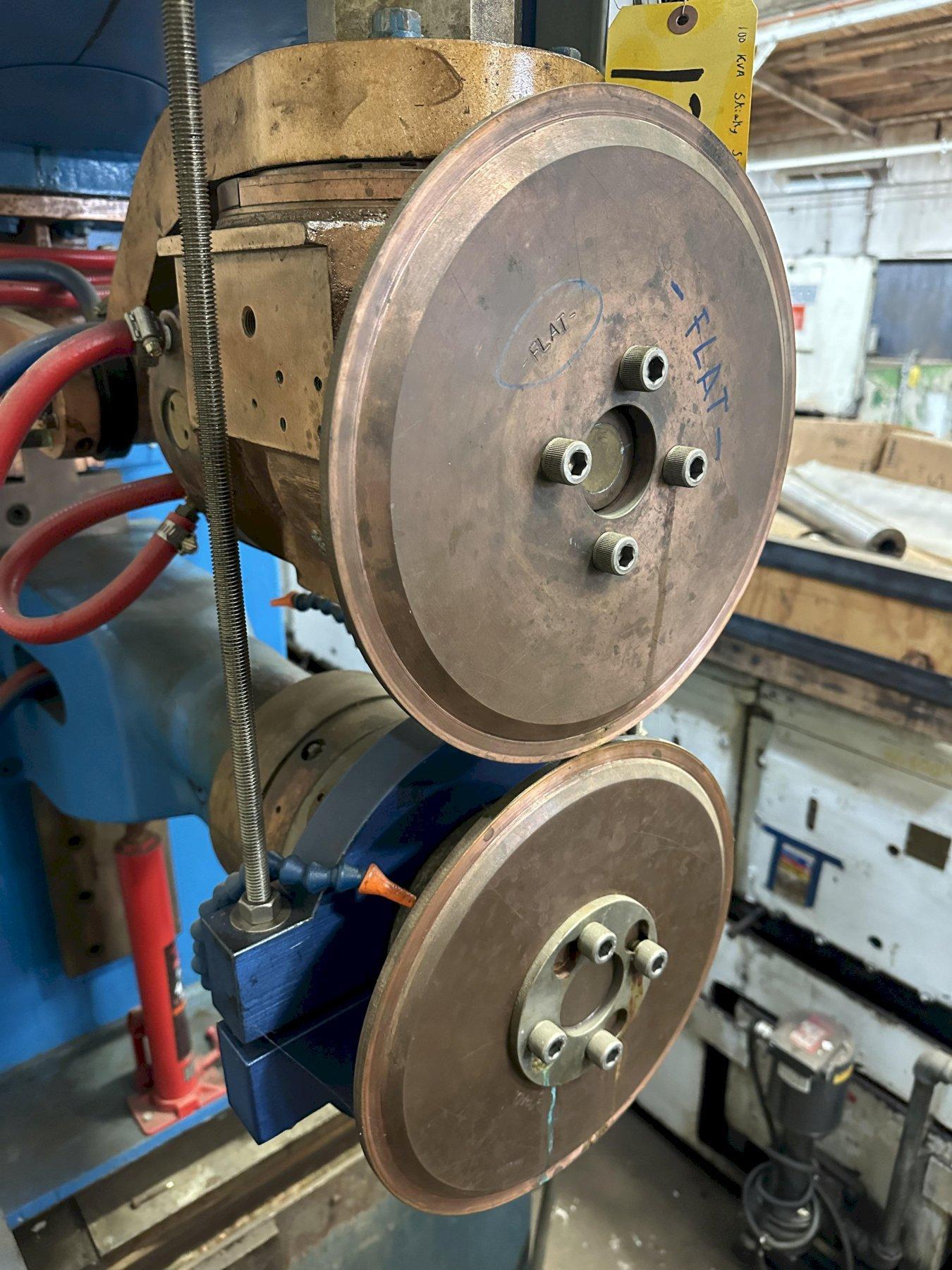

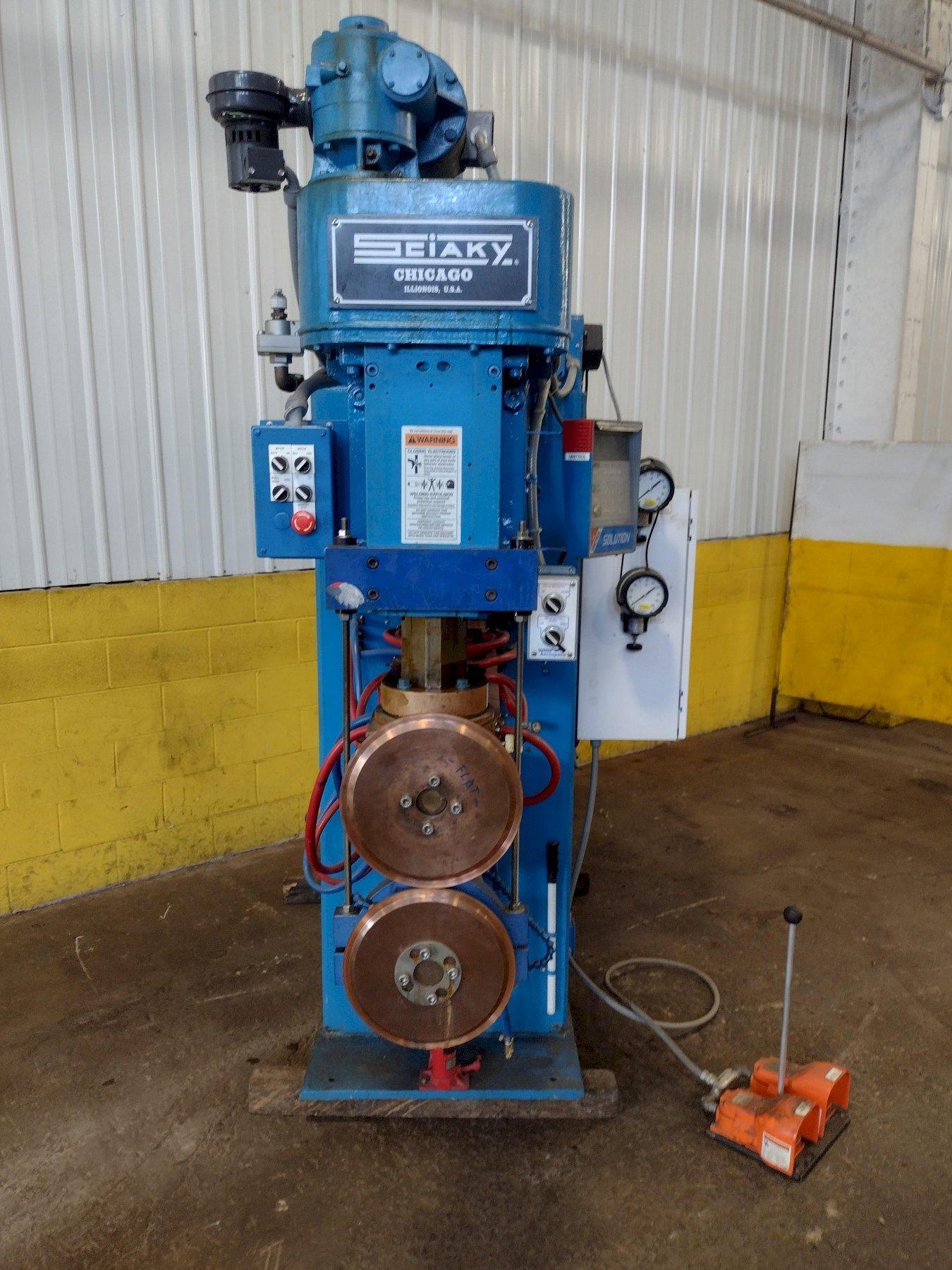

100 KVA SCIAKY MODEL #PMM2TC ROTARY SEAM WELDER: STOCK 17135

Manufacturer

SCIAKY

Category

Welding Machines

Type

WELDERS, CIRCUMFERENTIAL, (Seam)

Stock

17135

Model

PMM2TC

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 140″ L x 65″ W x 106″ H
Weight - 11675 pounds

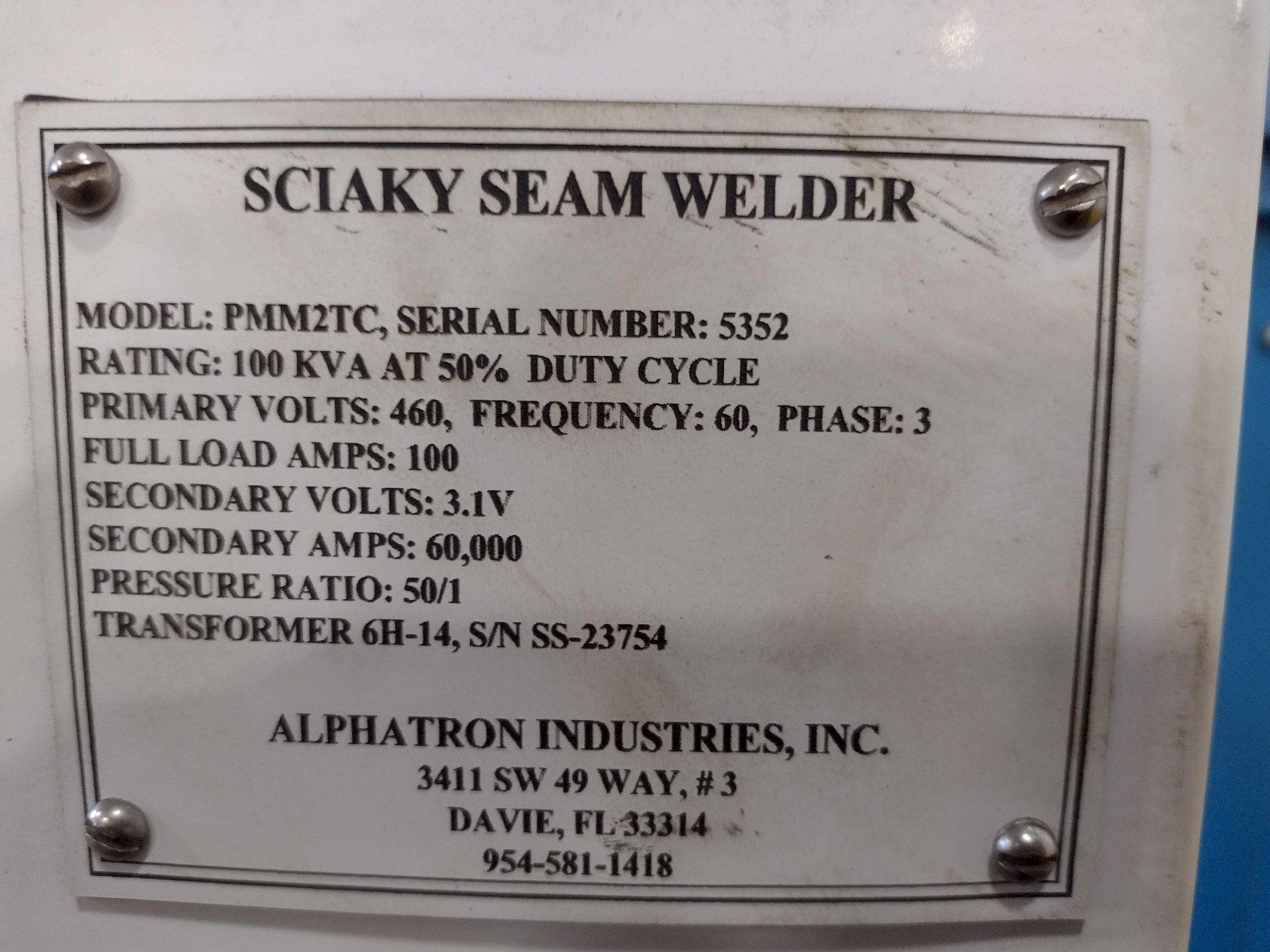

SERIAL ............... 5352
MODEL ................ PMM2TC
TYPE ................. SEAM WELDER CIRCUMFERENTIAL
ALUMINUM CAPACITY .... 0.020" TO 0.064"
STAINLESS CAPACITY ... 0.020" TO 0.064"
MILD STEEL CAPACITY .. 0.020" TO 0.125"

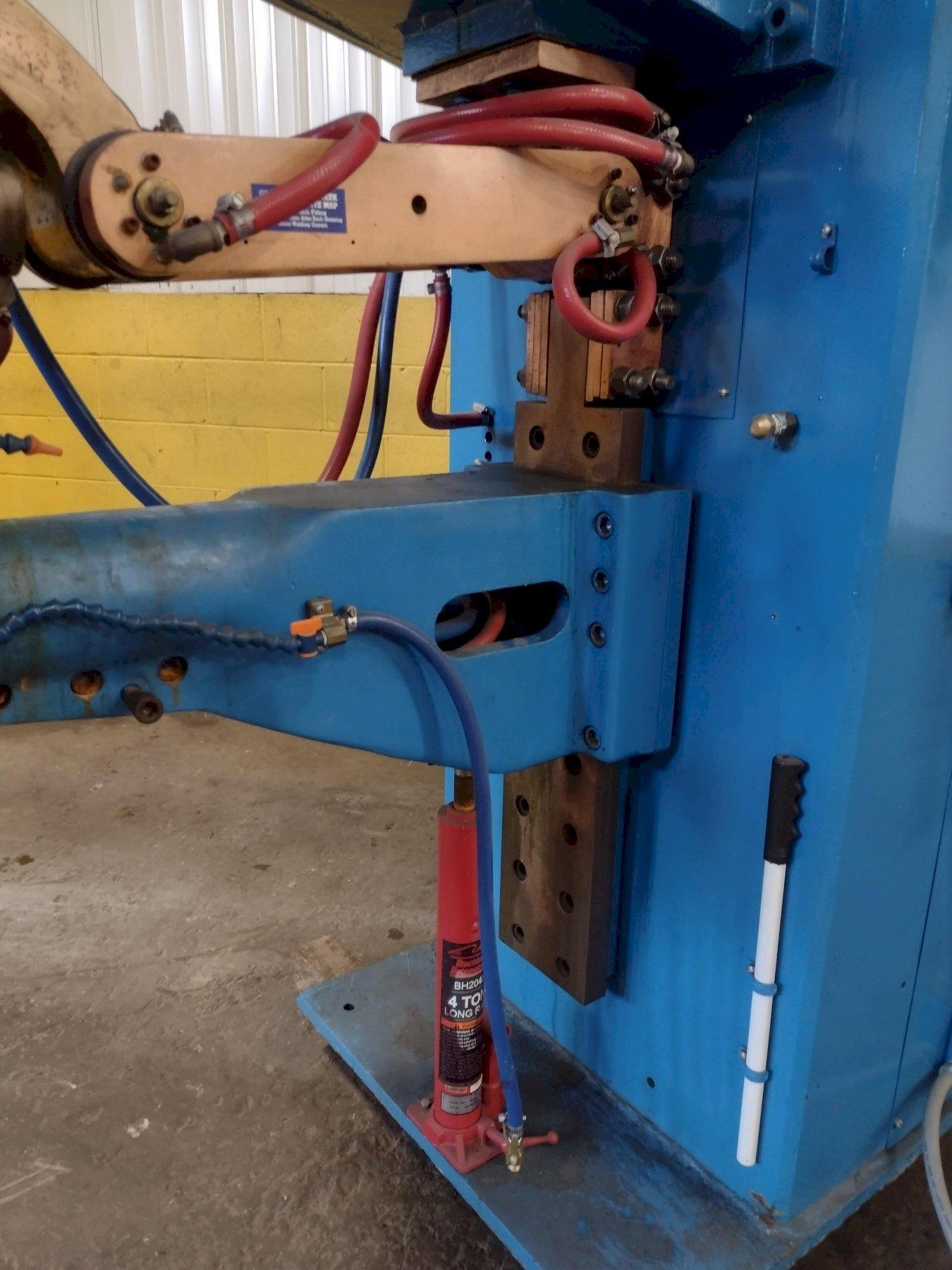

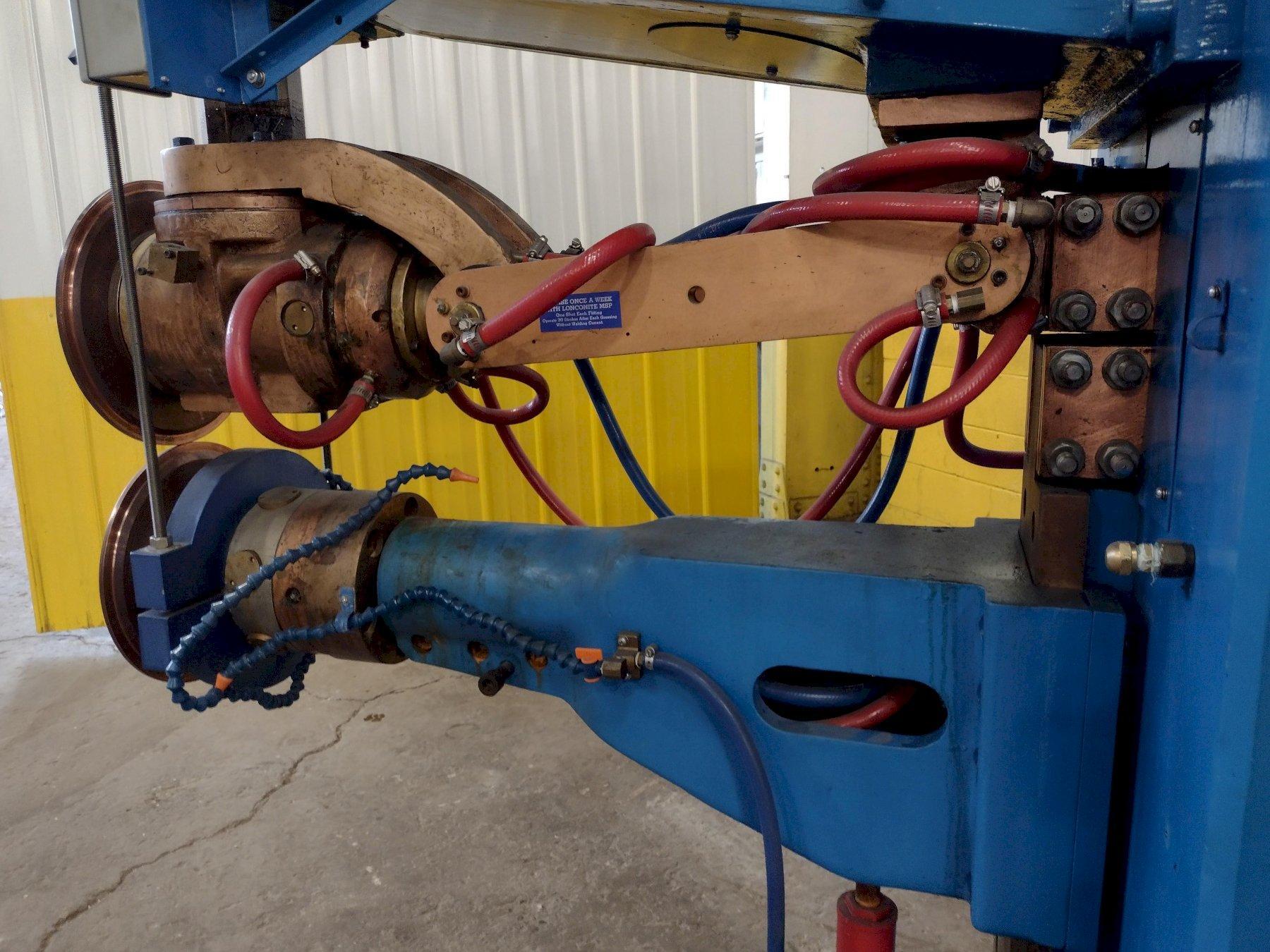

THROAT DIMENSIONS .... 10" X 36"
STROKE ............... 5"
PRIMARY VOLTS ........ 460V / 3PH / 60HZ
FULL LOAD AMPS ....... 100
RATING ............... 100KVA
SECONDARY VOLTS ...... 1.58V TO 3.1V
PEAK SECONDARY AMPS .. 60,000AMPS @ 20 CYCLE PULSE
PRESSURE RATIO ....... 50/1
ELECTRODE FORCE ...... 4000 LBS

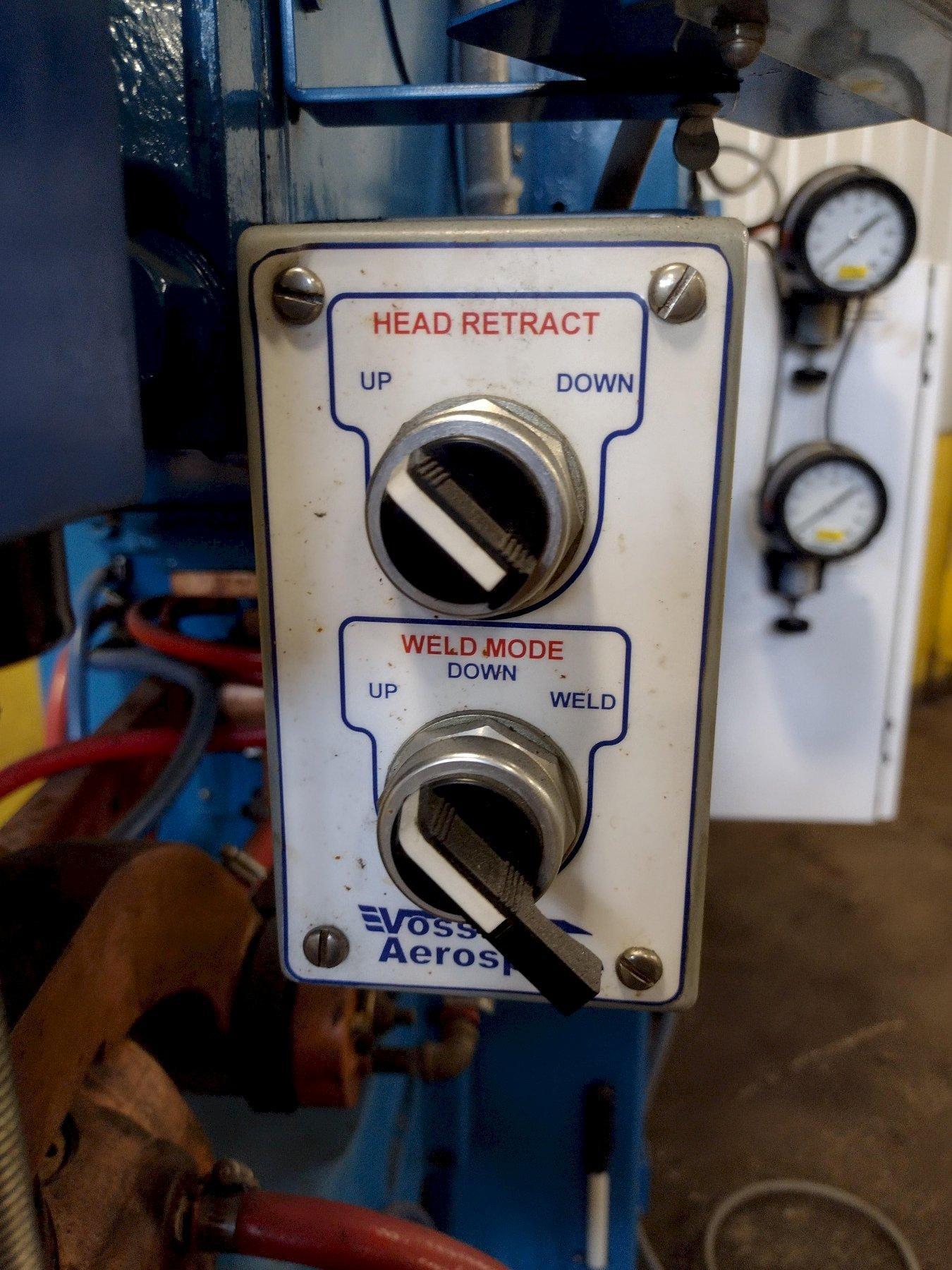

CYLINDER TYPE RETRACTABLE DIAPHRAGM

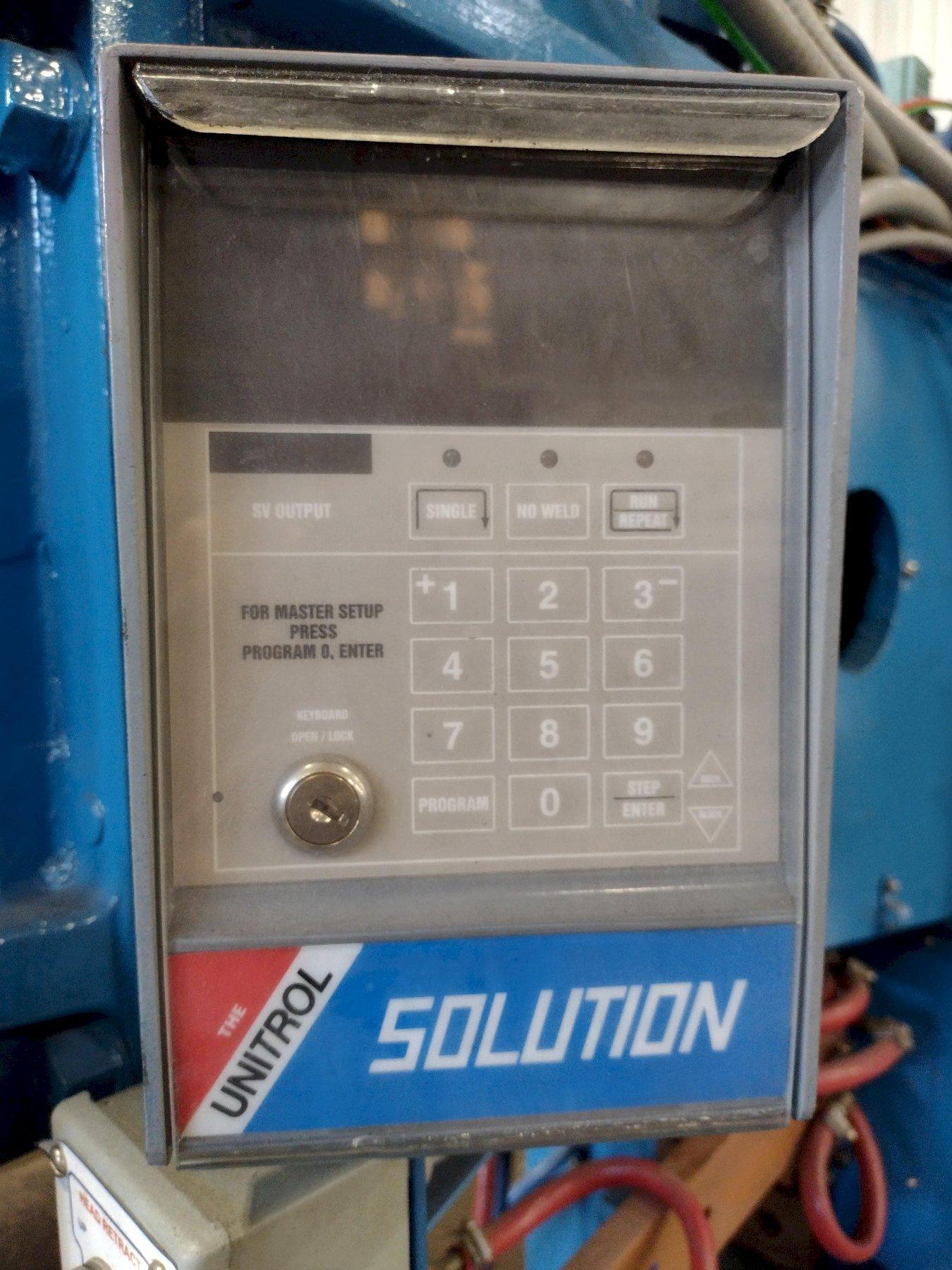

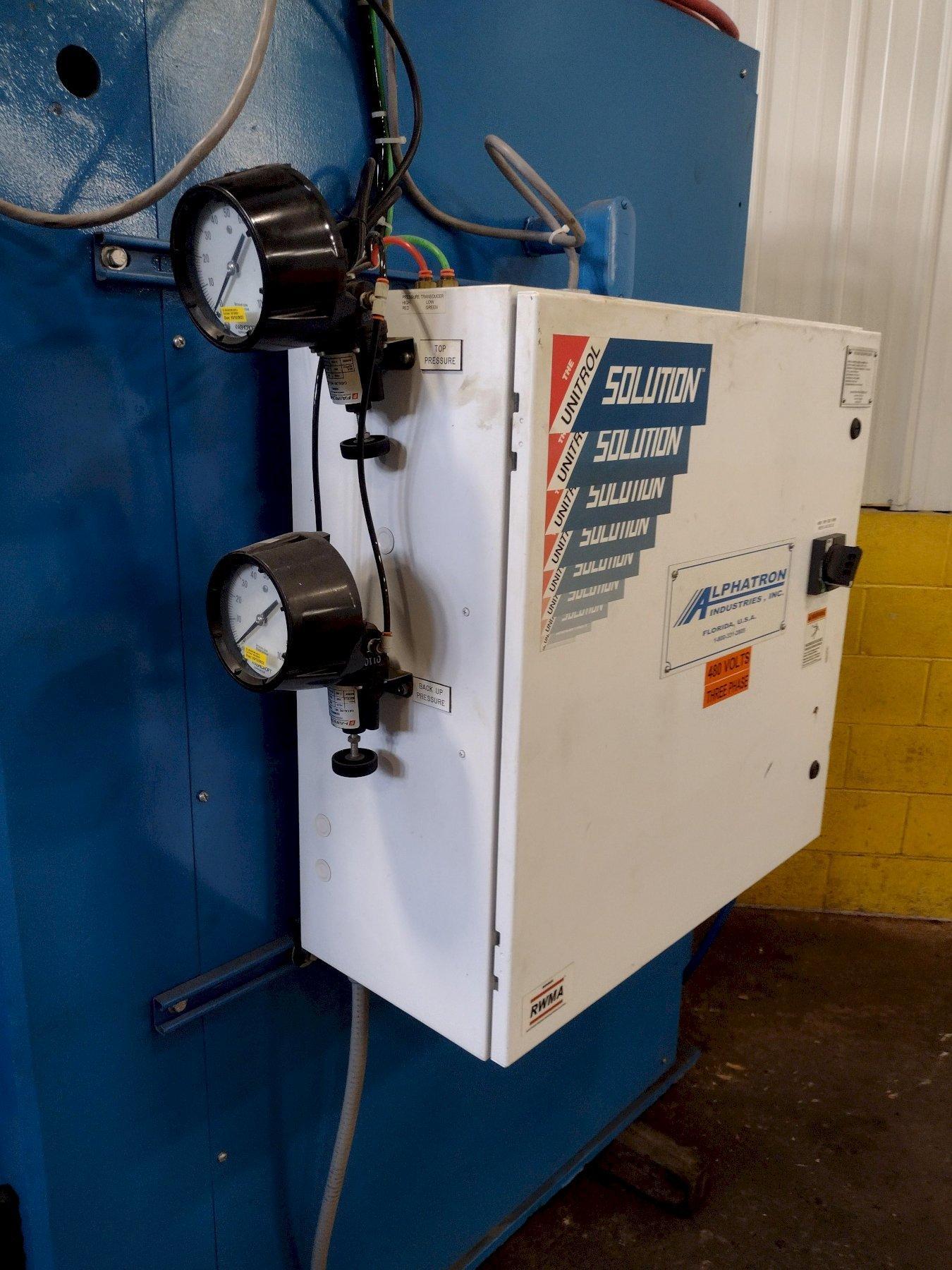

CONTROL INTERTRON MC302A
CONTACTORS SCR, WATER COOLED, 1700 AMPS
2600 PIV

TRANSFORMER:
SERIAL ............... 23754
MODEL ................ 6H-14
