15,000 LB X 36" X 1/4" PERFECTO COIL REEL, CAR & STRAIGHTENER: STOCK #18400

Manufacturer

PERFECTO

Category

Reels

Type

REELS, COIL

Stock

18400

Model

RD15436/38-36-7

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



Serial #: 93128
NEW 1993
Model: RD15436 / 38-36-7 COIL
WEIGHT CAPACITY ...................... 15,000 LBS
COIL WIDTH CAPACITY ....................... 36"
STOCK THICKNESS CAPACITY .................. .250" x 36"
STOCK THICKNESS CAPACITY .................. .375" x 16"
EXPANSION RANGE ........................... 20" - 24"
COIL OD CAPACITY .......................... 72"

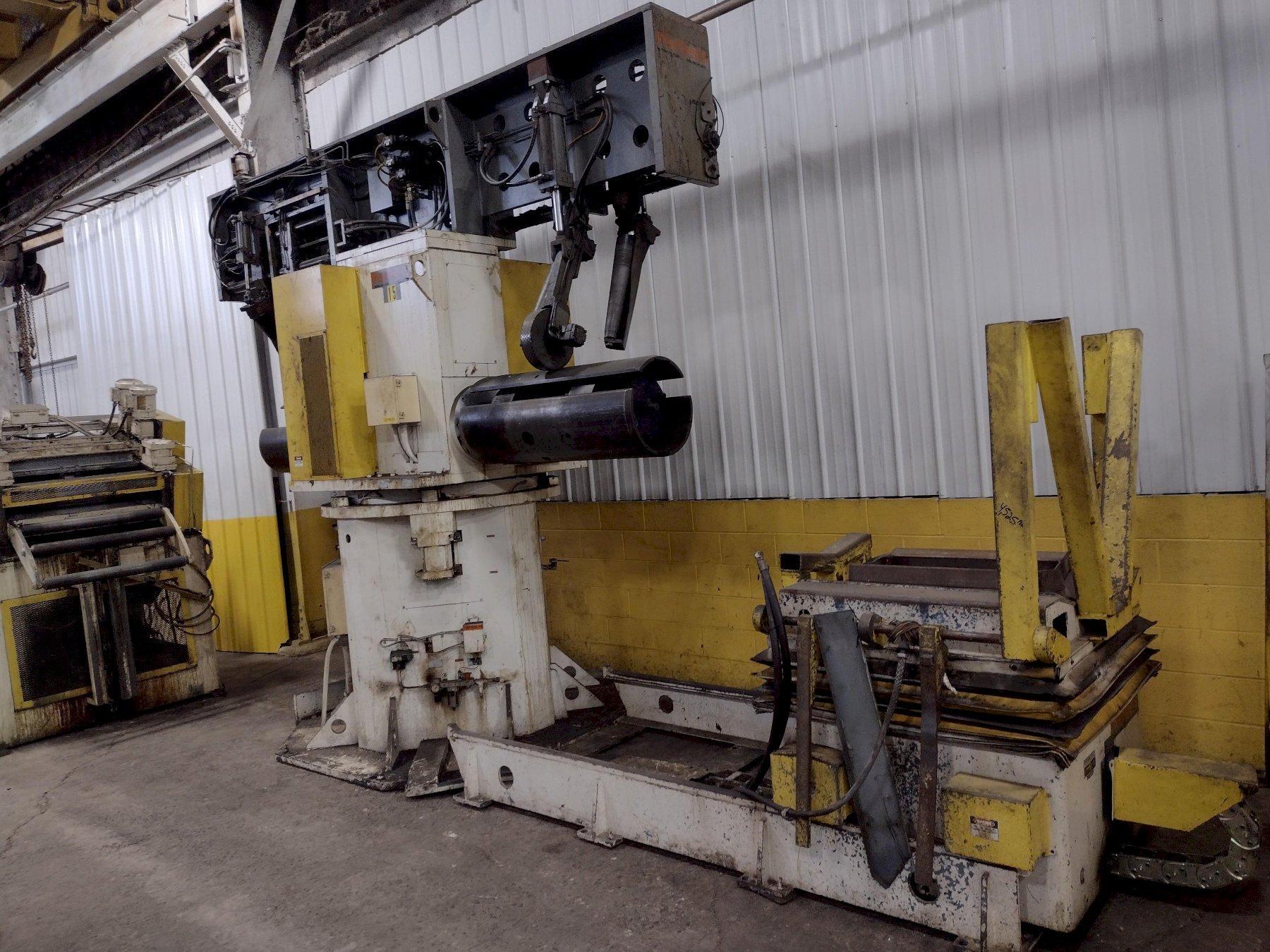

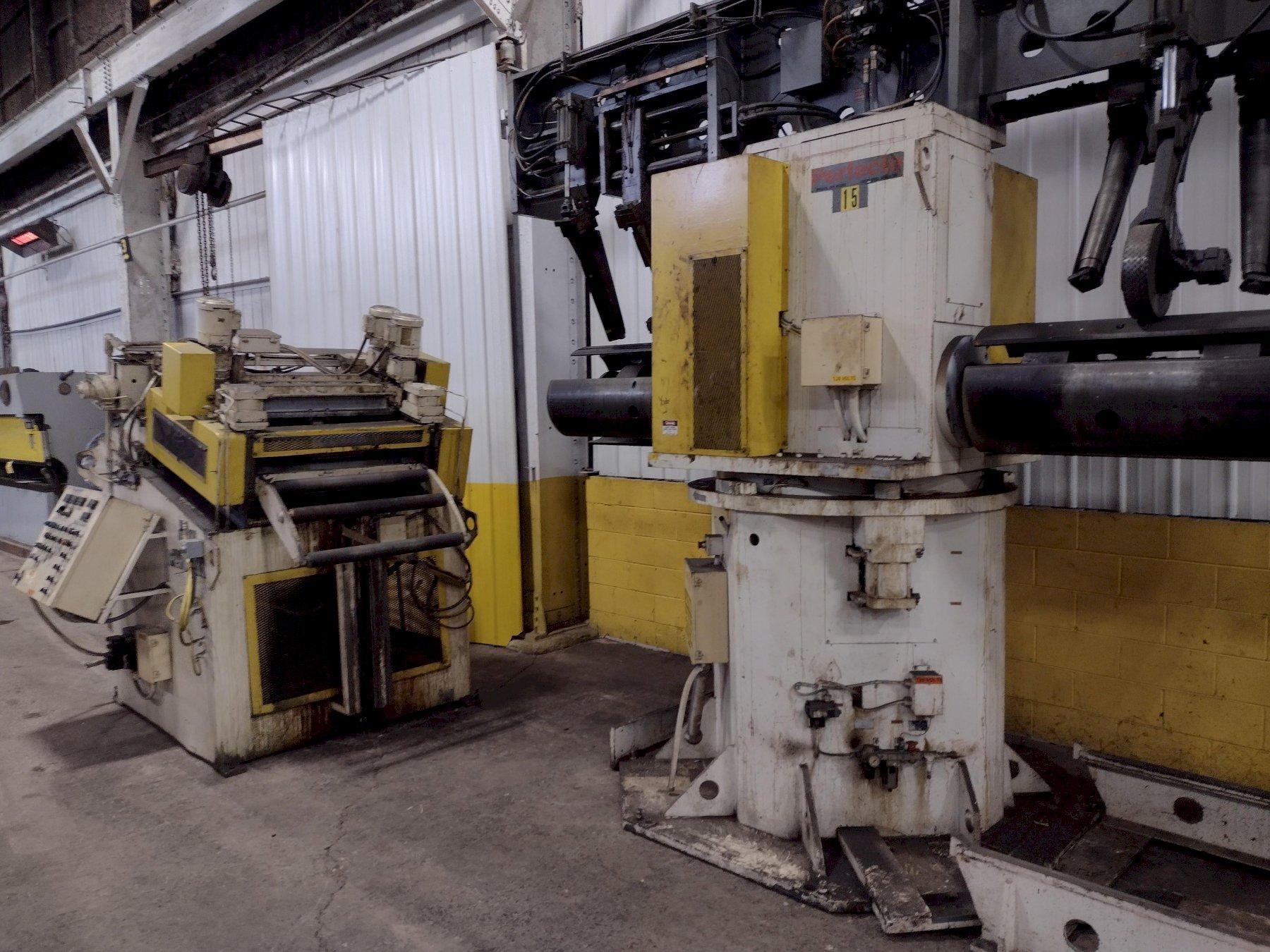

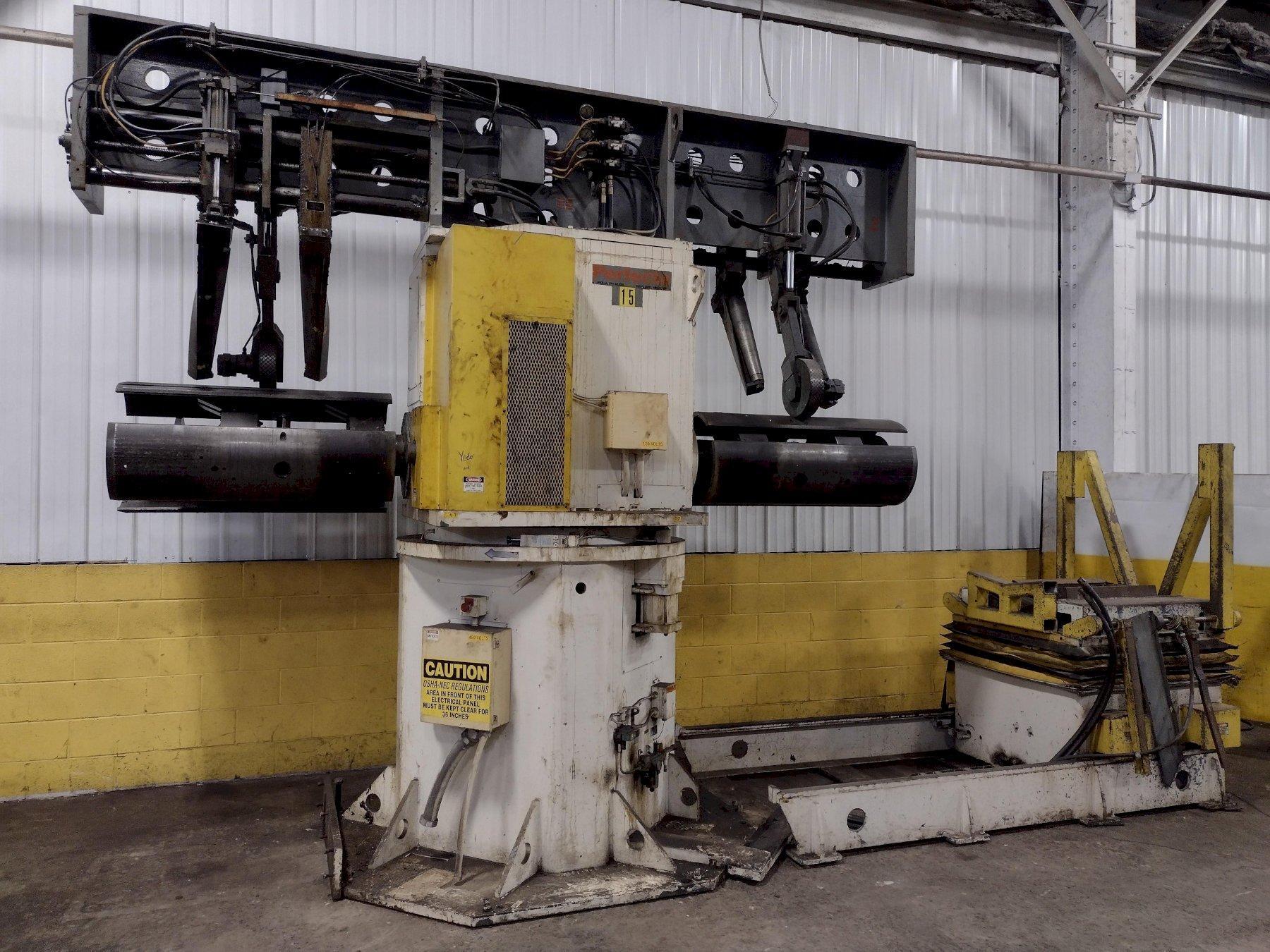

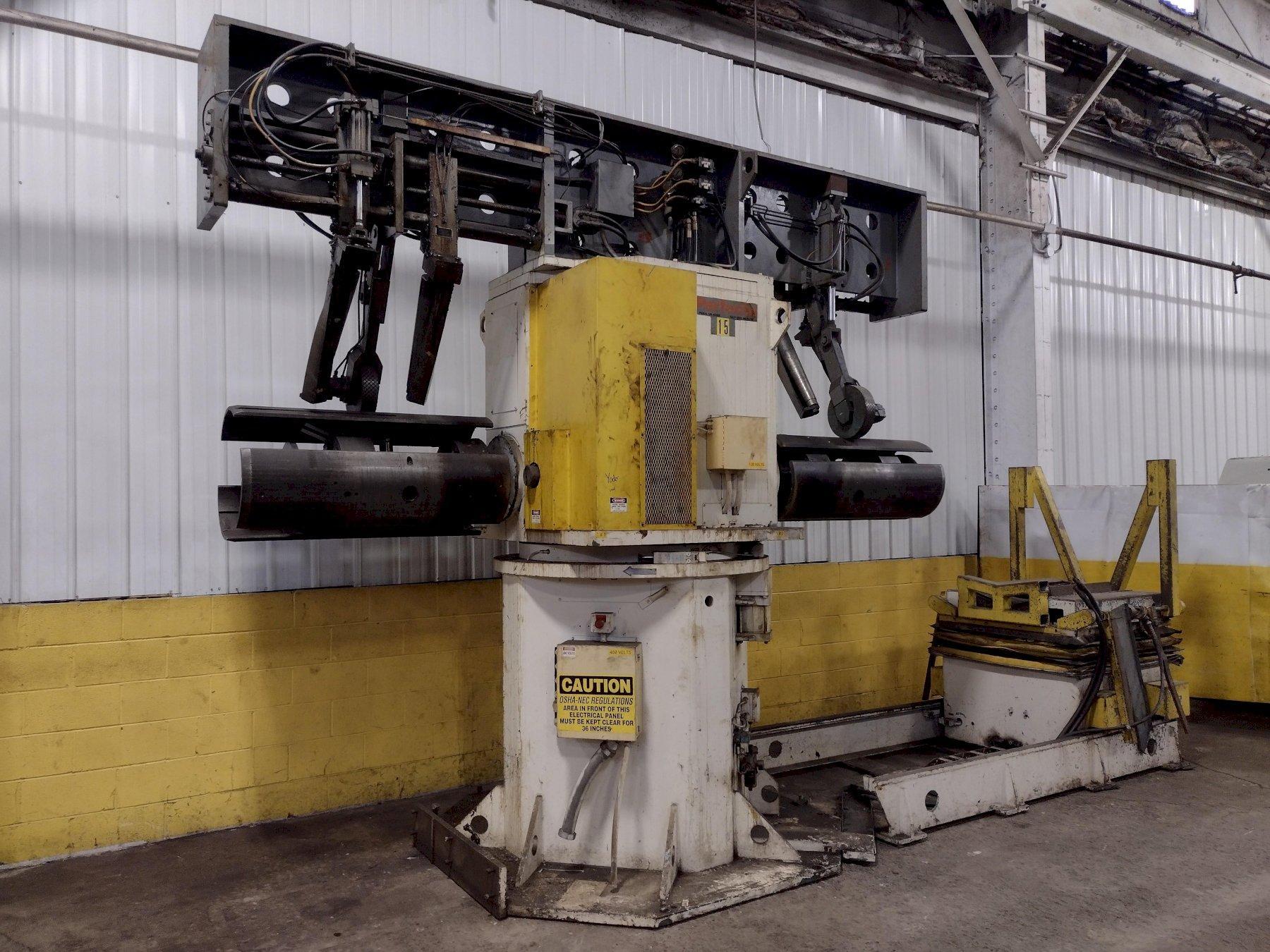

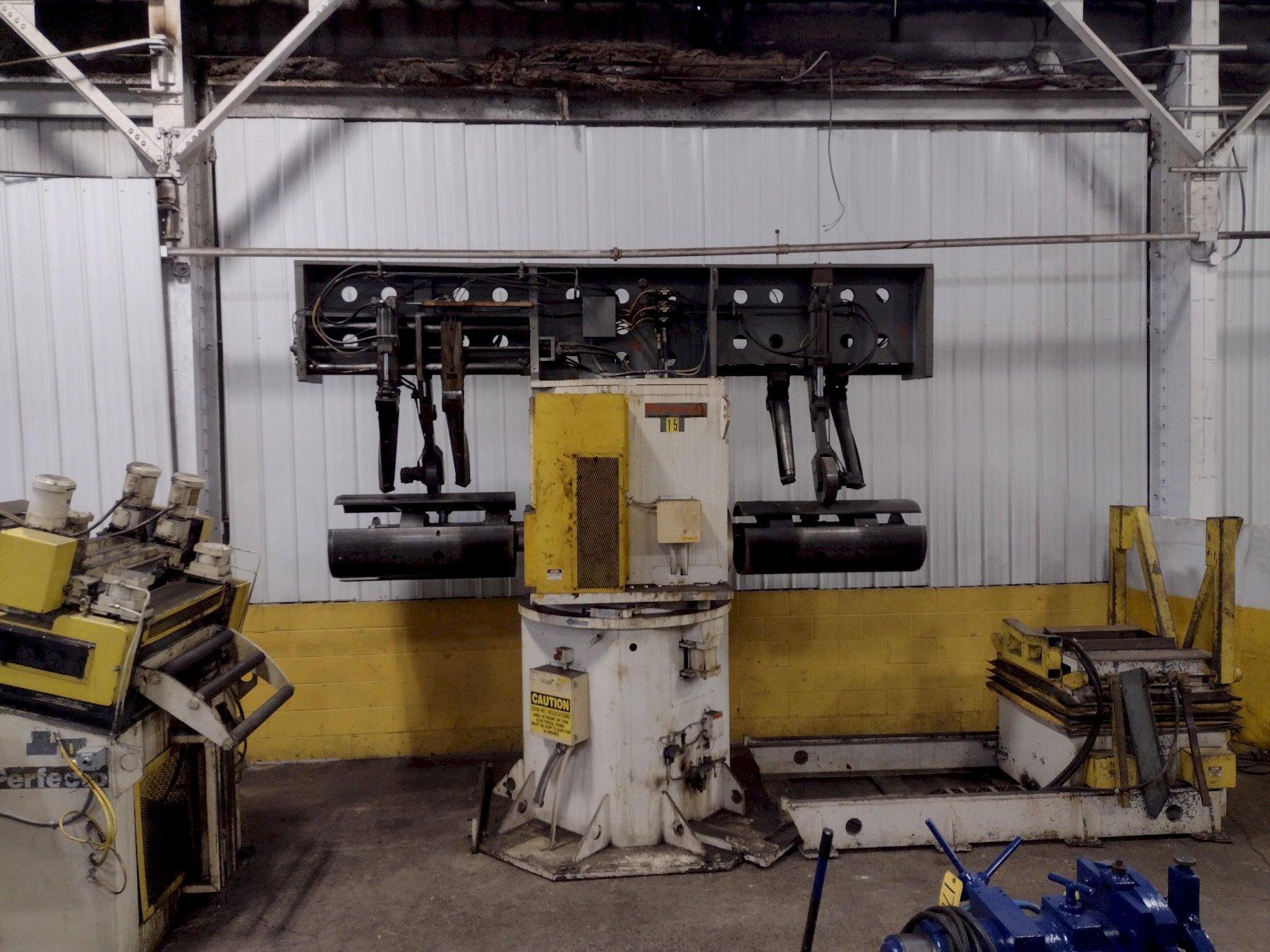

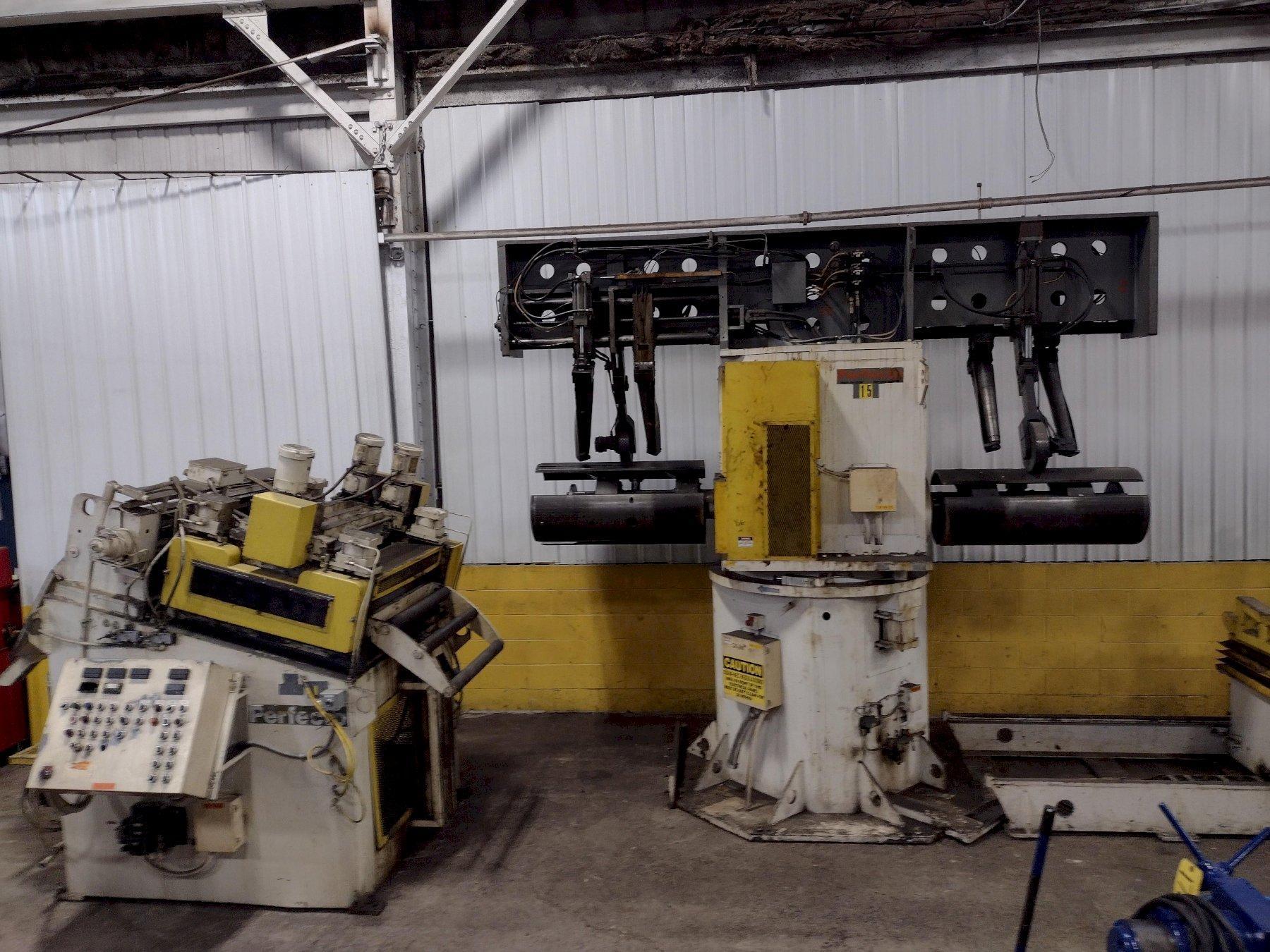

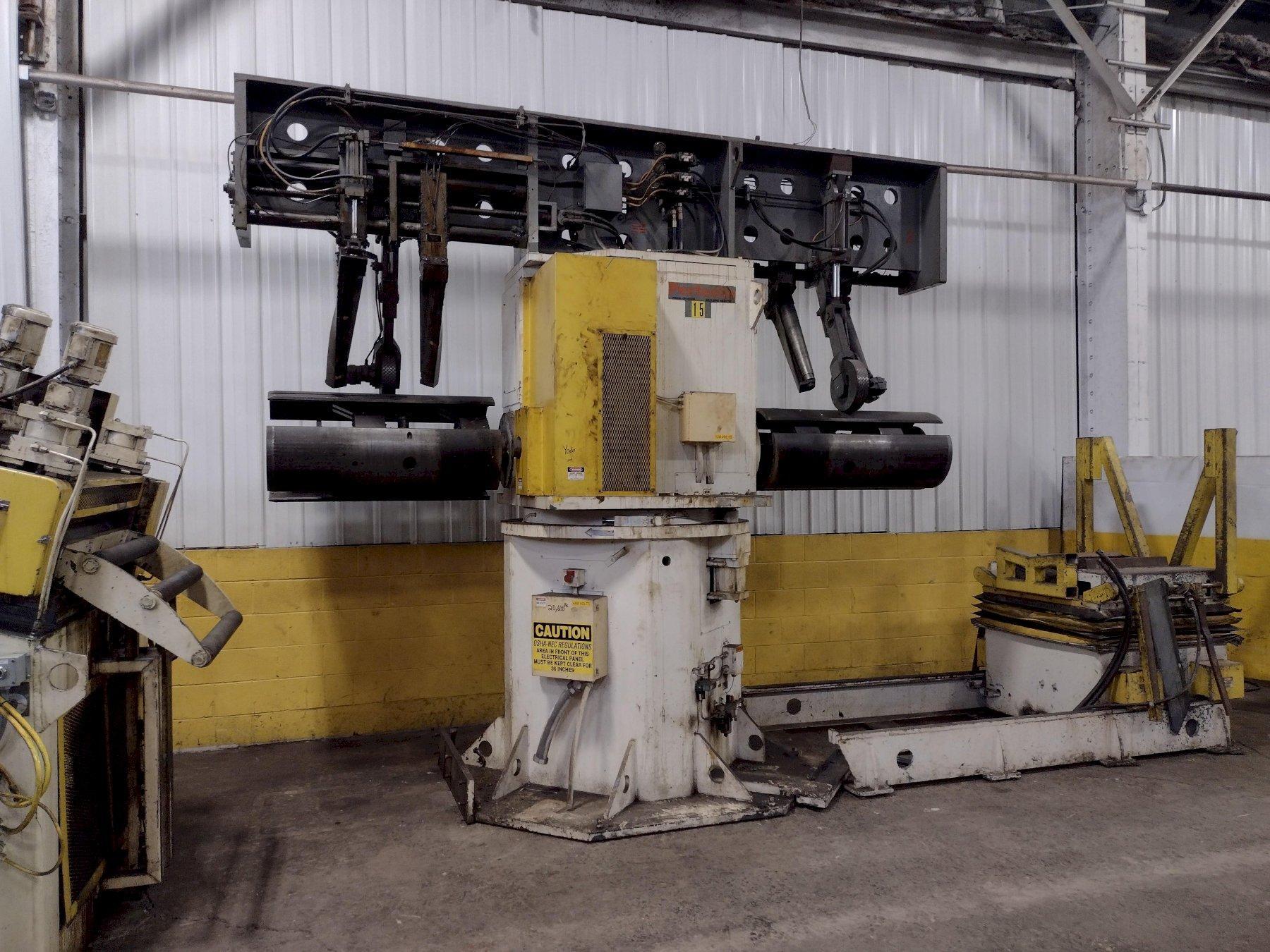

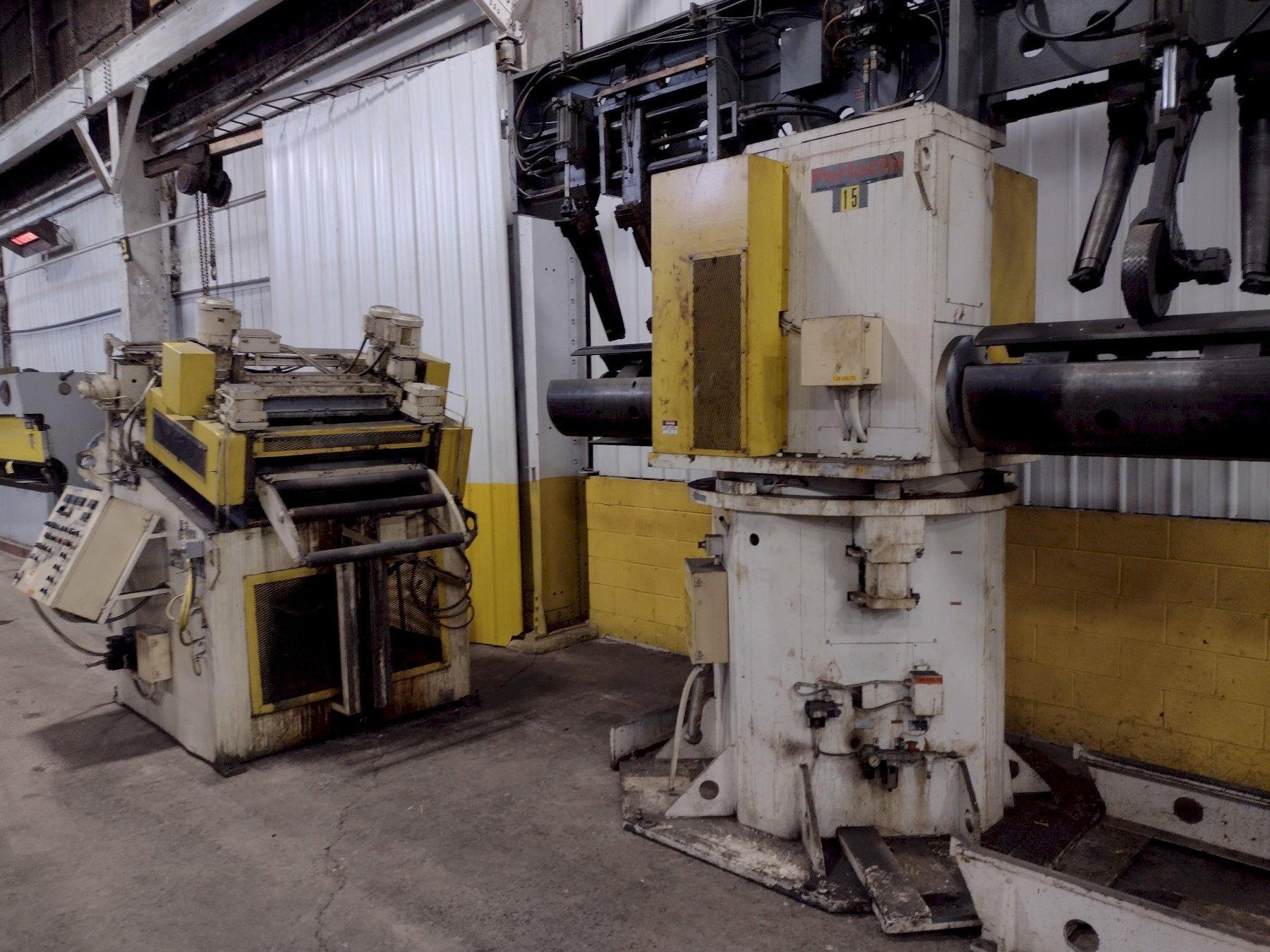

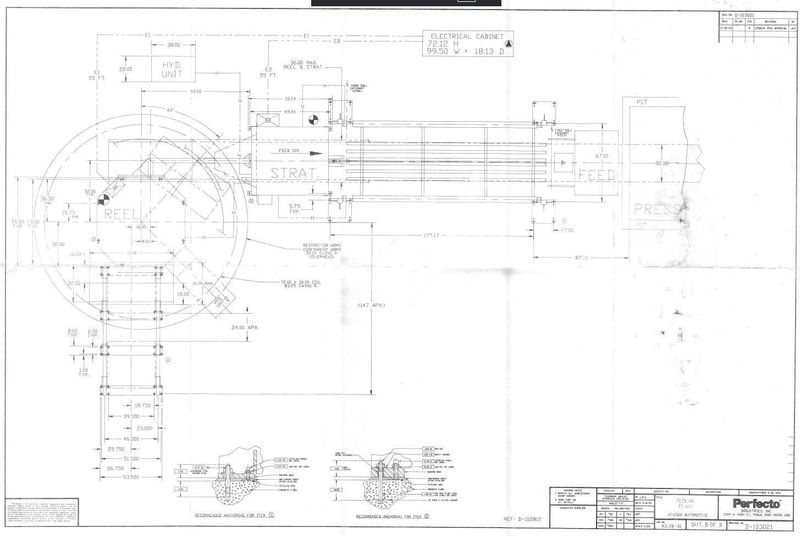

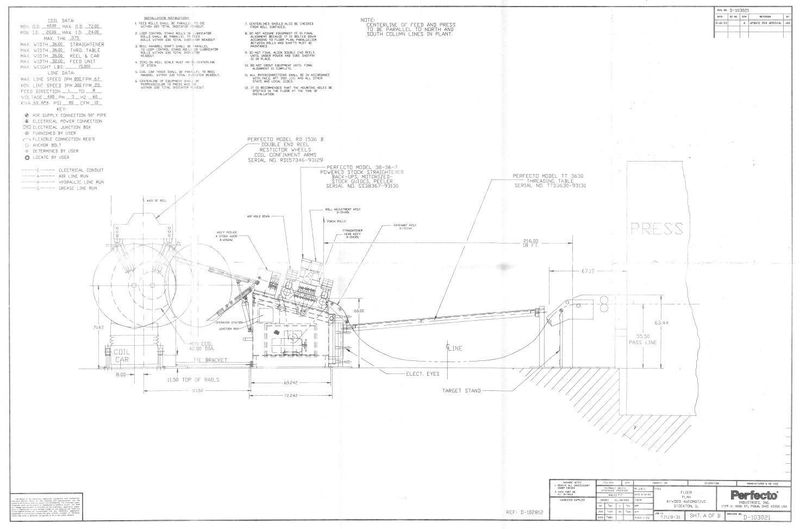

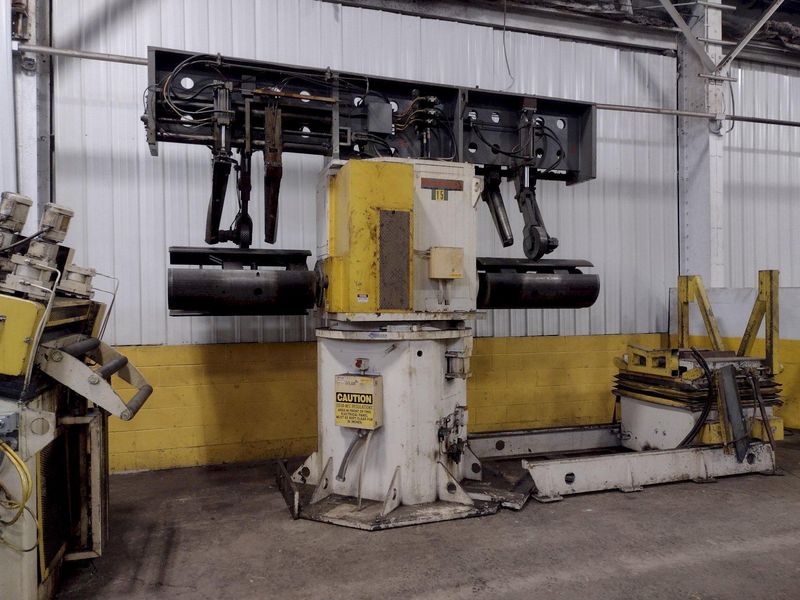

Perfecto Double End Pull Off Coil Reel Model No.: RD15436
Three leaf mandrels with hydraulic expansion
Threading drive for jog forward and reverse
Air brakes mounted on main spindle (adjustable tensioning)
Coil hold down arms with motorized end wheel
Powered coil guides (replaces manual coil keeper arms)
Powered turret rotation / indexing
Air shot pin for rotation lock
Self contained hydraulic pump unit

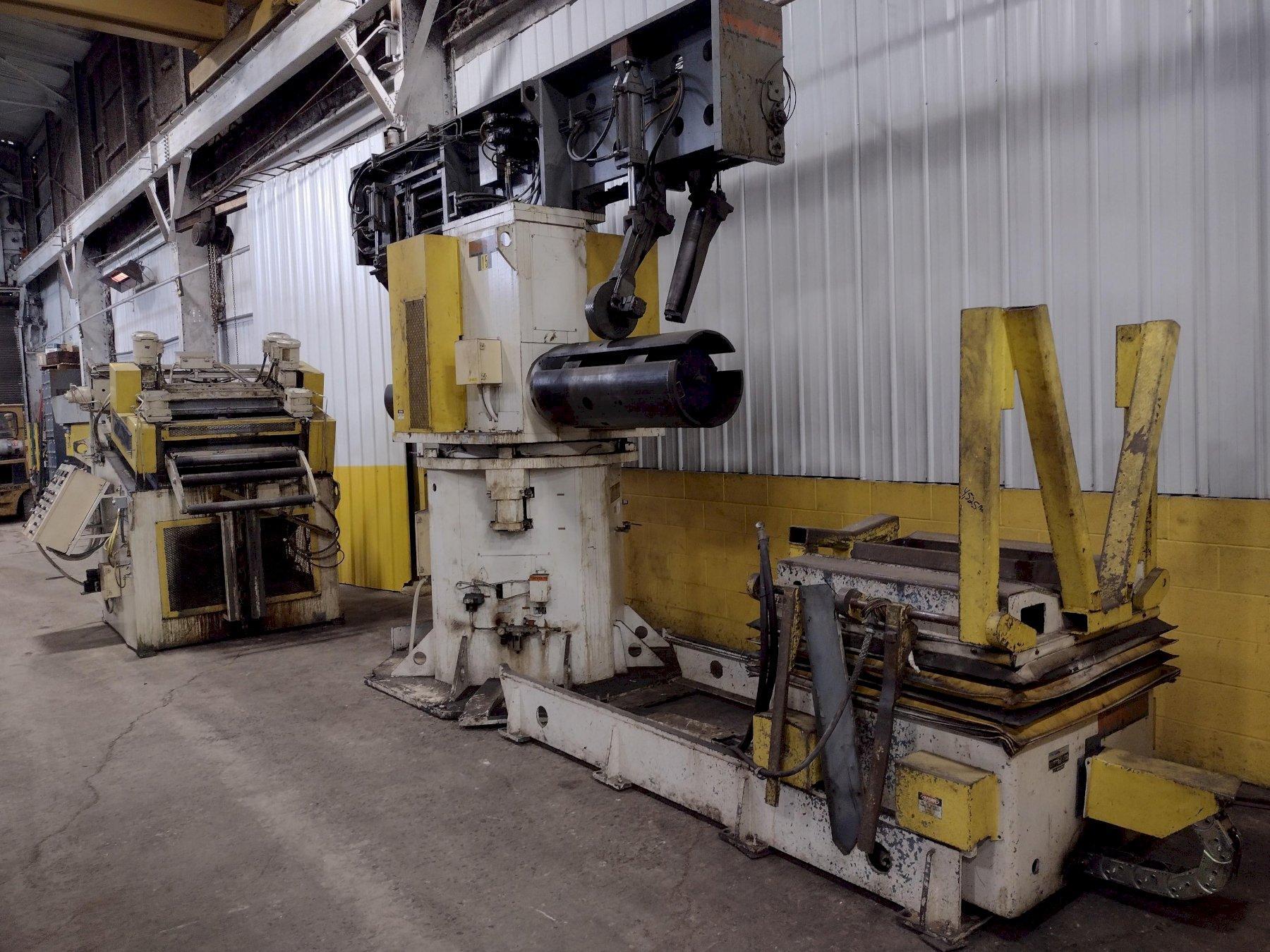

Perfecto Traveling Coil Load Car Model No.: LC-200
Powered lift and travel
Adjustable narrow coil supports

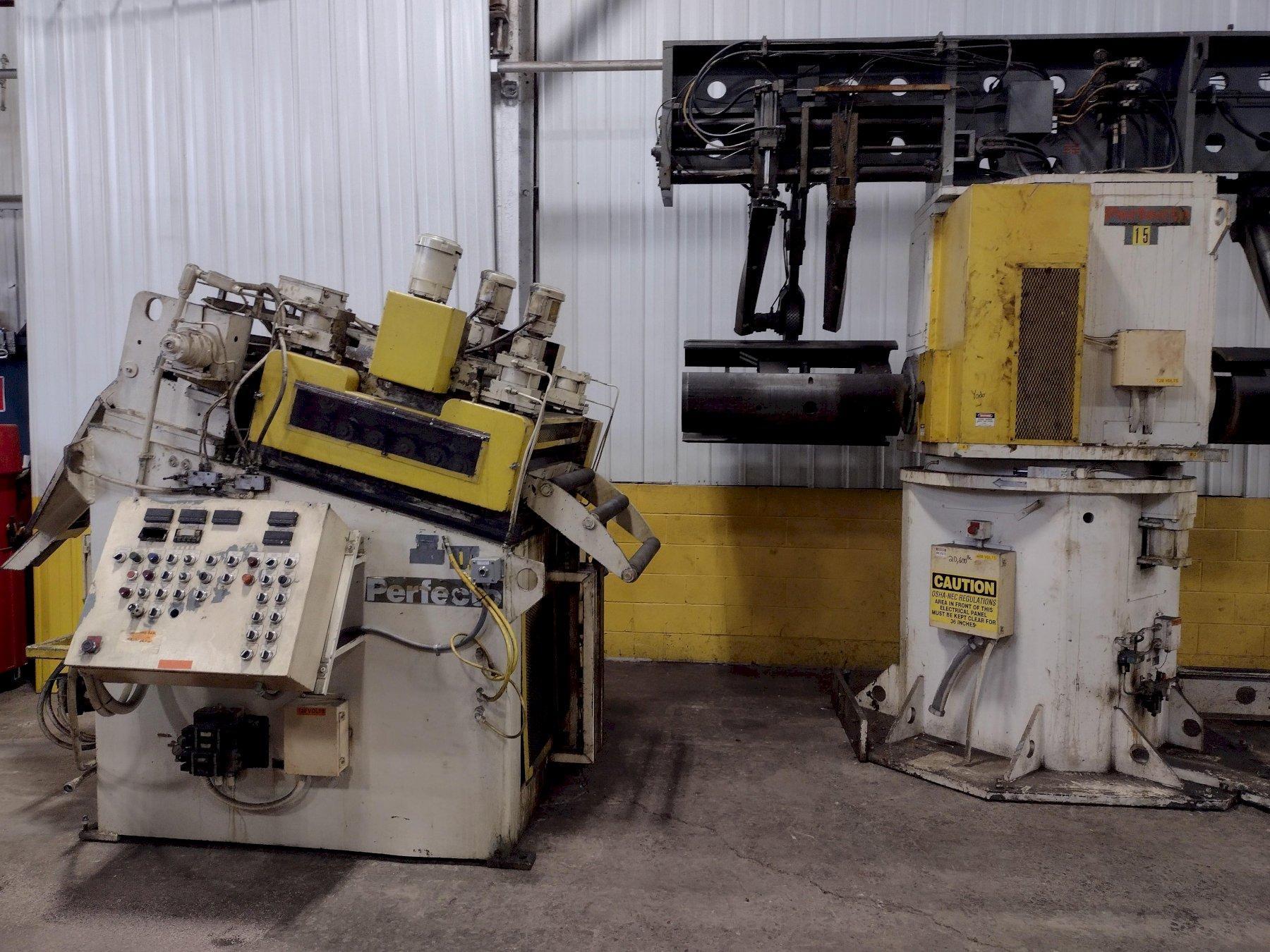

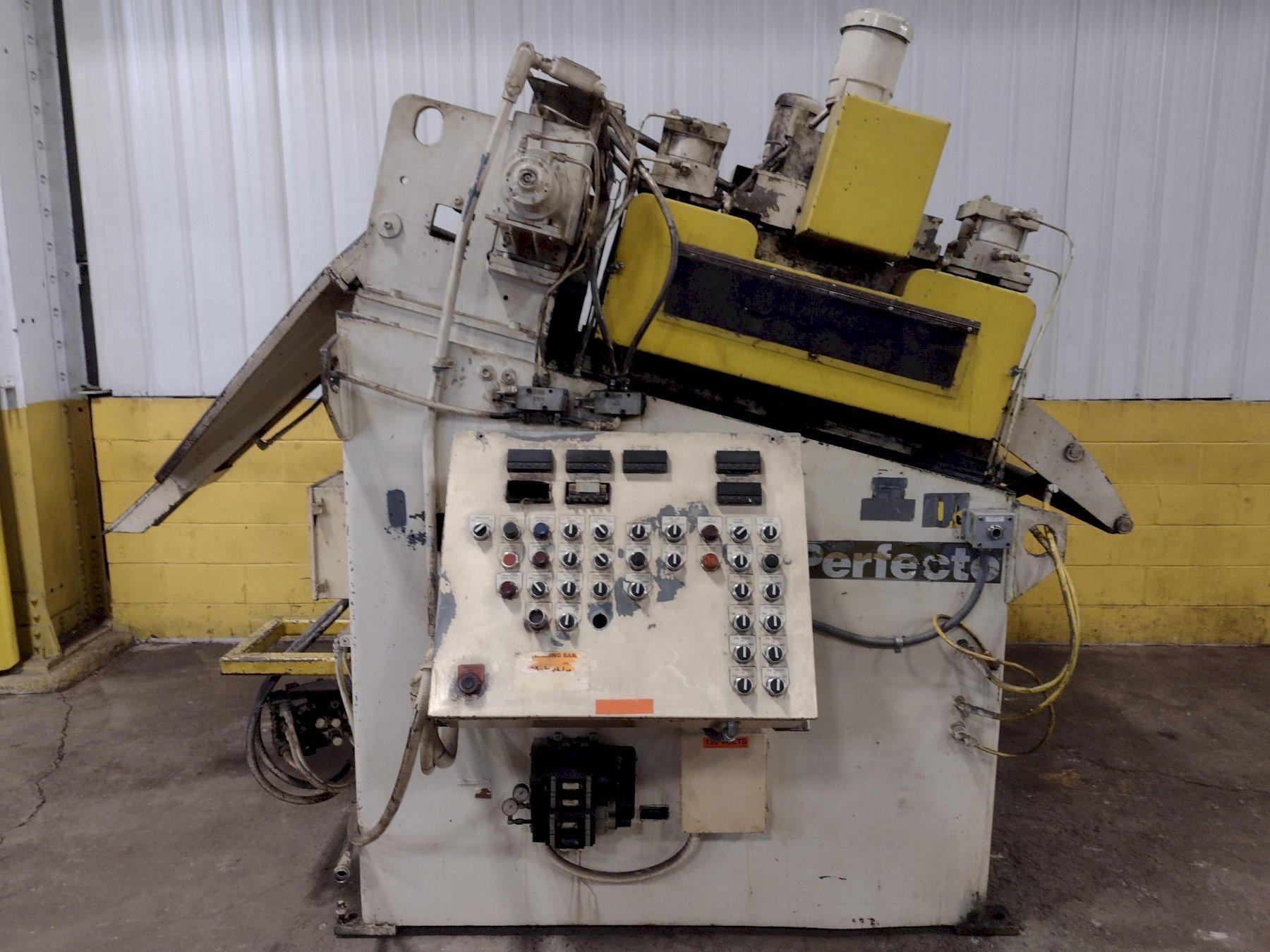

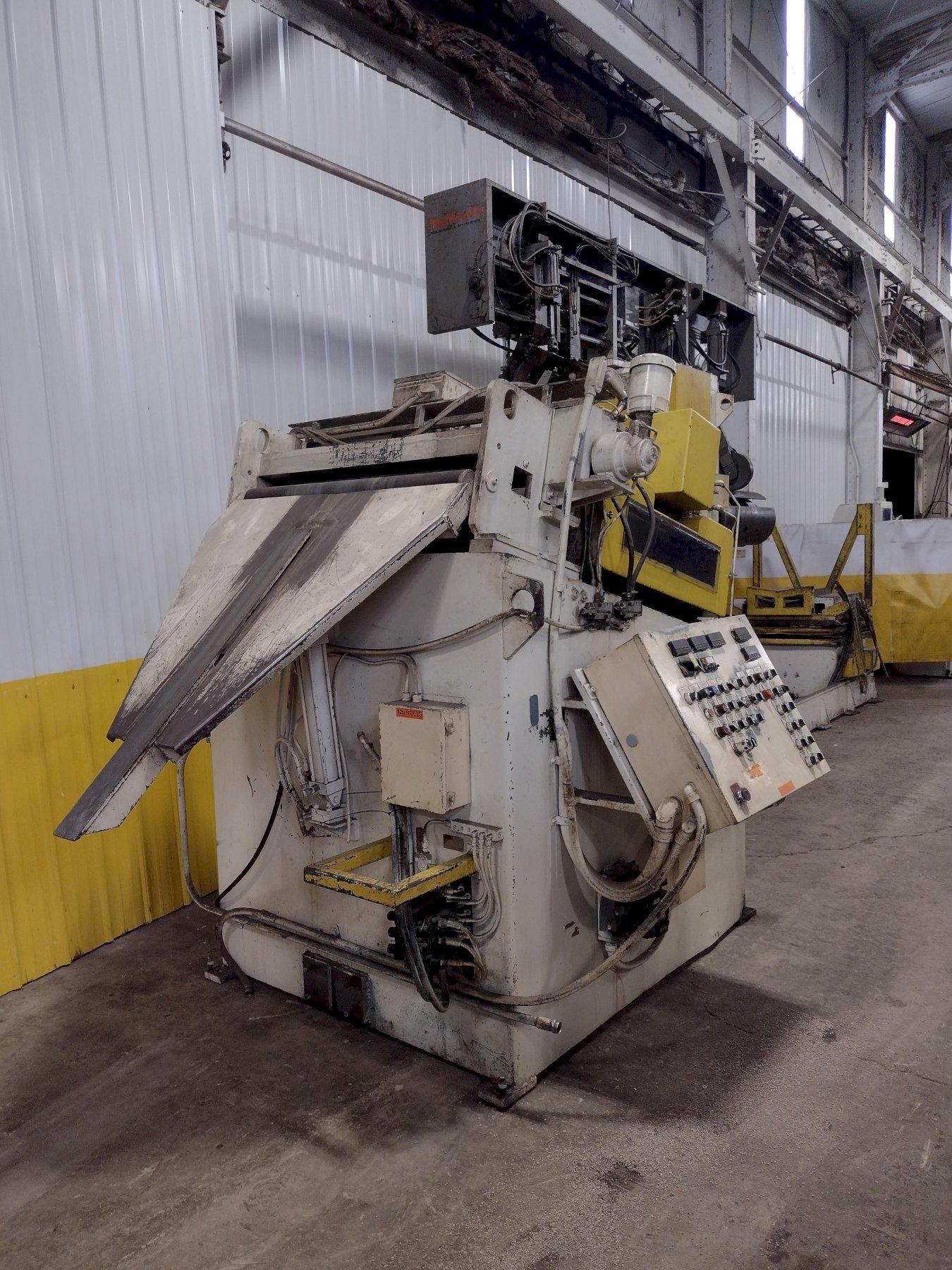

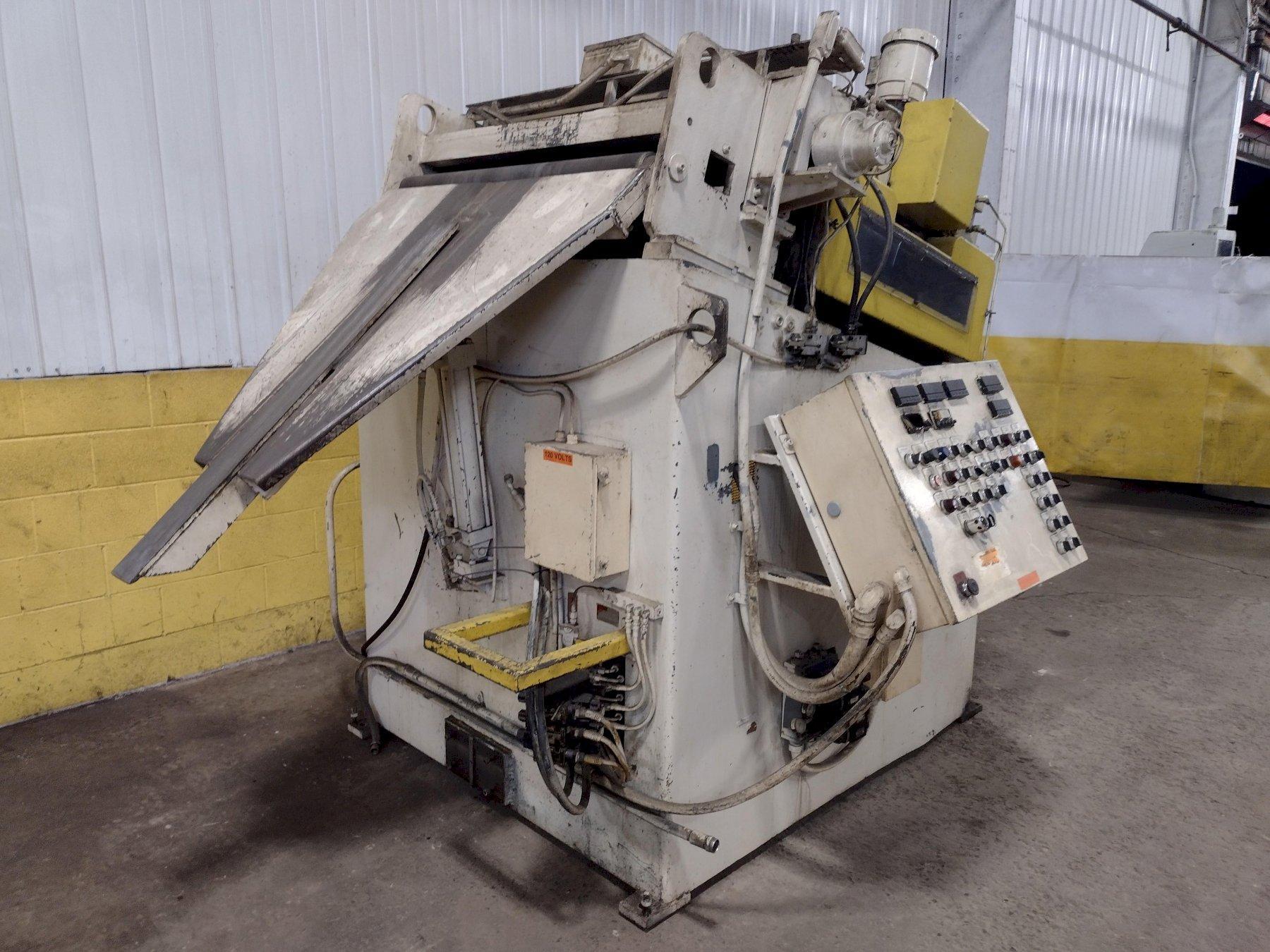

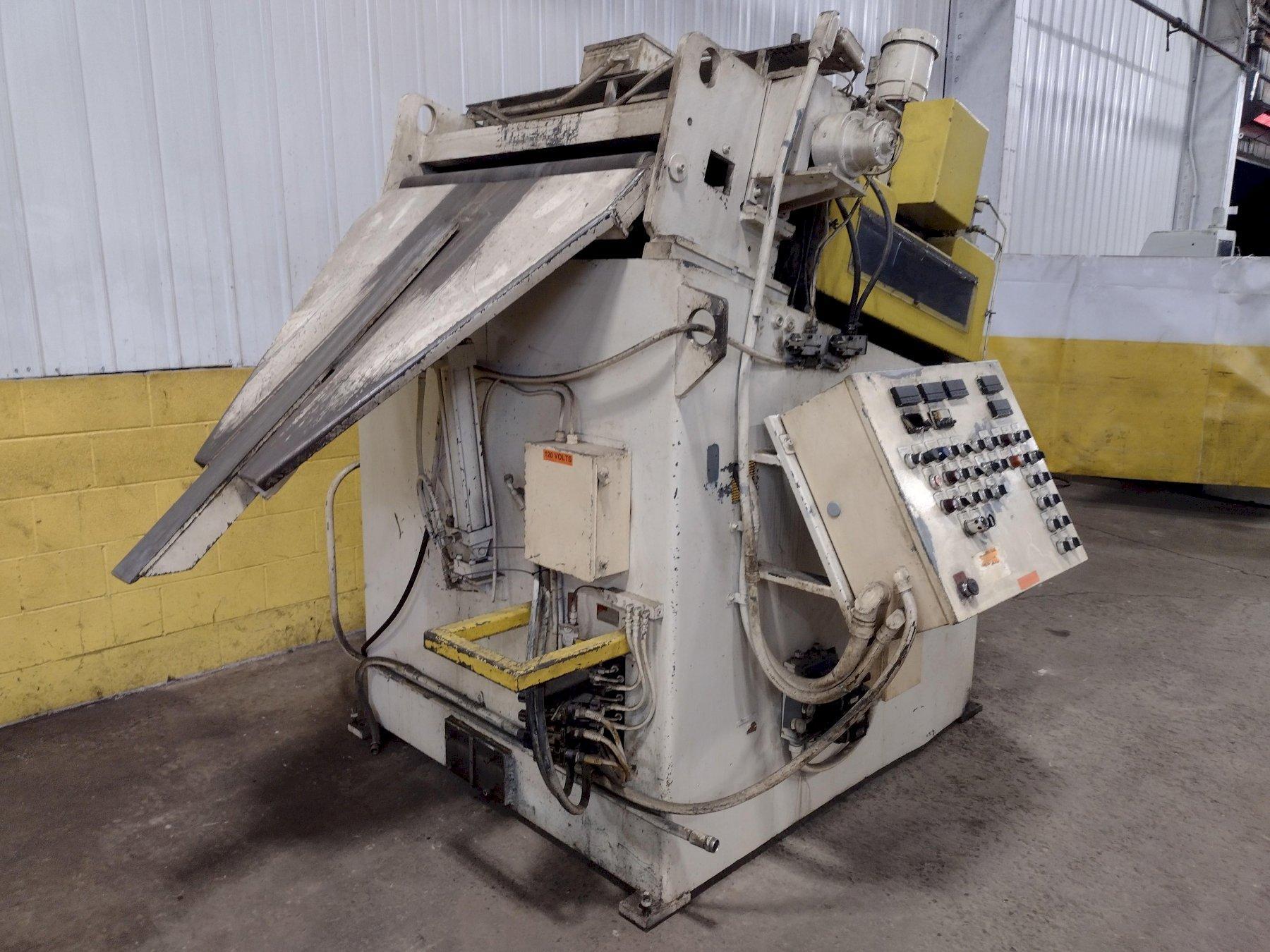

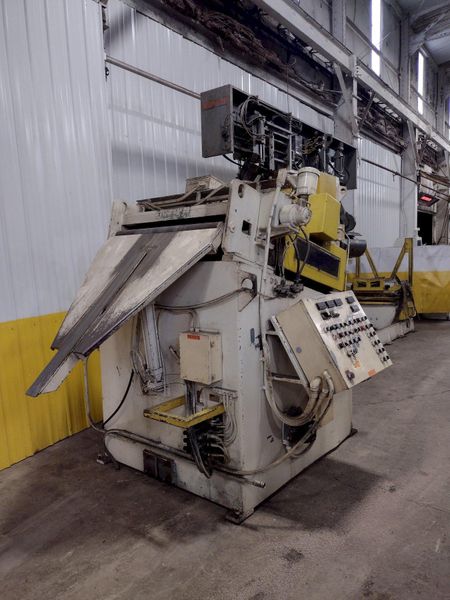

Perfecto Powered Coil Straightener Model No.: 38-36-7
Entry and exit pinch rolls with air operated adjustment
Seven straightening rolls x 3.8" diameter
Back up support rollers on straightening rolls
Motorized straightening roll adjustment
Motorized stock width edge guides
Stock peeler table with spade extension
Inclined head
Exit cascade loop support rollers
Variable speed drive

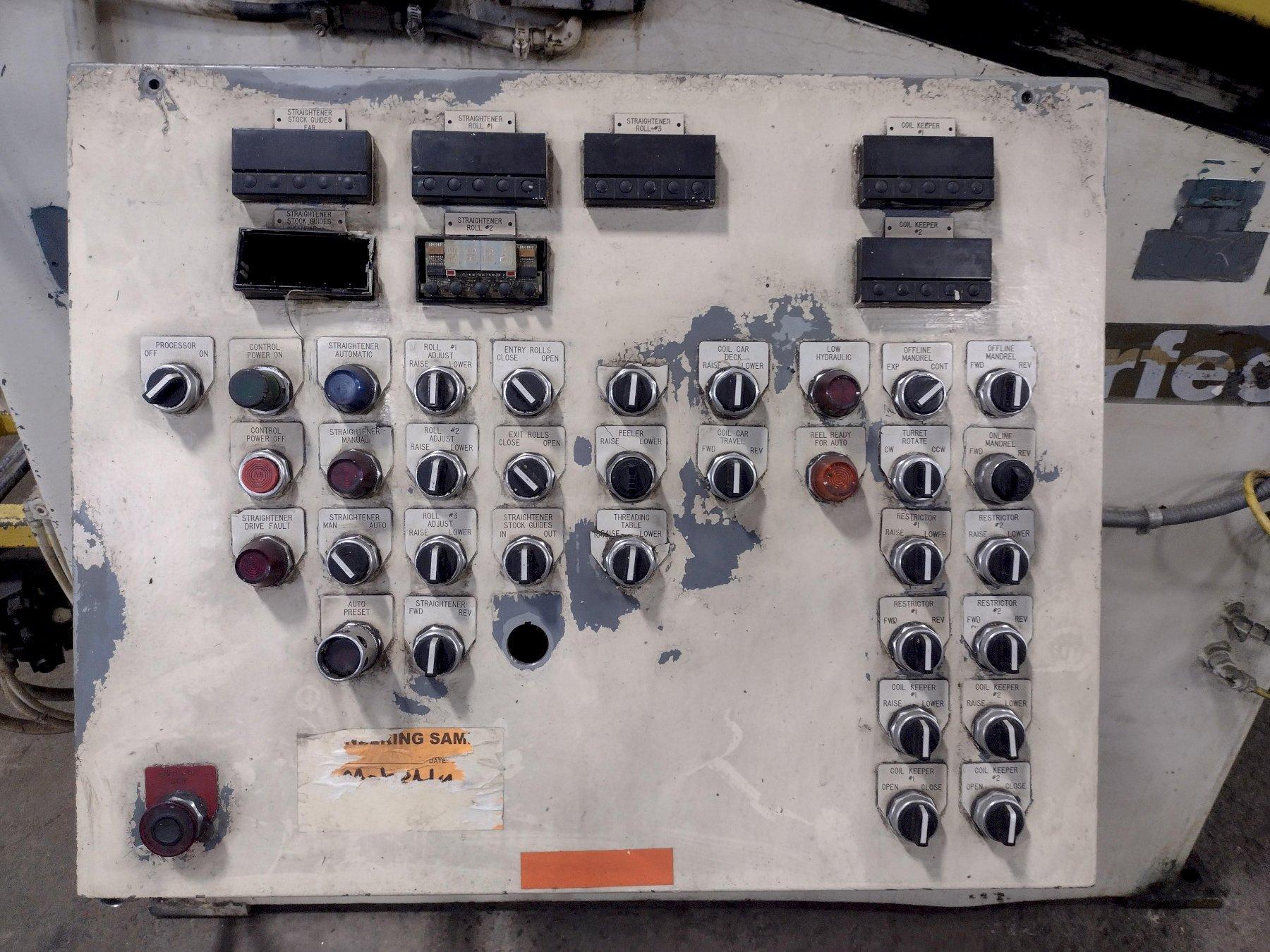

Operator's control station
Exit threading table for loop area
