Giddings & Lewis RT 130, 5.12" Spindle, X-78", Y-61", Fanuc OiMF, 40 ATC, TSC, 49" x 55" B-Axis Table, Brand New! #32944

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32944

Model

RT 130

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32944

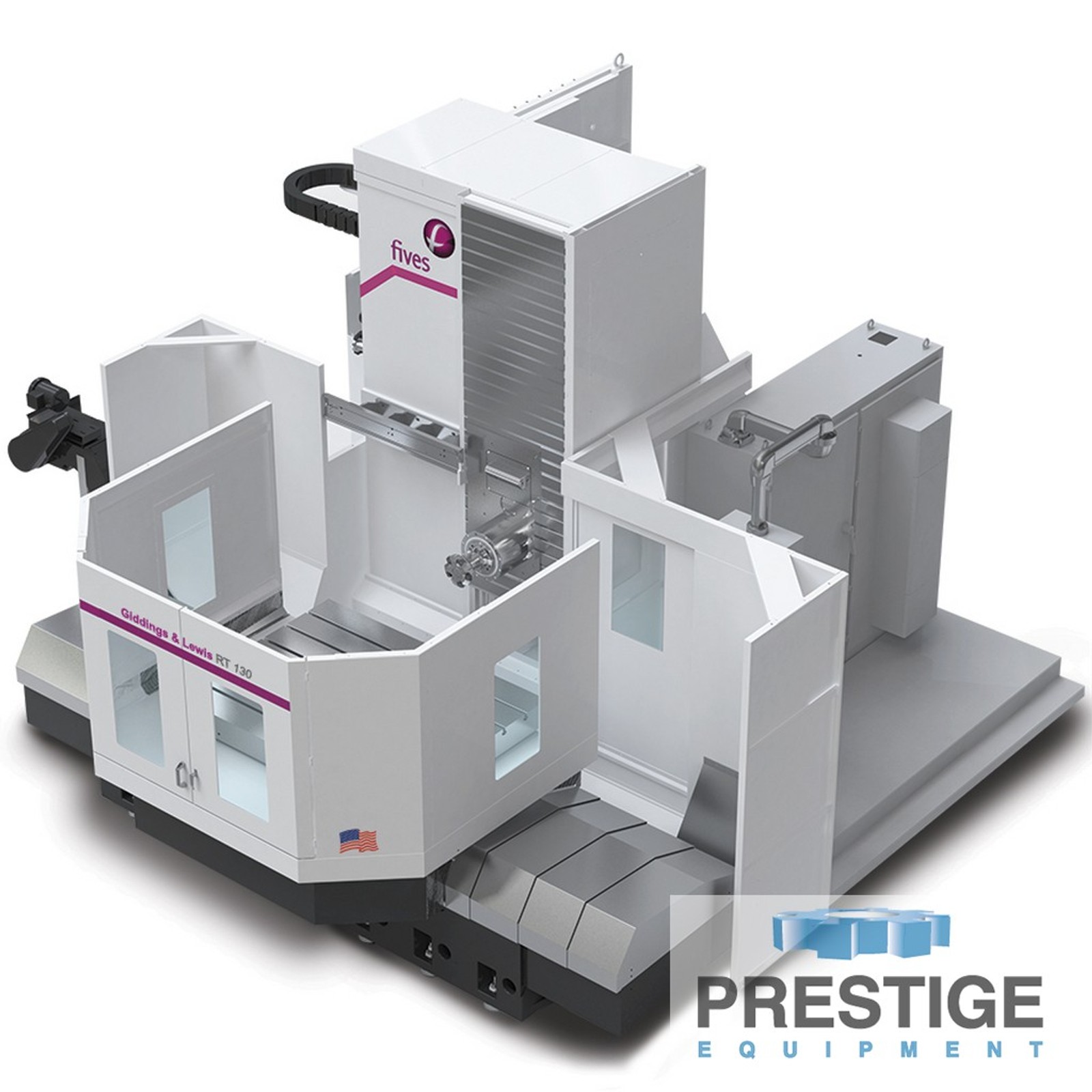

Giddings & Lewis RT 130 5.12" CNC Table Type Horizontal Boring Mill

FEATURES:
Fanuc 0i-MODEL F CNC Control
40 Station Automatic Tool Changer
Remote Pendant
Programmable Coolant Thru Spindle
Built-In 360,000 Full Contouring Rotary Table
Thru-Spindle Coolant System

CAPACITY:
Spindle Diameter ...................... 5.12"
Taper In Spindle ...................... # 50
Vertical Head Travel, Y-Axis .......... 61.02"
Table Cross Travel, X-Axis ............ 78.74"
Column Travel, W-Axis ................. 62.99"
Spindle Travel, Z-Axis ................ 29.52"
Table Size, Built-In Rotary ........... 49.21" x 55.11"
Table Rotation, B-Axis (2 RPM)......... .001 degrees
Table Load Capacity ................... 22,046 Lbs
Spindle Speeds ........................ 3,000 RPM
Spindle Motor ......................... 30 HP/45 HP
Rapid Traverse, X, Y, Z-Axis .......... 393 IPM

EQUIPPED WITH:
Fanuc 0i-MODEL F CNC Control with 15" LCD Color Display
40 Station Automatic Tool Changer
Linears Scales on X,Y,Z Axes
Built-In 360,000 Full Contouring Rotary Table
Coolant System
Thru-Spindle Coolant System
Ballscrews & Independent AC Servo Drives
Hardened & Ground Box Ways on All Slide-Ways
Full Coolant & Chip Enclosure
Steel Telescoping Way Covers on Bed & Column
Thermal Compensation of Spindle
Operators Platform
Chip Conveyor System

NOTE:
Installation Included (Customer responsible for foundation,utilities, and rigging support)

Training:
Includes 8 hours of basic machine operation overview and startup assistance at installation by service techinician

Warranty:
24 Month Warranty on Fanuc Control
12 Month Warranty on Machine
