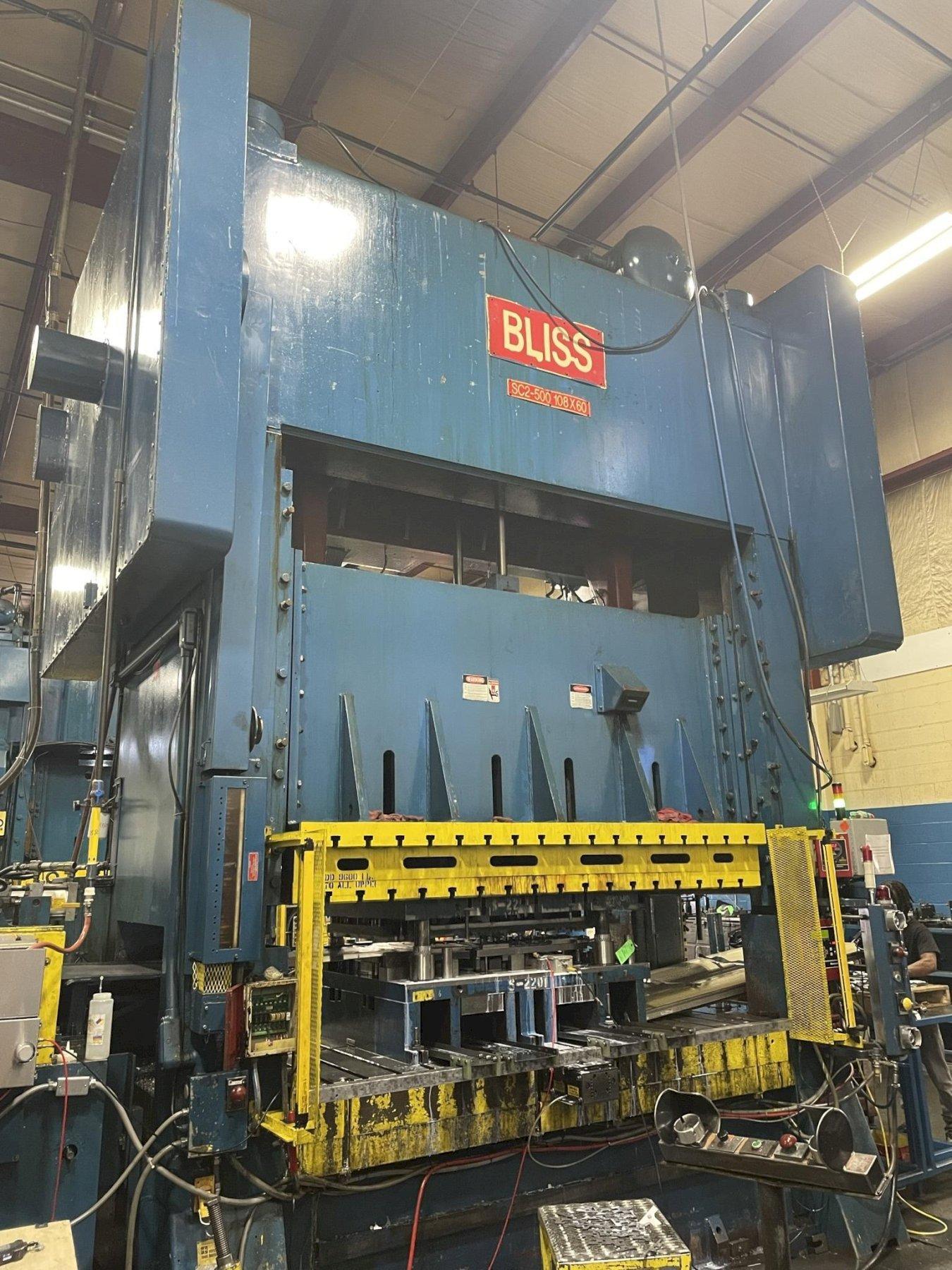

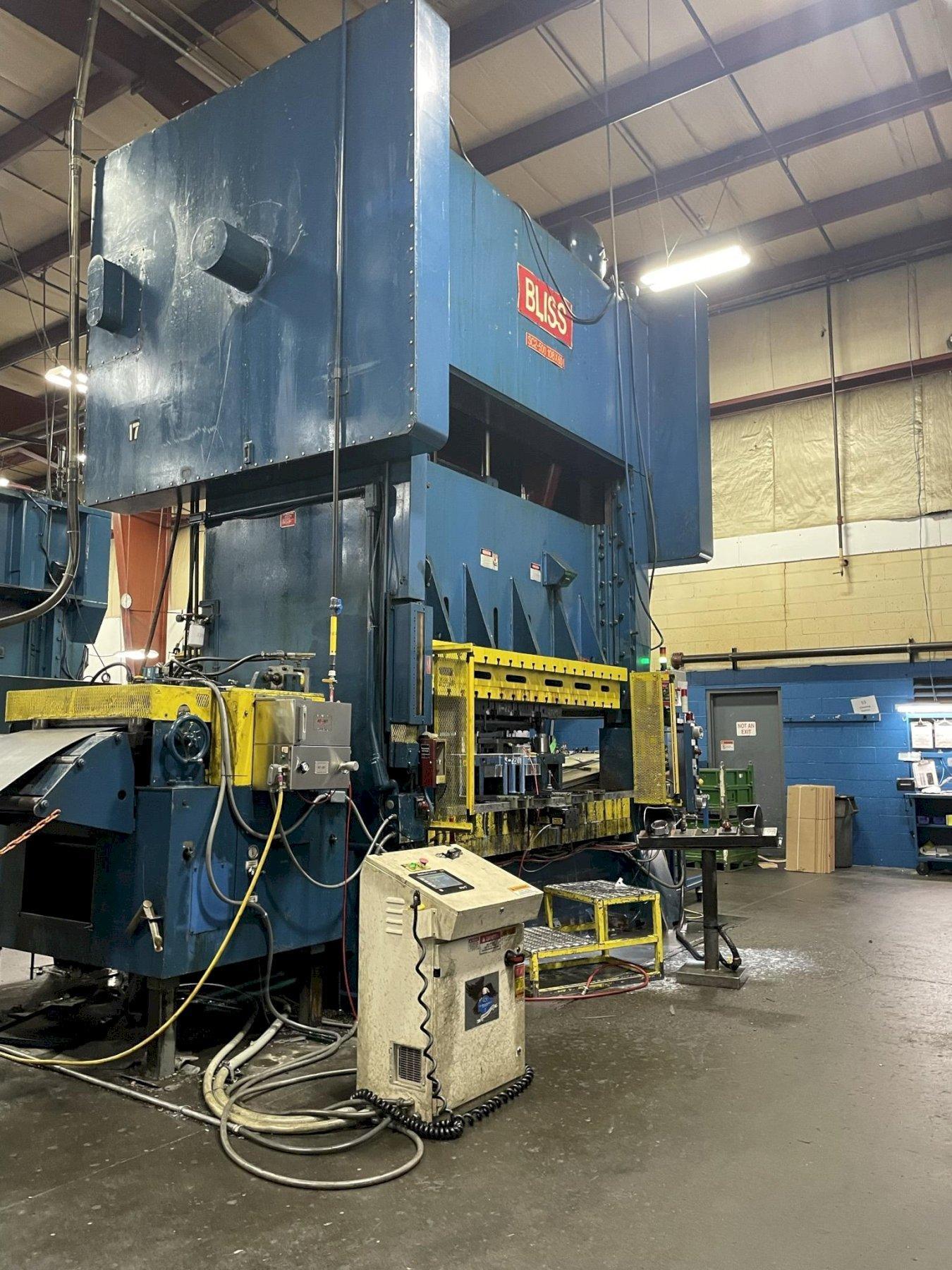

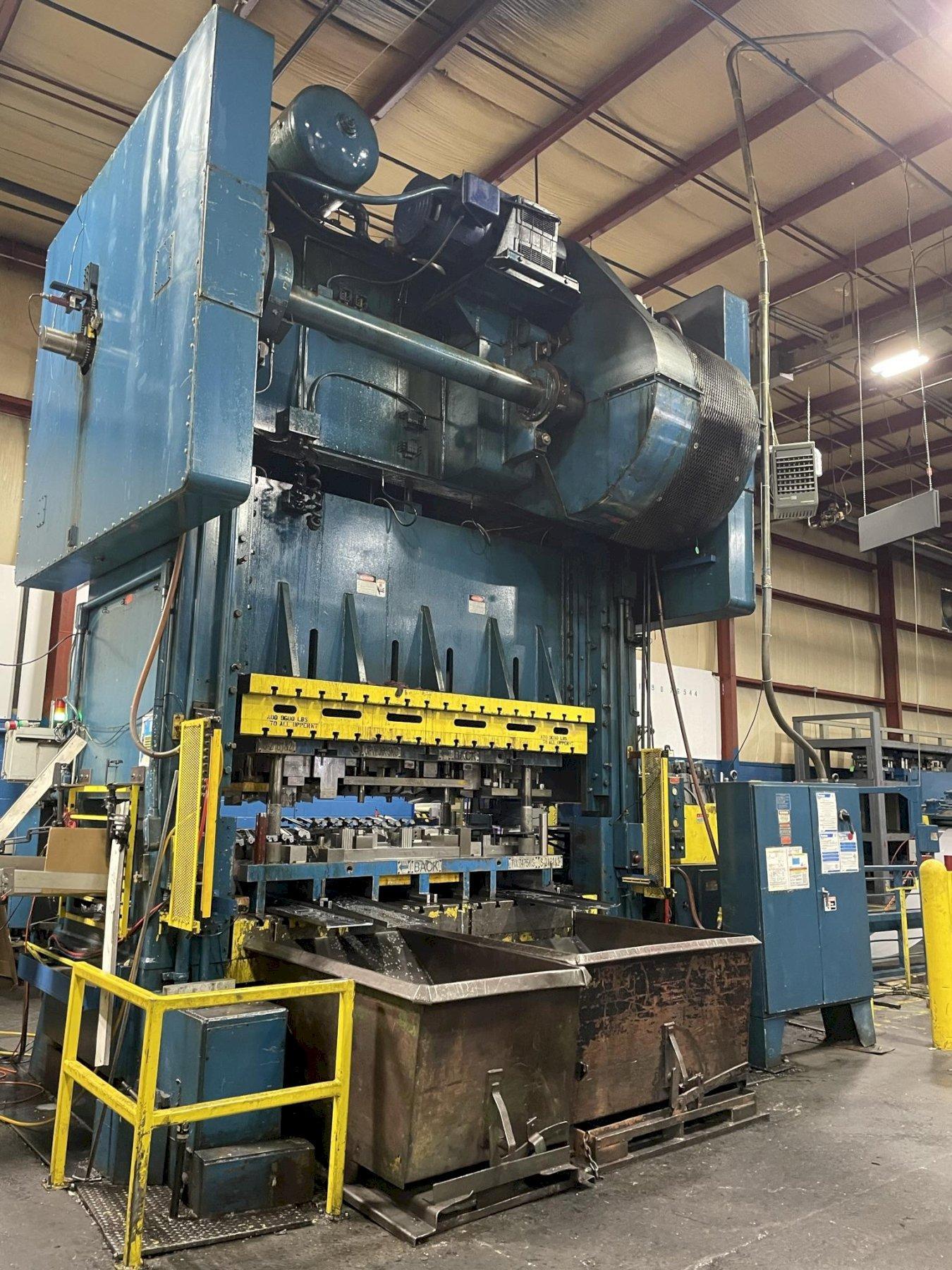

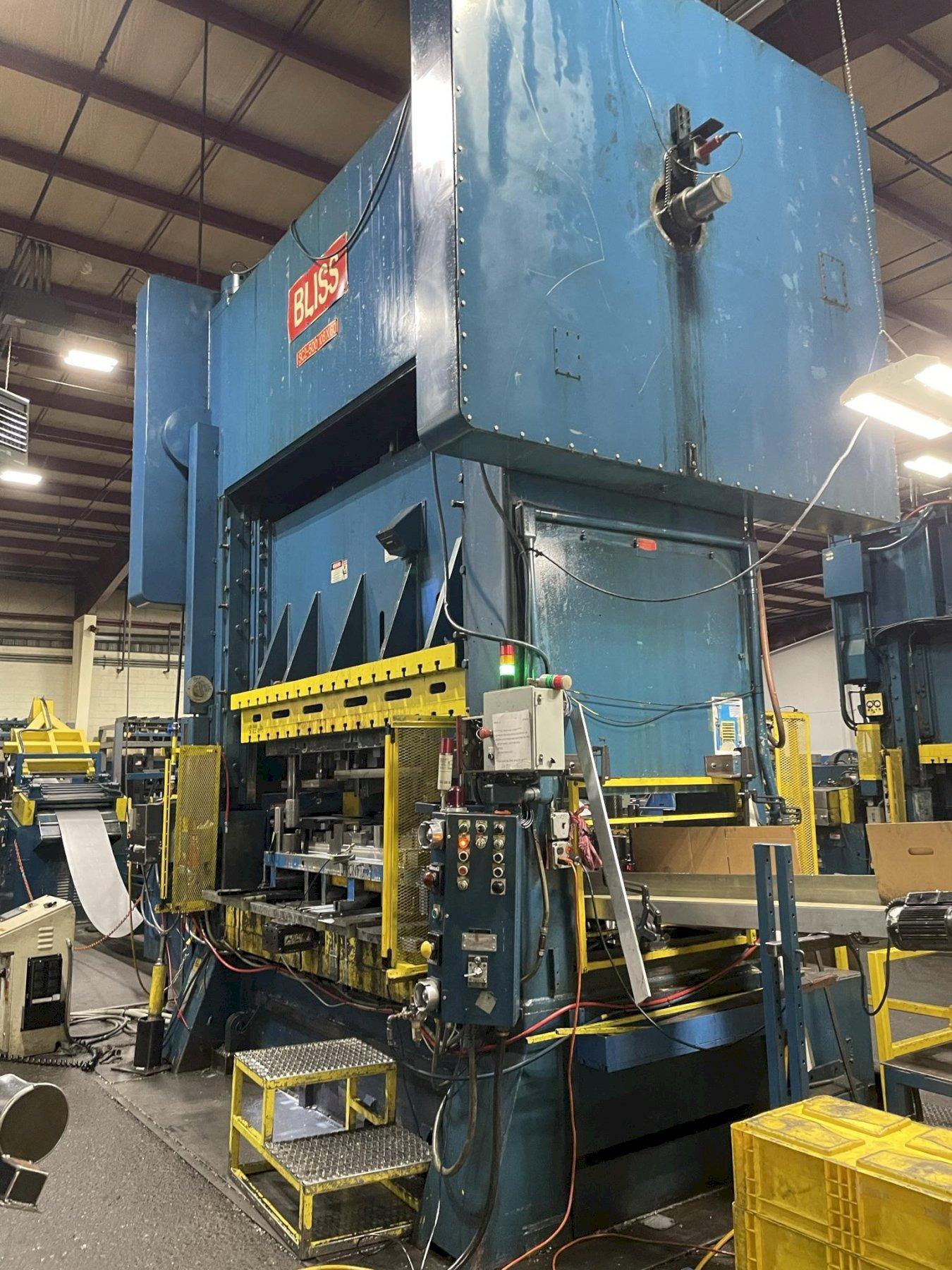

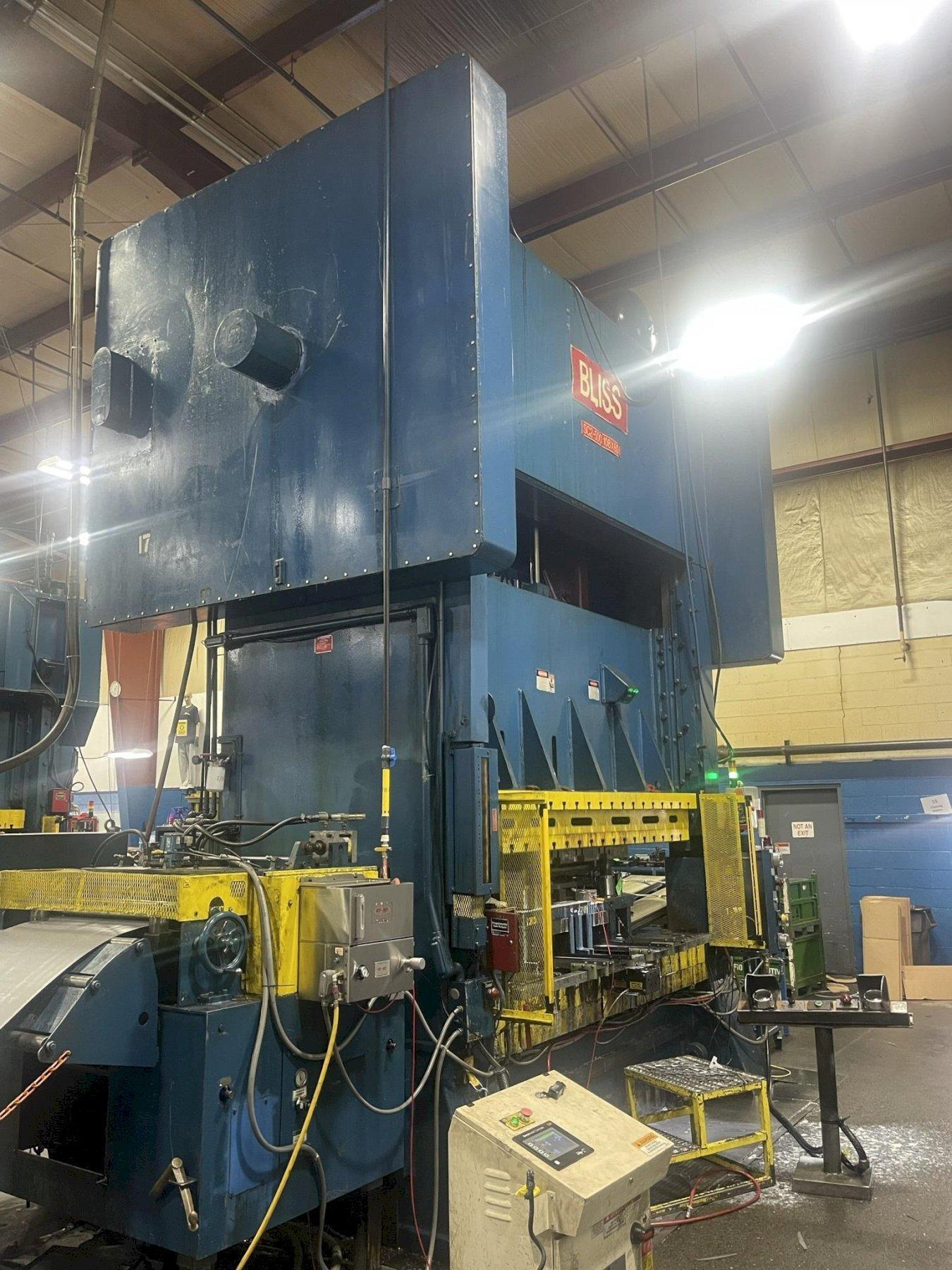

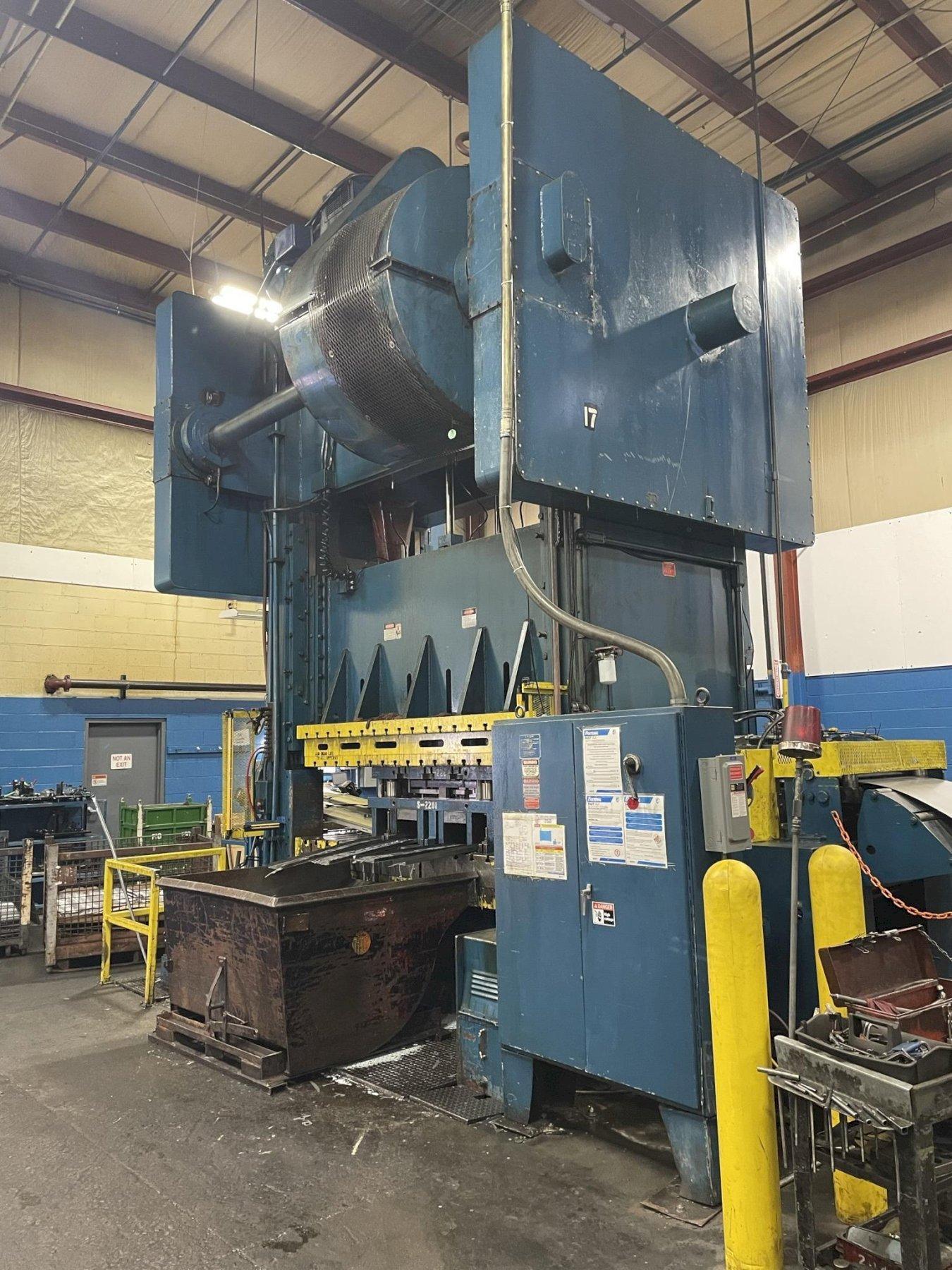

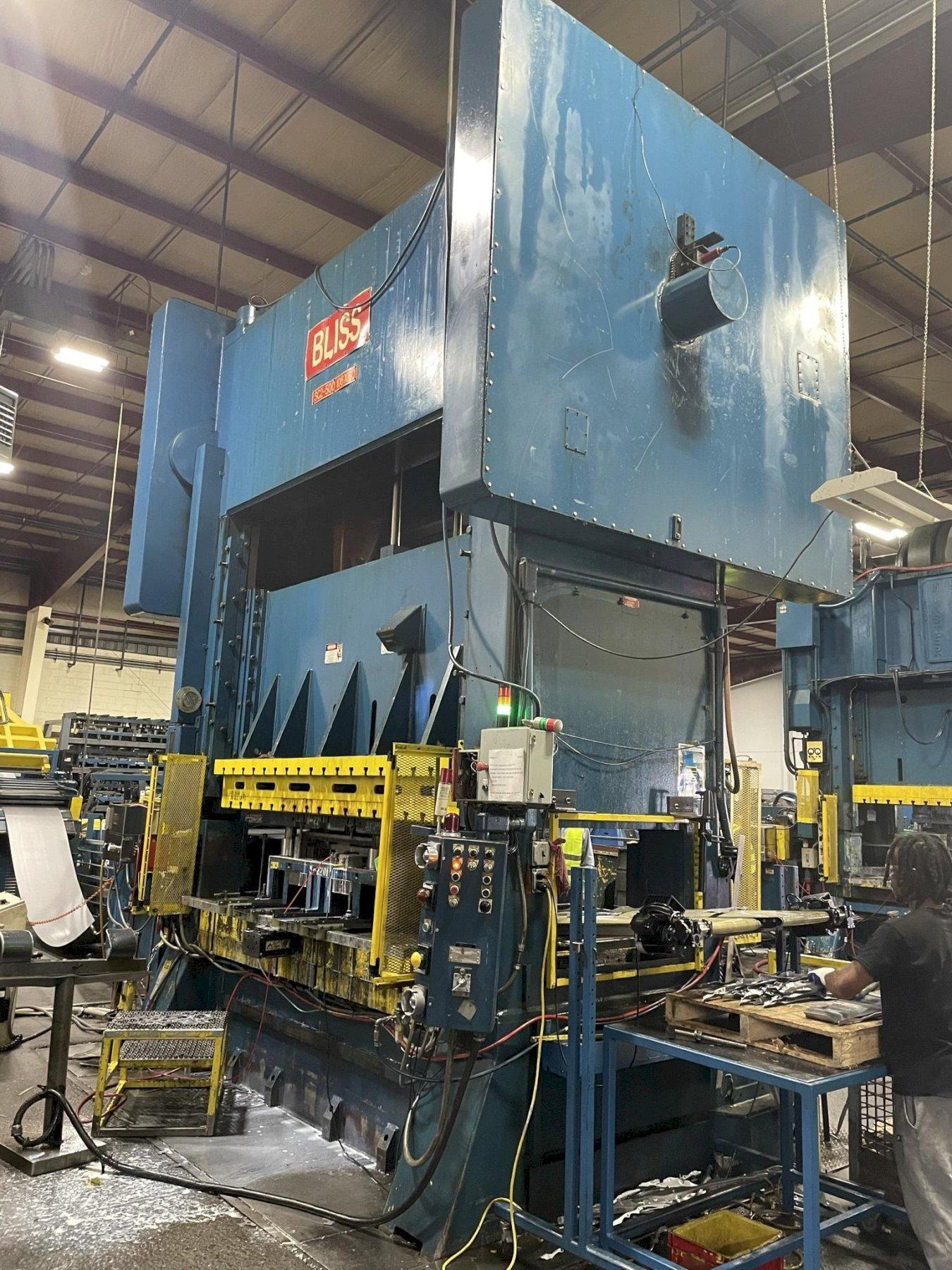

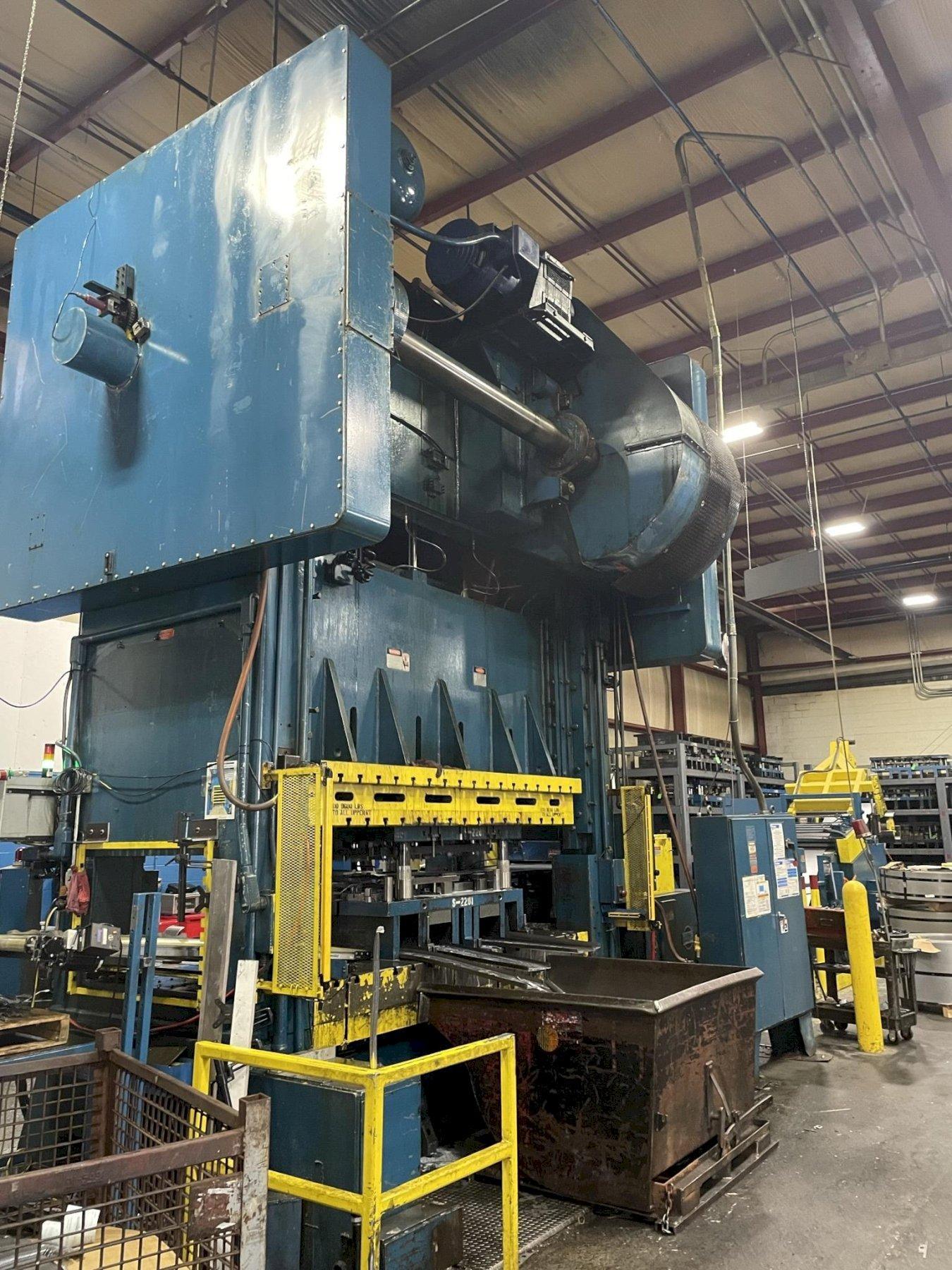

500-ton Bliss SC2-500-108-60 Straight Side Mechanical Metal Stamping Press, Year 1989 Full Rebui

Manufacturer

BLISS

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2855

Model

SC2-500-108-60

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 500
Stroke - 14 inches
Shut Height - 44 inches
Adjustment - 12 inches
Bed Size - 108" LR x 60" FB
Ram Area - 108" LR x 60" FB
SPM - 20-50 VSPM


Standard Specifications
500-ton Bliss Straight Side Mechanical Press
Press Model# SC2-500-108-60
14" Stroke
44" Shut Height (SDAU) on Bed
36" Die Height on Bolster
12" Motorized Adjustment
108" LR x 60" FB Bed Area
108" LR x 60" FB Slide Area
20-50 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube Syste
8" T-Slotted Bolster
T-Slotted Ram with Knockouts
(2) Plug in Pedestal Palm Button Stations
75 HP Dynamatic Eddy Current Drive
Hydraulic Tie Rod Nuts
Light Curtains Front and Back
37" Wide Windows
Floor Standing

Footprint: 148" x 102"
245" Max. Overall Height

This 500-ton Bliss Press can be seen under power.  Do not hesitate to call or email S&G Press for further details and pricing.

500-ton Bliss Mechanical Stamping Press For Sale.
