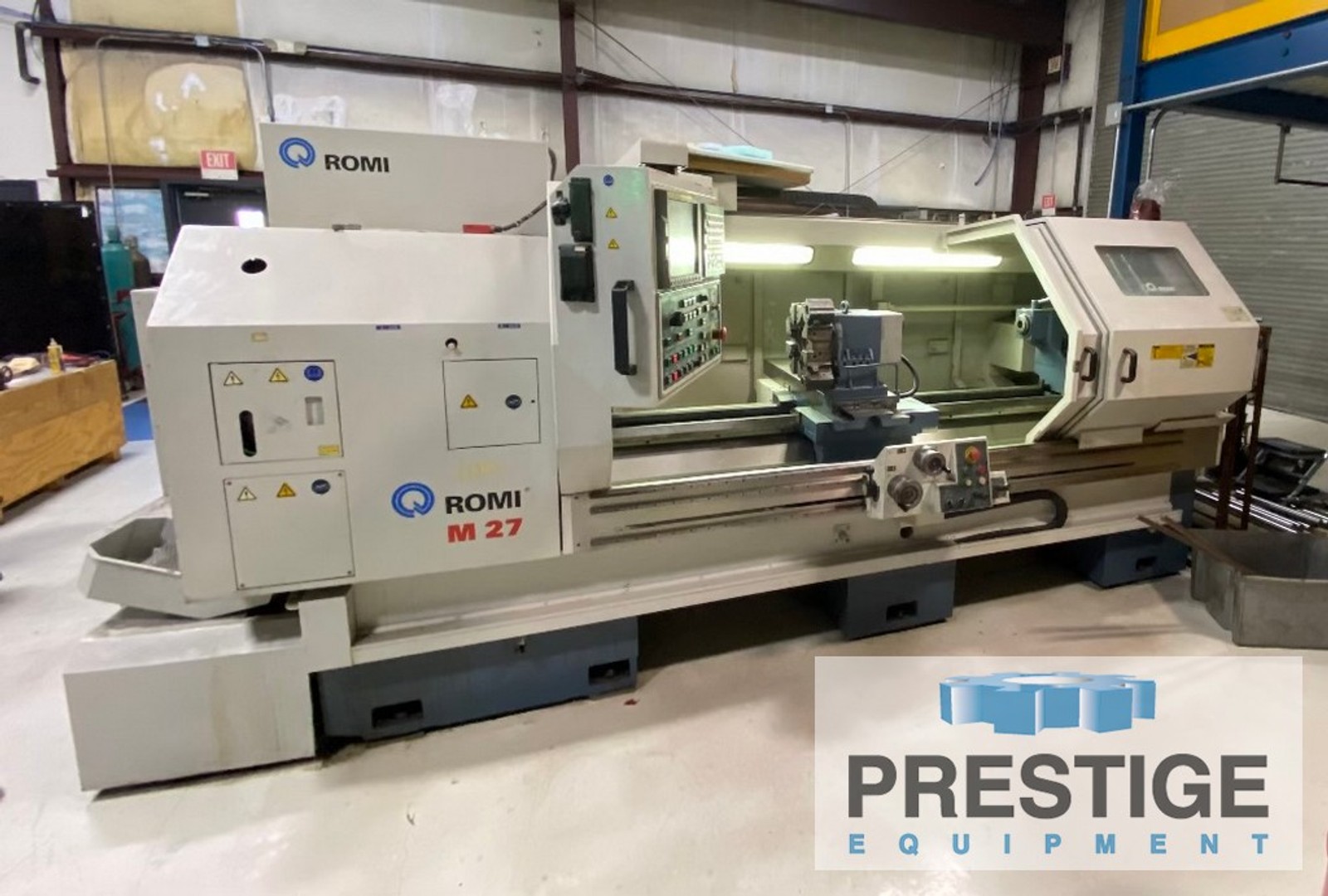

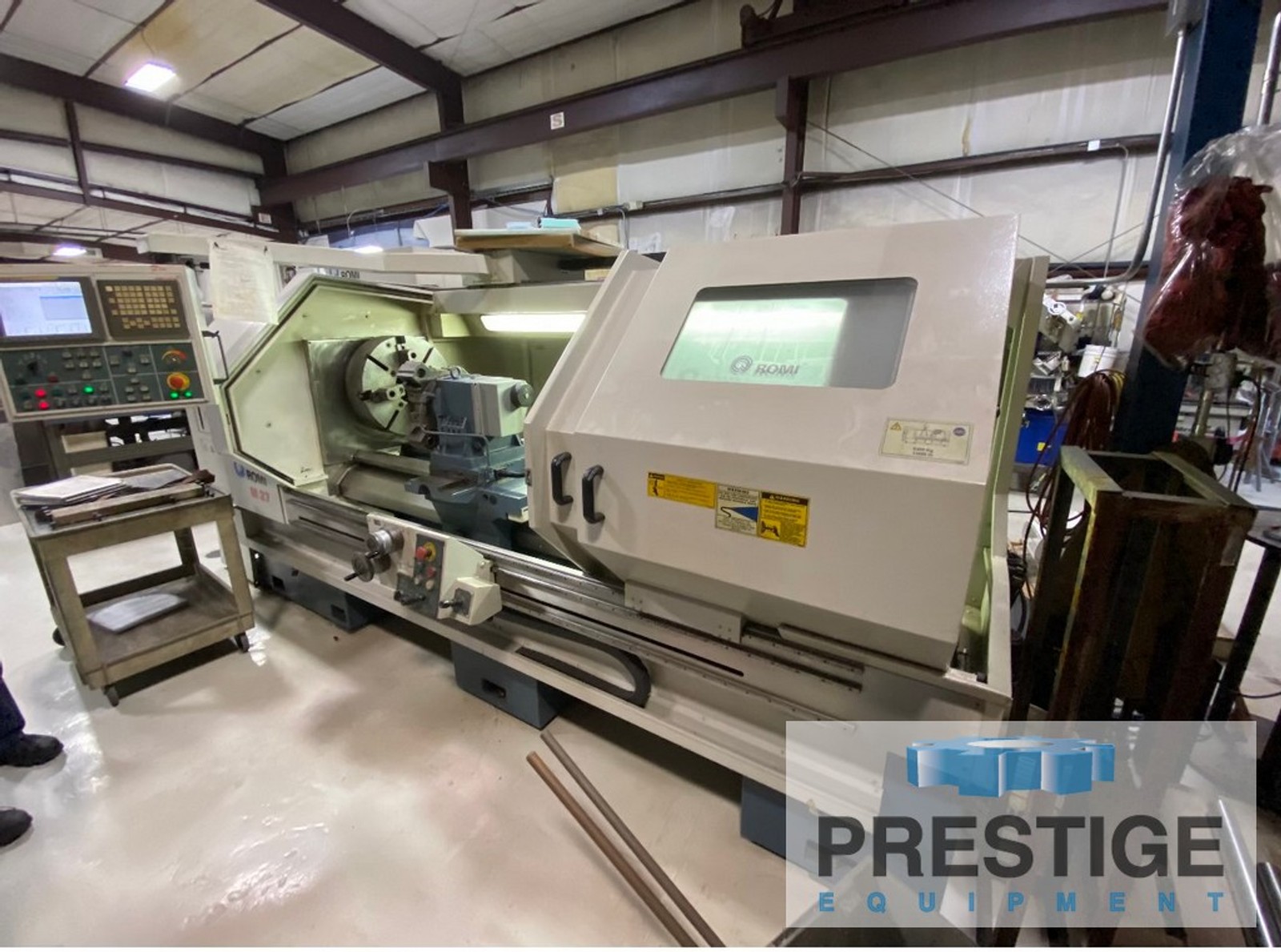

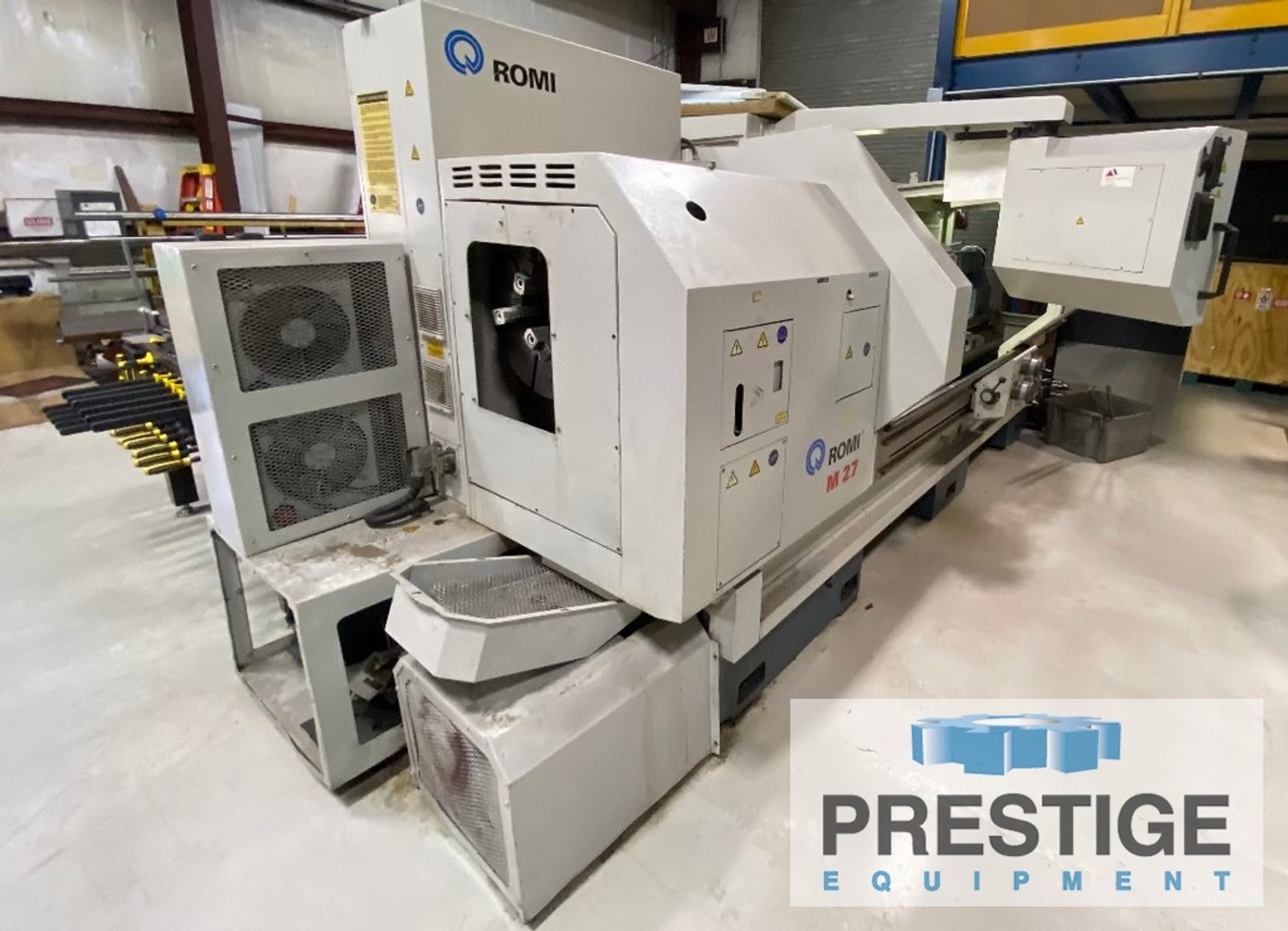

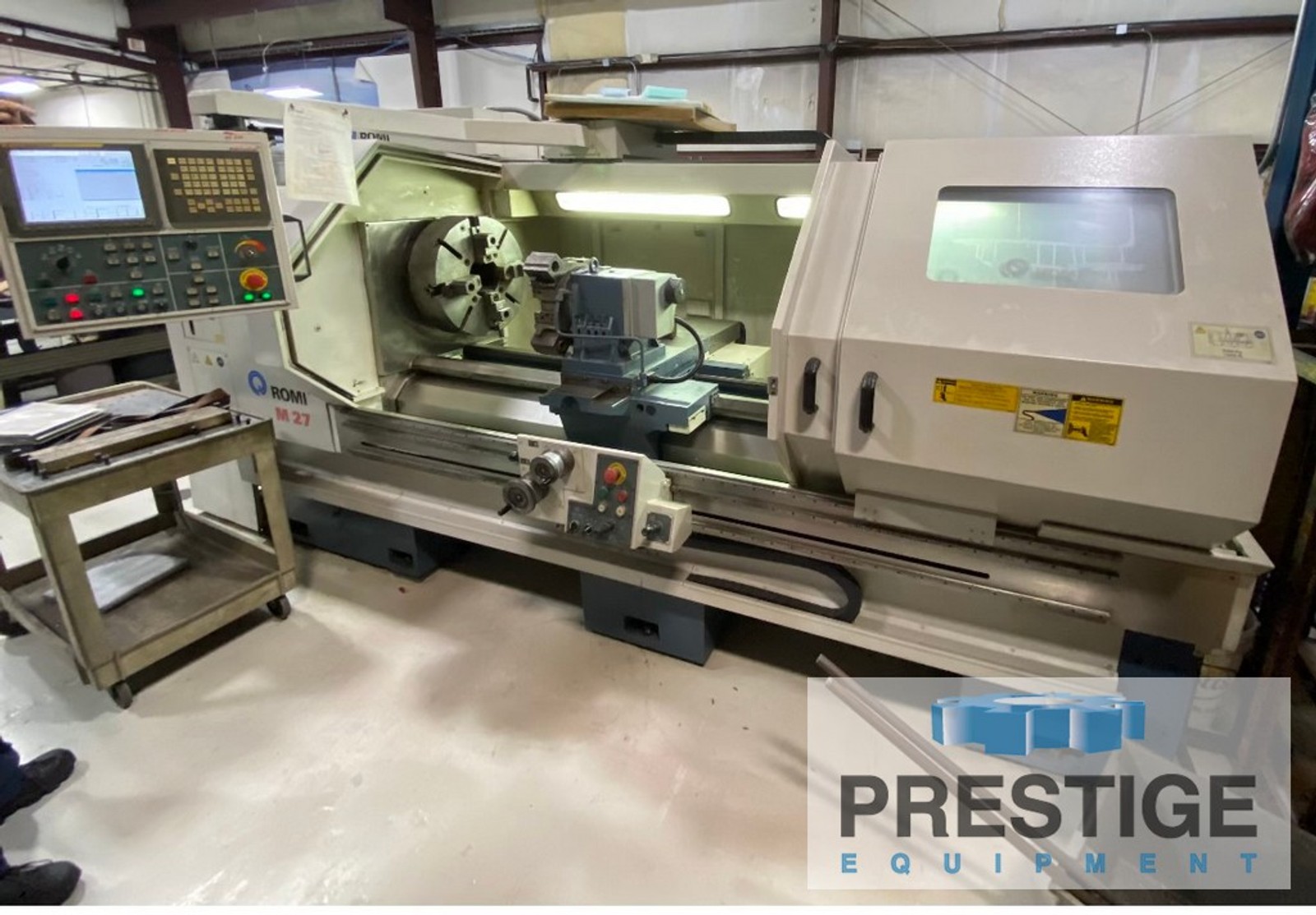

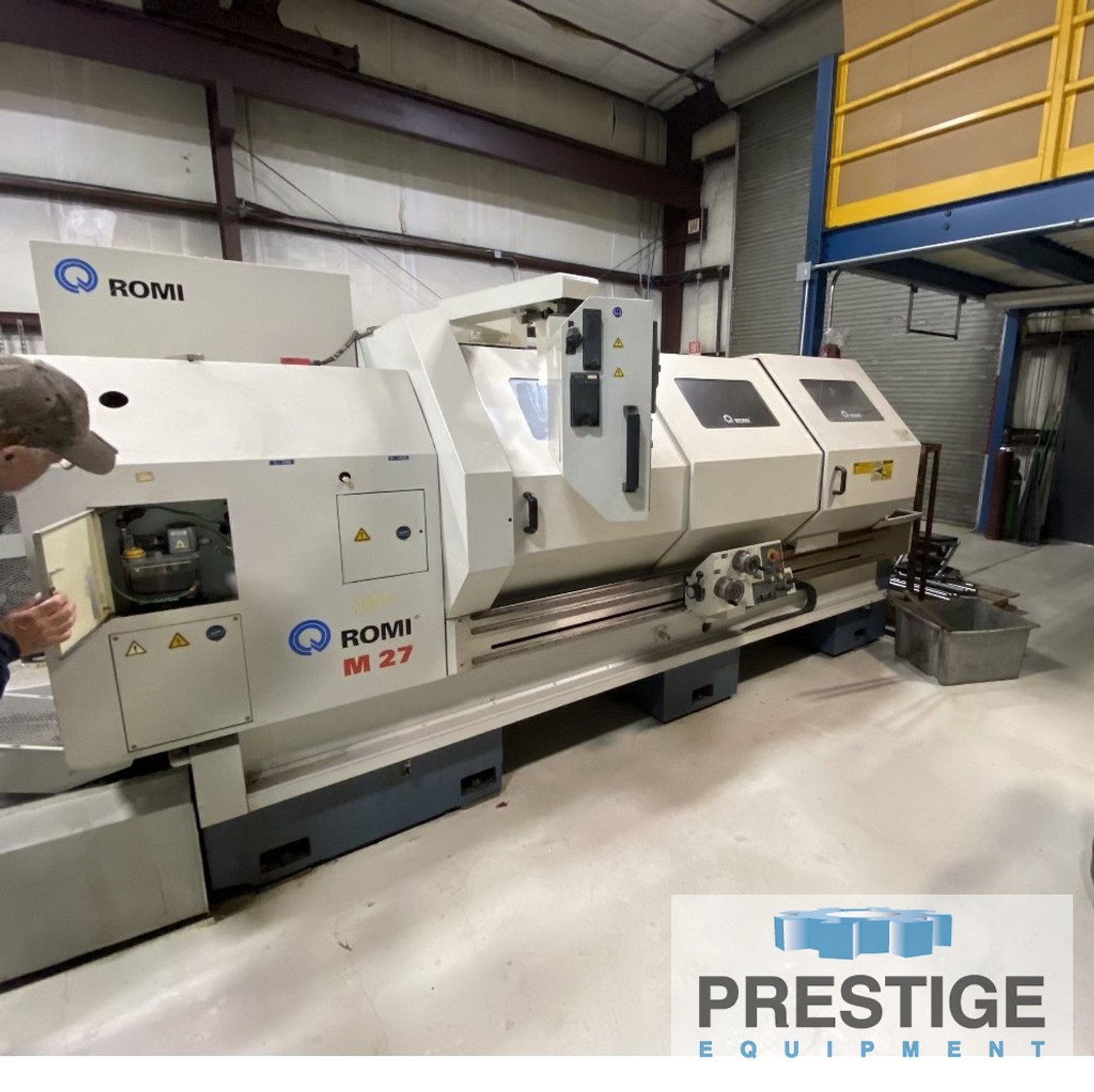

Romi M27, 27" Swing, 80" Centers, 6.77" Spindle Bore, Front & Rear Chucks, Tailstock, Fanuc 21i-TB CNC, 2007, #32960

Manufacturer

ROMI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32960

Model

M27

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32960
Romi M27 27" x 80" CNC Lathe

FEATURES:
Fanuc 21i-TB CNC

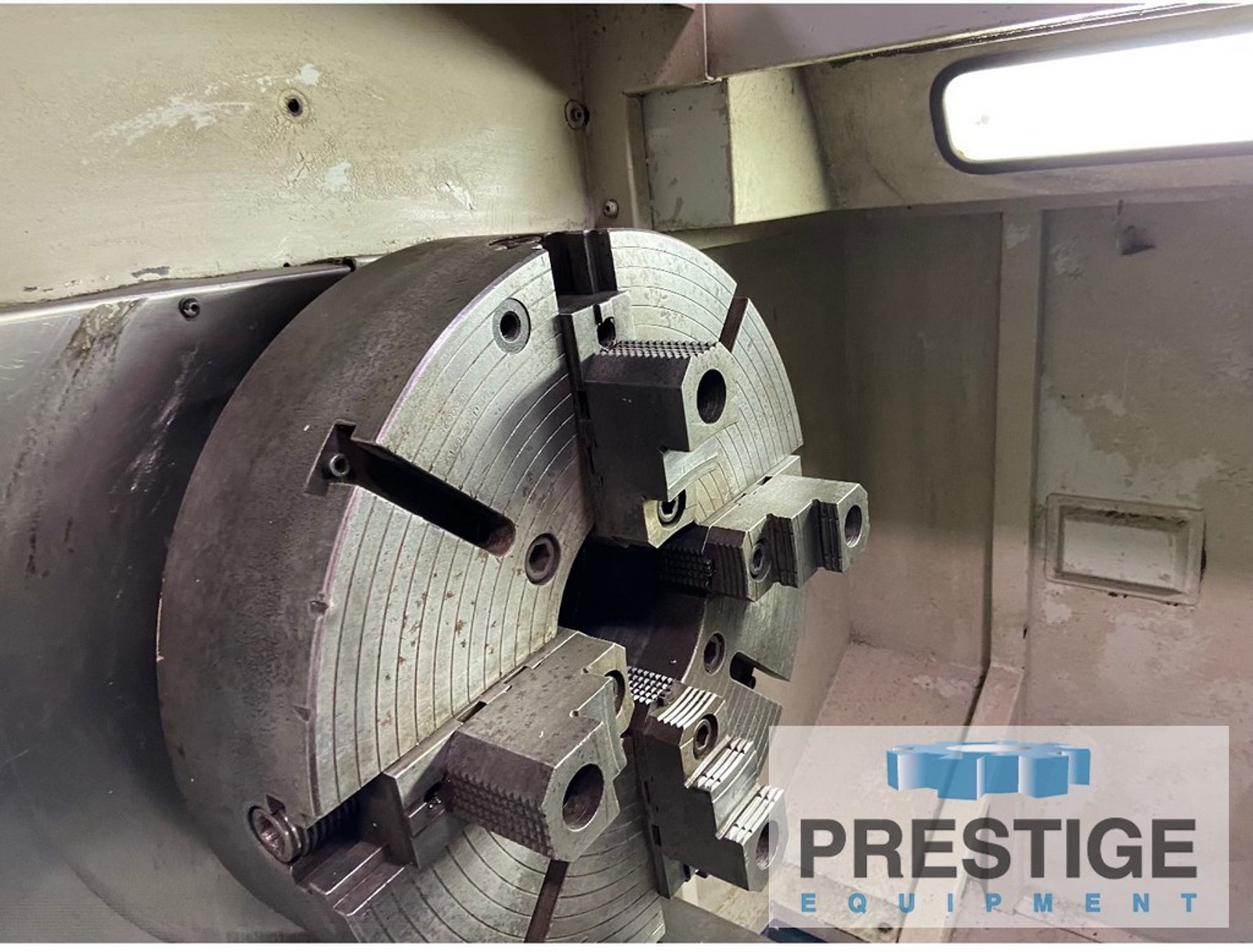

21" 4-Jaw Chuck
19.5" 3-Jaw Chuck Rear Chuck

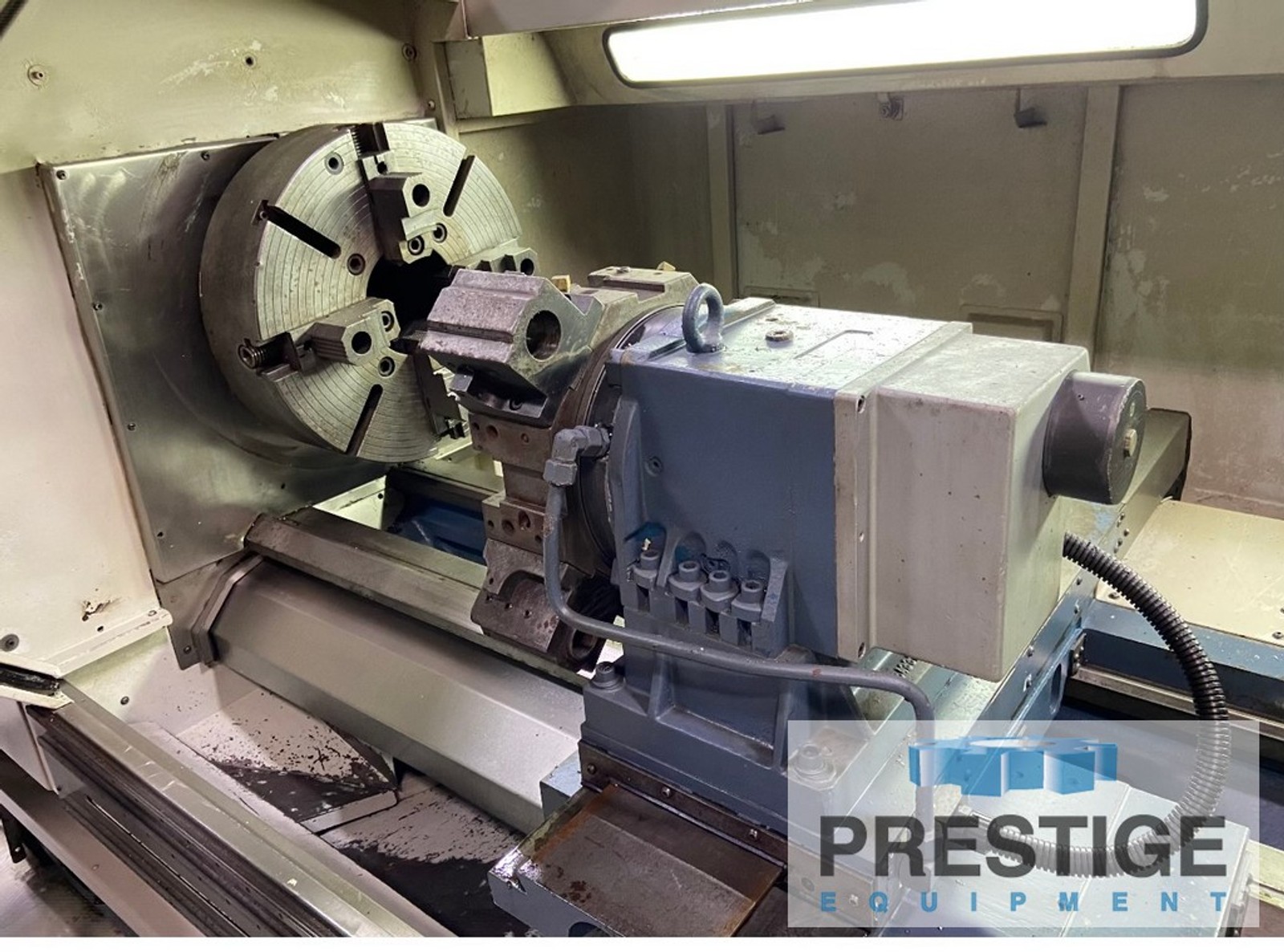

8-Station Disk Type Turret Electrically Driven

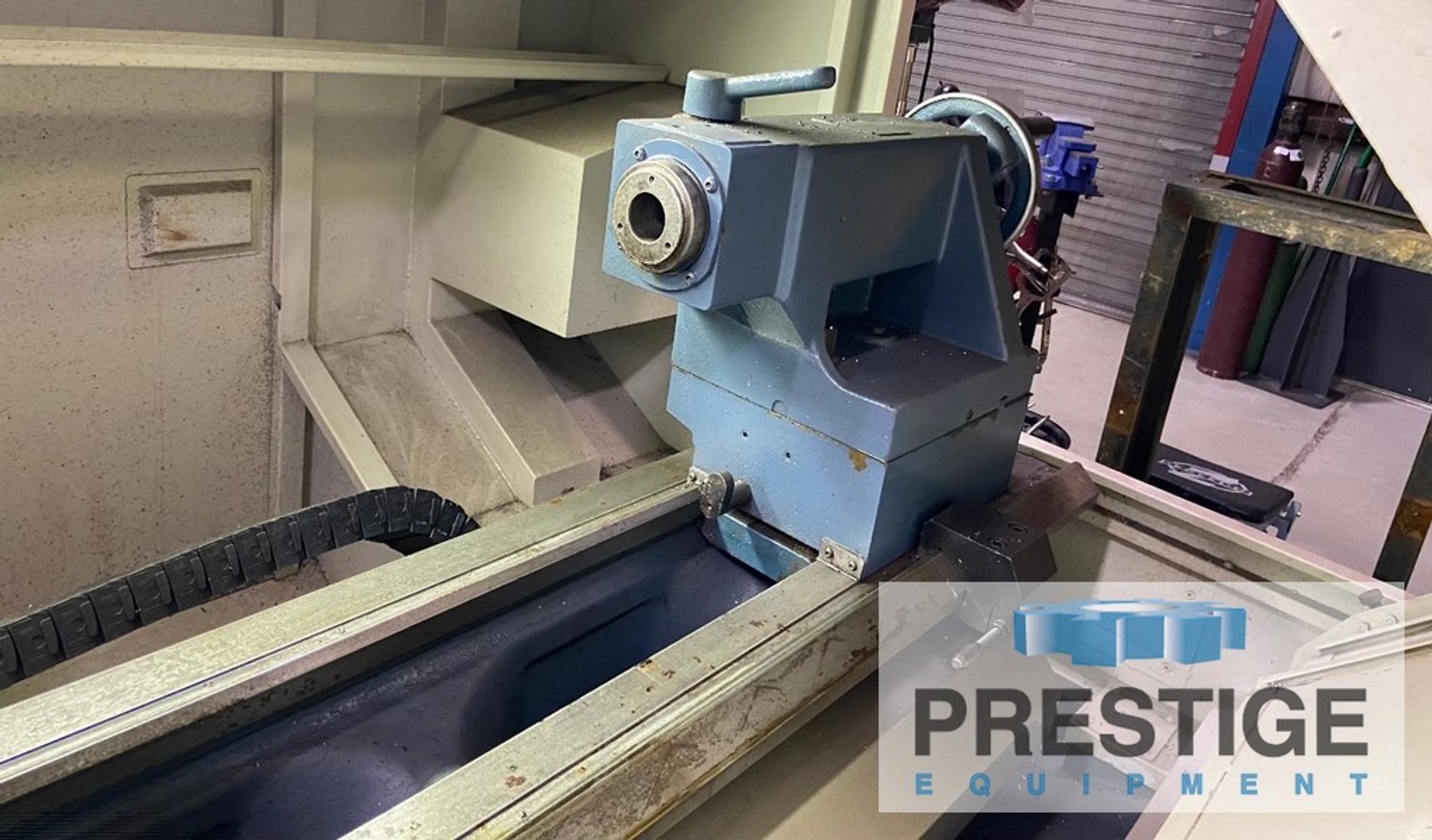

Tailstock
Spindle Motor Switch for Manual Operation

CAPACITY:
Swing Over Bed ........................ 26.97"
Swing Over Cross Slide ................ 16.93"
Distance Between Centers .............. 80"
X-Axis Travel ......................... 14.17"
Z-Axis Travel ......................... 80"

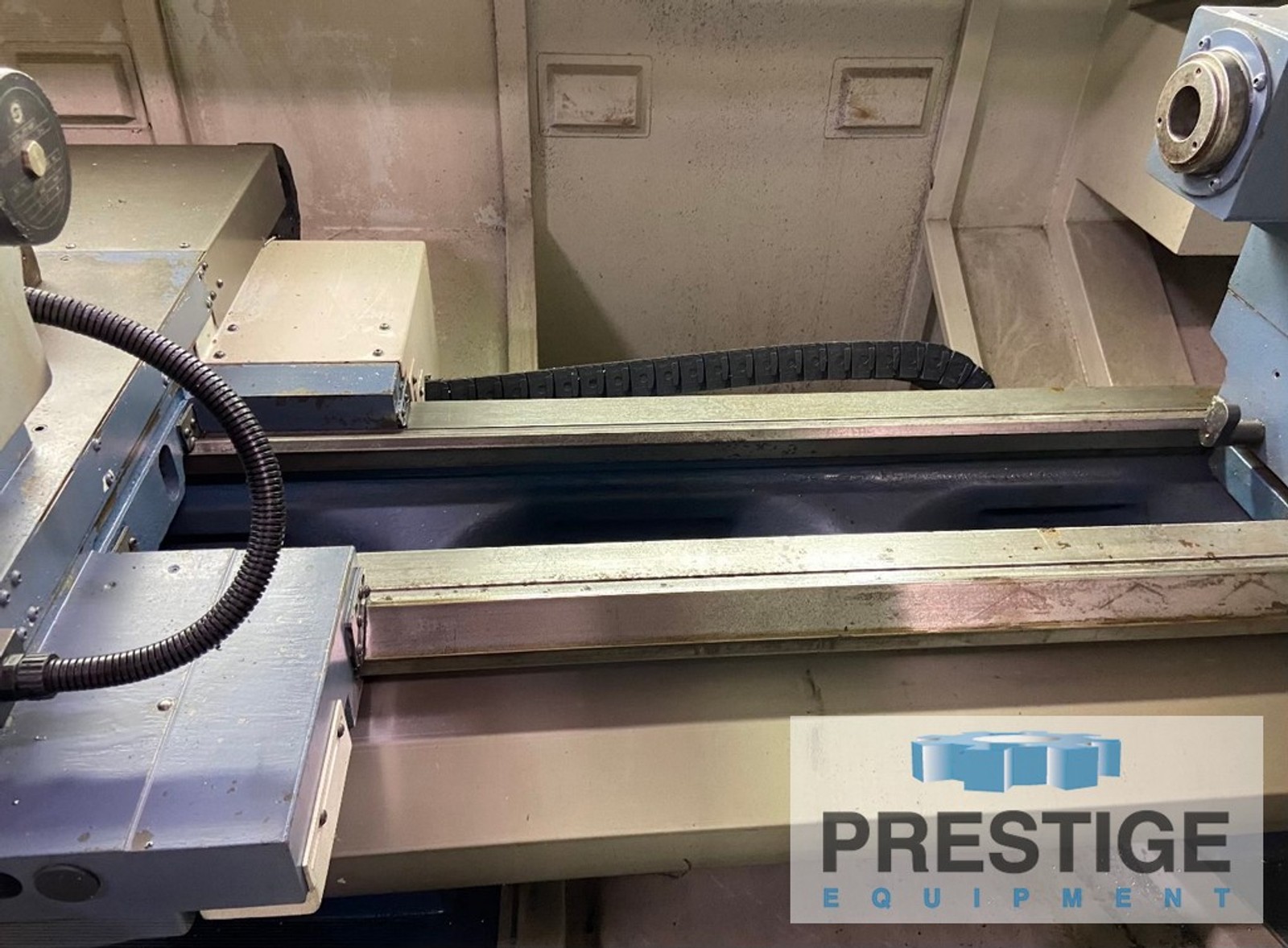

Bed Width ............................. 14.96"
Spindle Nose .......................... A2-11
Spindle Through Hole .................. 6.77"
Spindle Speeds (2-Ranges) ............. 2-1000 RPM
Rapid Traverse,Z-Axis ................. 295 IPM
Rapid Traverse,X-Axis ................. 295 IPM
Tailstock Quill Diameter .............. 3.94"
Quill Internal Taper .................. 5 MT
Quill Travel .......................... 7.09"
Approximate Floor Space ............... 176" x 80"
Approximate Weight .................... 13,900 LBS

EQUIPPED WITH:
Fanuc 21i-TB CNC
21" 4-Jaw Chuck
19.5" 3-Jaw Chuck Rear Chuck
8-Station Disk Type Turret Electrically Driven
Tailstock
Apron with 2-Electronic Handwheels
Spindle Motor Switch for Manual Operation
Automatic Lubrication System
Fully Enclosed
