Dong Yang 18" x 60" Lathe, 10" 3-Jaw Chuck, Newall Digital Readouts, Inch & Metric Threading, Steady Rest, #32968

Manufacturer

Dong Yang

Category

Lathes

Type

LATHES, ENGINE

Stock

32968

Model

None listed

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32968

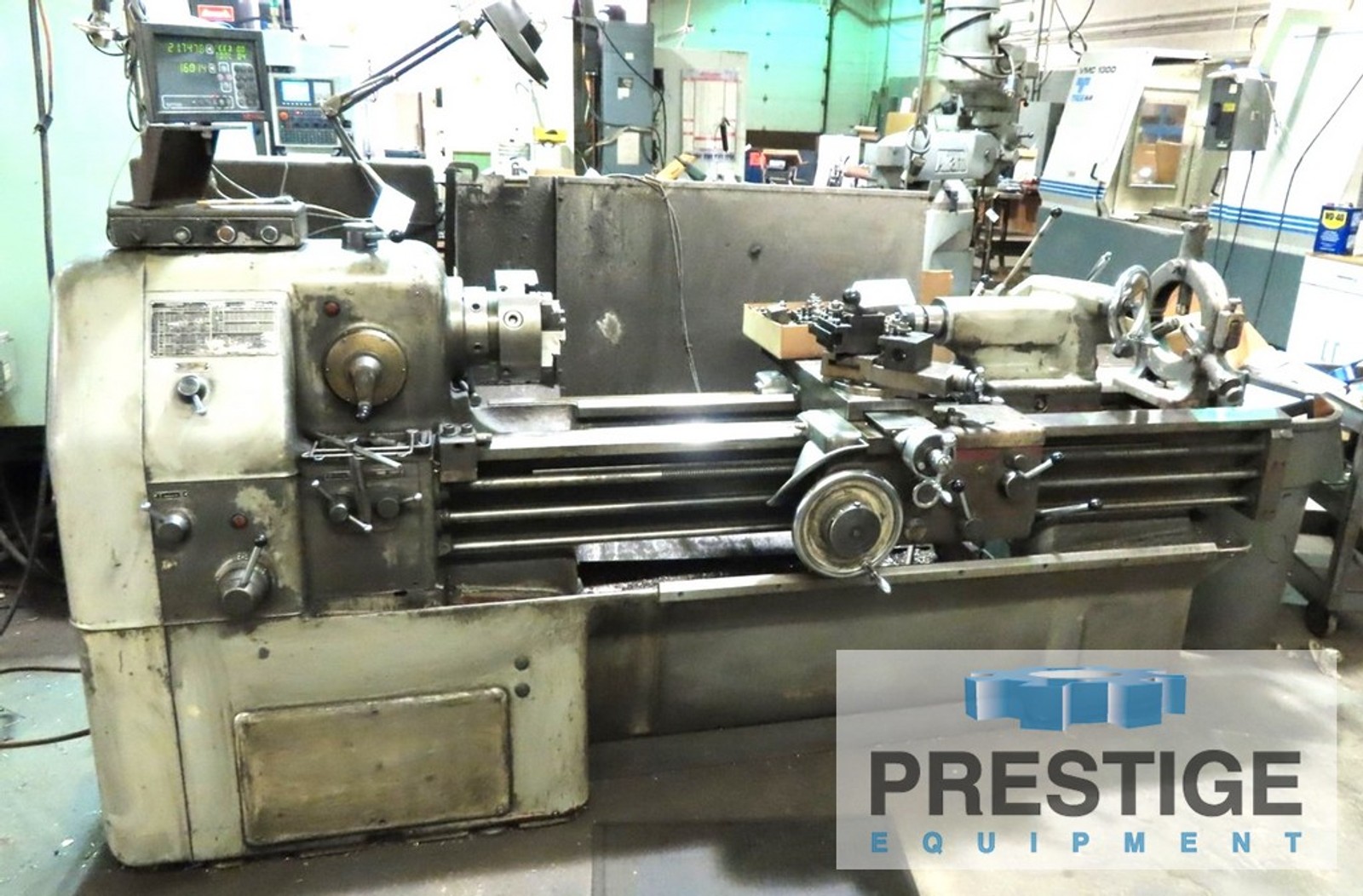

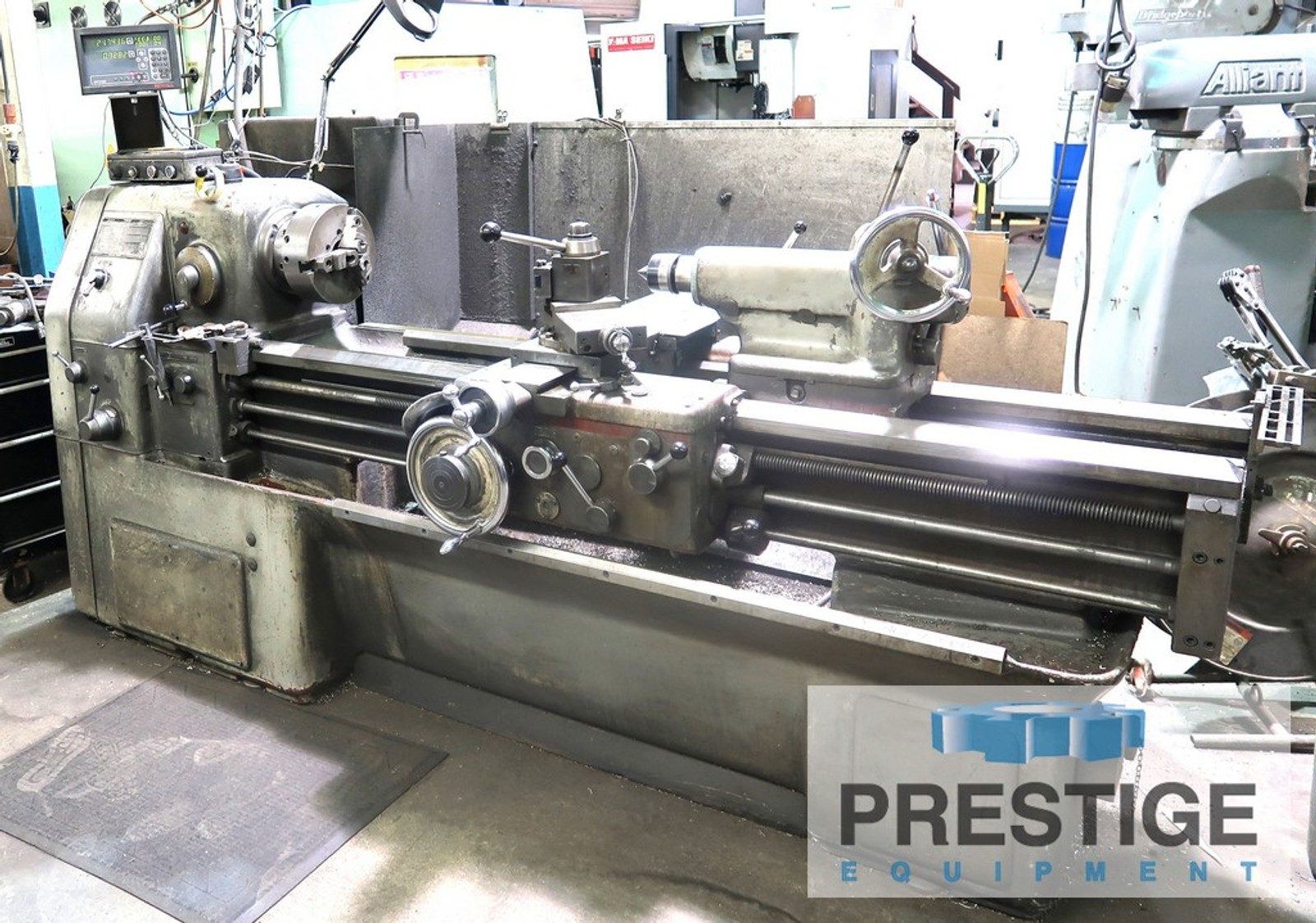

Dong Yang 18" x 60" Engine Lathe

FEATURES:

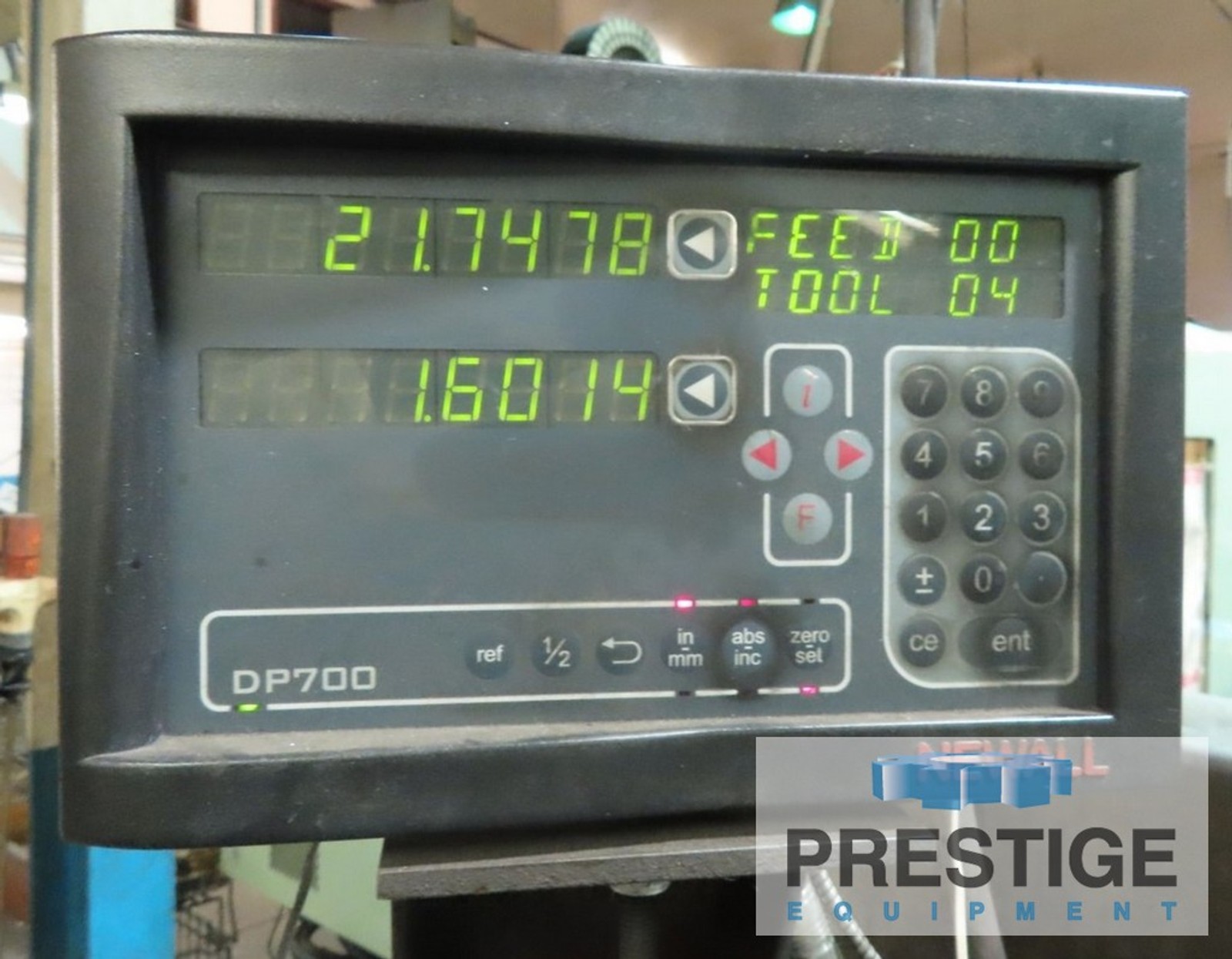

Newall DP700 2-Axis Digital Readouts
Threading, Inch & Metric
Roller Type Steady Rest

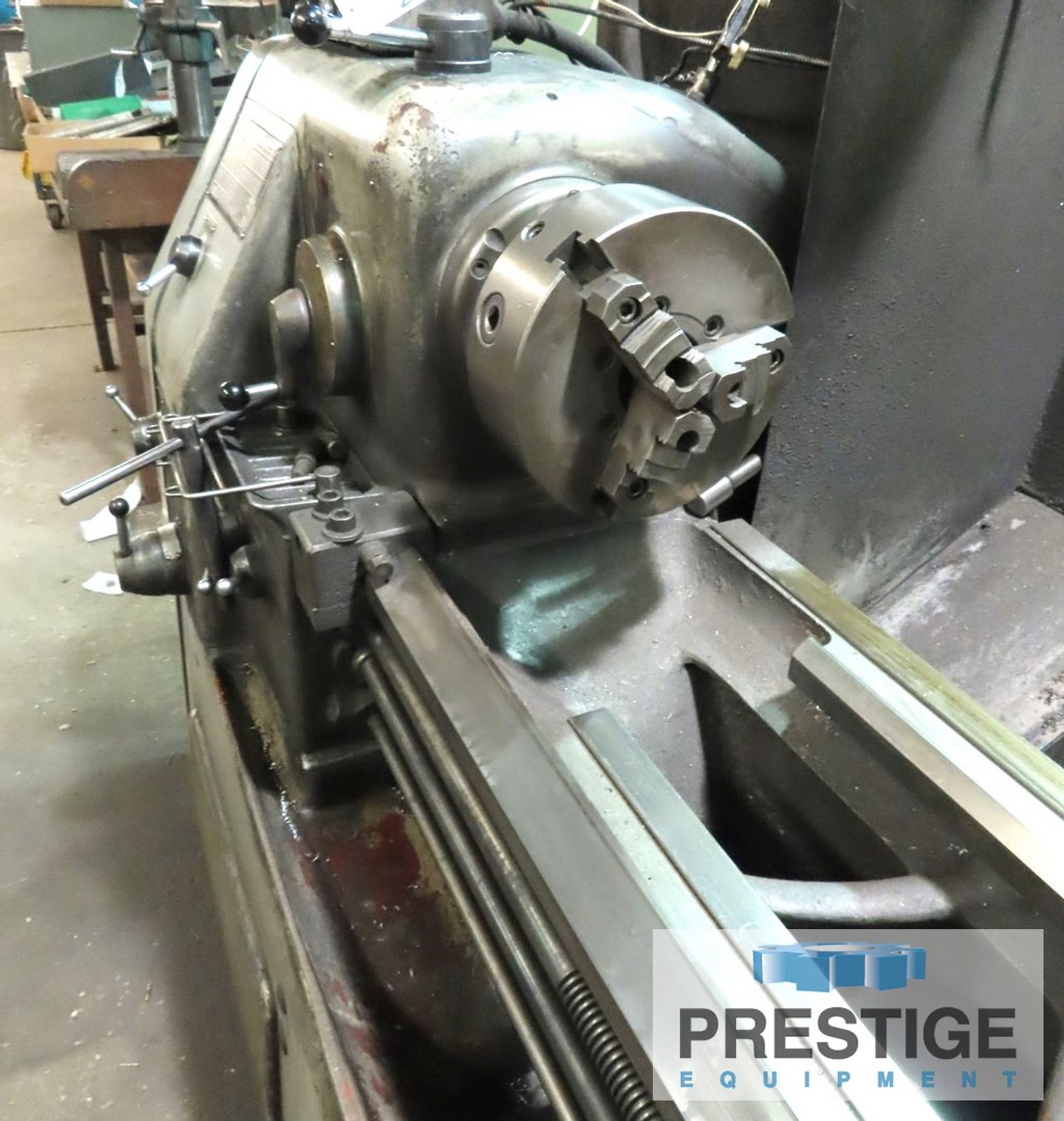

10" 3-Jaw Chuck

SPECIFICATIONS:
Swing Over Bed Ways, Rated............. 17.7"
Swing Over Bed Ways, Actual............ 19.7"
Swing Over Cross-Slide................. 9.8"
Distance Between Centers............... 60"
Hole Thru Spindle...................... 2"
Spindle Nose........................... A1-6

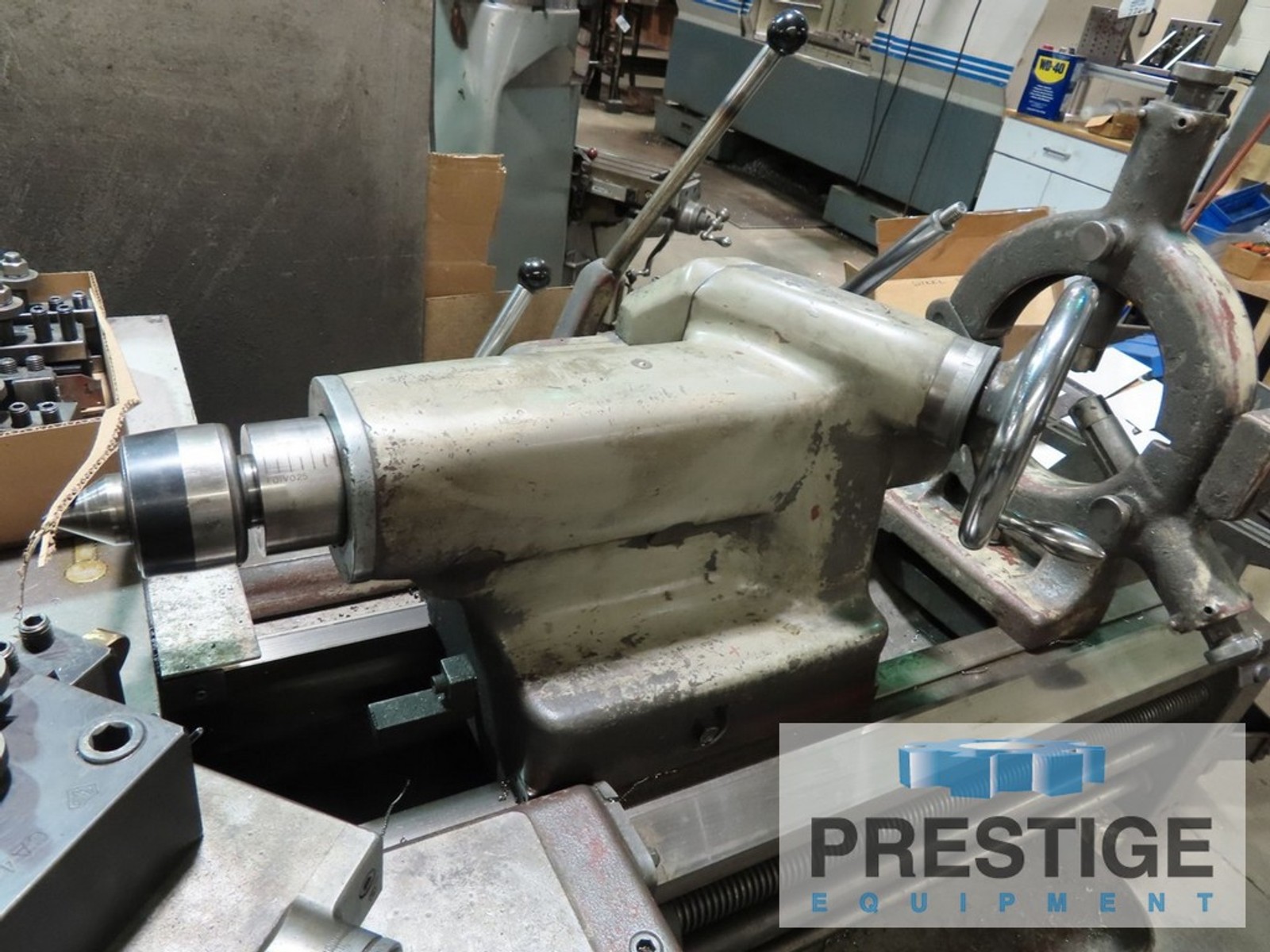

Tailstock, Spindle Diameter............ 3.15"
Tailstock, Spindle Travel.............. 6"
Tailstock, Spindle Taper............... #4 MT
(12) Spindle Speeds, Range............. 35 to 1800 RPM
(32) Carriage Longitudinal Feeds....... .001 to .028 IPR
(32) Cross-Slide Cross Feeds........... .001 to .014 IPR

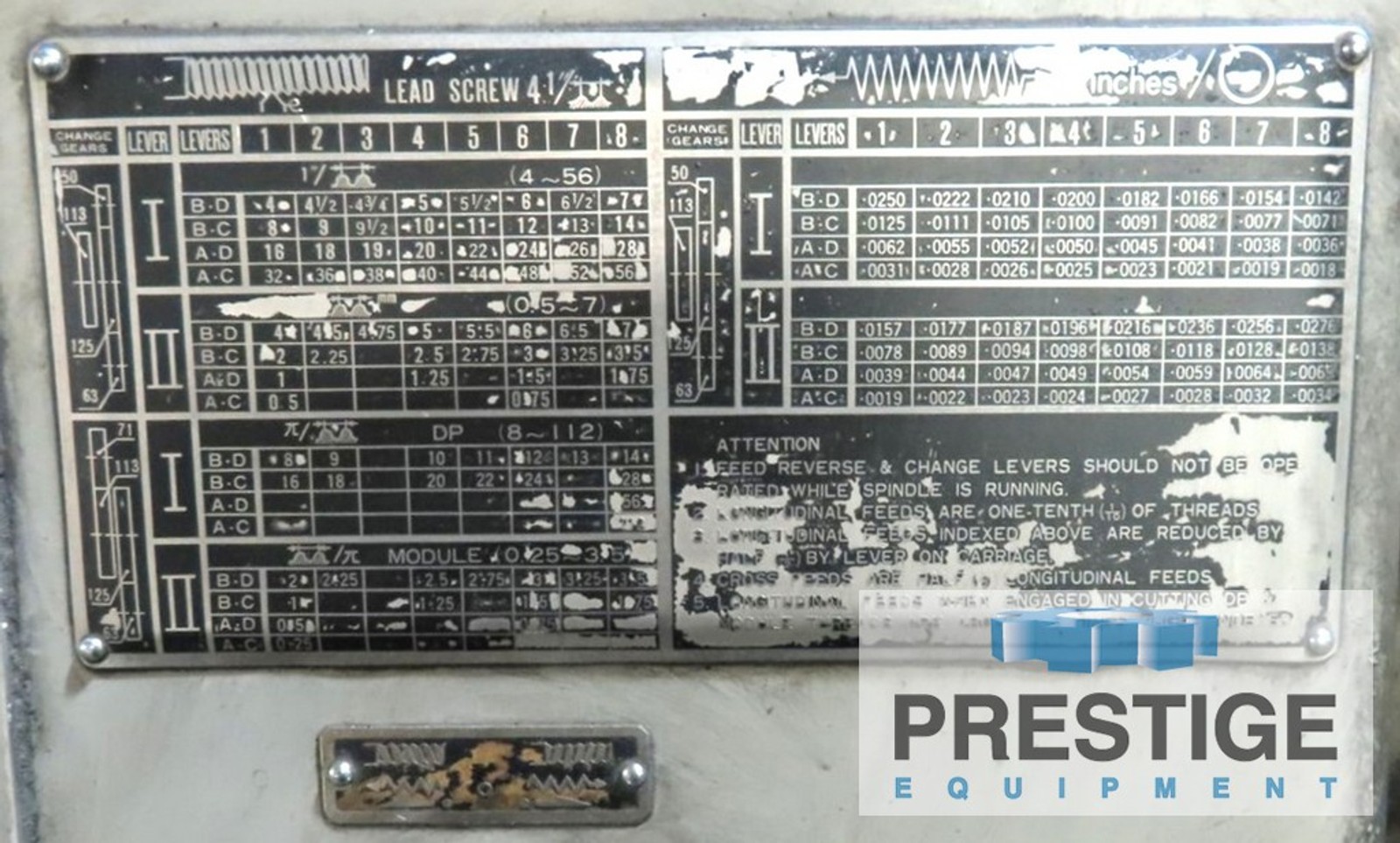

Thread Range, Inch..................... 56 to 4 TPI
Thread Range, Metric................... 0.5 to 7 MM
Floor Space Required, L x D............ 151" x 60"
Weight, Approximately.................. 5280 LBS

EQUIPPED WITH:
Newall DP700 2-Axis Digital Readouts
Threading, Inch & Metric
Roller Type Steady Rest
10" 3-Jaw Chuck
