4.3" Toshiba BTD-11B, X-78", Y-59", Z-51", W-25", 55" x 63" R.Tab, 1600 RPM, CAT 50, Tosnuc 3 CNC, #32969

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32969

Model

BTD-11B

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32969

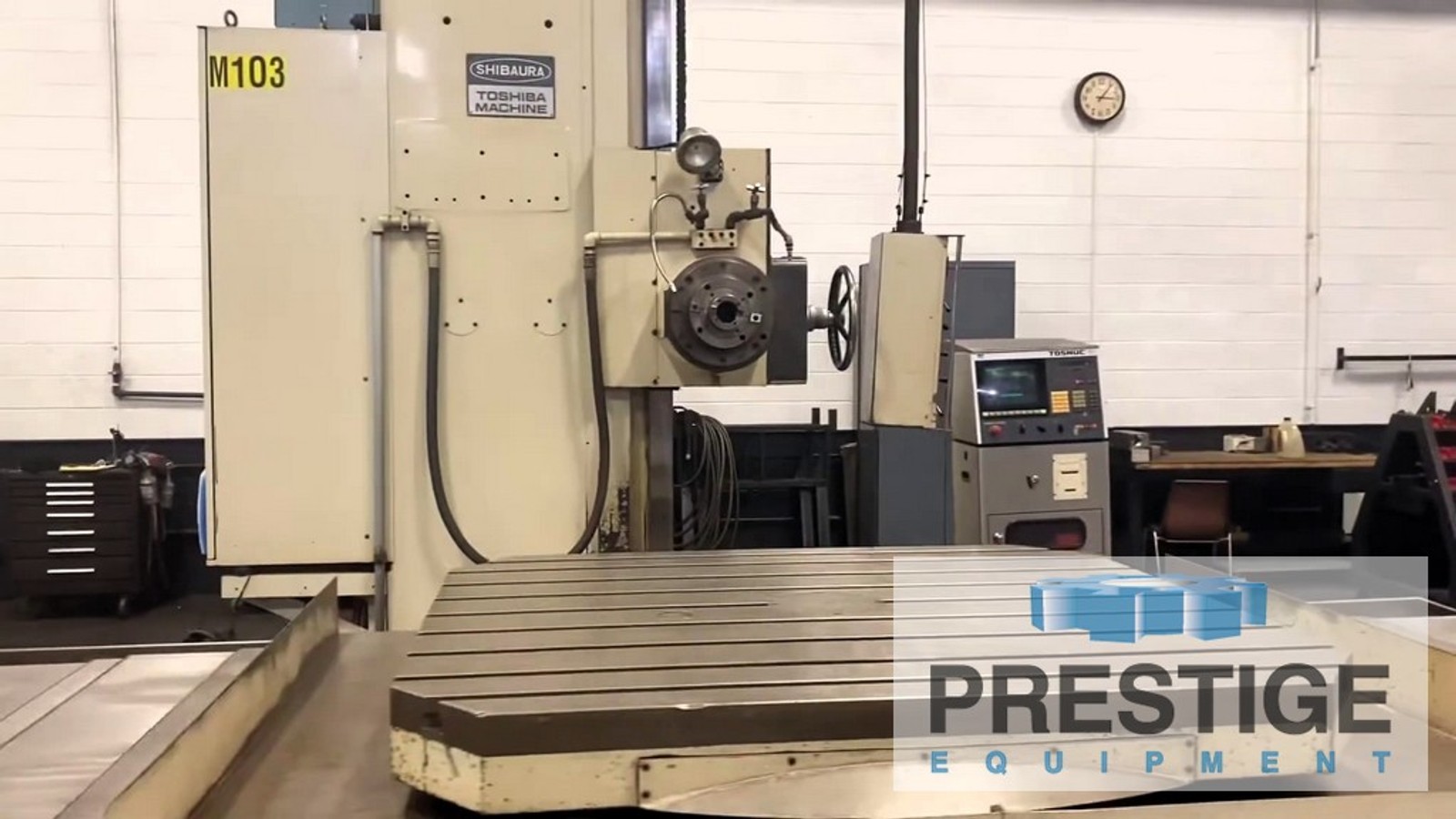

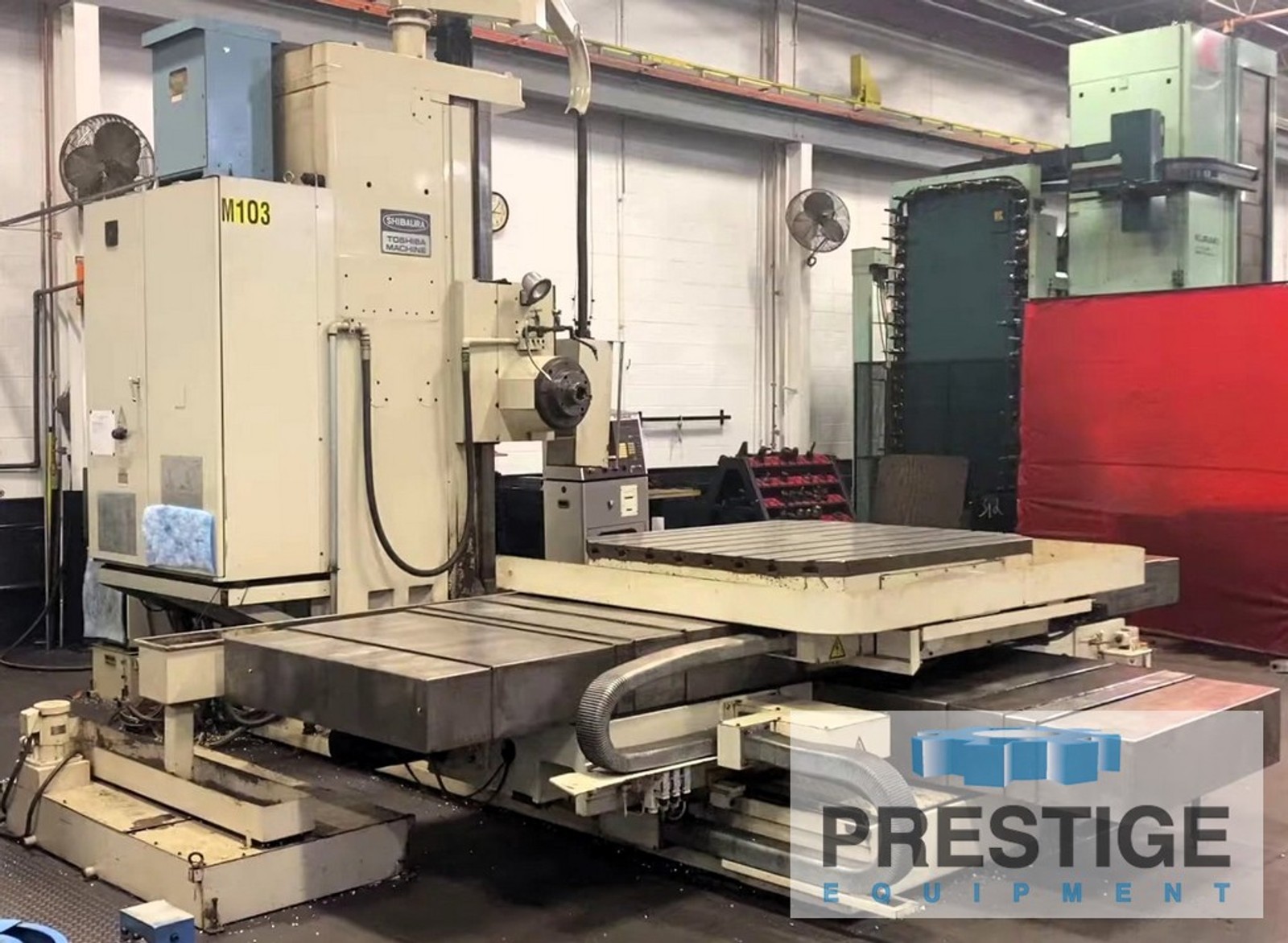

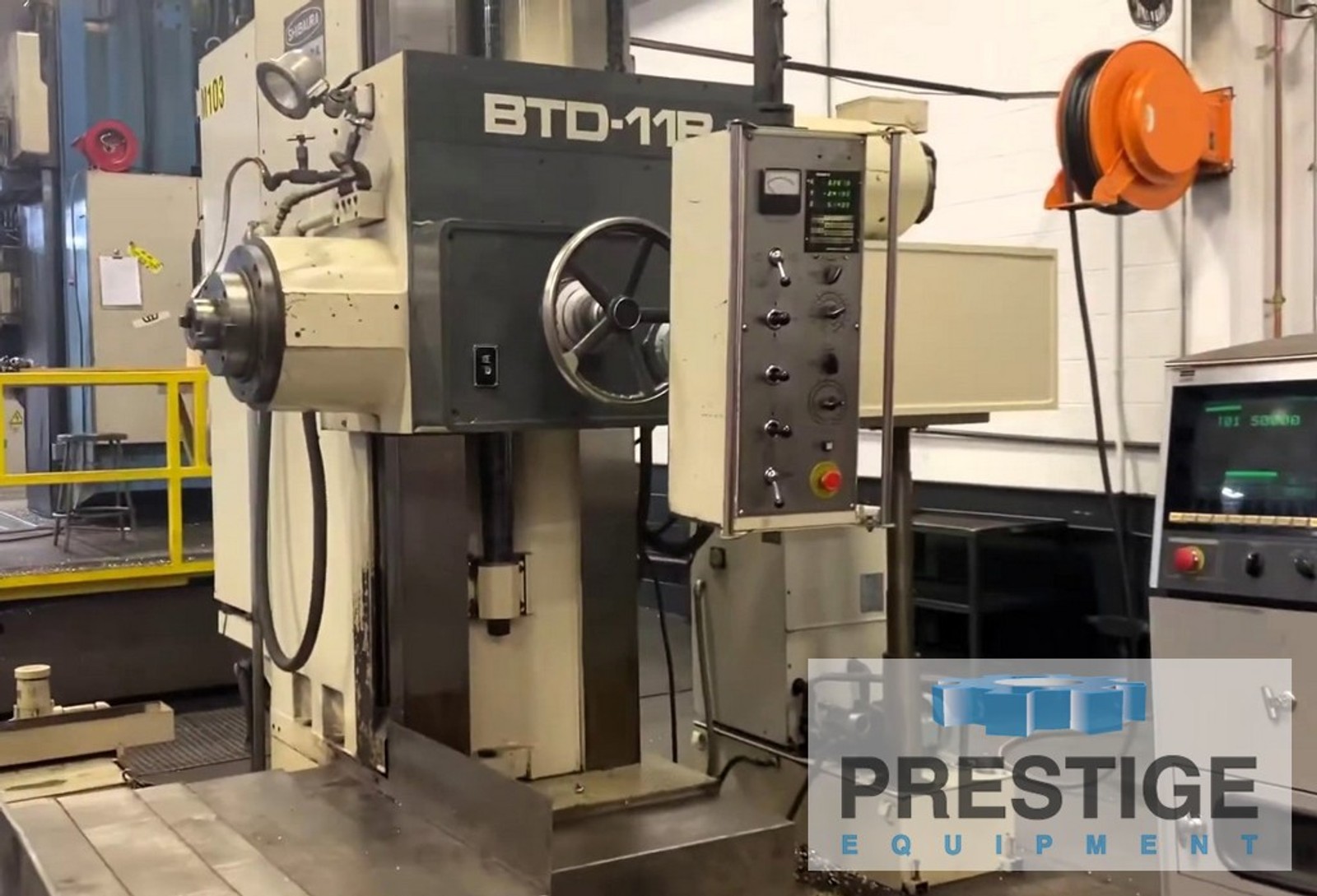

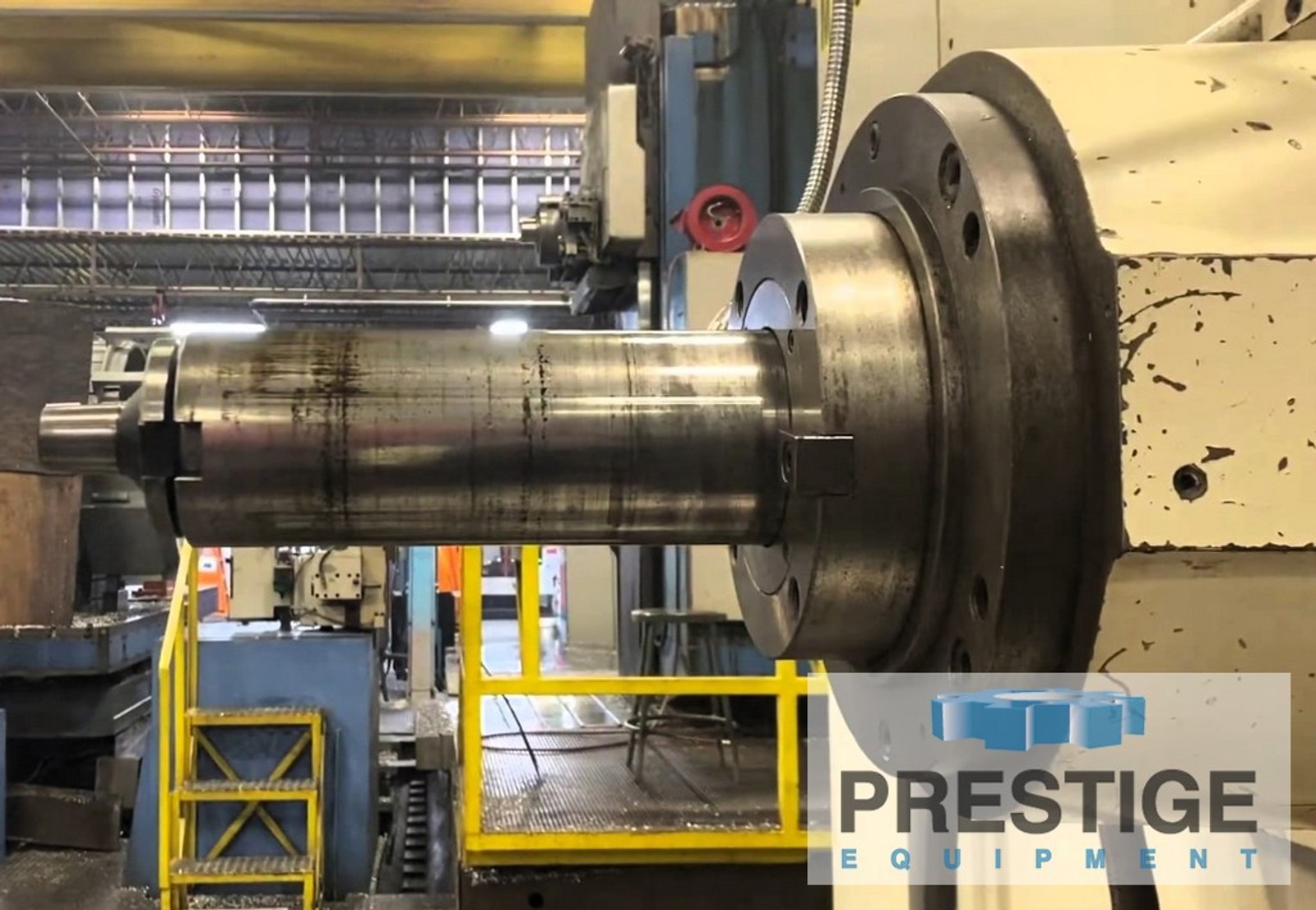

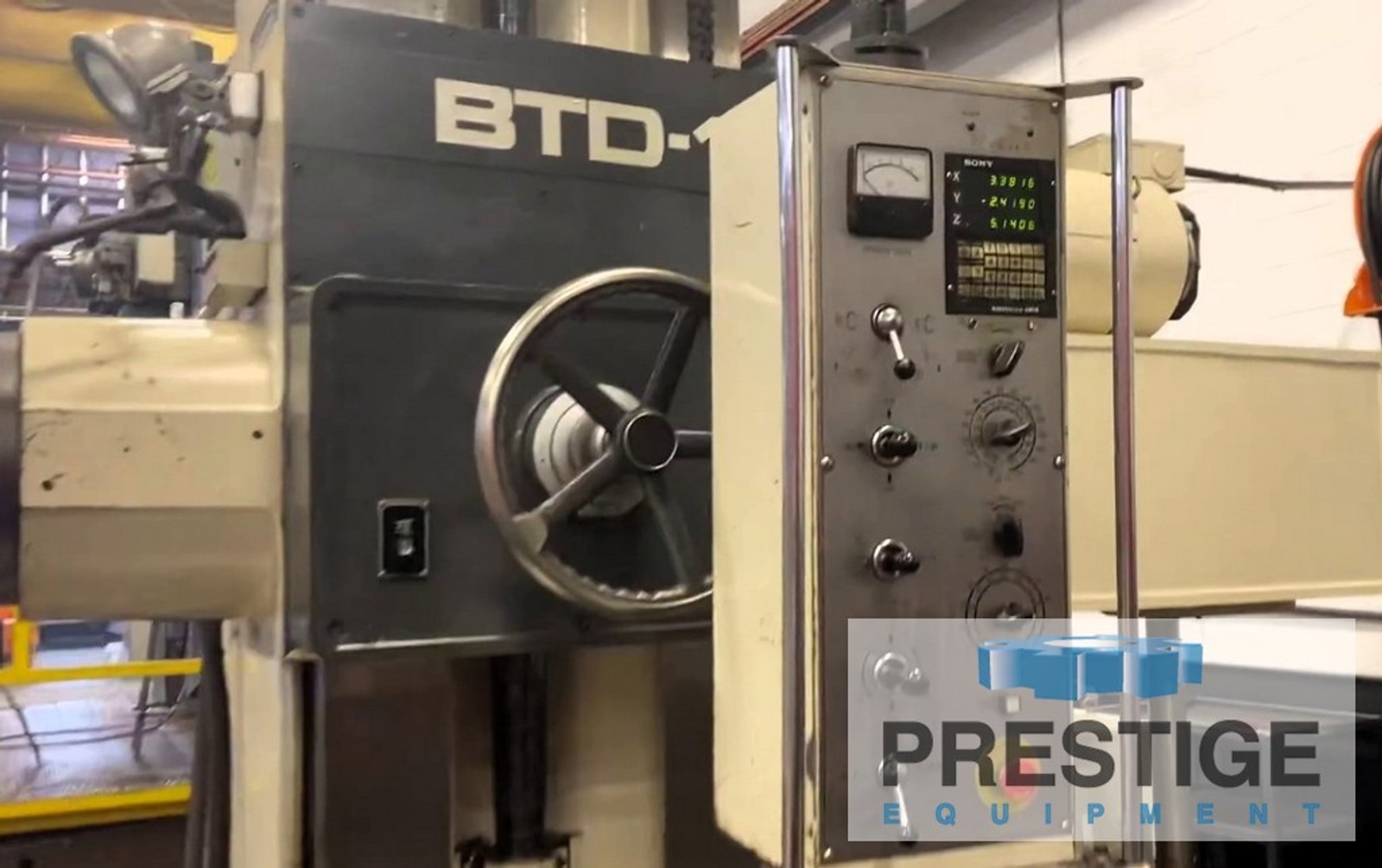

4.3" Toshiba BTD11B CNC Table Type Horizontal Boring Mill

FEATURES:

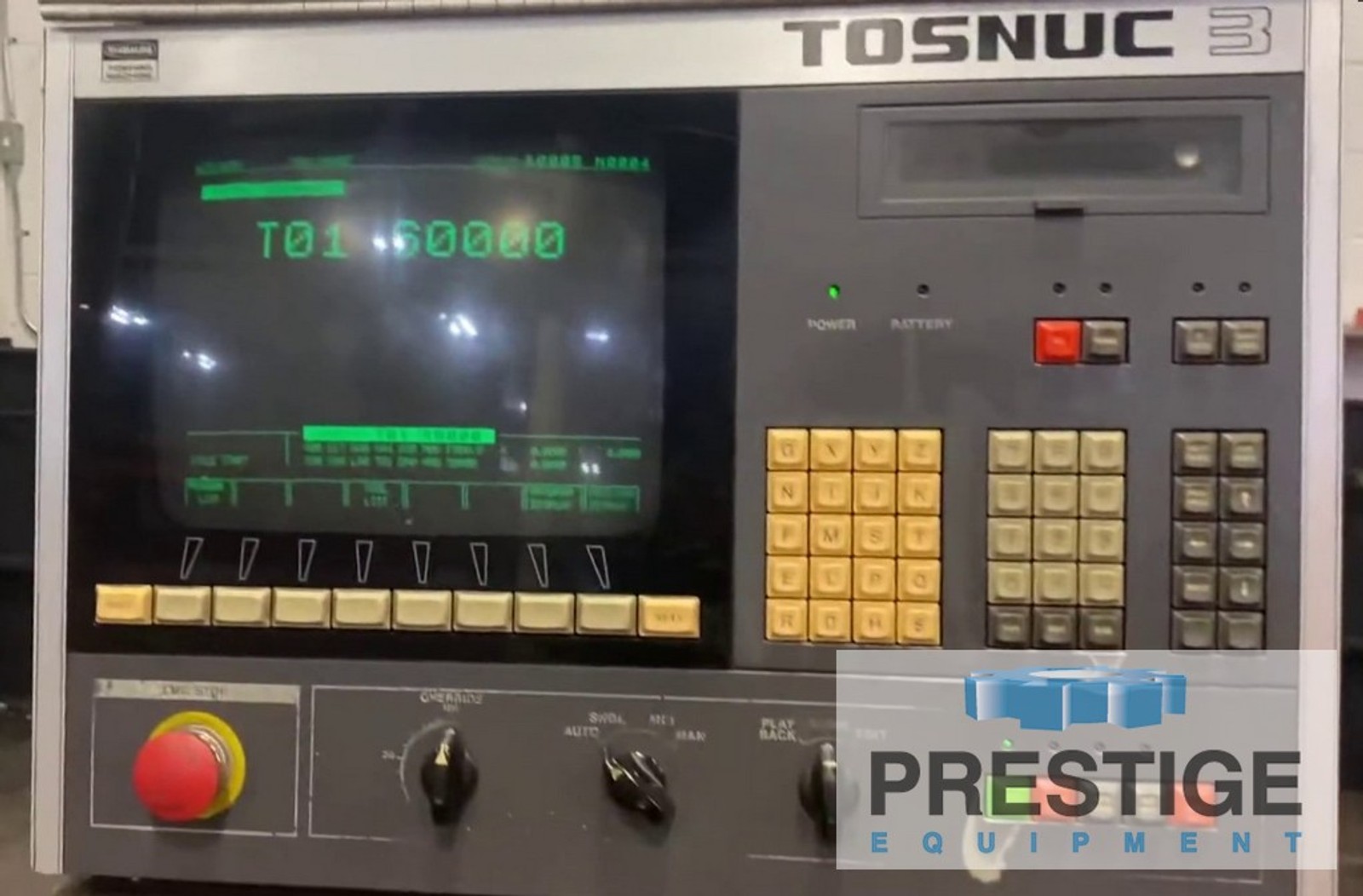

Tosnuc 3 CNC Control

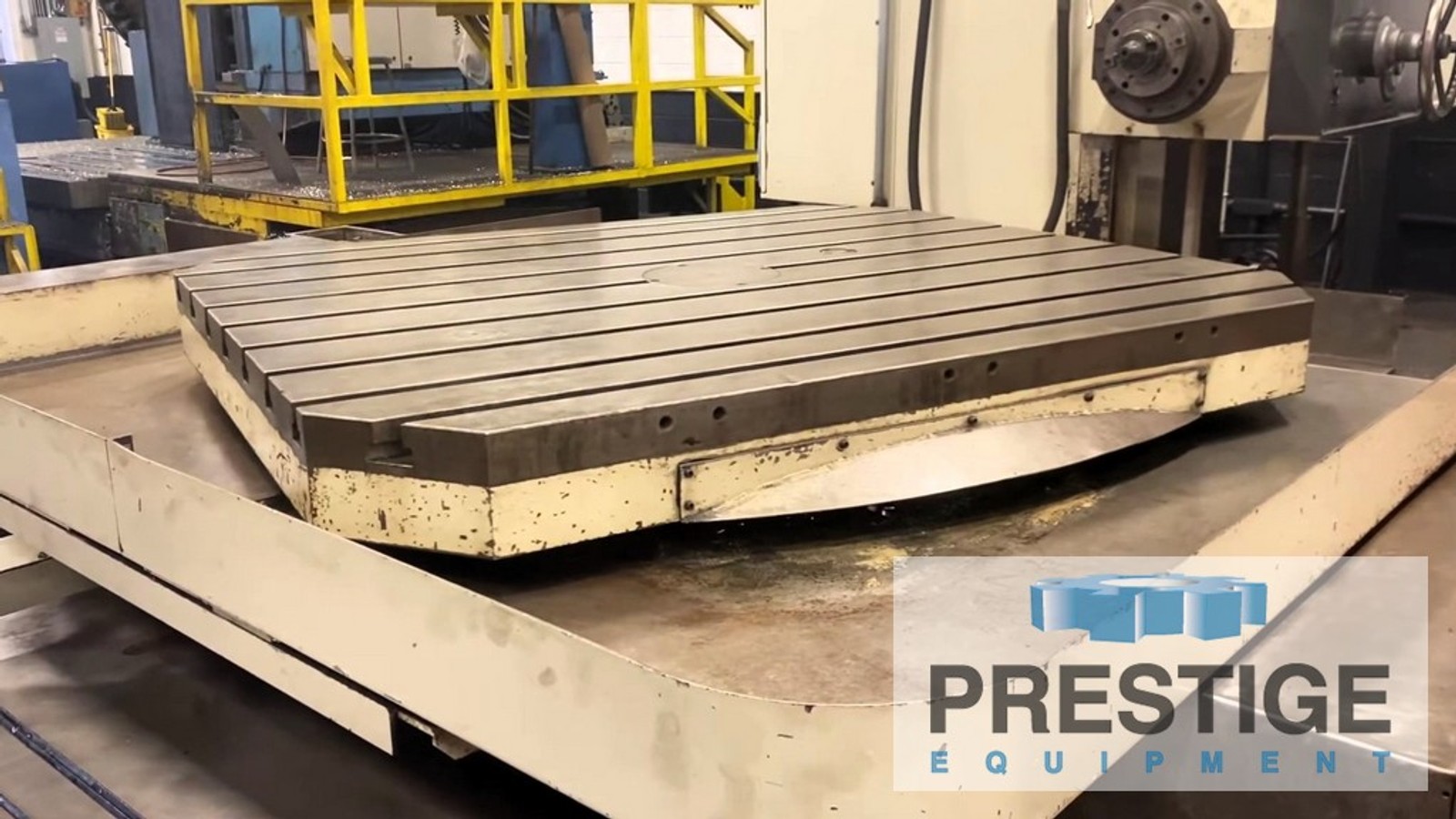

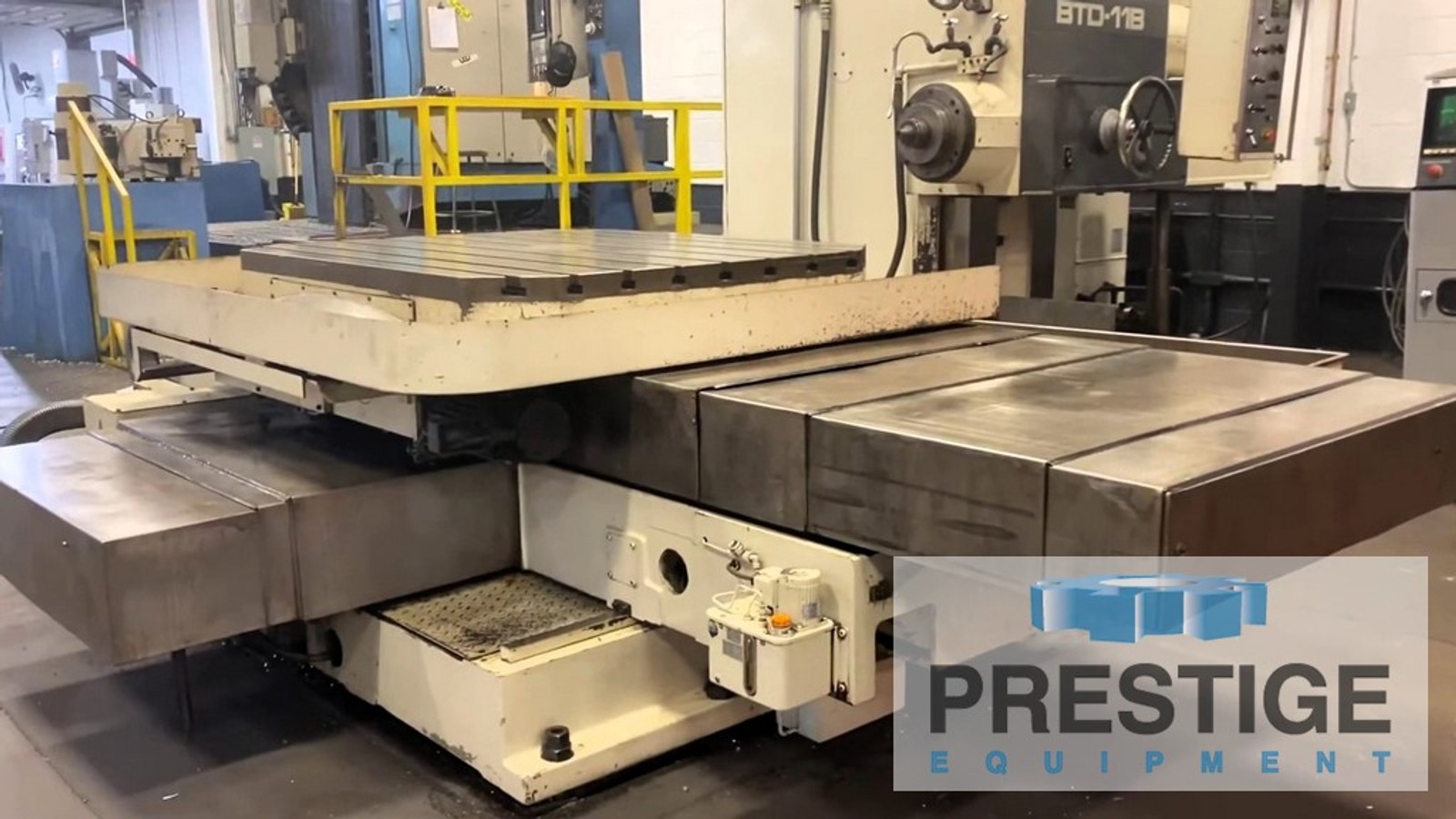

55" x 63" Built In 4th Axis Rotary Table

SPECIFICATION:
Spindle Diameter ...................... 4.33"
X-Axis Travel ......................... 78"
Y-Axis Travel ......................... 59"
Z-Axis Travel ......................... 51"
W-Axis Travel ......................... 25"
Spindle Speed ......................... 1,600 RPM
Table Dimensions ...................... 55" x 63"
Table Weight Capacity ................. 13,890 Lbs
Spindle Taper ......................... CAT 50

EQUIPPED WITH:
Tosnuc 3 CNC Control
55" x 63" Built In 4th Axis Rotary Table
Shot Pins 0°/90°/180°/270°
2-Axis Positioning

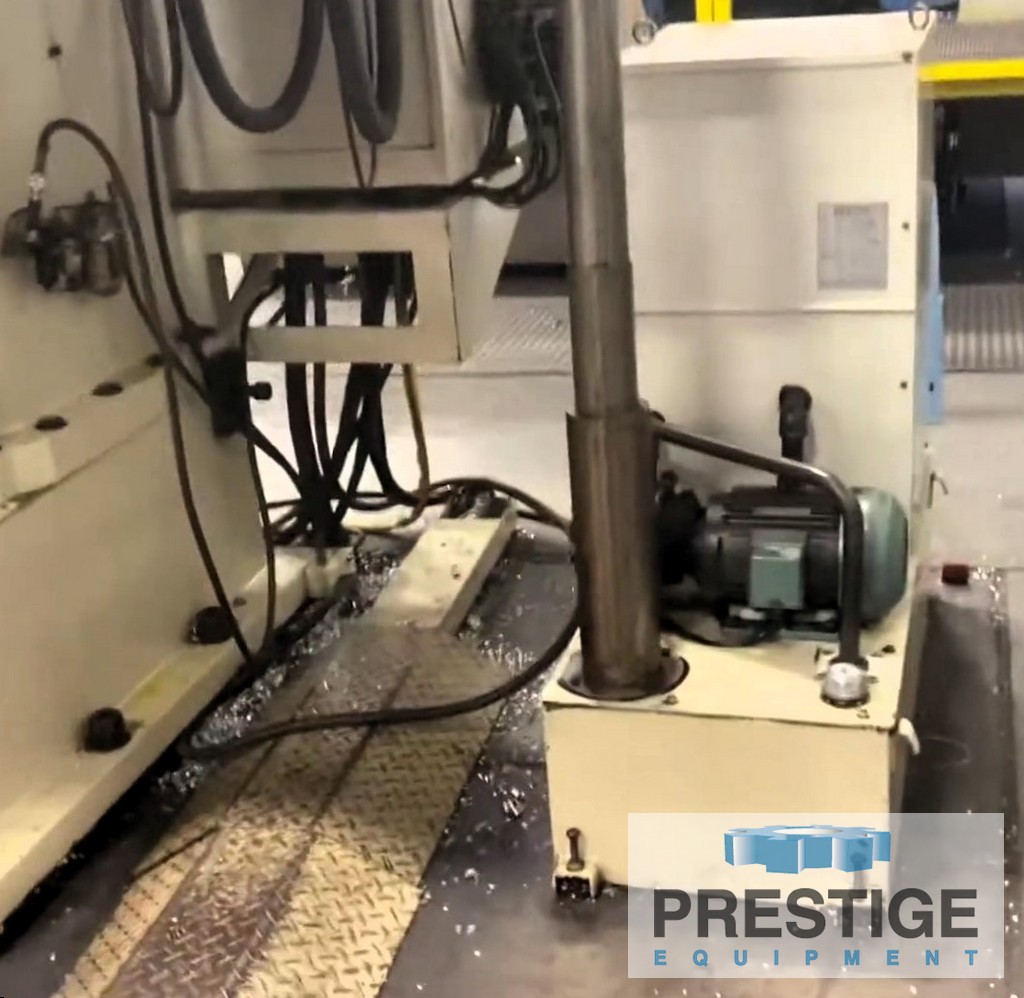

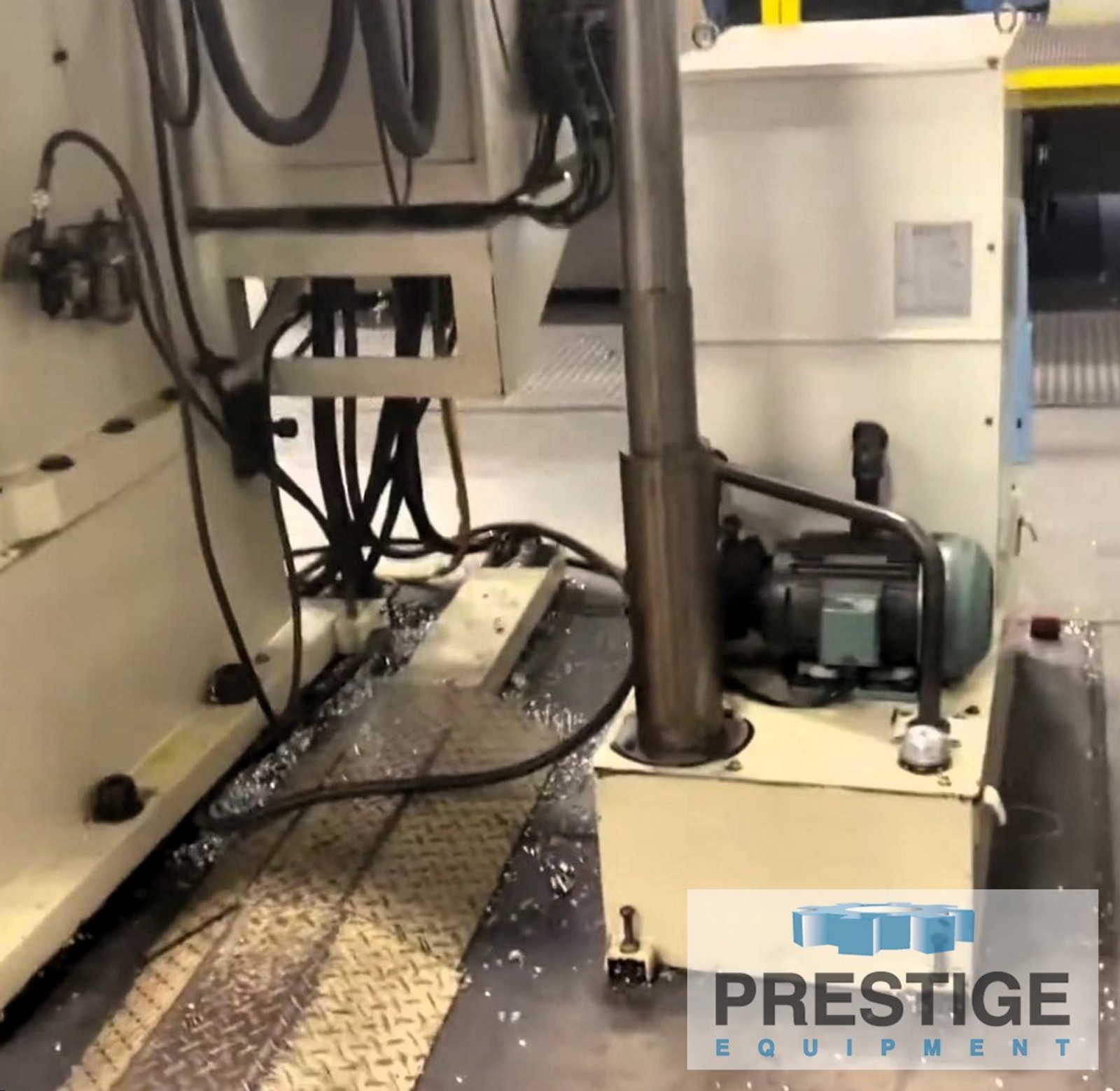

Coolant Tank & Pump
Chip Auger
Lift Up Chip Conveyor

NOTE:
Inspect in Plant Under Power

No Video Available
