4.4kW Bystronic BySprint 3015, X-60", Y-120", Pallet Shuttle, Donaldson Torit Dust Collector, Bystronic CNC, 2010, #32972

4.4kW Bystronic BySprint 3015, X-60", Y-120", Pallet Shuttle, Donaldson Torit Dust Collector, Bystronic CNC, 2010, #32972

Name: 4.4kW Bystronic BySprint 3015, X-60", Y-120", Pallet Shuttle, Donaldson Torit Dust Collector, Bystronic CNC, 2010, #32972
Brand: BYSTRONIC
SKU: 32972

Manufacturer

BYSTRONIC

Spec Sheet

Reference #32972

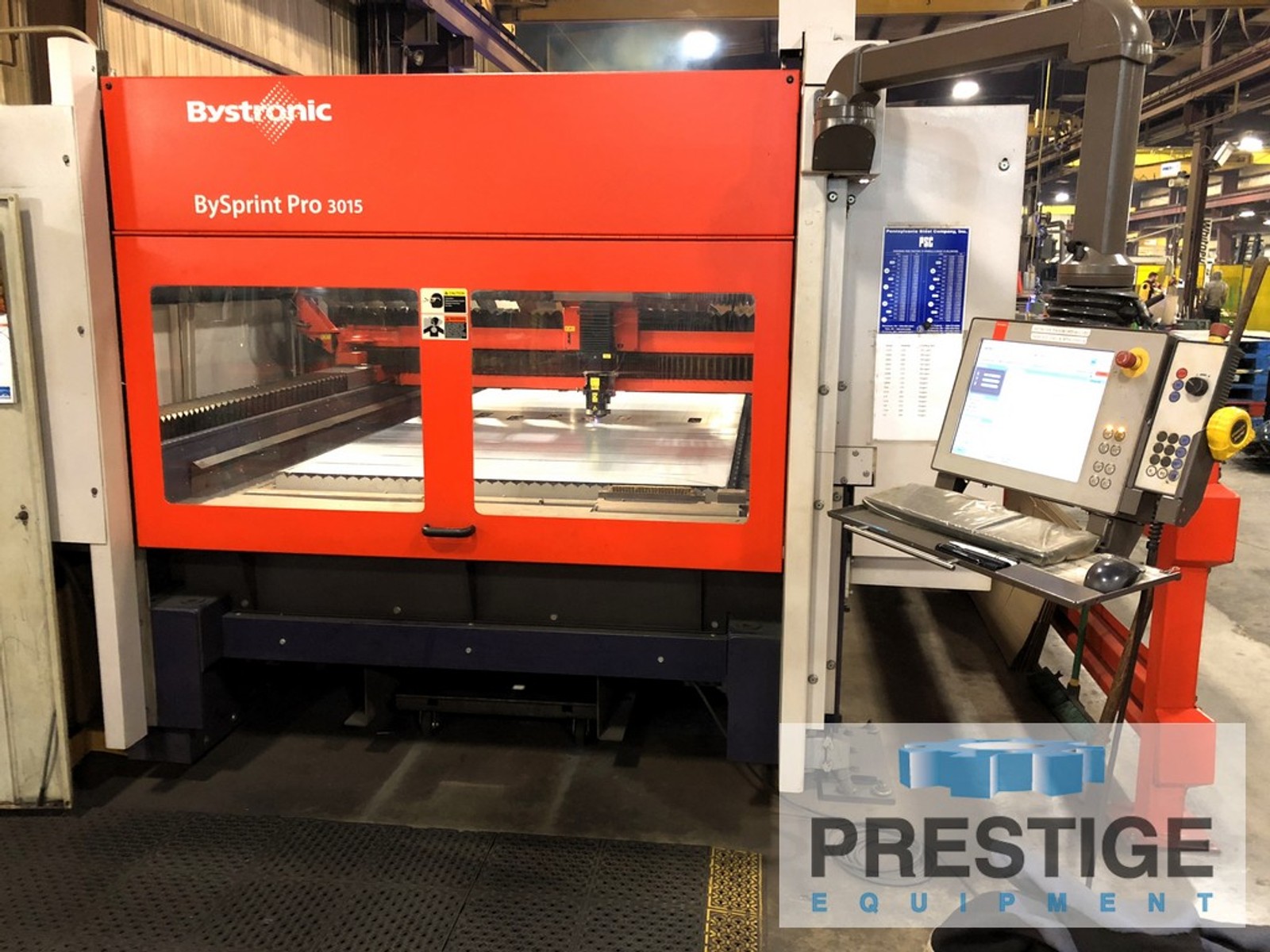

Bystronic 4.4kW Bysprint 3015 CO2 Laser

FEATURES:
Bystronic CNC Control

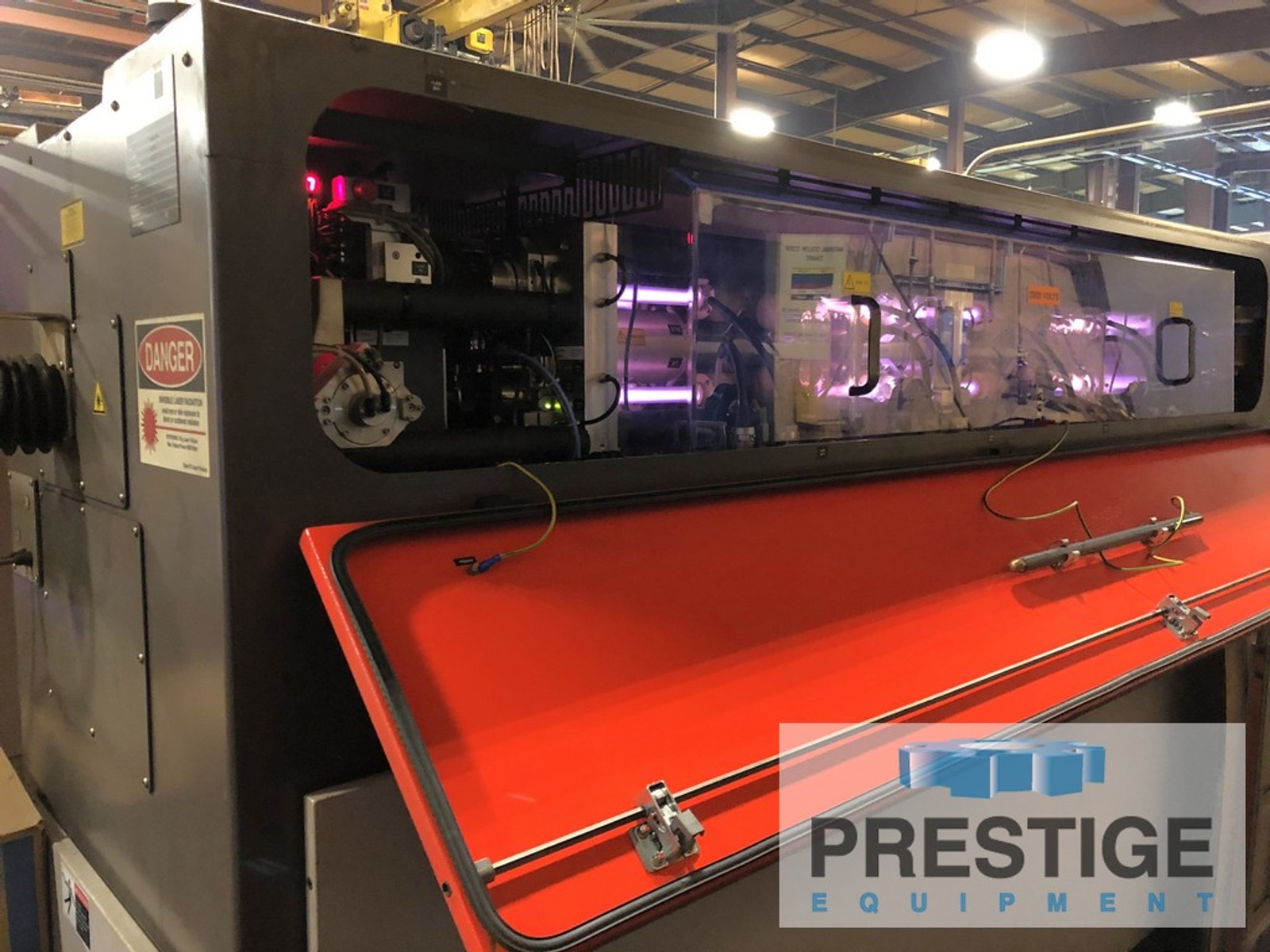

4400 ByLaser Solid State Resonator
Auto Focus

SPECIFICATION:
Maximum Laser Output .................. 4400 Watts
X-Axis Travel ......................... 120"
Y-Axis Travel ......................... 60"
Z-Axis Travel ......................... 2.75"
Positioning Accuracy .................. +/- .004"
Max. Work Piece Weight ................ 1650 Lbs.
Max. Pos. Speed Parallel Axis X,Y ..... 3937 IPM
Max. Positioning Speed Simultaneous.... 5500 IPM
Approximate Shipping Weight ........... 26,400 Lbs.

EQUIPPED WITH:

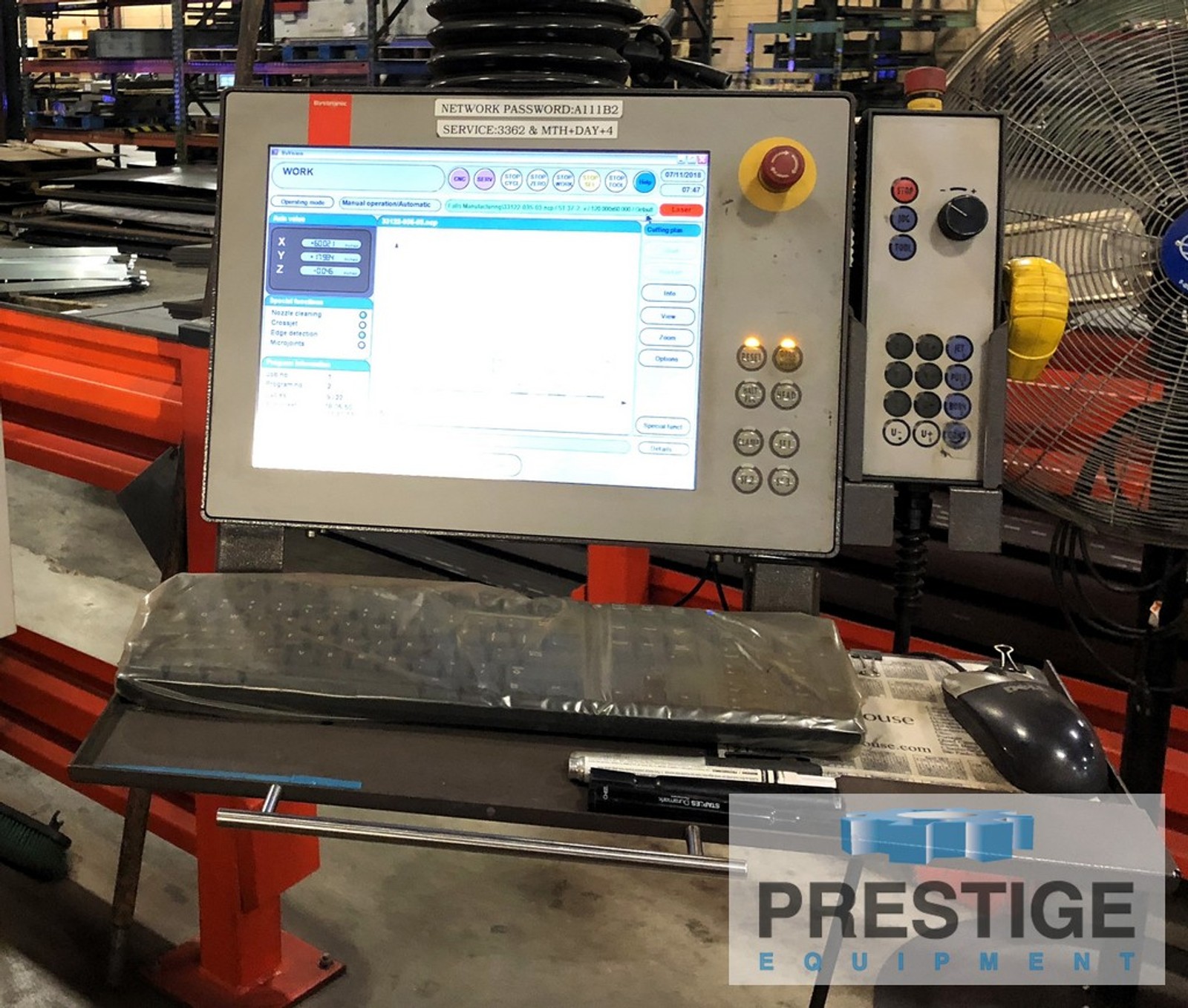

Bystronic CNC Control
4400 ByLaser Solid State Resonator
Auto Focus
Auto Nozzle Cleaning

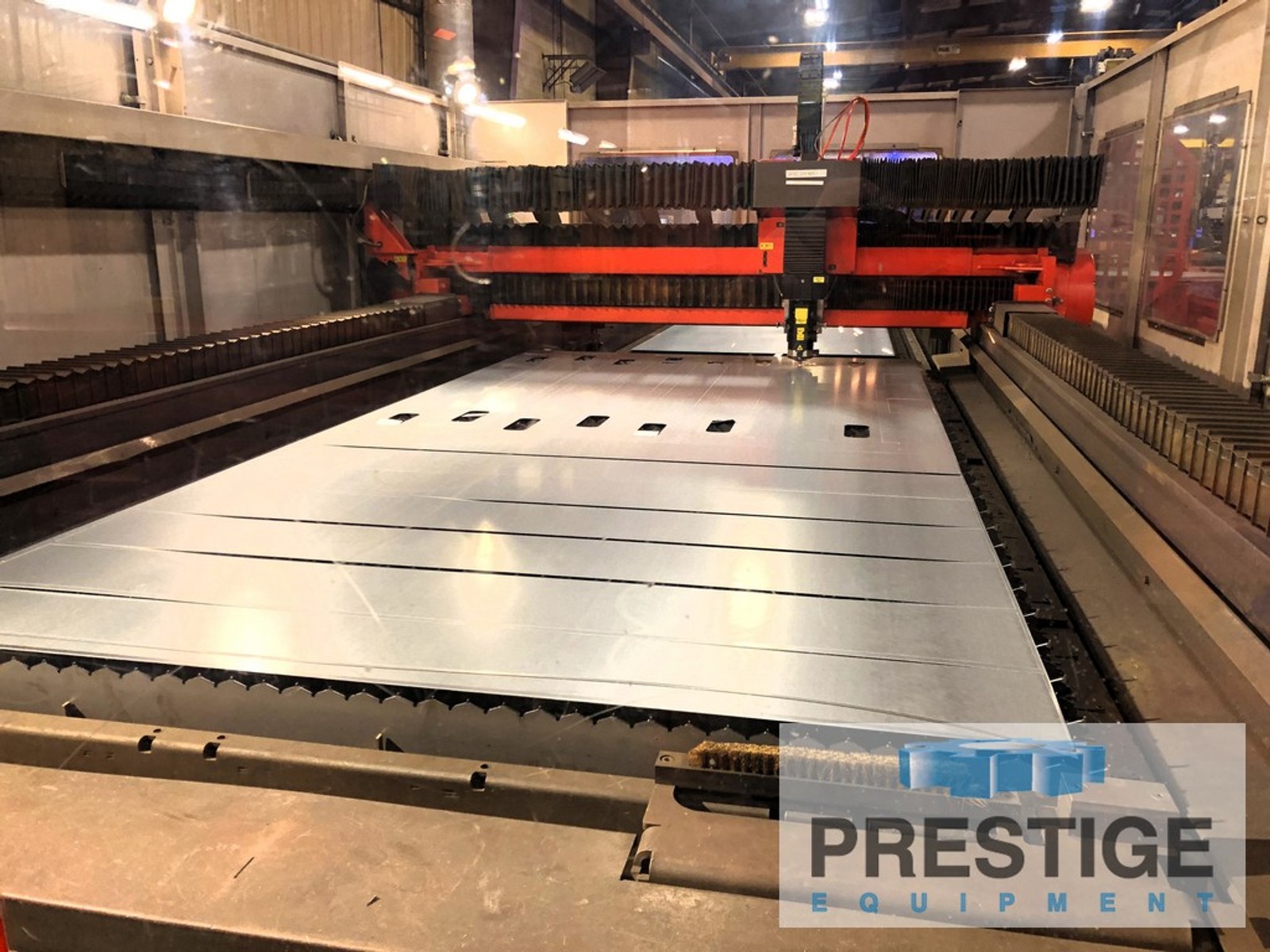

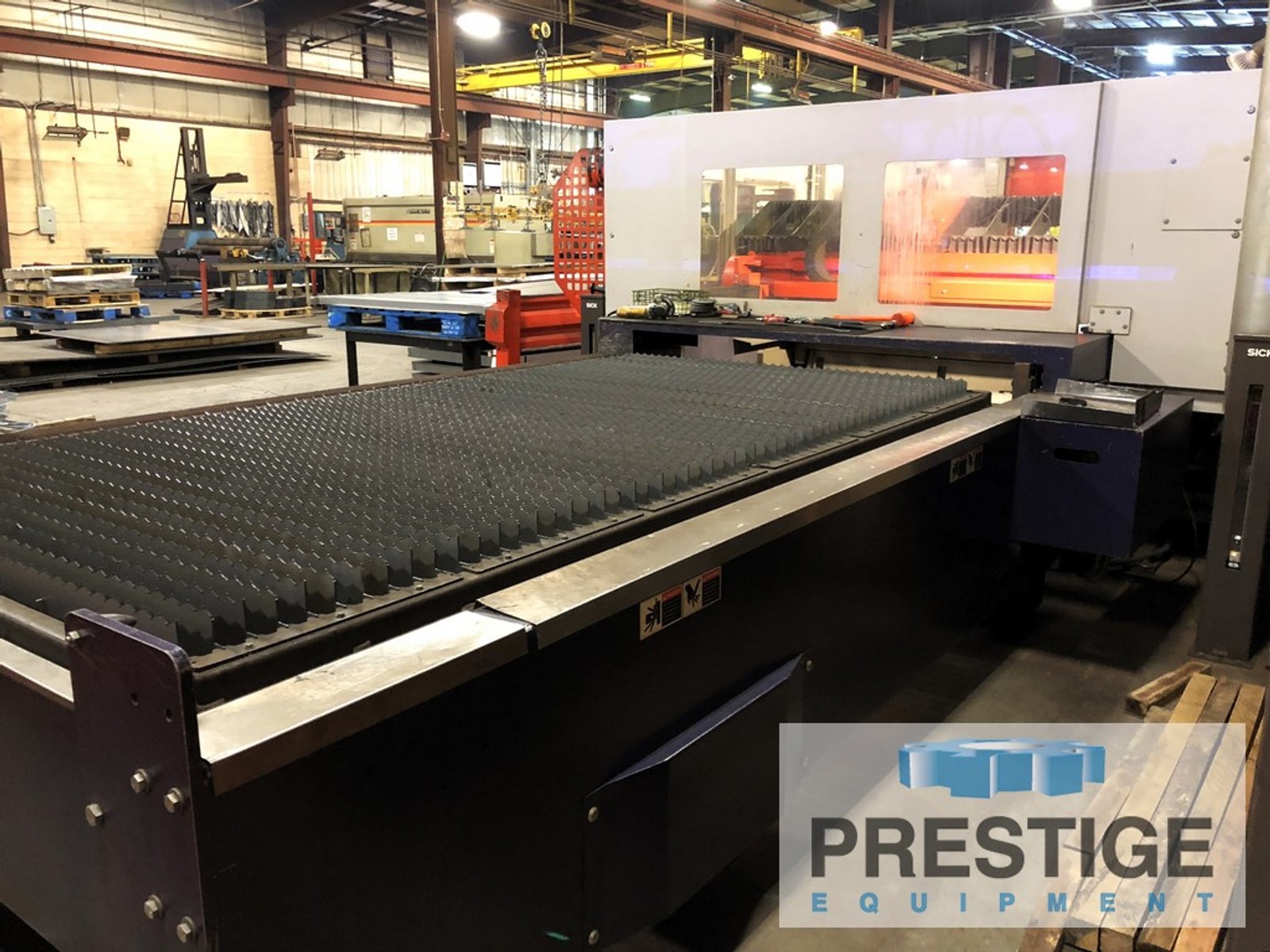

Automatic Pallet Shuttle Table

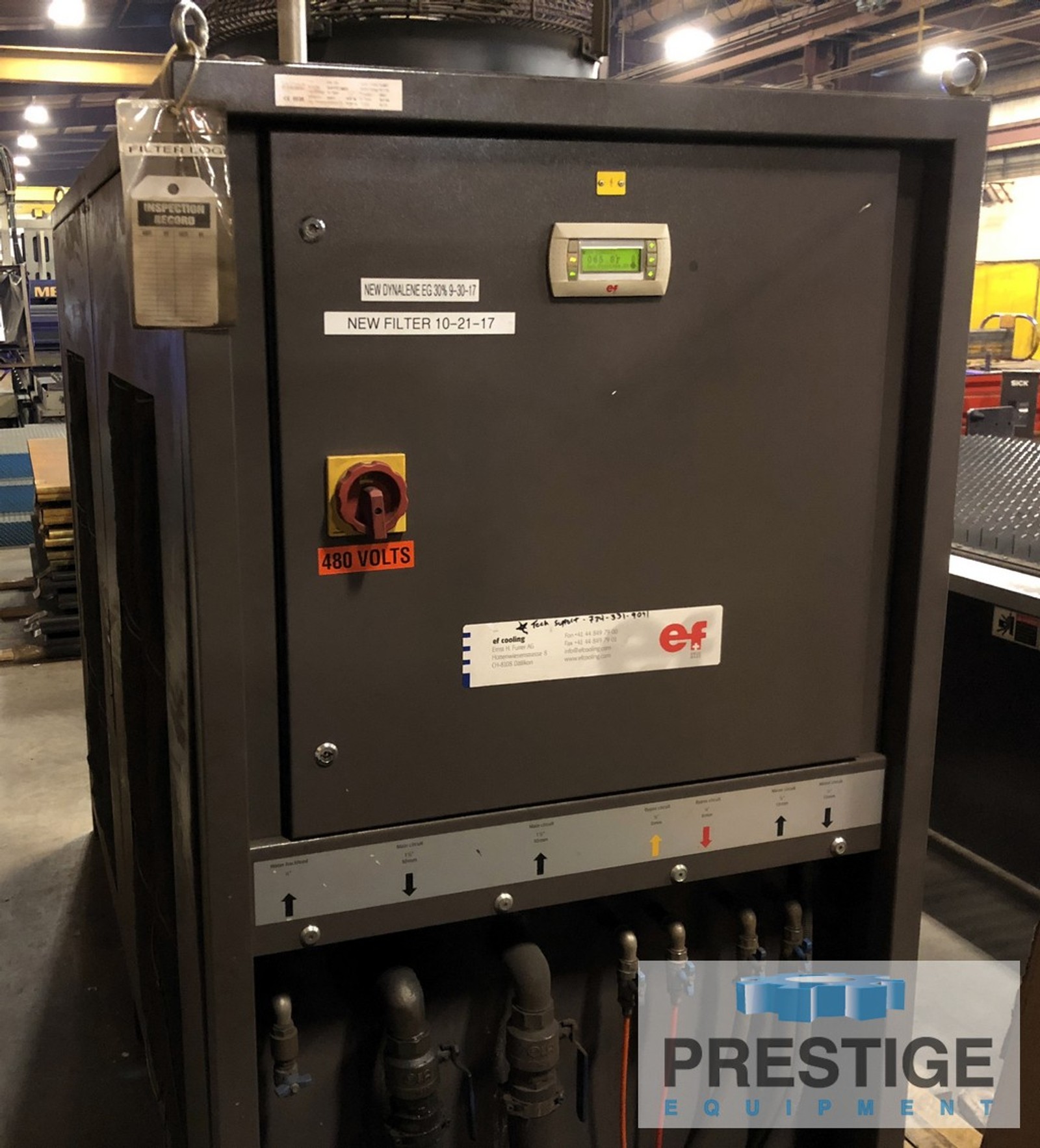

EF Cooling Chiller Unit

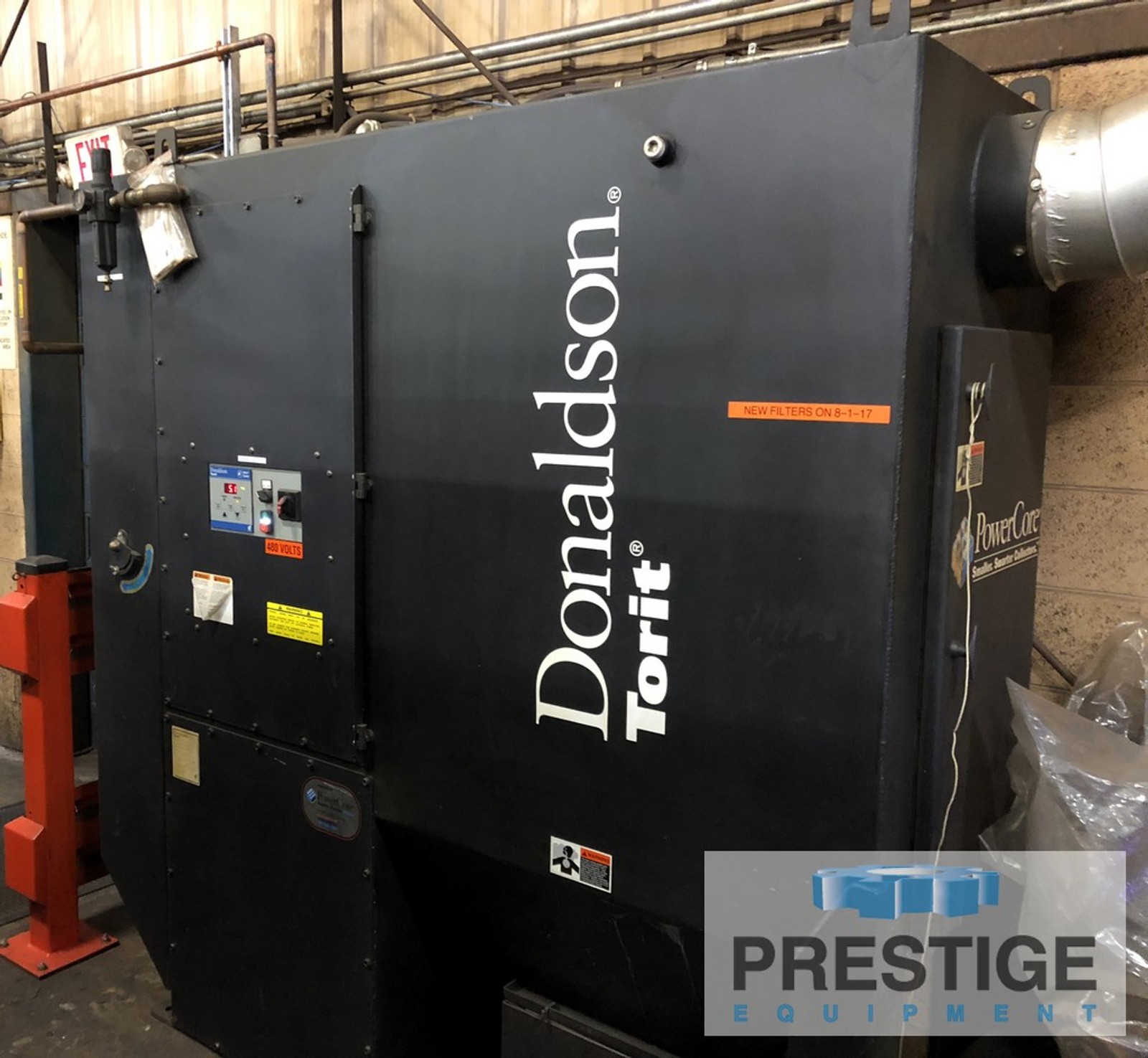

Donaldson/Torit Dust Collector

NOTE:
Resonator Re-built and Installed a New Turbo in July of 2021

NOTE:
Inspect in Plant Under Power

No Video Available
