FPT Spirit Ram Type, 80 ATC, 6.3" Spindle, X-236", Y-196", Z-59", Rotary Table, Heidenhain 530, '13 #42984

Manufacturer

FPT

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

42984

Model

Spirit

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #42984

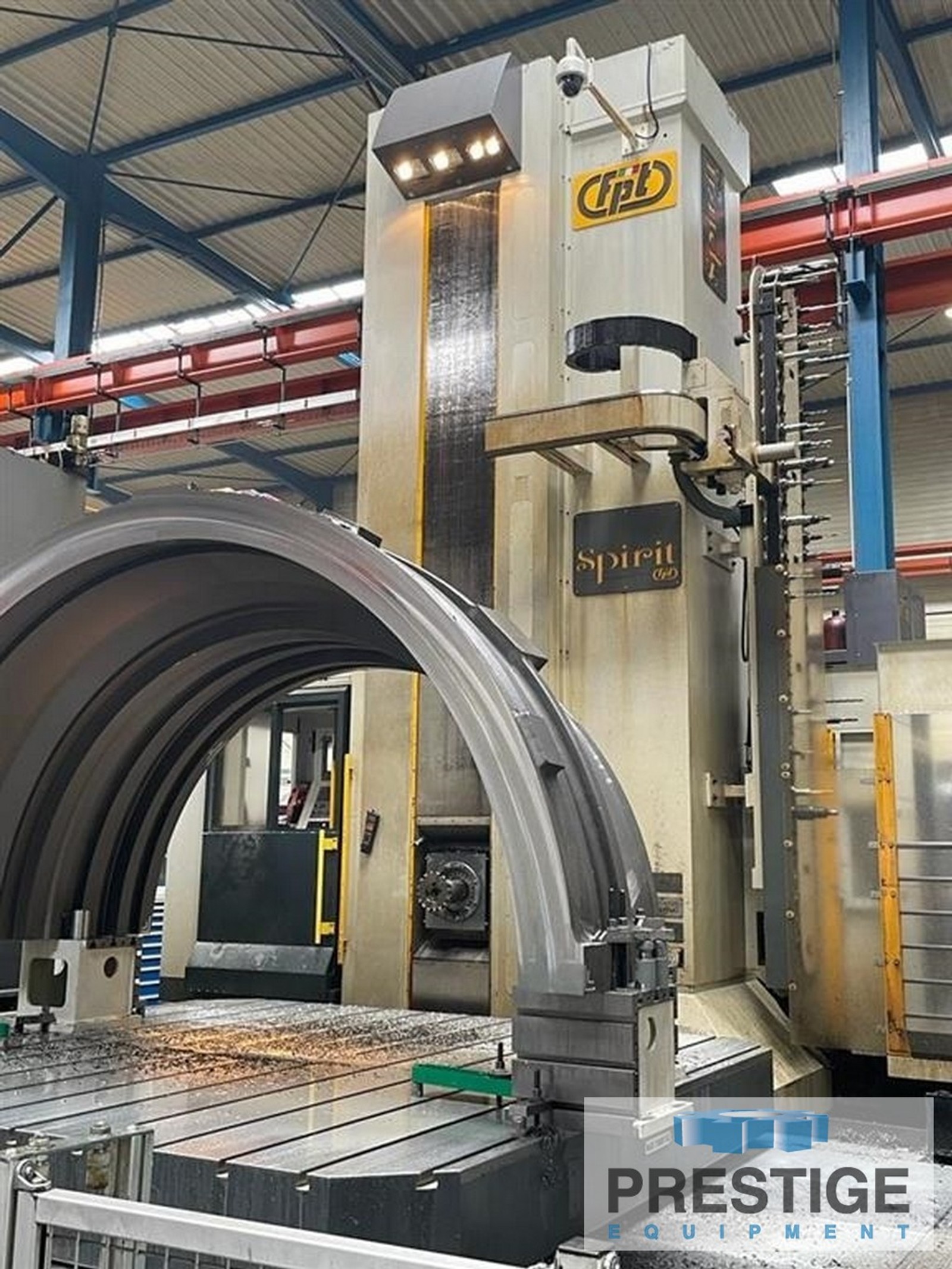

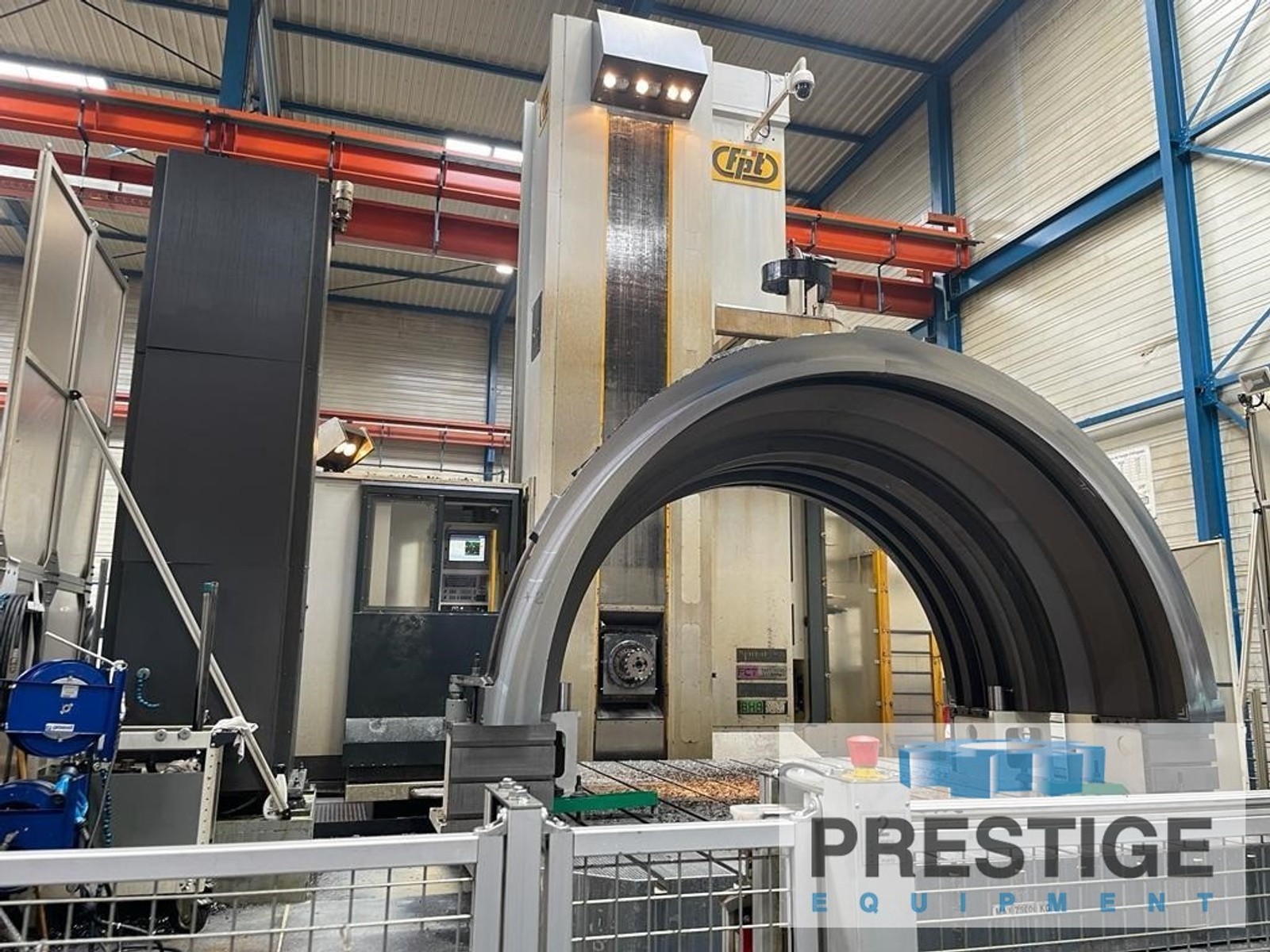

FPT Spirit CNC Floor Type Horizontal Boring & Milling Machine

FEATURES:

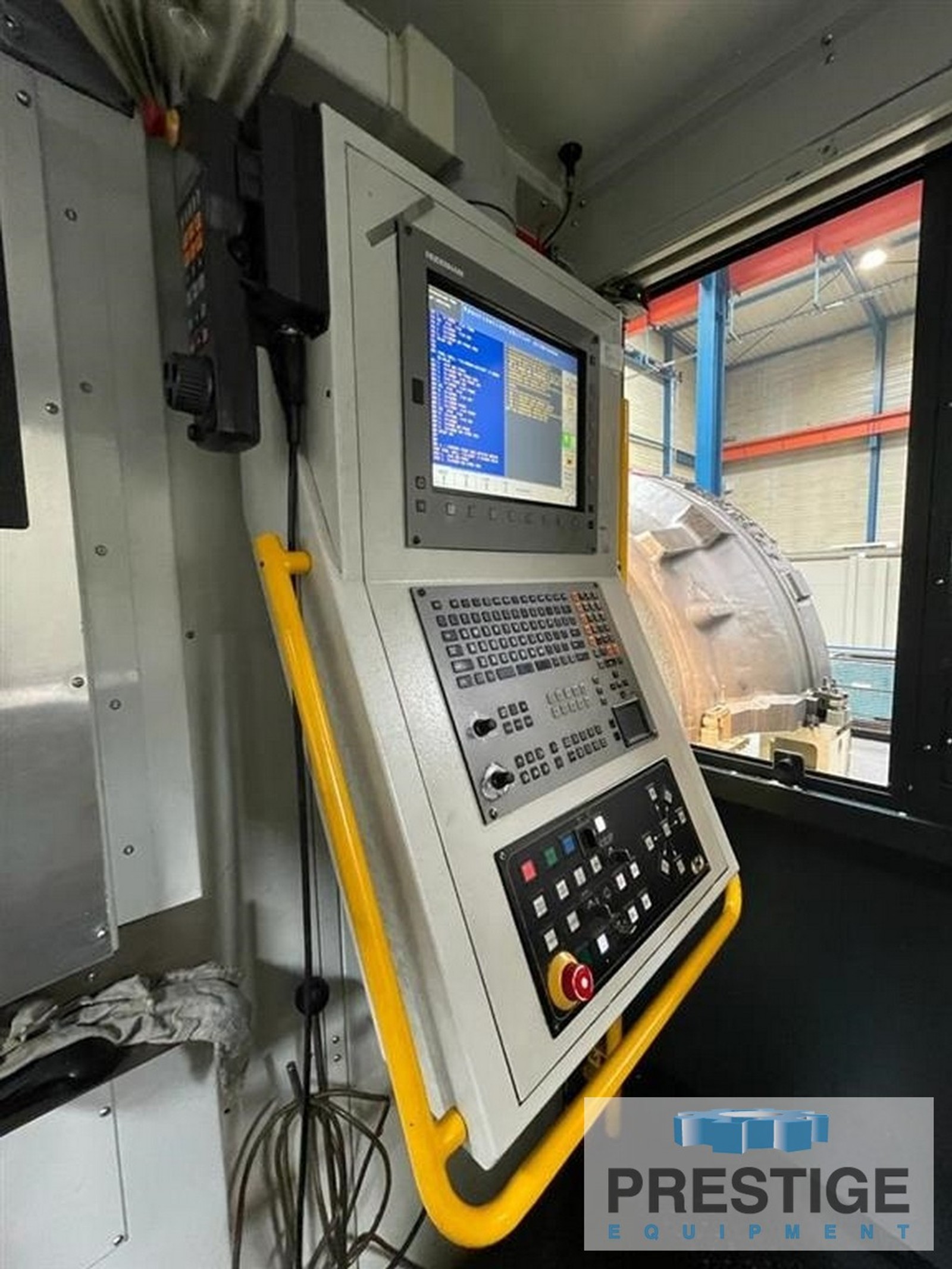

Heidenhain TNC 530 CNC Controls

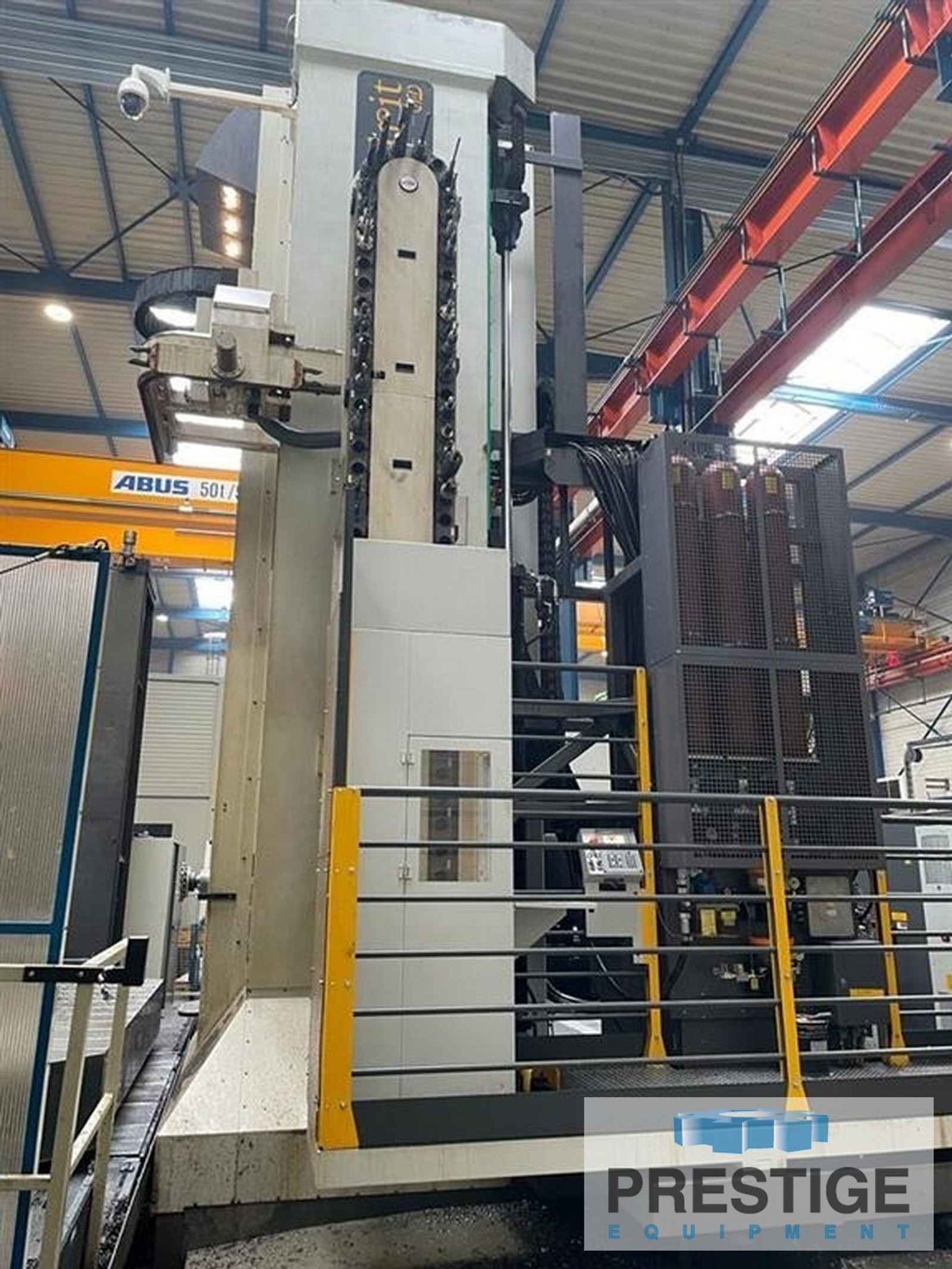

80 Station Automatic Tool Changer
157.48" x 157.48" B-Axis Infeeding Rotary Table
Automatic Head Changer

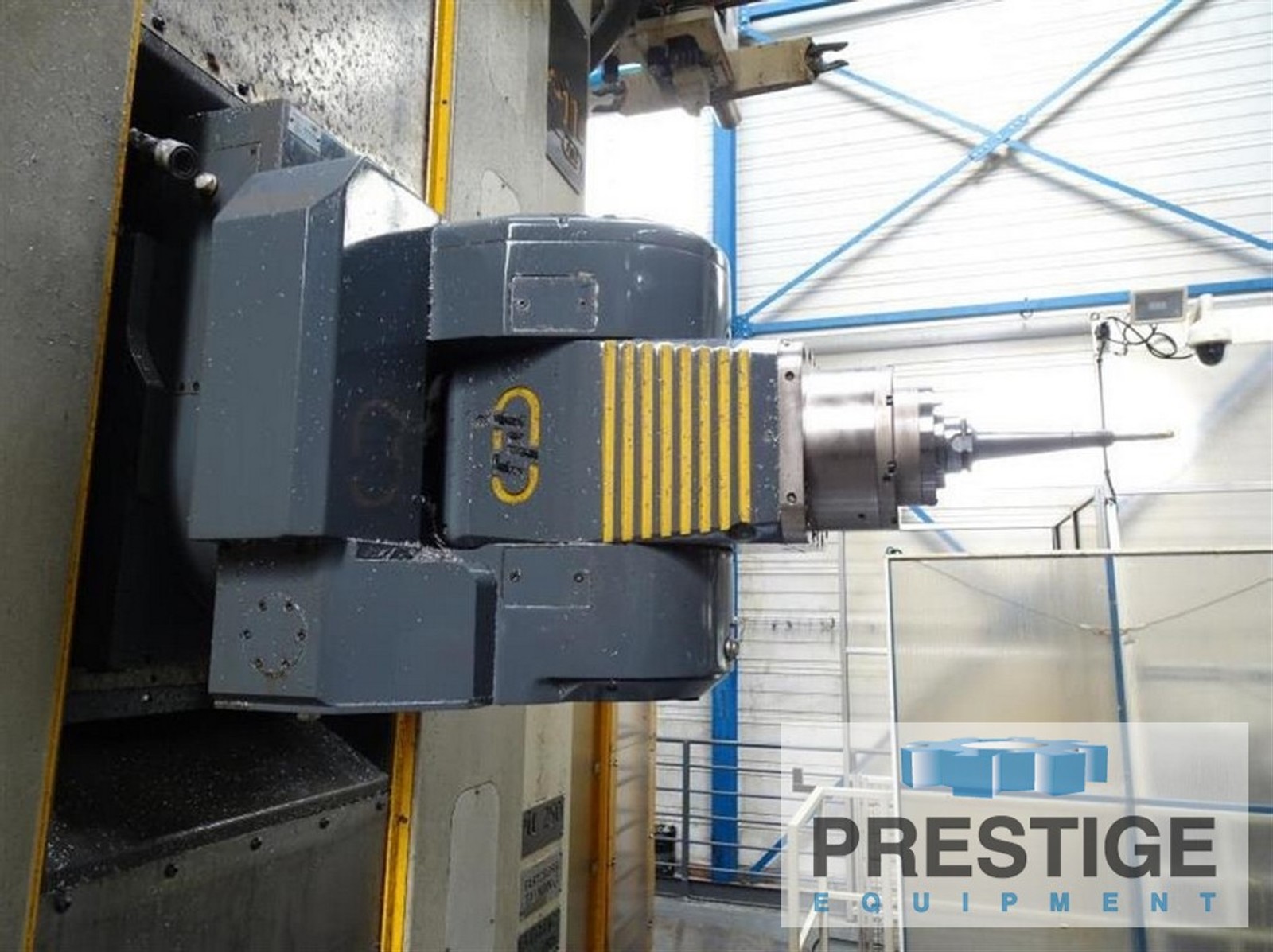

Universal Milling Head

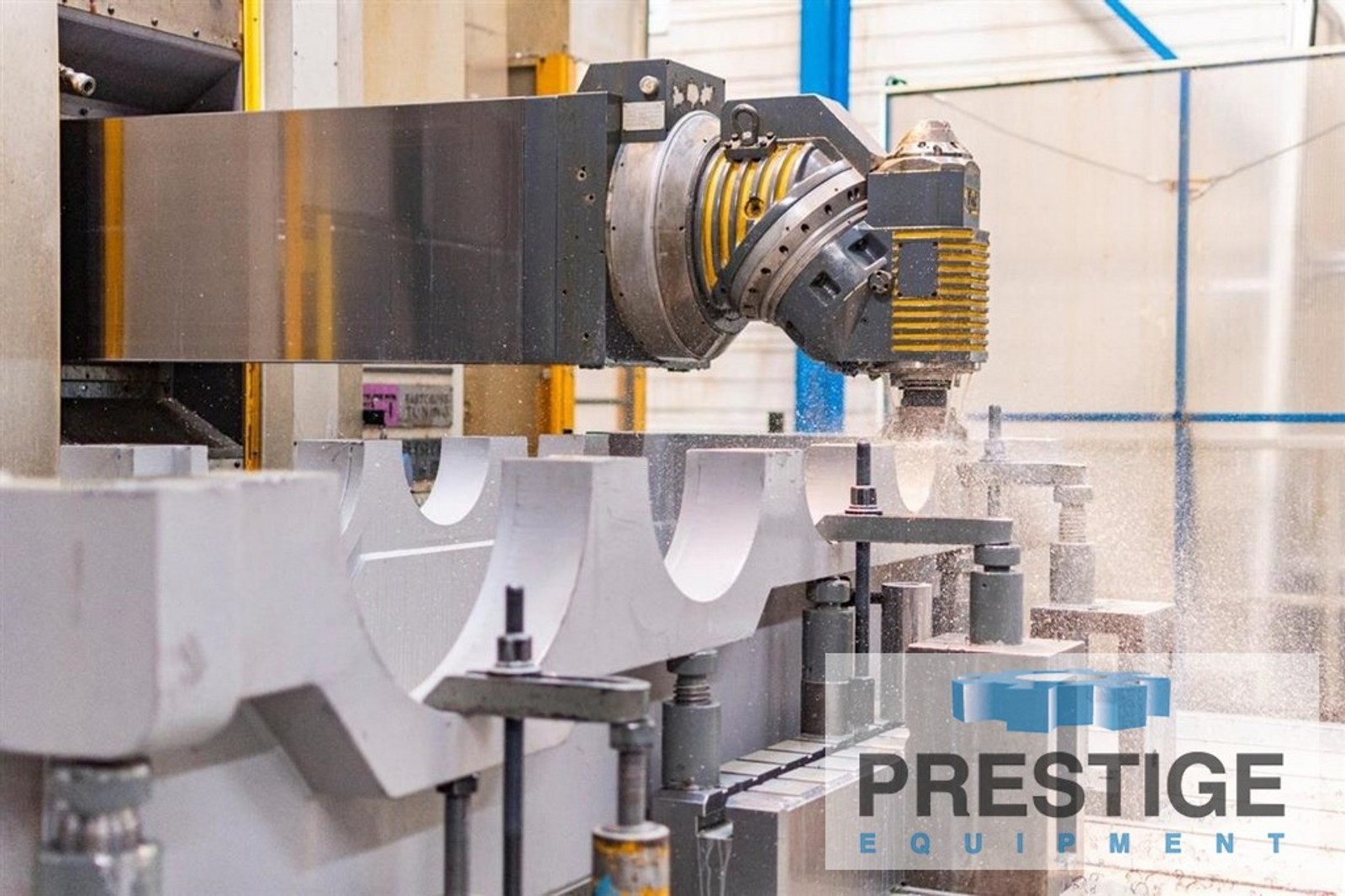

Universal 5-Axis High Speed Milling Head
Renishaw Probe

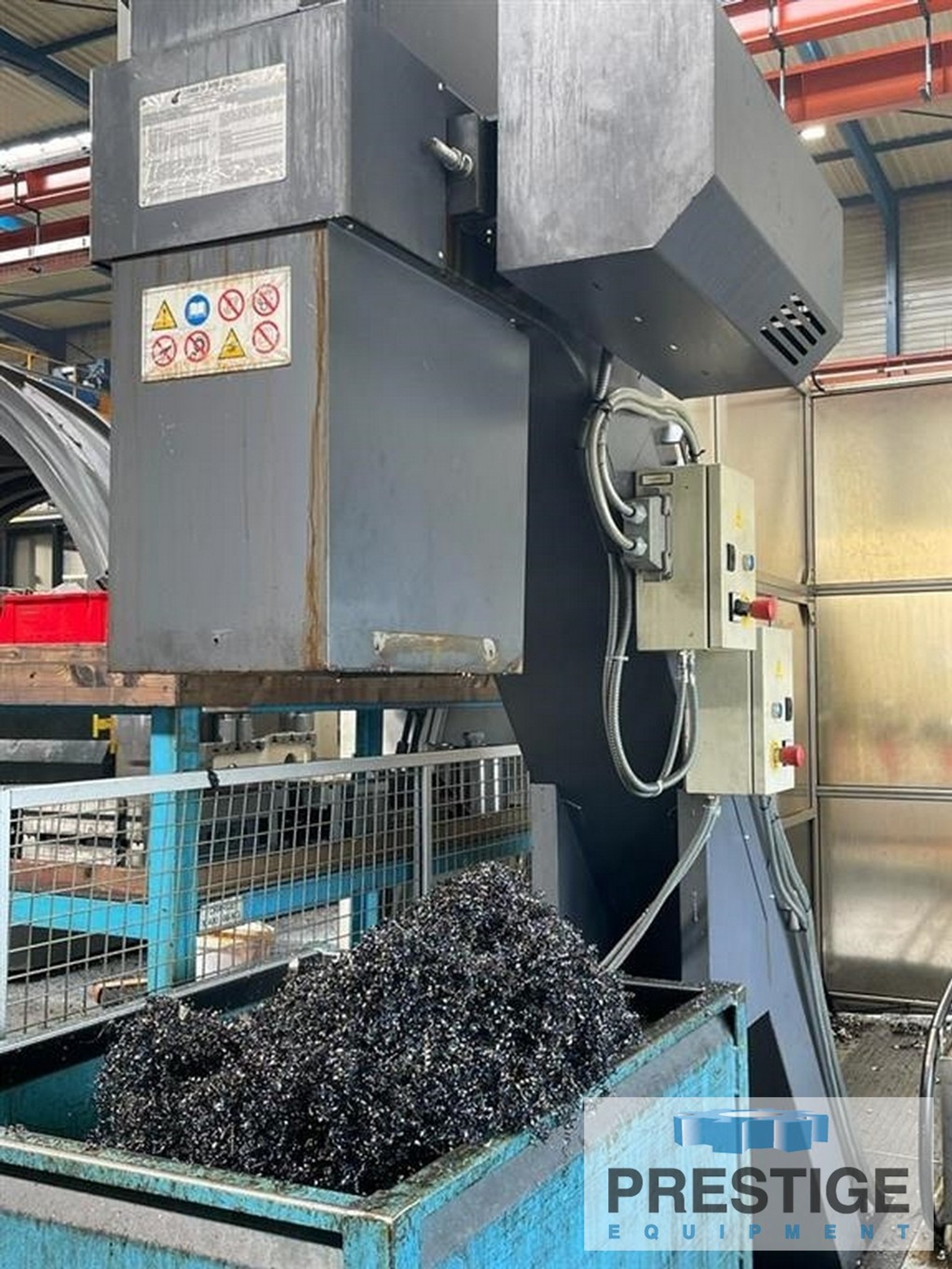

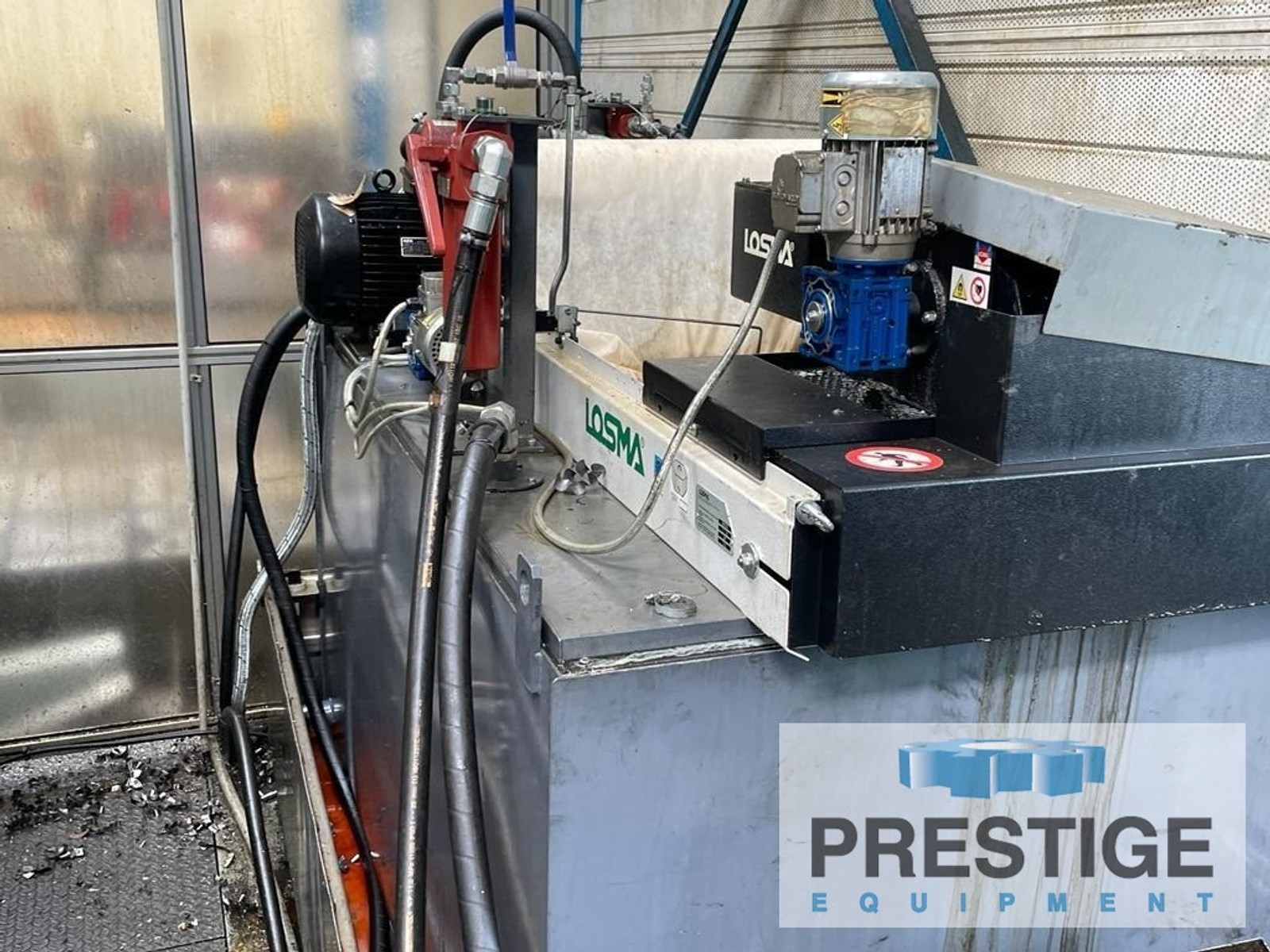

Chip Conveyor

SPECIFICATIONS:

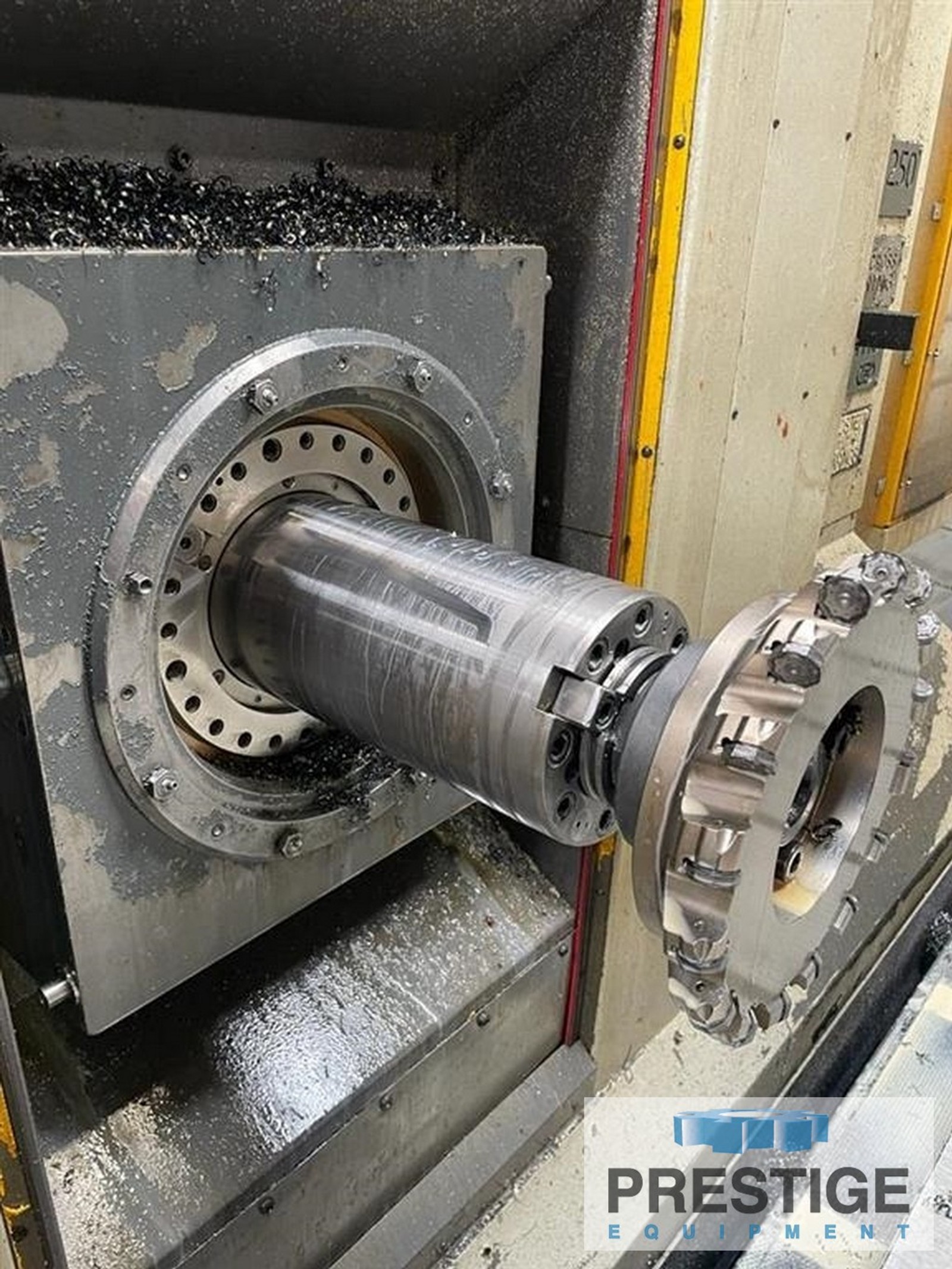

Spindle Diameter ...................... 6.3"
Spindle Taper ......................... #50 ISO
X-Axis Vertical Head Travel ........... 236.22"
Y-Axis Vertical Head Travel ........... 196.85"
Z-Axis Spindle Travel ................. 59.05"

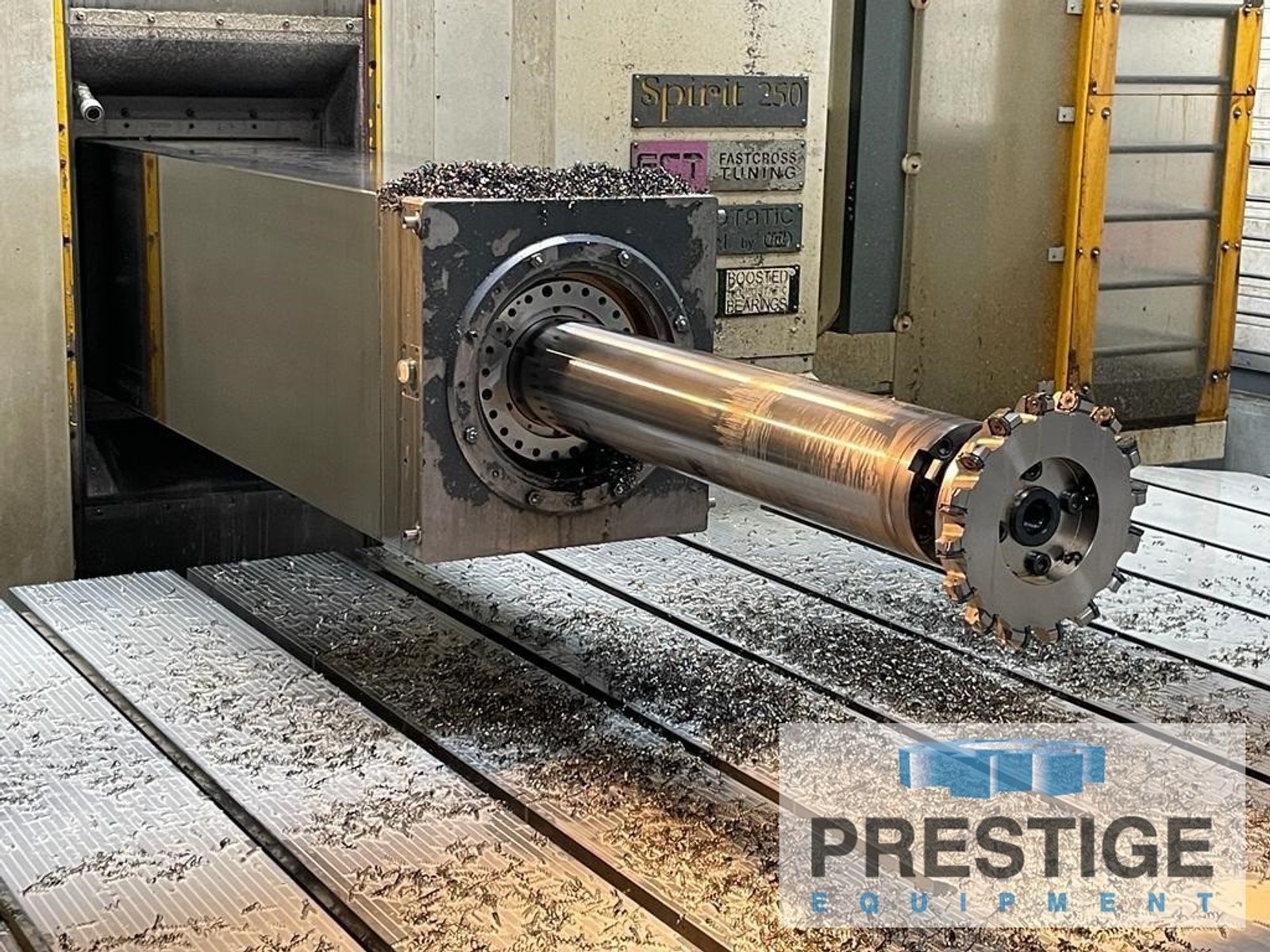

W-Axis Ram Travel ..................... 35.43"
Total Axial Travel, Ram & Spindle ..... 94.48"
Spindle Speeds: ....................... 1 to 3000 RPM
Spindle Motor ........................ 95.21 HP (71 KW)
Spindle Feeds ......................... 0.03937 to 196.85 IPM
Rapid Traverse , X, Y,& Z Axis .........984 IPM

FPT B-AXIS CNC INFEEDING ROTARY TABLE:

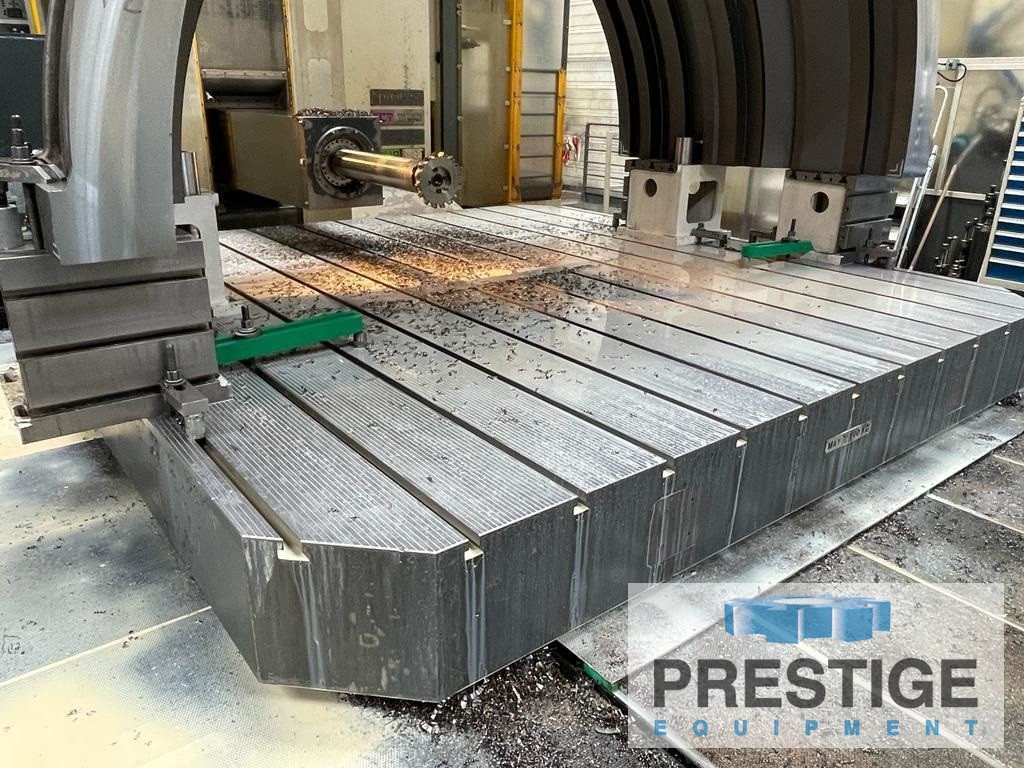

Table Size ............................ 157.48" x 157.48"
V-Axis Table Infeed .................. 59.05"
B-Axis Table Rotation ................. 360,000 Positions
Table Weight Capacity ................. 75 Tons

EQUIPPED WITH:
Heidenhain TNC 530 CNC Controls
80 Station Automatic Tool Changer
157.48" x 157.48" B-Axis Infeeding Rotary Table
Automatic Head Changer
Universal Milling Head
Universal 5-Axis High Speed Milling Head
Renishaw Probe
Chip Conveyor
