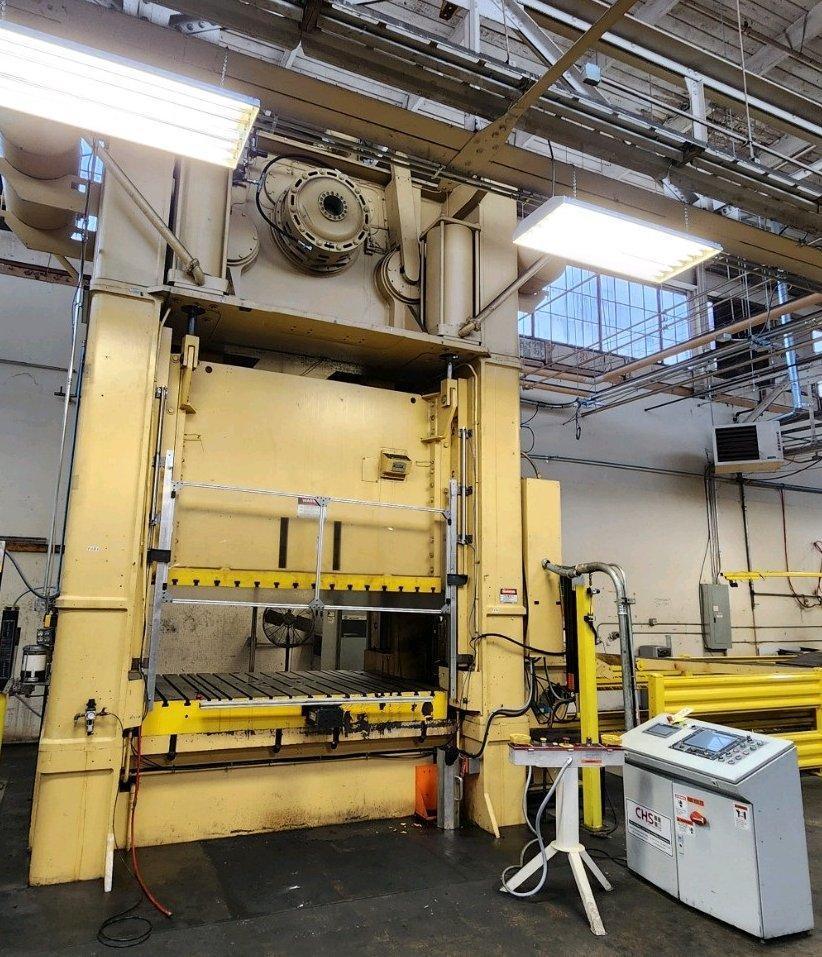

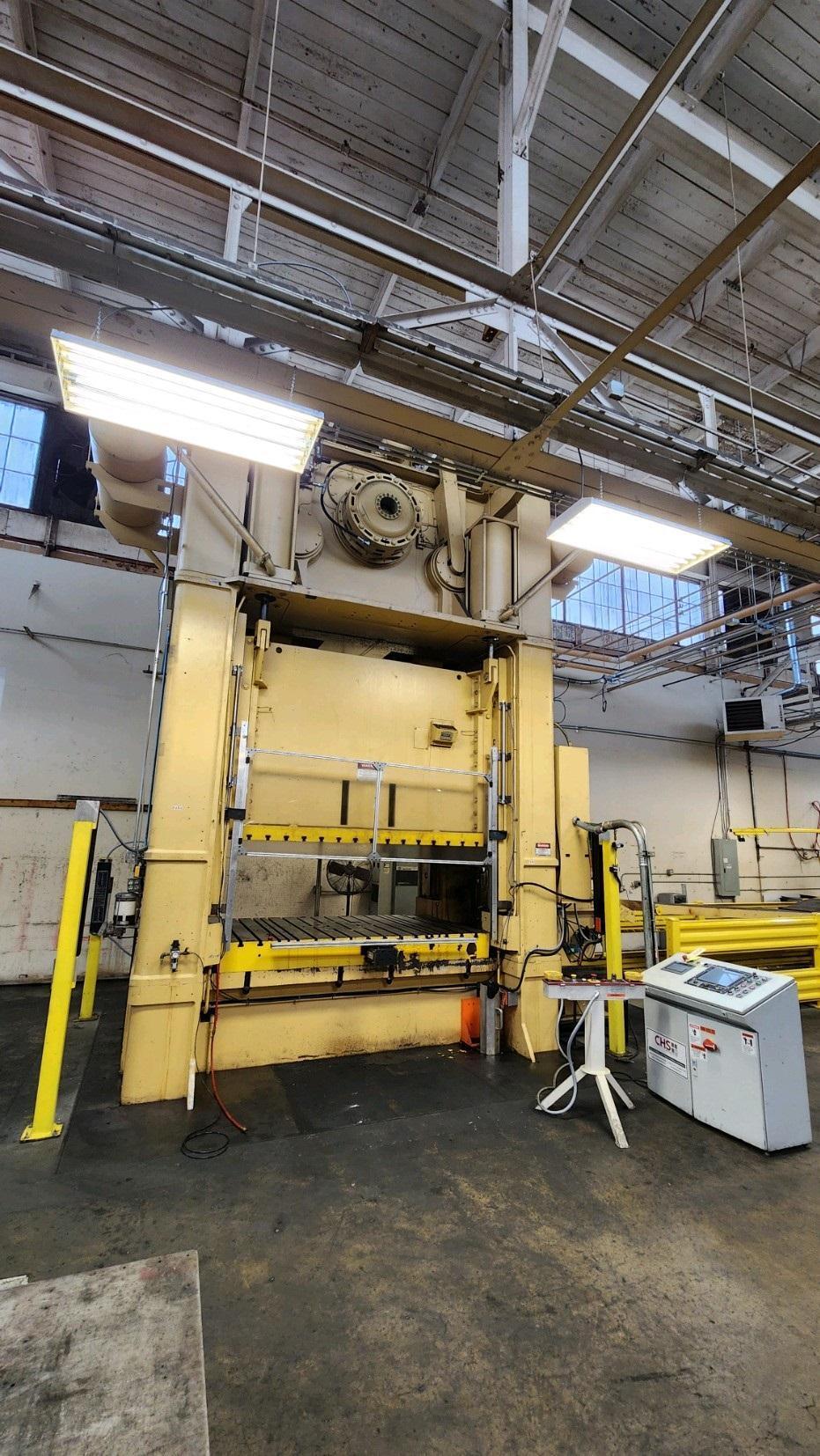

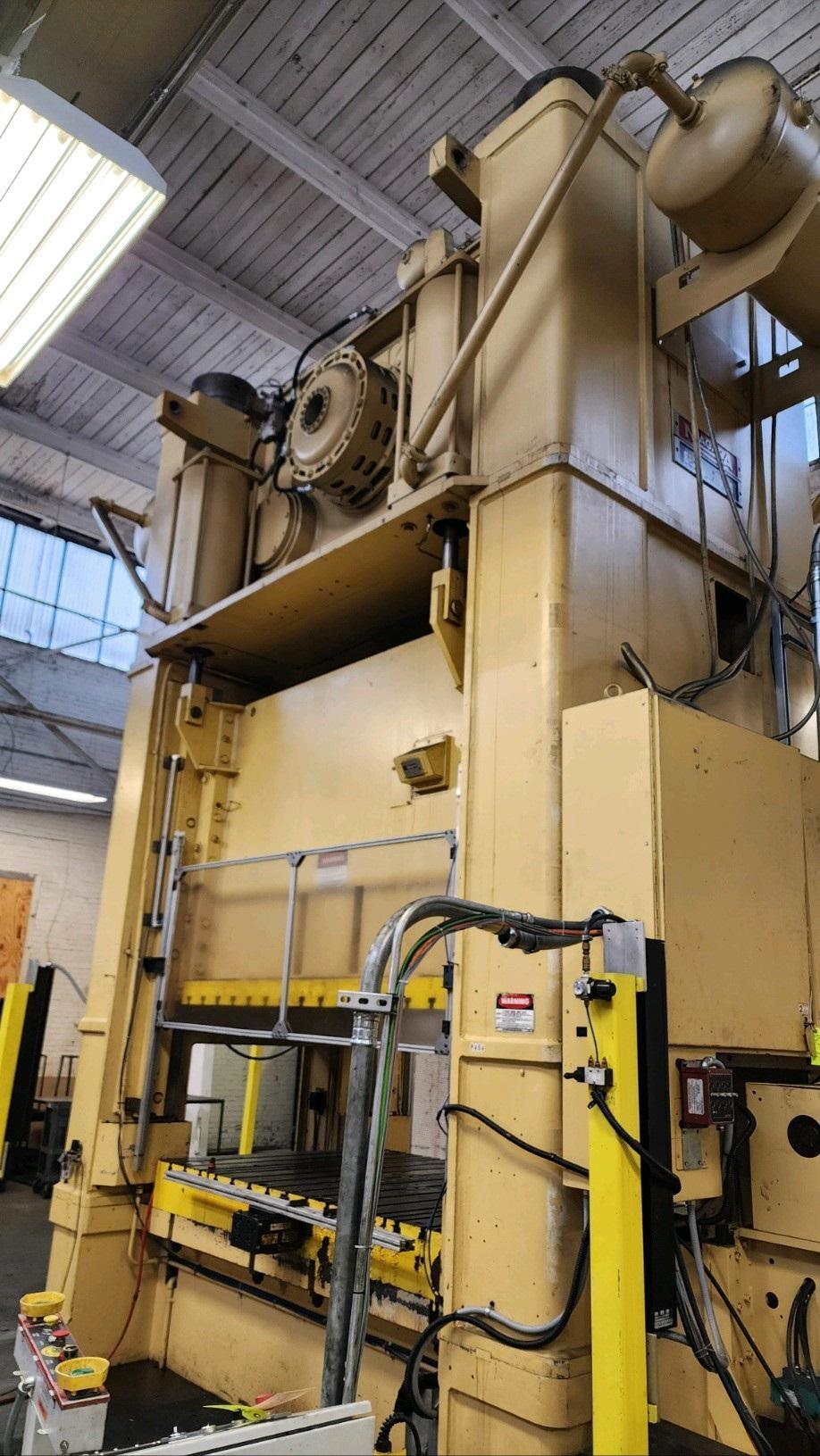

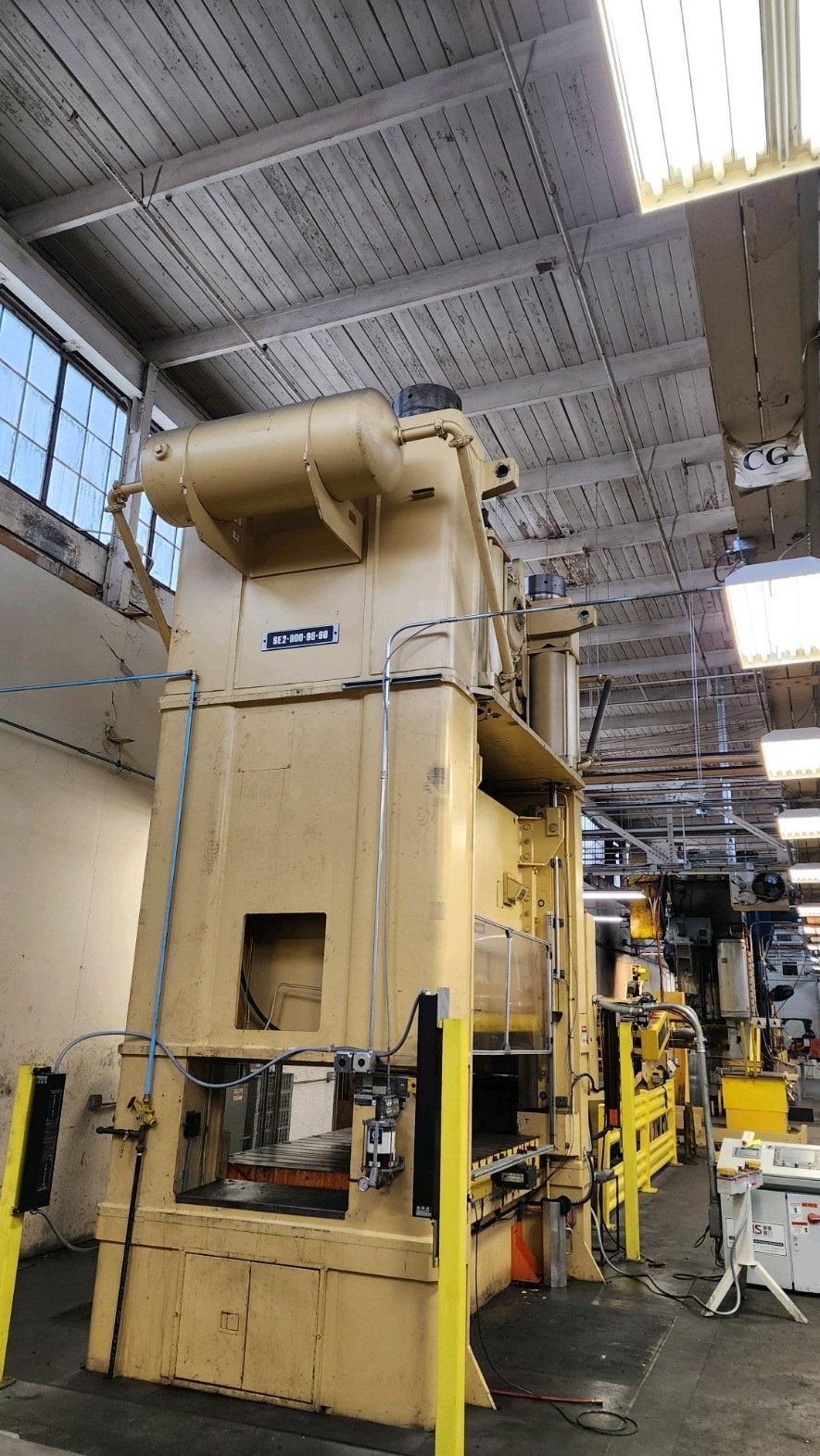

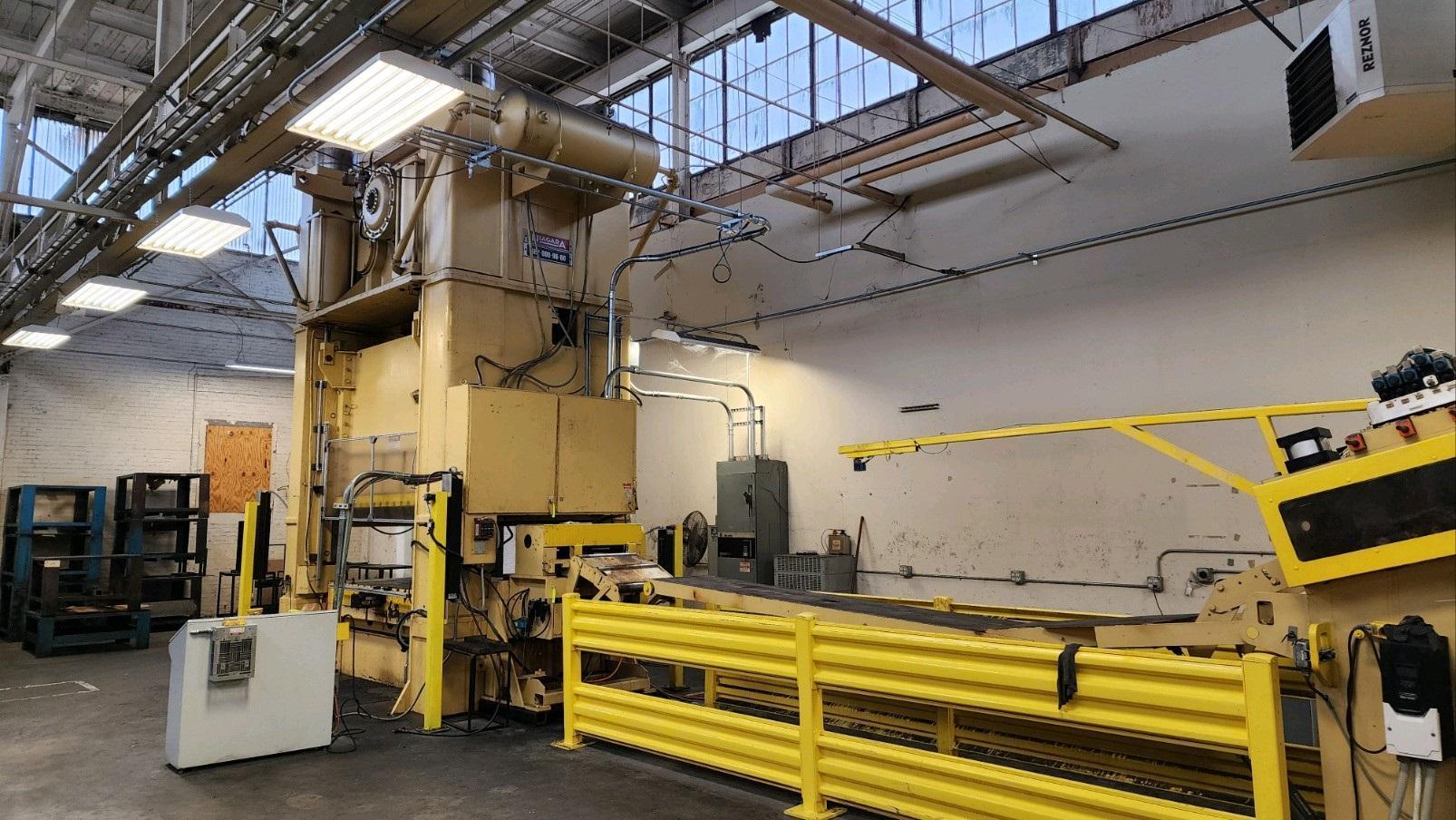

800 ton Niagara Model# SE2-800-96-60, Straight Side Mechanical Metal Stamping Press For Sale, Re

Manufacturer

NIAGARA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2852

Model

SE2-800-96-60

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Bed Size - 96 x 60
Tonnage - 800
Stroke - 12 inches
Shut Height - 35 inches
Adjustment - 18 inches
Ram Area - 96 x 60
SPM - 15-30 VSPM


Standard Specifications
Used Niagara Press Model SE2-800-96-60
800 Metric Tons
880 US Tons @ 1/2" off Bottom
12" Stroke
35" Shut Height
18" Motorized Adjustment
96" LR x 60" FB Bed Area
96" LR x 60" FB Slide Area
15-30 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
9" Thick Bolster
Free Standing Console Control Stand
Updated Wintriss Palm Button Station
Updated Wintriss Press Controls
Updated Wintriss Die Protection
Black Max Light Curtains Front and Back
Updated Graco Lube Pump and Motor
Air Cushion
Set of Vibration Isolation Levelers (RFM-1265-90)
Hydraulic Tie Rods nuts
Allen Bradley AC Variable Speed Drive Model 1336
43" Wide Windows
Flush Floor Standing Design

** All of the following work was performed with the last 32 Months:
Clutch/Brake Assembly Rebuilt, Rebuilt Slide, Replaced Main Bushings and Air Counterbalances

This Used 880 ton Niagara Press can be seen under power upon request at S&G Press.

Click here to see 800-ton Mechanical Press options.


This 800-ton Niagara press is excellent for various metal stamping tasks due to its rigid straight side frame ensuring accuracy. Its high tonnage capacity handles demanding jobs, while the 96" bed accommodates bigger dies. 8 Point Gibbing and air counterbalances enable smooth, high-speed operation. Niagara's versatility and reliable performance make this a strong choice for any stamping operation.

Used Straight Side Mechanical Metal Stamping Press For Sale. Used Press, Niagara Presses

This used 880-ton Niagara press is a powerful and versatile machine for serious metal stamping operations. Its robust construction and modern features, including an updated Wintriss press control system, Wintriss Die Protection, and Black Max light curtains, ensure both safety and precision. The 96" x 60" bed accommodates large dies, while the Allen Bradley AC Variable Speed Drive provides flexibility for various applications.

When you buy from S&G Press, you're not just getting a machine—you're getting a fully inspected, high-quality asset. Our expert reconditioning and transparent process, including the ability to see the press under power, give you complete confidence in your investment. Choose S&G Press for reliable, cost-effective machinery that boosts your production.
