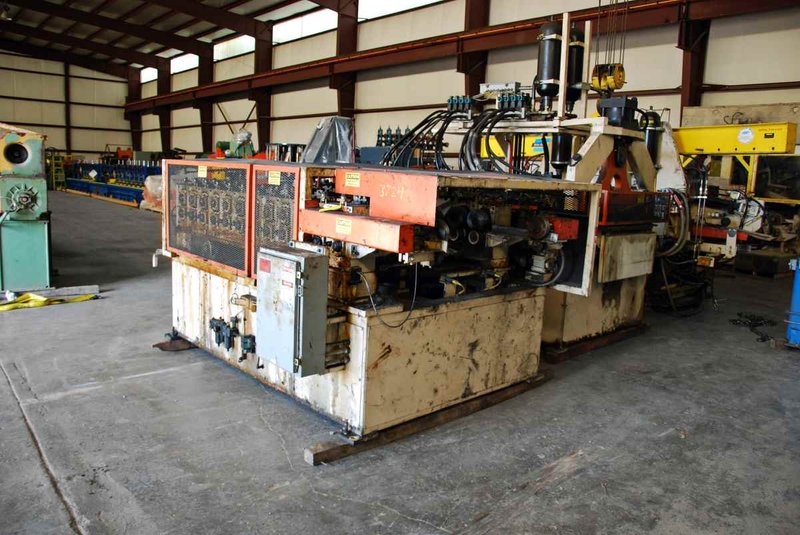

12 Stand x 1-1/2″ x 37″ BRADBURY Duplex Rollforming Line

Manufacturer

BRADBURY

Category

Roll Formers

Type

ROLL FORMERS

Stock

3724

Model

130

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3724
MANUFACTURER: BRADBURY
MODEL NUMBER: 130
SERIAL NUMBER: 35256

LINE SPECIFICATIONS:
Maximum Coil Weight: 20,000 Lbs.
Coil ID Range: 20-24″
Maximum Coil OD: 72″
Line Orientation: Left to Right
Line Speed: 150 FPM

COMPLETE LINE EQUIPPED WITH:
Entry Coil Car:
L-Type

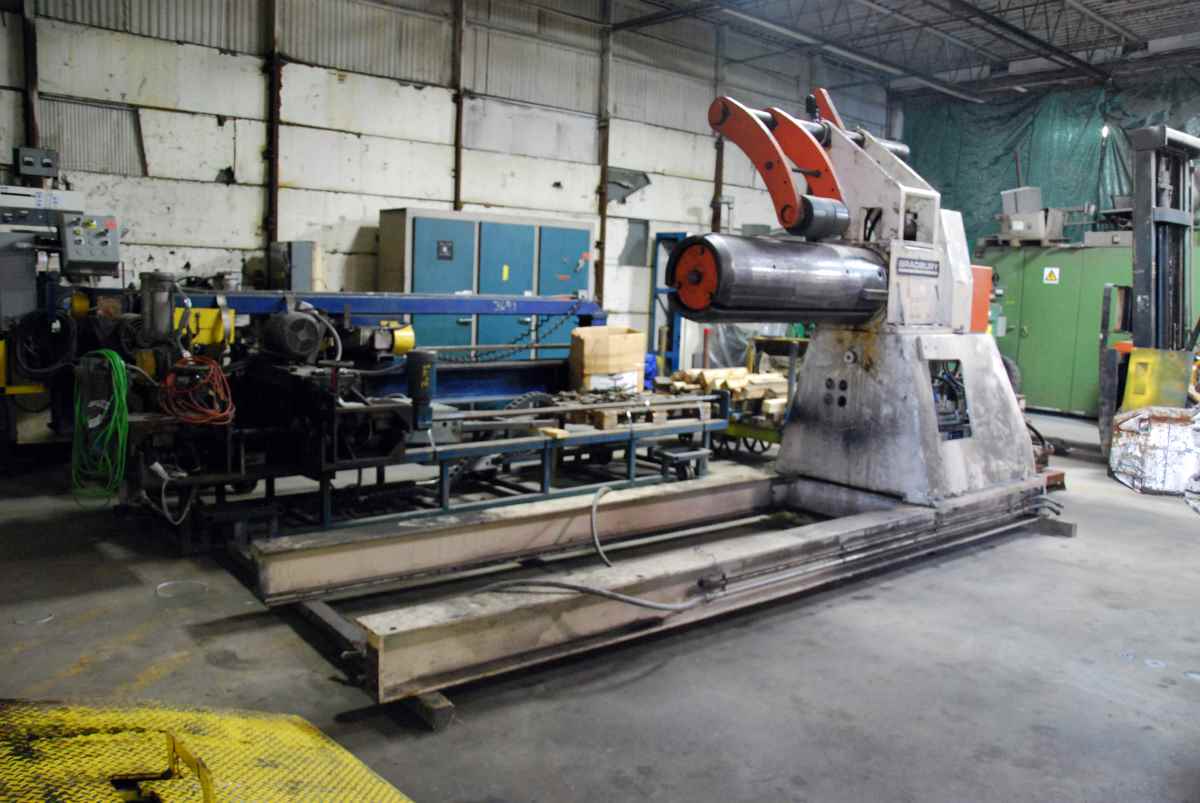

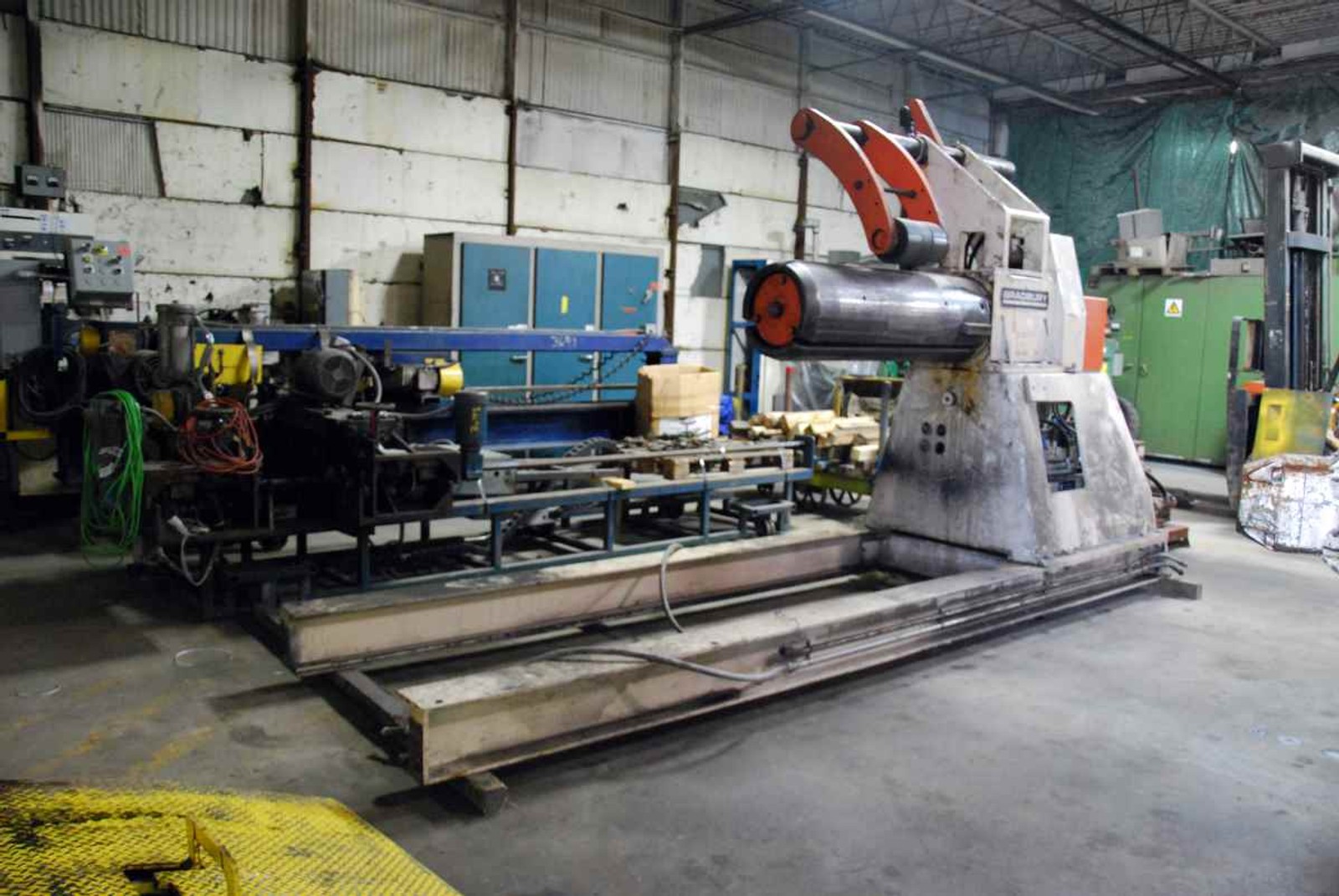

Uncoiler:
Capacity: 20,000 Lb.
Maximum Coil Width: 48″
Maximum Coil O.D. 72″
Mandrel Expansion Range: 18-1/2″ – 24-1/2″
Cantilevered Mandrel
Hydraulic Loop Arm Control with Chain Drive Spindle
Hold Down Roll

Entry Pinch Rolls:
Roll Diameter: 5″

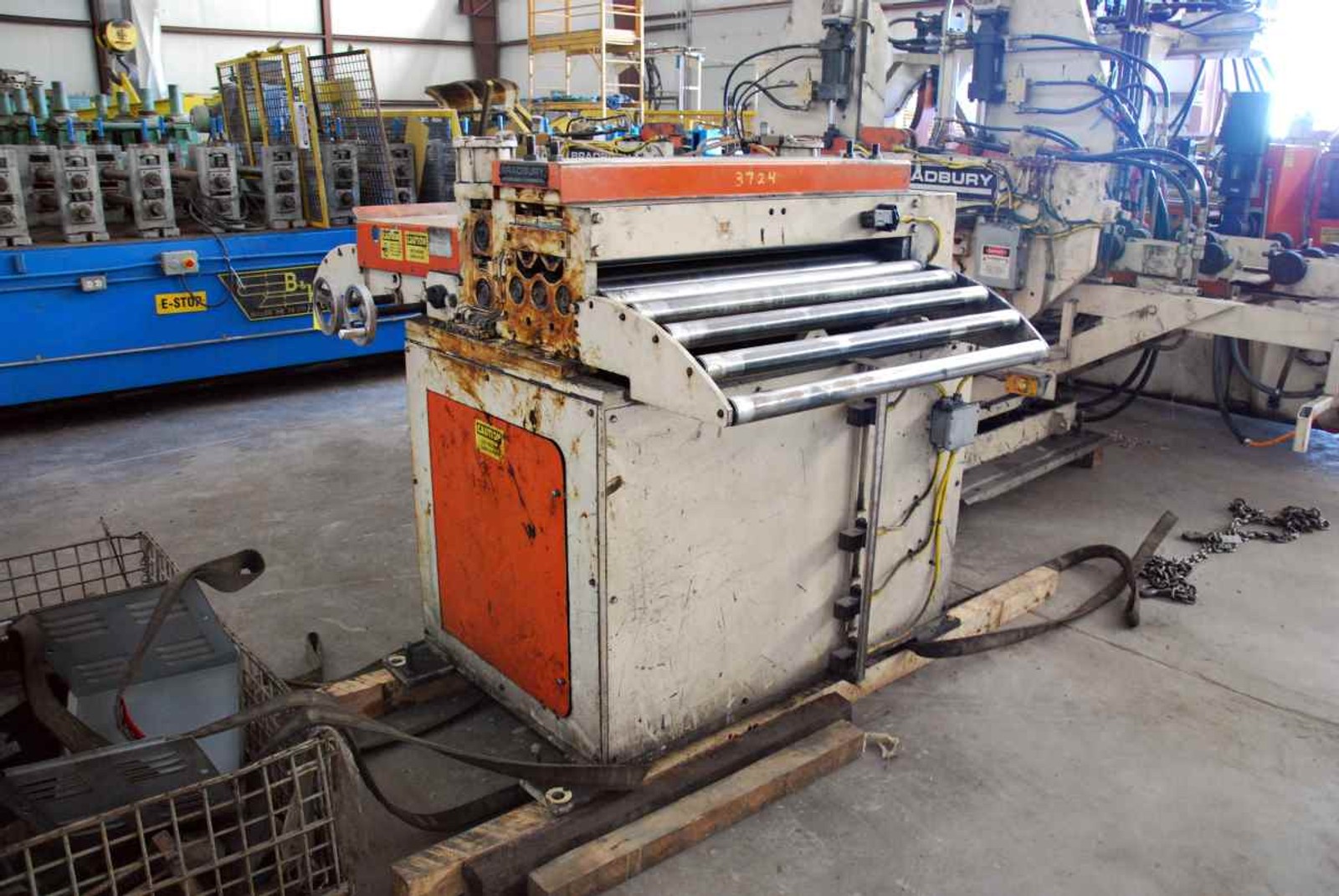

Straightener:
5-Roll
3″ Work Roll Diameter
Variable Frequency Drive
Independently Adjustable Lead-In Guide
Exit Cascade Rolls

Hydraulic Punching Unit:
Entry Feed Rolls
Nine Hydraulic C-Frame Presses and Dies
Hand wheel Width Adjustment Material Guide Fixtures

Hydraulic Shear

Stacker/Conveyor:
Capacity: 5,000 Lbs.
Maximum Stack Height over Pallet: 12″
Blank Length Capacity 20″ – 20′
Blower for Blank Flotation
Motorized Side Pans Positioning
Manual End Stop Positioning

Bradbury Destacking System:
Vacuum Cup Lifts
Minimum Blank Dimensions: 26″ x 174″
Maximum Blank Dimensions: 32″ x 195″
Maximum Weight: 5,000 Lbs.

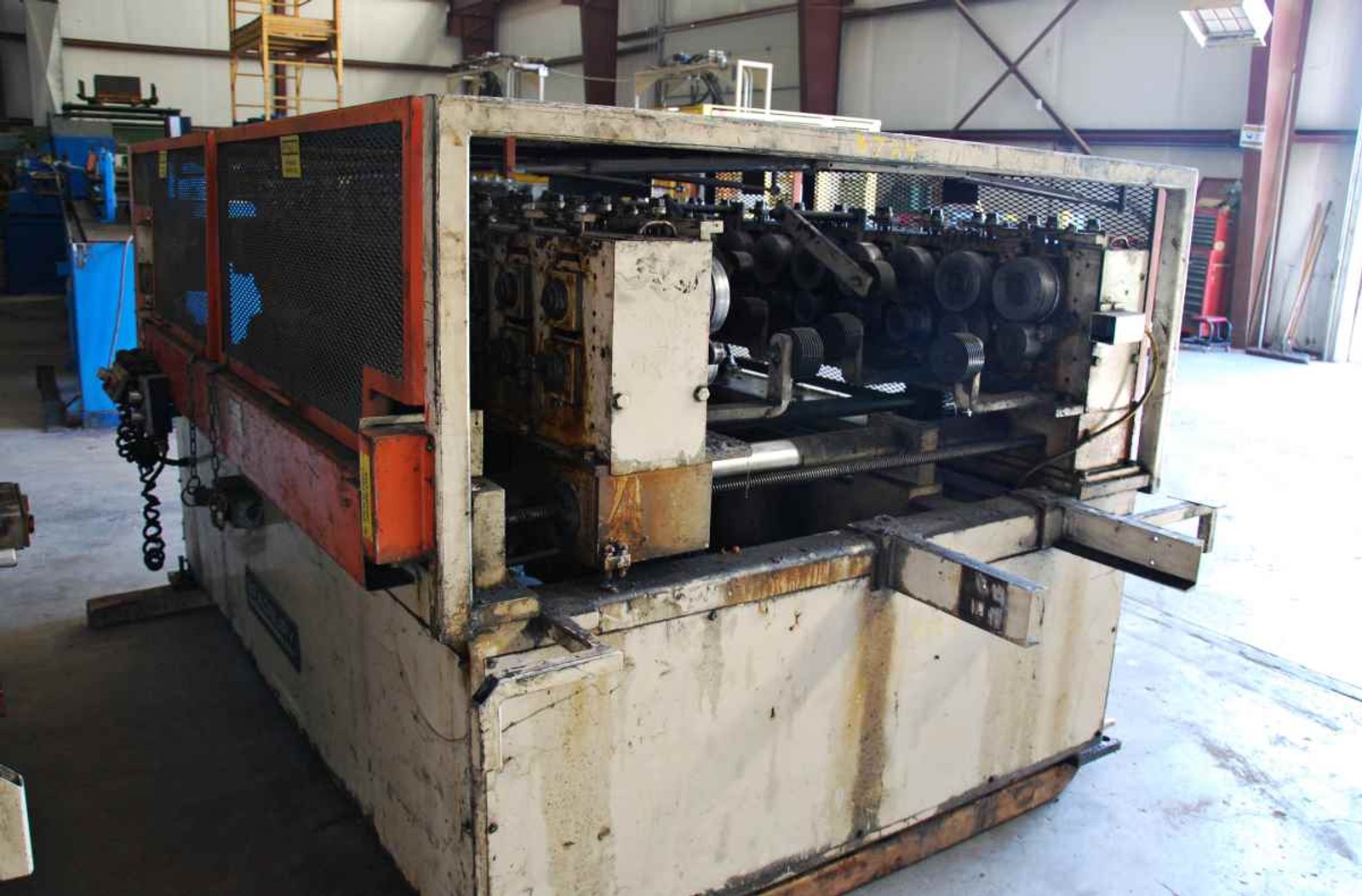

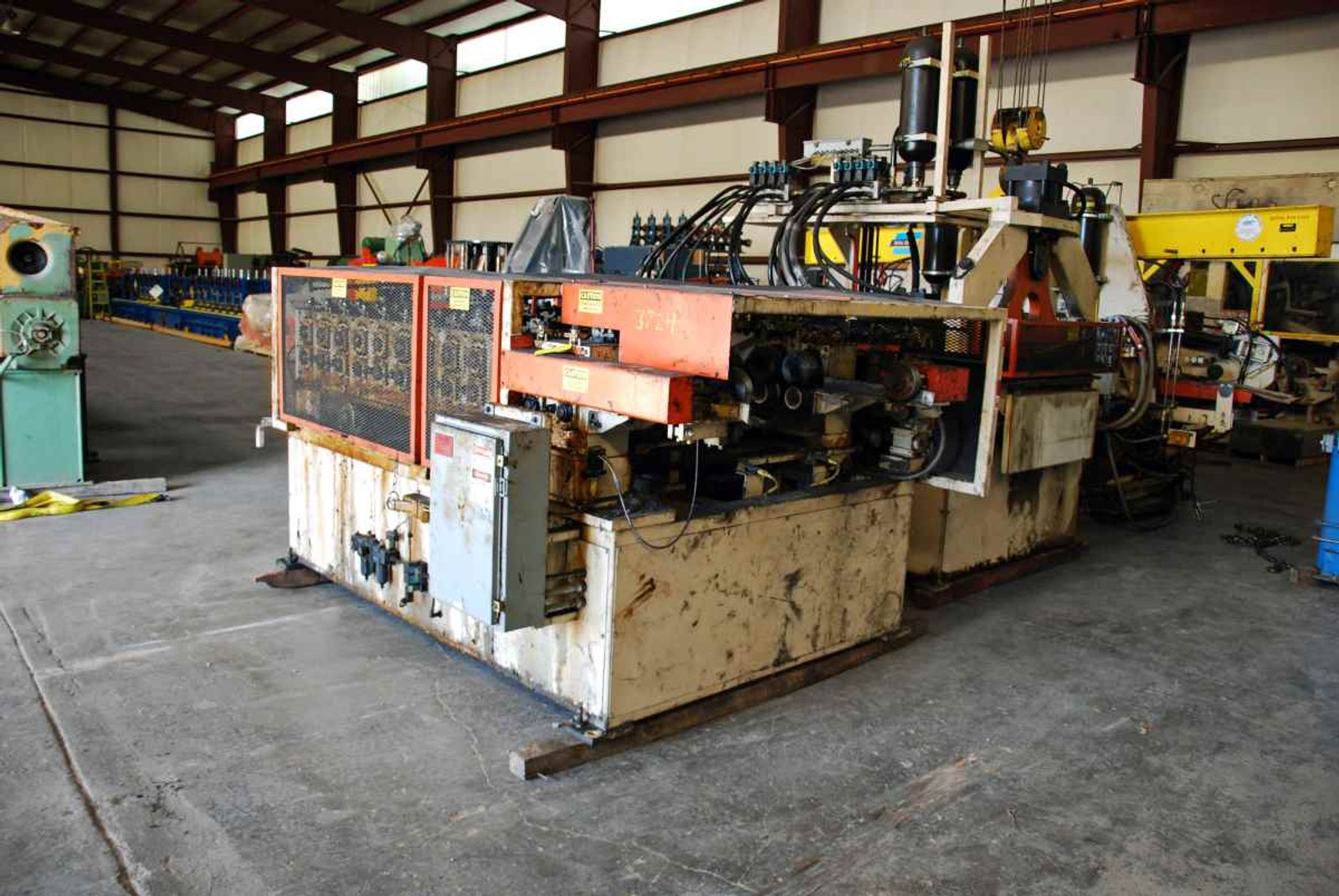

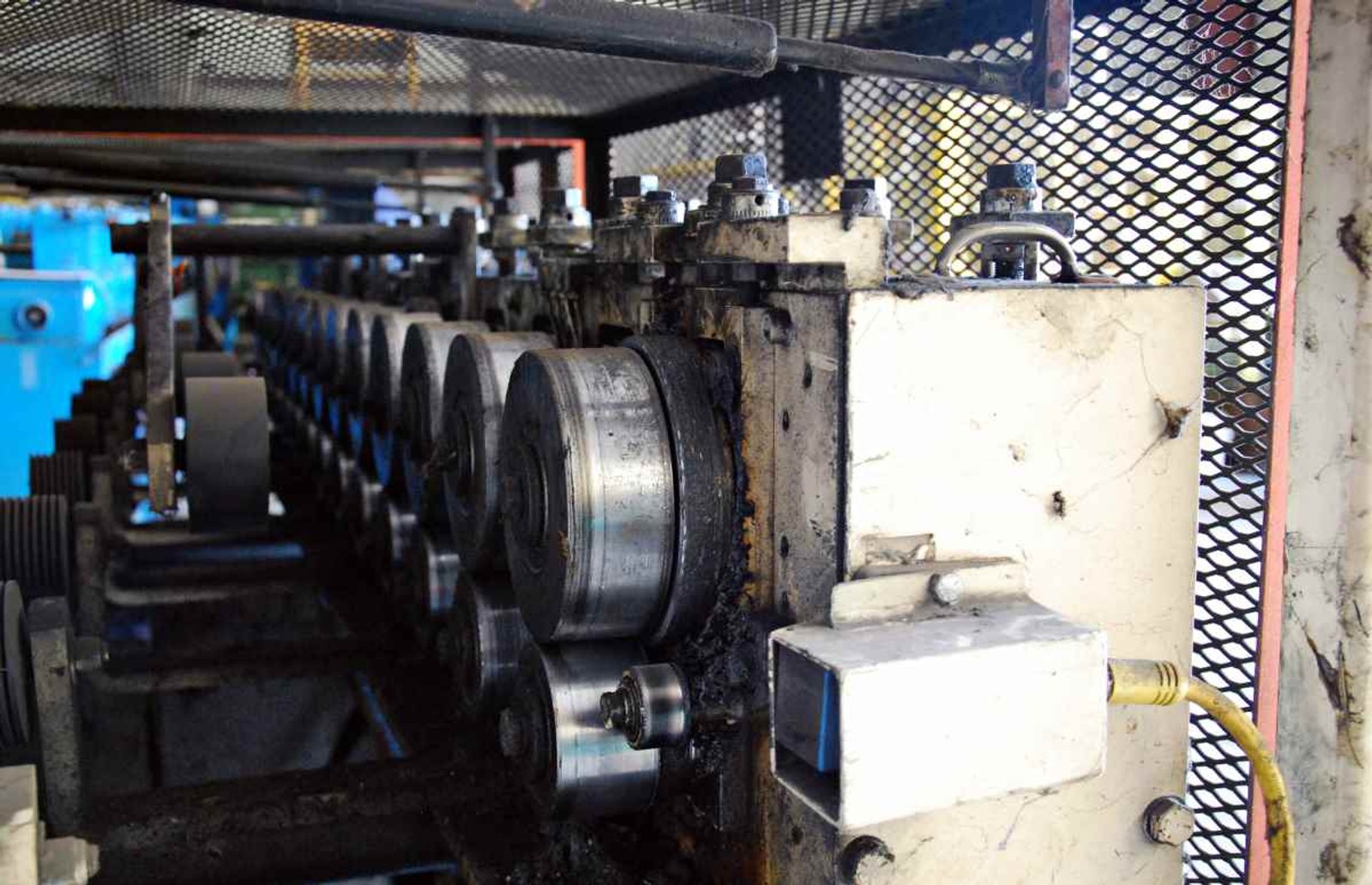

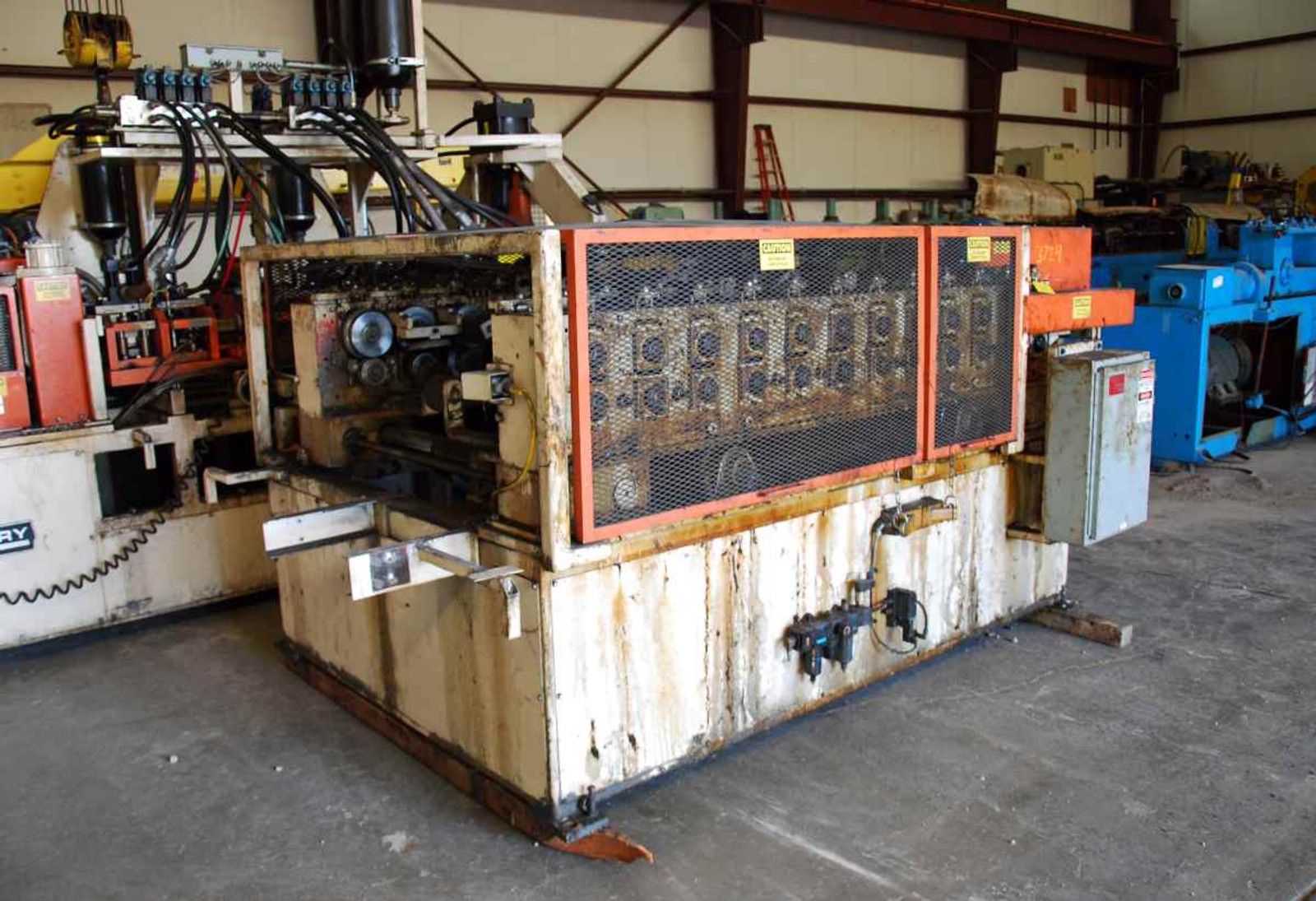

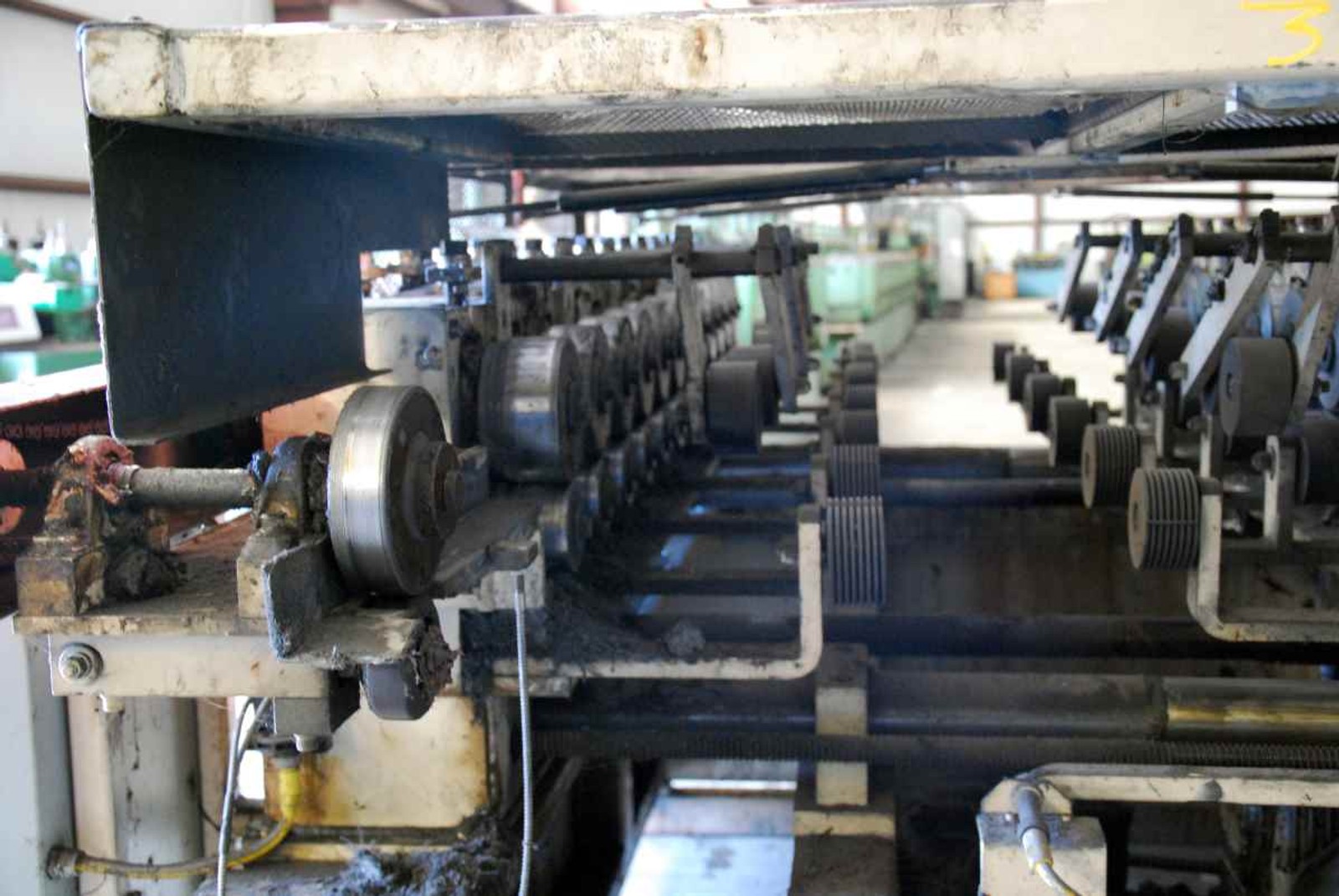

12 Stand Bradbury Duplex Rollformer:
Model Number: 130
Serial Number: 35256
Maximum Blank Width: 37″
Horizontal Center Distance: 7″
Shaft Diameter 1-1/2″
Roll Space: 3″
Forward and Reverse Jogging
Anti-Friction Bearings

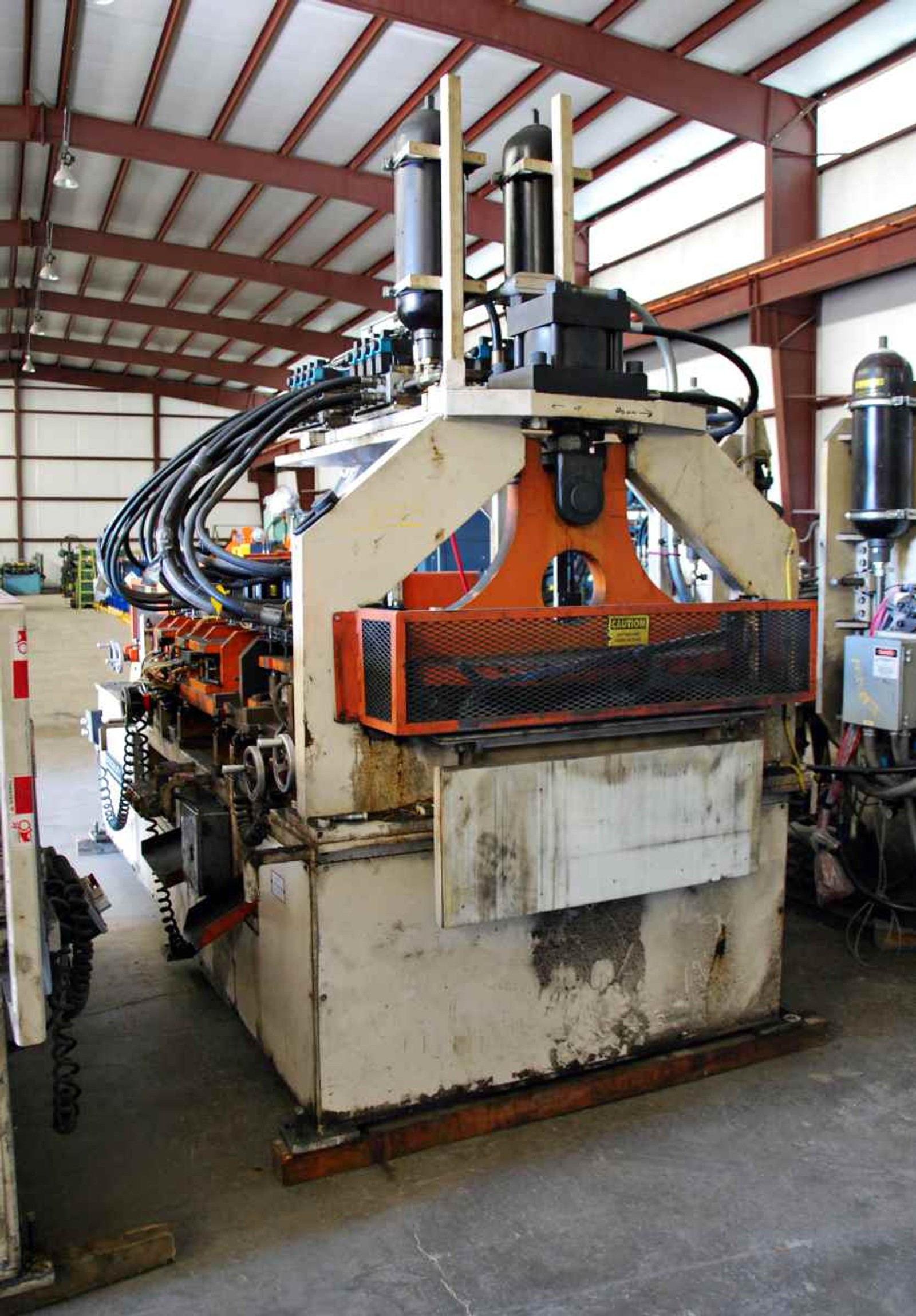

Bradbury U-Bender:
Two Head Construction
Single Point Action
Hydraulic Part Clamping
Dedicated Hydraulics
Vertical Wrapper Leg Support
Pneumatic Part Positioning
Panel Locators and Edge Guide
Wrapper:
– Back Width Capacity 30.75″ – 36.82″
– Leg Height Capacity 71.75″ – 79.25″
– Depth Capacity 23.5″ – 30.19″

Downlayer

Exit Conveyor

Rexroth PLC and Drives

Electrical: 460V/3pH/60Hz

Control: 115V/60Hz

LOCATION: Universal Warehouse, Perrysburg, Ohio
