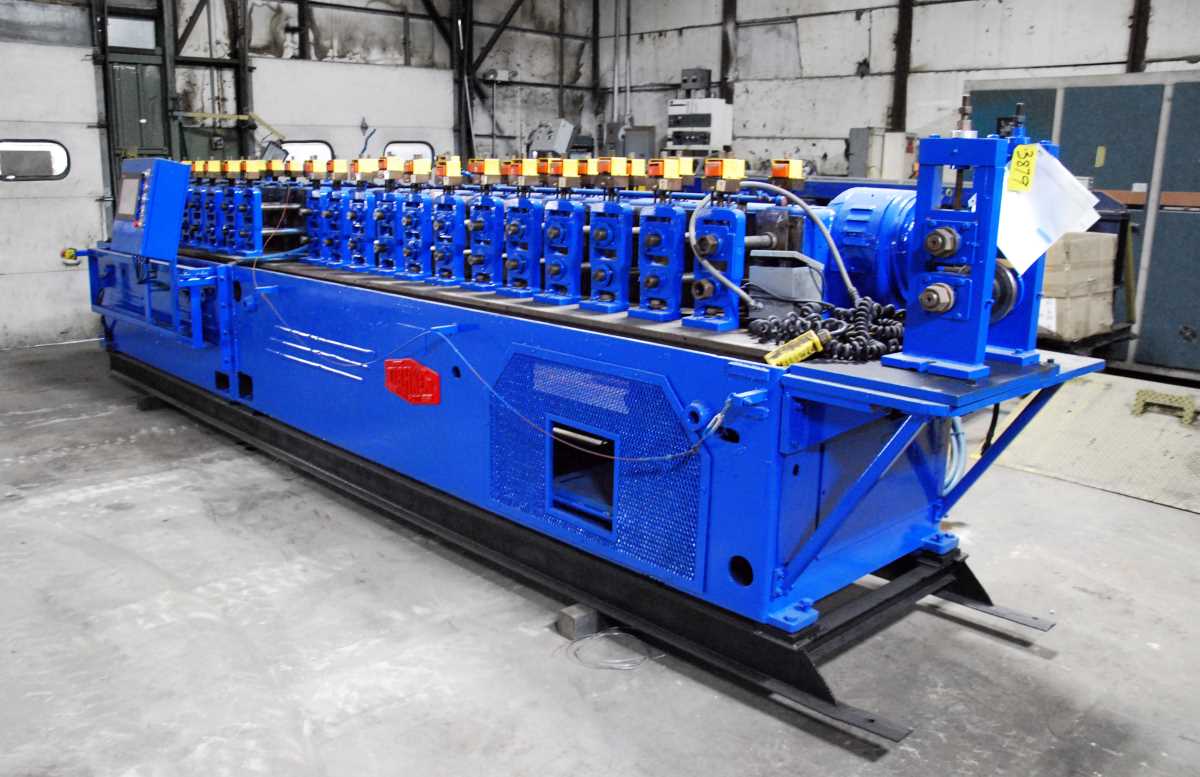

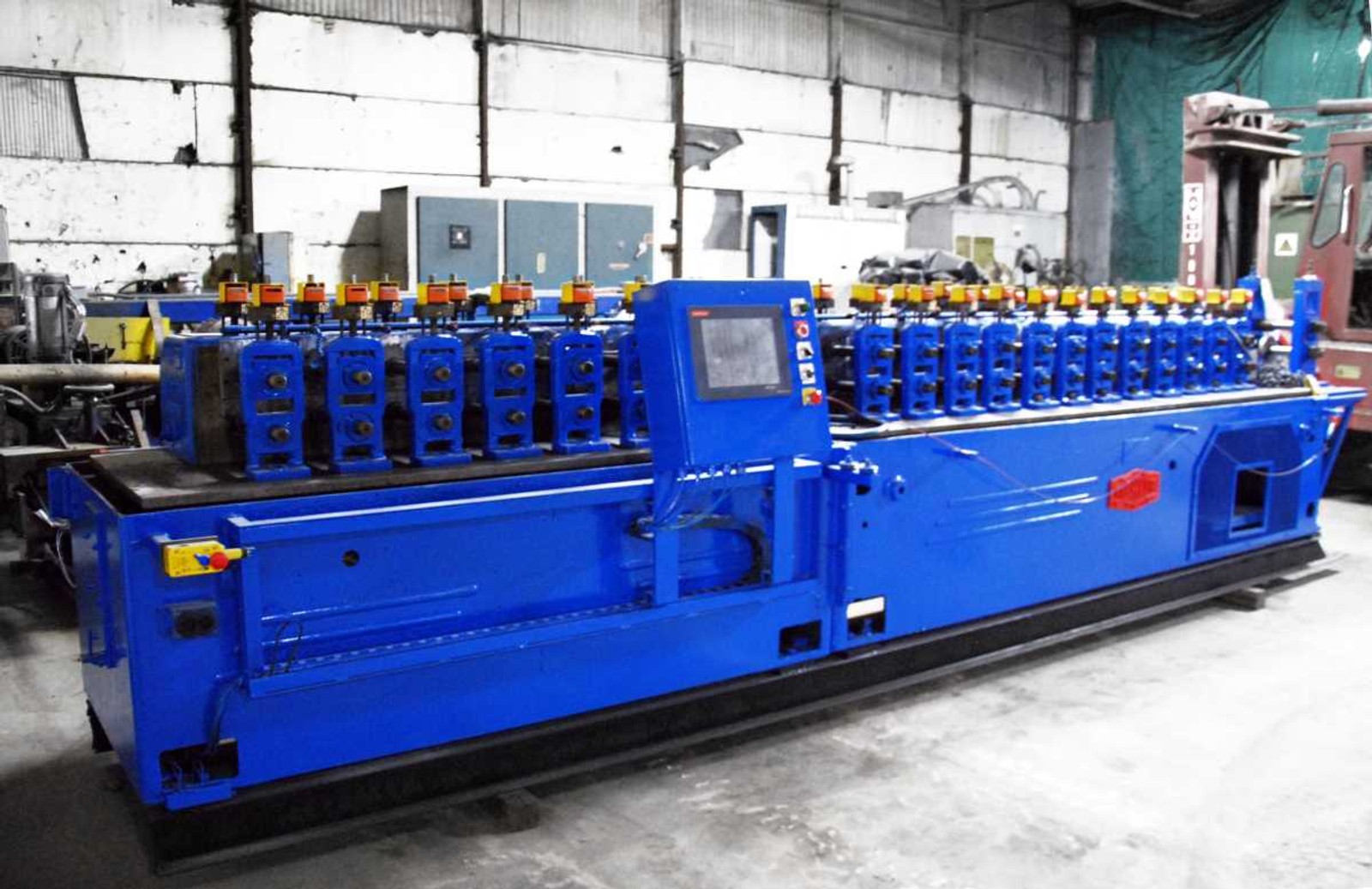

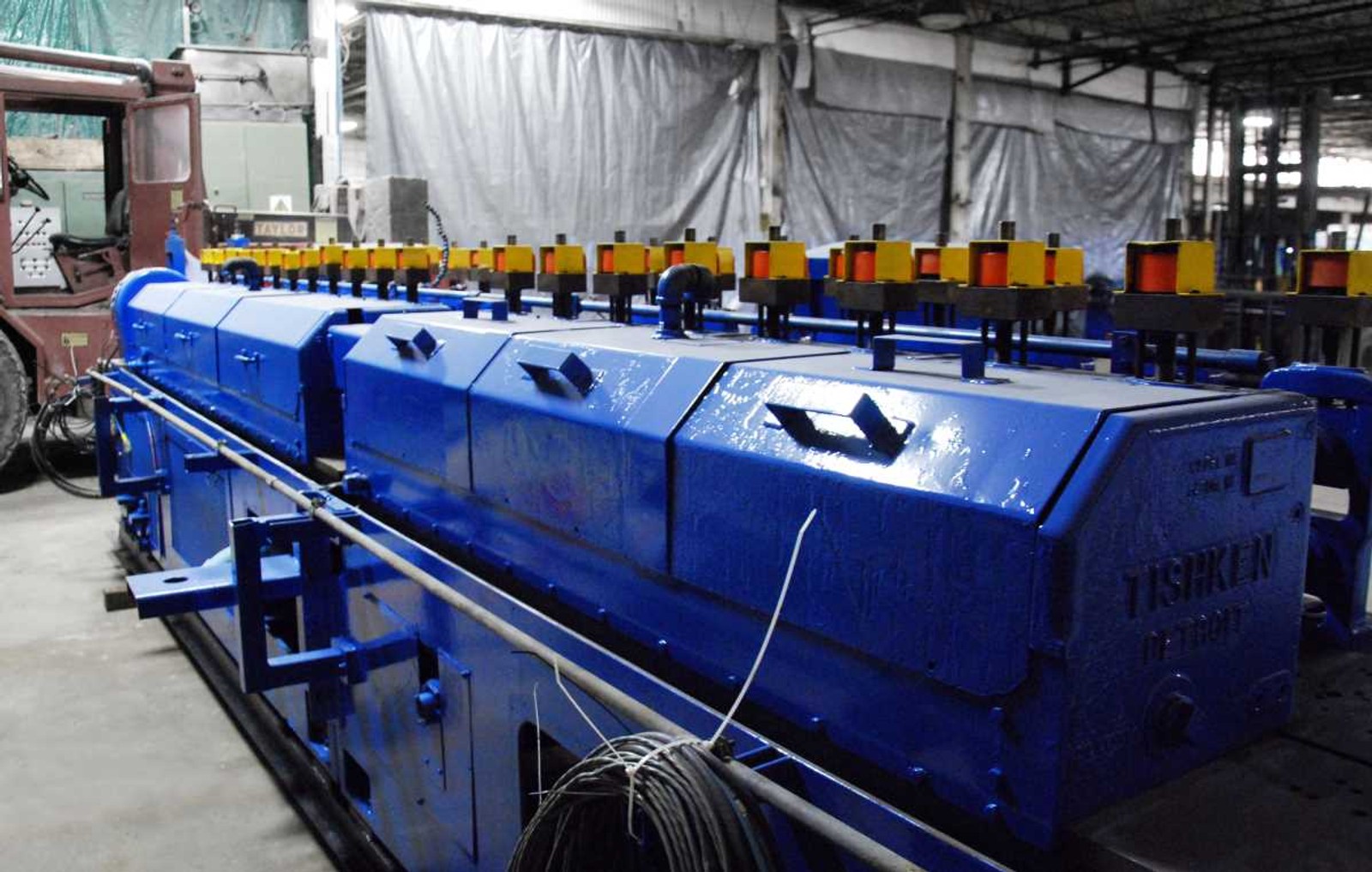

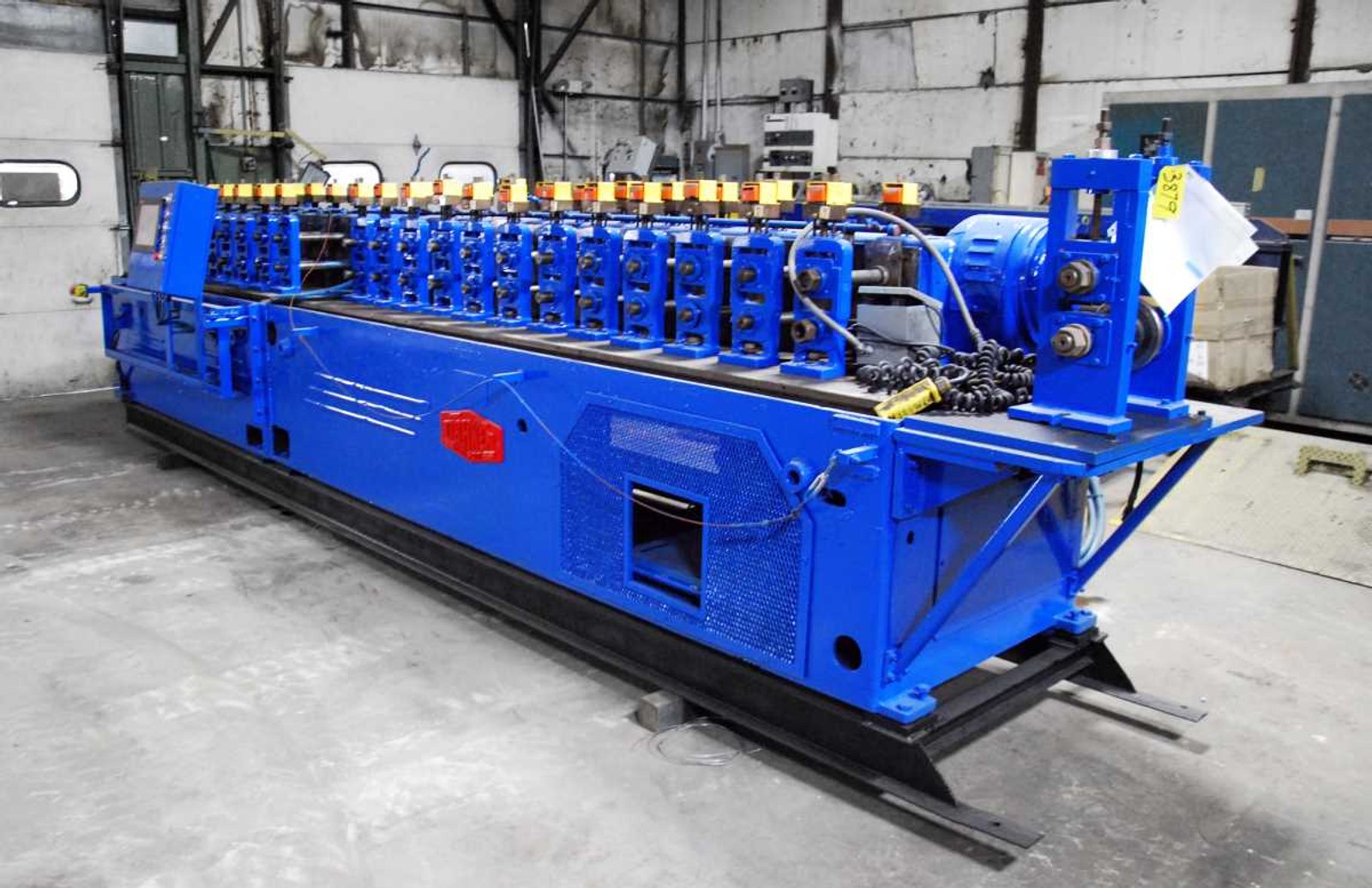

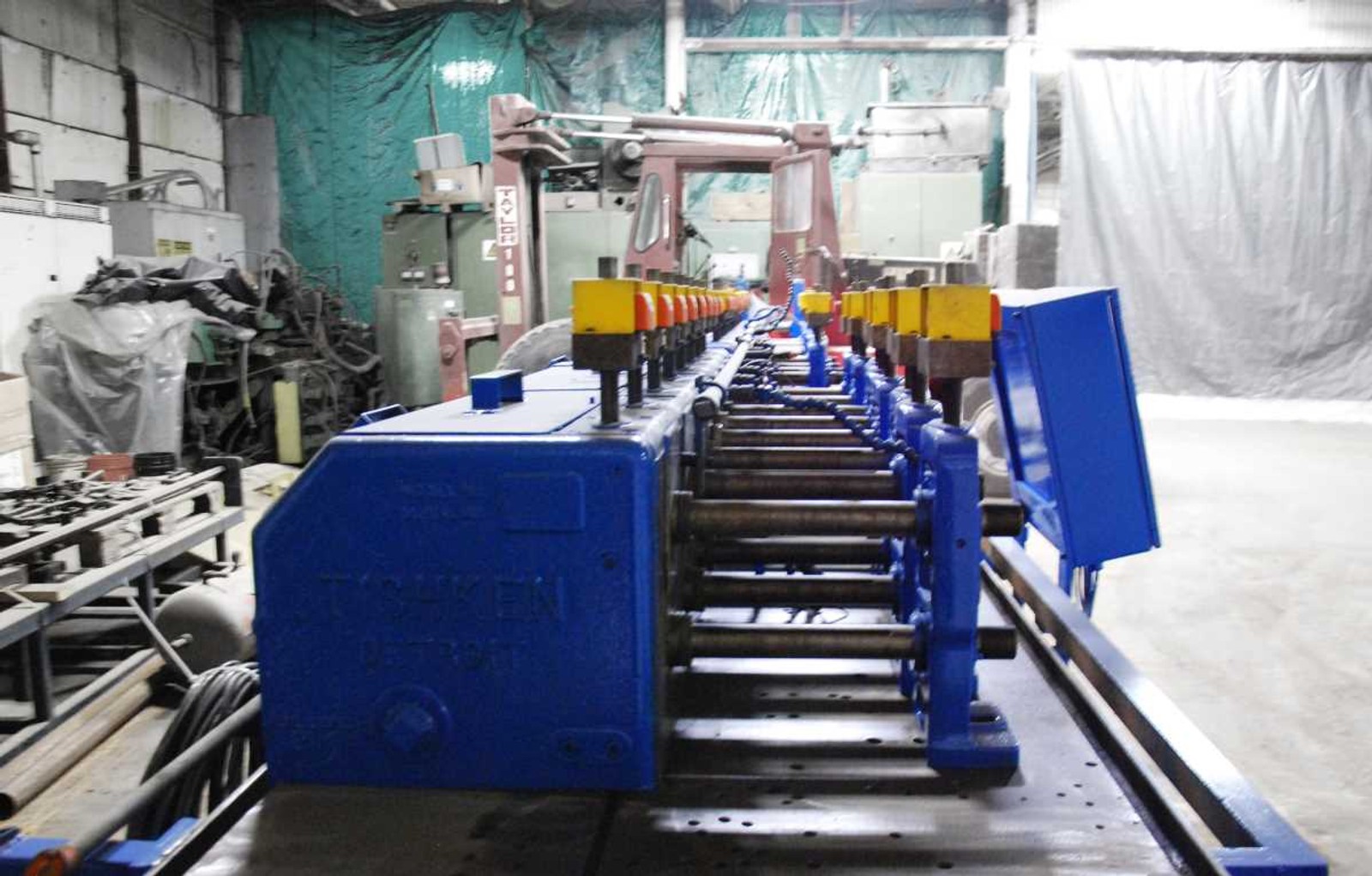

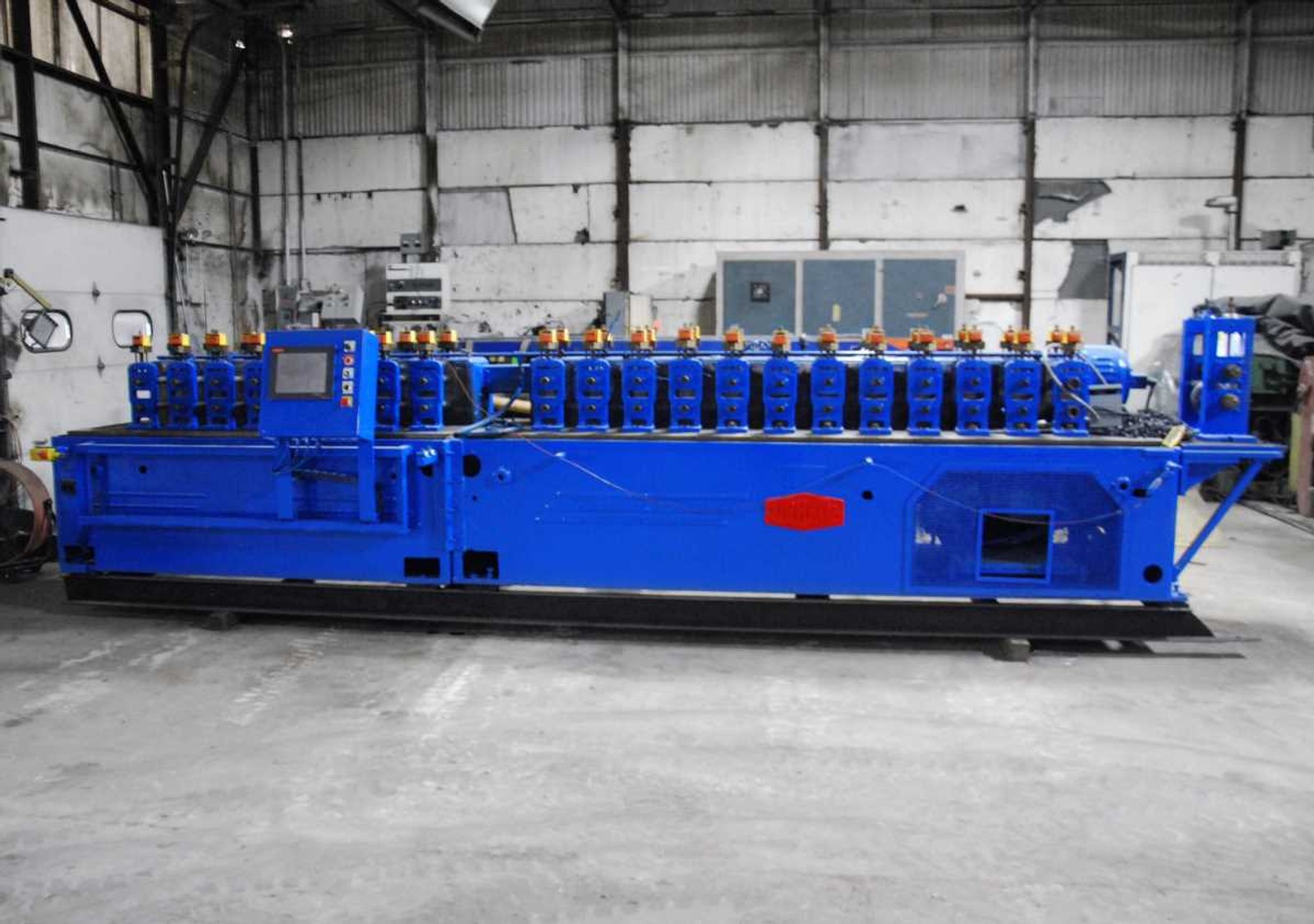

Name: 20 Stand x 1-1/2″ x 8″ TISHKEN #20HM1-1/2 Rollformer
Brand: TISHKEN
SKU: 3879

Manufacturer

TISHKEN

Spec Sheet

UTUBE NUMBER: 3879
MANUFACTURER: TISHKEN
MODEL NUMBER: 20 HMW 1-1/2
SERIAL NUMBER: 15212A-11-73

SPECIFICATIONS:
Line Direction: Right to Left
Number of Stands: 20
Spindle Diameter: 1-1/2″
Roll Space: 8″
Horizontal Center: 9″
Vertical Adjustment: 4-1/2″ – 5-1/2″
Base to Center Line of Lower Spindle: 4-1/2″

EQUIPPED WITH:
Motor
Start/Stop, Run/Jog Buttons
Electric Panel

CONDITION: Good as Taken from Service

OVERALL DIMENSIONS: 19′ x 4′ x 4′
APPROXIMATE WEIGHT: 14,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
