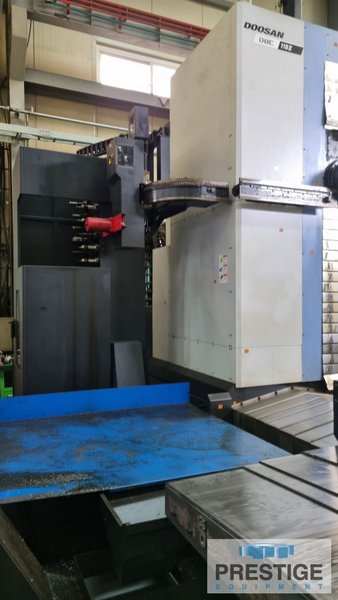

Doosan DBC-110, X-98", Y-78", Z-59", W-21.6", 4.33" Spl. dia., 4,000 RPM, 60-ATC, C.T.S, Fanuc 31i CNC, 2018, #43008

Manufacturer

DOOSAN

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43008

Model

DBC-110

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43008

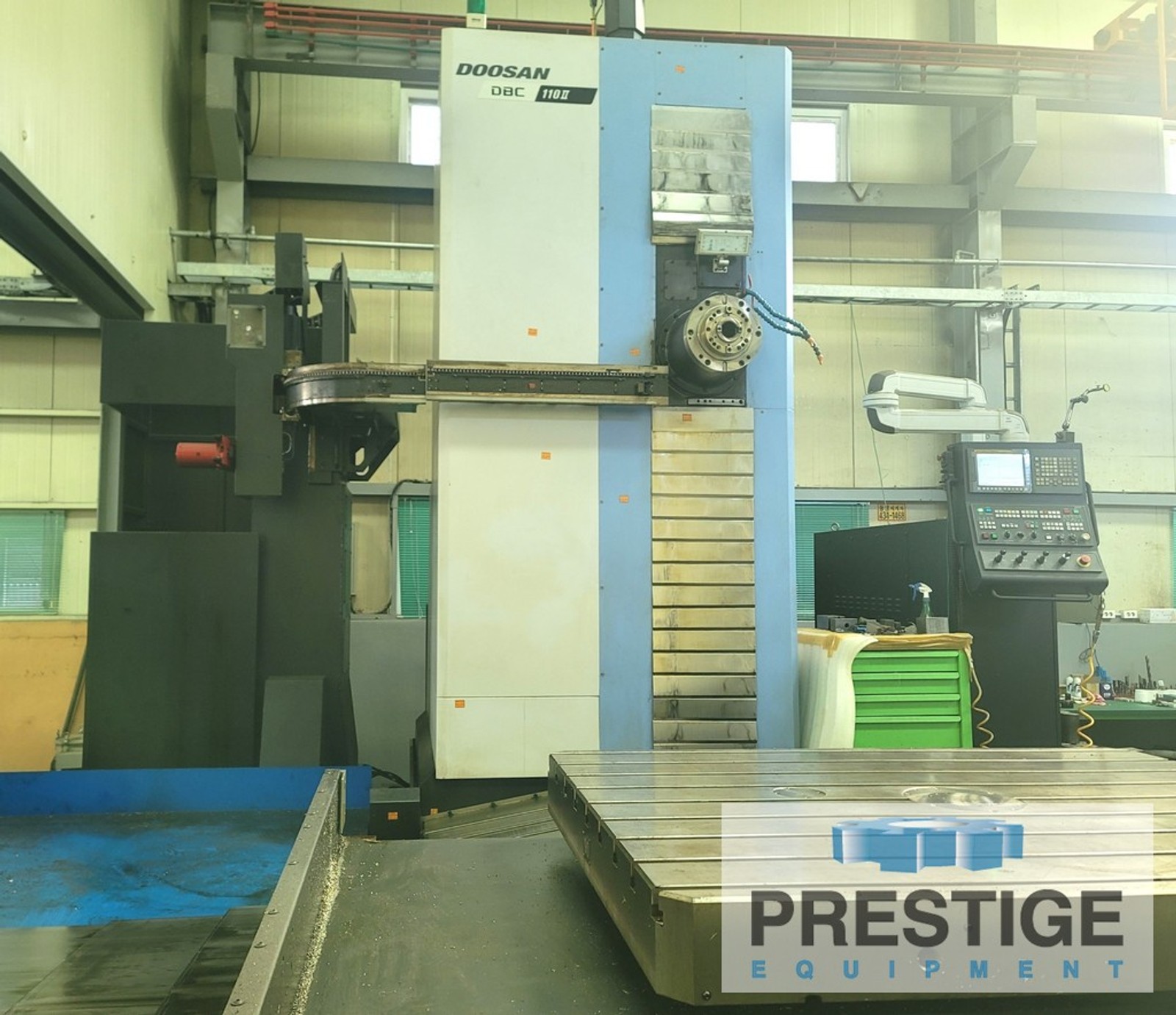

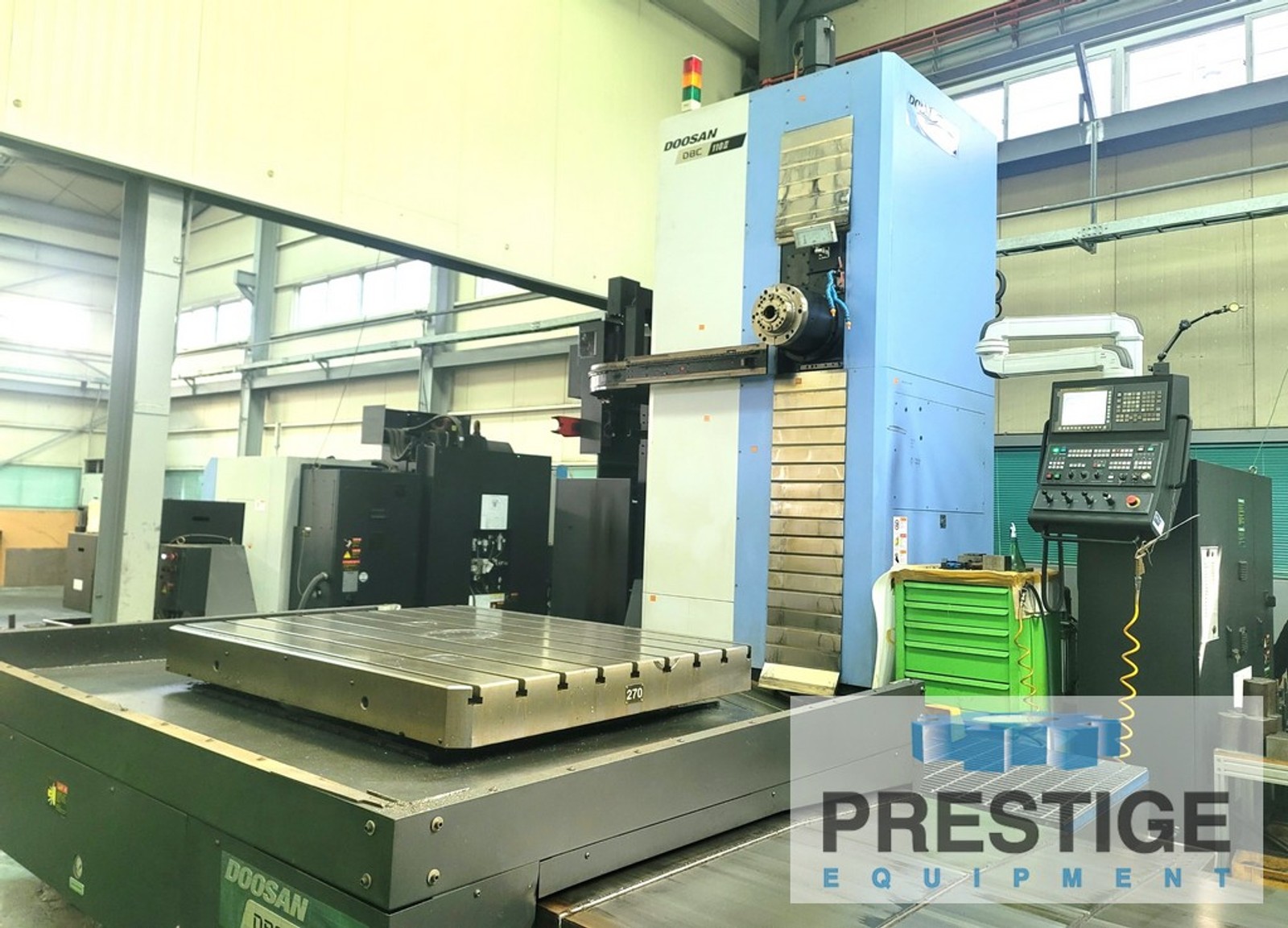

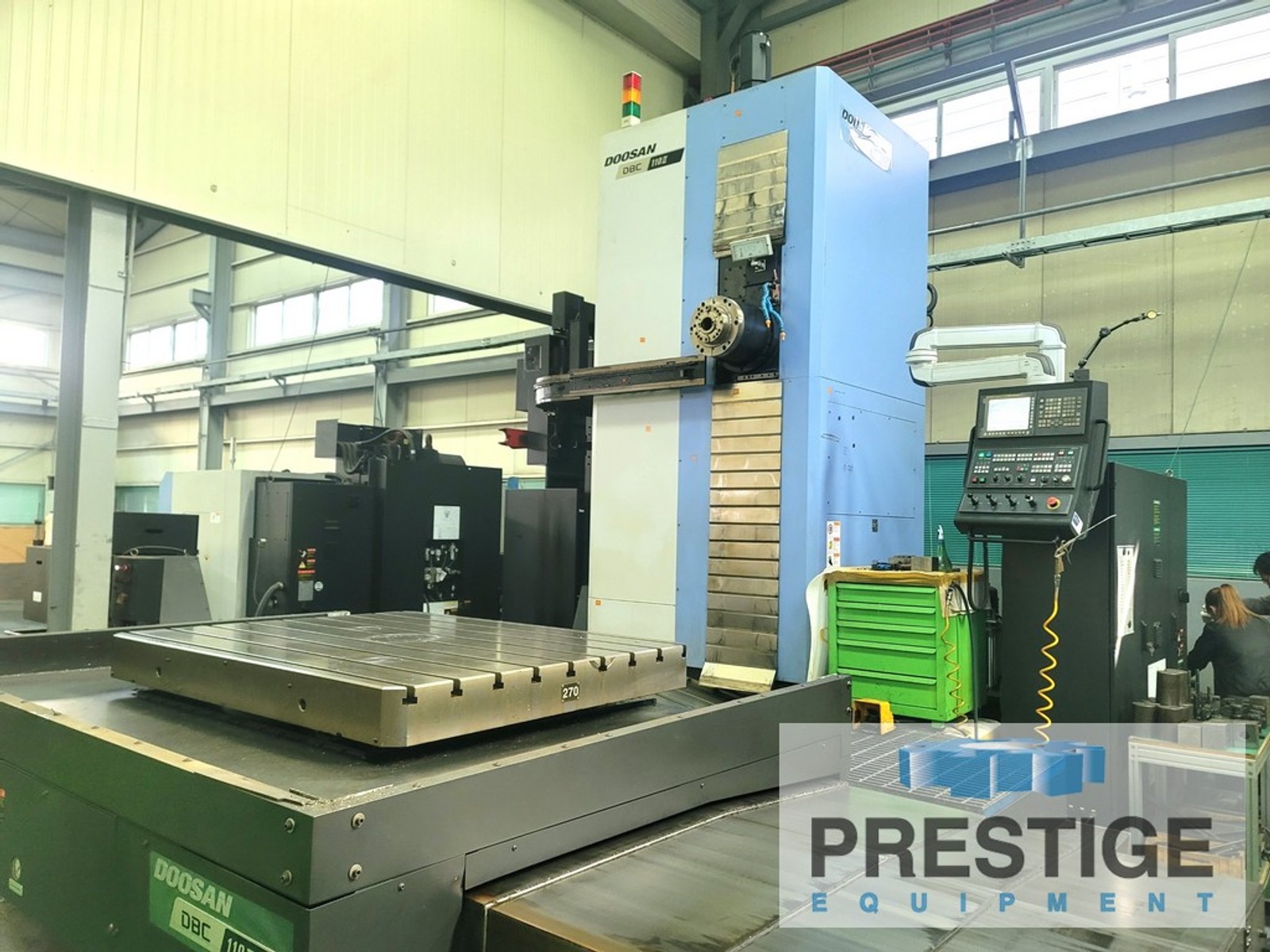

Doosan DBC110-II 4.33" CNC Table Type Boring Mill

FEATURES:

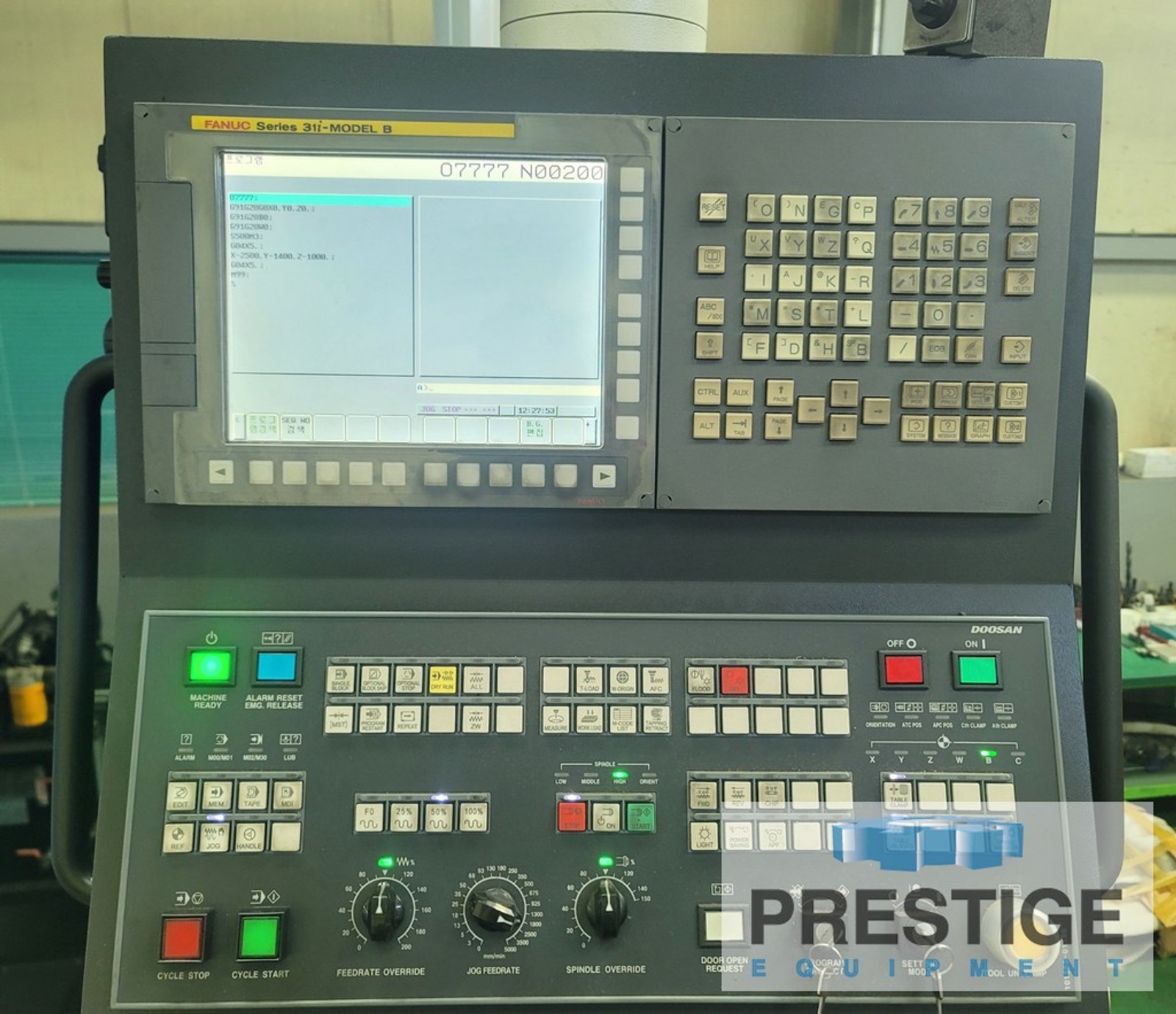

Fanuc 31i-B CNC Control
Built In B-Axis Rotary Table

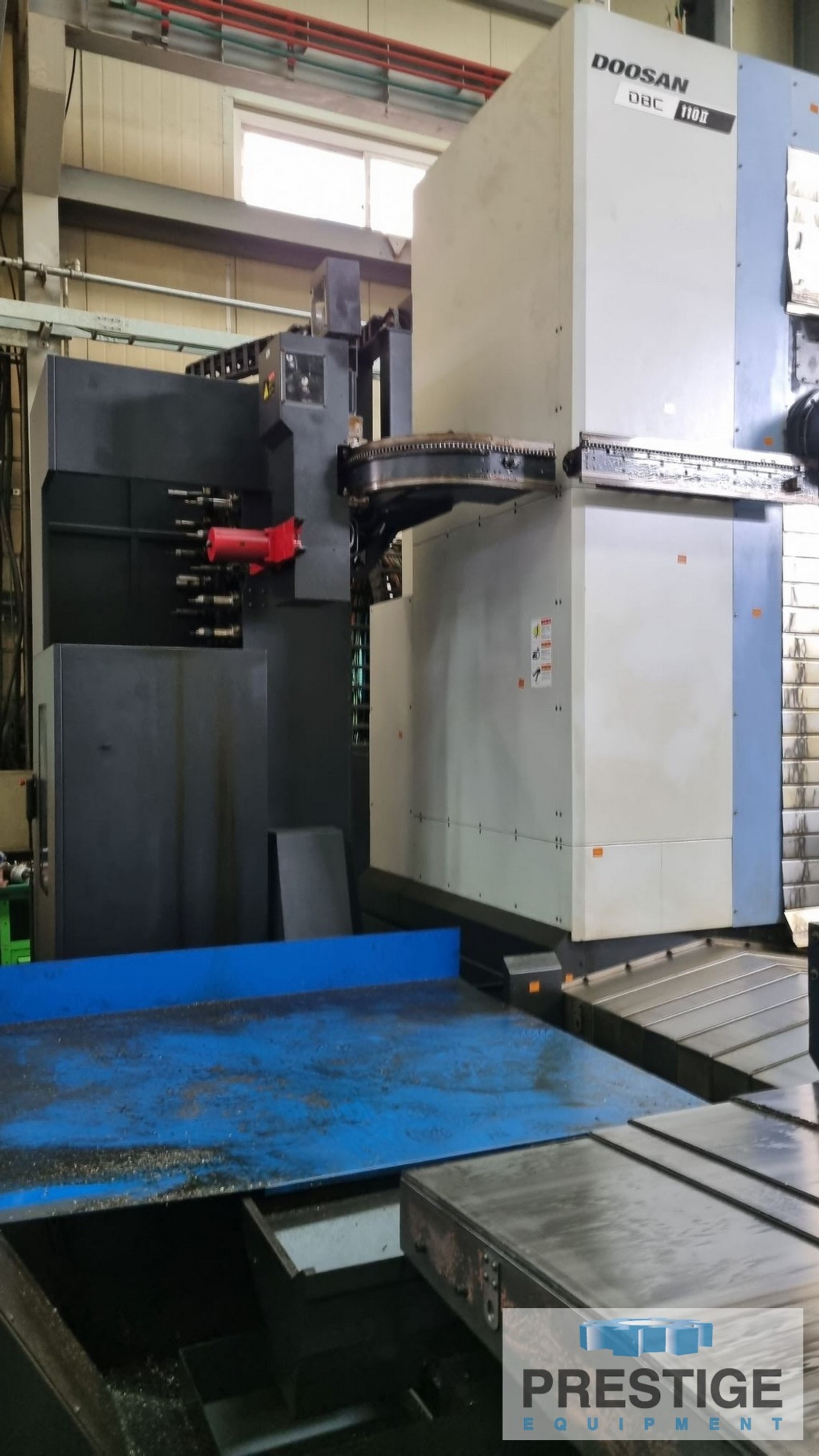

60-Station Automatic Tool Changer

CAPACITY:

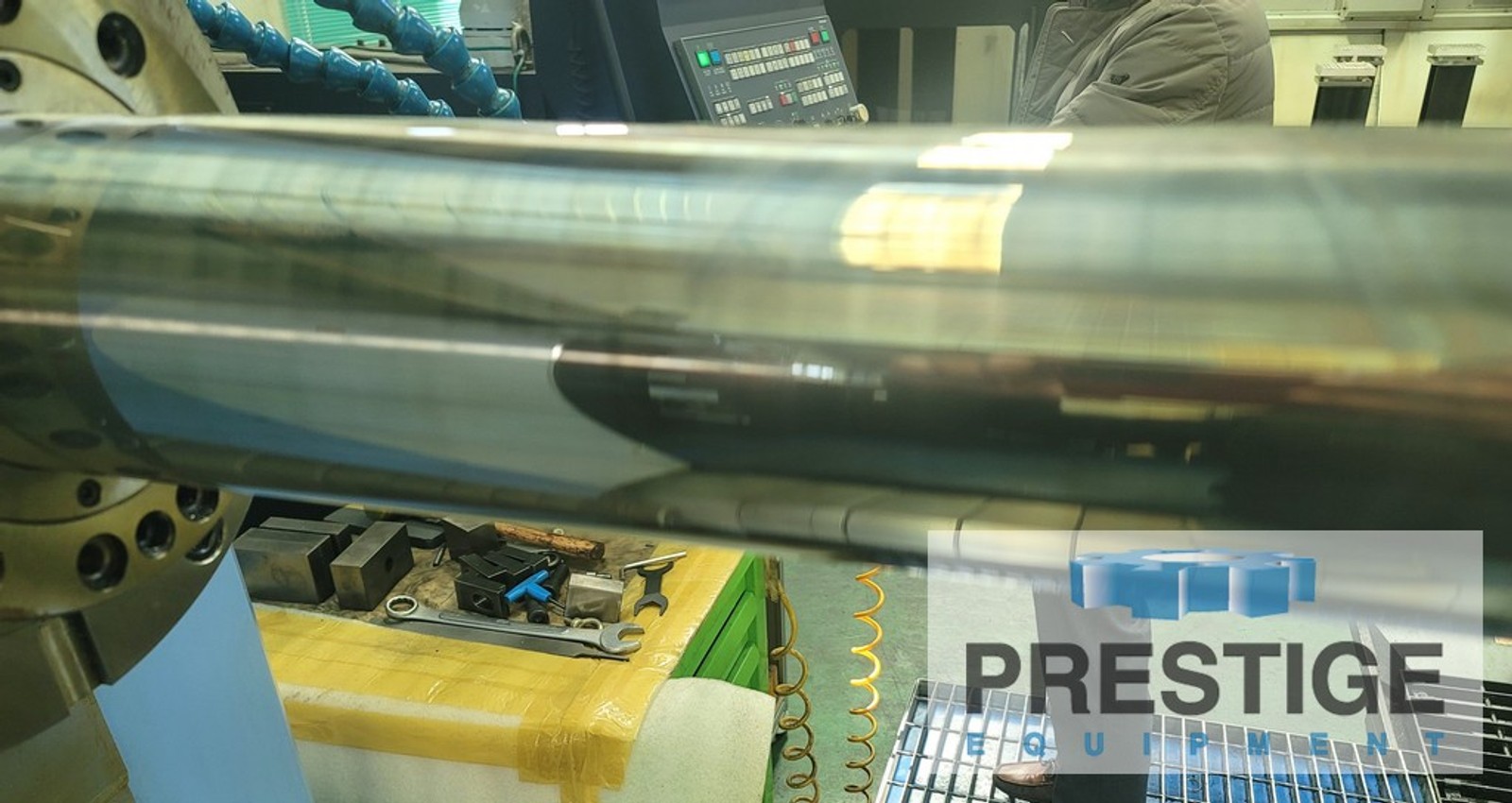

Spindle Diameter ...................... 4.33"
Spindle Taper ......................... #50
Vertical Headstock Travel,Y-Axis ...... 78.74"
Table Cross Travel, X-Axis ............ 98.42"
Spindle Travel, W-Axis ................ 21.65"
Column Infeed Travel, Z-Axis .......... 59.05"
Distance Spindle Center to Table Top .. 0"-78.7"
Spindle Nose to Table Center .......... 22.7"-80.7"

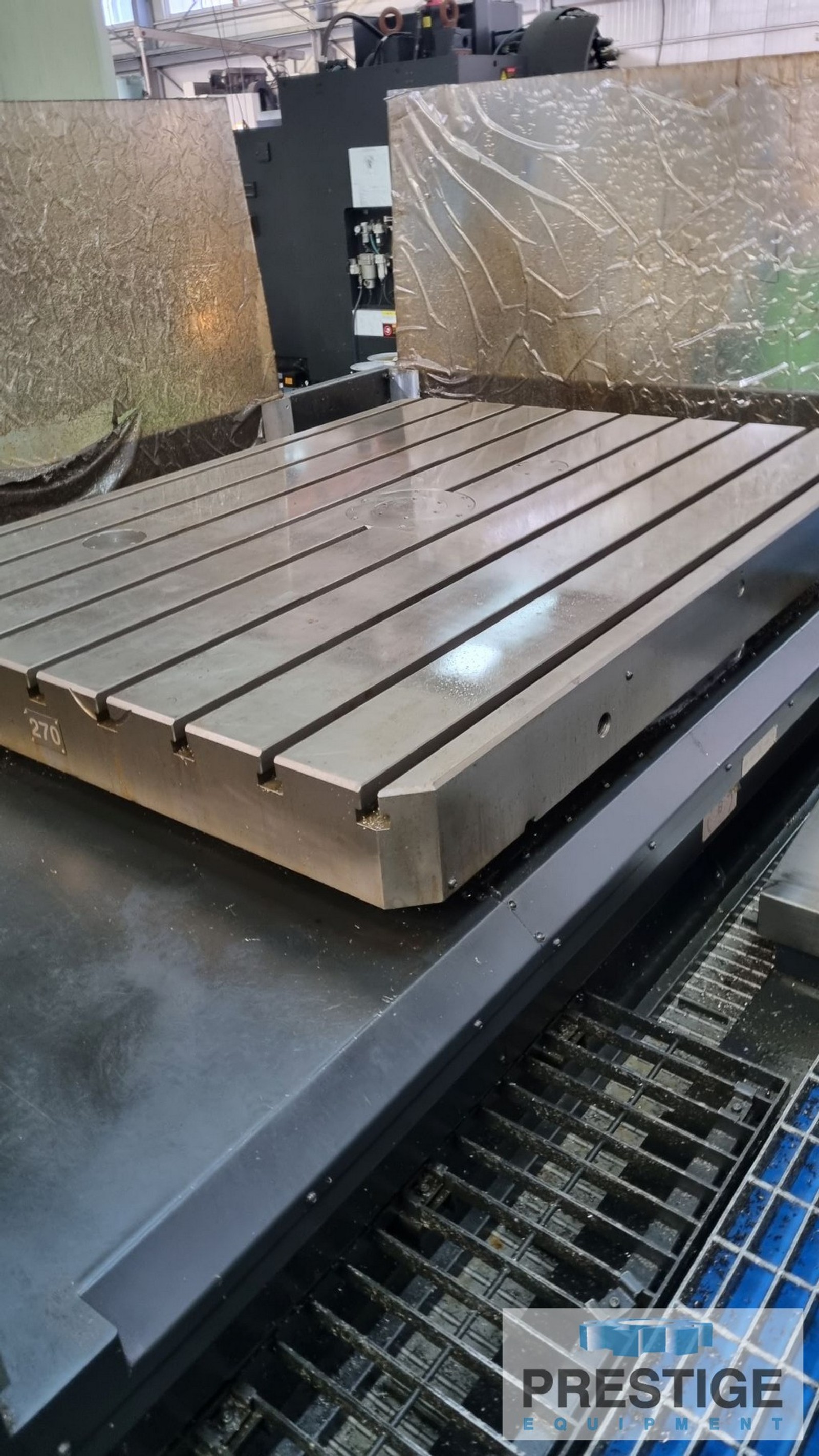

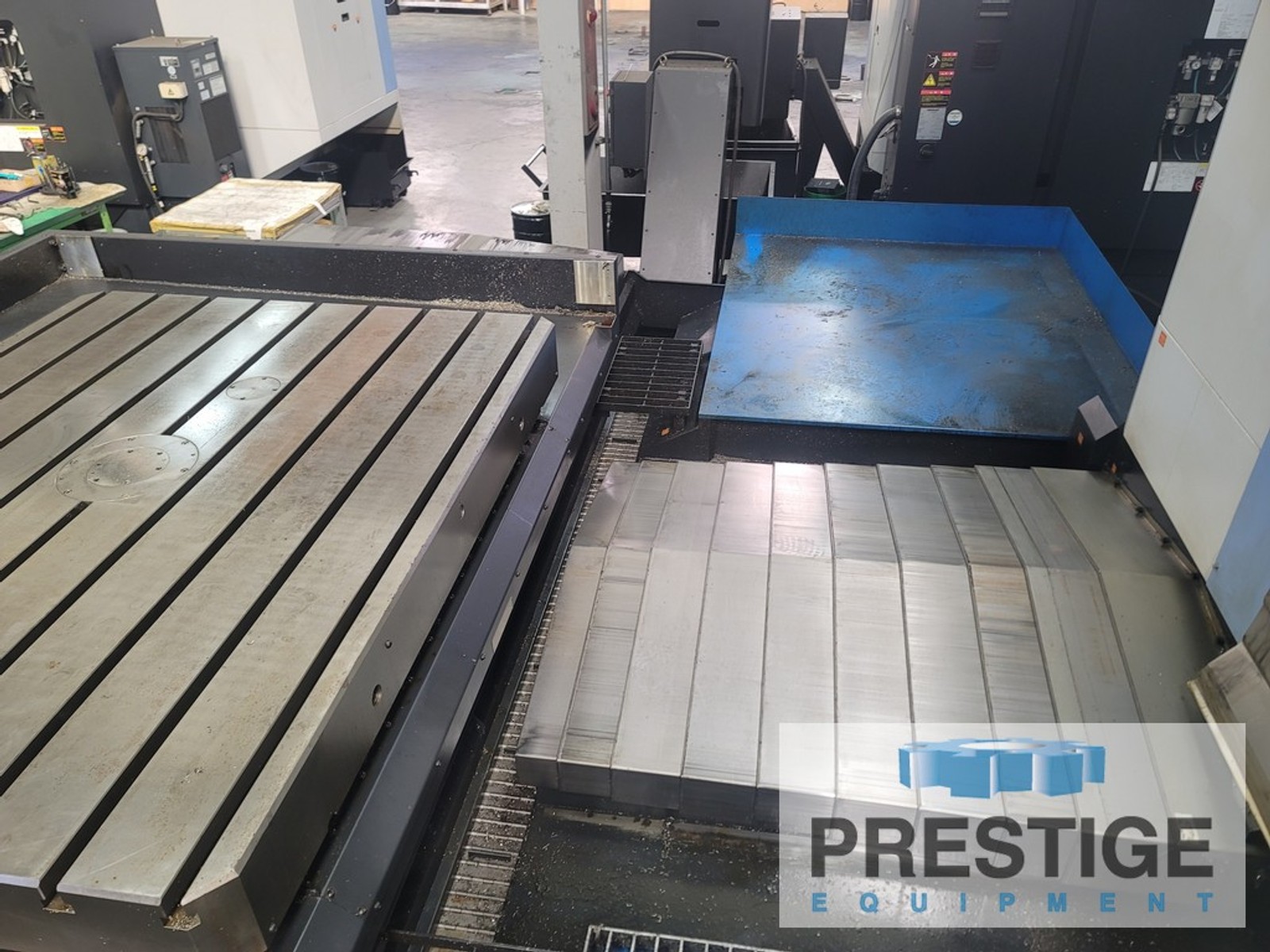

Table Size, B-Axis .................... 55.1" x 70.8"
Rotary Table Weight Capacity .......... 22,046 Lbs
B-Axis Table Rotation ................. .001 Degree
Maximum Spindle Speeds ................ 4,000 RPM
Rapid Traverse Rate (All Axes) ........ 472.44 IPM
Cutting Feedrate (X/Y/Z Axes) ......... 1-236.22 IPM
Overall Height ........................ 191.4"
Floor Space ........................... 274.8" x 301.5"
Estimated Machine Weight .............. 79,366 Lbs

EQUIPPED WITH:
Fanuc 31i-B CNC Control
B-Axis Built In Rotary Table
60-Station Automatic Tool Changer
Chip Conveyor
40 HP Main Motor
