3.93" Tos WH 10 CNC, X-49", Y-43", Z-37", W-27", 39" x 44" R.Tab, Heidenhain iTNC530 CNC, 2016, #32973

Manufacturer

TOS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32973

Model

WH 10

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32973

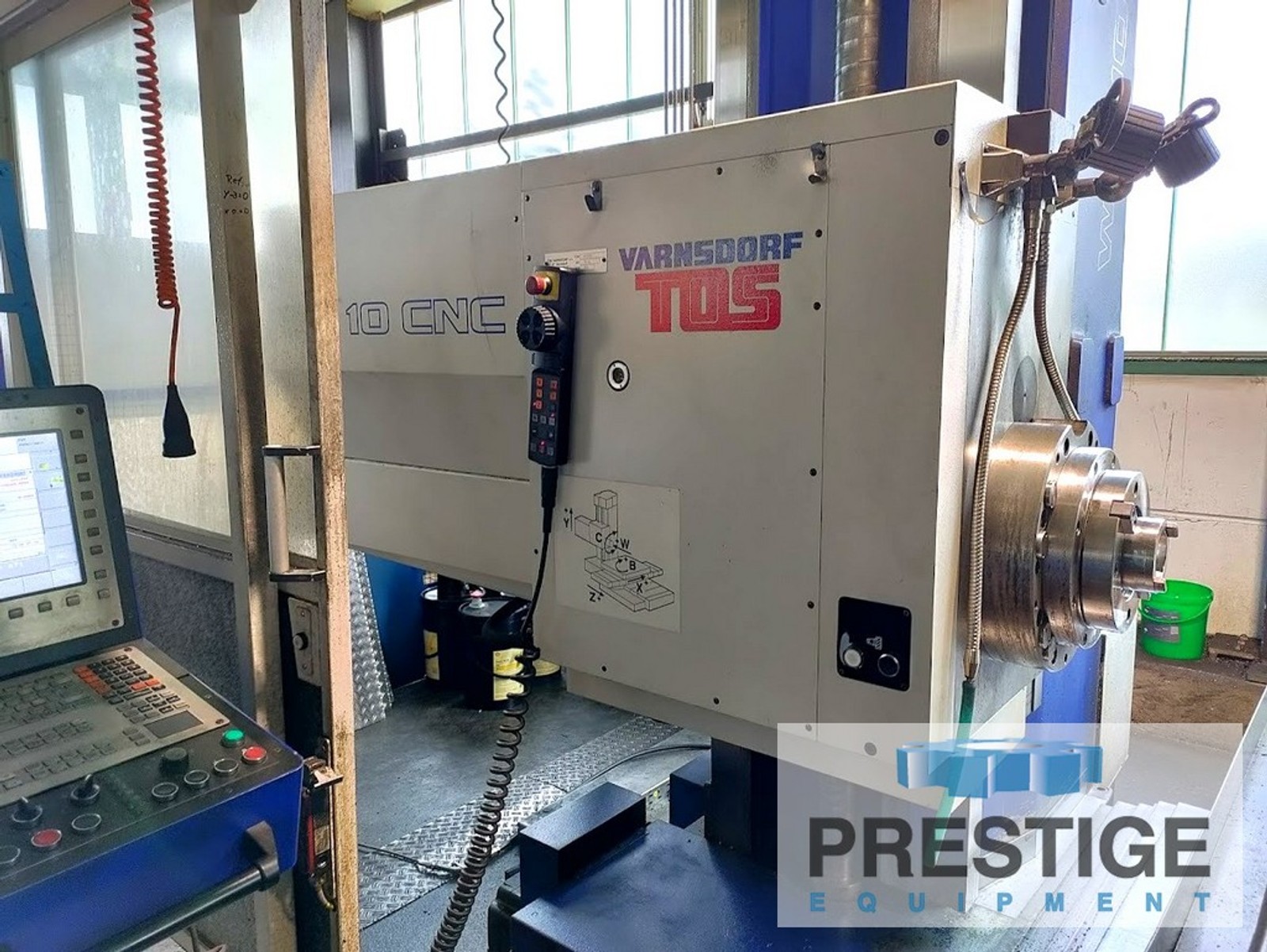

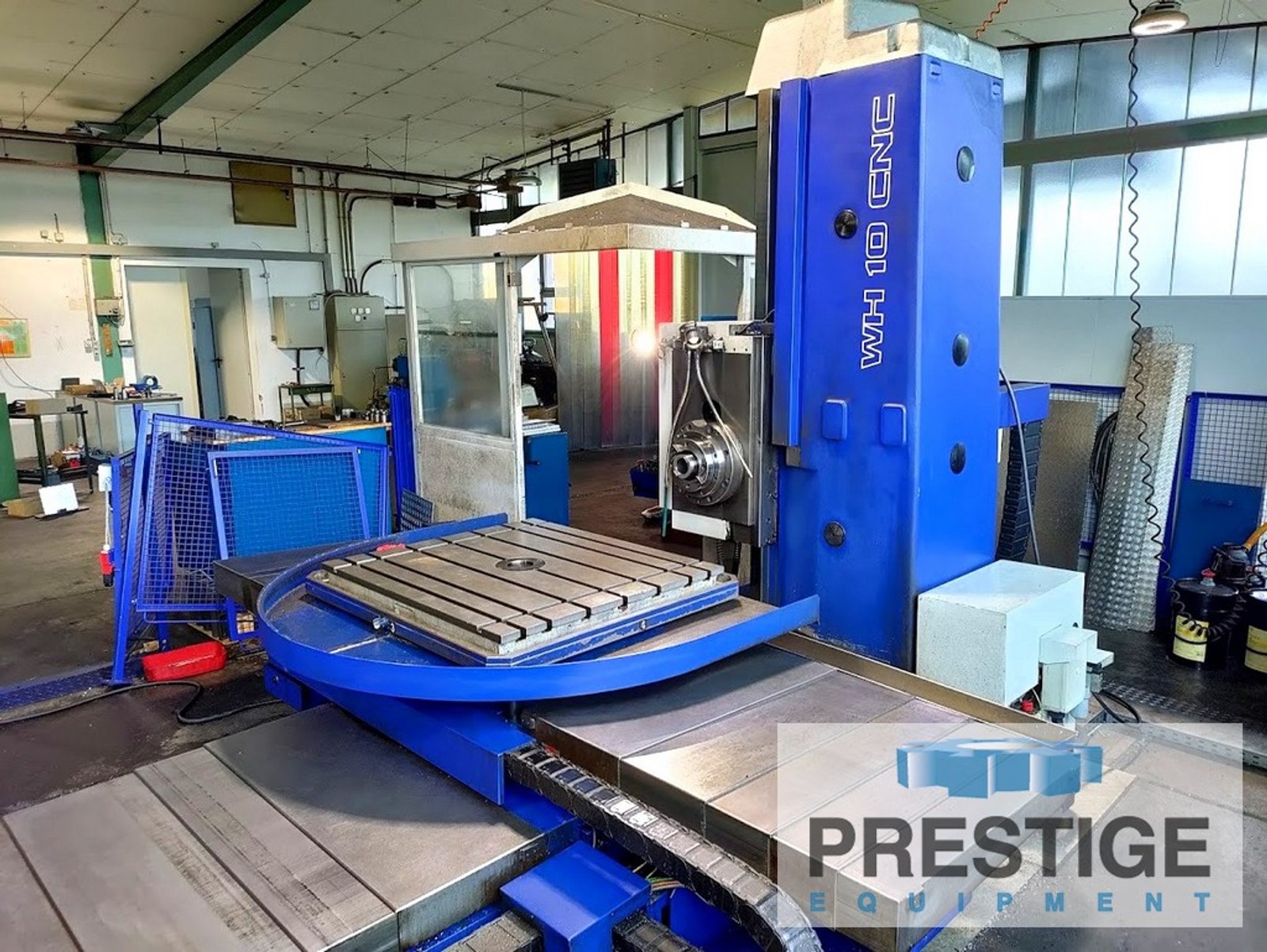

3.93" Tos WH 10 CNC Table Type Horizontal Boring Mill

FEATURES:
Heidenhain iTNC 530 CNC Control
39.37" x 44.09" Built In B-Axis Rotary Table
46 HP Spindle Motor

SPECIFICATION:

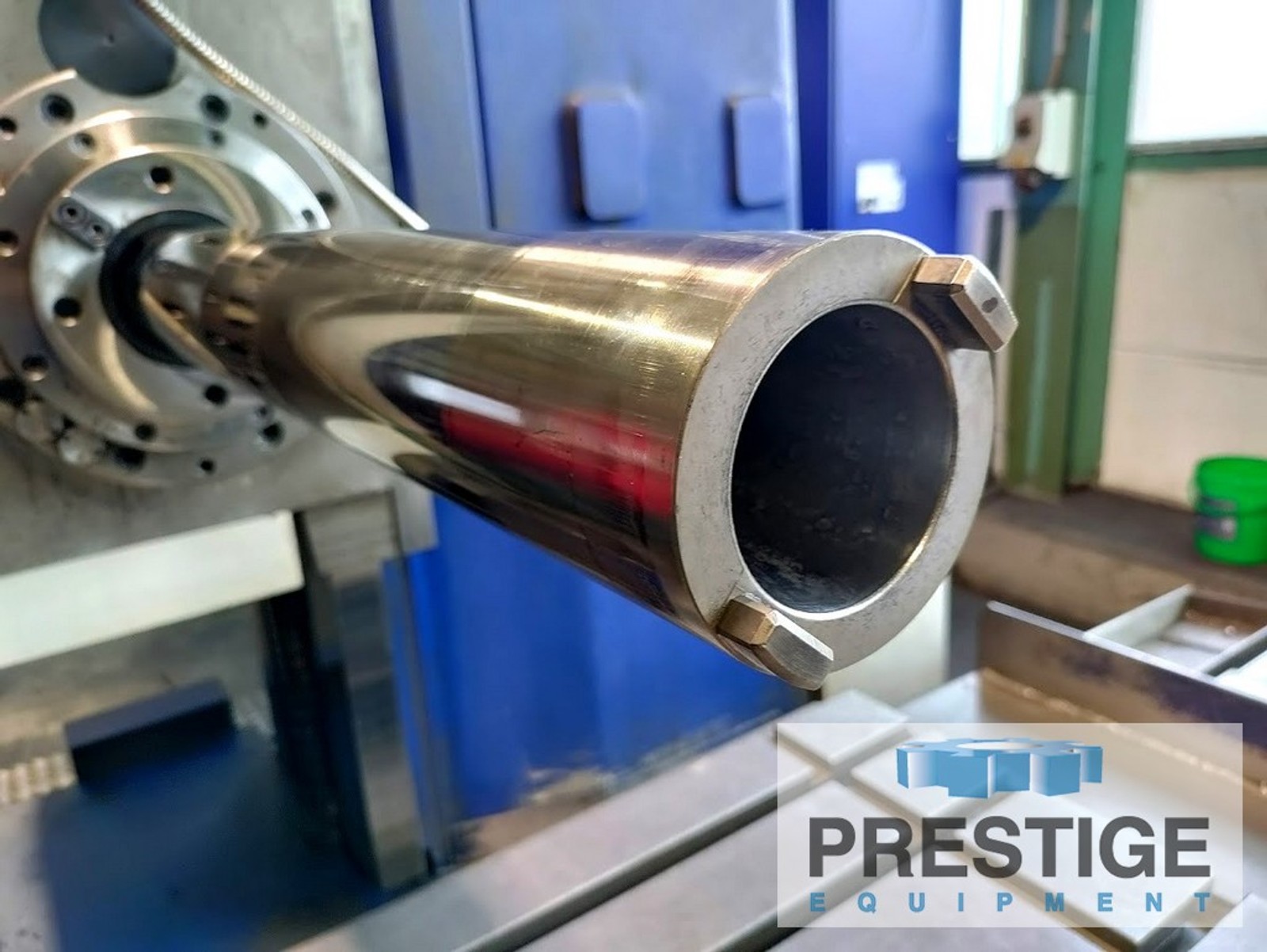

Spindle Diameter ...................... 3.93"
X-Axis, Table Cross Travel ............ 49.21"
Y-Axis, Headstock Vertical ............ 43.30"
Z-Axis, Table Infeed .................. 37"
W-Axis, Spindle Stroke ................ 27.95"
Table Dimensions ...................... 39.37" x 44.09"
Table Weight Capacity ................. 6,600 Lbs
B-Axis Rotation ....................... .001°
B-Axis Feed Rate ...................... .003 - 2 RPM
Spindle Speed ......................... 2,500 RPM
Spindle Taper ......................... #50
Spindle Motor ......................... 46 HP
Feed Rate, X/Y/Z/W Axes ............... .15 - 314.9 IPM

EQUIPPED WITH:

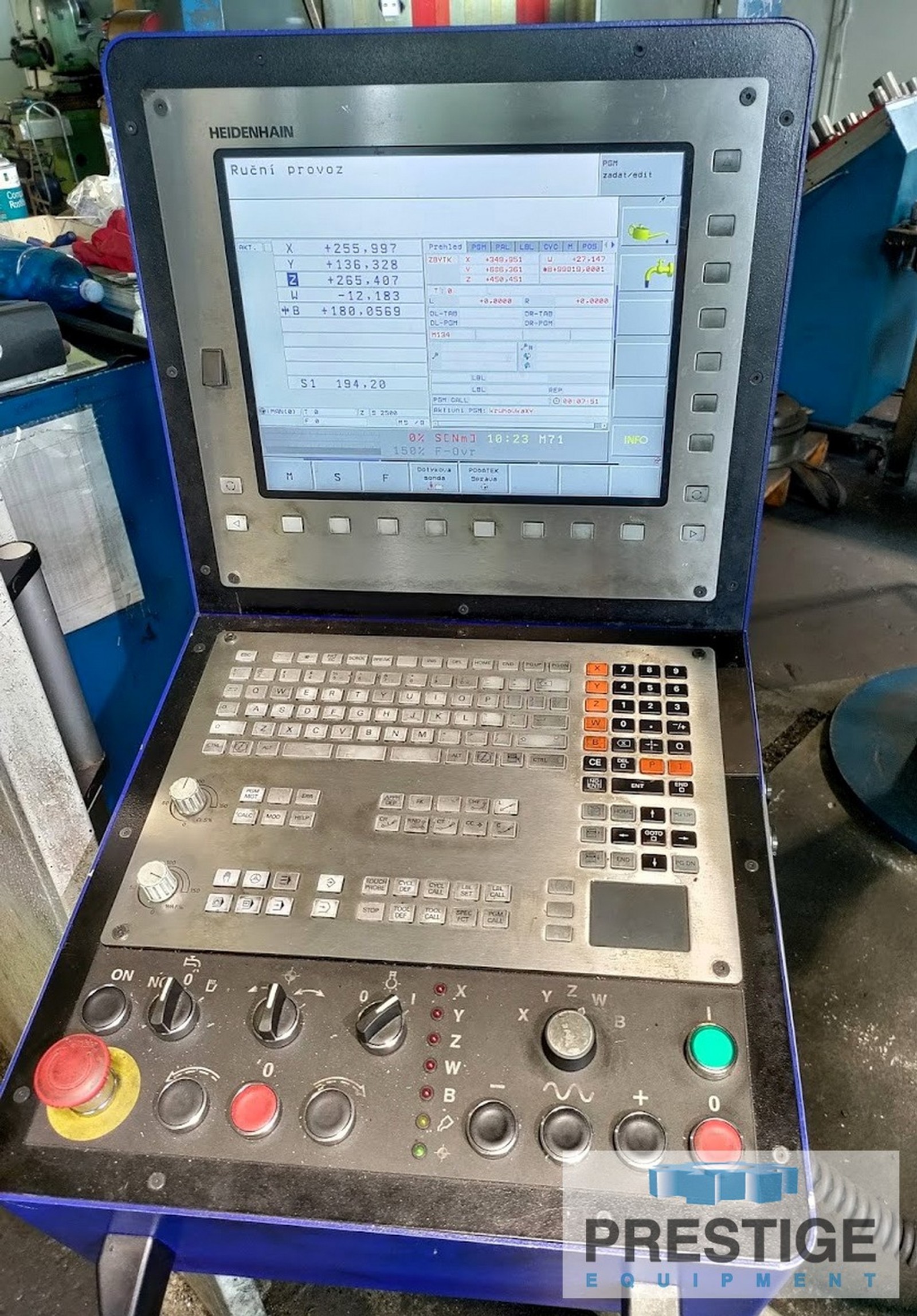

Heidenhain iTNC 530 CNC Control
39.37" x 44.09" Built In B-Axis Rotary Table
46 HP Spindle Motor

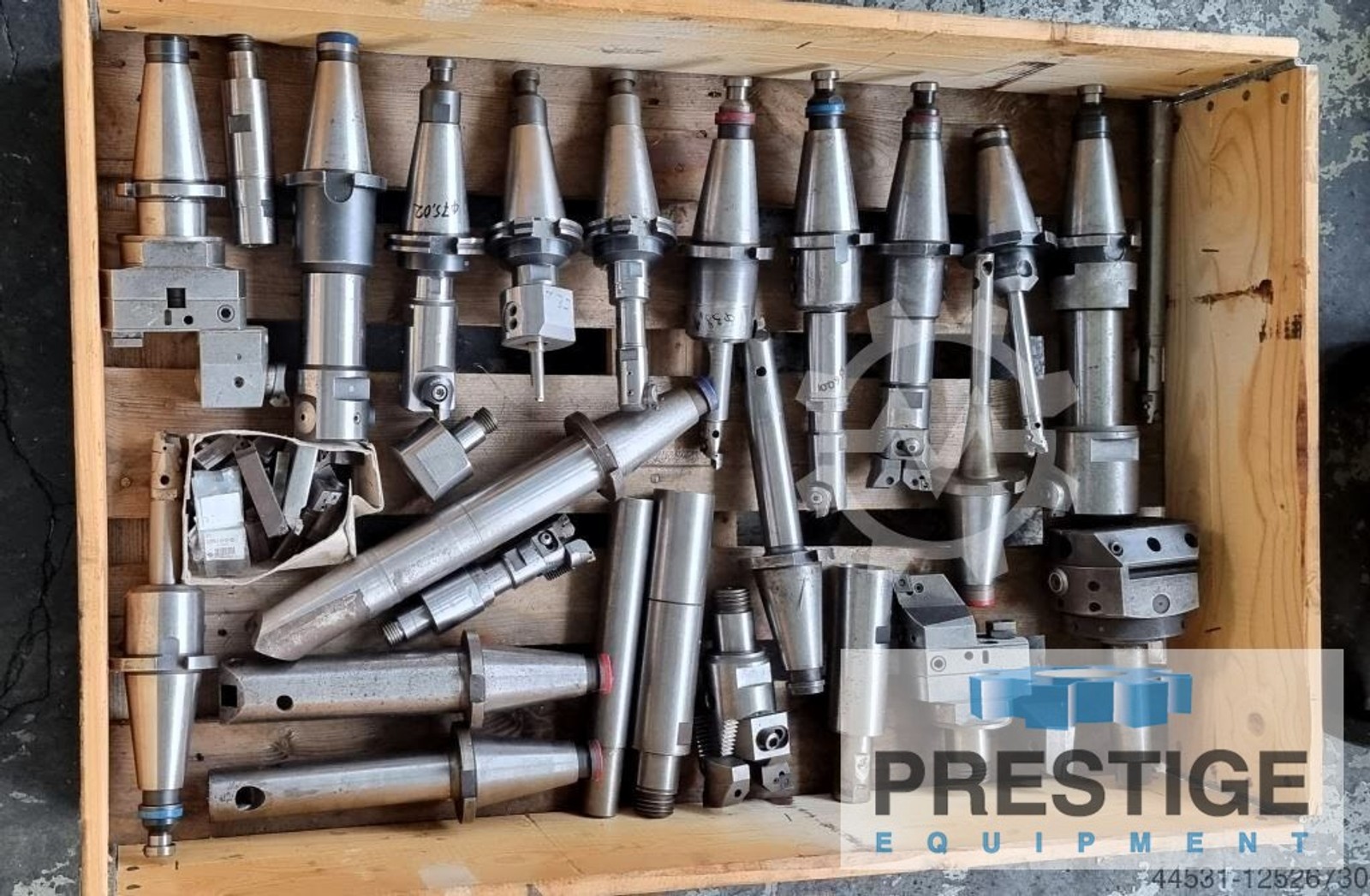

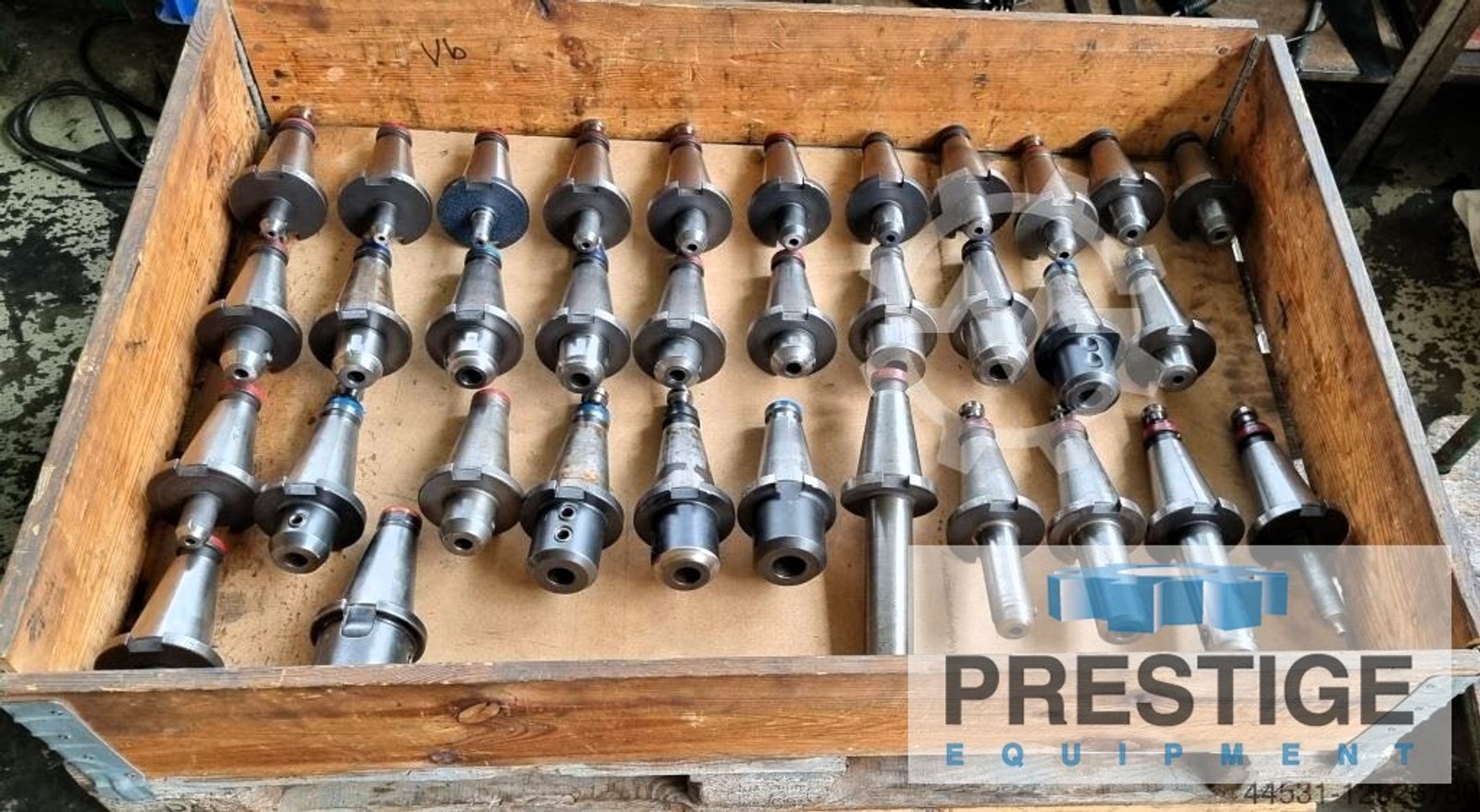

Assorted Tooling
