Adira GHS-0630, 1/4" x 10' , 40" Back Gauge with LED, Blade Gap Adjustment,10' Sq. Arm, 2002, #43012

Manufacturer

ADIRA

Category

Shears

Type

SHEARS, POWER SQUARING (Inches)

Stock

43012

Model

GHS-0630

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43012

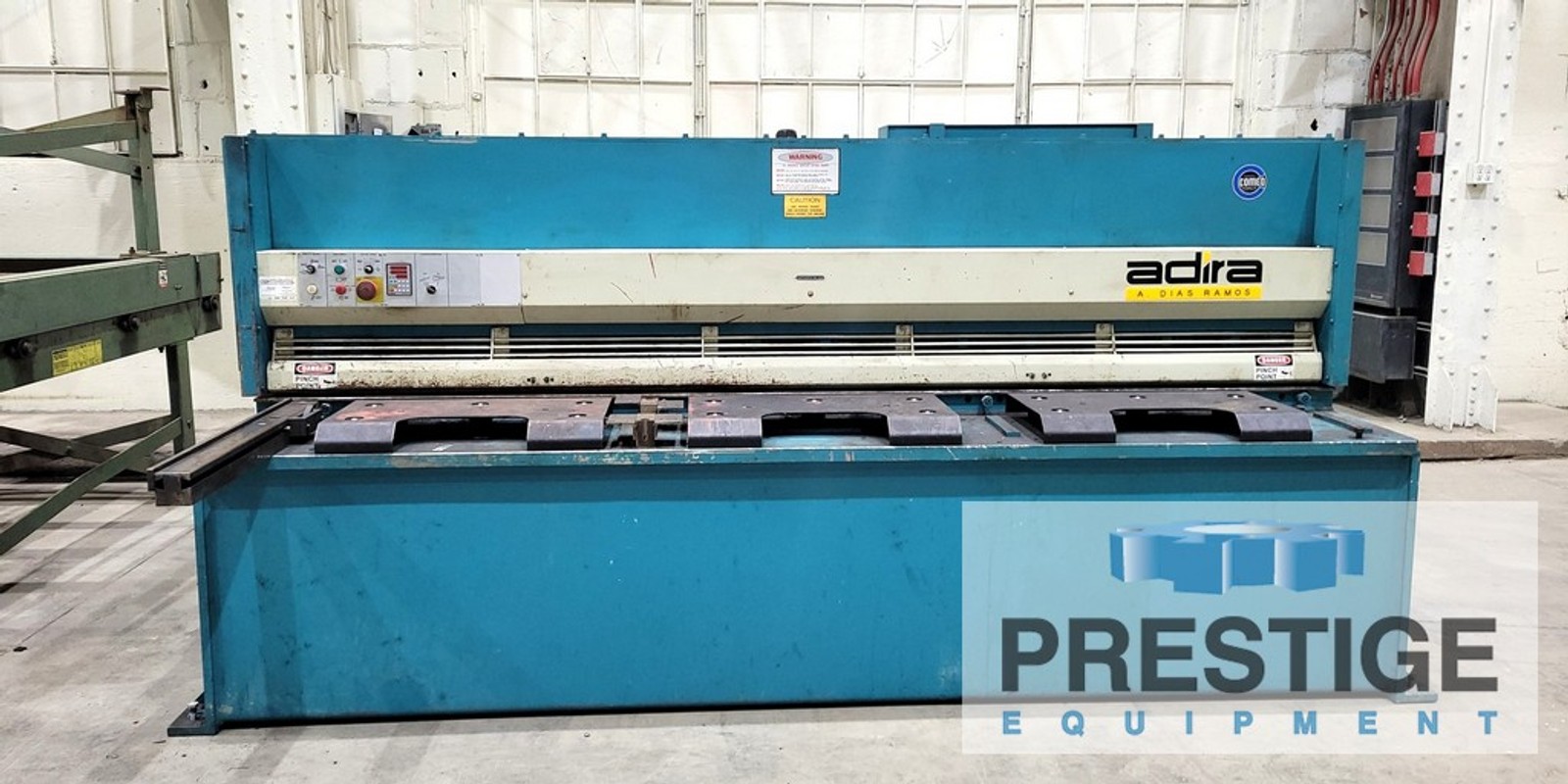

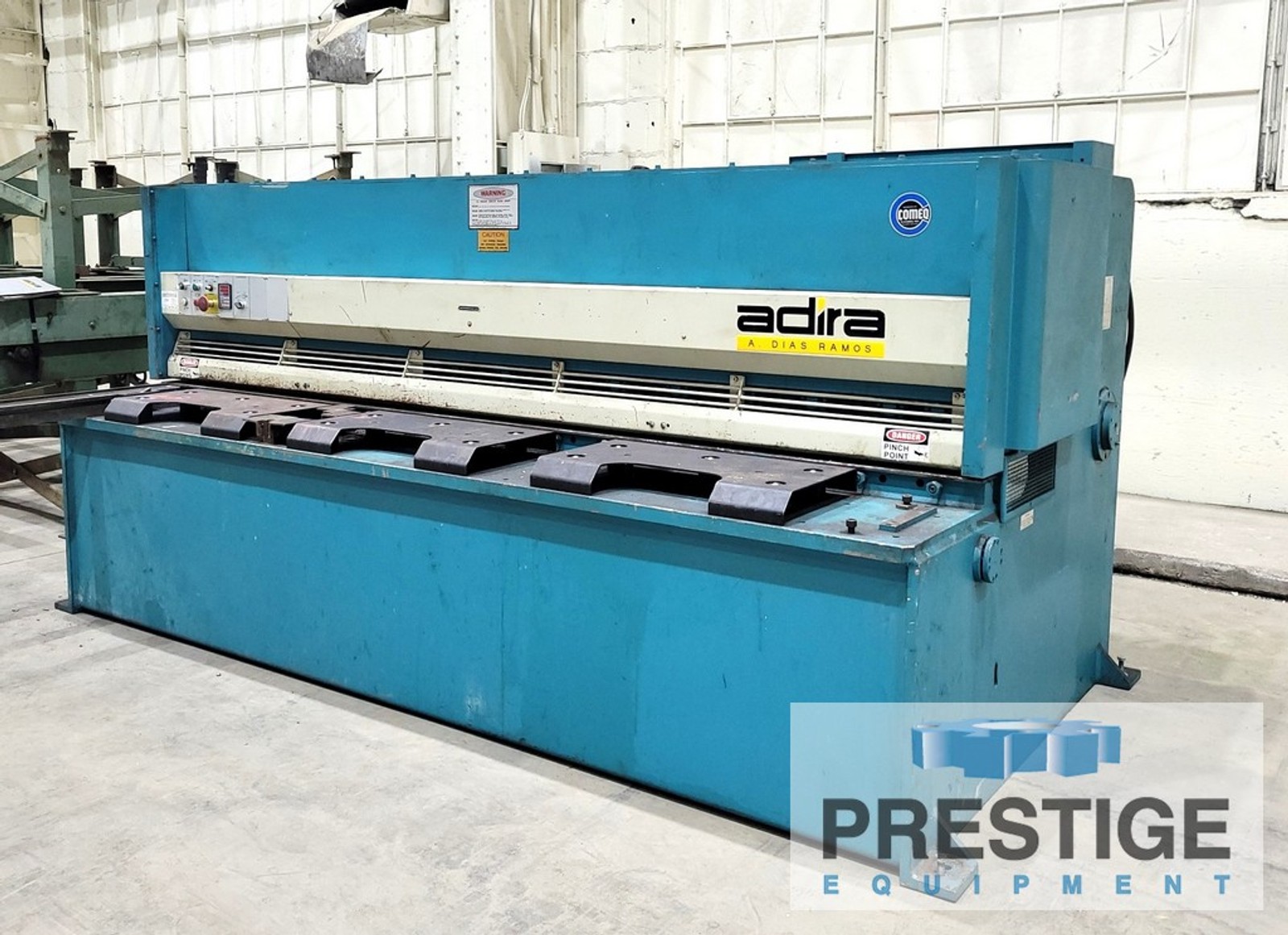

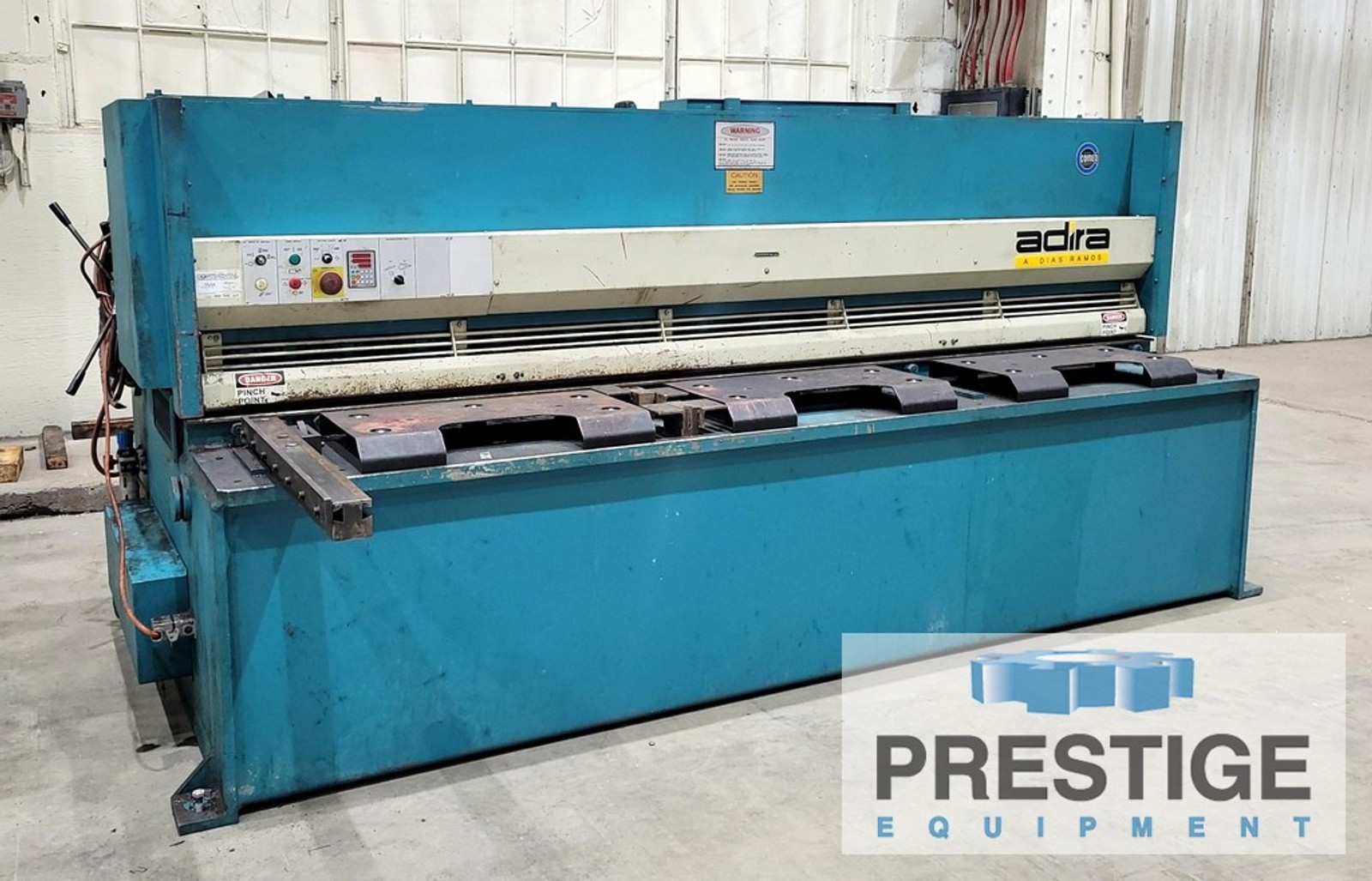

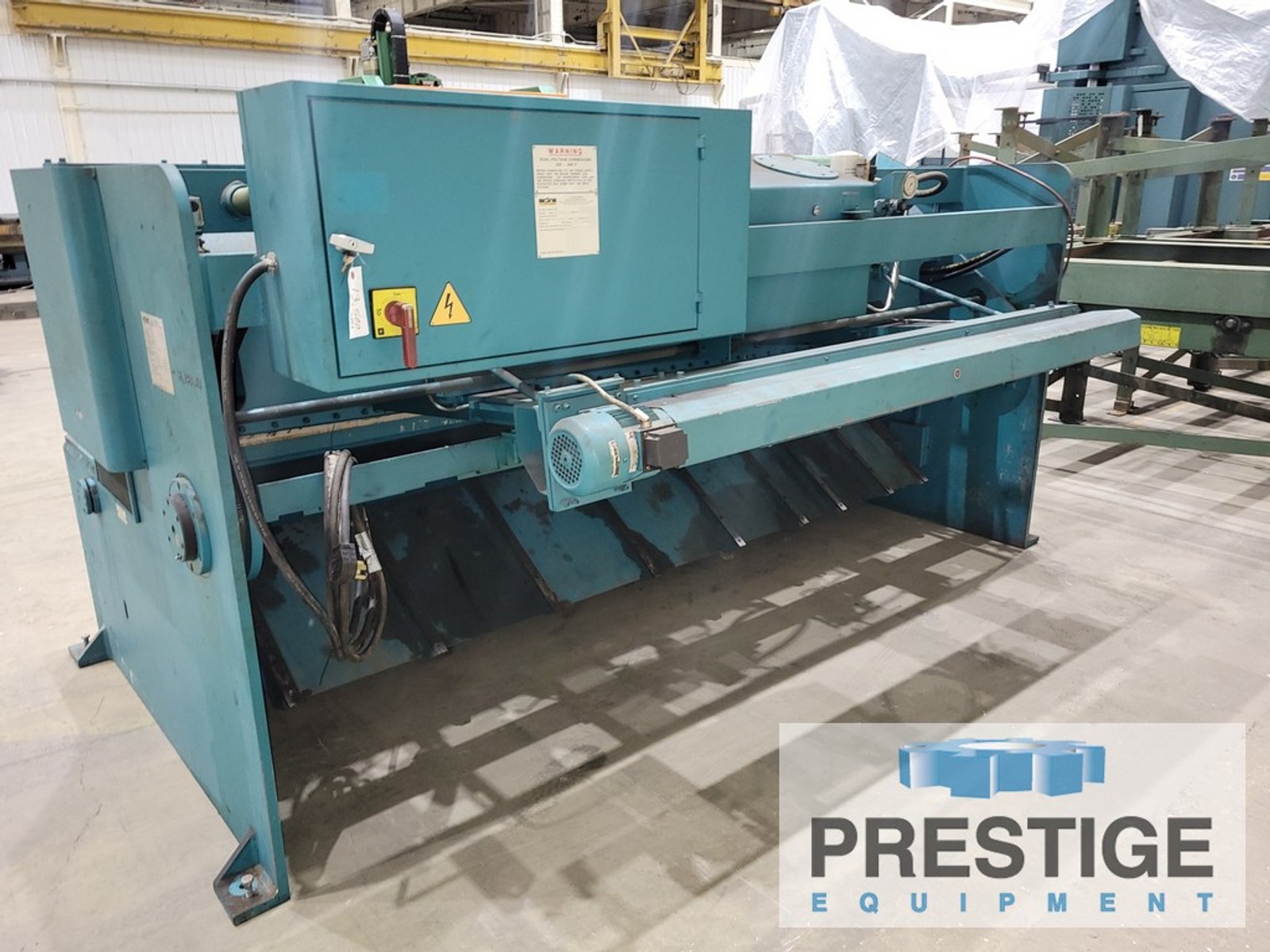

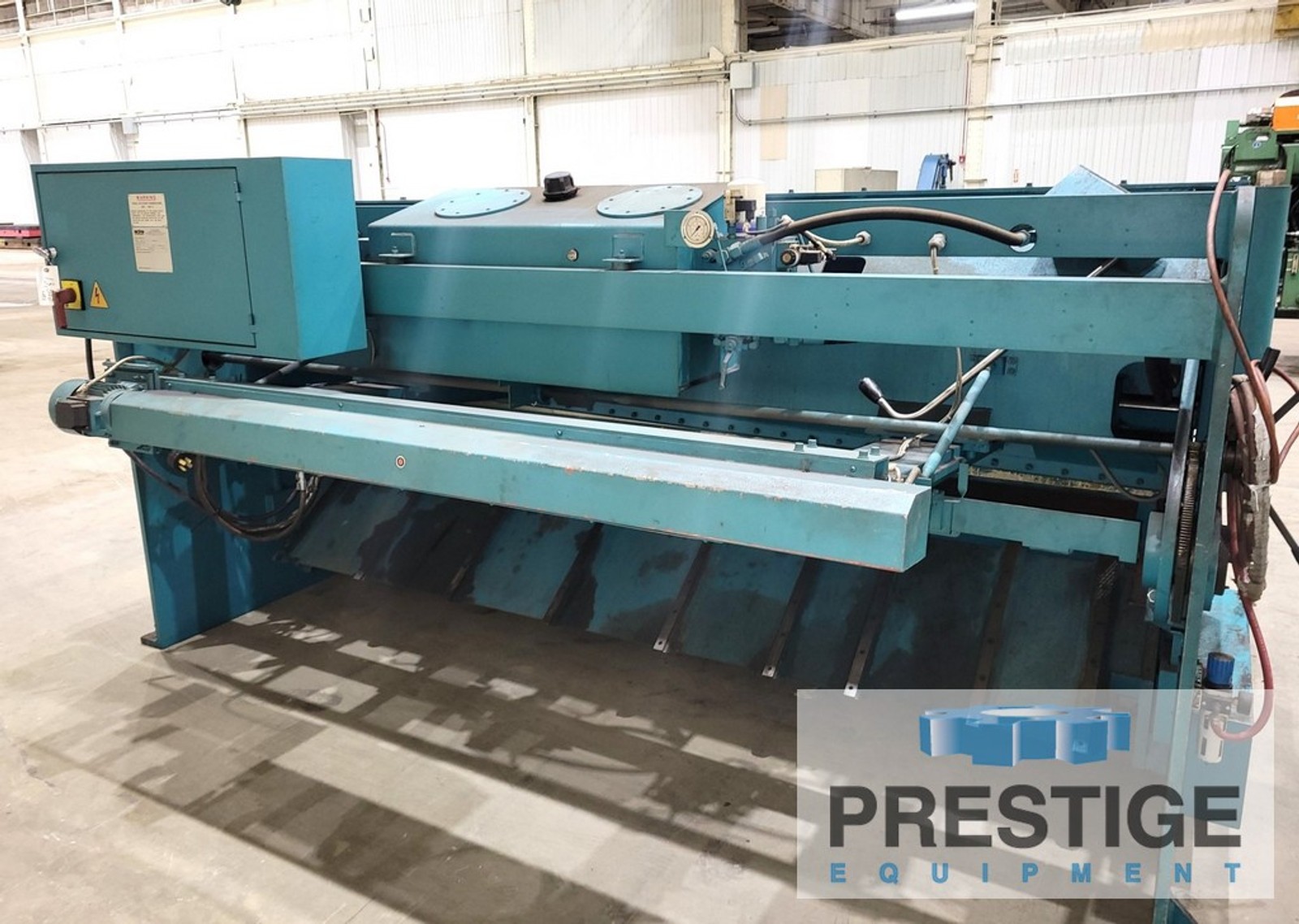

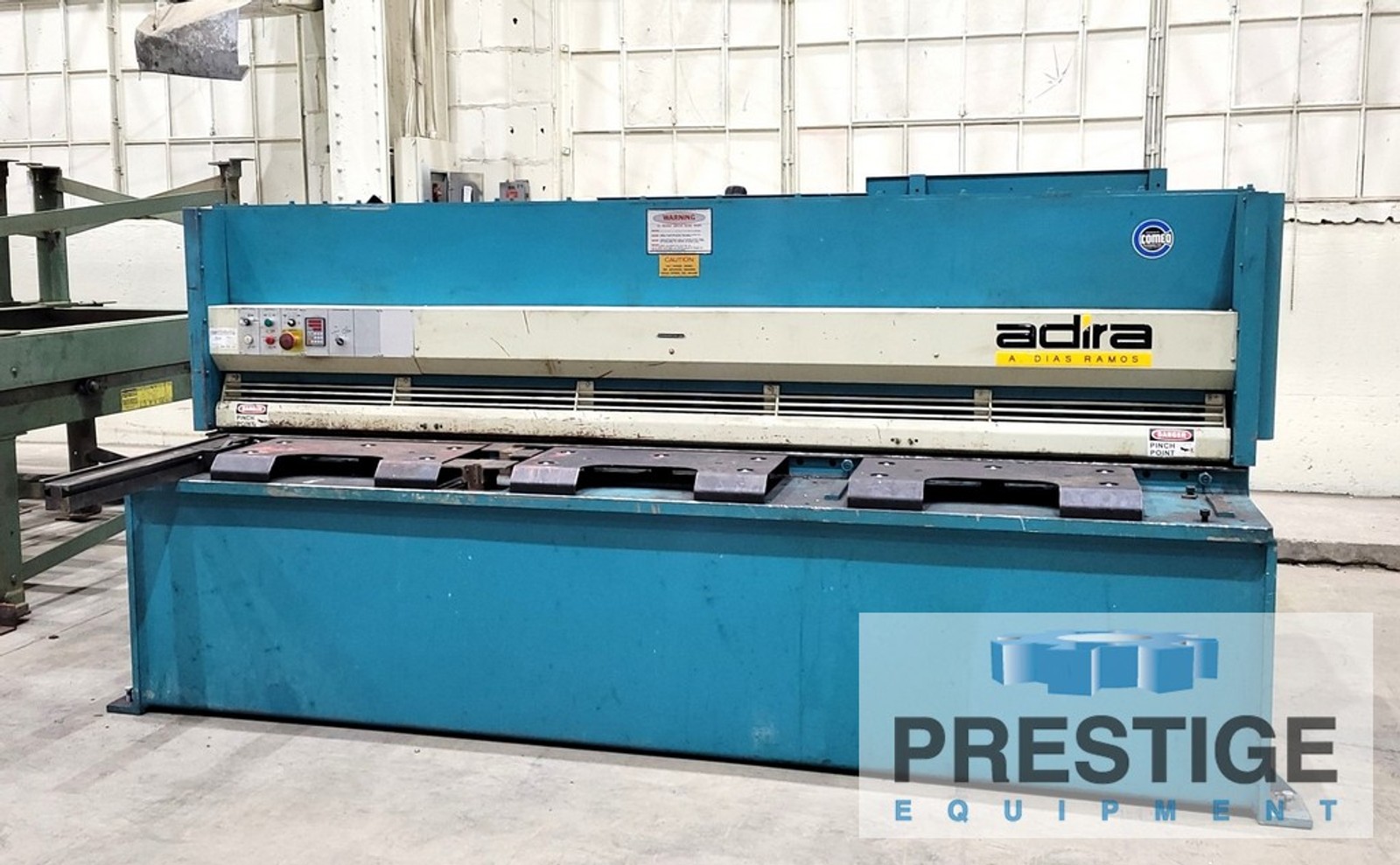

ADIRA GHS-0630 1/4" x 10'' Hydraulic Power Squaring Shear

CAPACITY:
Maximum Cutting Thickness ............. 1/4"
Maximum Cutting Length ................ 120"
Back Gauge Depth....................... 29"
Number Of Hydraulic Holddowns ......... 16
Blade size ............................ .25" x 2.5" x 122"
Throat Depth........................... 12"
Table Height .......................... 34"
Rake Angle, Fixed ..................... 1-1/4 Deg
Gap adjustment(12) .................... .002” - .043”
Main Motor ............................ 12 HP
Electrics ............................. 220/440 V, 3 PH
Electrics, As currently Wired ......... 440 V, 3 PH
Approx. Dimensions, No Arms ........... 140” x 68” x 69”
Approx. Weight ........................ 12,350 lbs

EQUIPPED WITH:

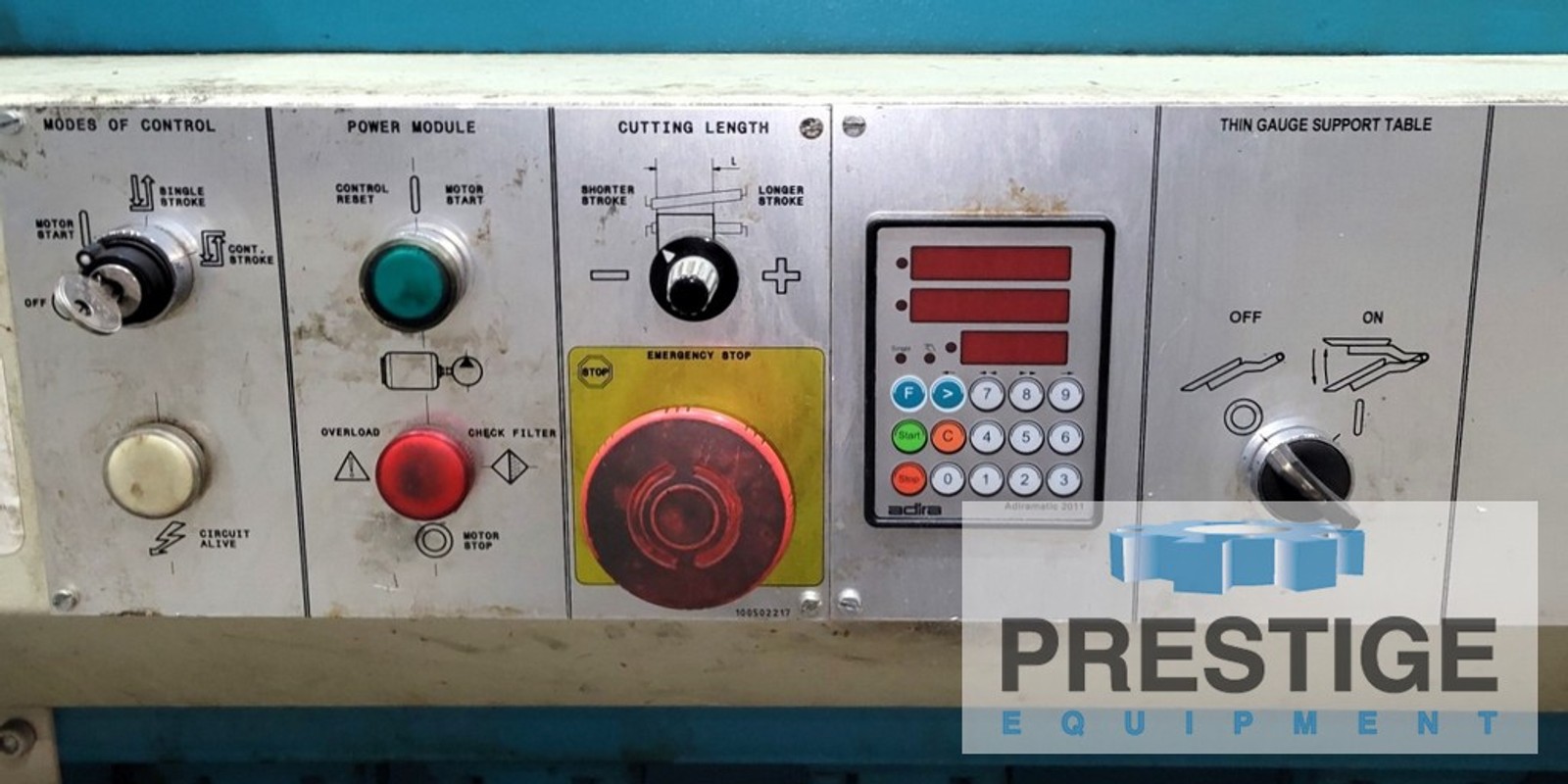

Adiramatic 2011 Self Positioning Back Gauge Control With LED Readout
Squaring Arm
Adjustable Stroke Length
Infinitely Variable Blade Gap Adjustment
Flush Floor (No Pit)

NOTE:
Inspect In Our Philadelphia PA Warehouse
