250 ton Niagara Straight Side Used Mechanical Metal Stamping Press Model# PN-250-84-42, Year 199

Manufacturer

NIAGARA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2864

Model

PN-250-84-42

Dealer Location

Michigan

Request a Quote
View Contact Information

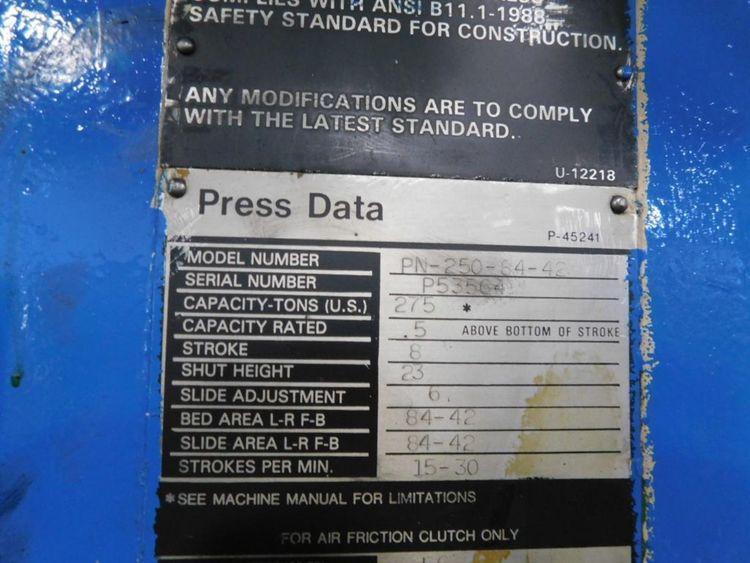

Spec Sheet

Tonnage - 250
Stroke - 8 inches
Shut Height - 23 inches
Adjustment - 6 inches
Bed Size - 84" LR x 42" FB
Ram Area - 84" LR x 42" FB
SPM - 15-30 VSPM


Standard Specifications

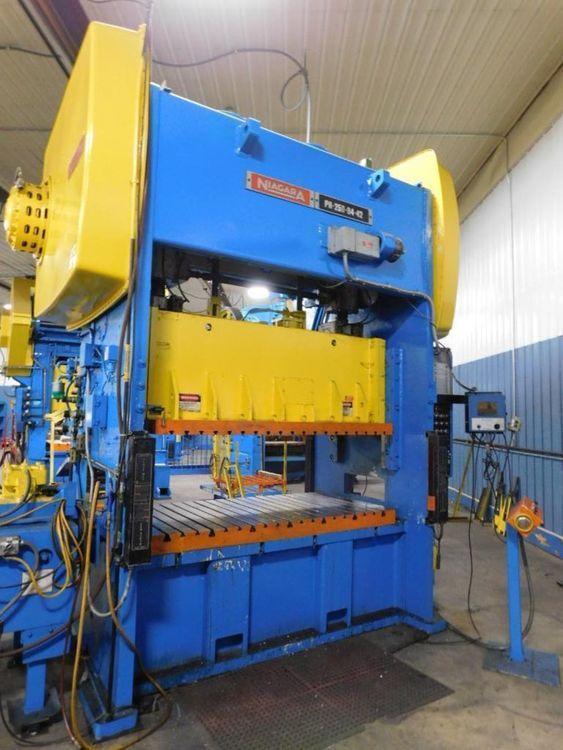

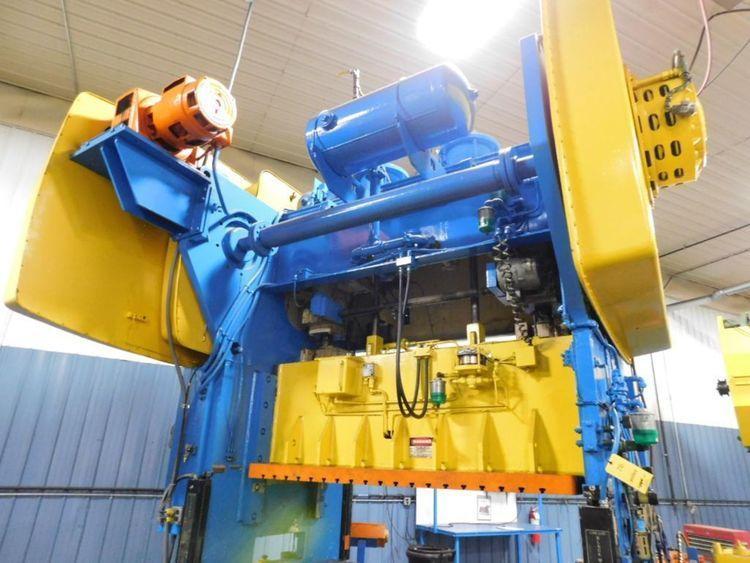

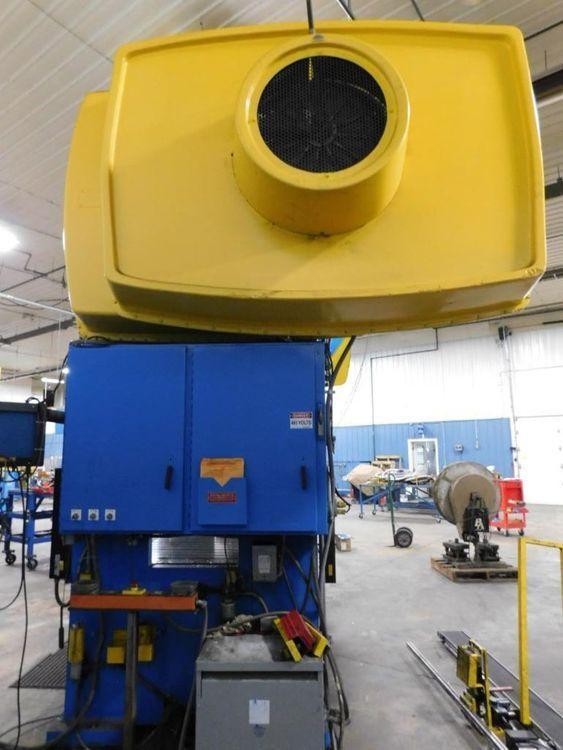

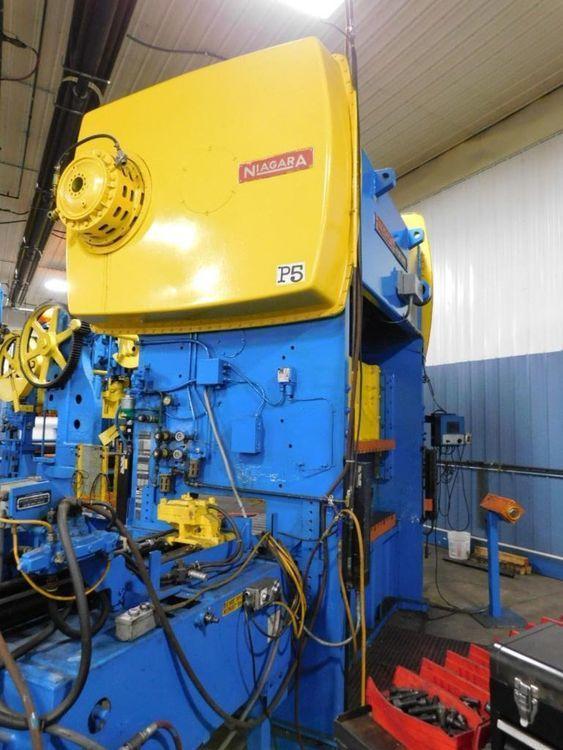

250 ton Straight Side Mechanical Stamping Press
Niagara Press Model PN2-250-84-42
275 ton Capacity (US-Short Tons)
SN/ P53564
8" Stroke
23" Shut Height
6" Motorized Adjustment
84" LR x 42" FB Bed Area
84" LR x 42" FB Slide Area
15-30 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Trabon Recirculating Lube System

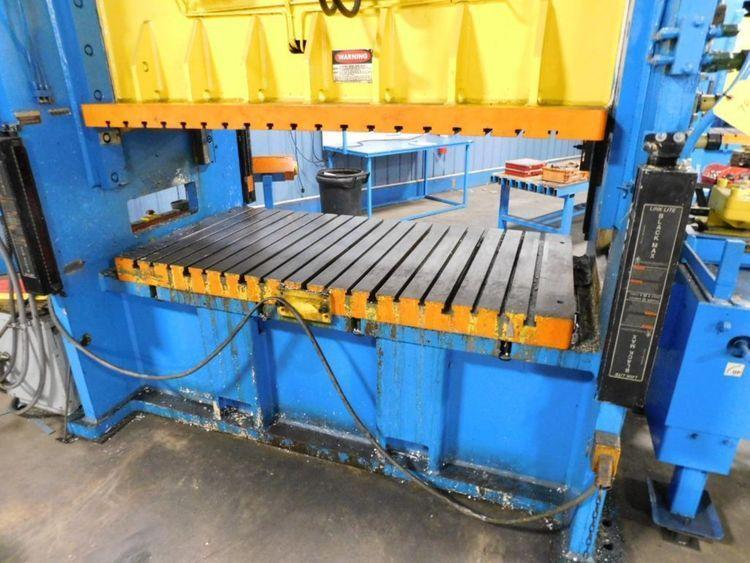

T-Slotted Ram and Bolster
Hydraulic Overloads

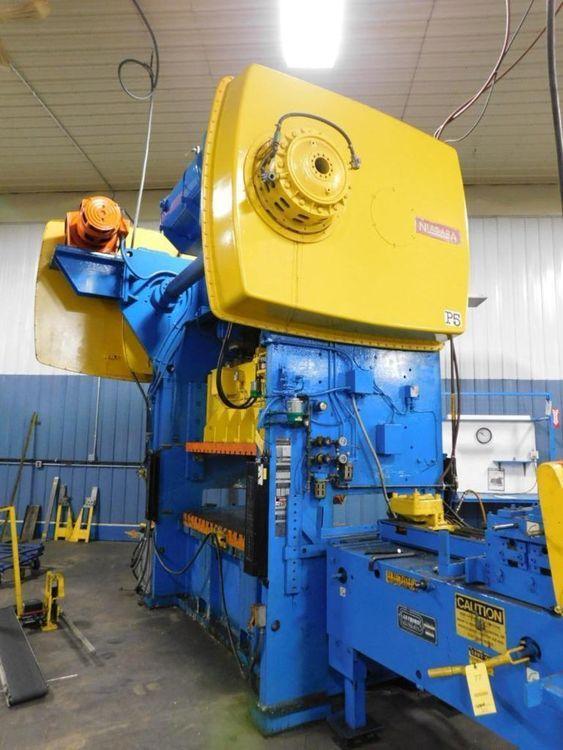

Twin End Drive Back-shaft Driven
Link 501 Press Control
Press Cam 8 Automation Controller
(2) Sets of Link Black Max Light Curtains
Palm Button Stand
Motors and Controls
30 HP Main Drive Motor @ 1680 RPM
22" Wide Windows
Floor Standing

Low Profile Press Design -
13' 4 1/4" Overall Height

This Used 250-ton Niagara Straight Side Mechanical Metal Stamping Press can be seen under power upon request in the S & G Press Warehouse.

Used Niagara Metal Stamping Press For Sale
