20,000 lbs. x 36" CHS Automation Metal Stamping Servo Coil Feed Line, Year 2005

Manufacturer

CHS AUTOMATION

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2873

Model

DR-200-36 & DRFS-5

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 20000 pounds
Coil Width - 36 inches
Coil Thickness - .125 inches


Preliminary Specifications

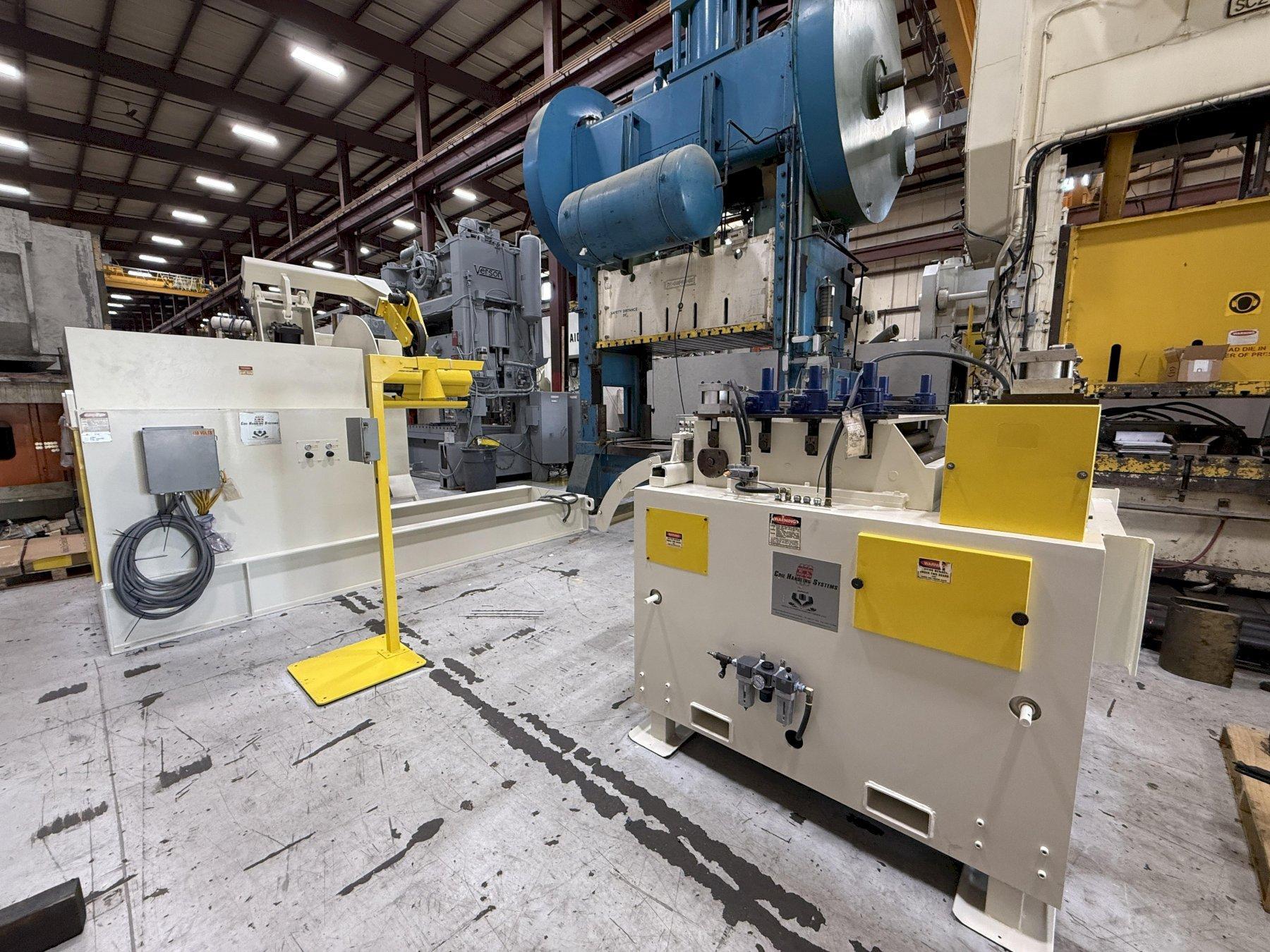

Used CHS Automation Servo Coil Feed Line
Coil Handling Systems Model# DR-200-36 & DRFS-5
Motorized Coil Reel with Combination Servo Feed and Straightener
20,000 lbs. Maximum Coil Capacity
36" Maximum Coil Width
.125" Material Thickness @ 36" Coil Width
20-24" I.D. Expansion Range
72" Maximum Coil O.D.

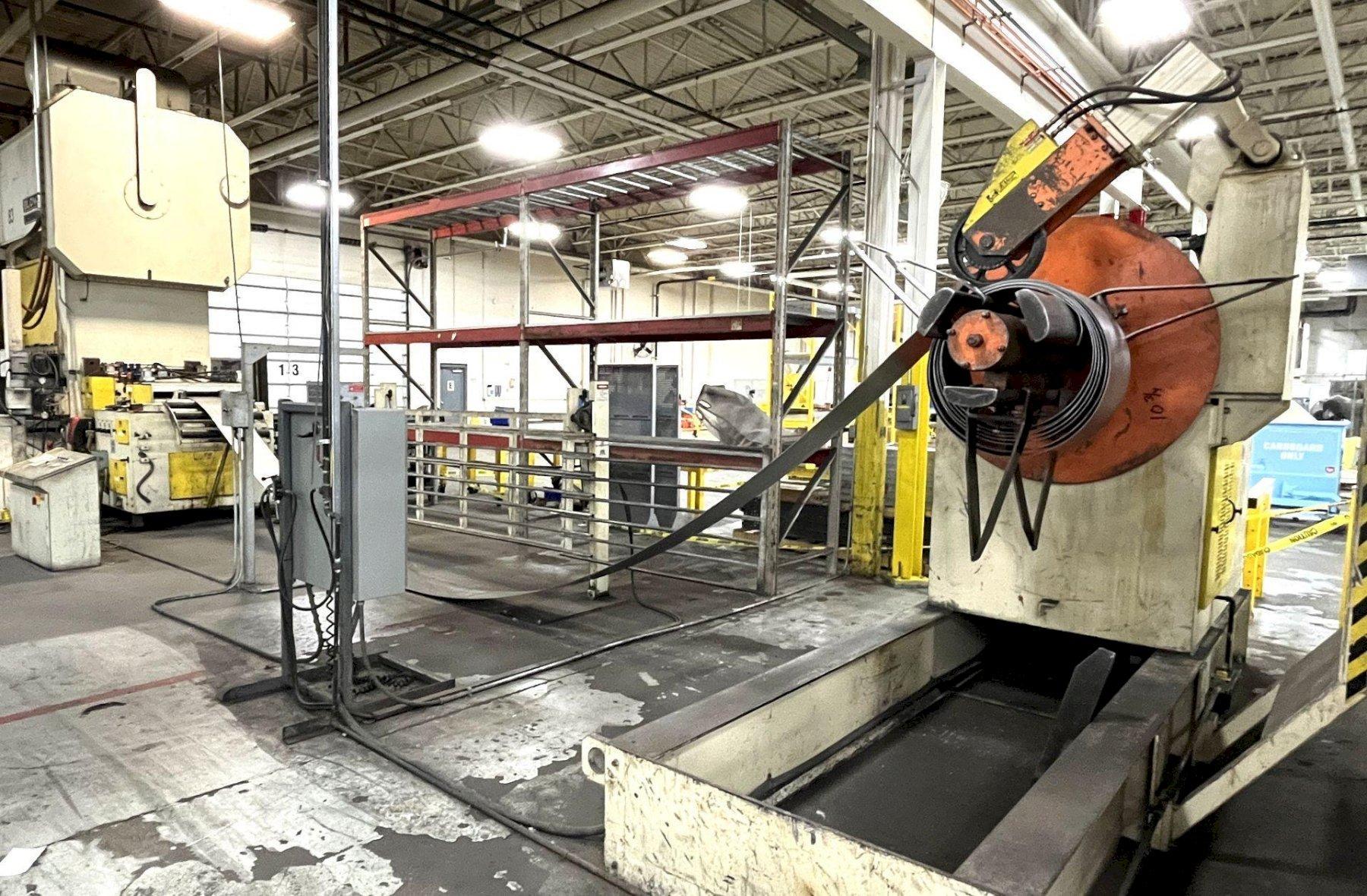

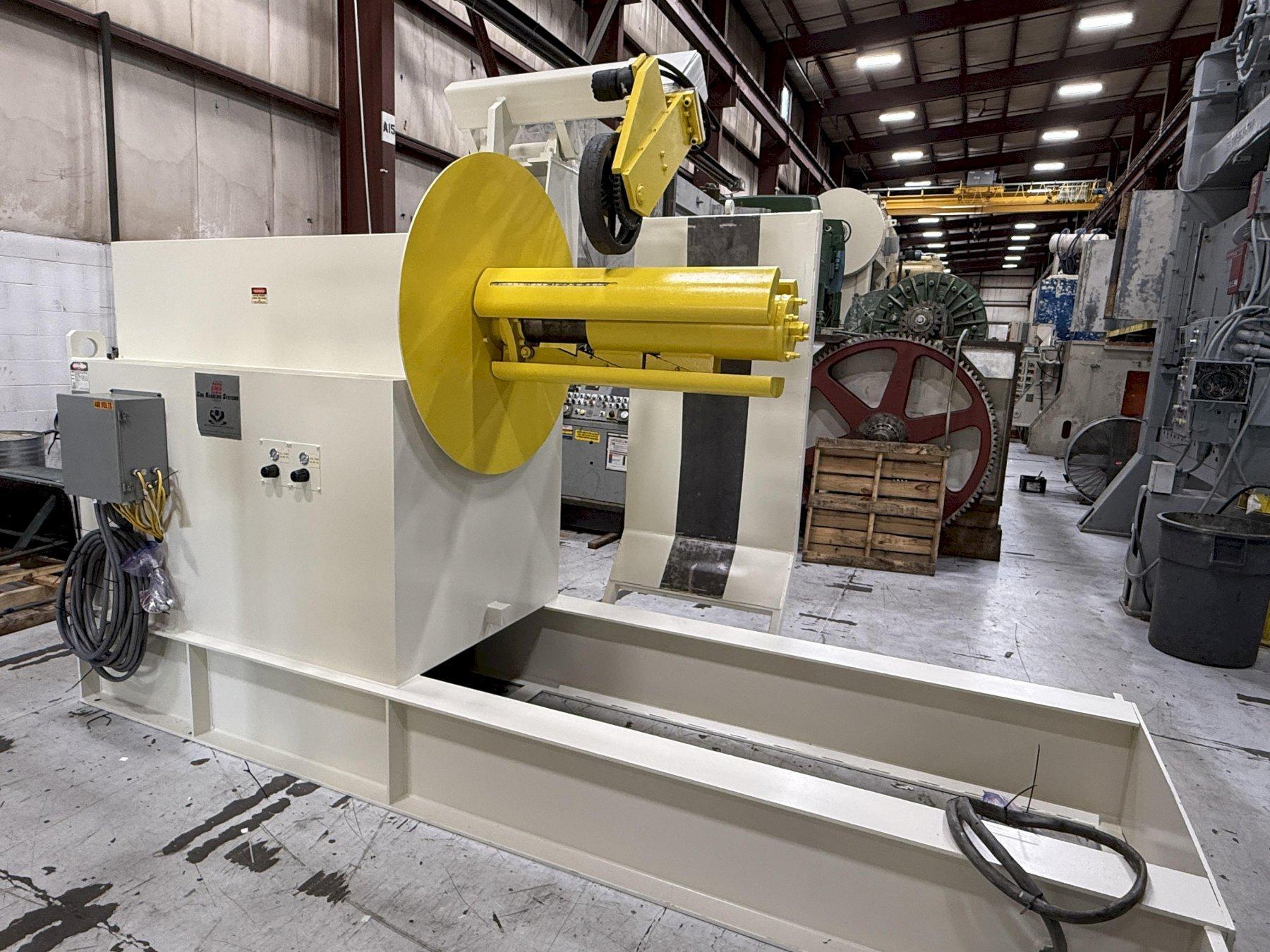

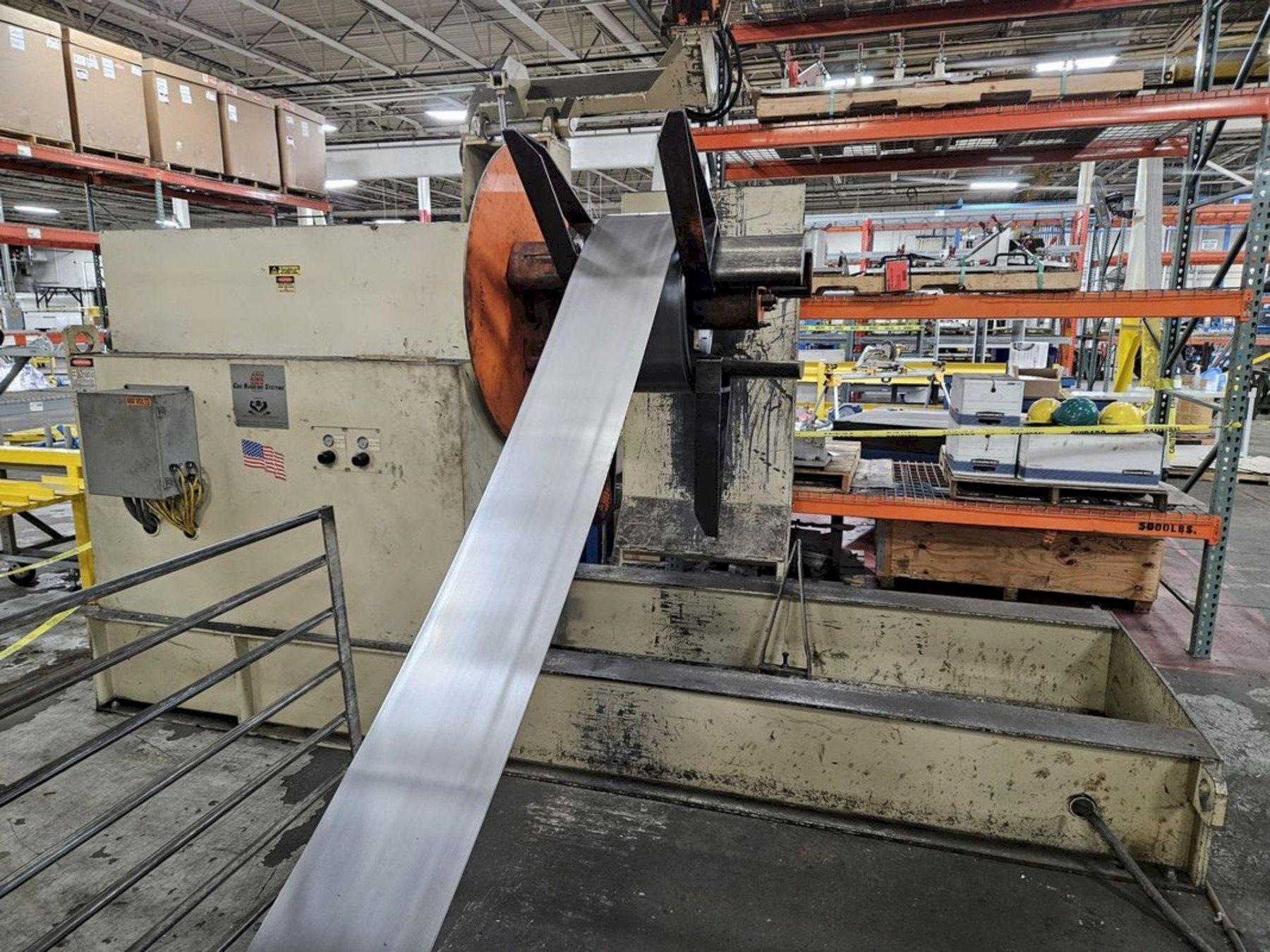

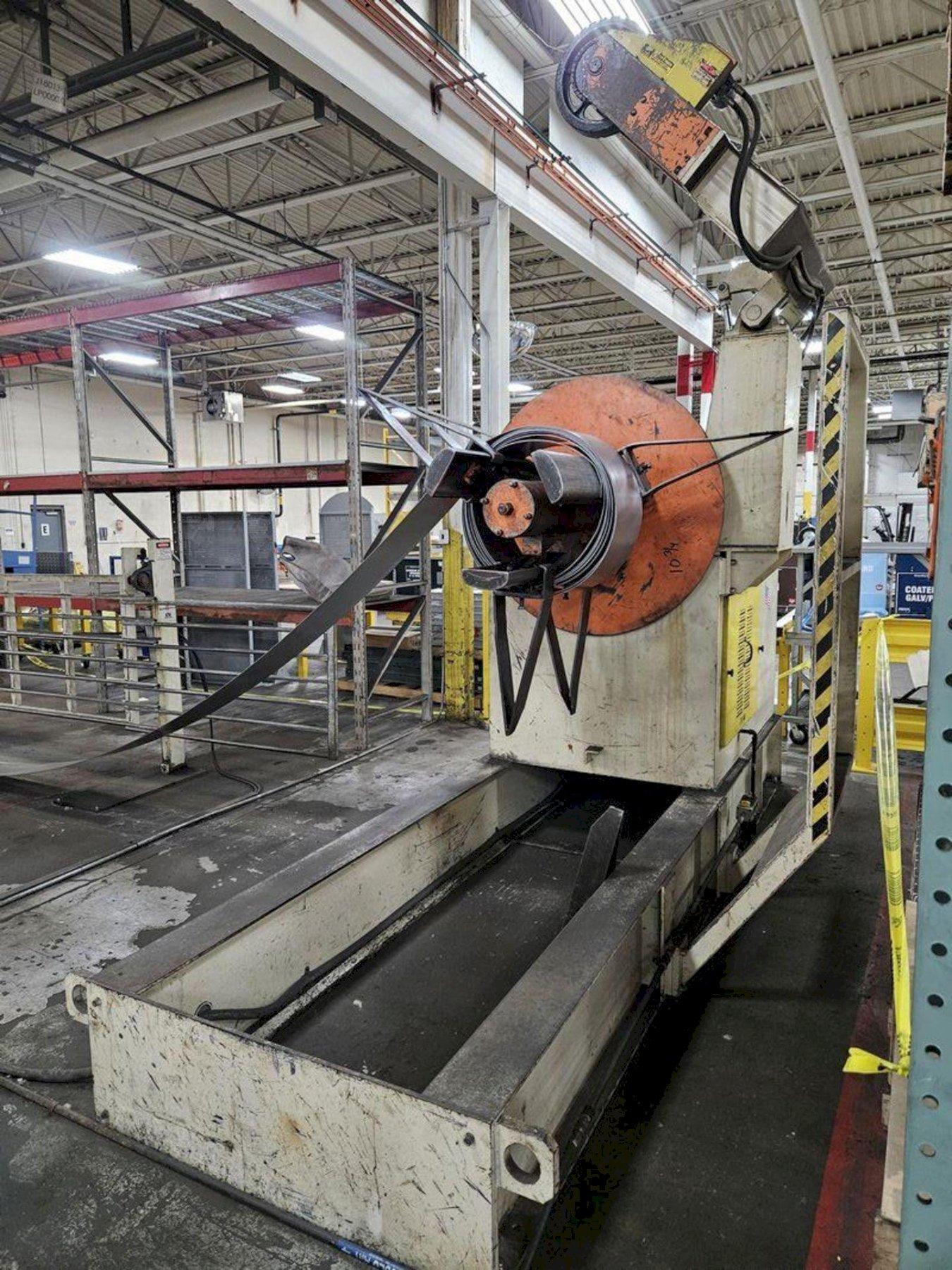

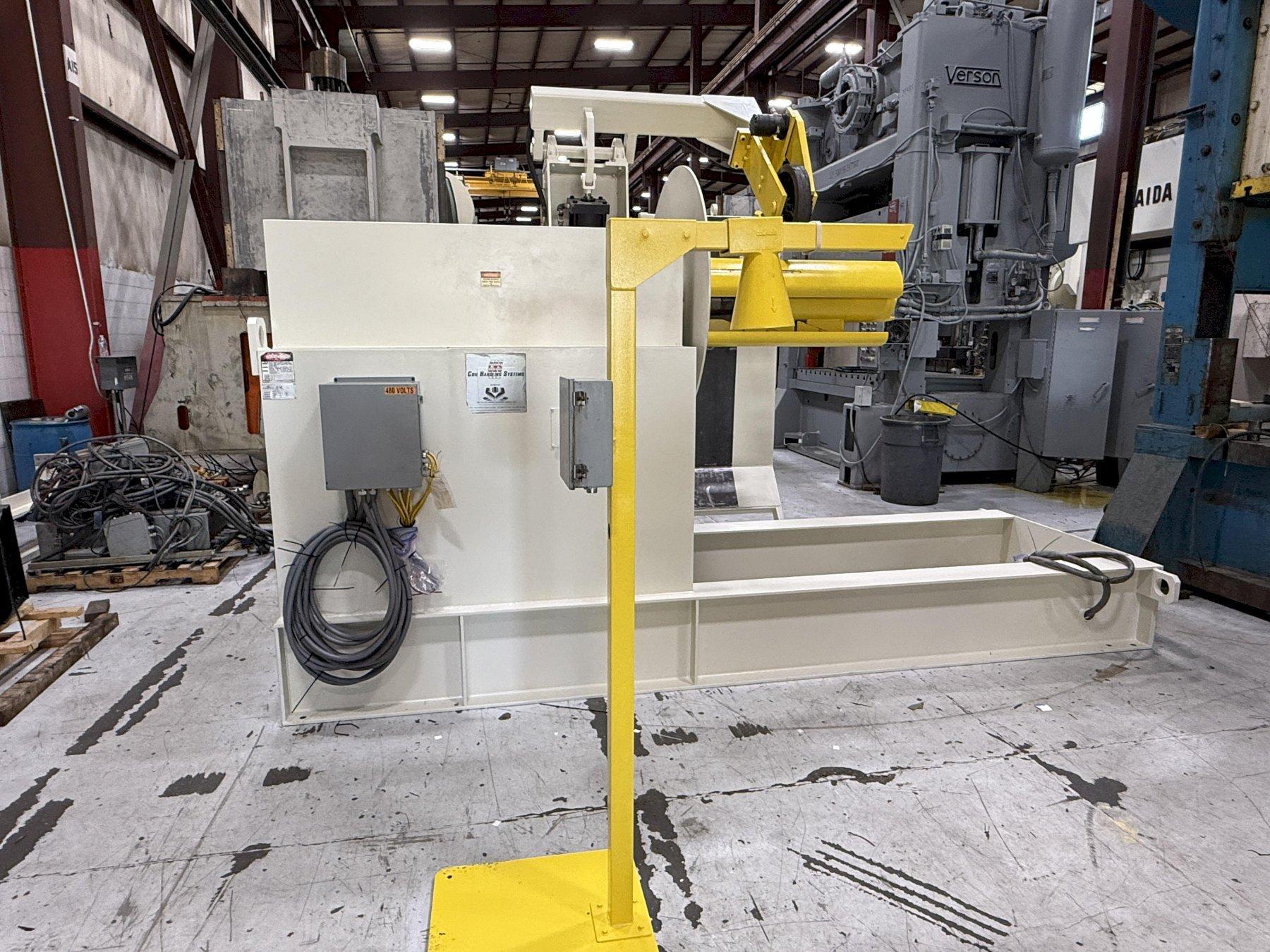

CHS Automation Motorized Coil Reel, Model No.: DR-200-36,  Serial No.: 5304
Three leaf mandrel coil reel
Hydraulic mandrel expansion
Stand alone hydraulic unit
Air operated coil hold down arm
Motorized payout

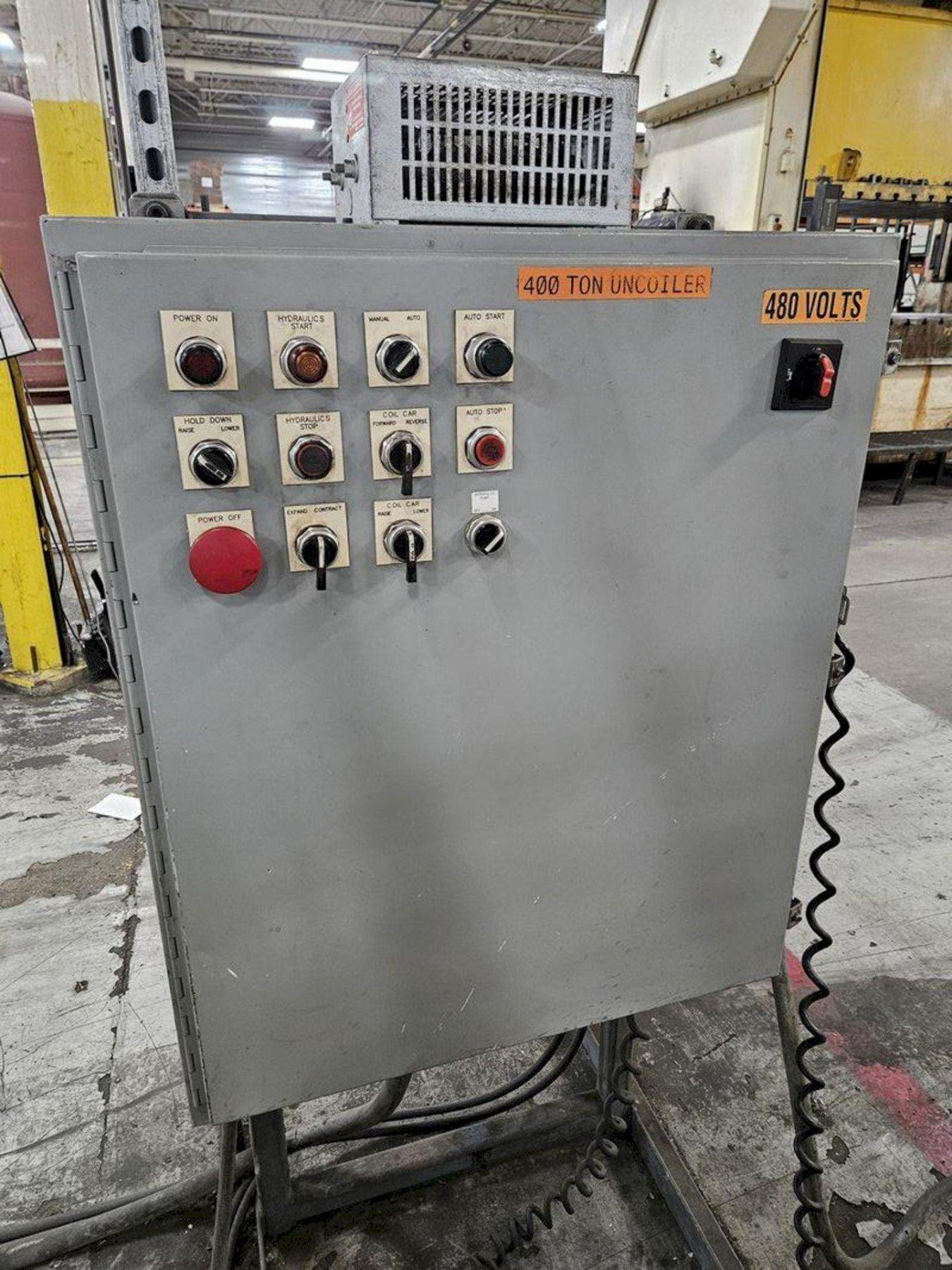

Variable speed drive
Jog forward and reverse
Auto/Run cycle
Loop control

CHS Automation Exit Threading Table
Single Side Bombay door design
Air actuated

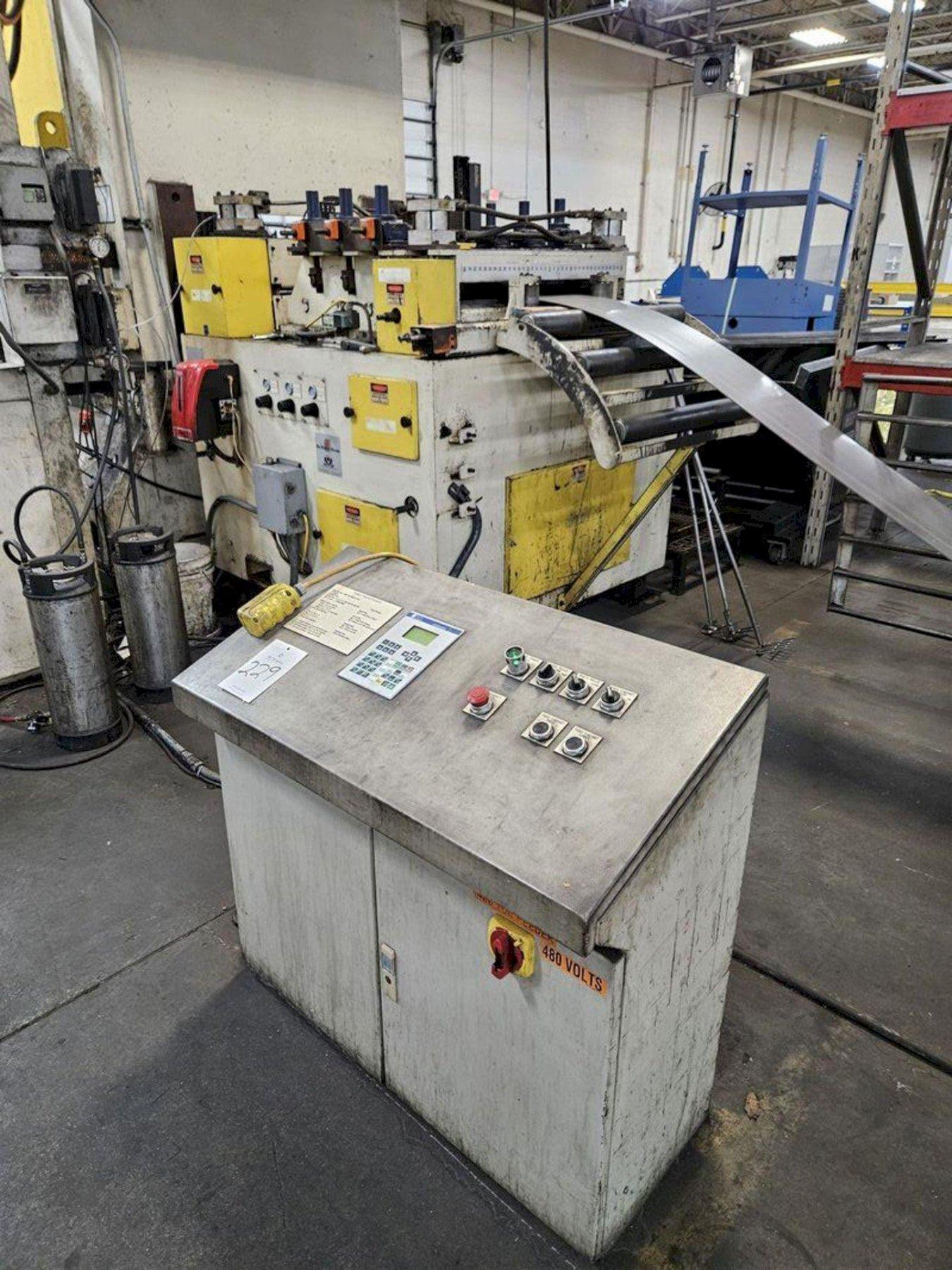

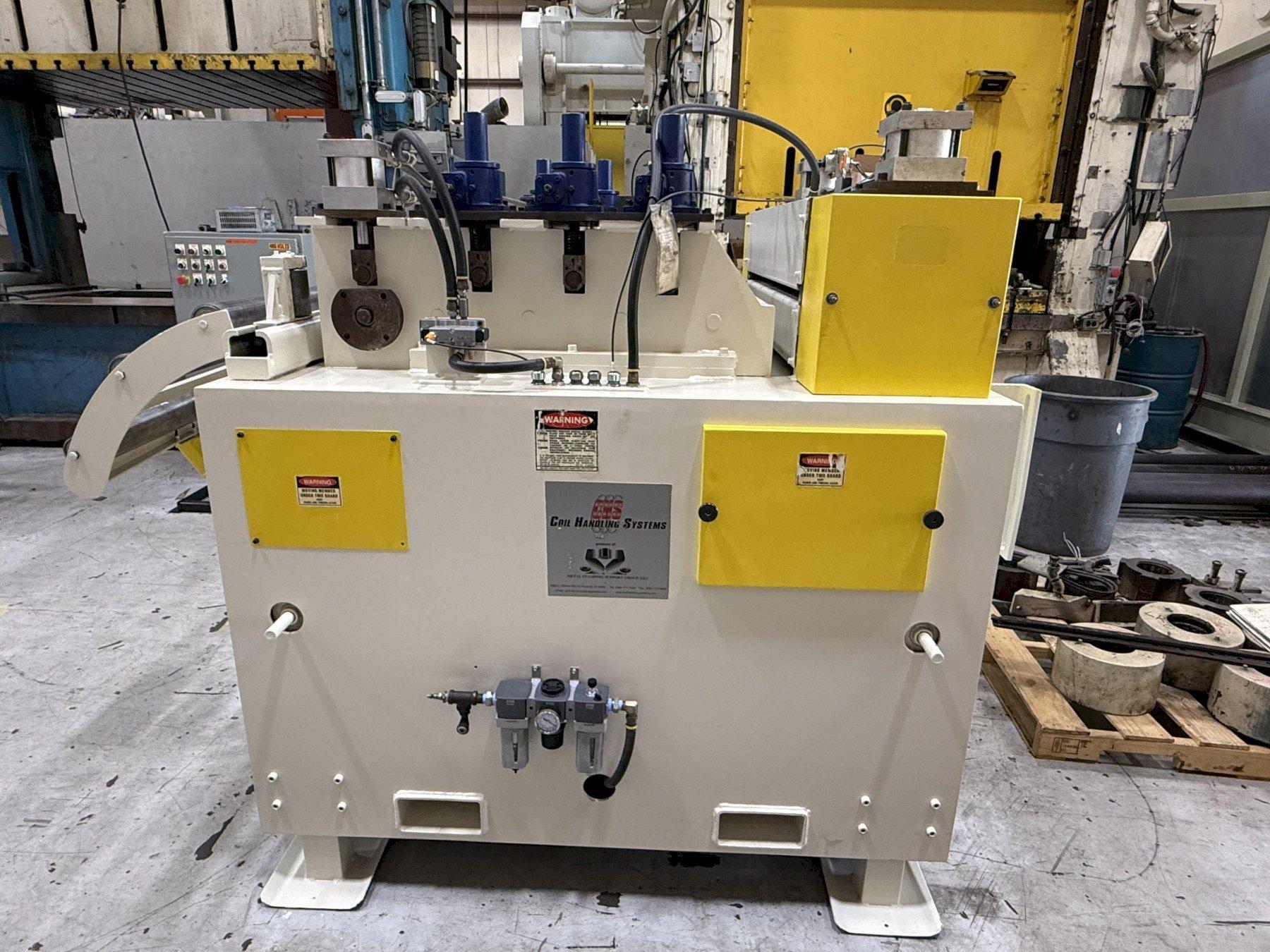

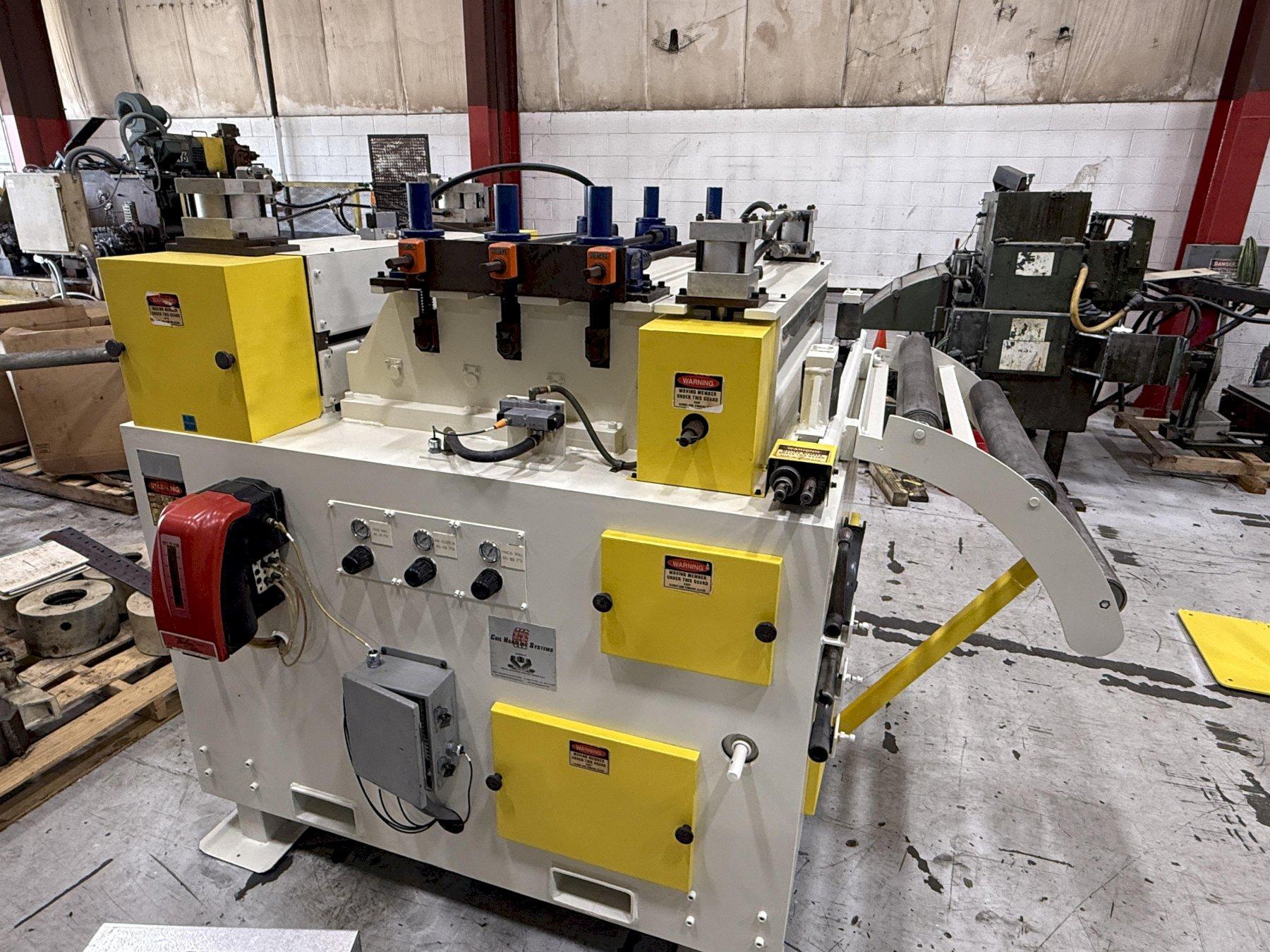

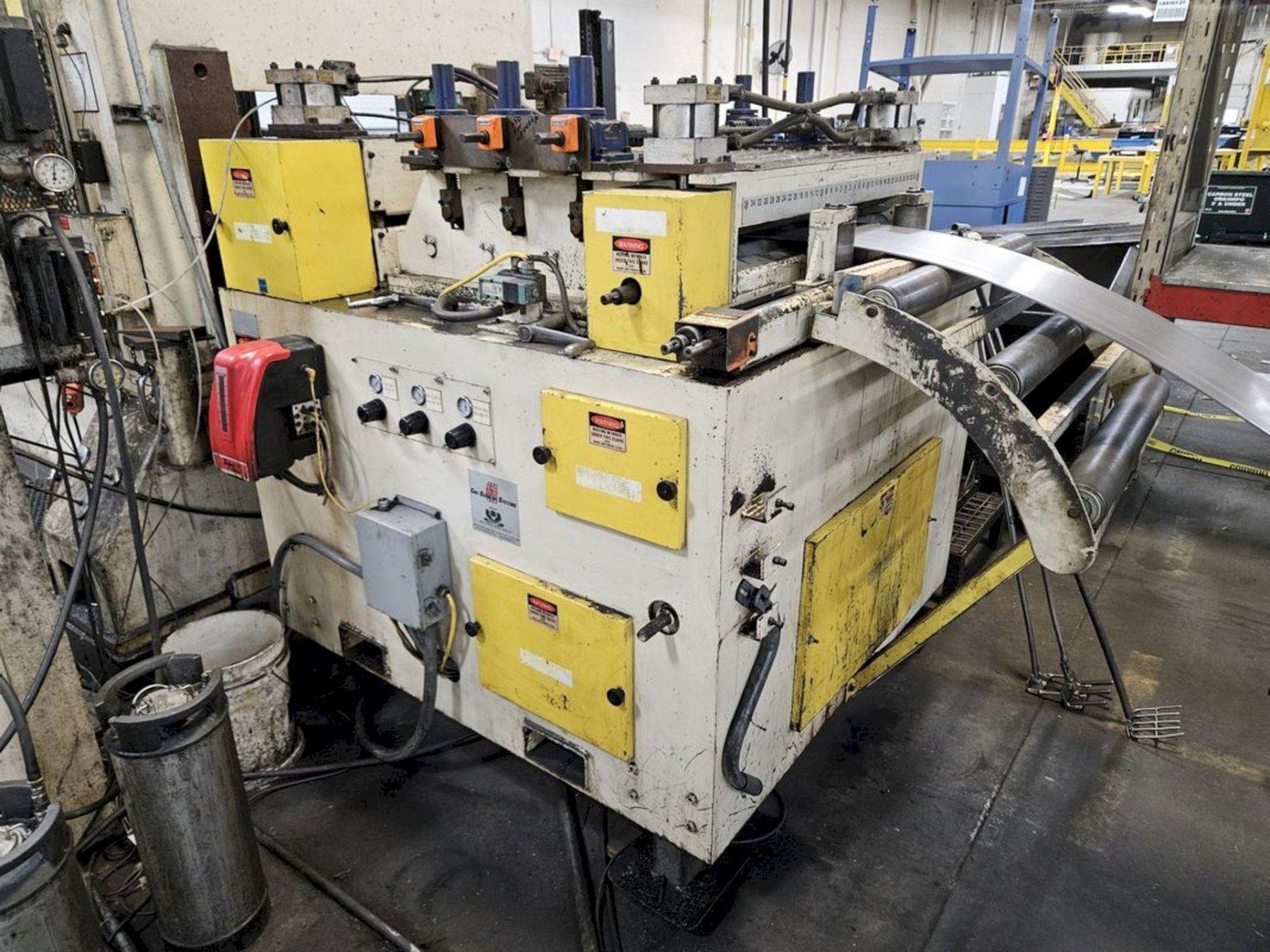

CHS Automation Servo Roll Feed Straightener Combination, Model No.: DRFS-5, Serial No.: 5305
5 Inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Solenoid controlled pilot release
Air pressure / regulators
CHS Automation pull thru straightener
Straightening rolls x 3.5" diameter
Individual upper straightening roll adjustments
Pinch roll assembly for stock threading (hand crank)

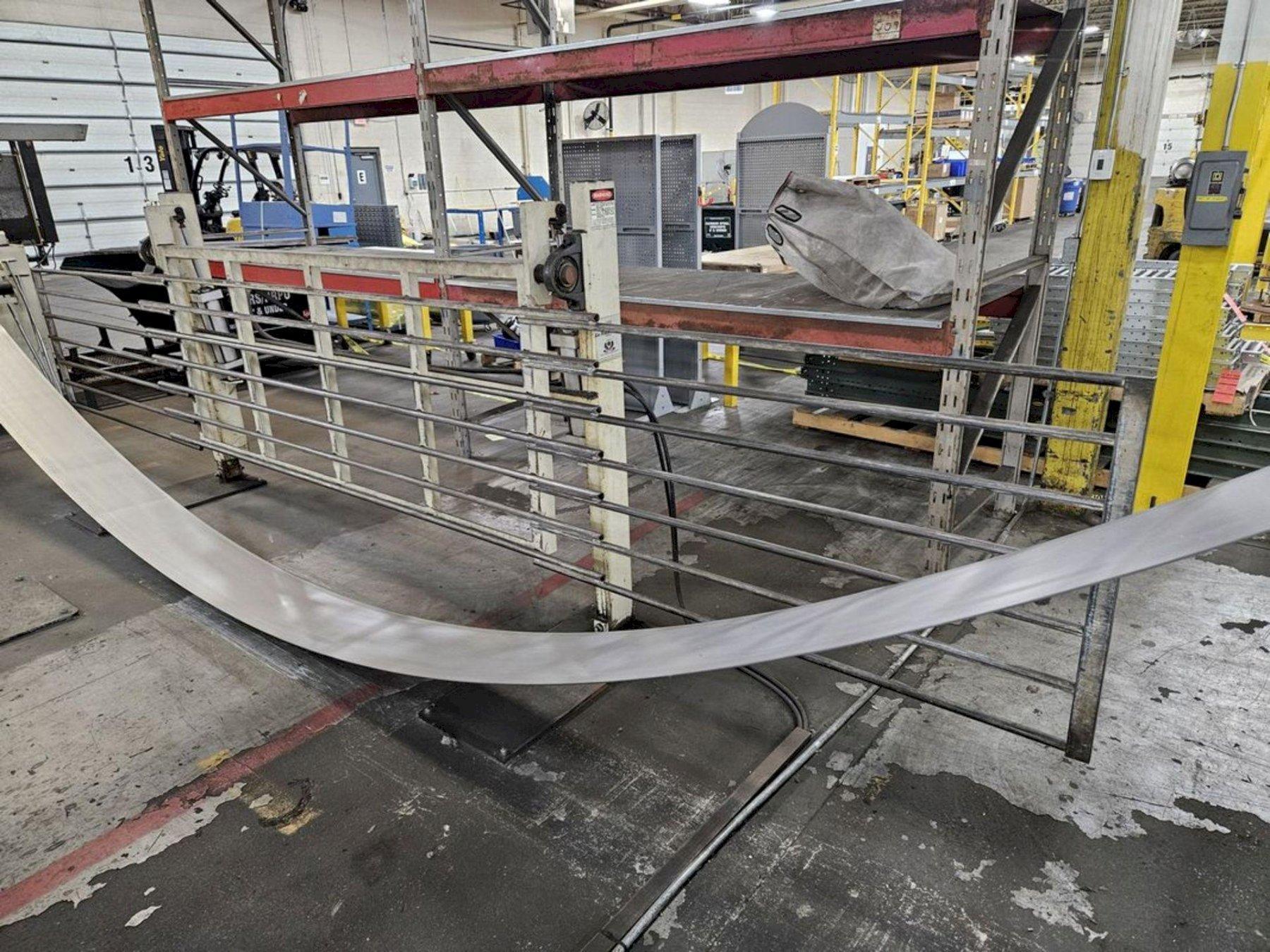

Cascade loop support rollers
Stock width edge guides

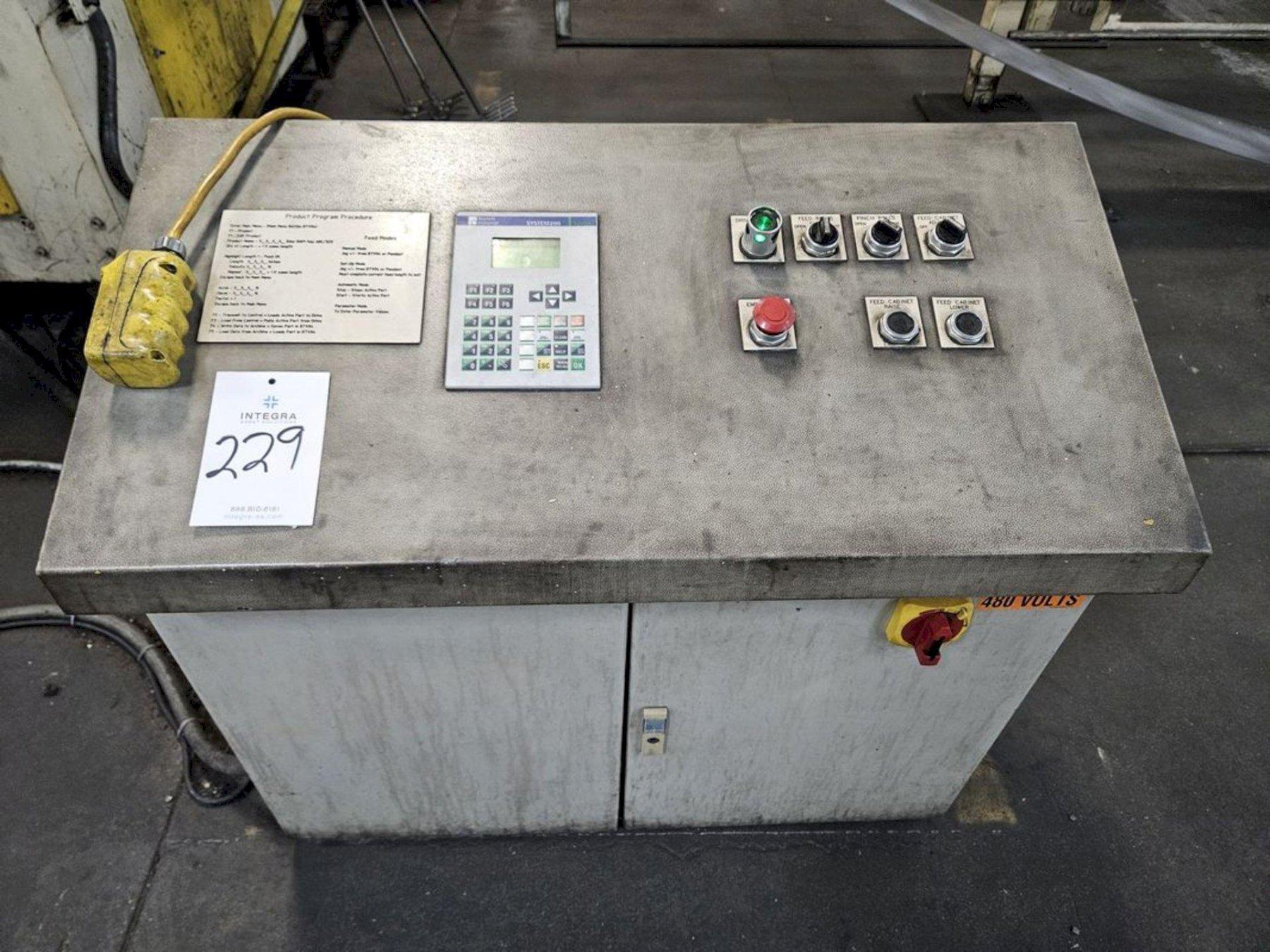

AC servo roll feed drive and controls
Job memory storage
480 Volt
