71" x 78" Union Ti 2 Power Rotation, Power Infeed, Scales, 15 Ton Cap. '94, #26626

Manufacturer

UNION

Category

Tooling & Accessories

Type

ROTARY TABLES

Stock

26626

Model

Ti 2

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #26626

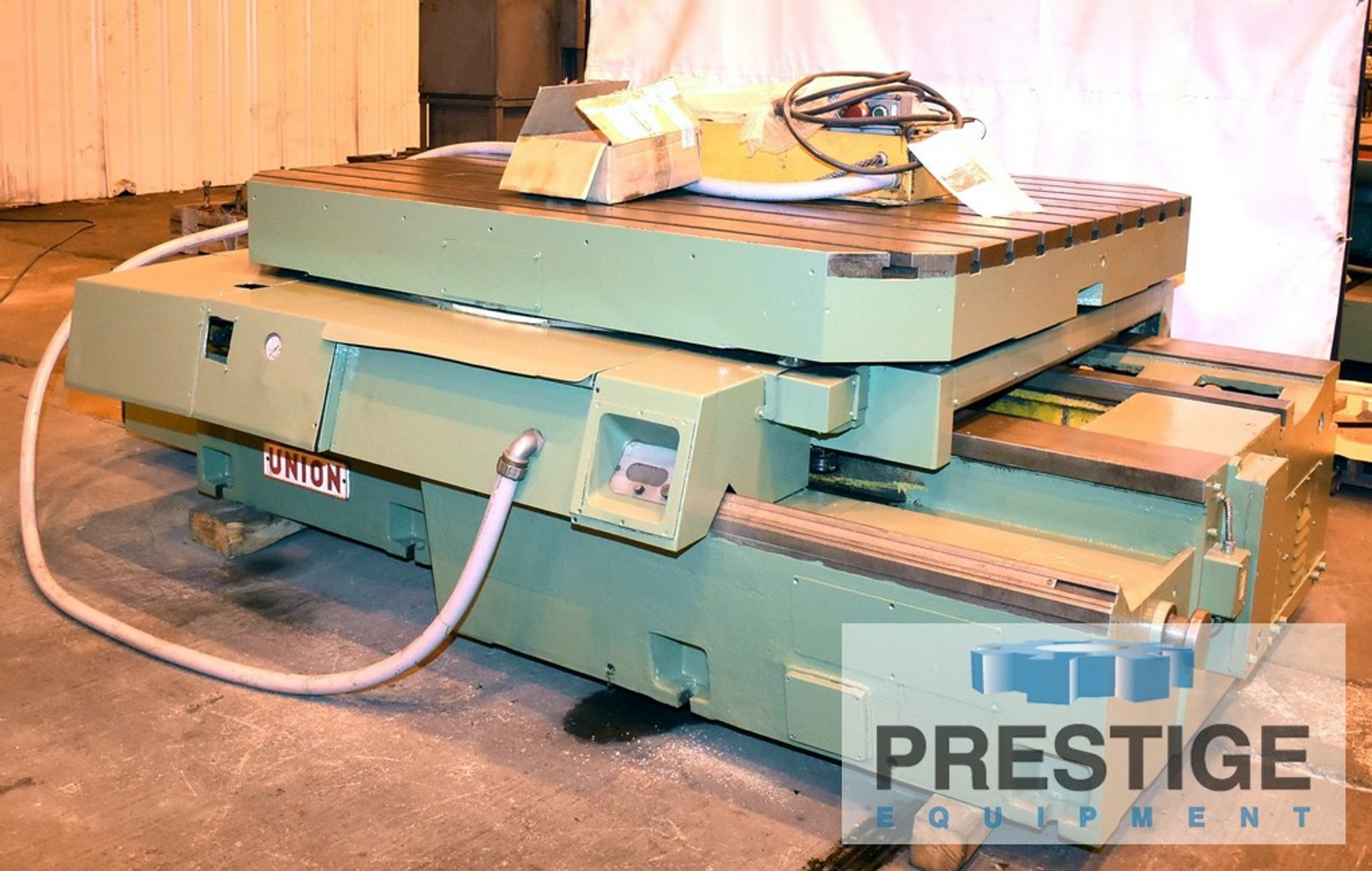

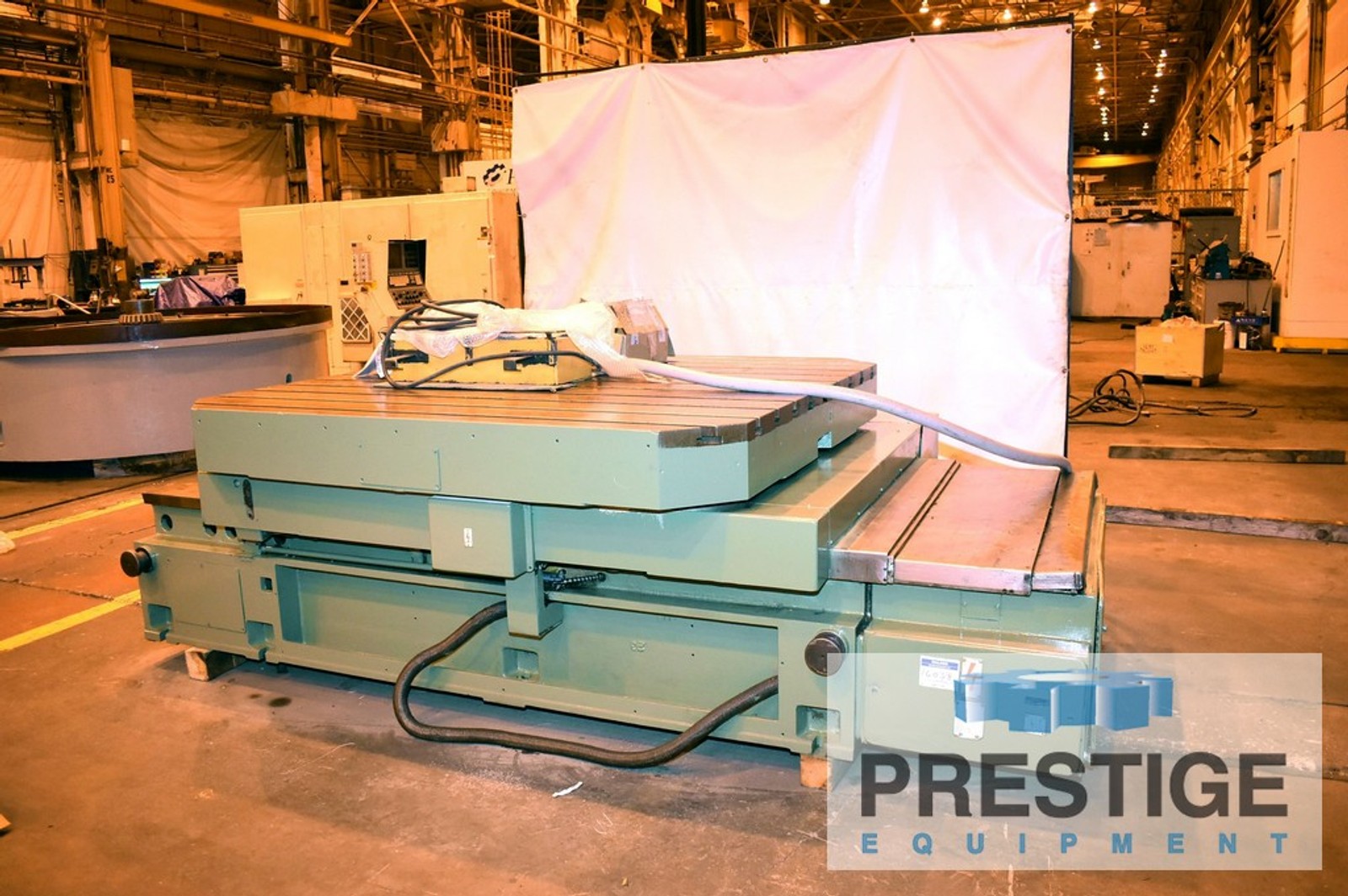

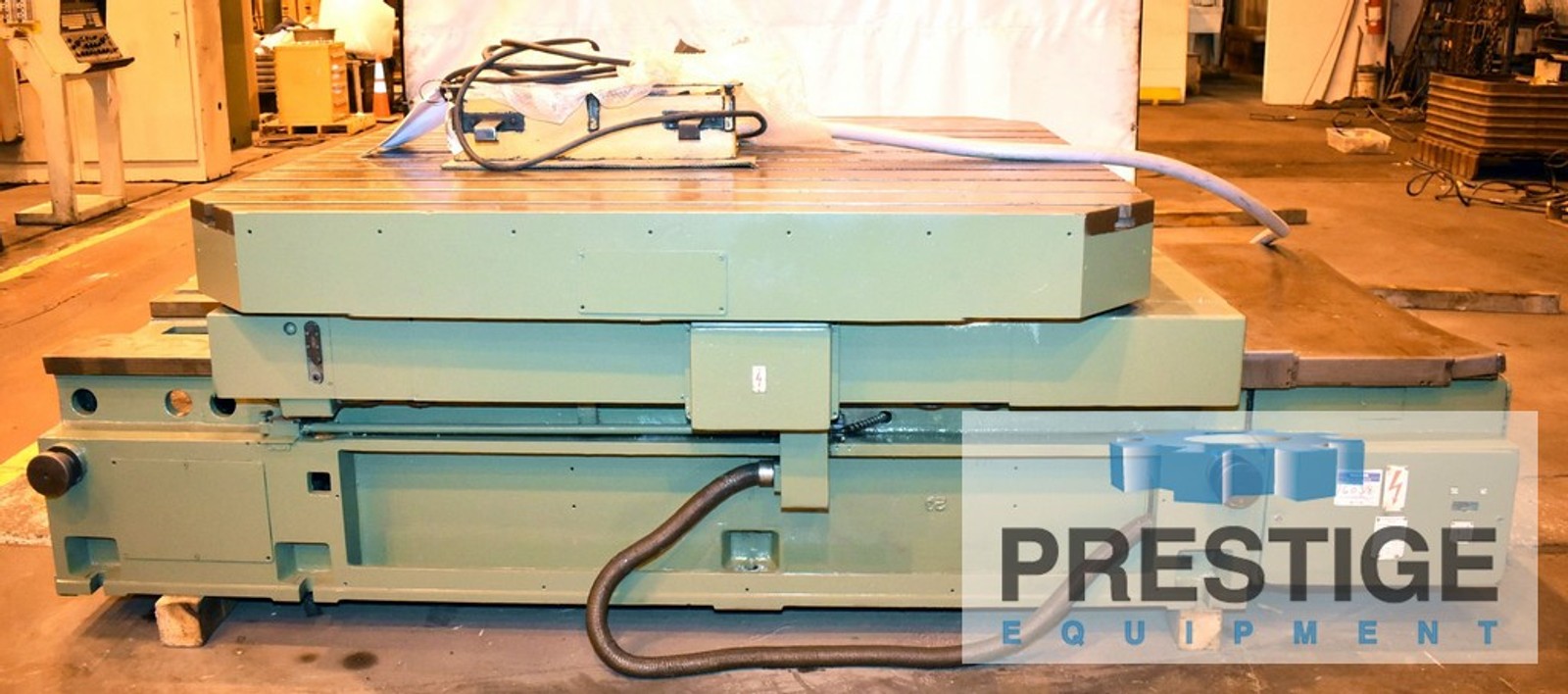

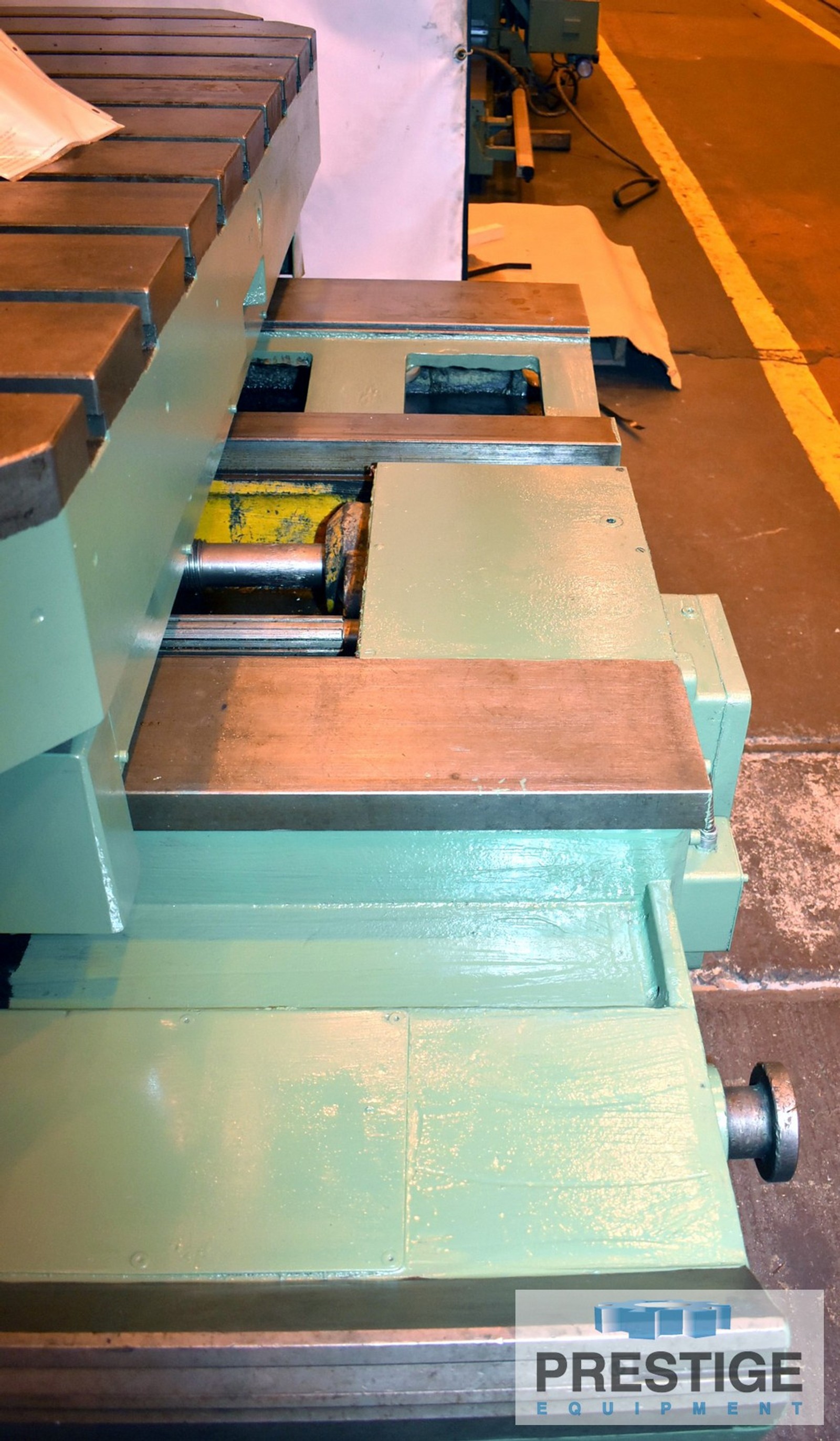

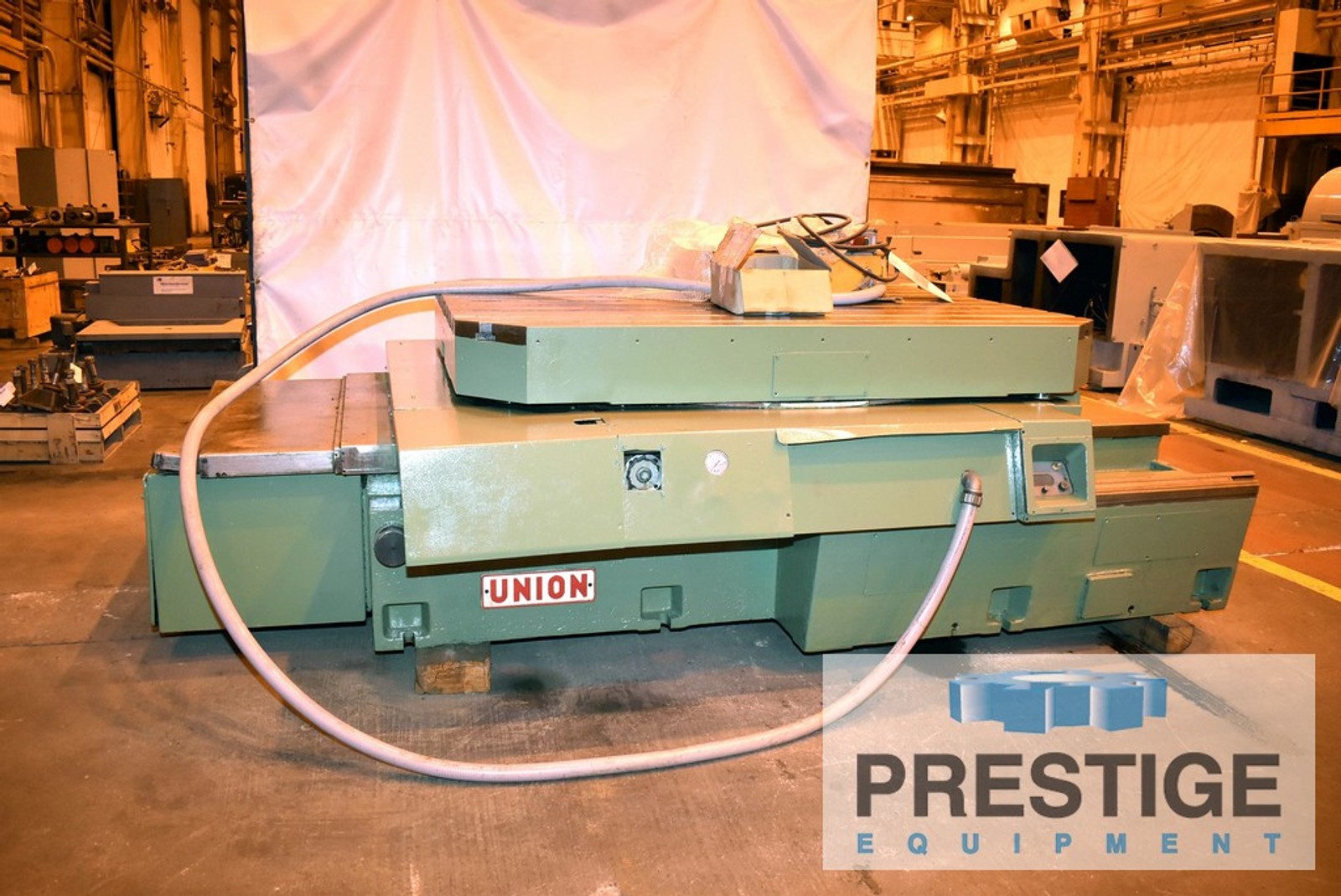

71" x 78" Union TI-2 Infeeding Rotary Table

CAPACITY:
T-Slotted Table Size .................. 70.76" x 78.74"
Table Weight Capacity ................. 30,000 Lbs
Table Infeeding Travel ................ 49.5"
Infeeds (36) .......................... .002-78 IPM
Rapid Traverse ........................ 78 IPM
Table Rotation ........................ 360 Degrees
Shipping Weight ....................... 16,500 Lbs

EQUIPPED WITH:
Operators Control Station
Heidenhain Scales
Automatic Clamping & Lubrication
Power Rotation & Infeed
Built-In Lifting Bars
Steel Sliding Way Covers
10 HP AC Motor
Rapid Traverse
