You Ji 1000 ATC VTL 40" CNC, 4-Jaw Chuck, 54" Swing, 43" Turning Diameter, 60 HP, Fanuc 0i CNC, 2009, #43100

Manufacturer

YOU JI

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43100

Model

VTL-1000 ATC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43100

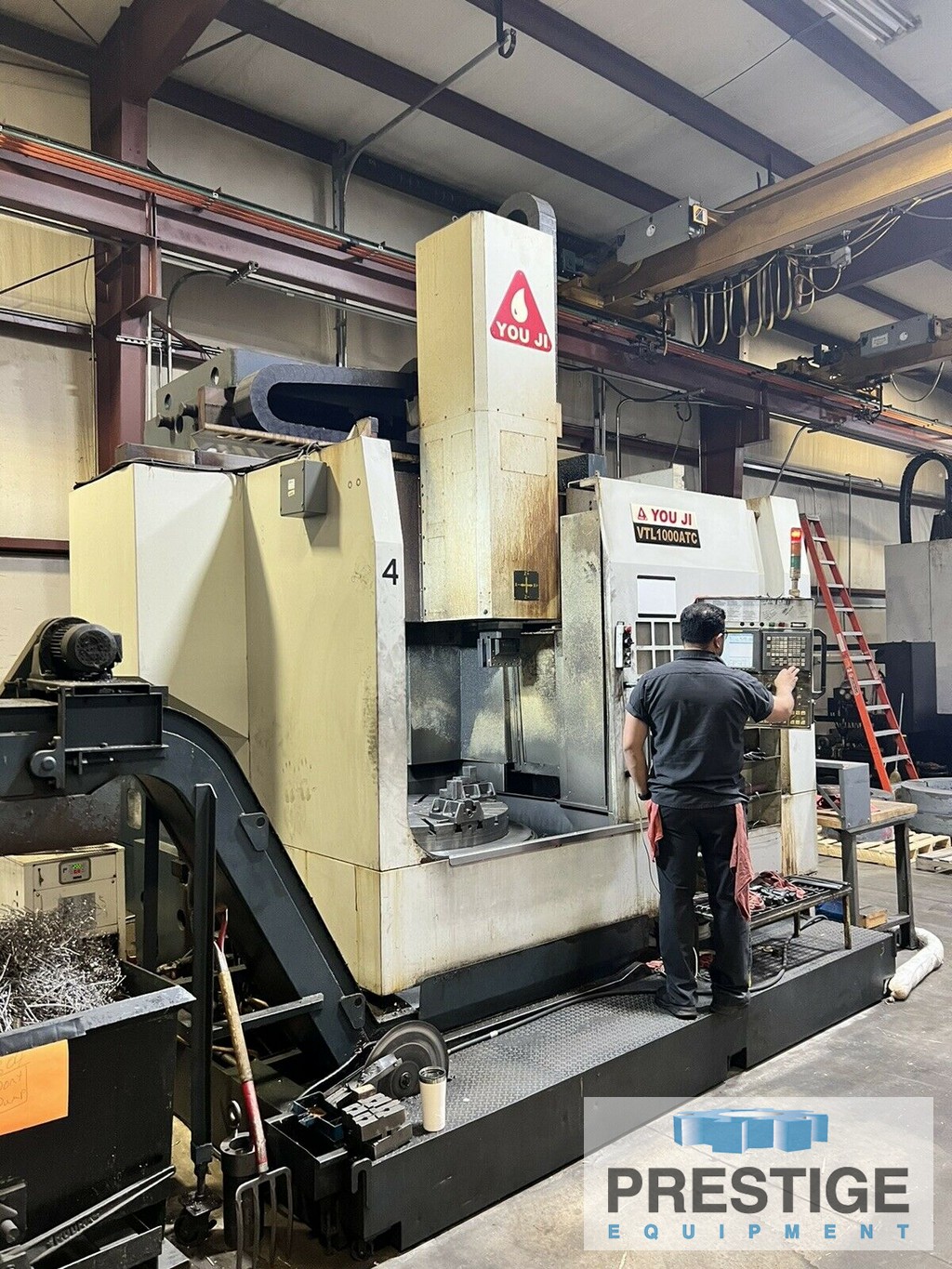

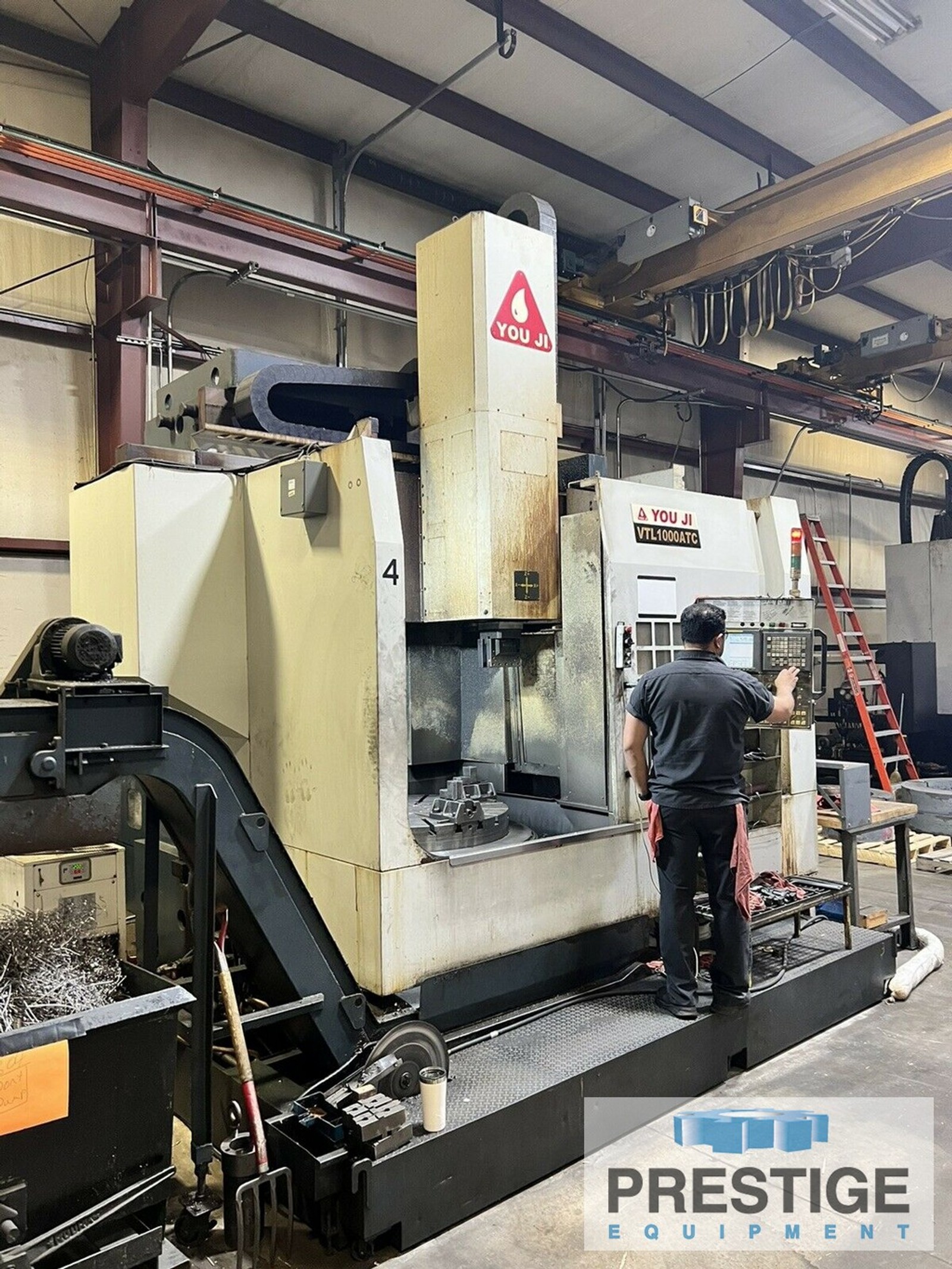

You Ji VTL1000 ATC CNC Vertical Boring Mill

FEATURES:
Fanuc Oi-TD CNC Control
Ram with 12-Position ATC
Elevating Rail

SPECIFICATIONS:
Table Diameter ........................ 39.37"
Maximum Swing ......................... 53.14"
Maximum Cutting Diameter .............. 43.30"
Maximum Cutting Height ................ 35.43"
Rail Travel ........................... 20"
Ram Stroke, Z-Axis .................... 31.49"
Table Weight Capacity ................. 8,800 Lbs
Table Speed, 2-Ranges ................. 1-600 RPM
Cutting Feed Rate ..................... 0.39-78.7 IPM
Automatic Tool Changer ................ 12 ATC
Tool Shank ............................ BT-50 7/24
Main Table Motor (220 Volt) ........... 49 HP/60 HP
Machine Weight ........................ 64,200 lbs

EQUIPPED WITH:

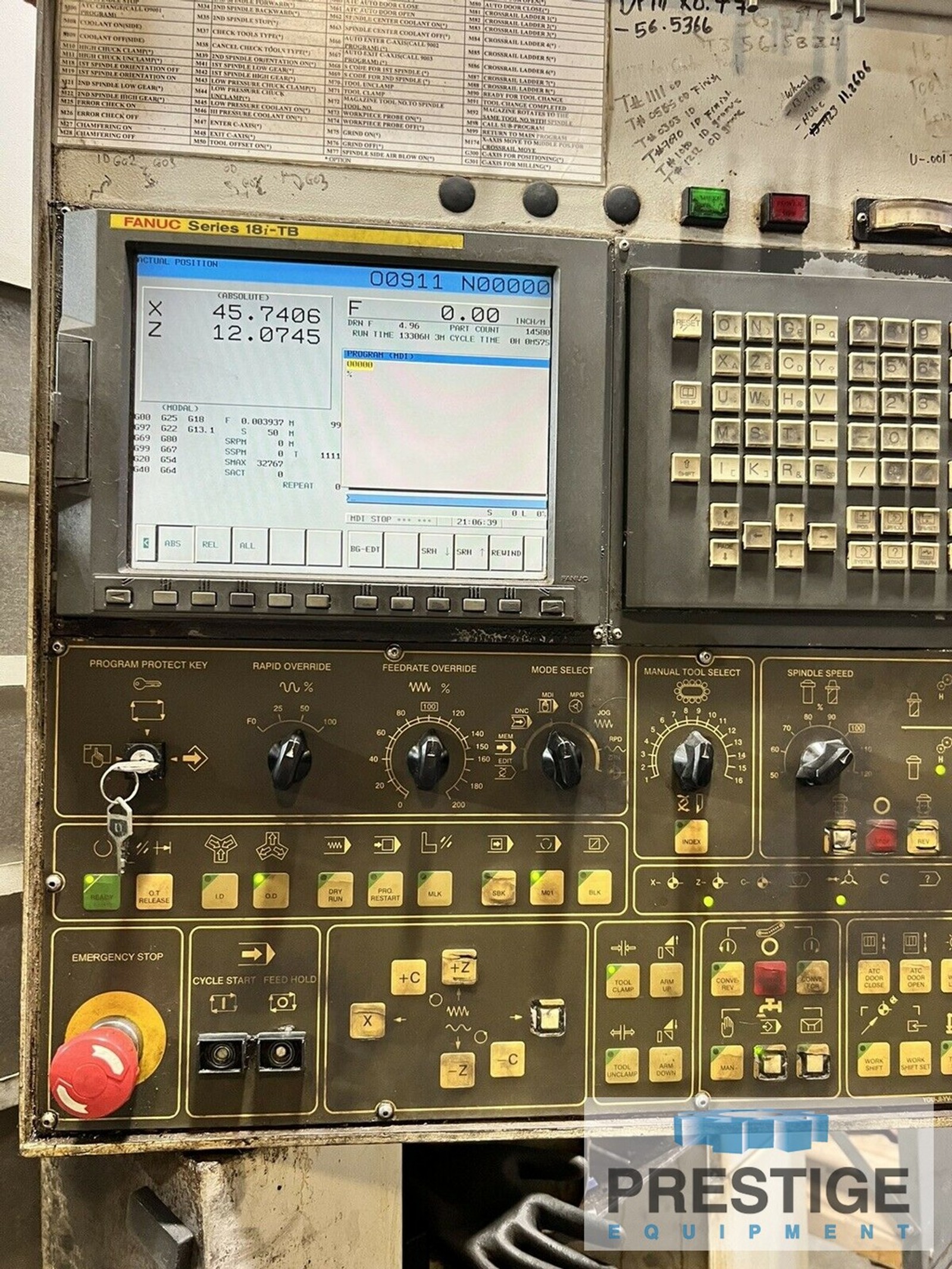

Fanuc Oi-TD CNC Control
12-Station Automatic Tool Changer

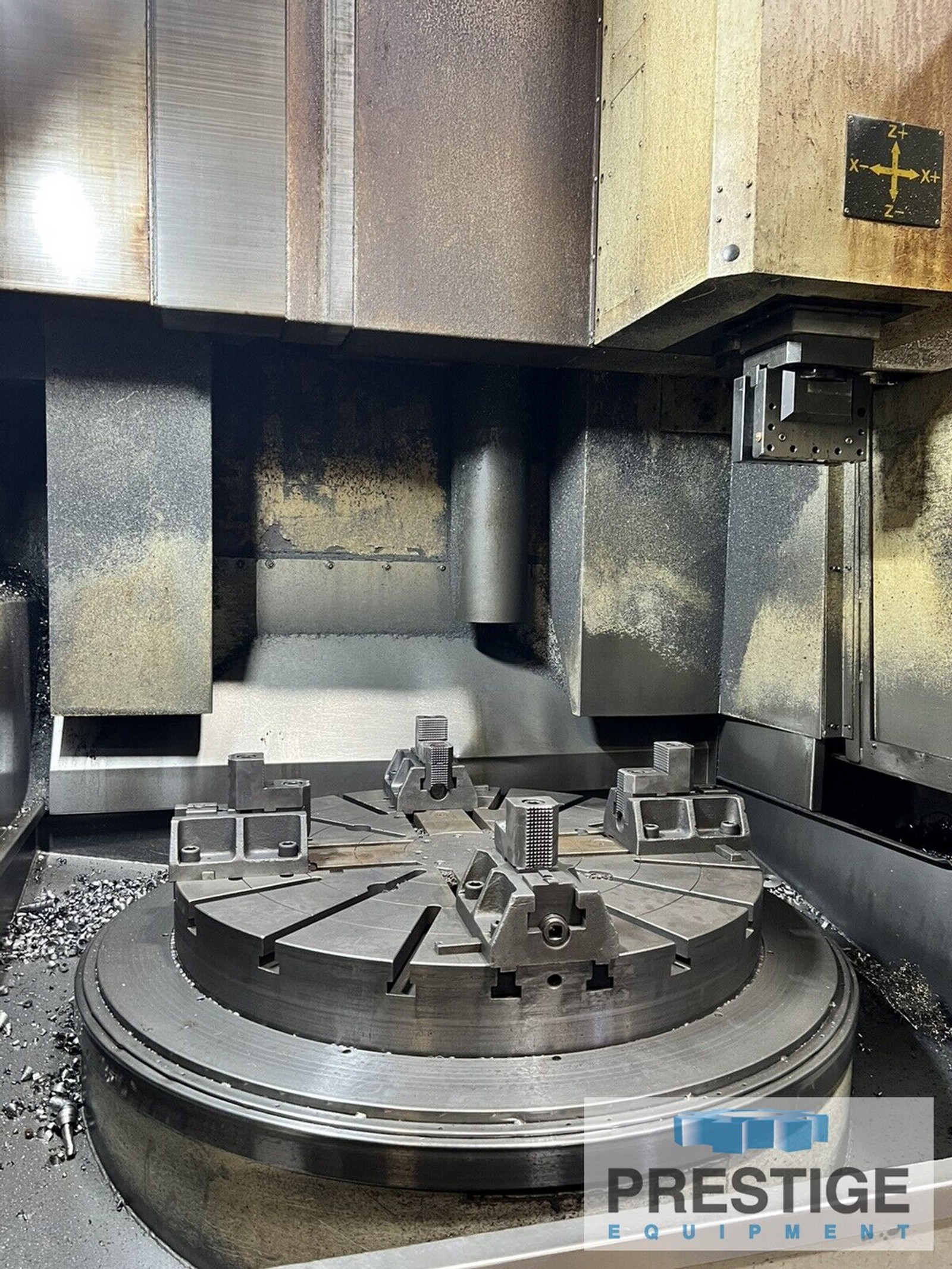

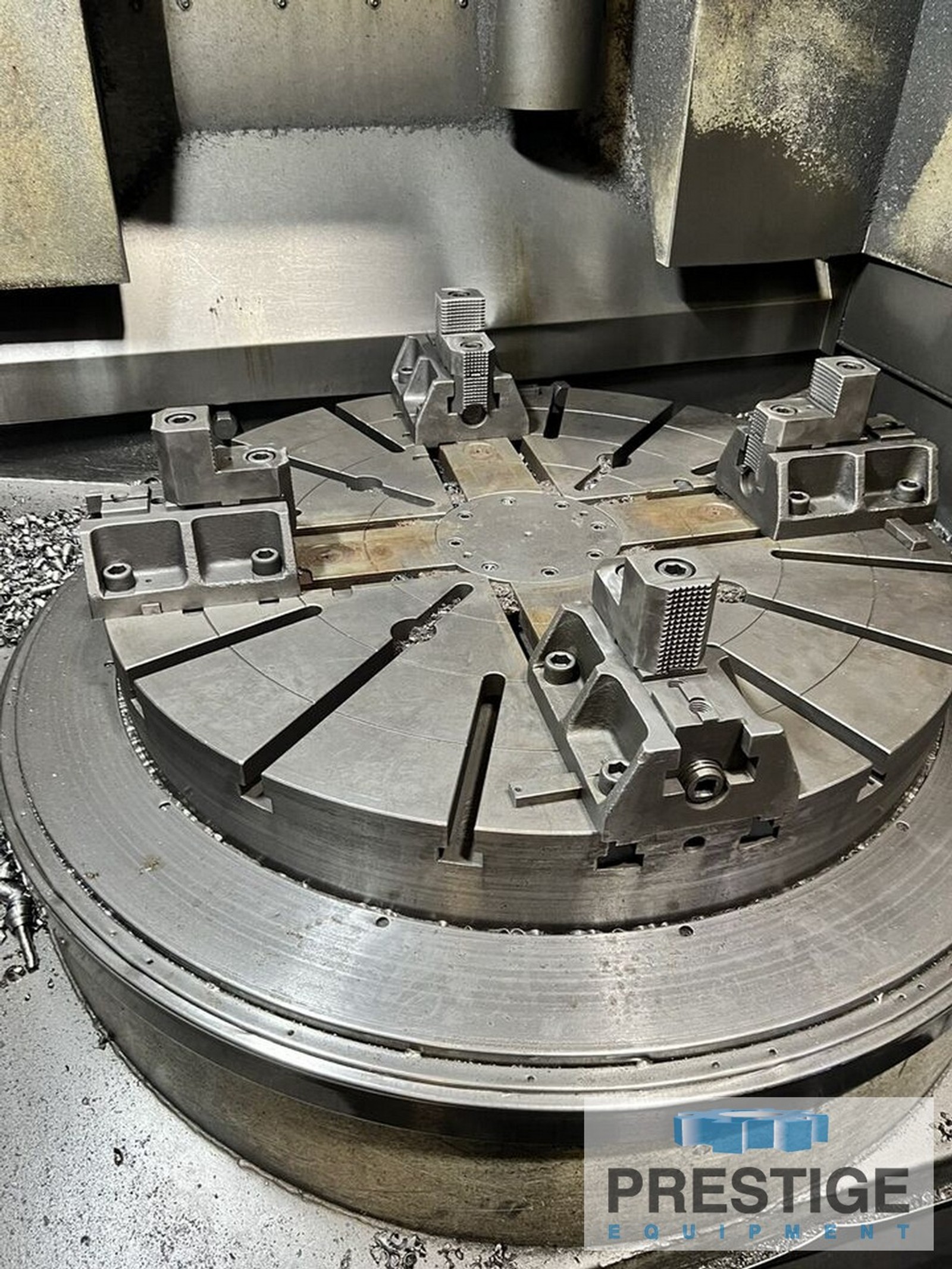

39.37" 4-Jaw Hydraulic Independent Chuck
Ram w/ 12-Position Automatic Tool Changer
Chip Conveyor
Misc. Tooling
60 HP Table Drive Motor
