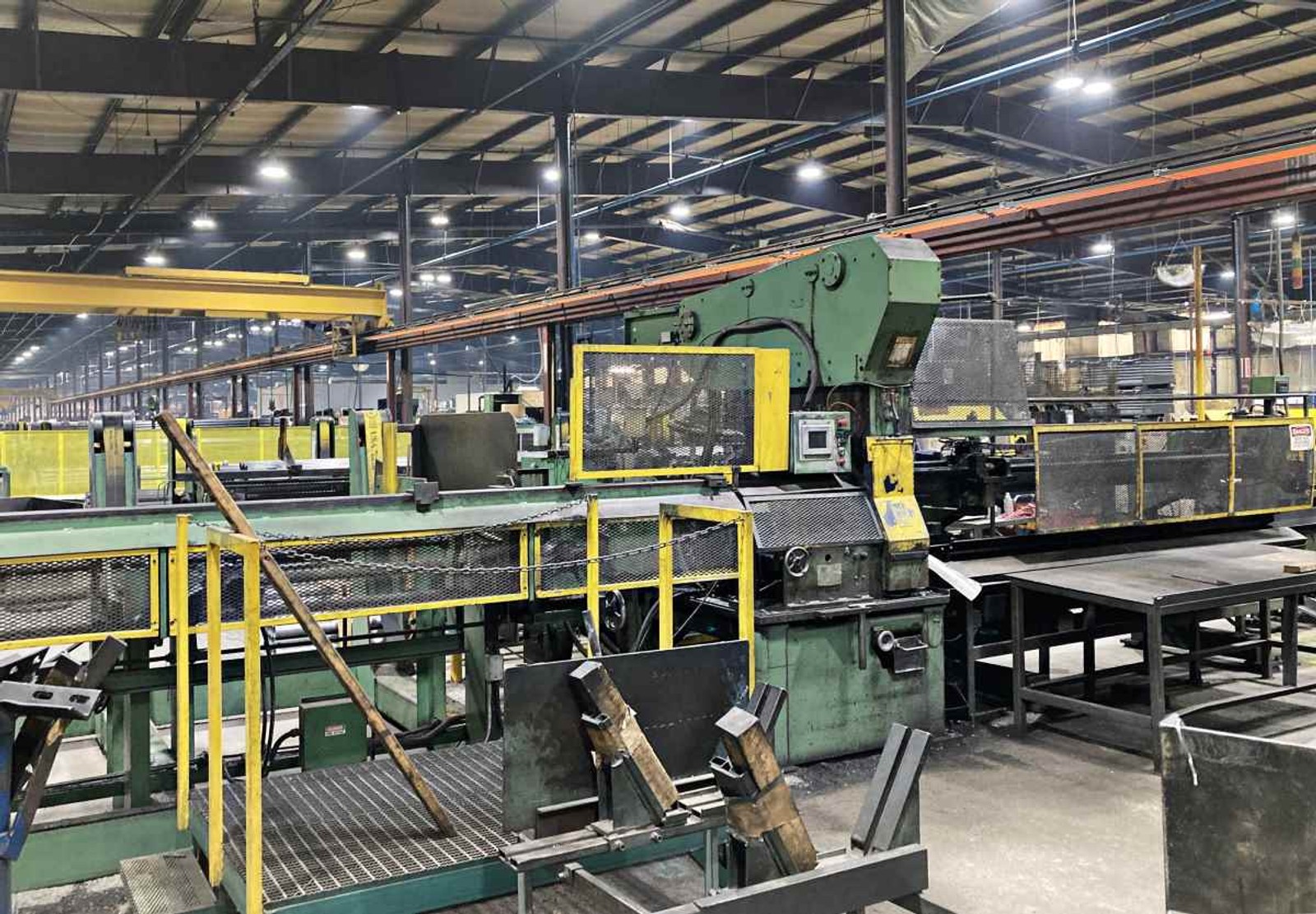

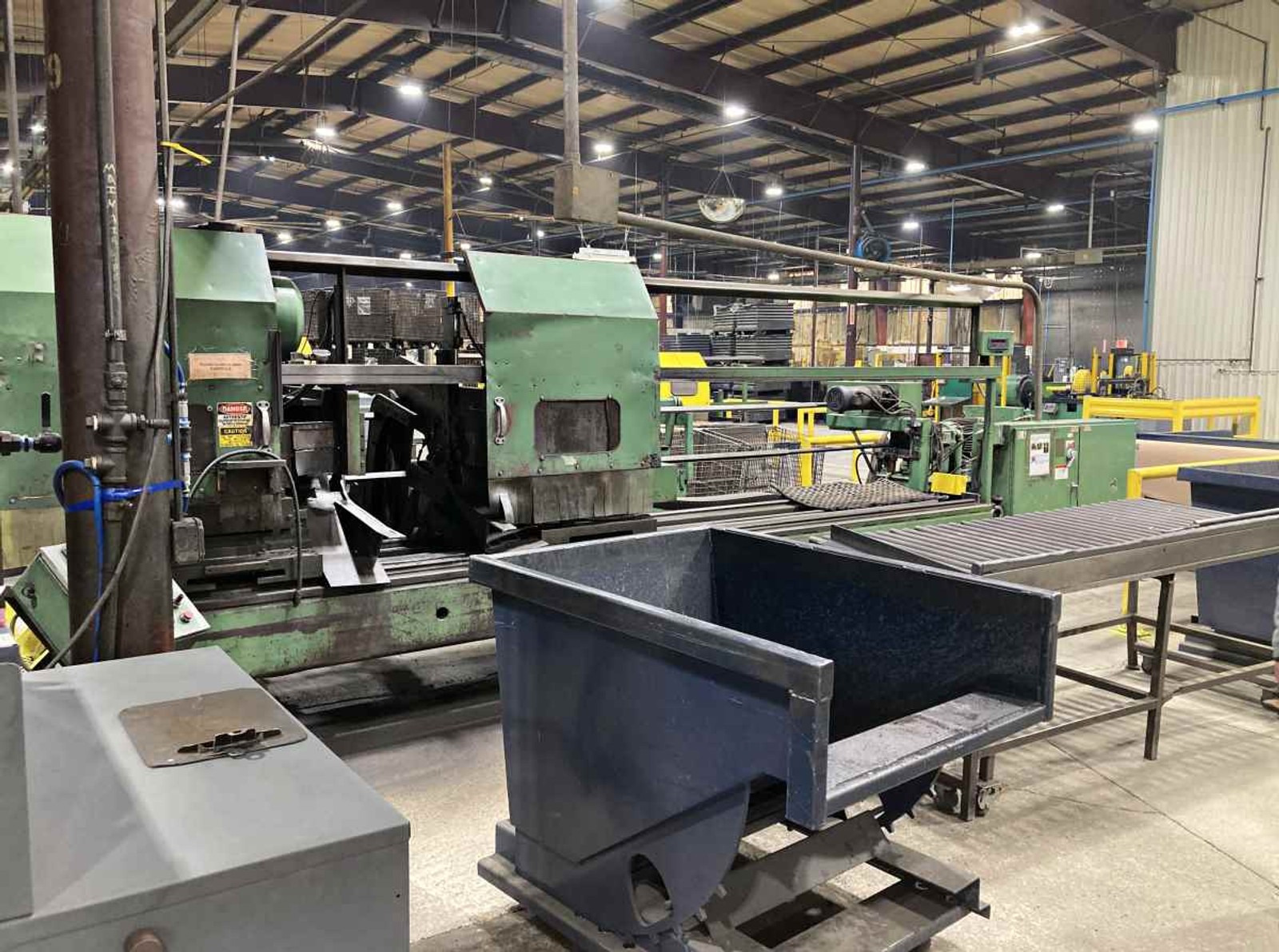

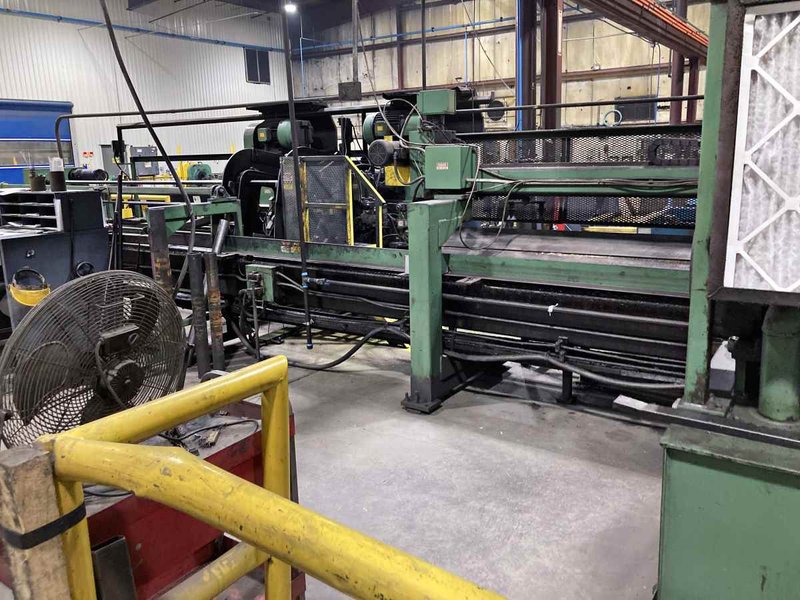

5" (127 mm) x .165" (4.2 mm) HAVEN 875 Tube Re-Cut w/20' Bundle Loader

Manufacturer

HAVEN

Category

Tube Machinery

Type

TUBE MACHINERY, (Cut Off)

Stock

4028

Model

875

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

UTUBE NUMBER: 4028
MANUFACTURER: HAVEN
MODEL NUMBER: 875
SERIAL NUMBER: 4260

PRELIMINARY SPECIFICATIONS:
Haven Cutting Capacity:
Round: 1" - 5" (25 - 127 mm)
Square: 3-3/4" (95 mm)
Rectangle: 2" x 4" (50 x 115 mm)
Maximum Wall: .165" (4.2 mm)
Cut Tube Lengths: 4" - .120" (100 - 3000 mm)
Cut Tolerance: +/- .015"
Maximum Cycle Rate: 2200 per Hour
Line Direction: Left to Right

EQUIPPED WITH:
Push Button Controls

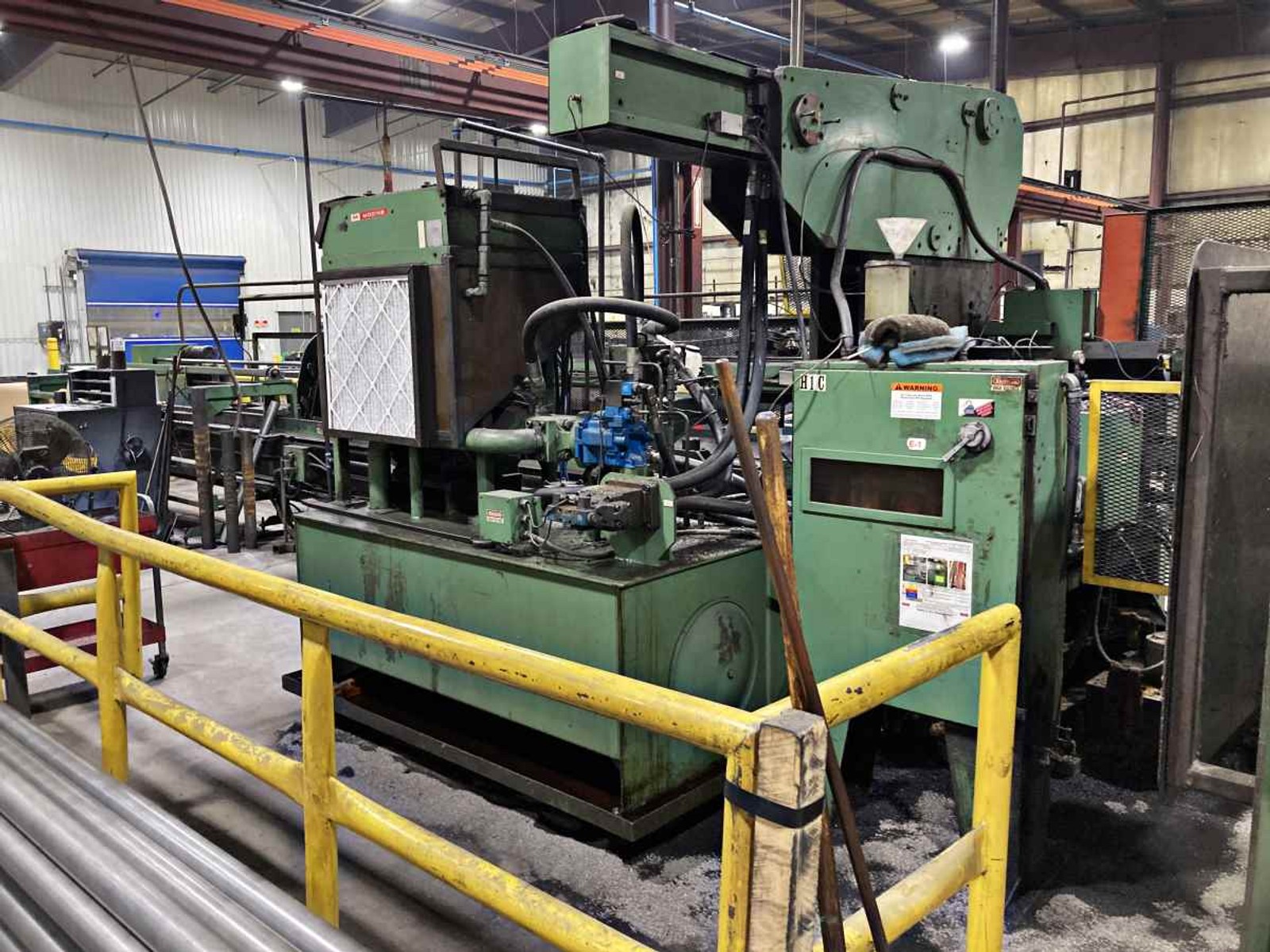

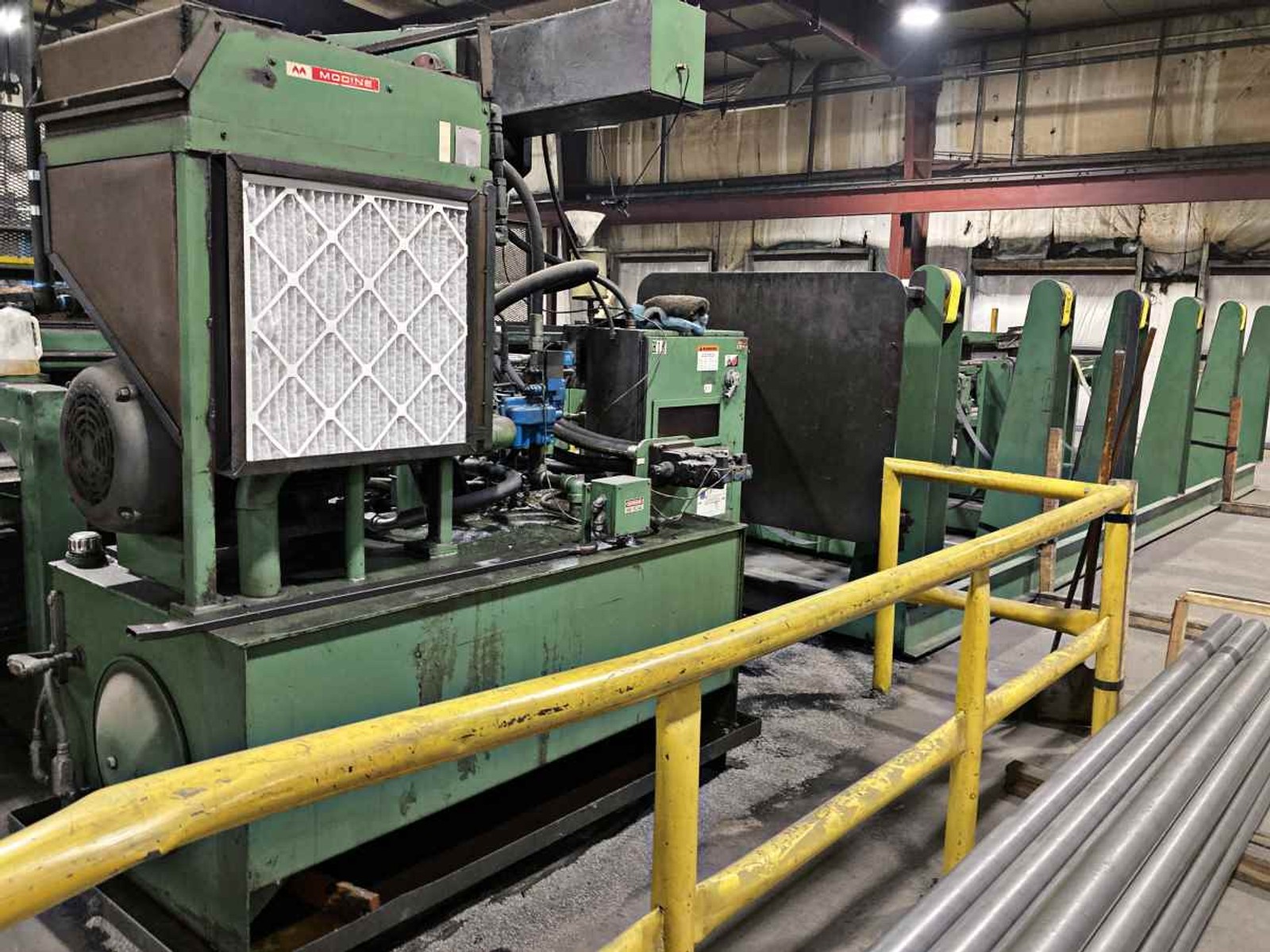

Hydraulic Unit

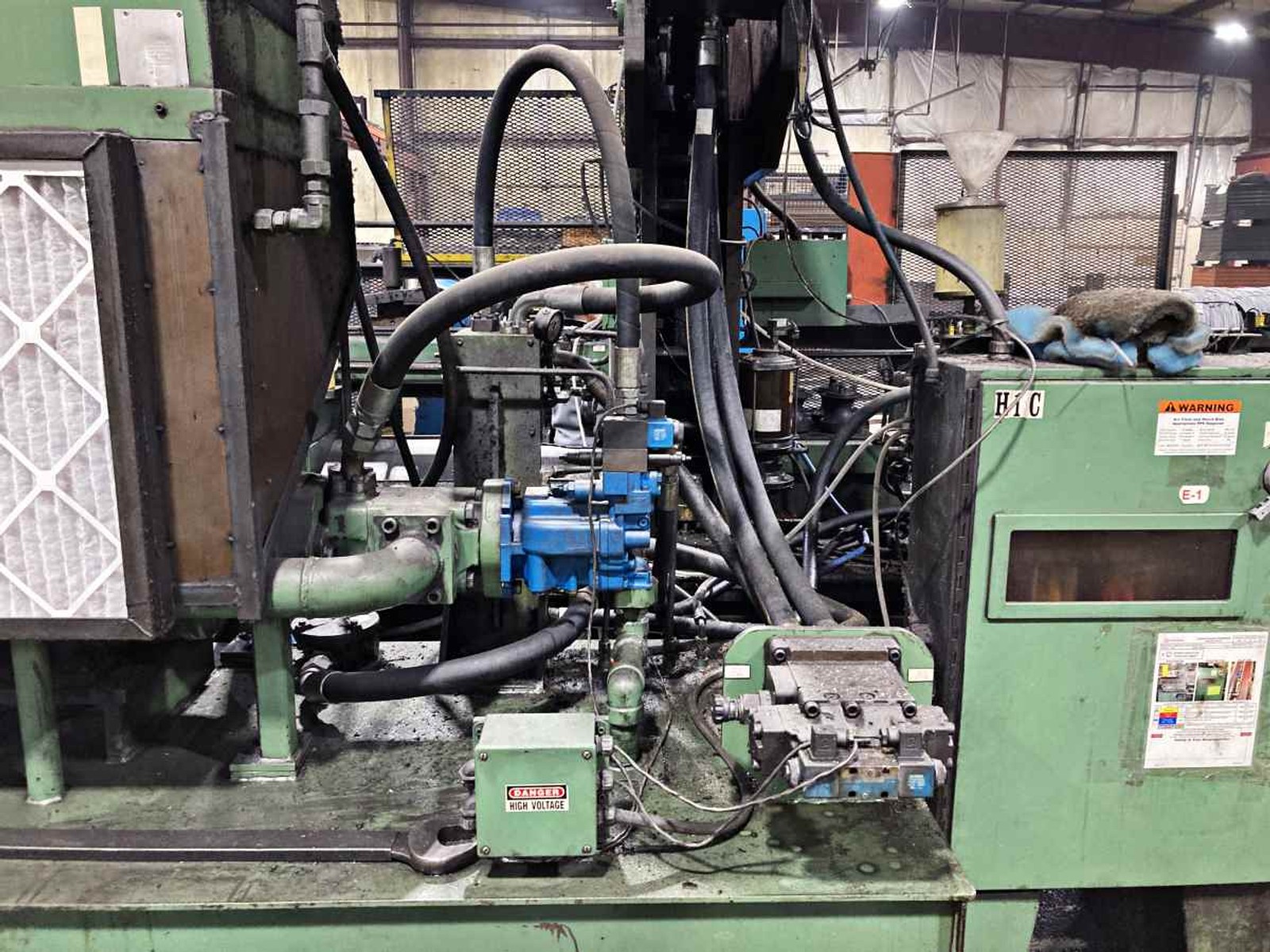

VICKERS Hydraulic Pump
BIJUR Central Grease System
30 HP Motor: 230 / 460 / 60 Hz / 3 Phase
Target Assembly

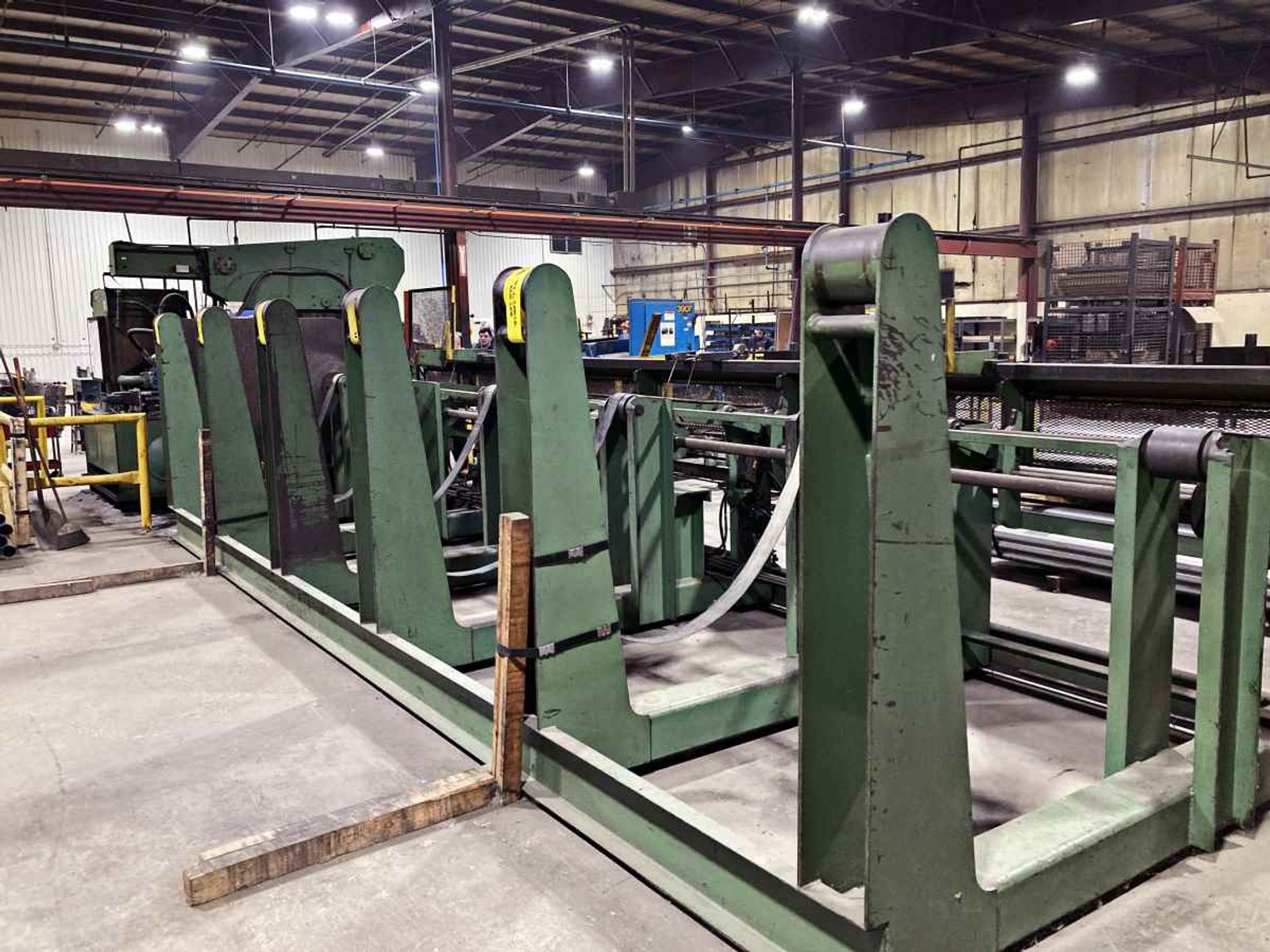

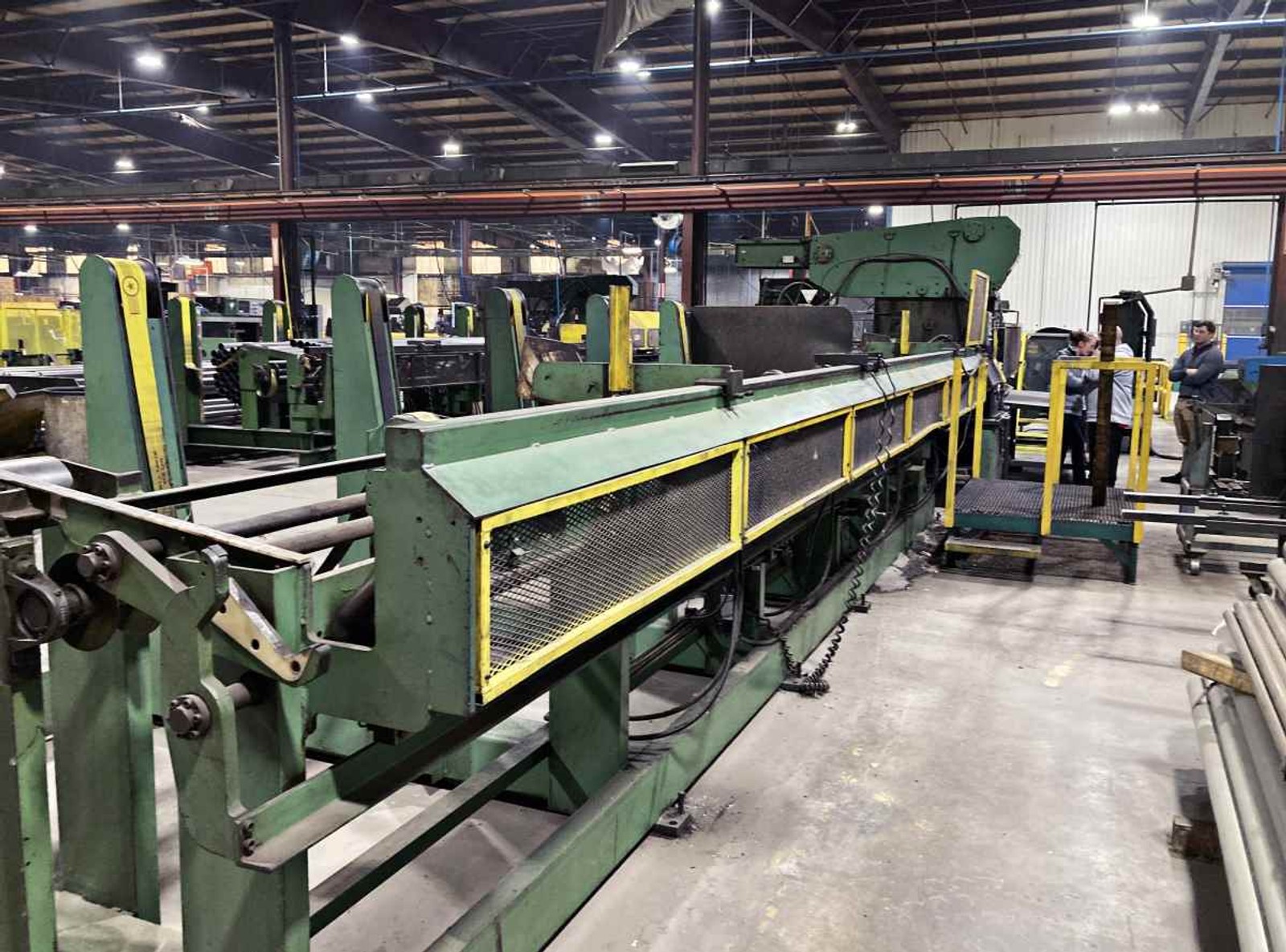

20' Bundle Loader
Conveyor Table
(2) Runout Tables

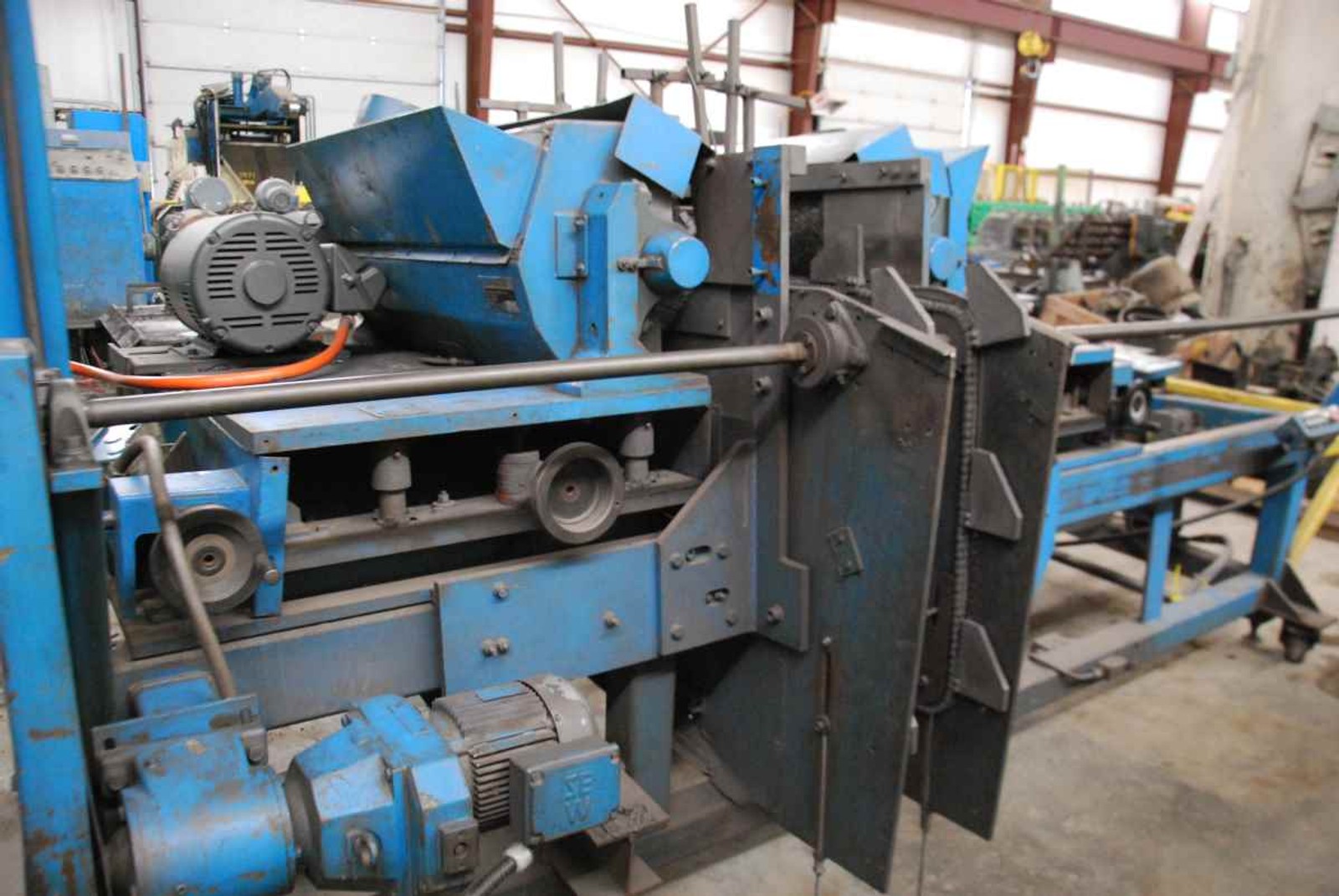

BURRMASTER Debur
- S/N: 1992
- Maximum O.D.: 5" (127 mm)
- Brush Length: 36"

OVERALL DIMENSIONS: 10' x 50' x 9'
APPROXIMATE WEIGHT: 40,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
