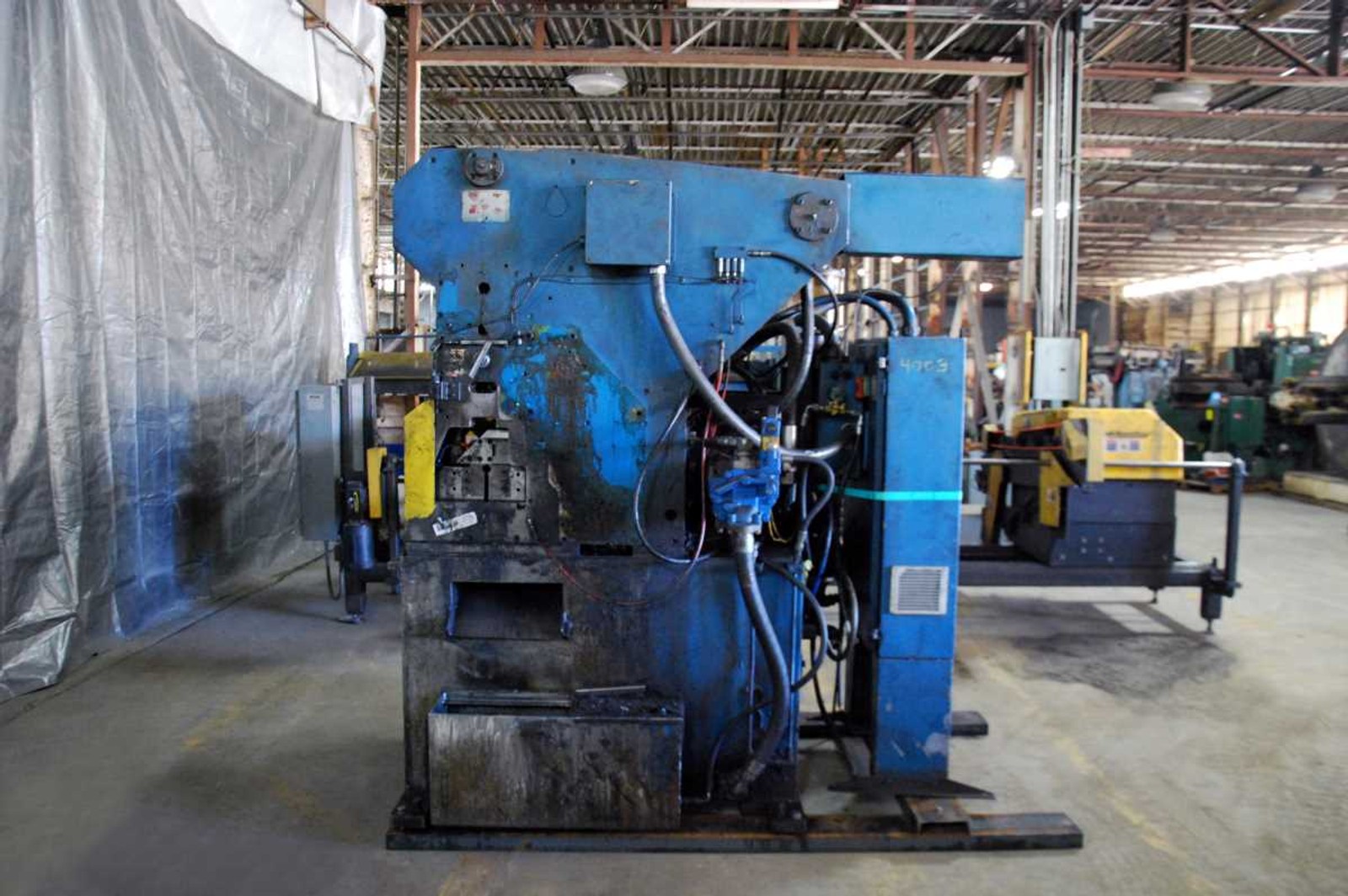

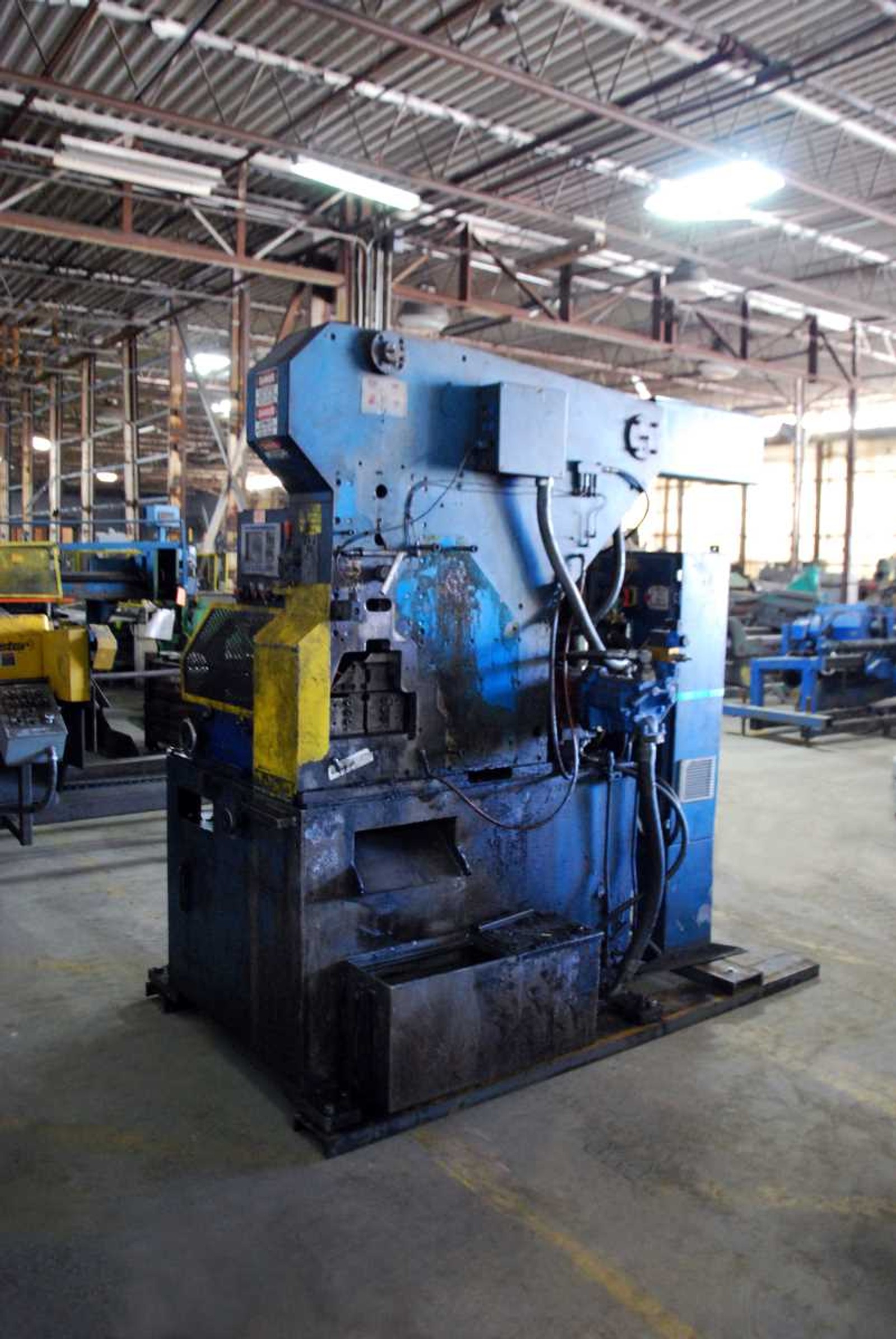

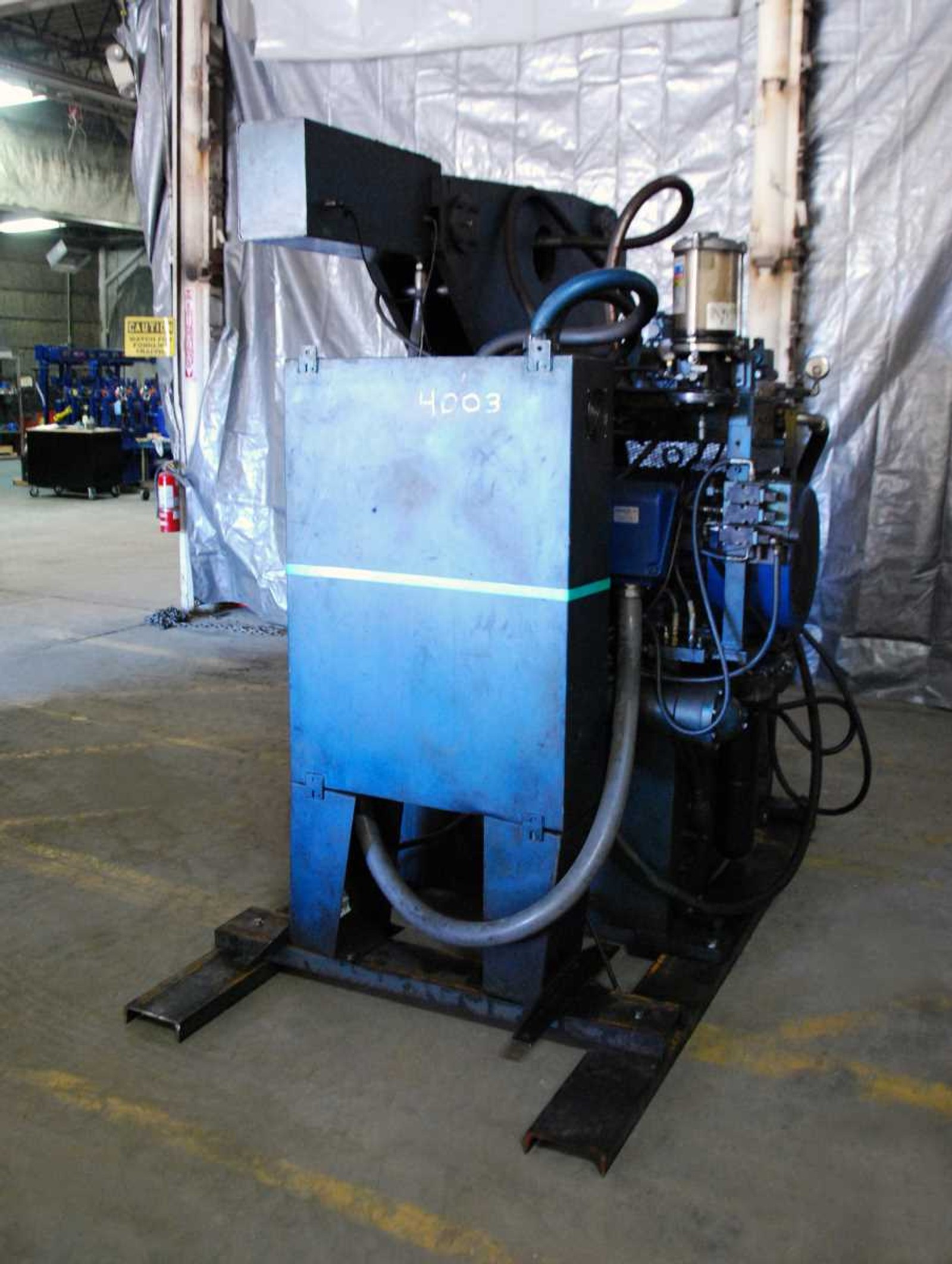

3" (76.2 mm) x .120" (3.04 mm) HAVEN 873 Re-Cut System

Manufacturer

HAVEN

Category

Tube Machinery

Type

TUBE MACHINERY, (Cut Off)

Stock

4003

Model

873

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 4003
MANUFACTURER: HAVEN
MODEL NUMBER: 873
SERIAL NUMBER: 5060

SPECIFICATIONS:
Maximum Tube Diameter: 3" (76.2 mm)
Maximum Squares & Rectangles: 3" (76.2 mm) Diagonal
Minimum Tube Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .120" (3.04 mm)
Line Direction: Left to Right
Cycle Speeds: Up to 5,000 Cycles/Hr
Maximum Cut Length: 10'

EQUIPPED WITH:
20' Bundle Loader
Touch Screen Control
VICKERS Hydraulic Pump
Target Assembly
BIJUR Central Grease System
30 HP Motor: 230 / 460 / 60 Hz / 3 Phase
10' Exit Conveyor & Dump Table

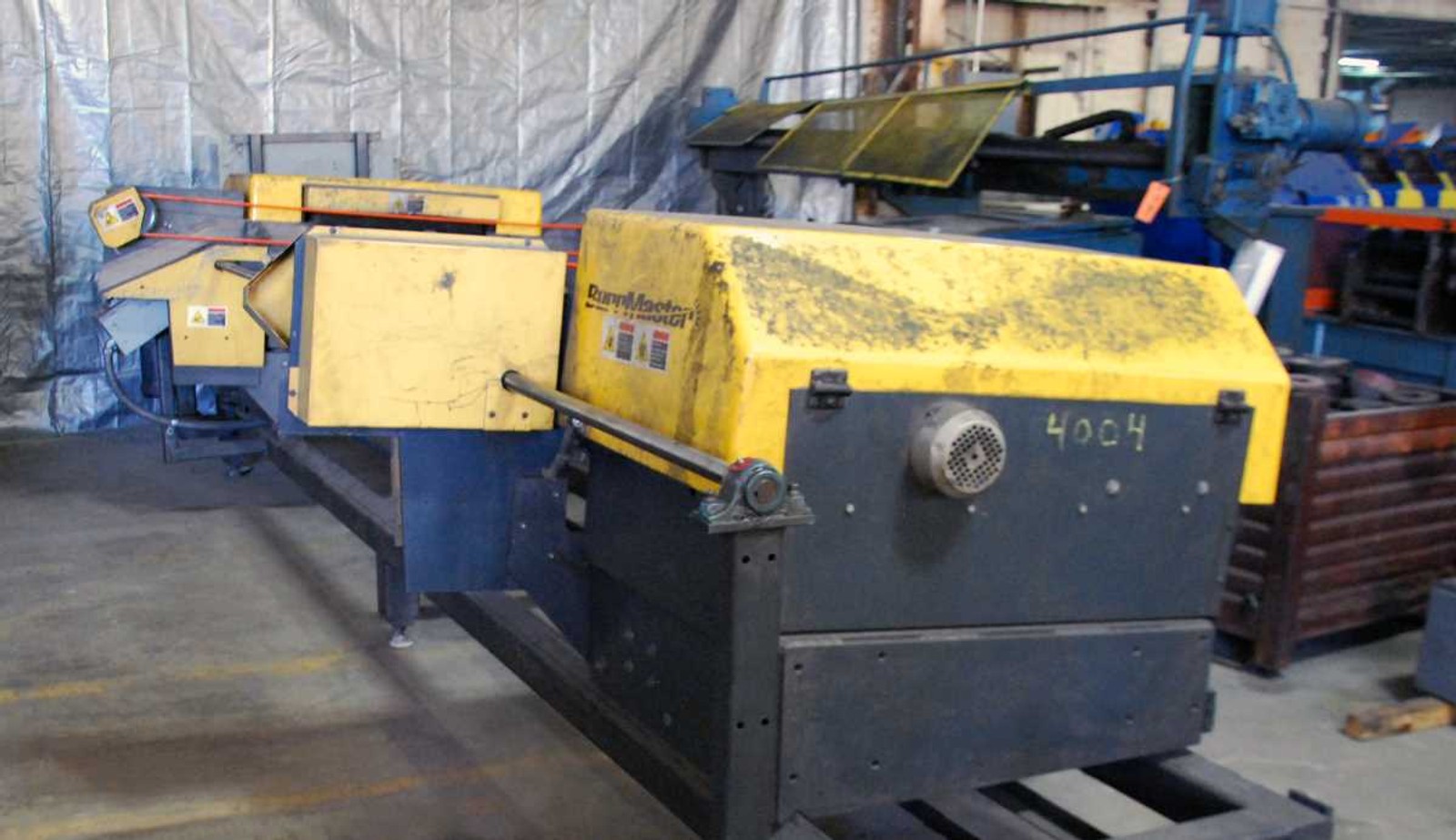

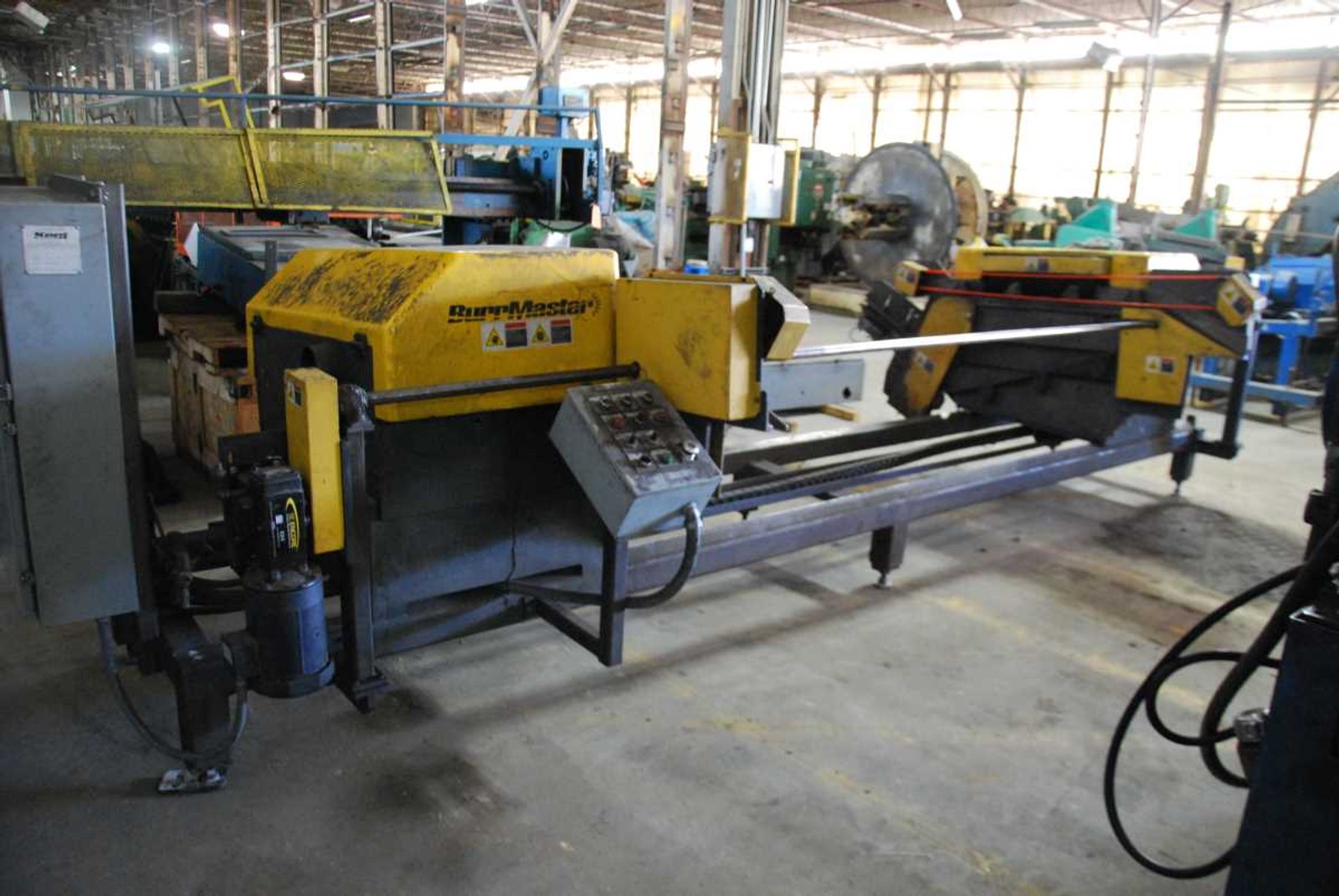

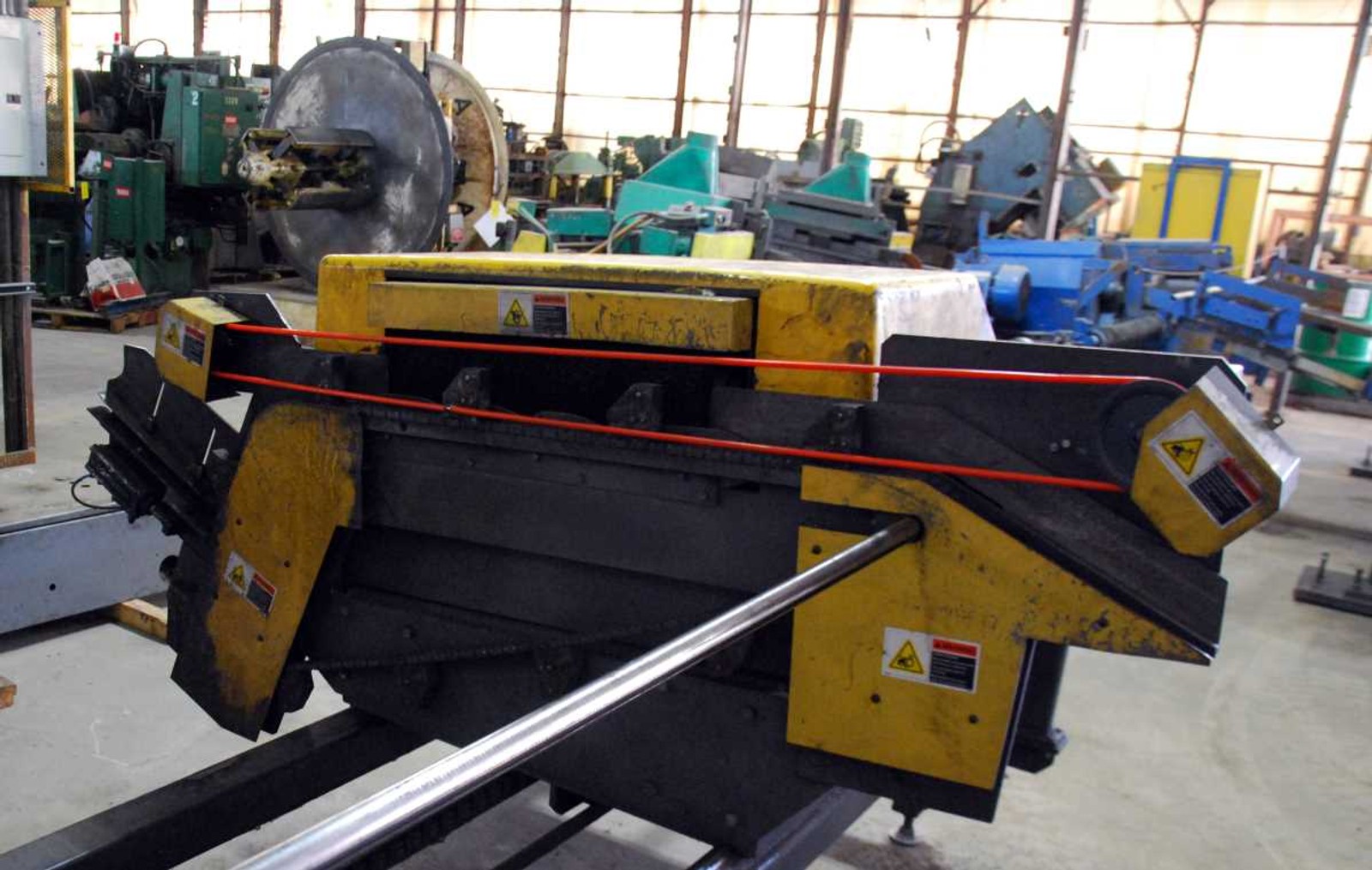

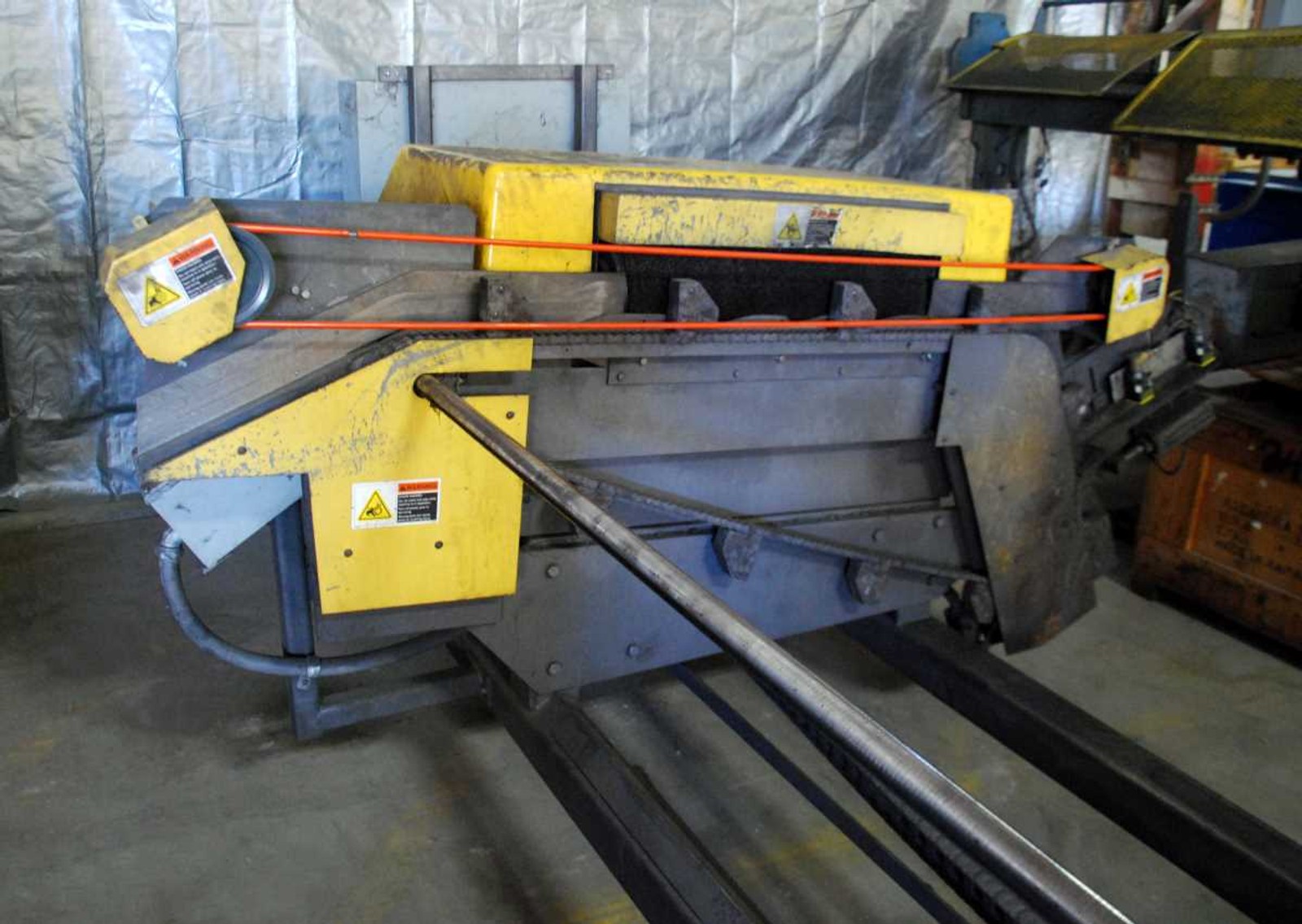

BURRMASTER #2 Double End Brush Machine:
- Model Number: BM2-BC
- Serial Number: 10693
- Tube Length: 6" - 120"
- Tube O.D.: 1/2" - 3-3/4"
- Max. Squares: 2-3/4"
- Profiles: 1/2" x 1/2" - 2-1/2" x 2-1/2"
- Max. Output: 4,500 Pieces/Hour
- Brush Length: 24"
- Brush O.D.:12"
- Motors: (2) 10 HP / 208-230 / 460 / 3 Ph / 60 Hz

CONDITION: Good As Taken From Service.
OVERALL DIMENSIONS: 1 Truckload
APPROXIMATE WEIGHT: 17,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
