1-1/4" (31.7 mm) x .049" (1.24 mm) YODER M1-1/2 ERW Tube Mill Line

Manufacturer

YODER

Category

Tube Machinery

Type

TUBE MILLS, HF/ERW

Stock

3363

Model

M1-1/2

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3363
MANUFACTURER: YODER
MODEL NUMBER: M1-1/2
SERIAL NUMBER: 6705

SPECIFICATIONS:
Line Direction: Right to Left
Maximum Tube Diameter: 1-1/4" (31.7 mm)
Minimum Tube Diameter: .313" (7.95 mm)
Maximum Wall Thickness: .049" (1.24 mm)
Minimum Wall Thickness: .020" (.508 mm)
Maximum Line Speed: 150 FPM, Max. Gear In Speed, No Load
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI

GEAR BOX DATA:
Spindle Diameter: 1-1/2"
Roll Space Forming, Fin & Sizing: 8"
Horizontal Centers: 11"

ENTRY EQUIPMENT:

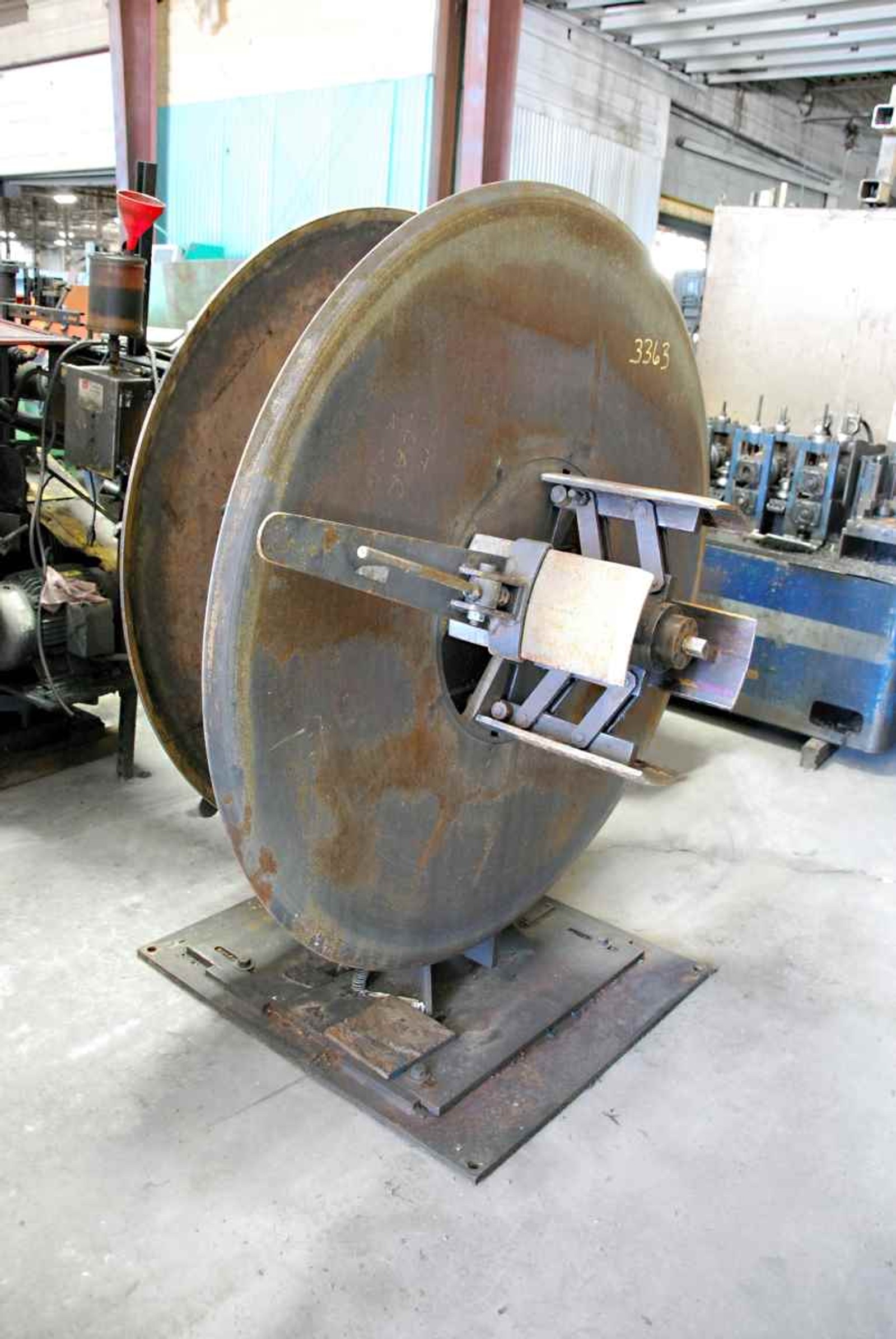

(1) 3,000 Lb. KENT Model SKD-3000 Double Uncoiler
Serial Number: 95 - 2873 - A
Year: 1995

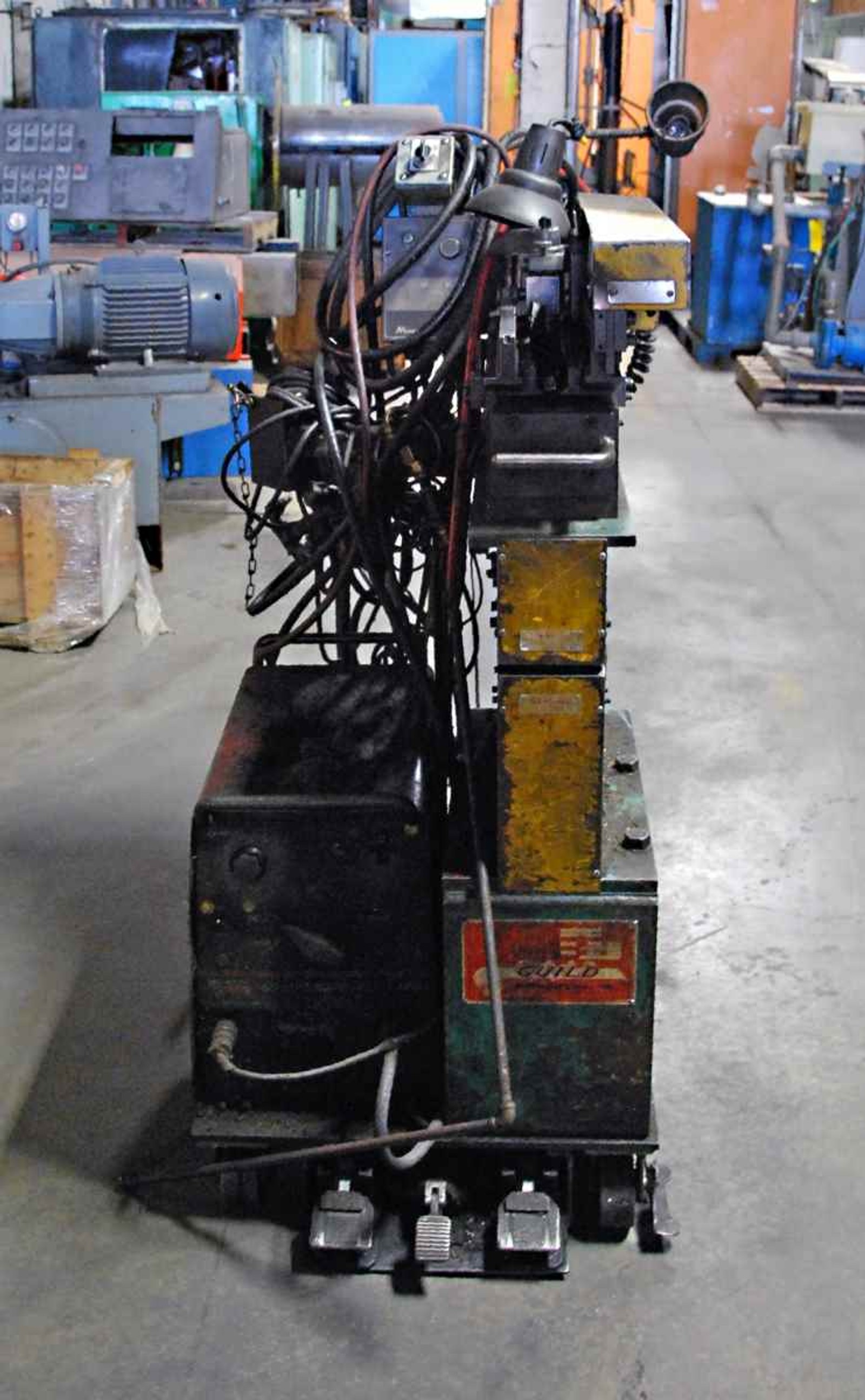

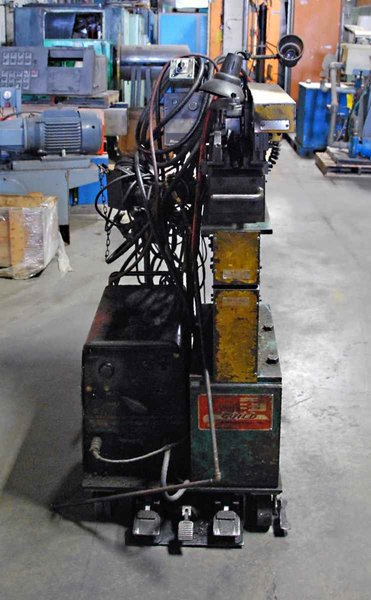

(1) GUILD Model PSA-2000 Shear & End Welder
(1) DMC Vertical Accumulator
Year: 2002

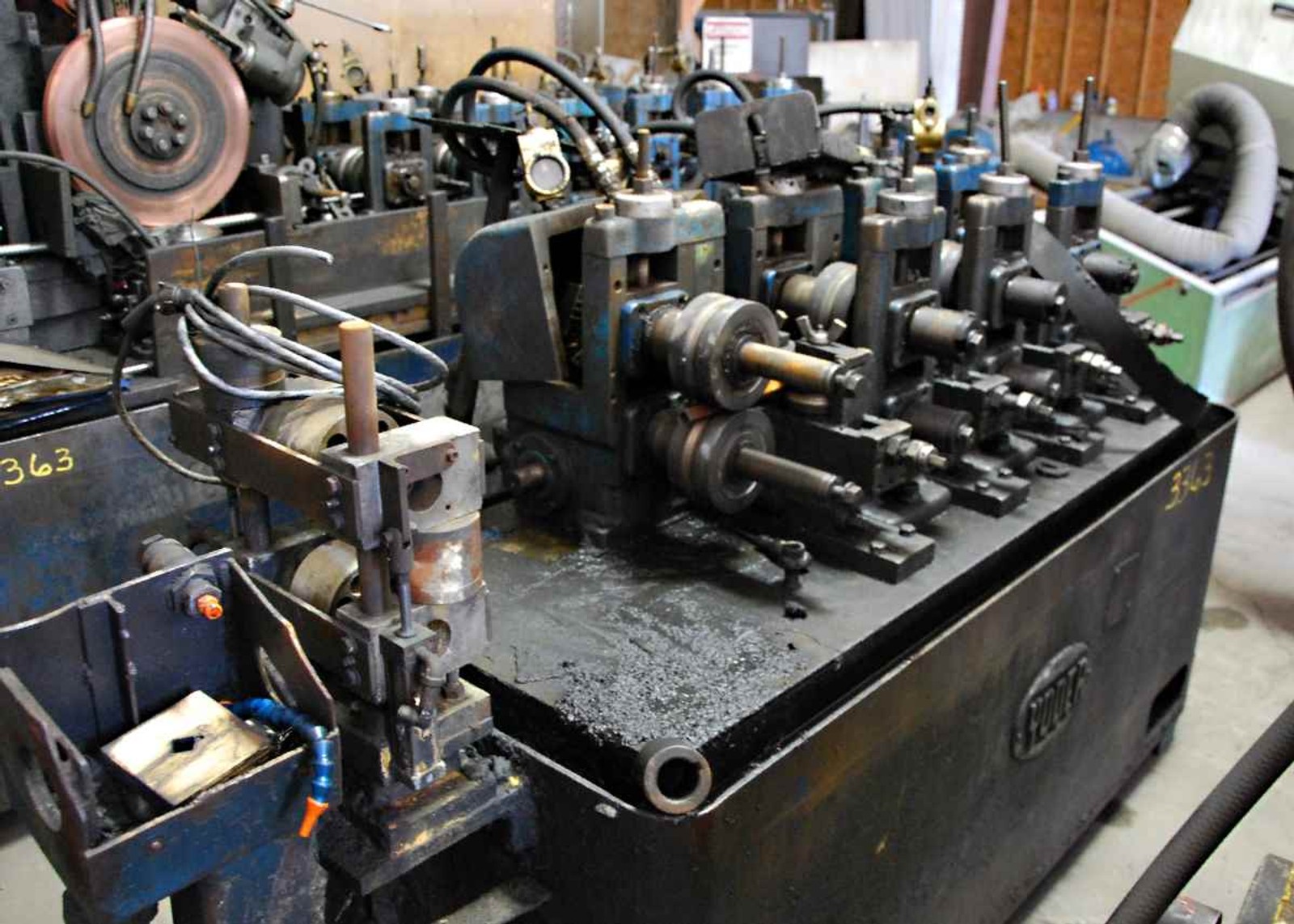

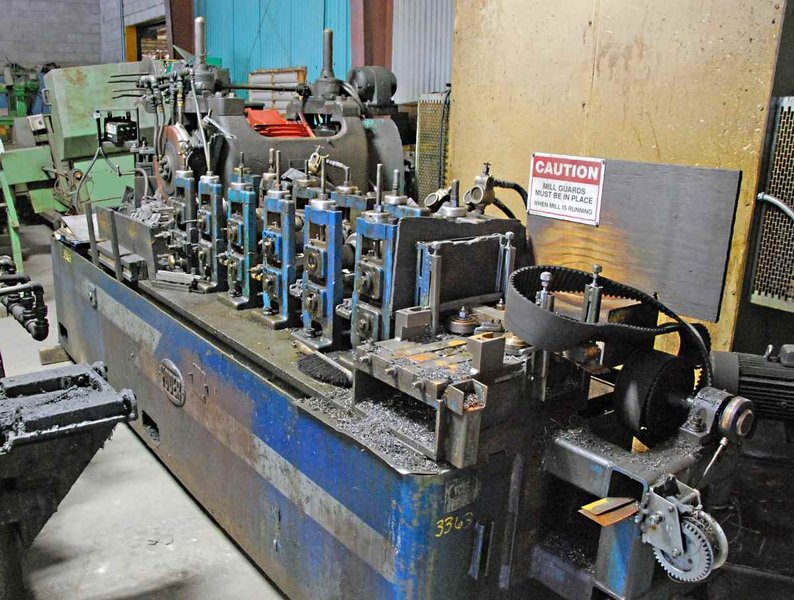

FORMING MILL:
(1) Entry Guide with (2) Edge Trimmers
(3) Driven Breakdown Stands with Oil Re Circulation
(5) Idle Side Rolls with Vertical Adjustment
(3) Driven Fin Stands with Oil Re Circulation

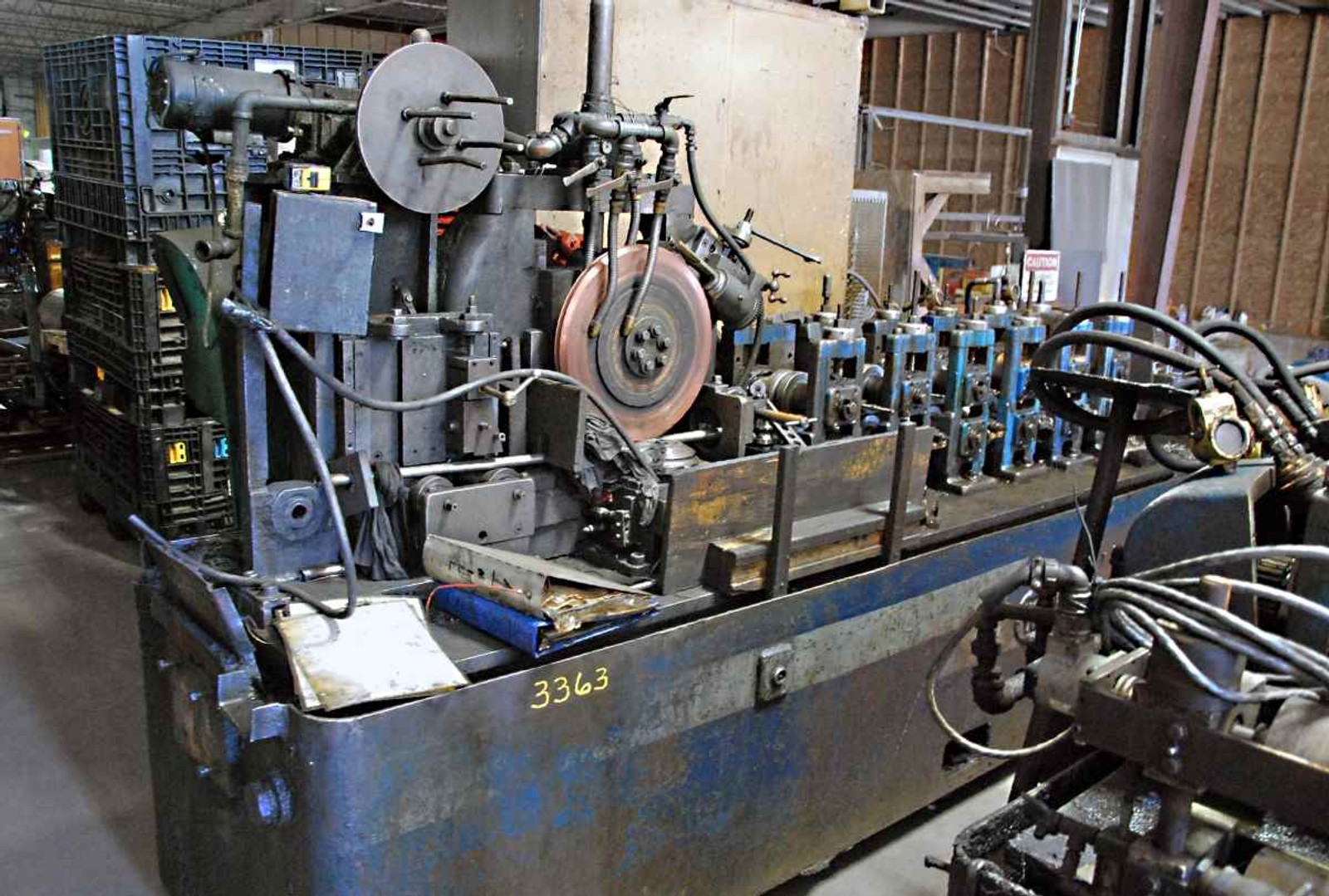

WELDING SECTION:
(1) YODER 75 KVA Rotary Resistance Welder with PILLAR Solid State Control
Frequency 400 - 600 Hz
(1) Seam Guide with Vertical Adjustment
(1) 2-Roll Weld Pressure
(1) Scarfing Stand
(1) Bead Winder
(1) 6' Flood Type Coolant Section

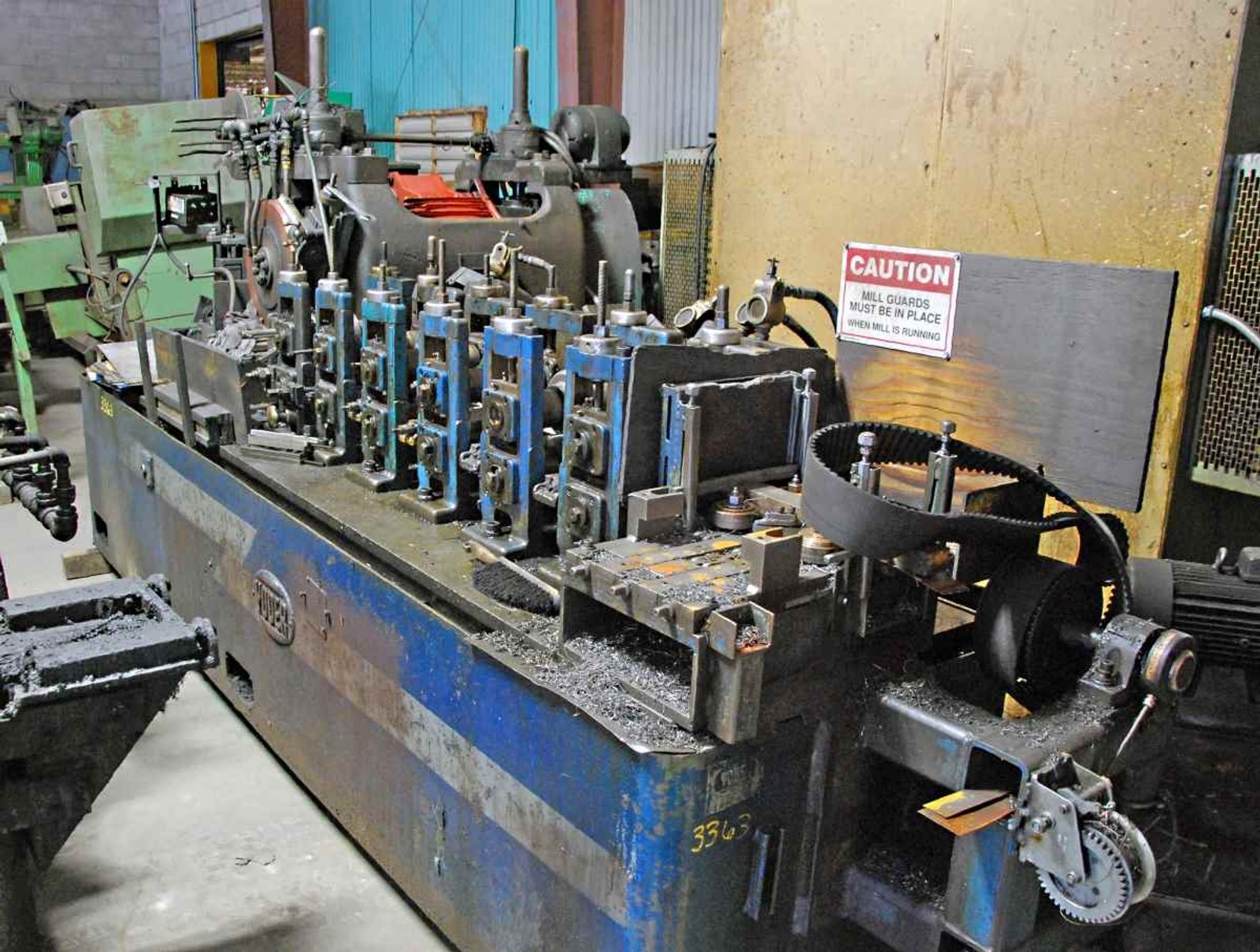

SIZING MILL:
(4) Driven Sizing Stands with Oil Re Circulation
(4) Idle Side Rolls with Vertical Adjustment
(1) Encoder Stand

CUT OFF:

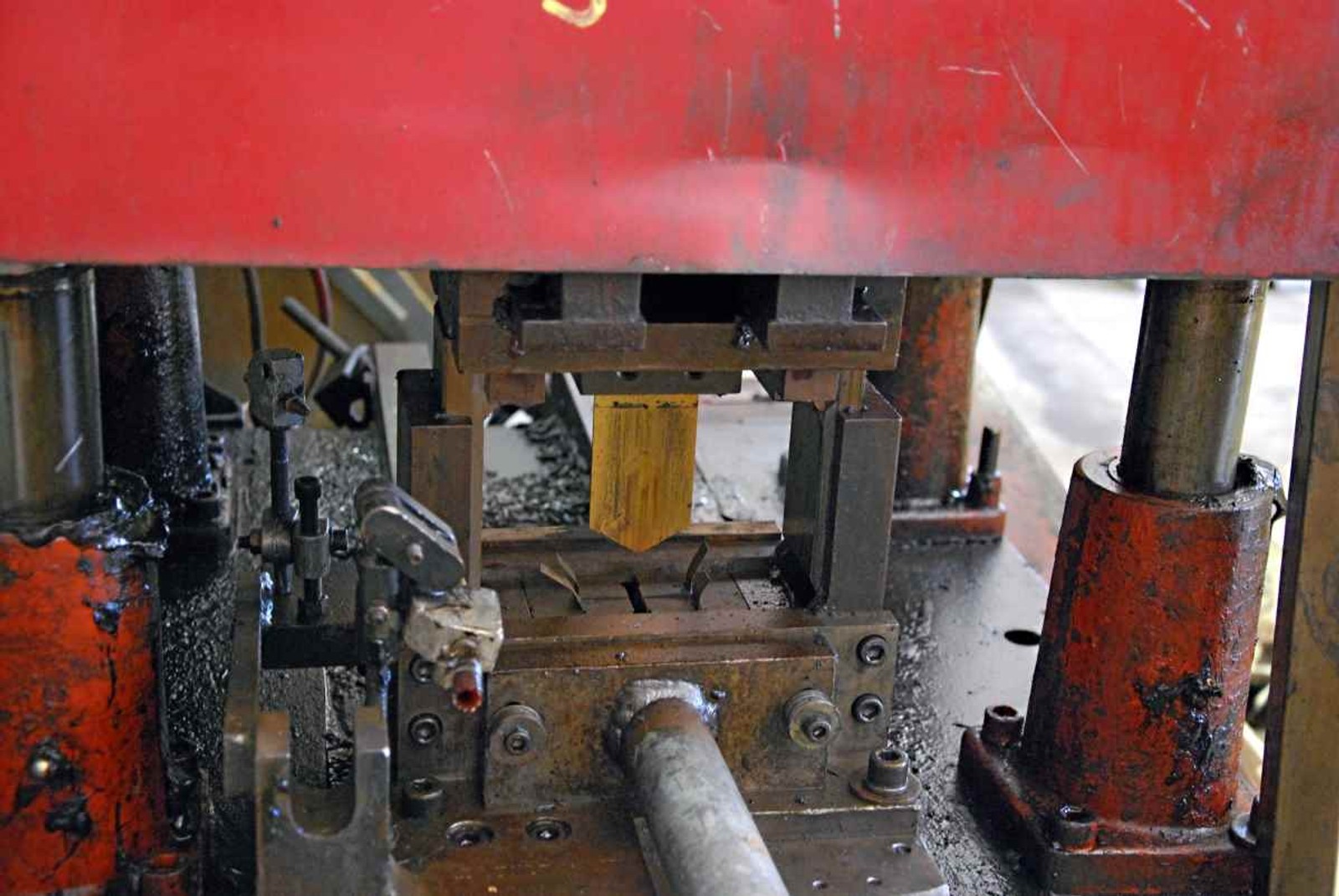

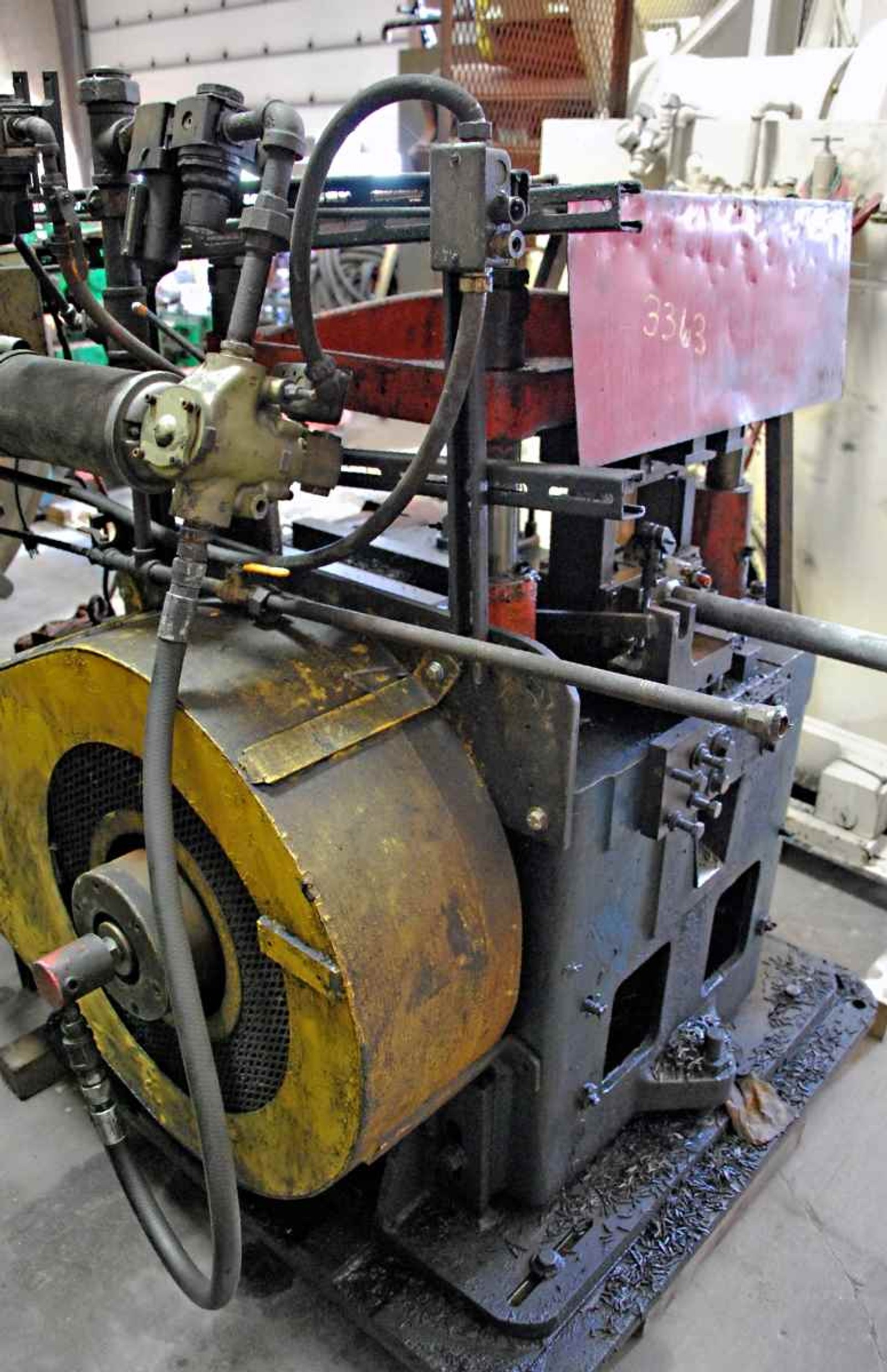

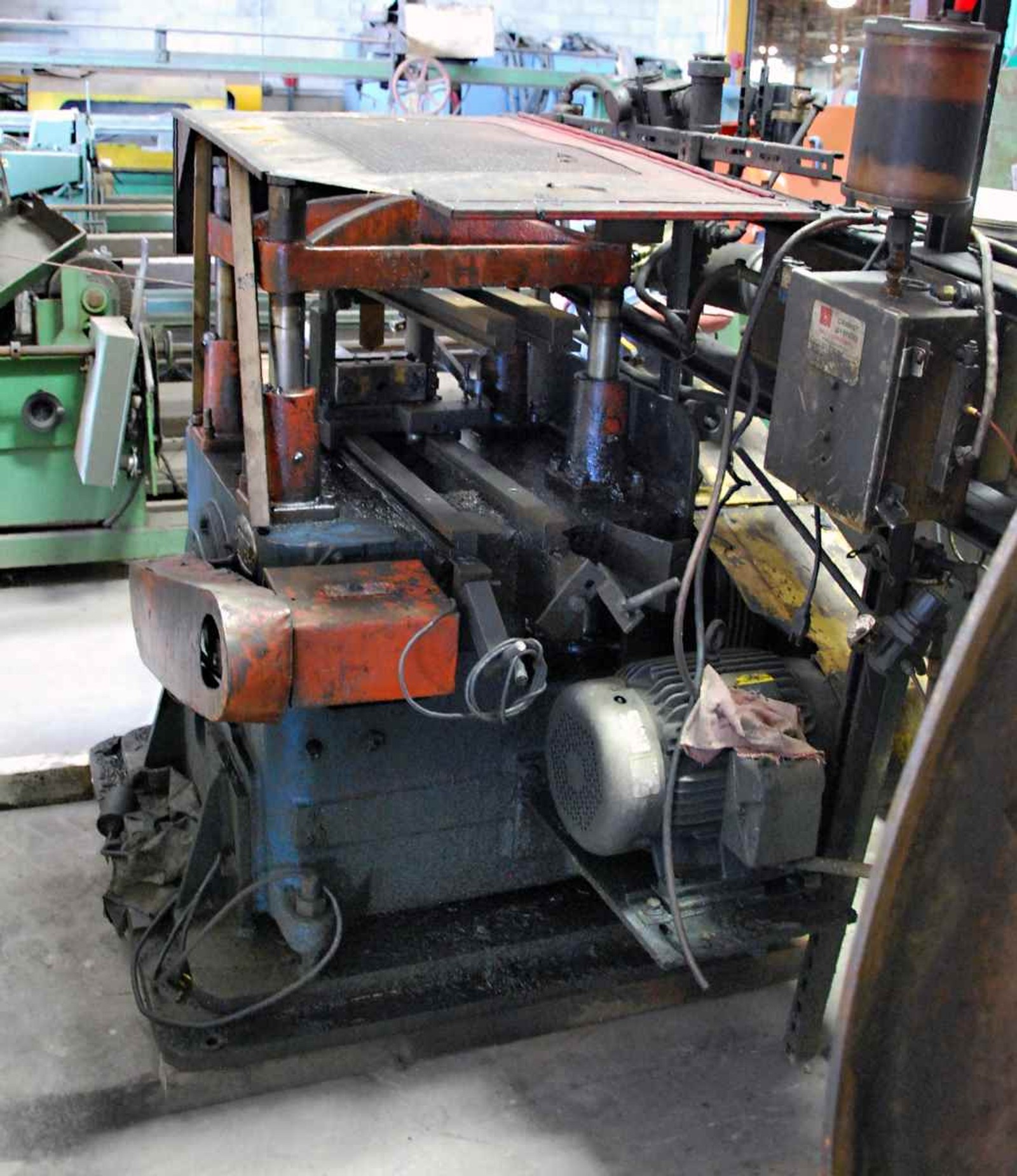

(1) 4-Post YODER Model P-40 Cut-Off
Single Cut Die Set with Hydraulic Accelerator
Serial Number: 6665
Motor: 15 HP, 1145 RPM

(1) 22' Single Dump Run Out Table

MILL DRIVE:
(1) Forming Motor, 50 HP AC, 1770 RPM, 460 / 60 / 3
(1) Sizing Motor, 50 HP AC, 1770 RPM, 460 / 60 / 3
(1) SIEMENS AC Drive Cabinet
(1) Push Button Station

EQUIPPED WITH:
Multiple Spares
Multiple Sets of Tooling

LOCATION: Universal Warehouse, Perrysburg, Ohio
