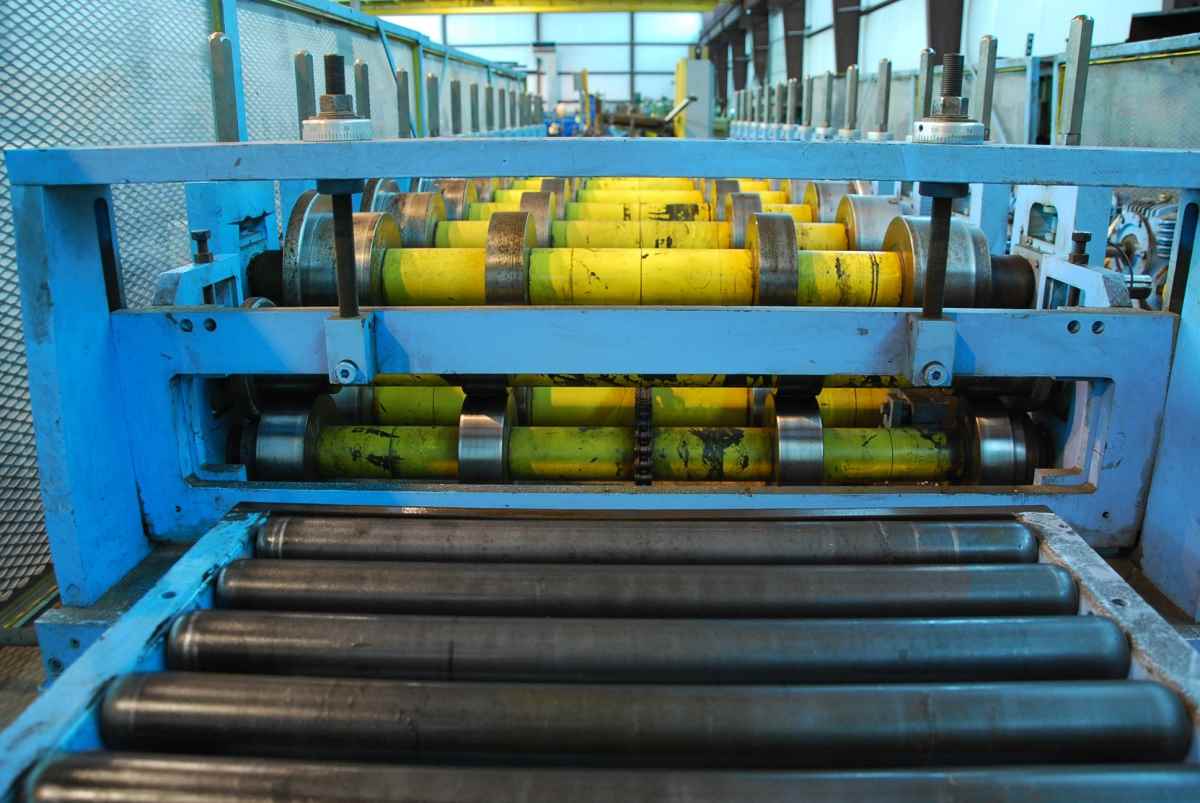

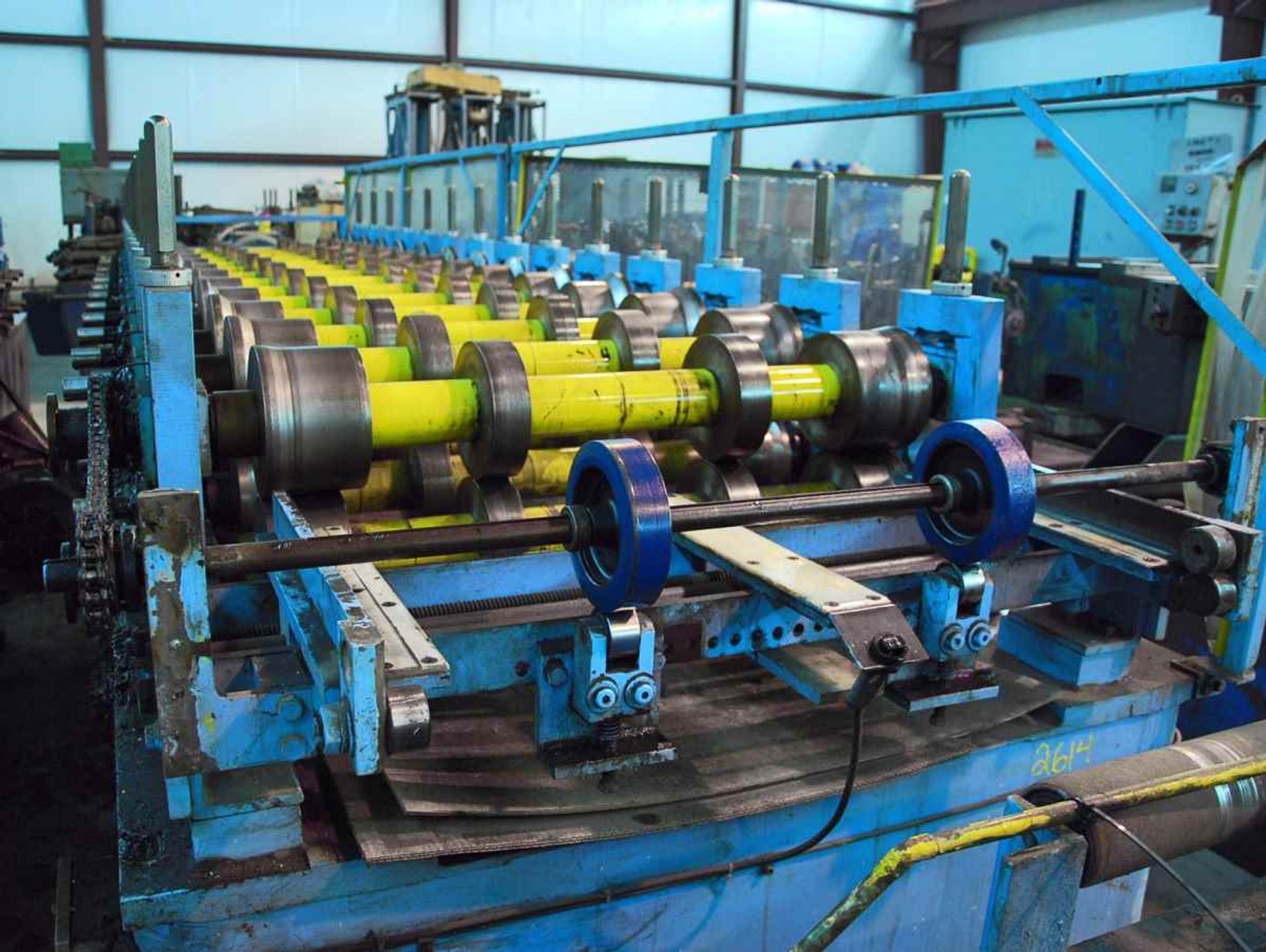

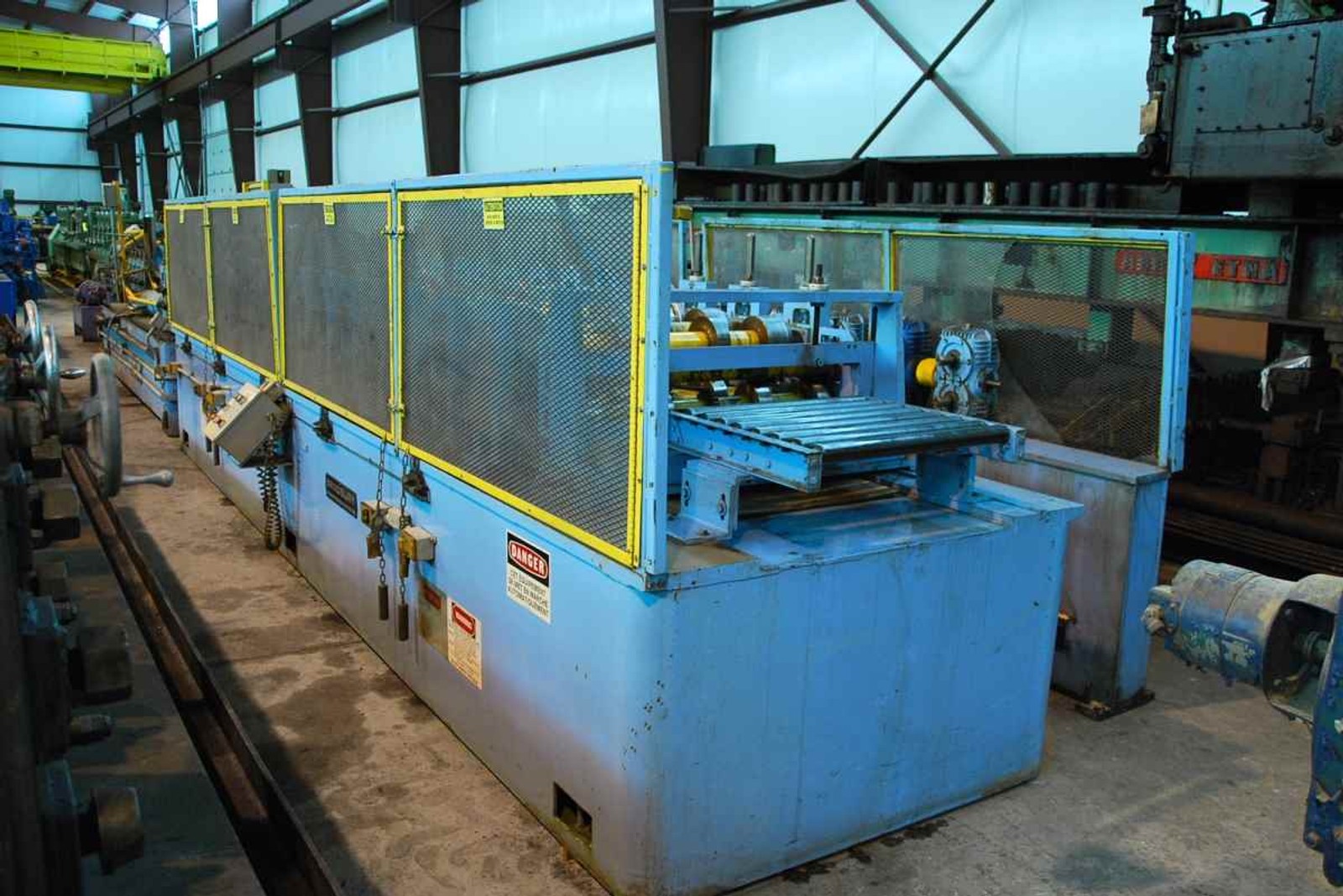

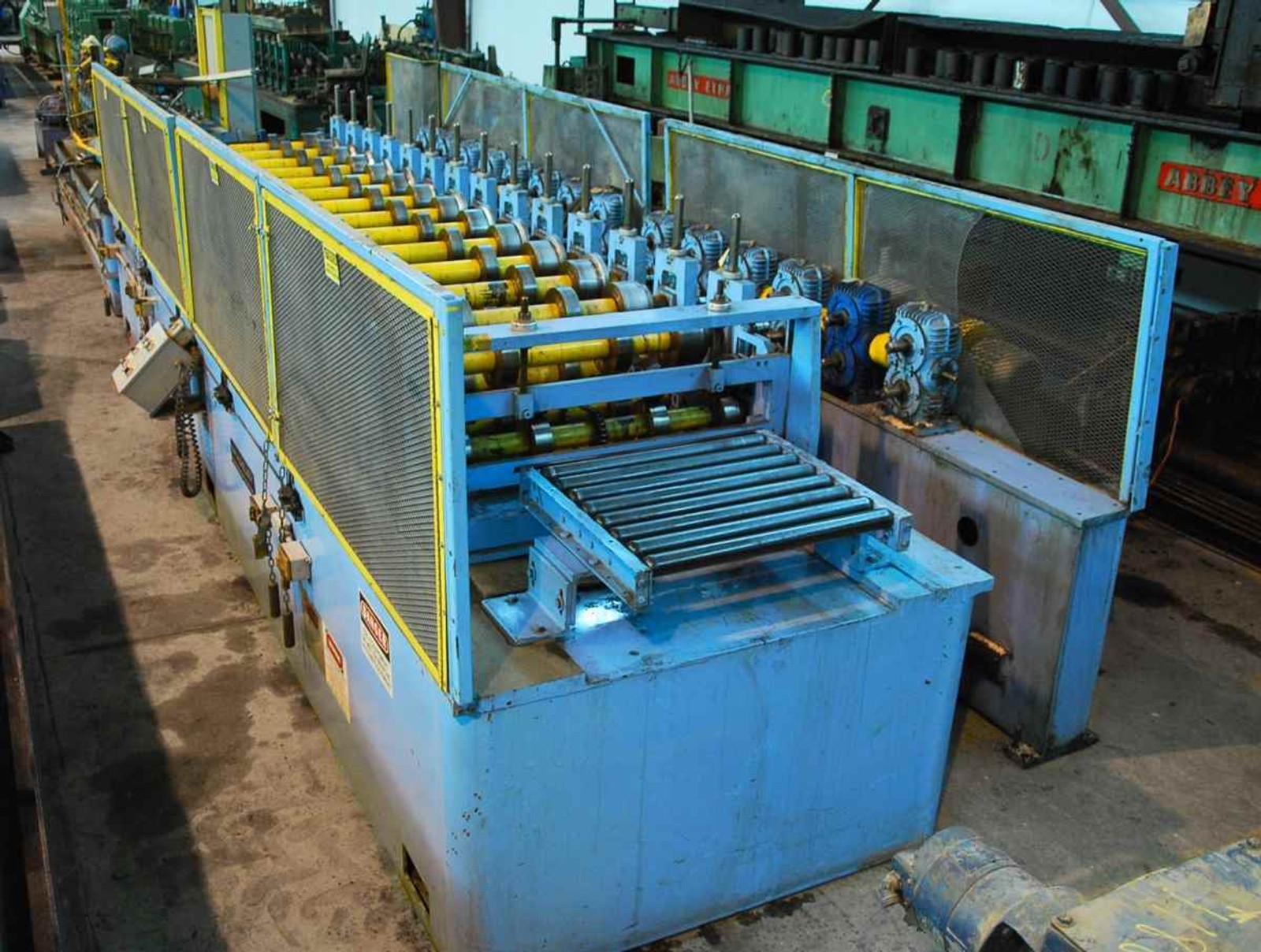

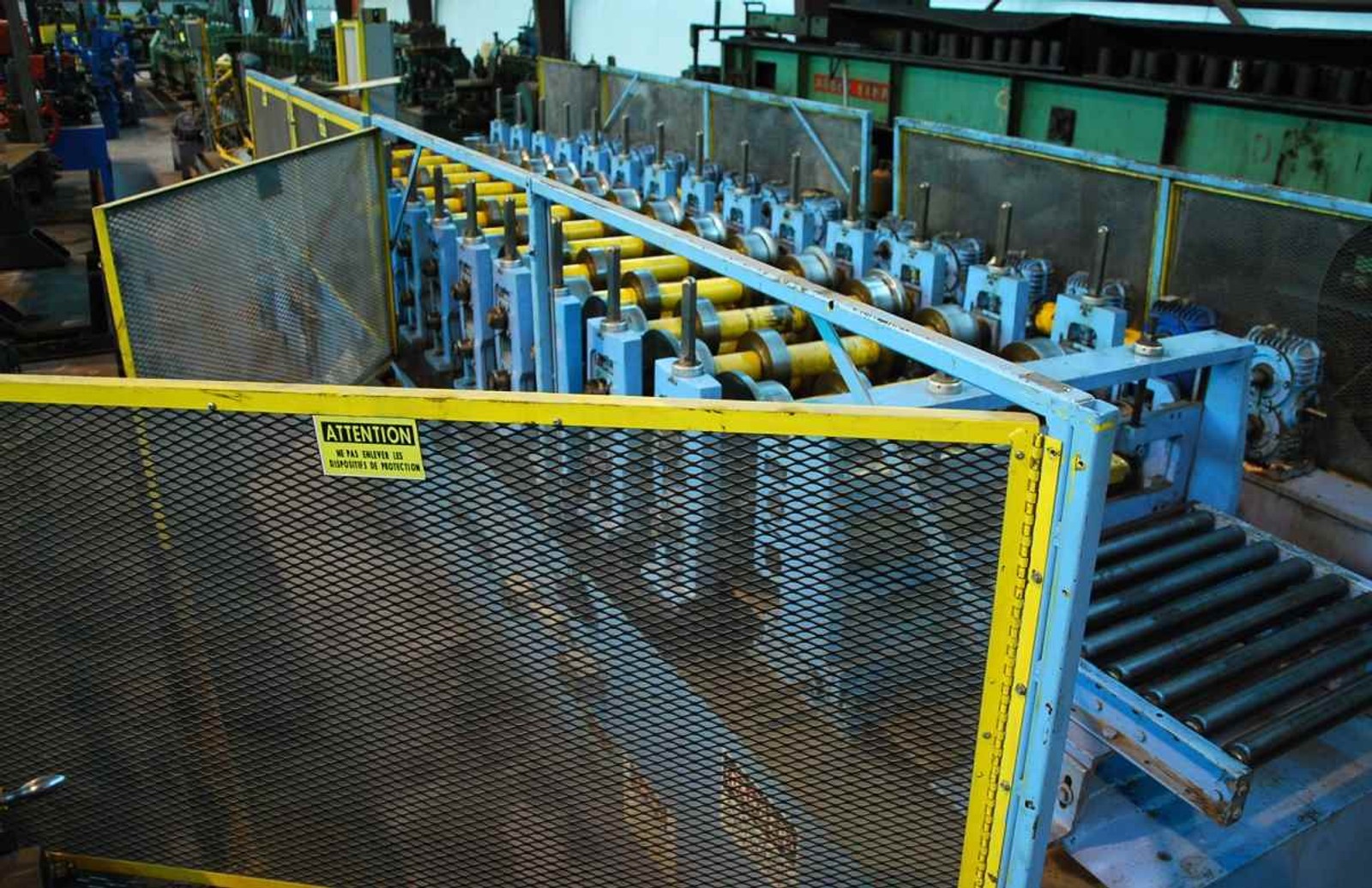

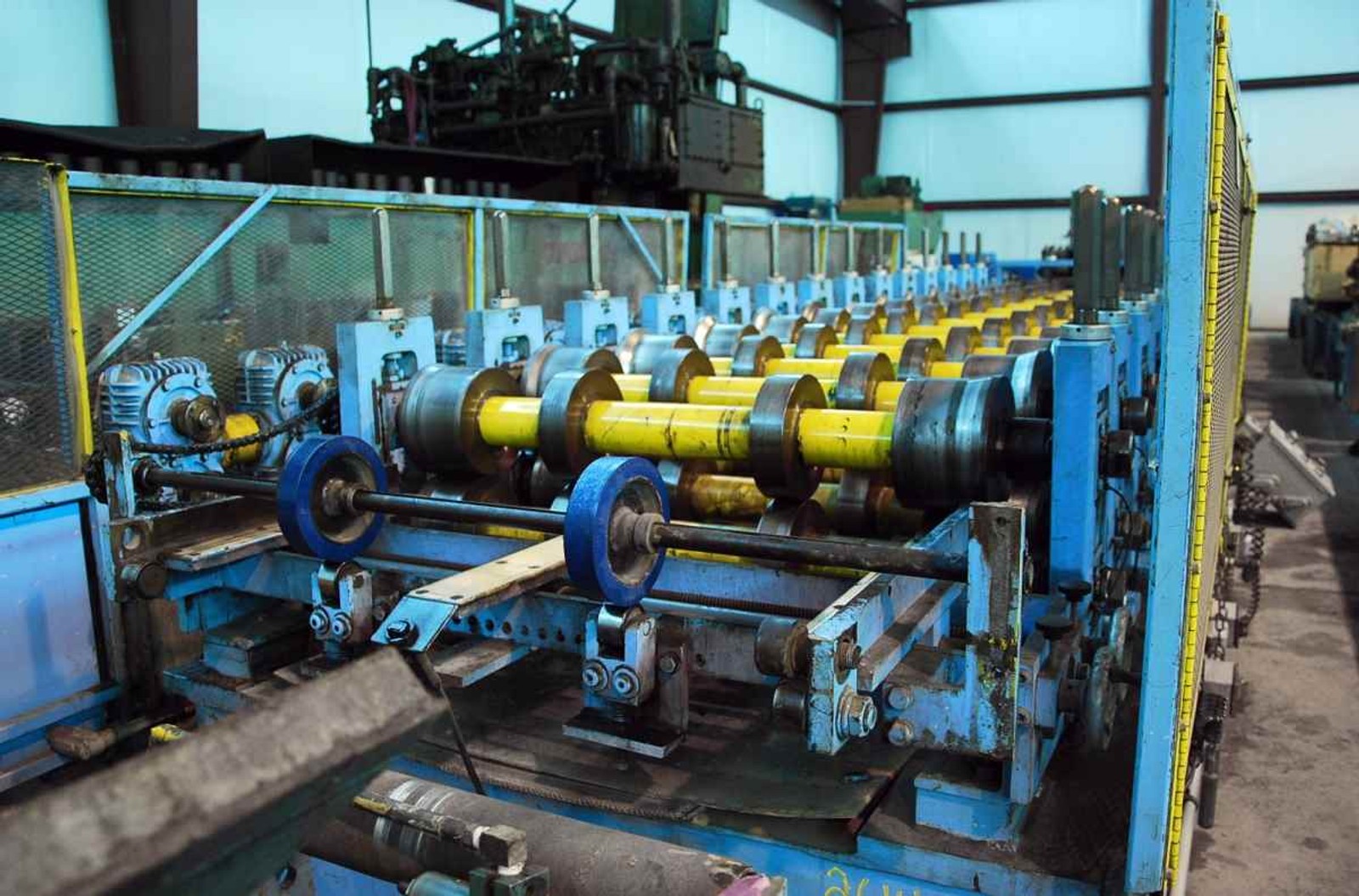

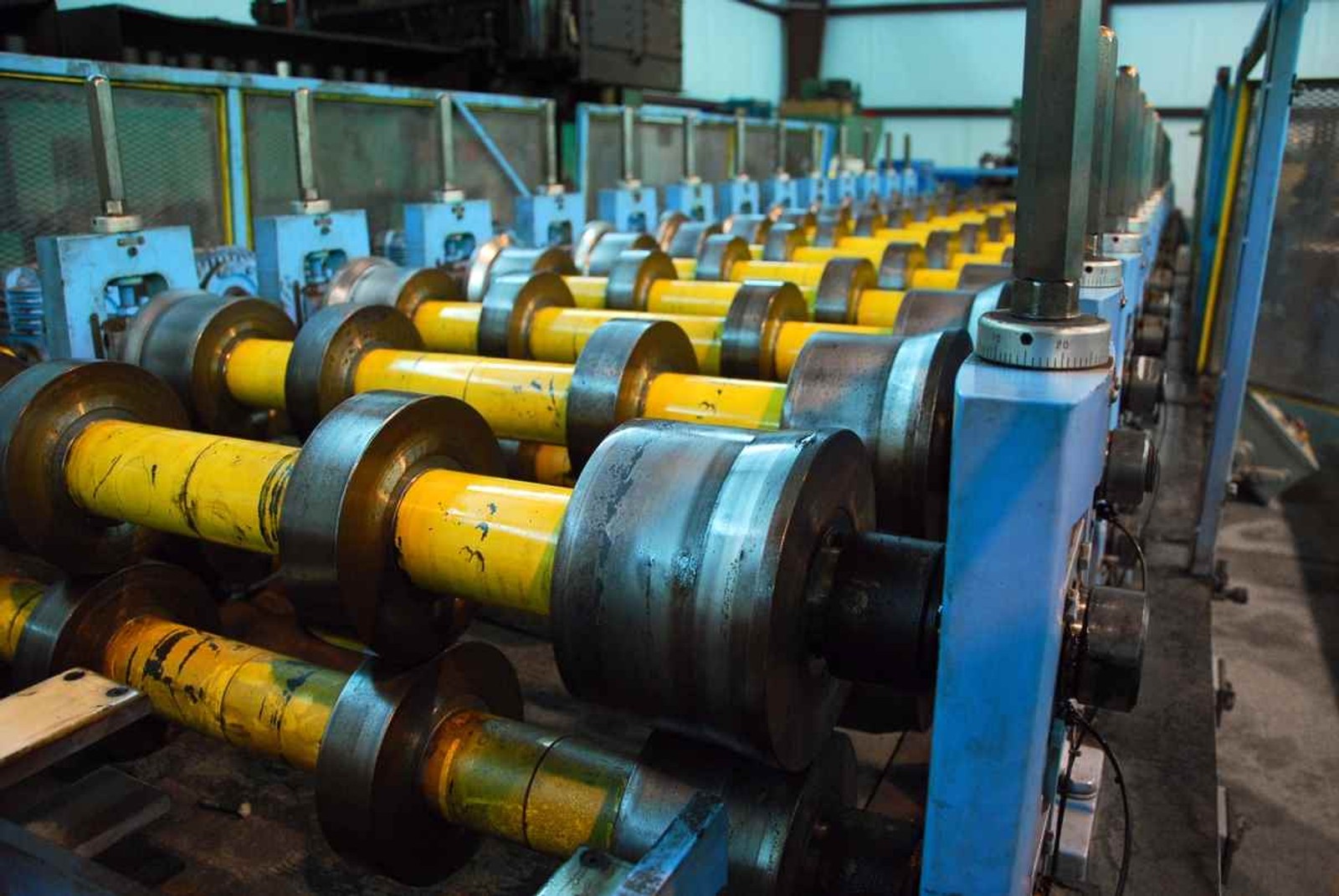

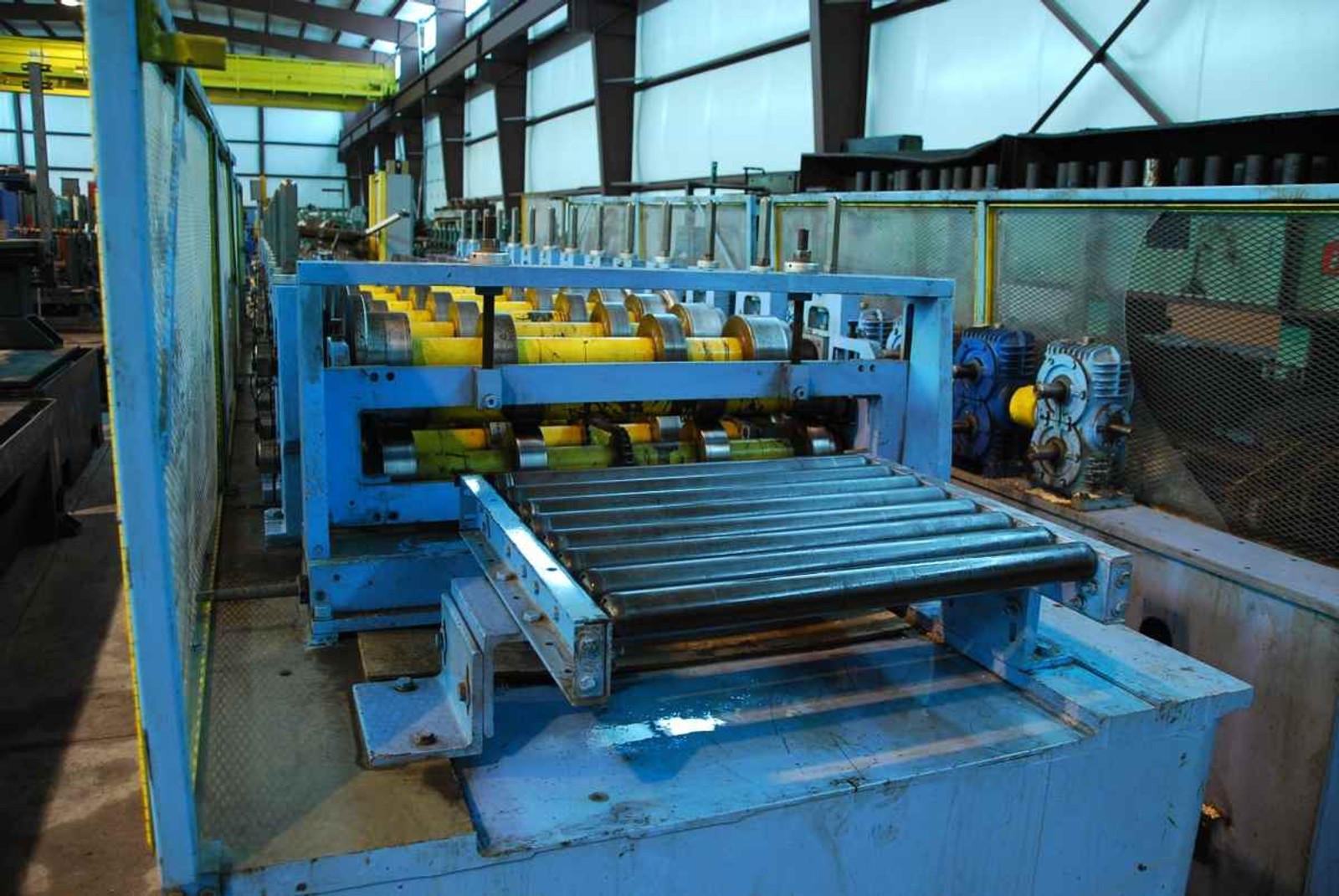

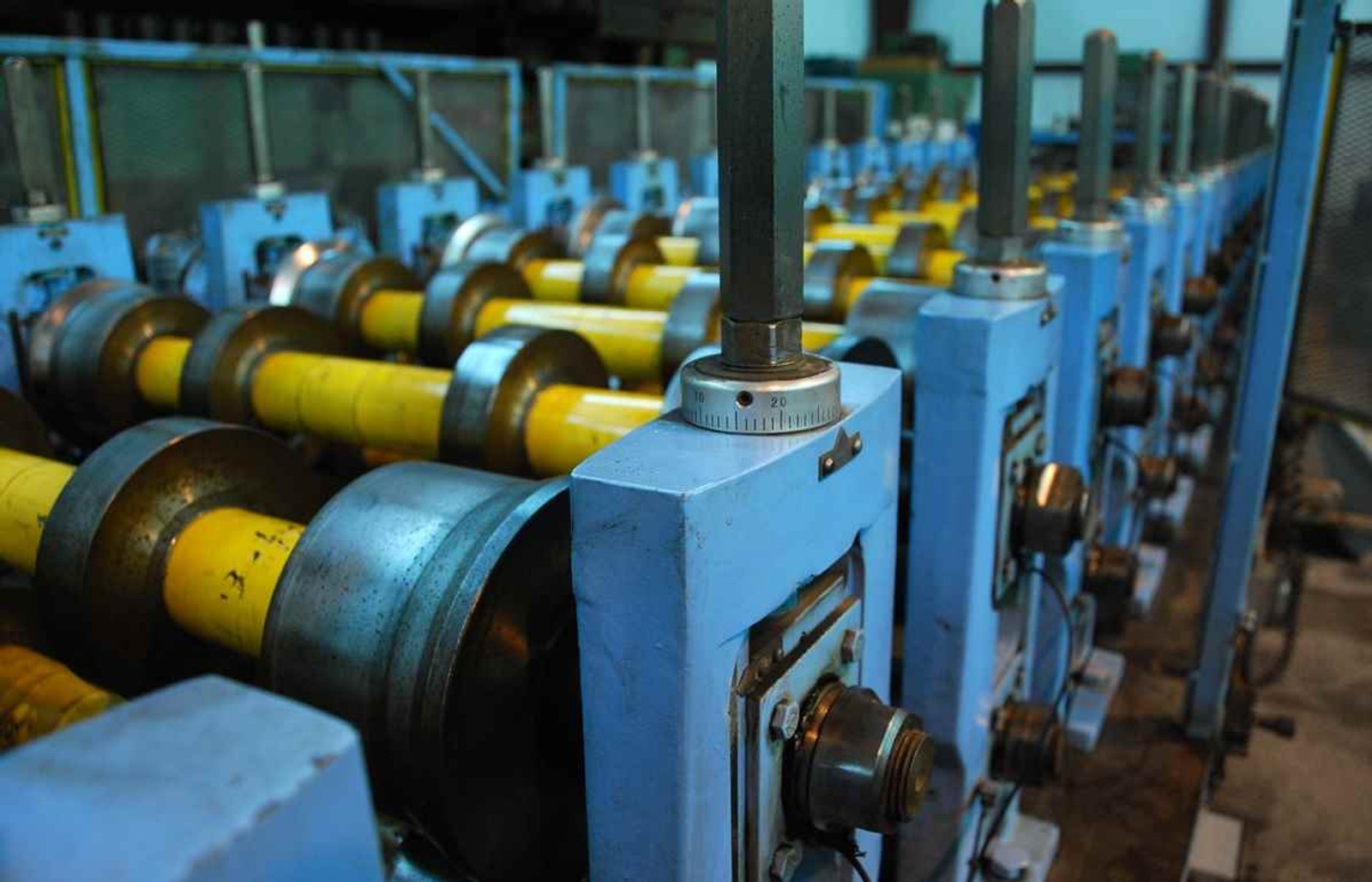

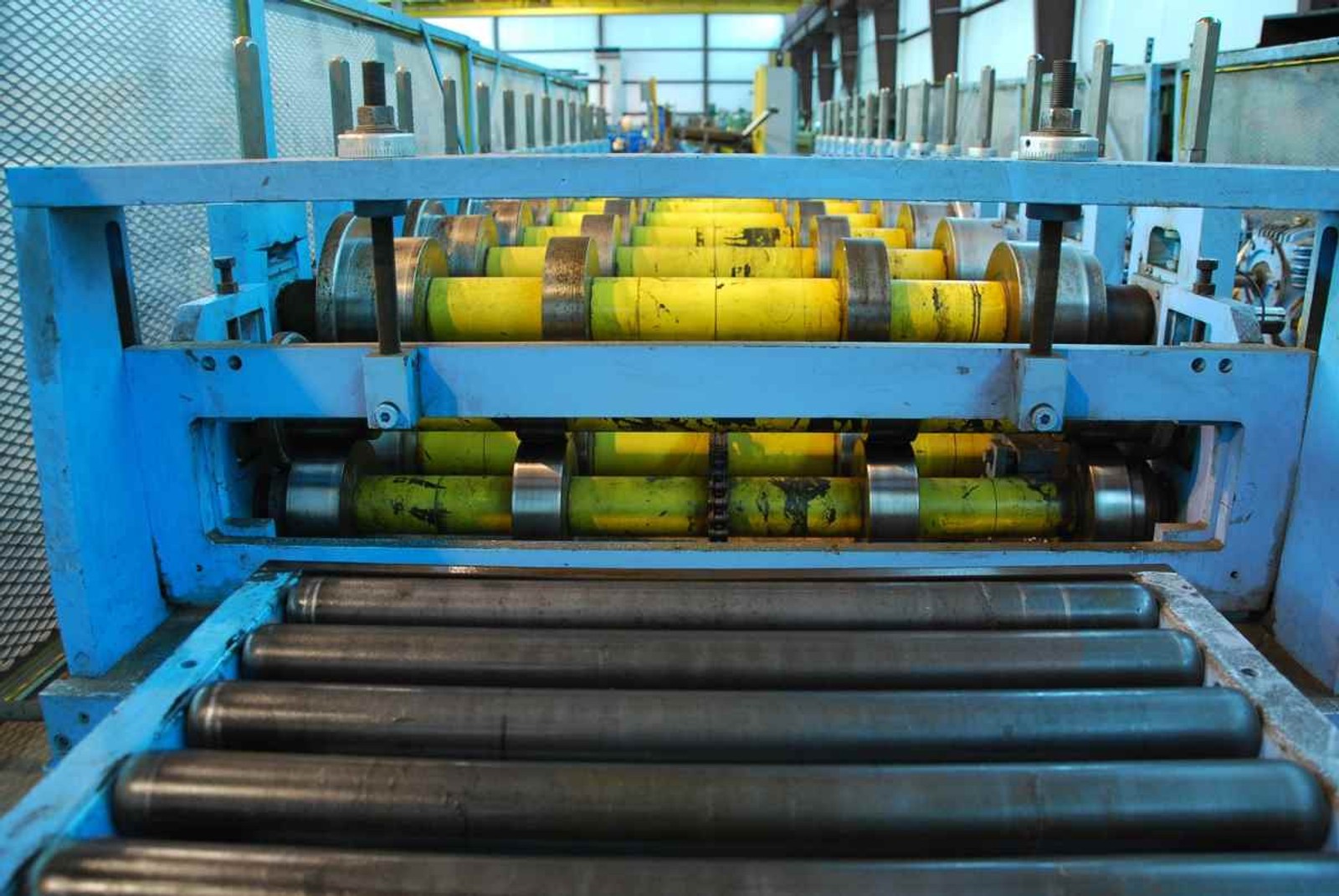

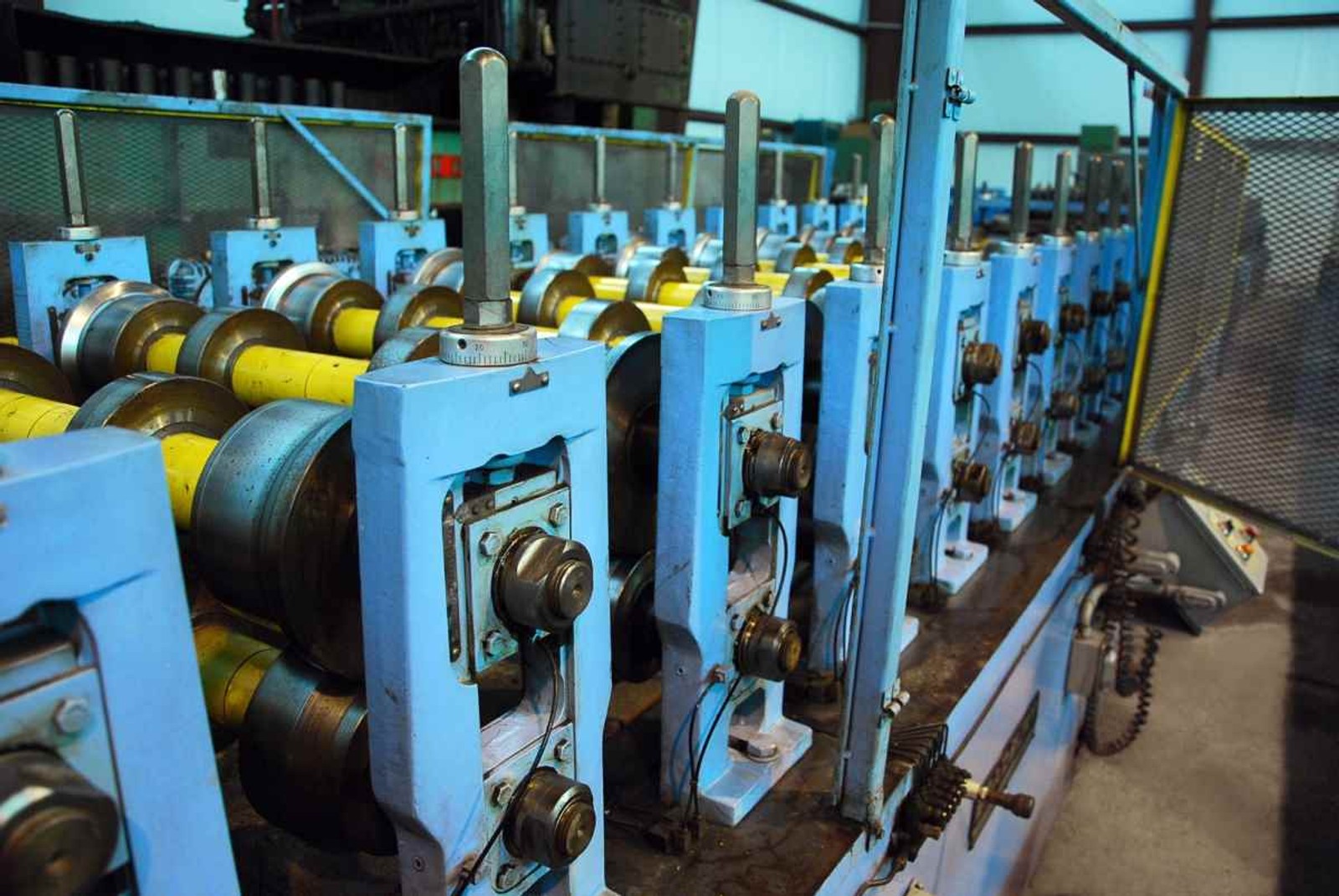

14 Stand x 2-1/2" x 42" BRADBURY #415RF Rollformer

14 Stand x 2-1/2" x 42" BRADBURY #415RF Rollformer

Name: 14 Stand x 2-1/2" x 42" BRADBURY #415RF Rollformer
Brand: BRADBURY
SKU: 2614

Manufacturer

BRADBURY

Spec Sheet

UTUBE NUMBER: 2614
MANUFACTURER: BRADBURY
MODEL NUMBER: 415RF
SERIAL NUMBER: 21086
YEAR: 1990

SPECIFICATIONS:
Driven Stands: 14
Spindle Diameter: 2-1/2"
Roll Space: 42"
Vertical Adjustment: 4"- 7-1/4"
Horizontal Centers: 13-1/2"
Center Line of Lower Spindle to Base: 6"
Line Direction: Left to Right

EQUIPPED WITH:
CONE Double Input Single Output Gear Boxes
D30A903-4
15:1 Ratio
1150 RPM
Entry Guide
Motor: 20 HP GENERAL ELECTRIC, 230/460 - 1770 RPM 47.4/23/7 Amps

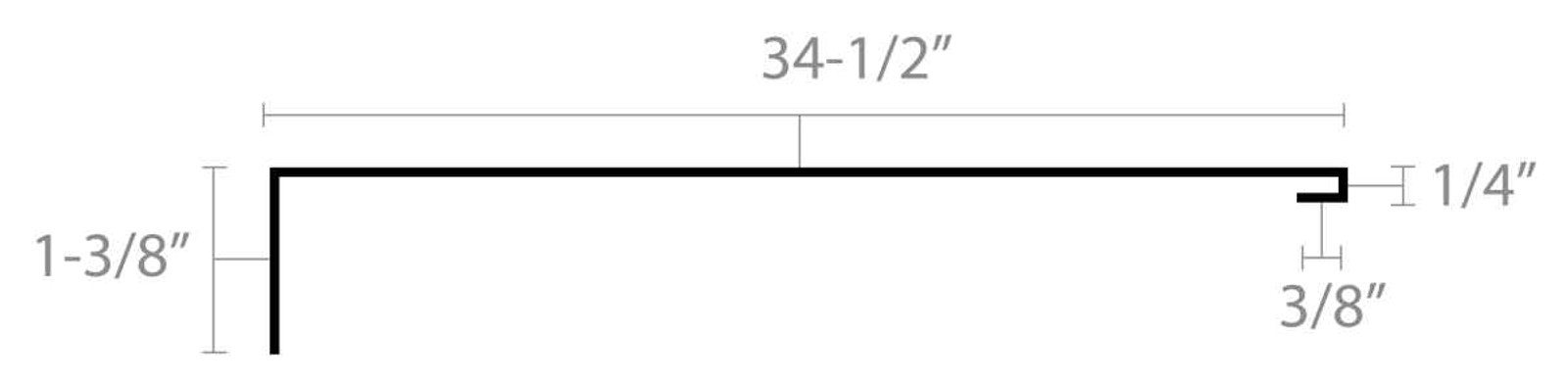

Tooling: Currently Tooled

CONDITION: Excellent

MACHINERY WEIGHTS & DIMENSIONS:
Rollformer: 20' x 6' x 6', 15,000 Lbs.
Gearbox Base (1): 12' x 2' x 6', 3,000 Lbs.
Gearbox Base (2): 9' x 1' x 6', 2,500 Lbs.
Crate of Drive Shafts: 2' 6" x 2' 6" x 2' 6", 350 Lbs.

LOCATION: Universal Warehouse, Perrysburg, Ohio

NOTE: Price reduced June 2019 from $89,500.00
