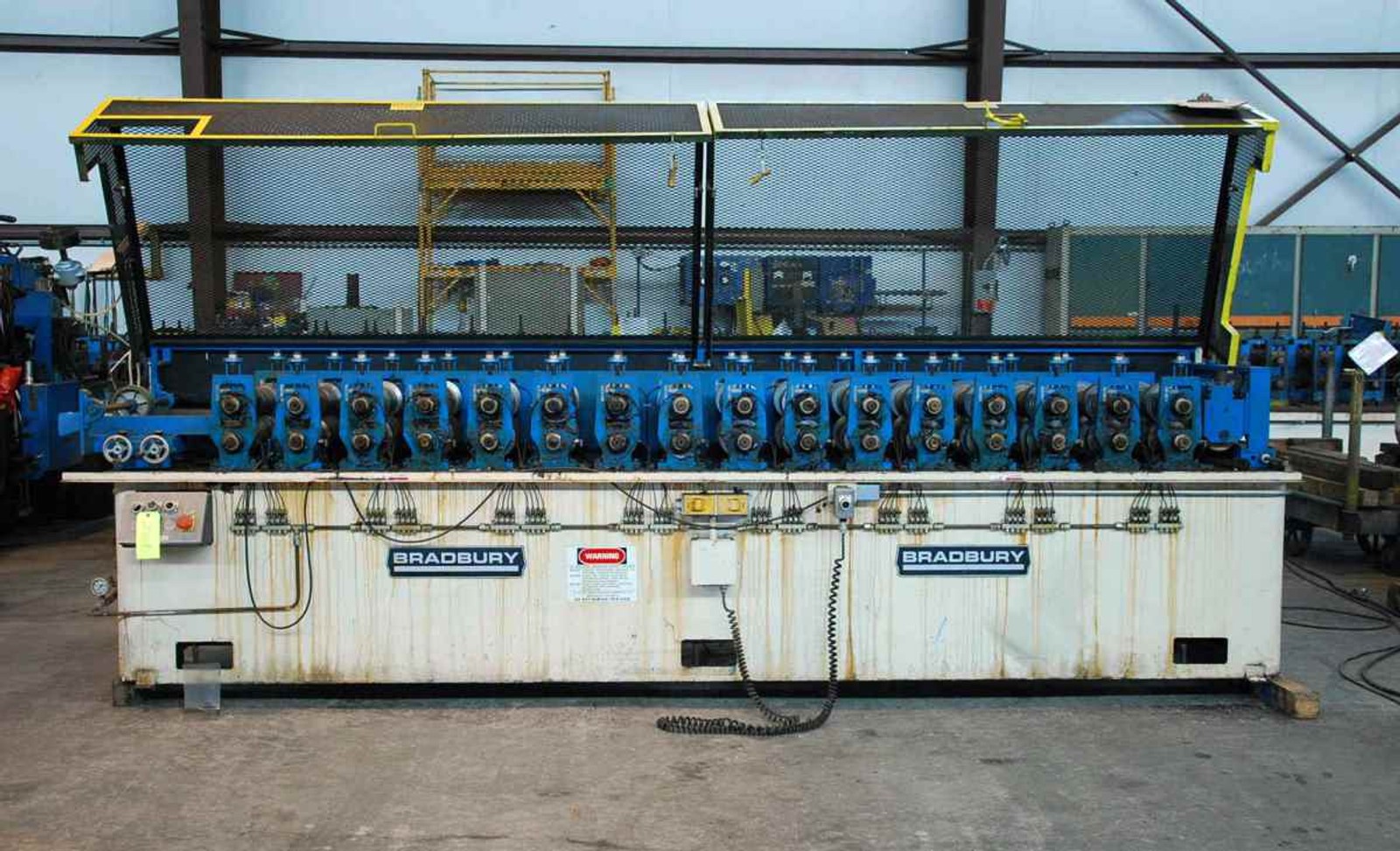

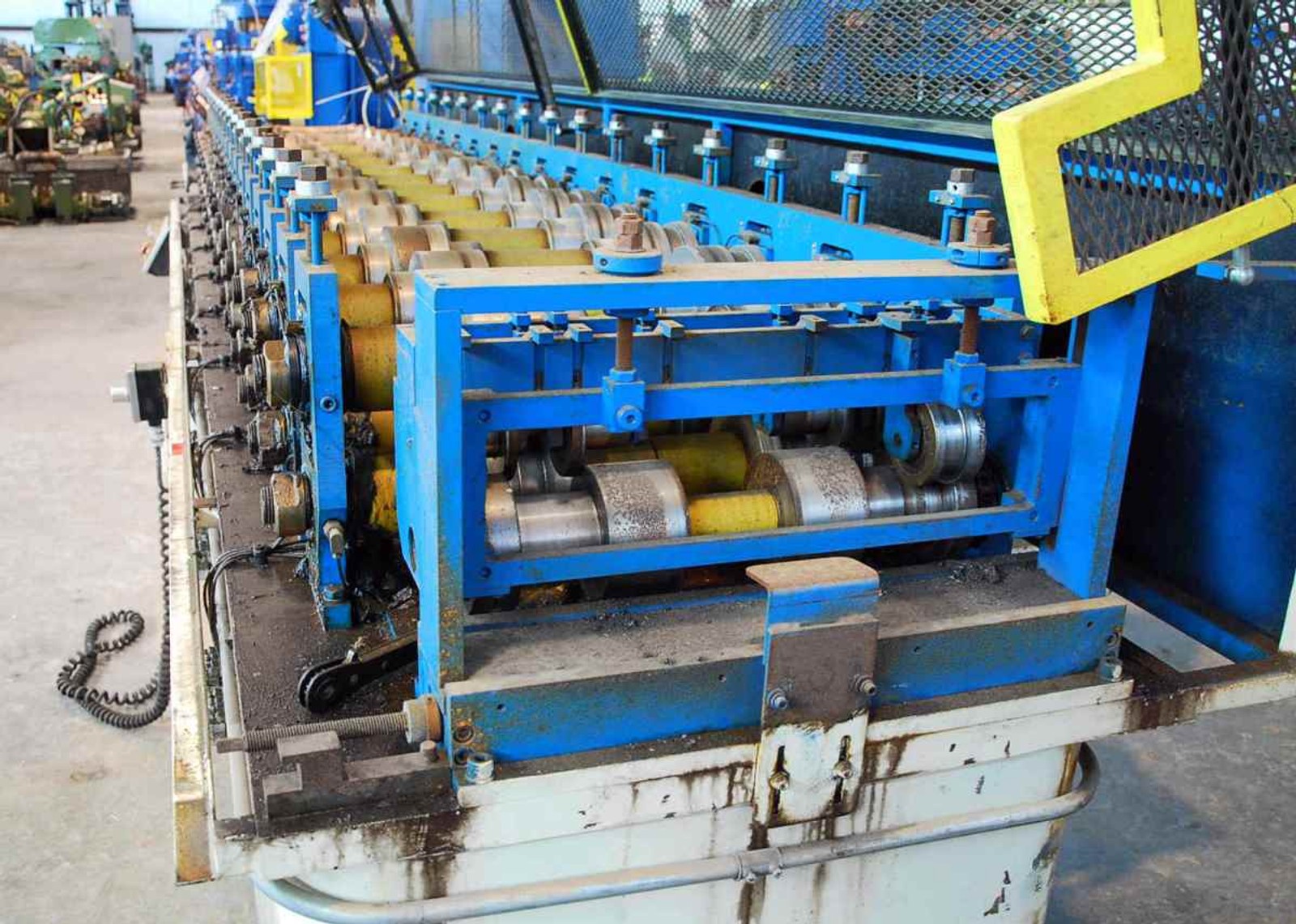

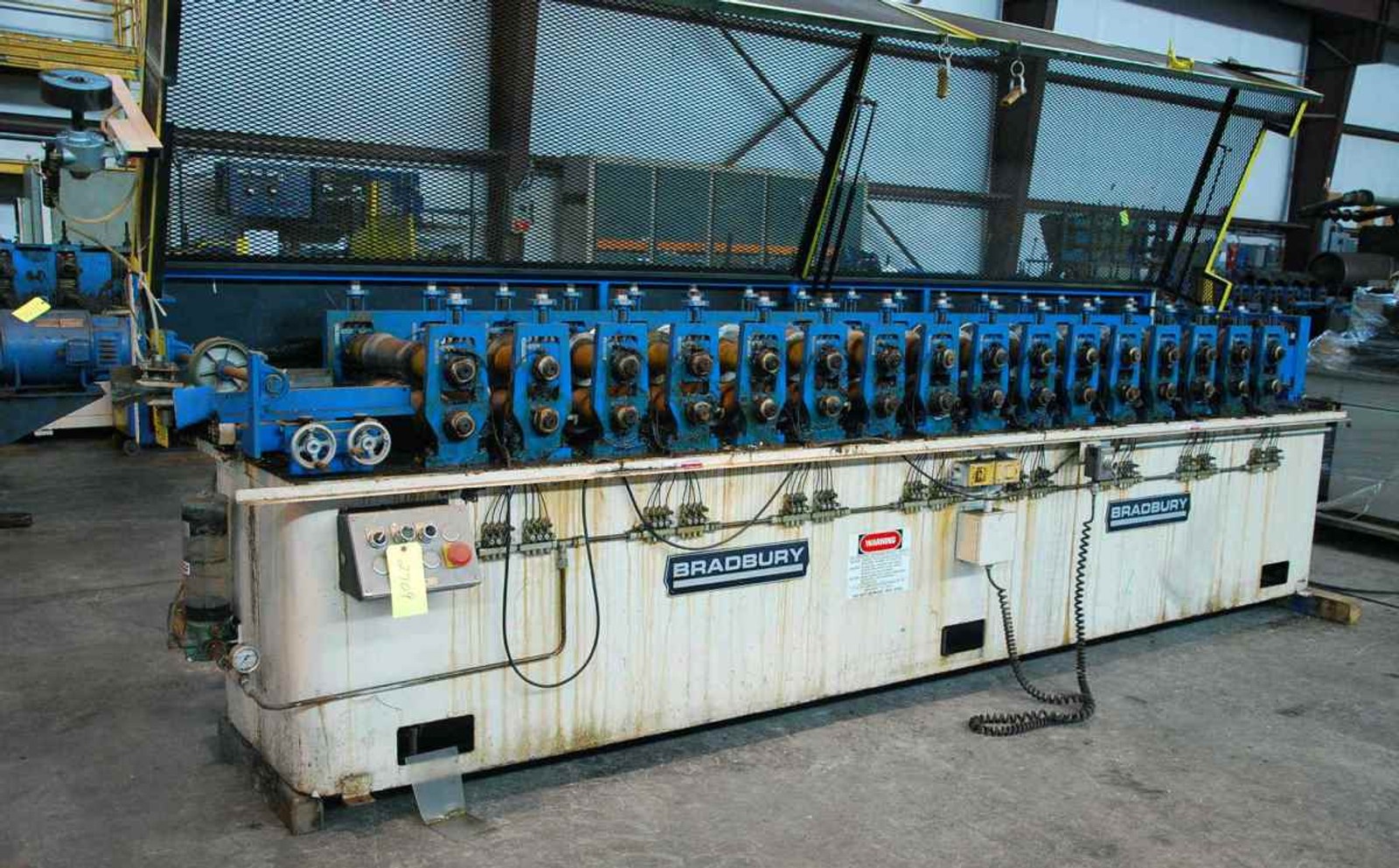

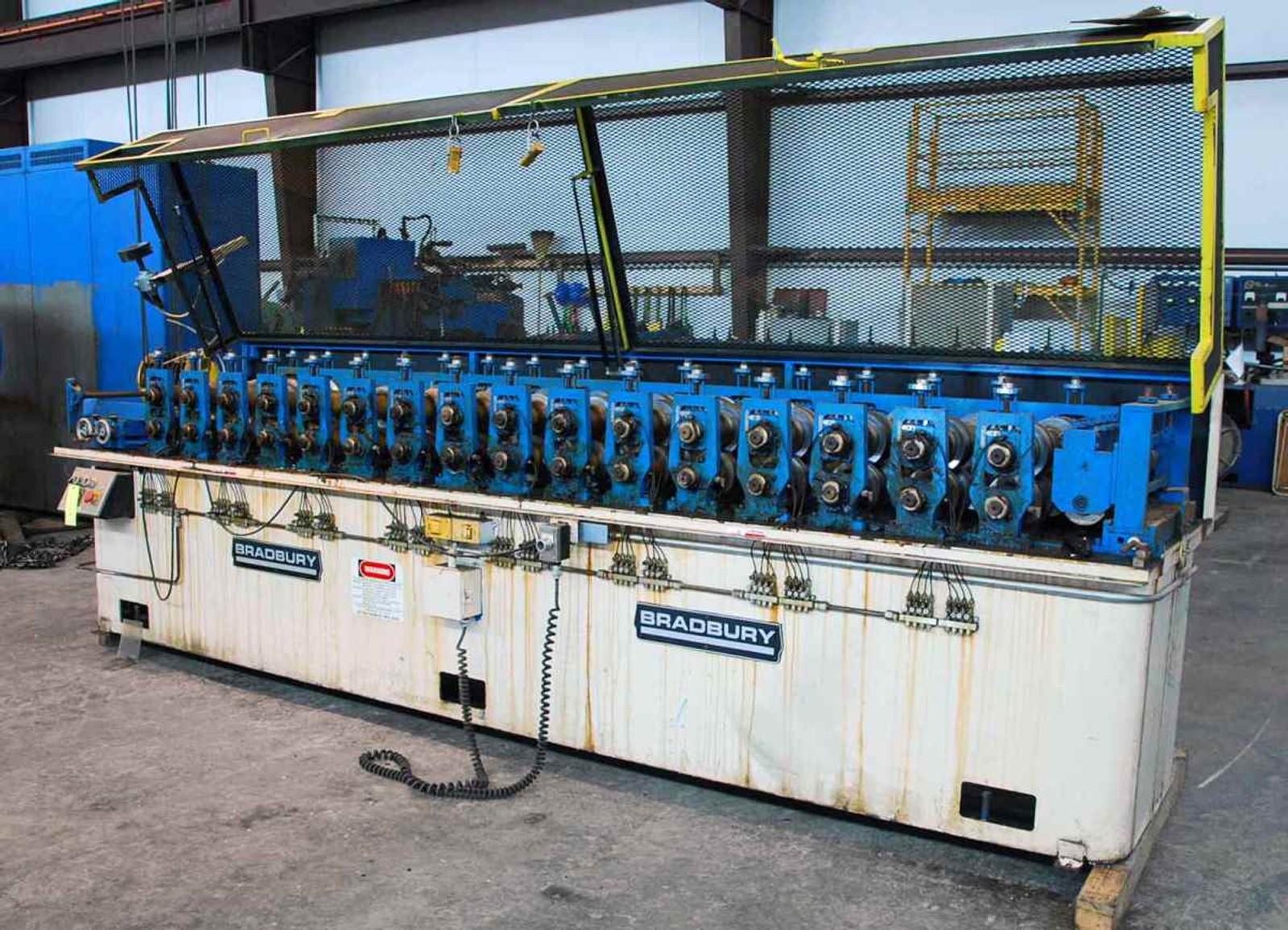

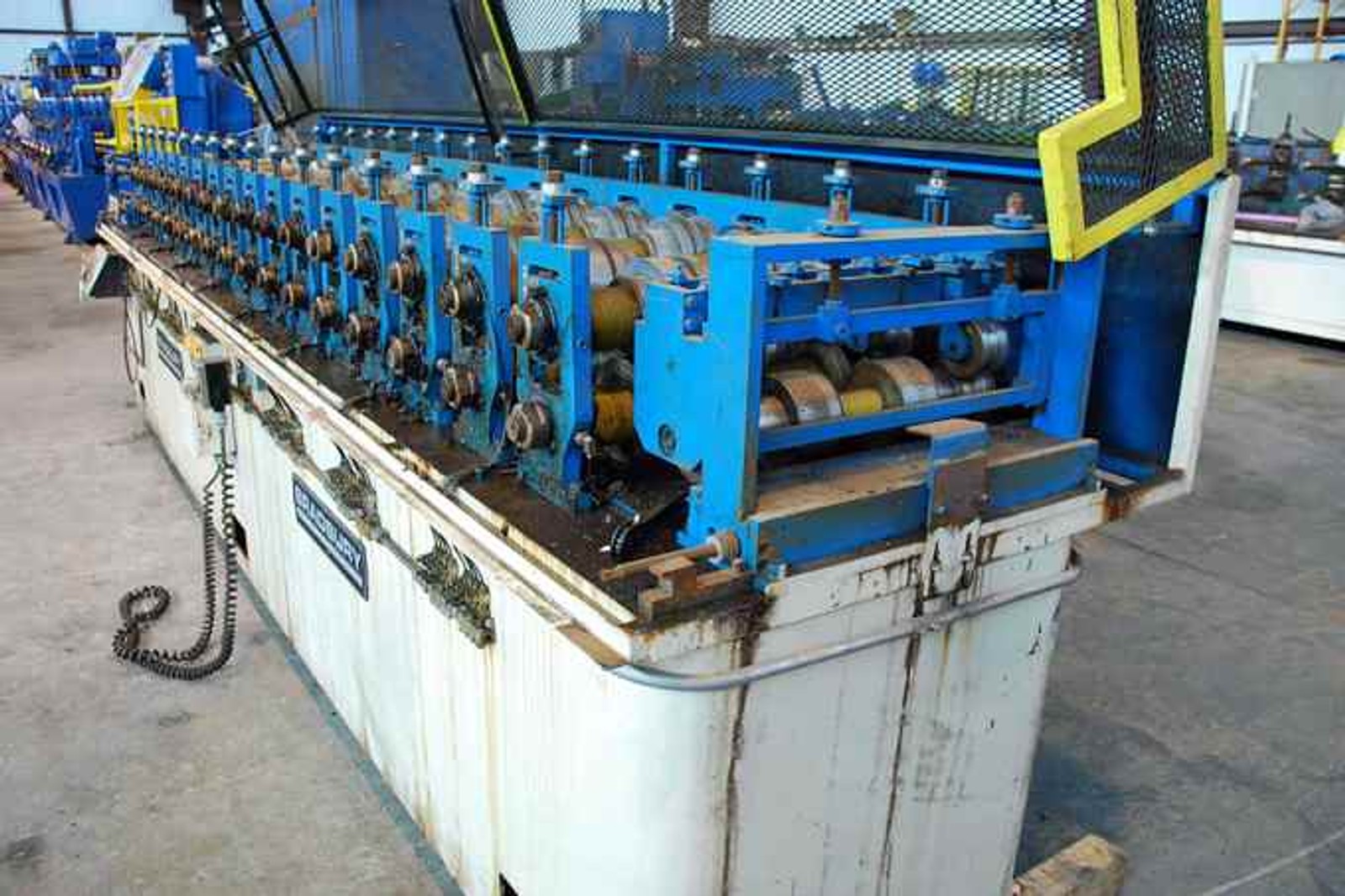

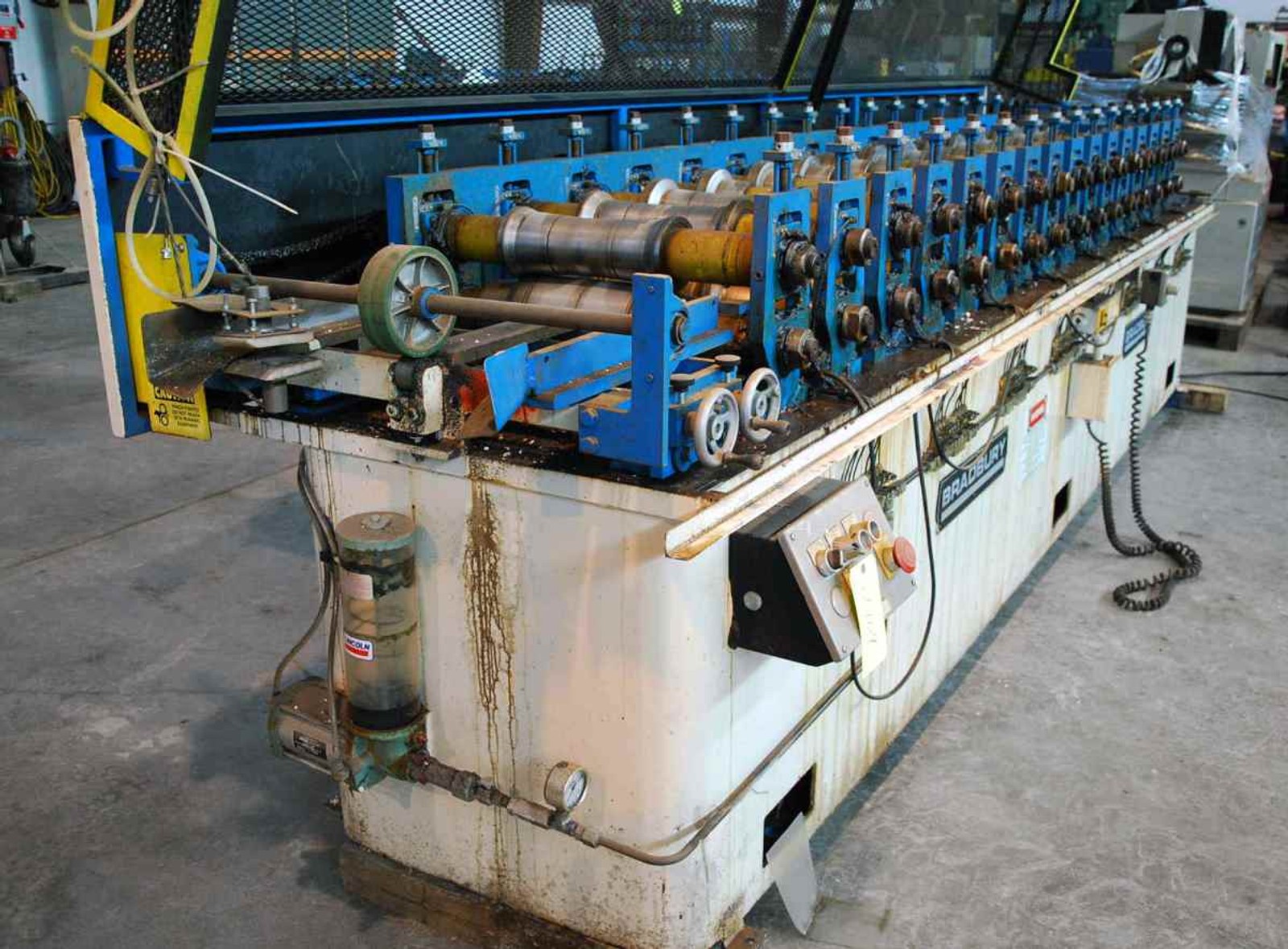

16 Stand x 2-1/2″ x 24″ BRADBURY Rollformer

Manufacturer

BRADBURY

Category

Roll Formers

Type

ROLL FORMERS

Stock

2709

Model

315B

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

UTUBE NUMBER: 2709
MANUFACTURER: BRADBURY
MODEL NUMBER: 315-B
SERIAL NUMBER: 32646
YEAR: 1997

SPECIFICATIONS:
Line Direction: Left to Right
Driven Stands: 16
Spindle Diameter: 2-1/2"
Roll Space: 24"
Vertical Adjustment: 4" – 5-1/2"
Horizontal Centers: 9"
Center Line of Lower Spindle to Base: 4"

EQUIPPED WITH:

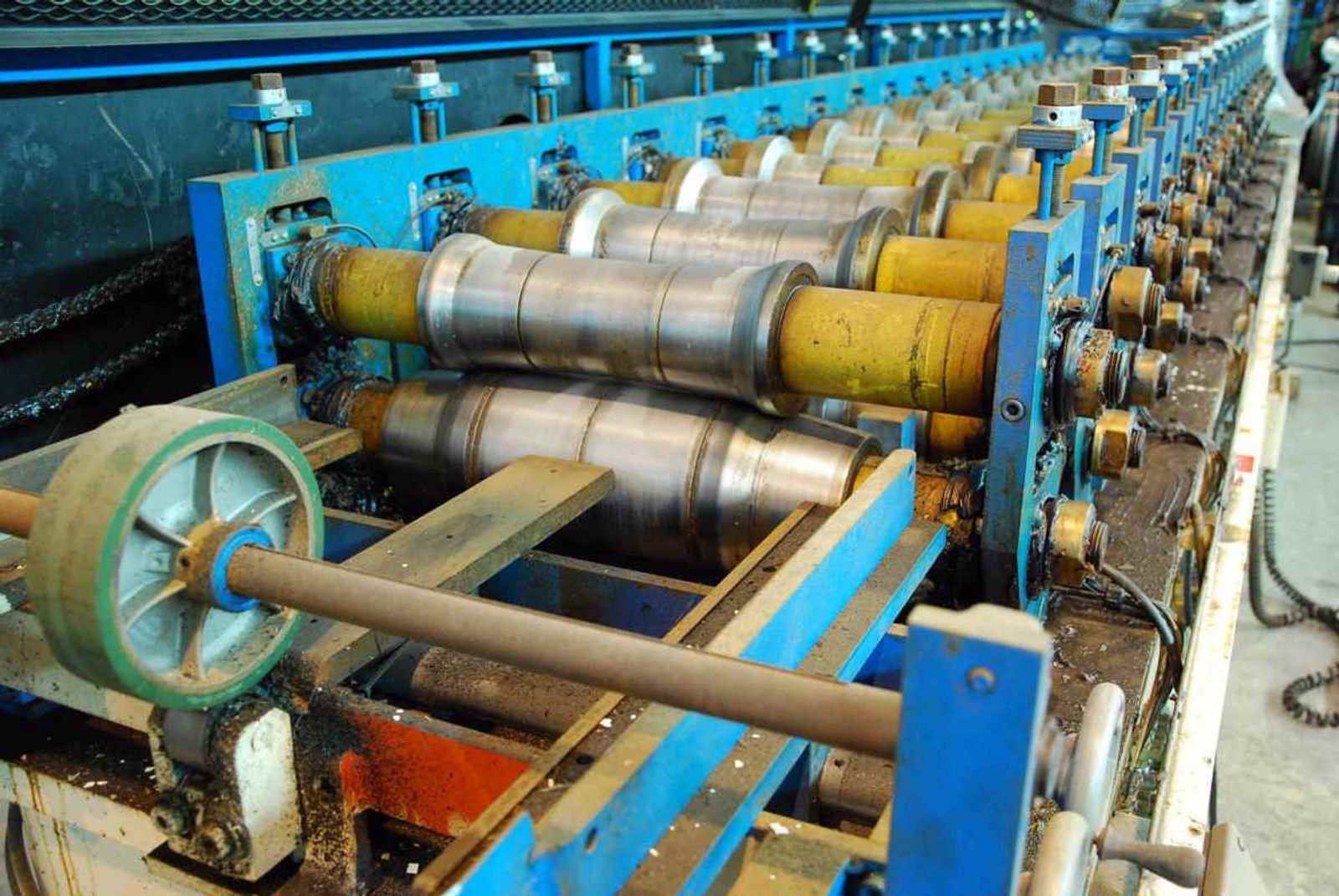

Entry Guide
Straightener

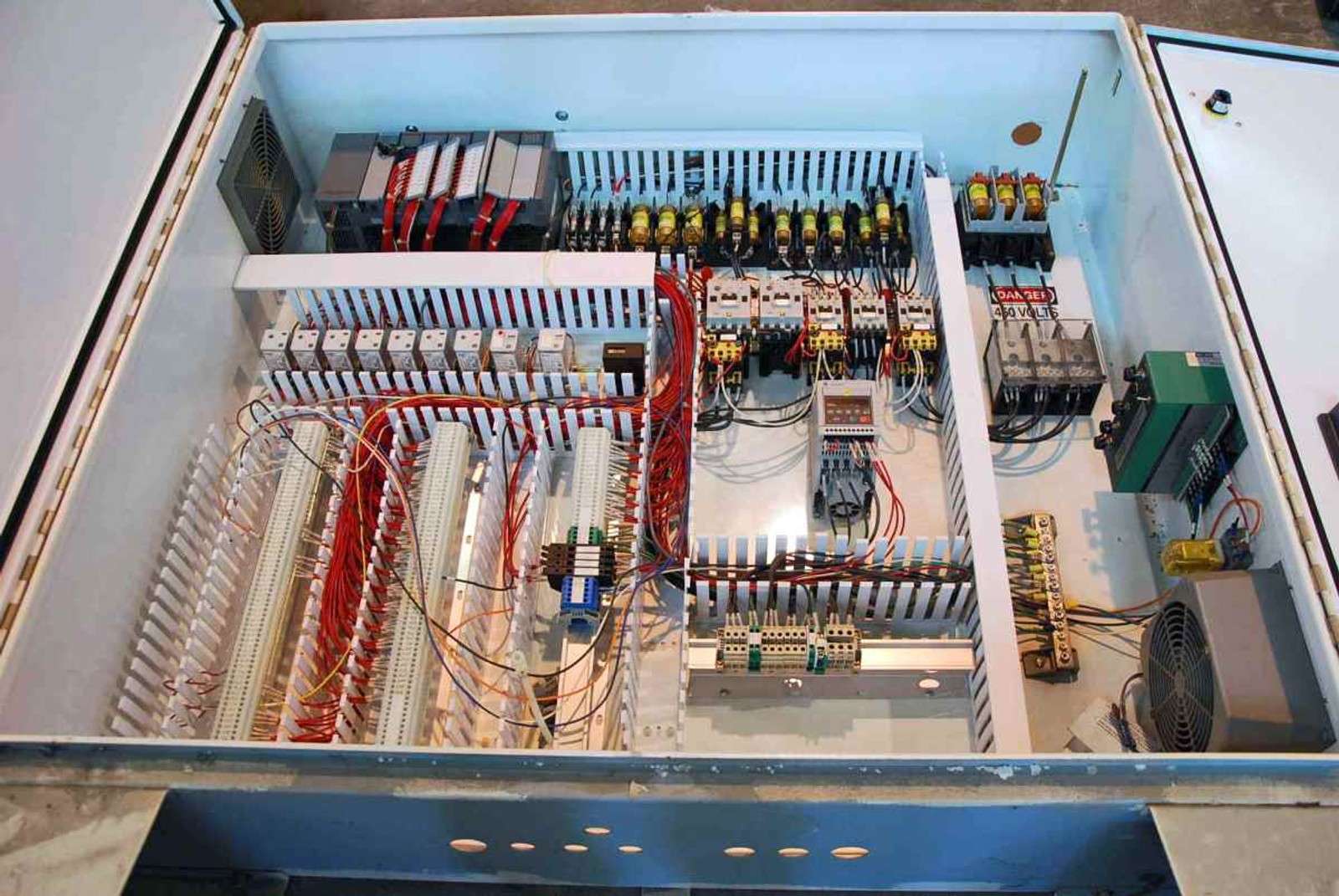

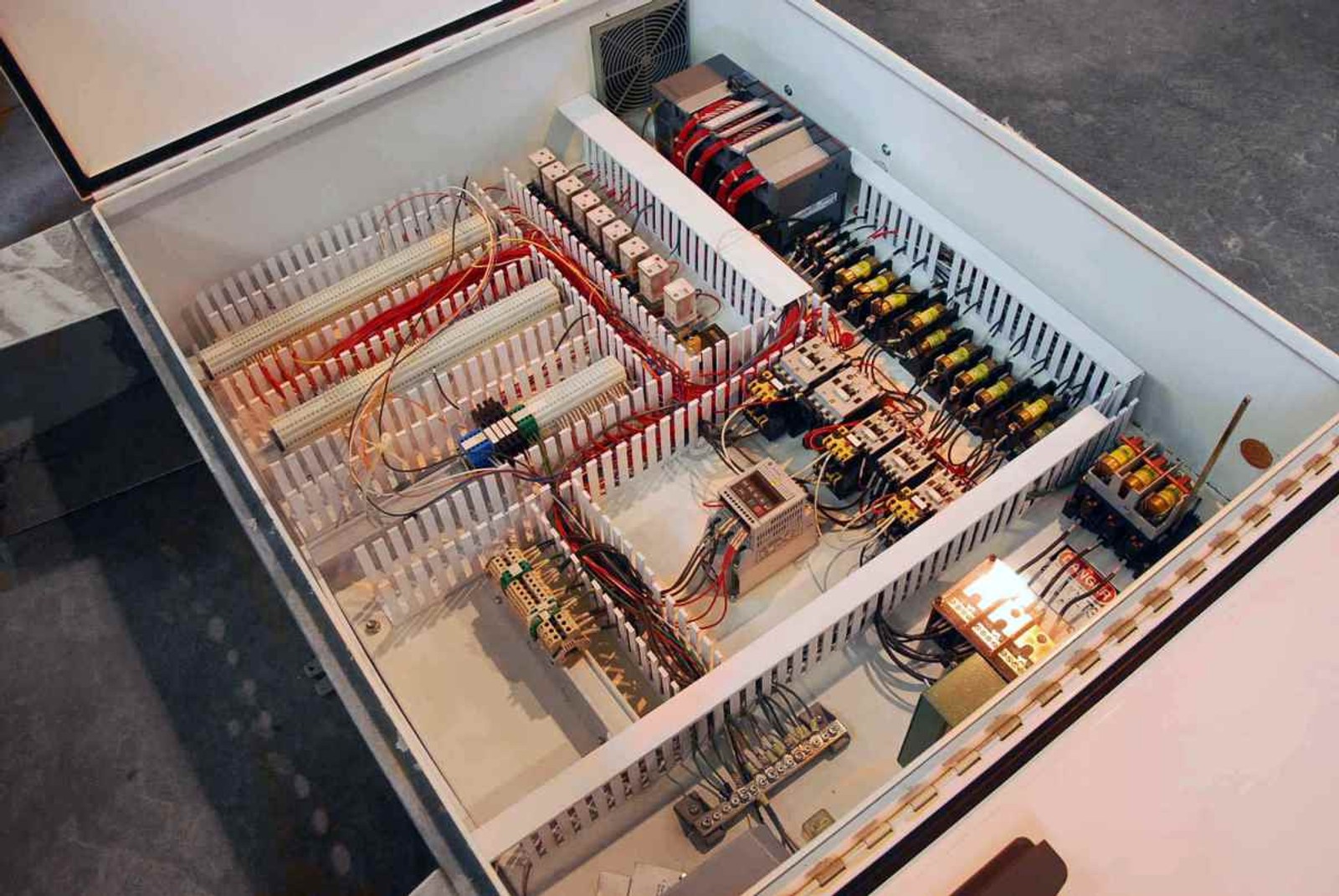

Electrical Panel and Push Button Station

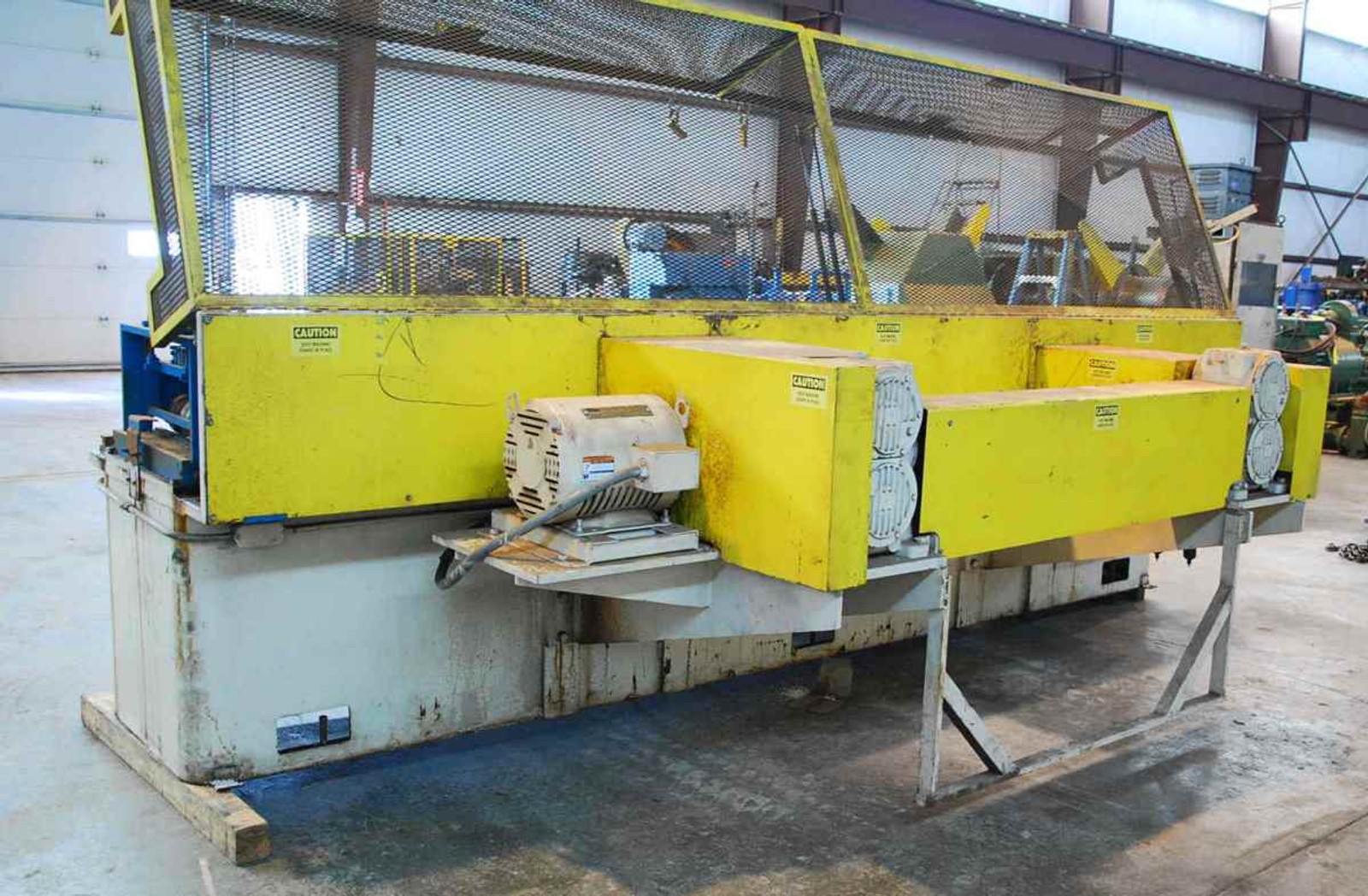

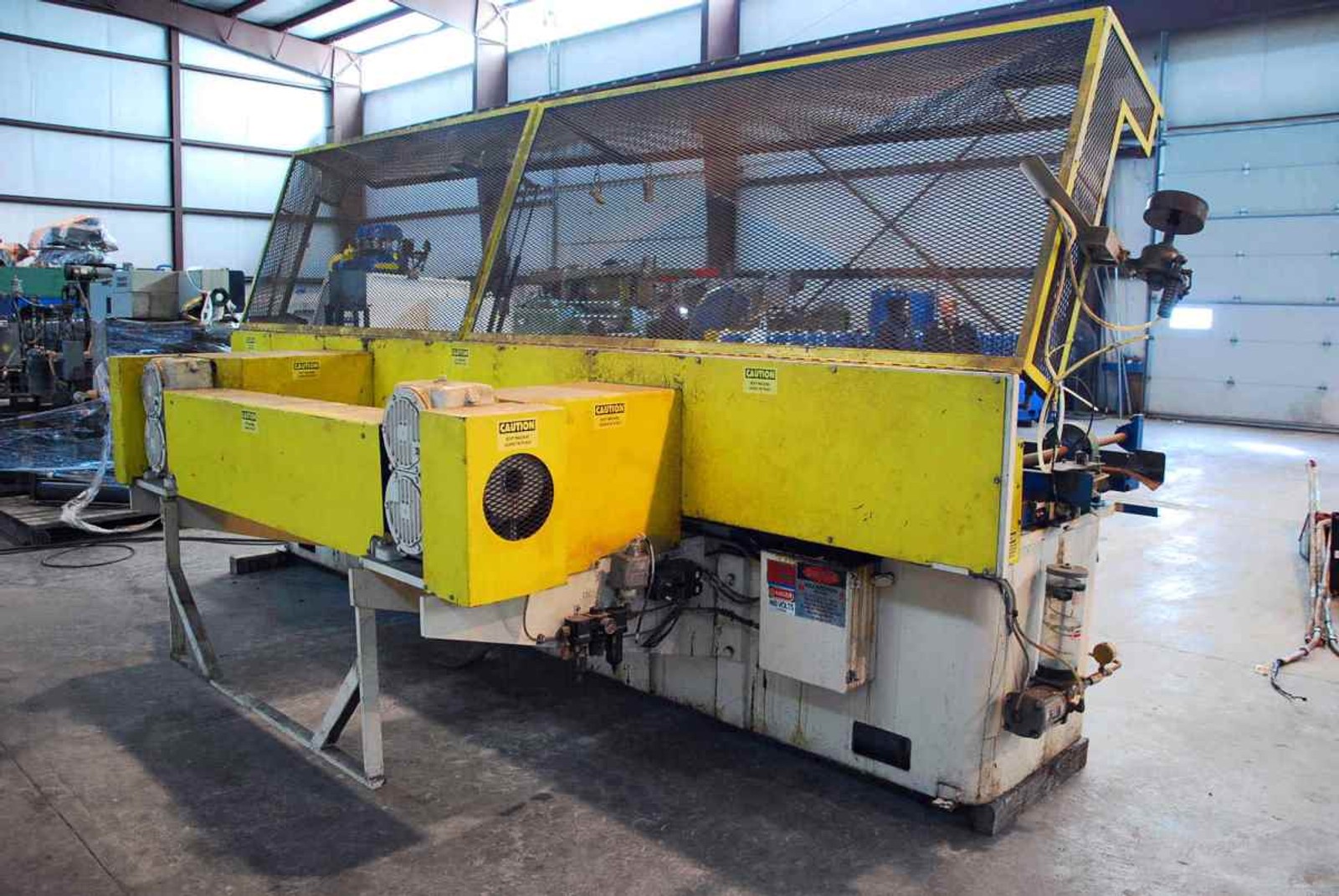

(2) Cone Gearboxes to Chain Drive

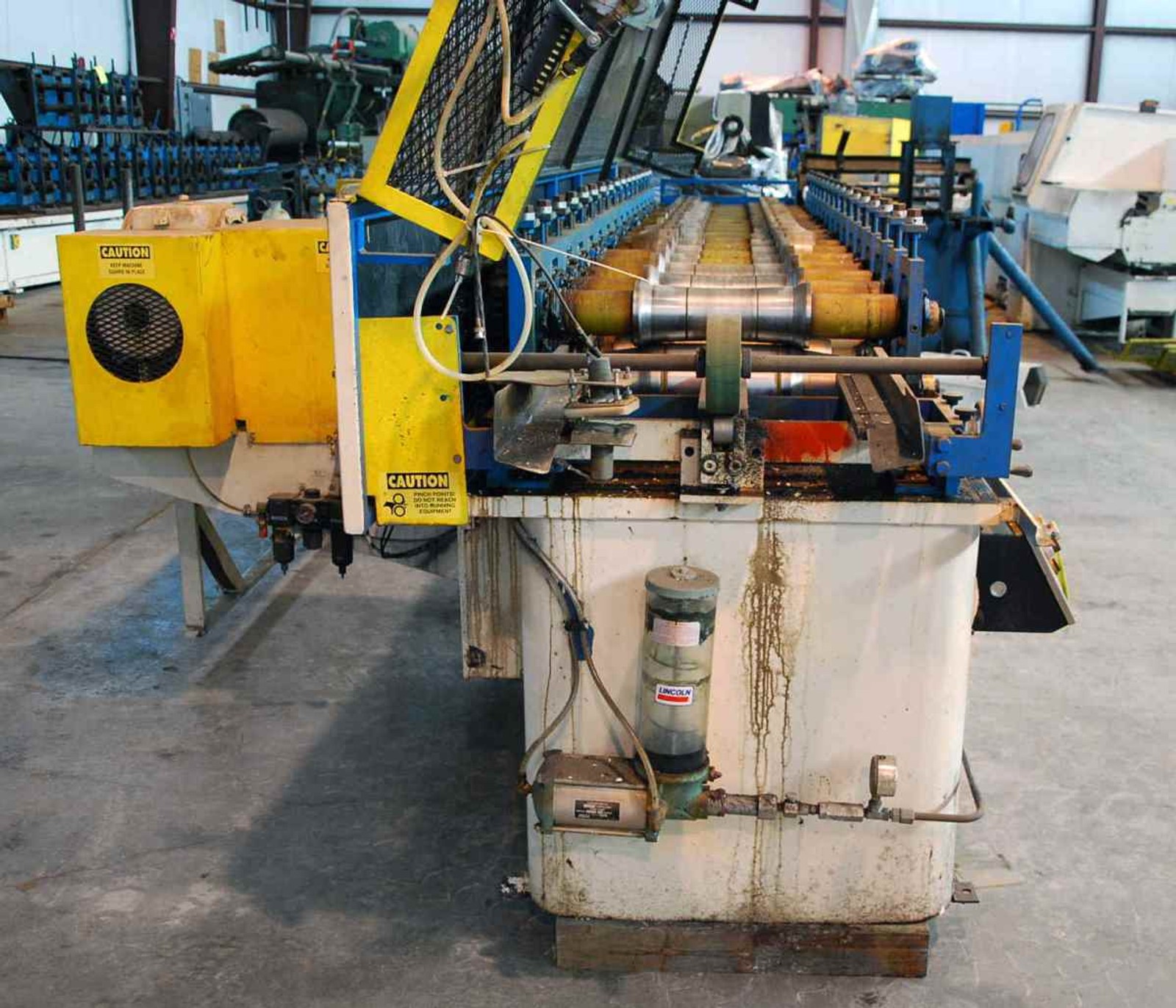

Auto Grease System

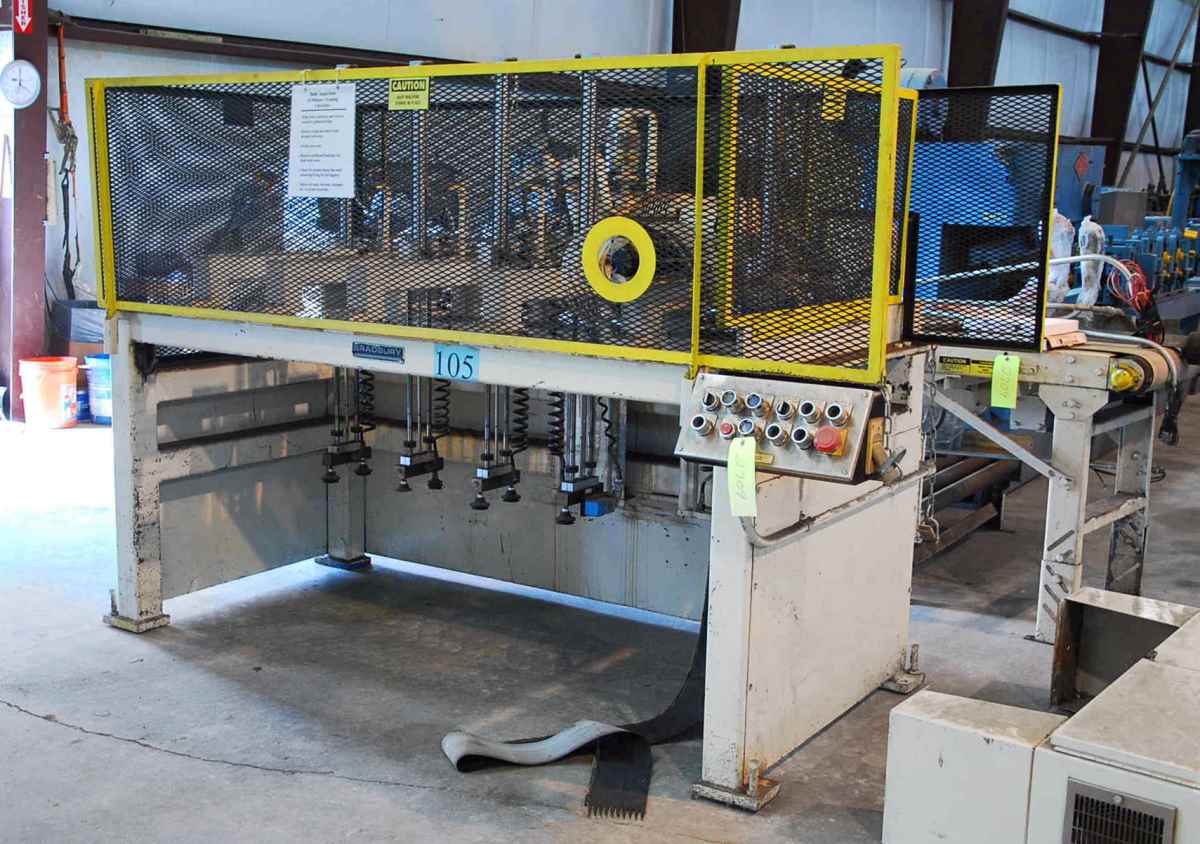

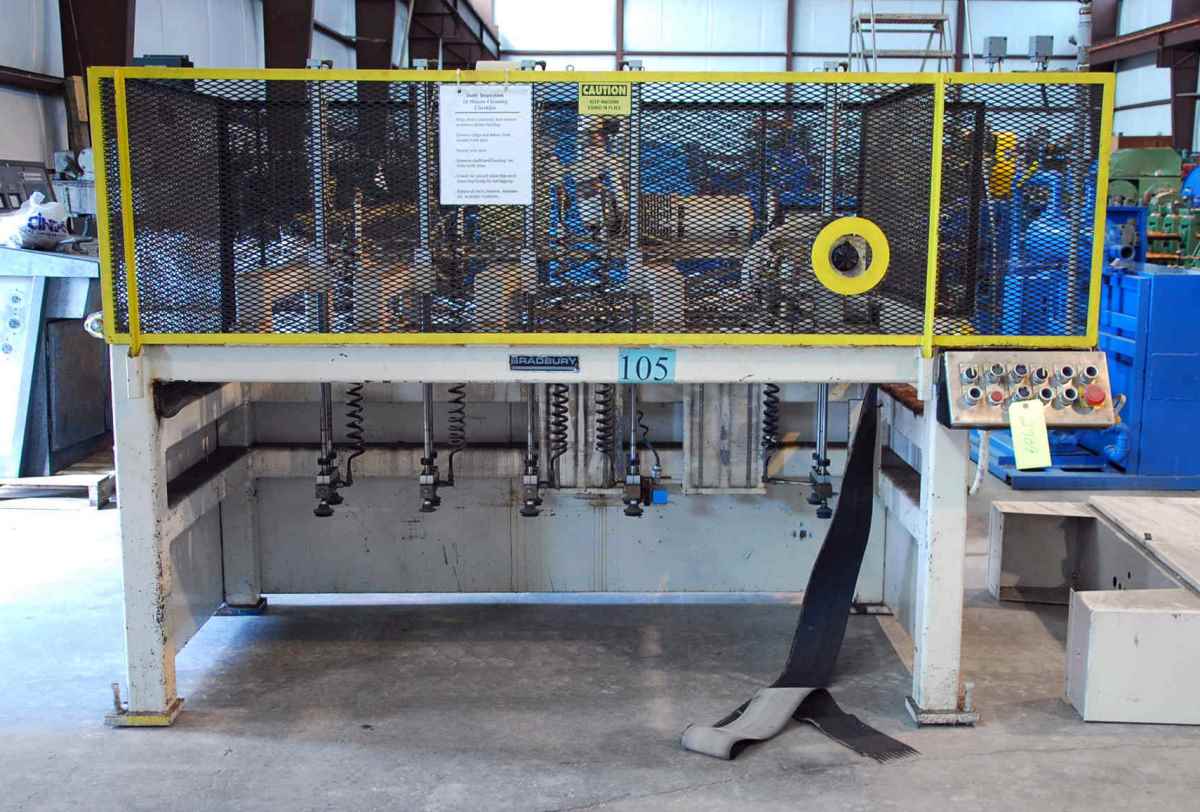

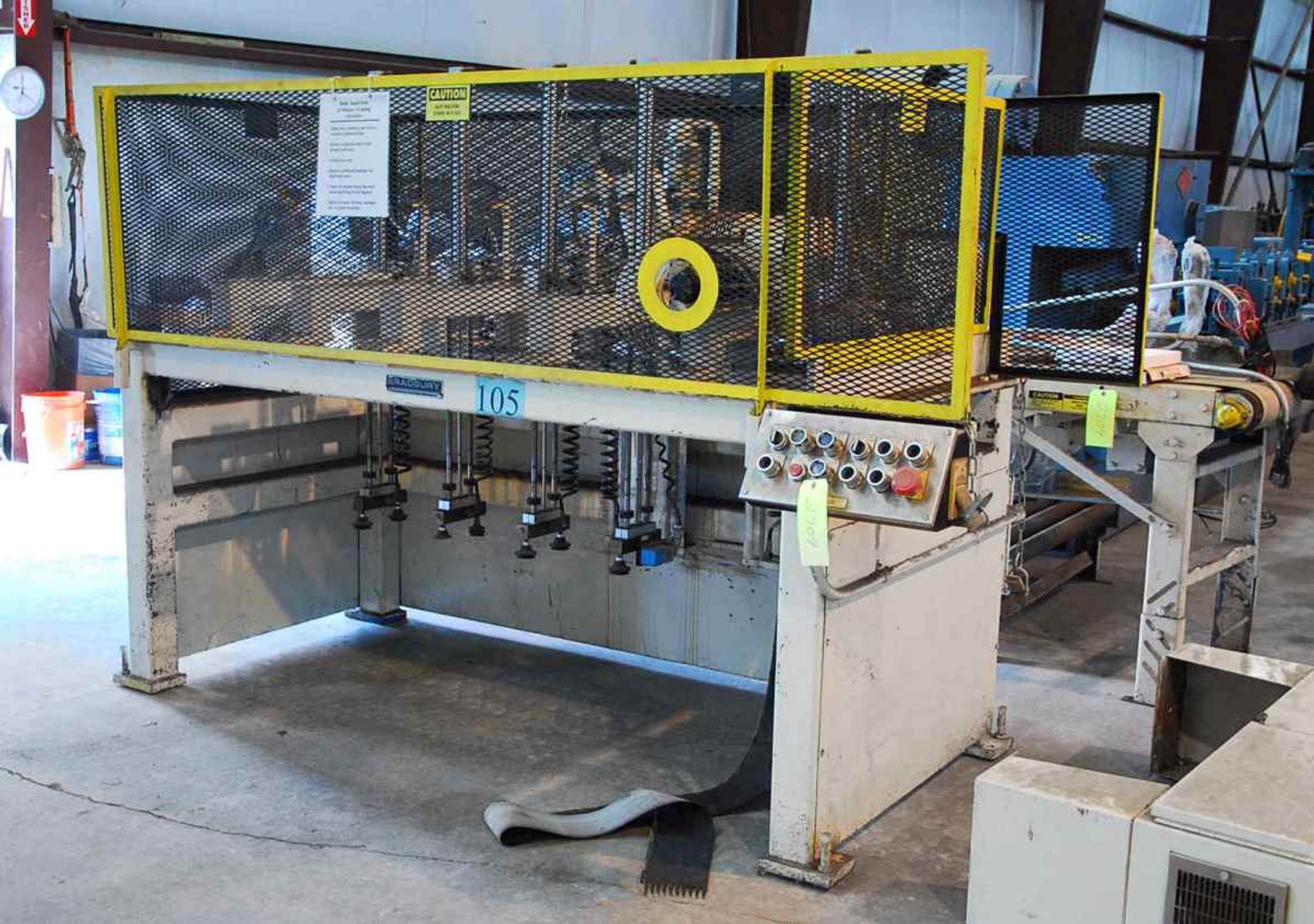

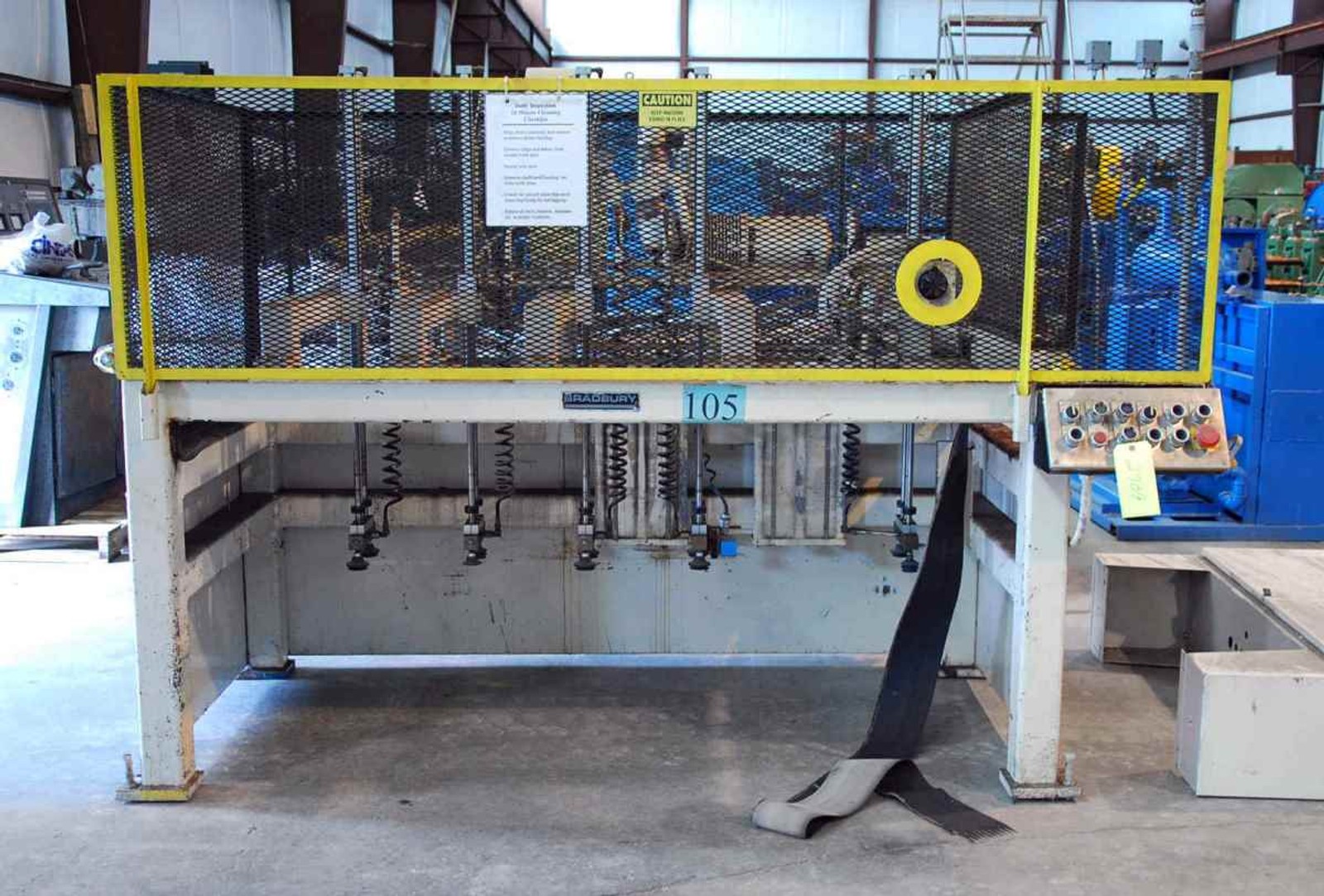

Magnetic Sheet Feeder Destacker for 6′ x 21" pcs.
Exit Conveyor
Motor: LINCOLN 20 HP AC Motor, 230/3/60, 1750 RPM

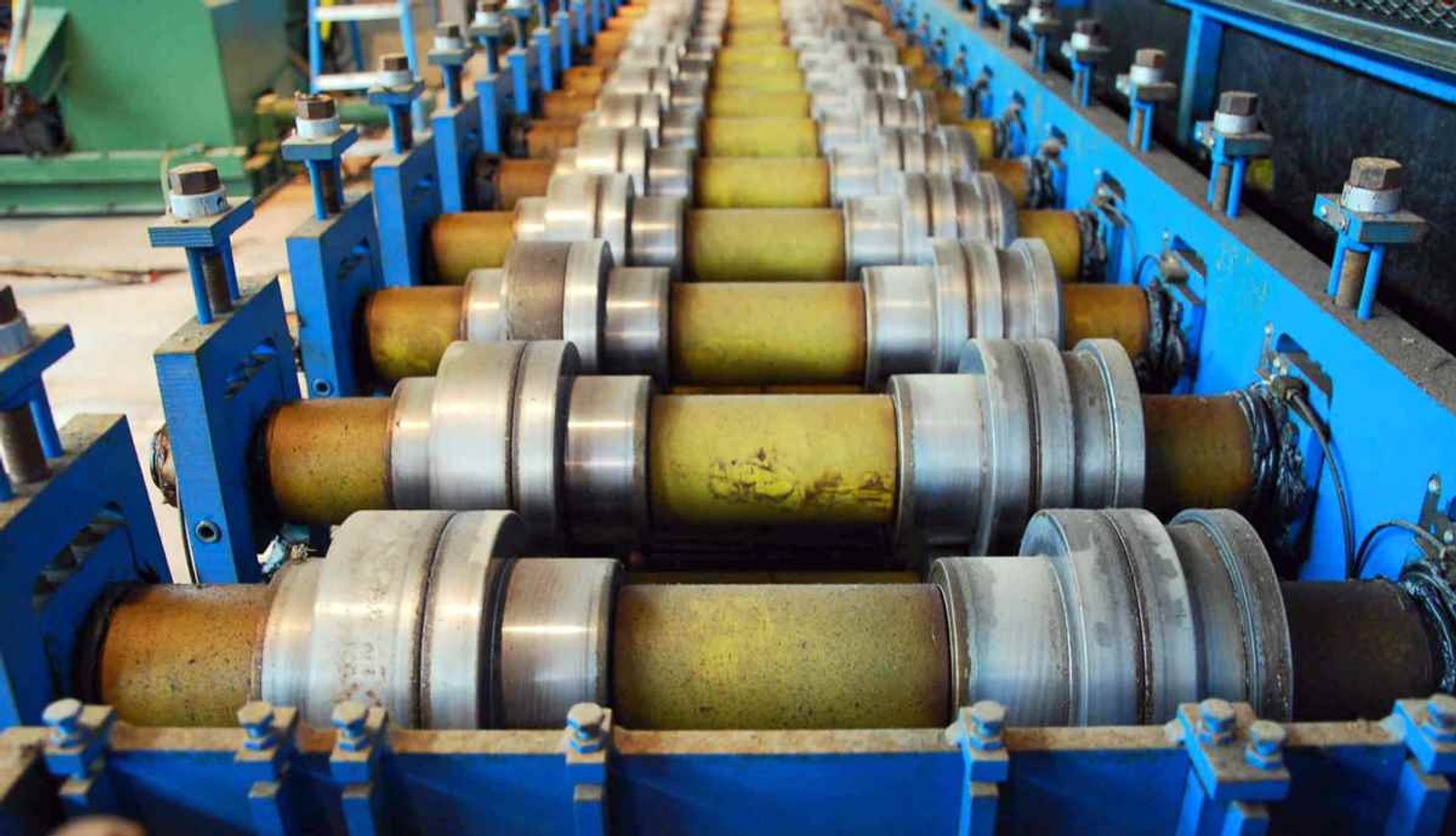

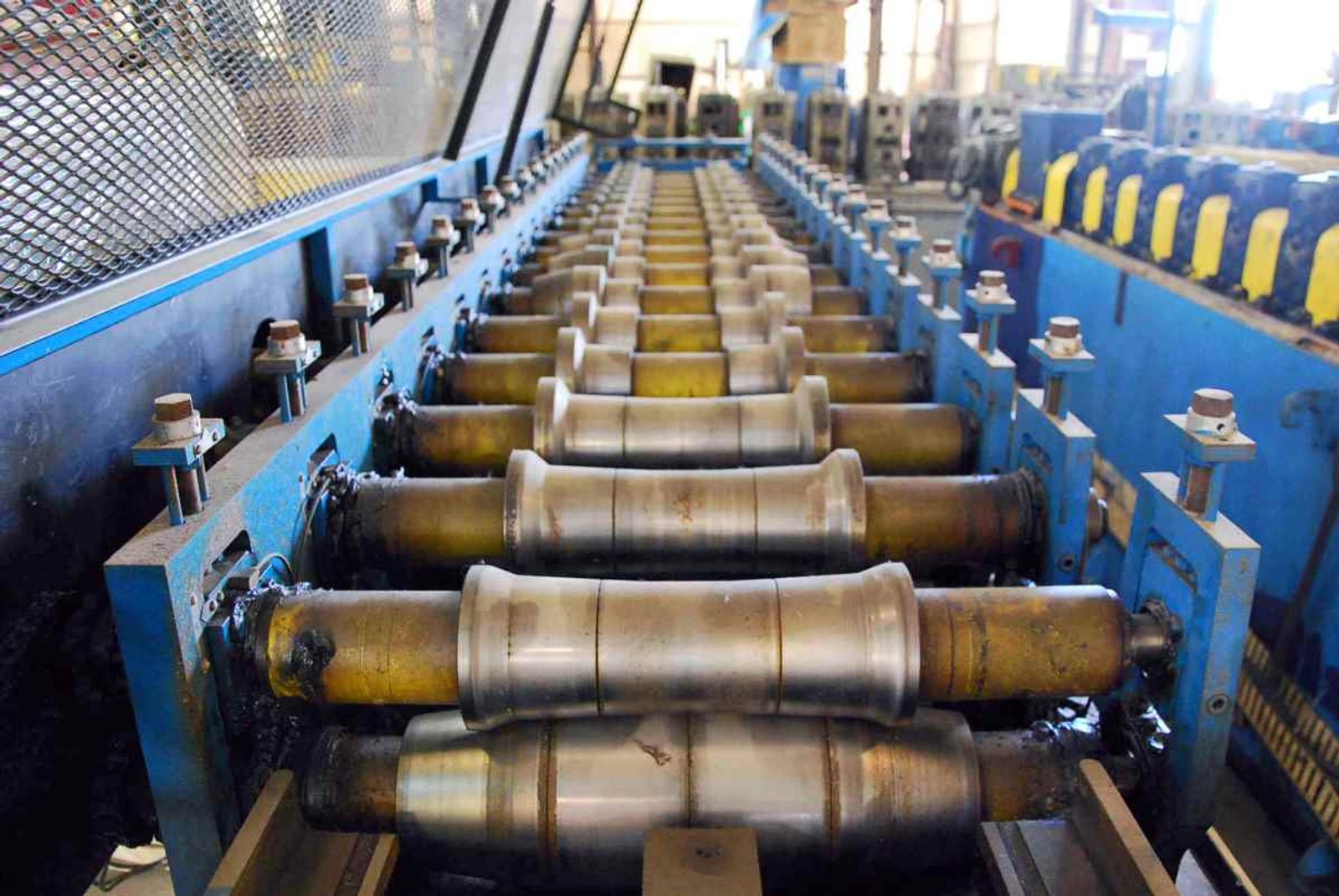

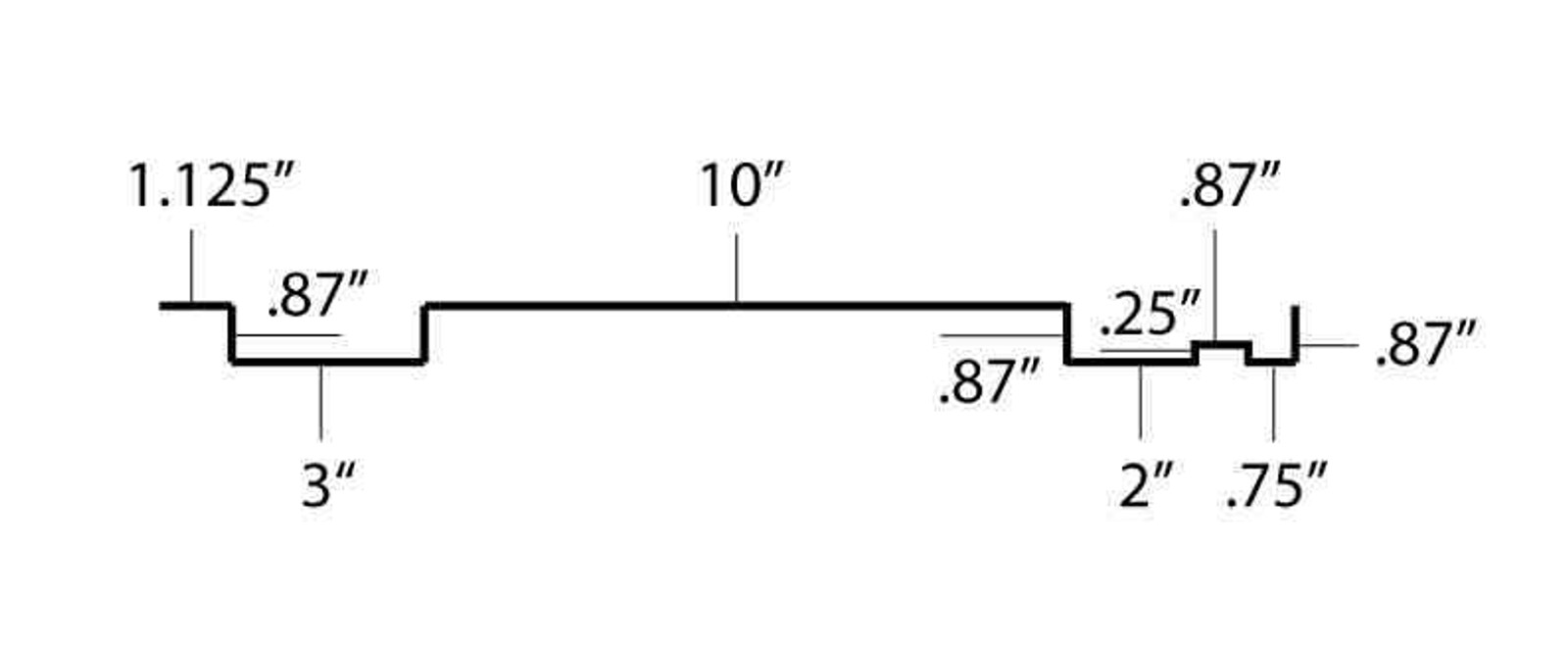

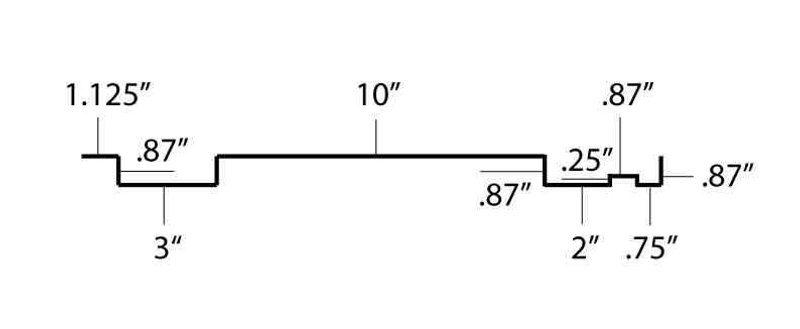

TOOLING: Roll Tooling on Rollformer, Shape To Be Determined

CONDITION: Machine Looks Excellent

OVERALL DIMENSIONS: 33′ x 7′ x 5′
APPROXIMATE WEIGHT: 14,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
