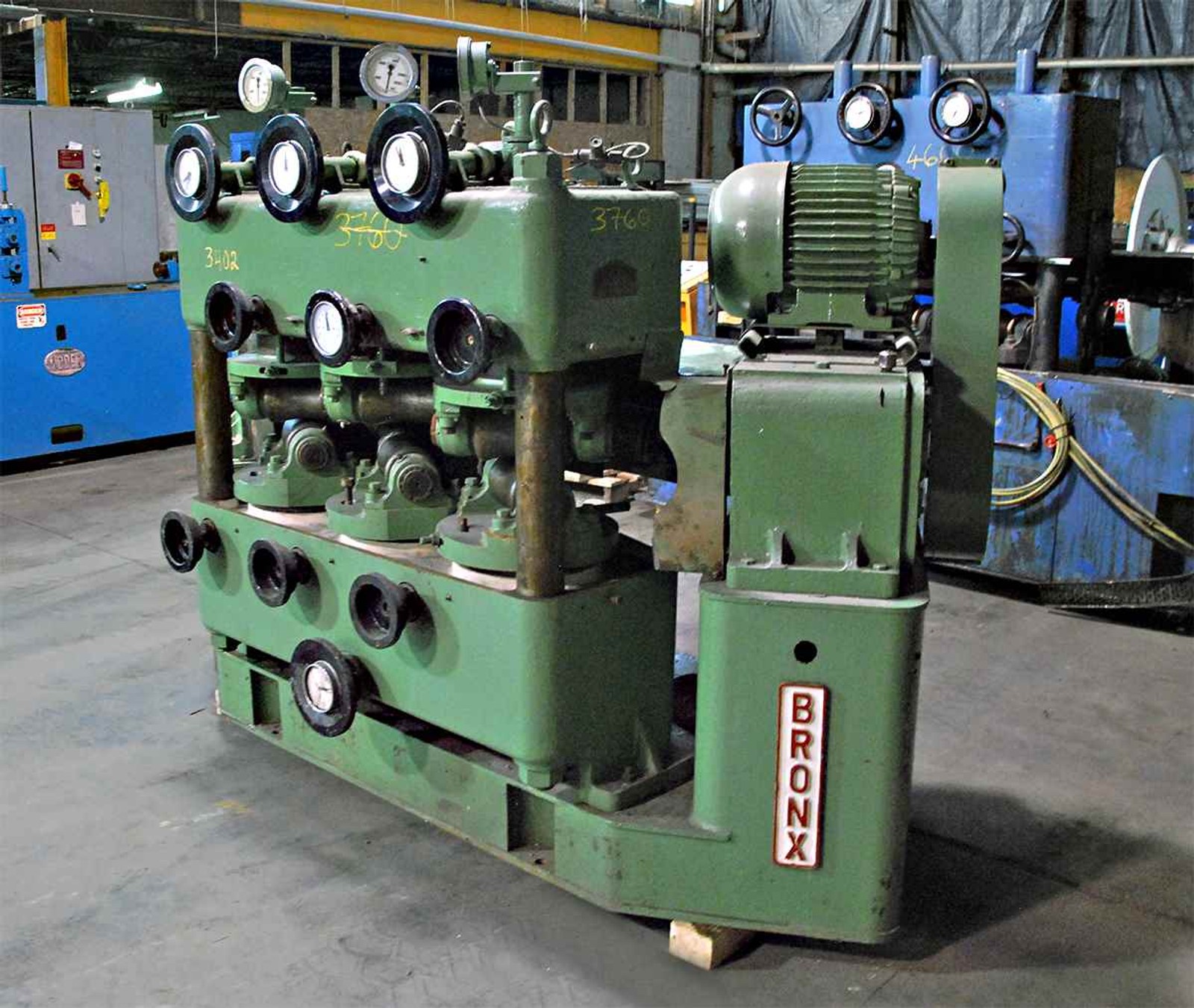

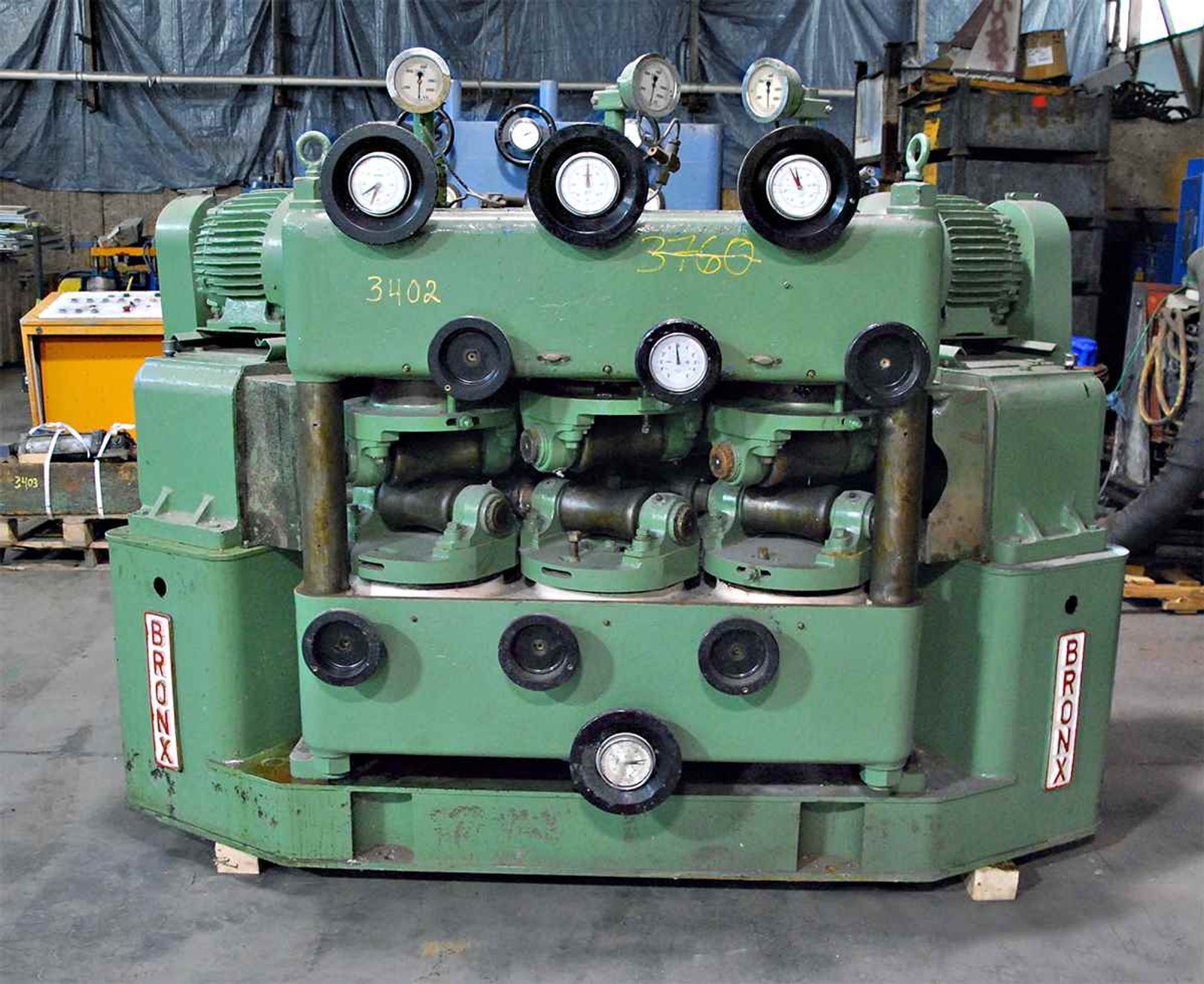

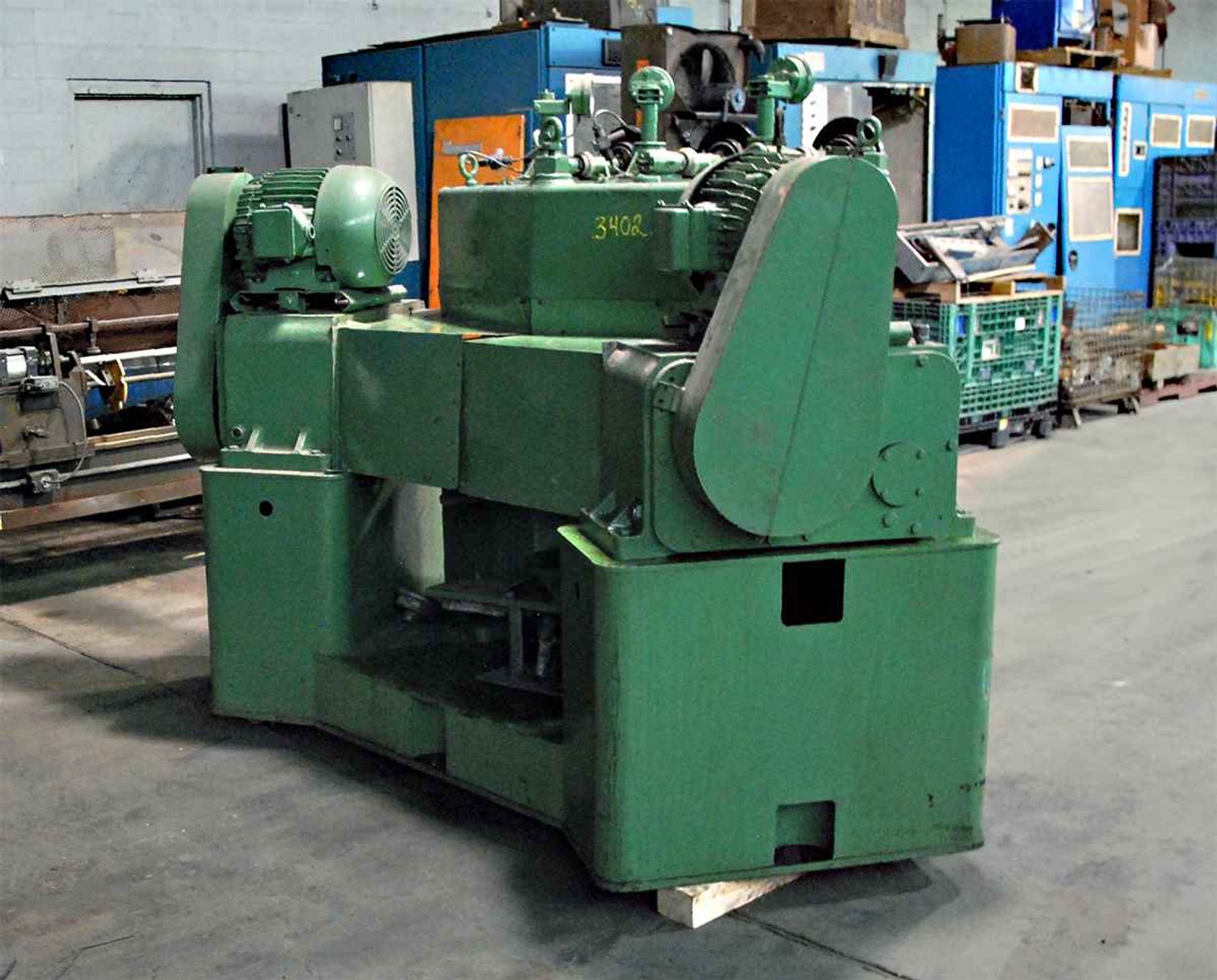

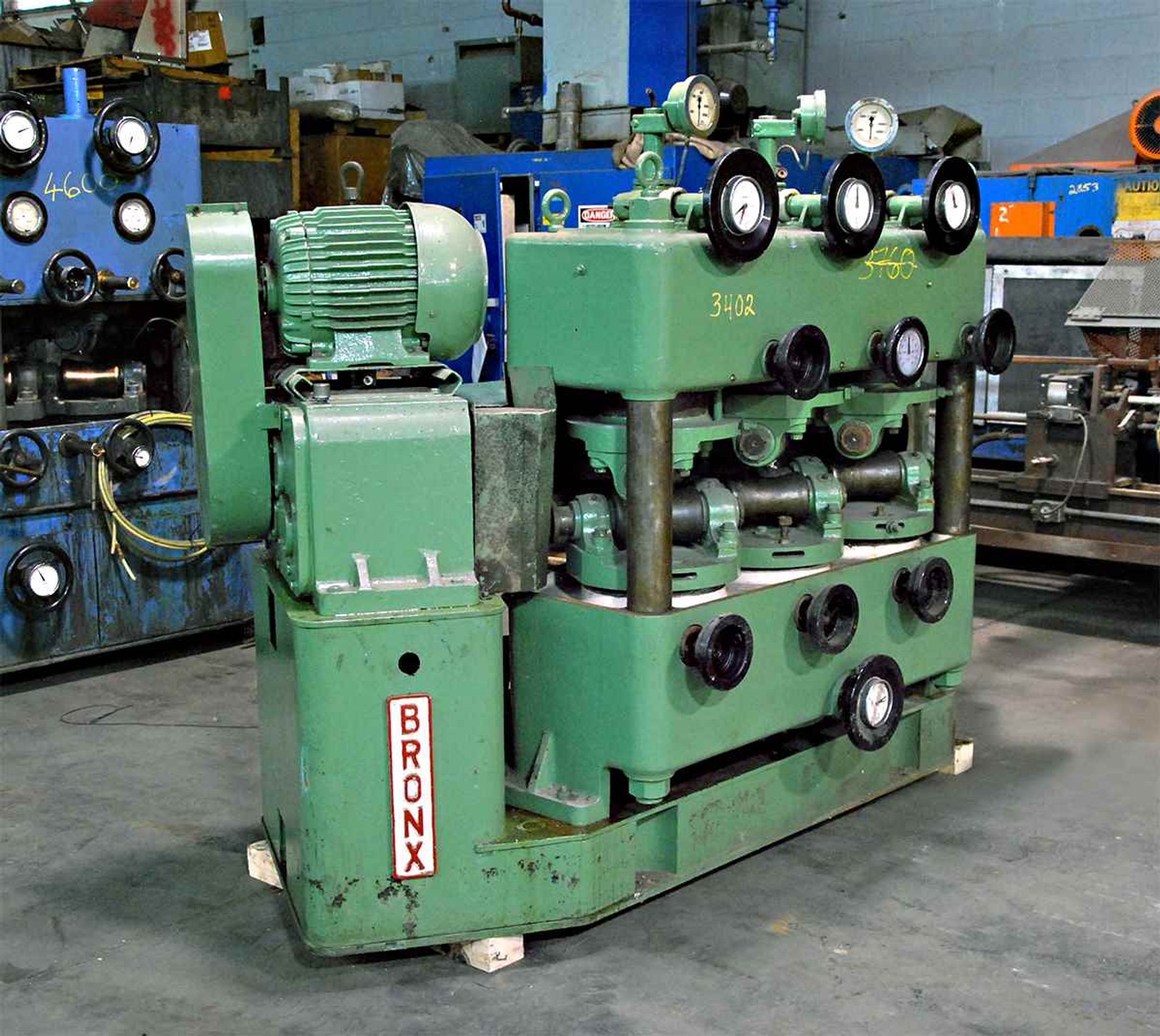

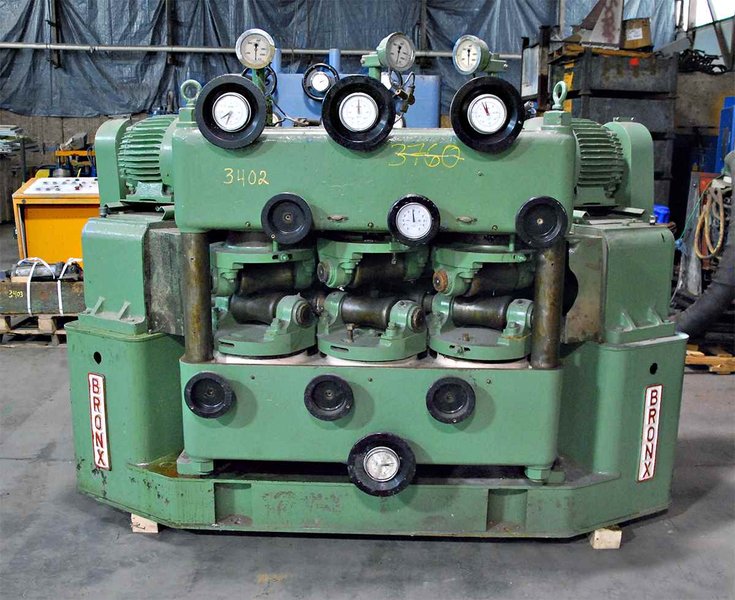

2" (50 mm) x .197" (5 mm) BRONX #6CR-4-1/2BW 6-Roll Tube Straightener

Manufacturer

BRONX

Category

Feeders & Straighteners

Type

STRAIGHTENERS, TUBE & BAR

Stock

3402

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3402
MANUFACTURER: BRONX
MODEL NUMBER: 6CR 4-1/2 BW
SERIAL NUMBER: 281074
YEAR: 1974

SPECIFICATIONS:

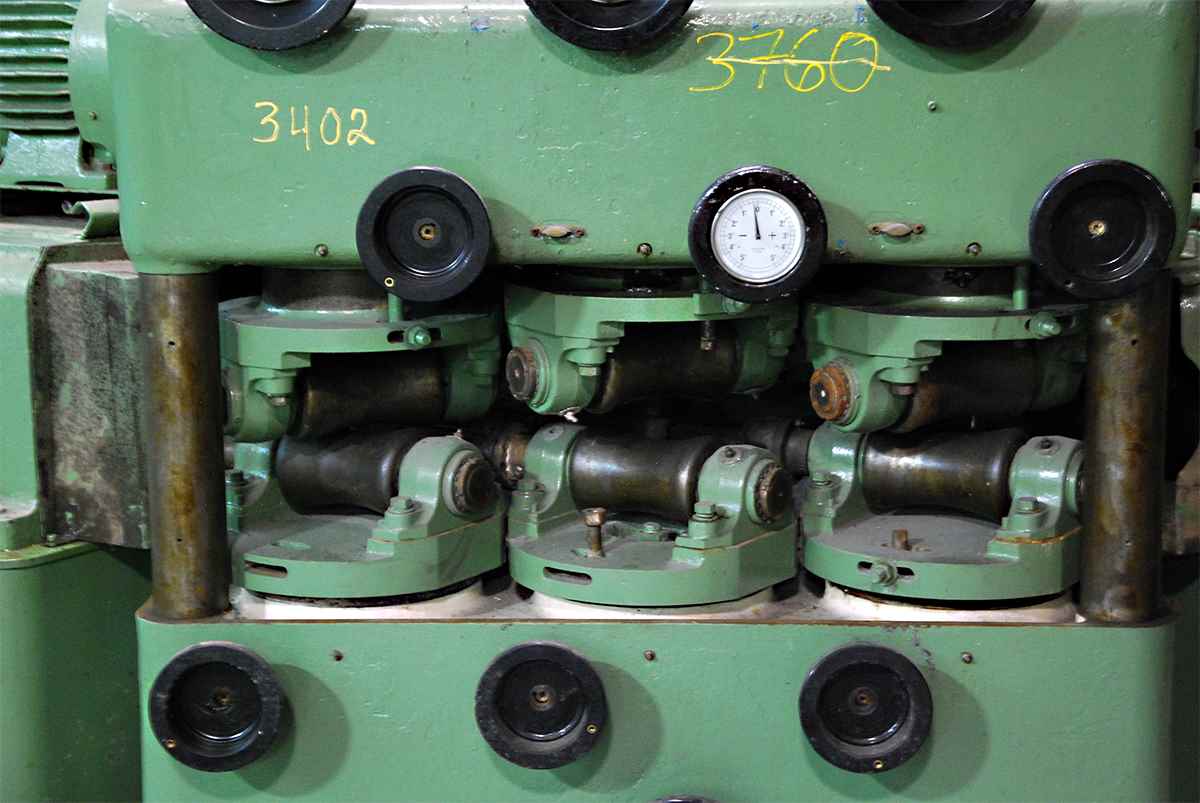

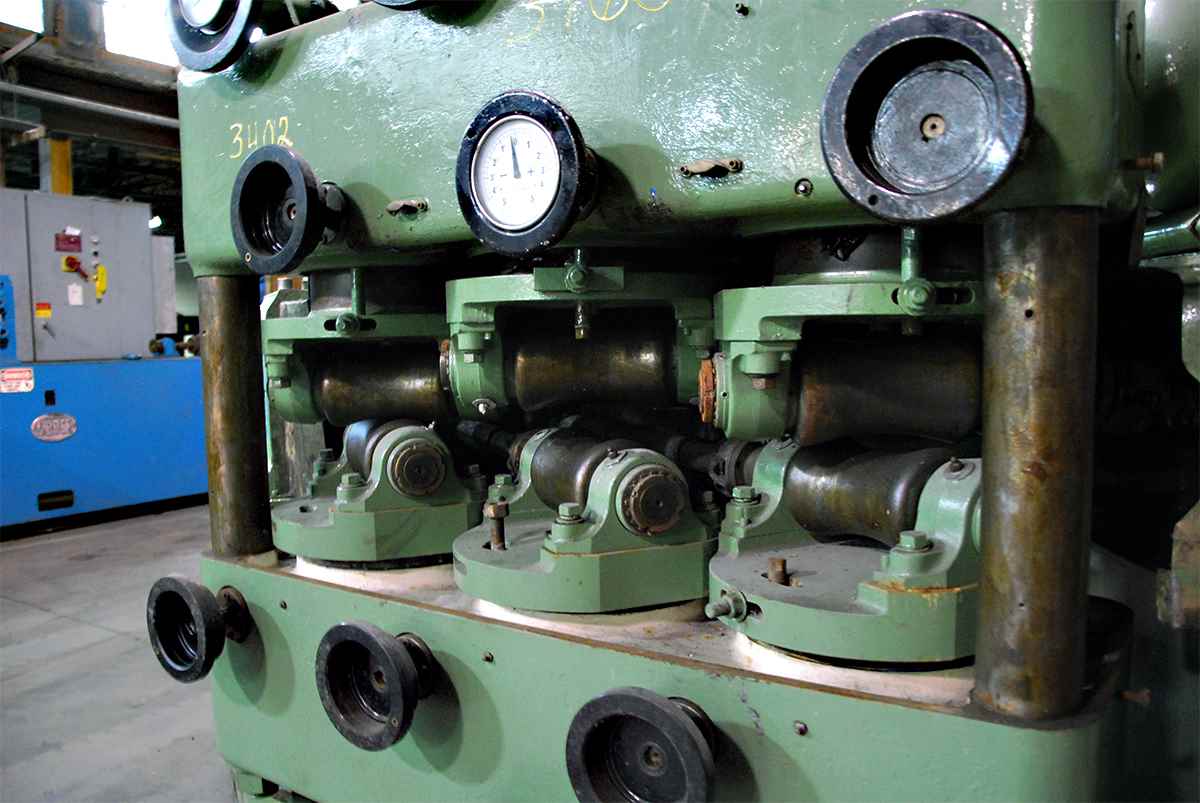

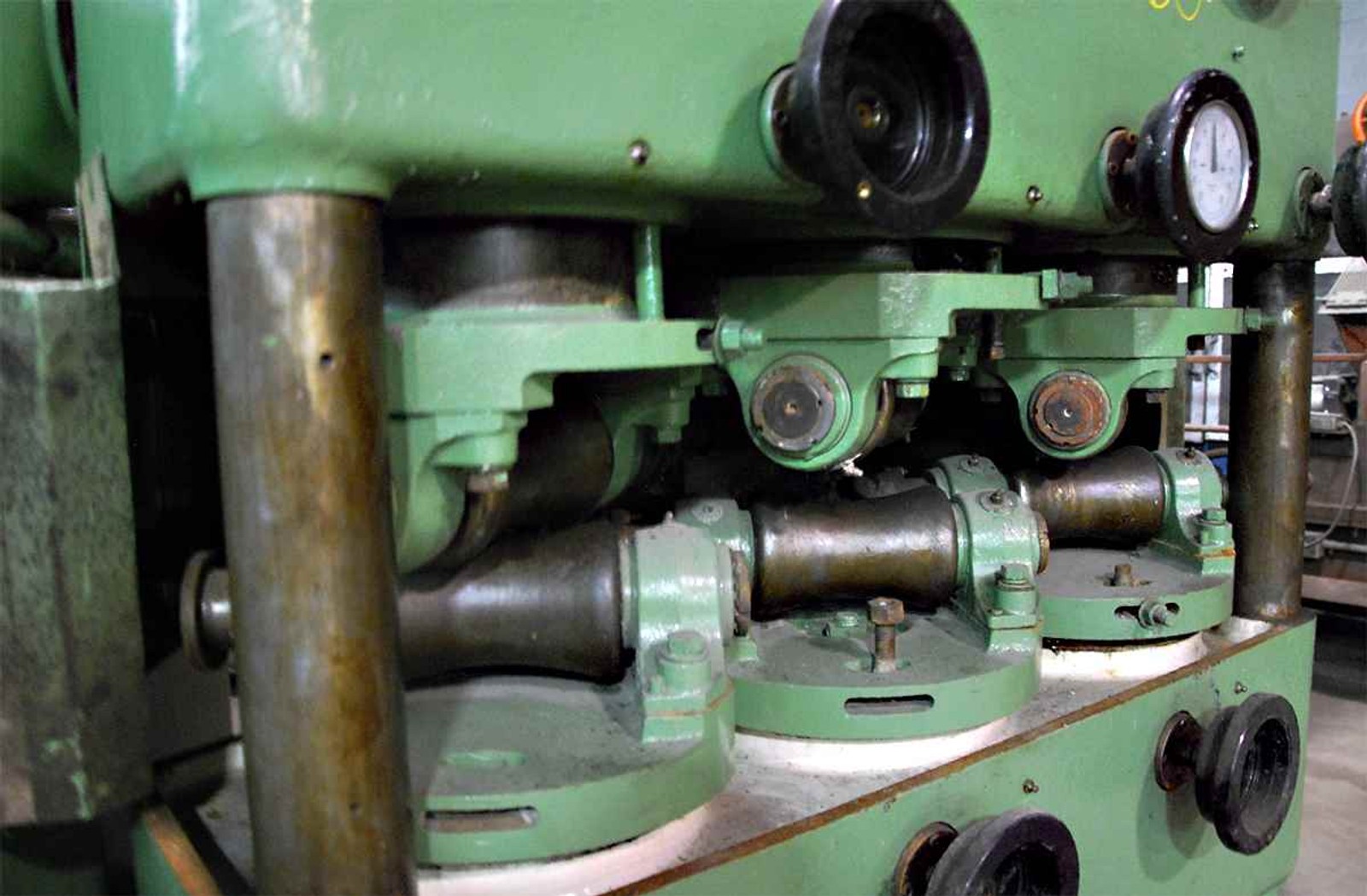

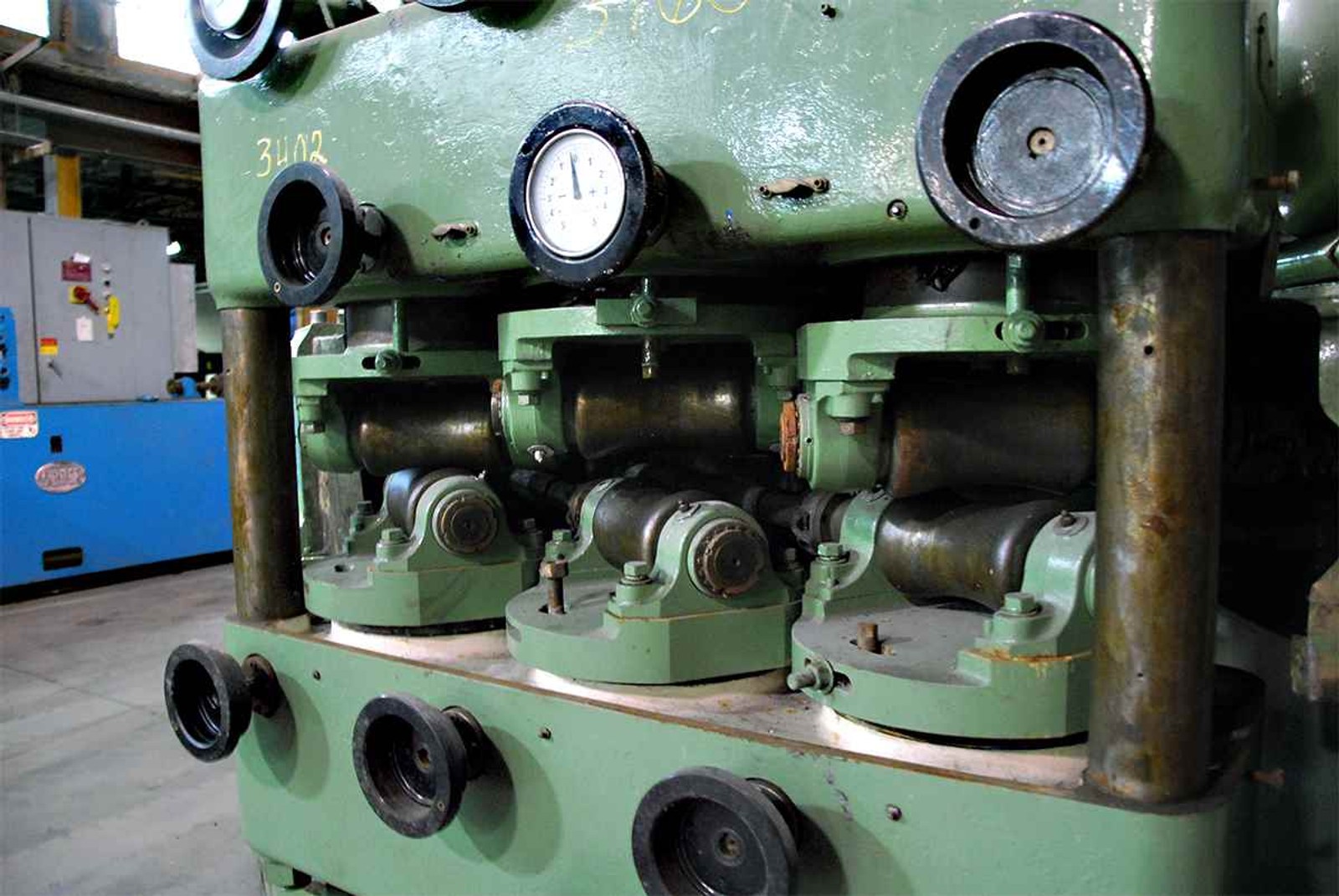

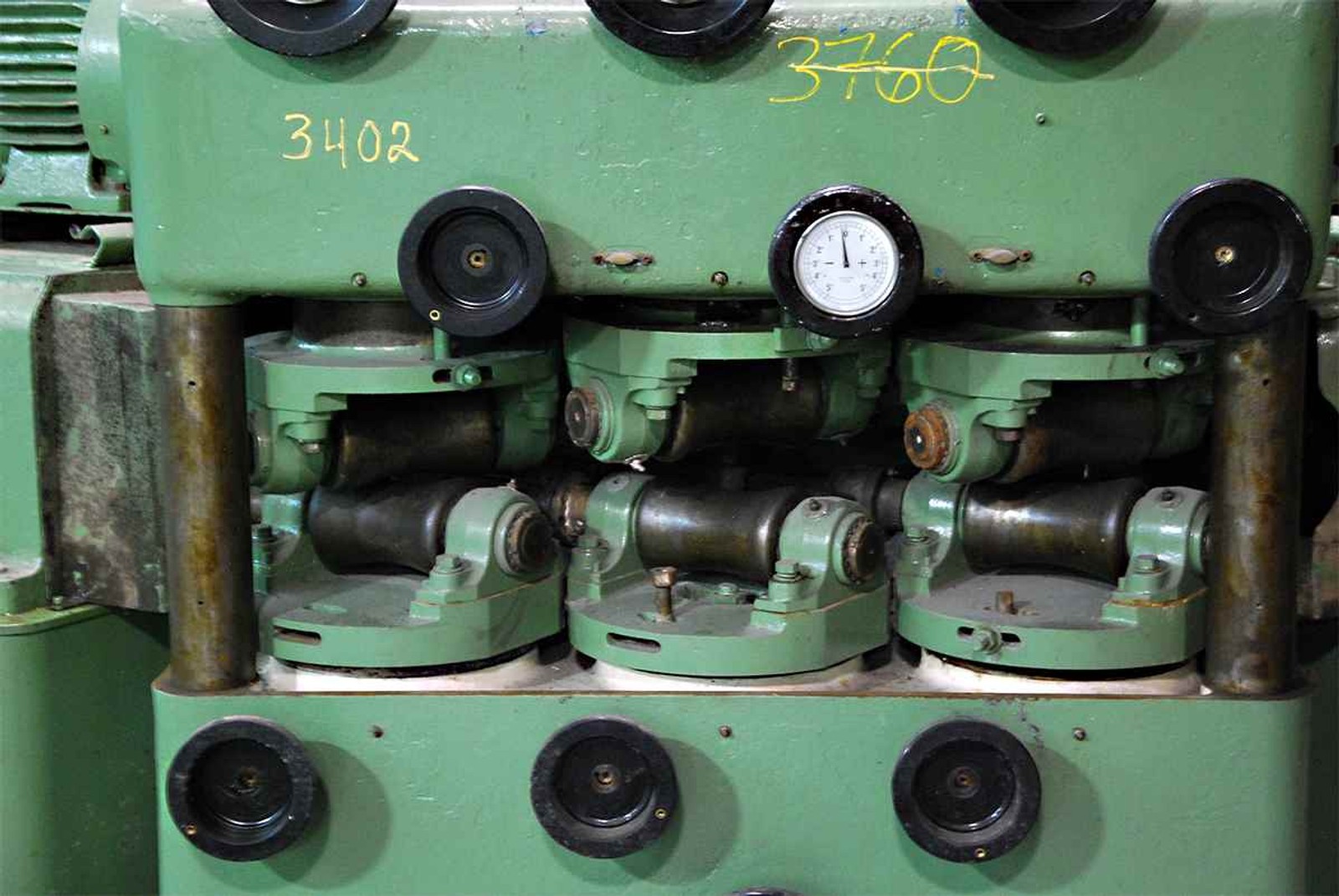

6-Roll Vertically Opposed
Cross Roll Design
Maximum Diameter: 2" (50.8 mm)
Minimum Diameter: .394" (10.0 mm)
Maximum Wall Thickness: .197" (5.00 mm)
Maximum Diameter Admitted: 3" (76.2 mm)
Feed Direction: Right to Left
Roll Size: 4" Diameter x 8" Long
Manual Roll Adjustment: 3" (76.2 mm) Approximate
Operating Speed: 60 – 120 MPM

EQUIPPED WITH:

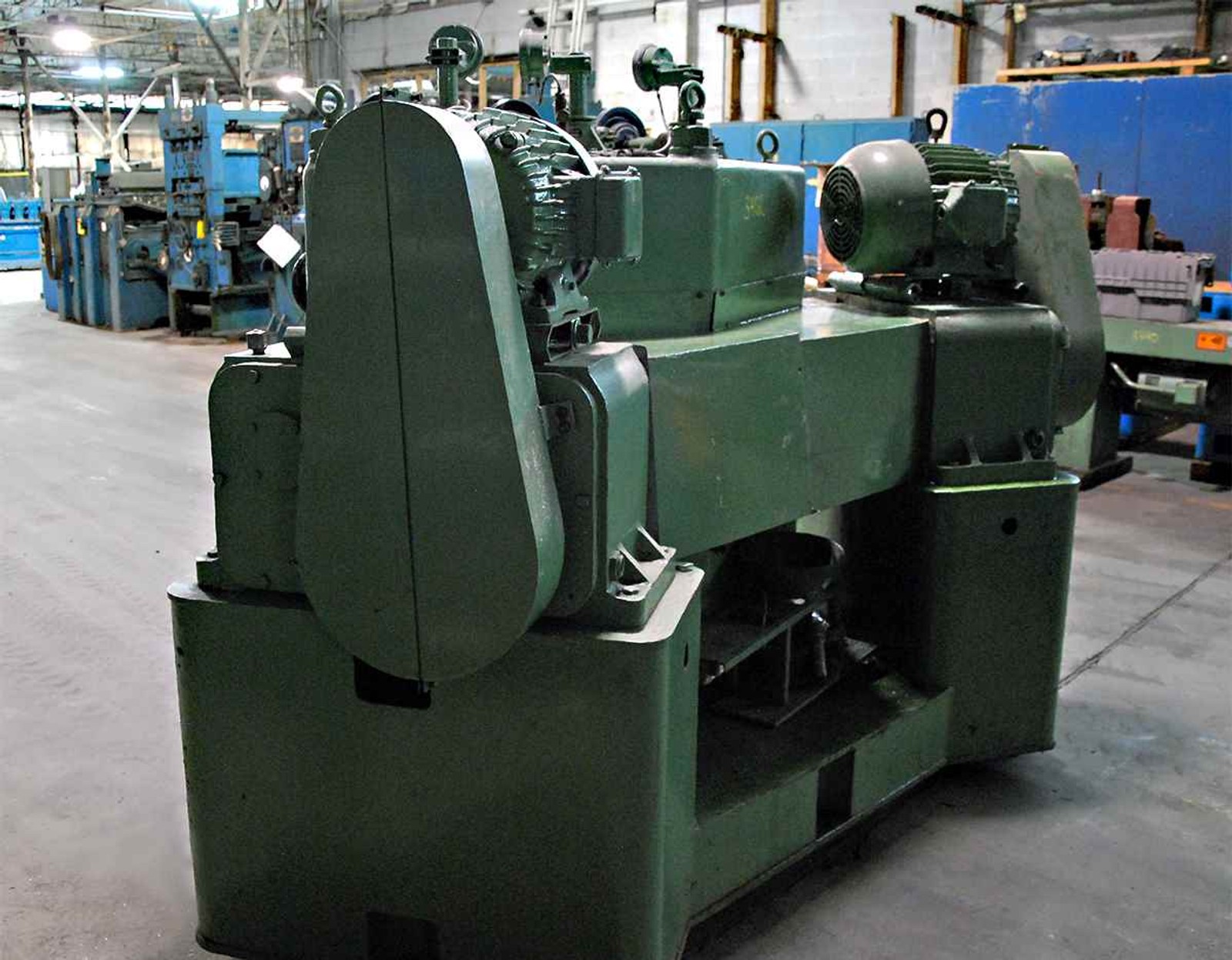

(2) Motors: 7.5 HP / 3.7 Kw, 415 v / 3 / 50, 1425 / 720 RPM

OVERALL DIMENSIONS: 8′ x 5′ x 6′
APPROXIMATE WEIGHT: 8,300 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
