48" x 7" x 30,000 Lb. YODER Slitting Line

Manufacturer

YODER

Category

Slitters and Slitting Lines

Type

SLITTING LINES

Stock

3335

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3335
MANUFACTURER: YODER
MODEL NUMBER: 7S
SERIAL NUMBER: Y3191 – 65
YEAR: 1965

SPECIFICATIONS:
Material: Mild Steel
Shear Strength: 50,000 PSI (22,680 kgs.)
Maximum Coil Weight: 30,000 Lbs. (13,608 kgs.)
Maximum Coil I.D.: Entry: 24″ (609 mm)
Minimum Coil I.D.: Entry: 16″ (406 mm)
Maximum Coil O.D.: 60″ (1,524 mm)
Maximum Coil Width: 50″ (1,270 mm)
Line Direction: Right to Left

(2) COIL CARS:
Entry Coil Car with Hydraulic Lift & Travel
Exit Coil Car with Hydraulic Lift & Travel

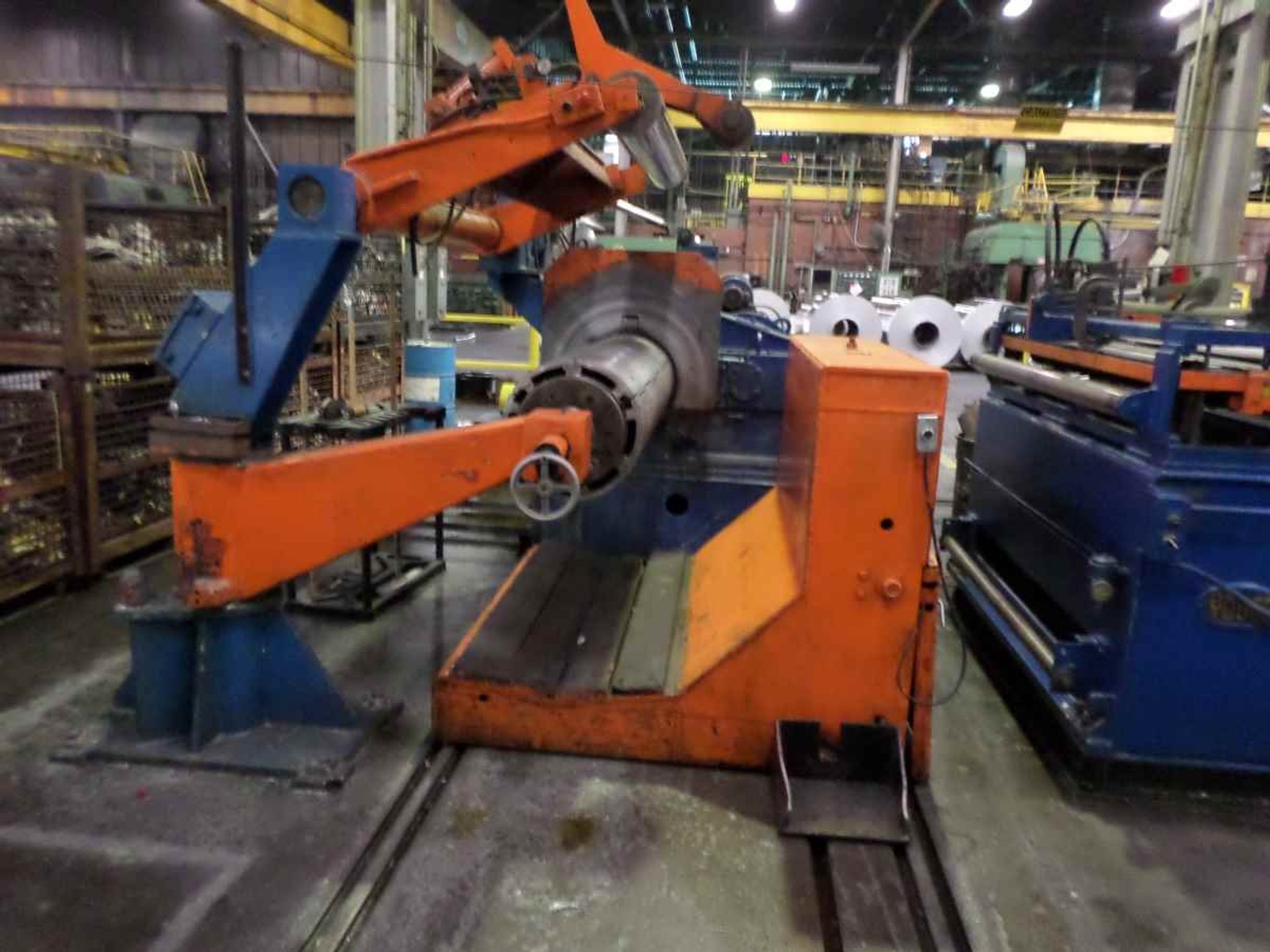

UNCOILER:
Dual Cone Type
Maximum Width: 48″ (1,219 mm)
Maximum Coil Weight: 30,000 Lbs. (13,608 kgs.)
Maximum Coil I.D.: 24″ (609 mm)
Minimum Coil I.D.: 16″ (406 mm)
Maximum Coil O.D.: 60″ (1,524 mm)

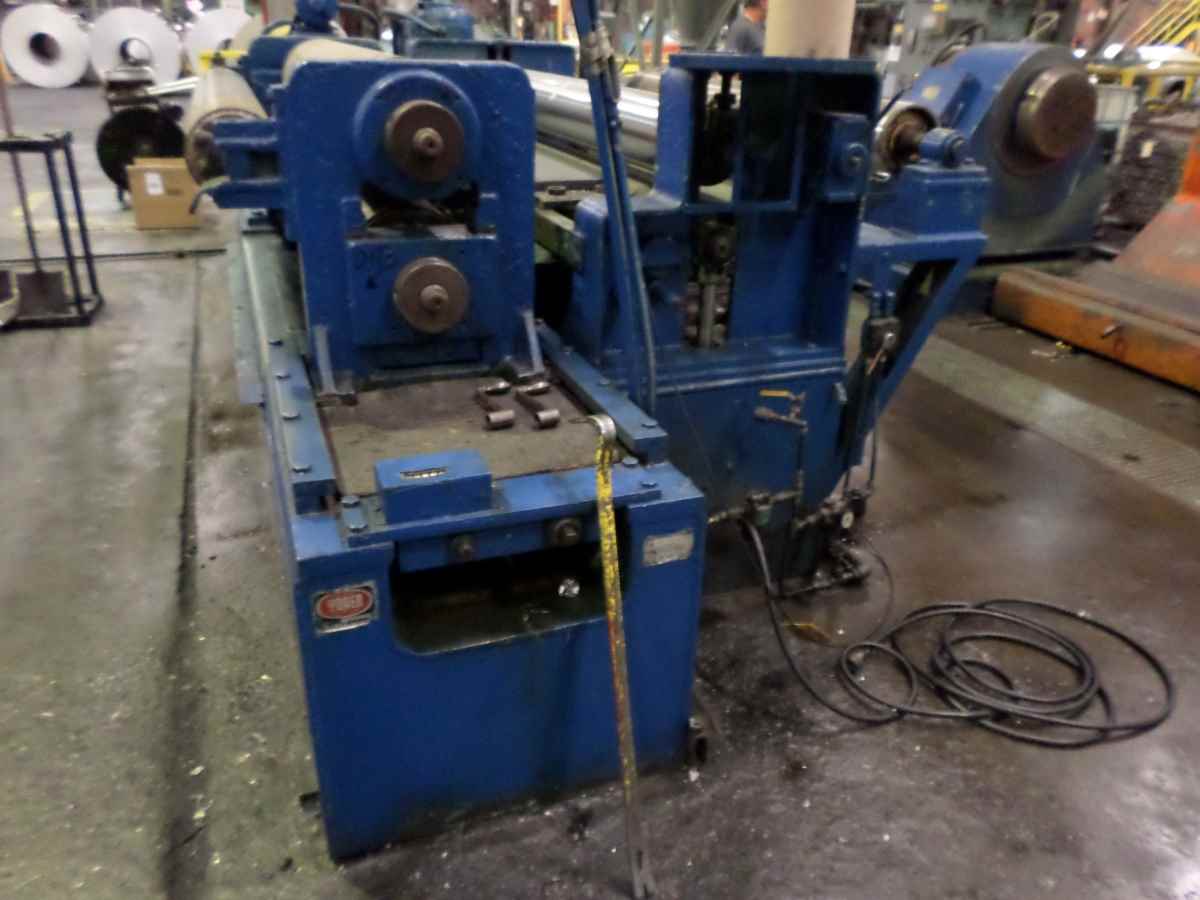

PINCH ROLL UNIT

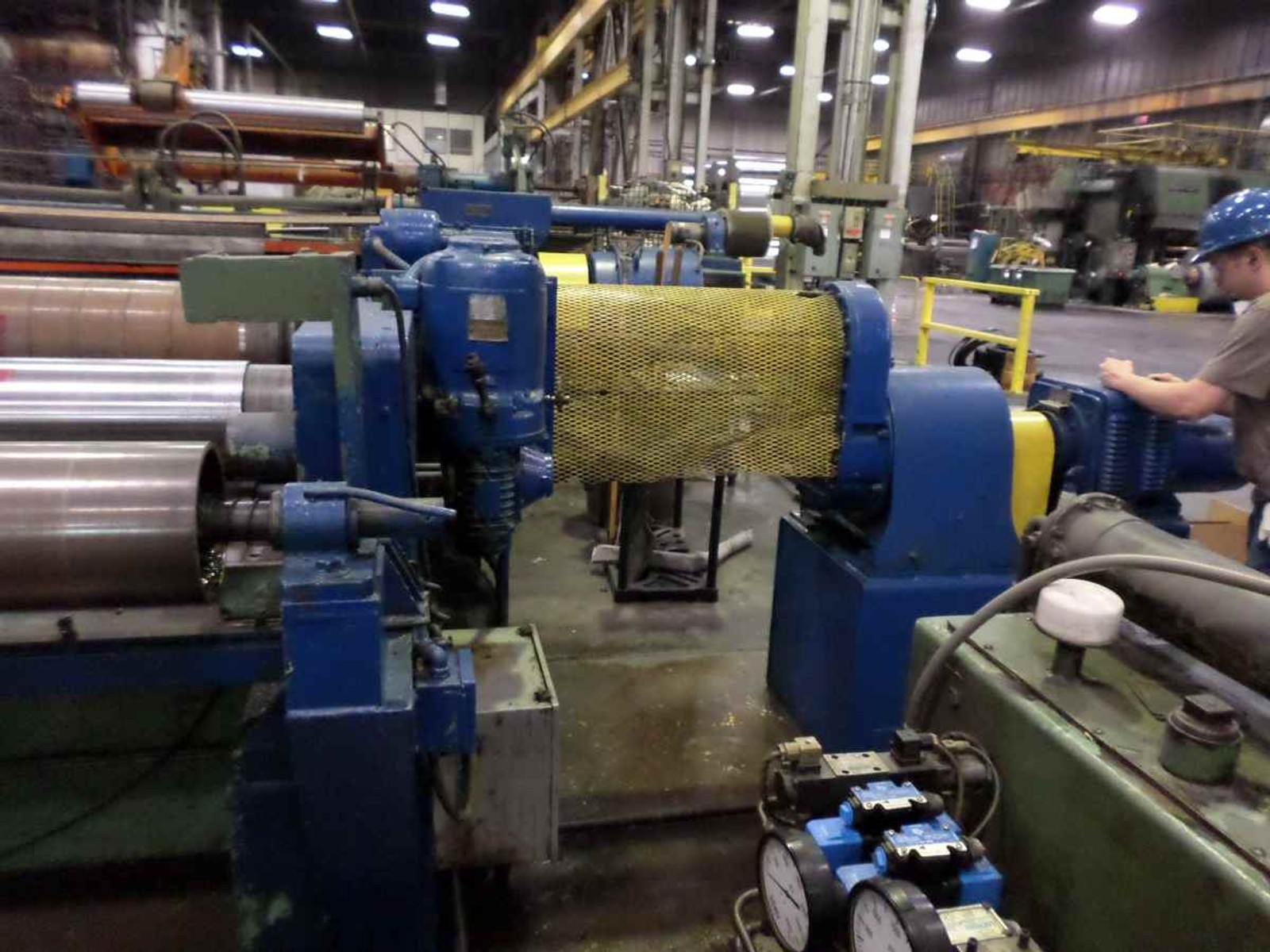

YODER SLITTER:
Arbors: 7″ Diameter x 67″ long
Motor: 10 HP 2 / Disc Brakes, 7.814:1 Gear Reducer

YODER RECOILER:
Drum for 16″ (406 mm) I.D.
Overarm Separator
Hydraulic Push-Off Plate
Drive: 75 H.P., 75 HP DC Motor

ELECTRICAL:

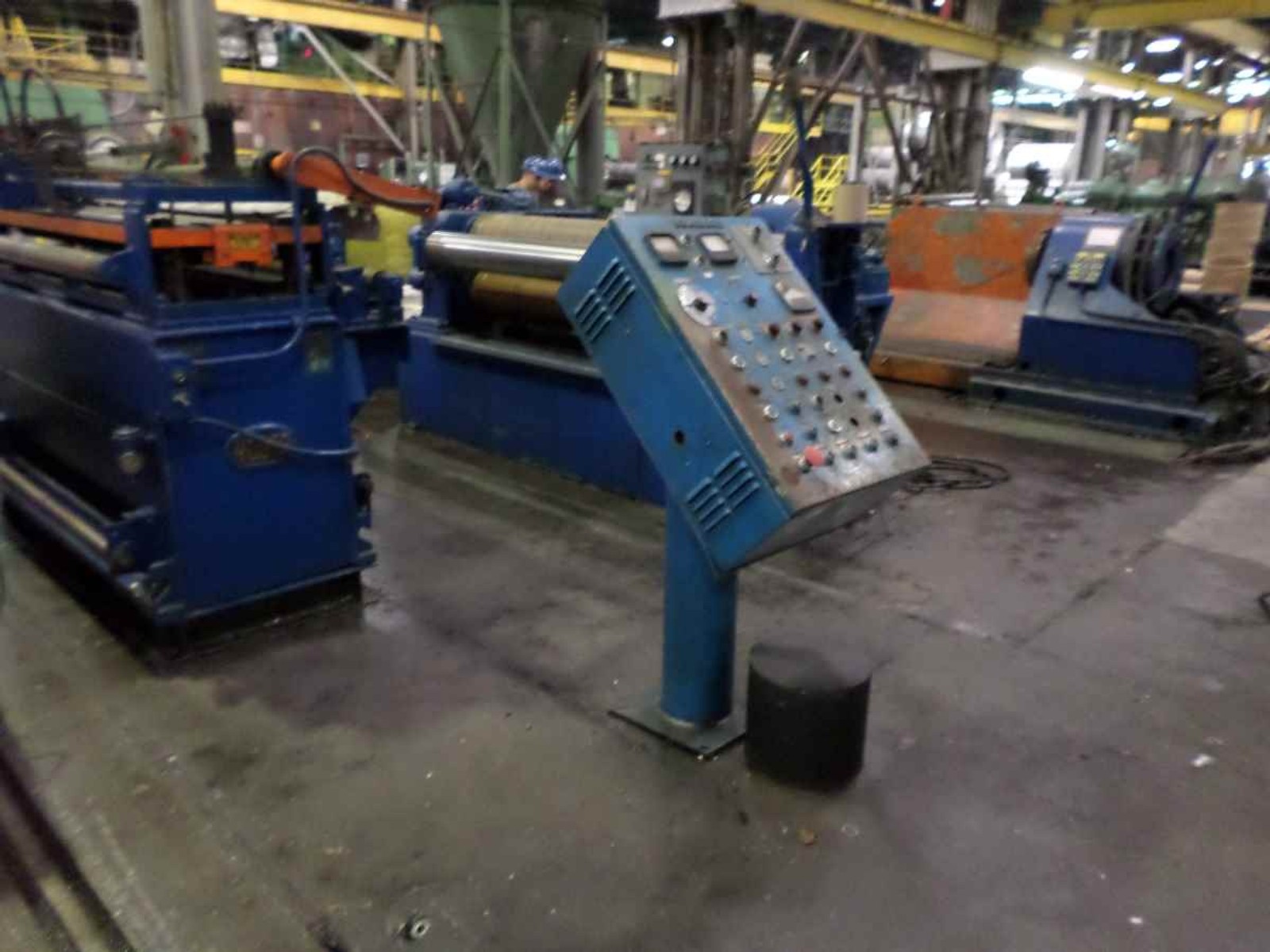

Operator Control Console and Drive Panel

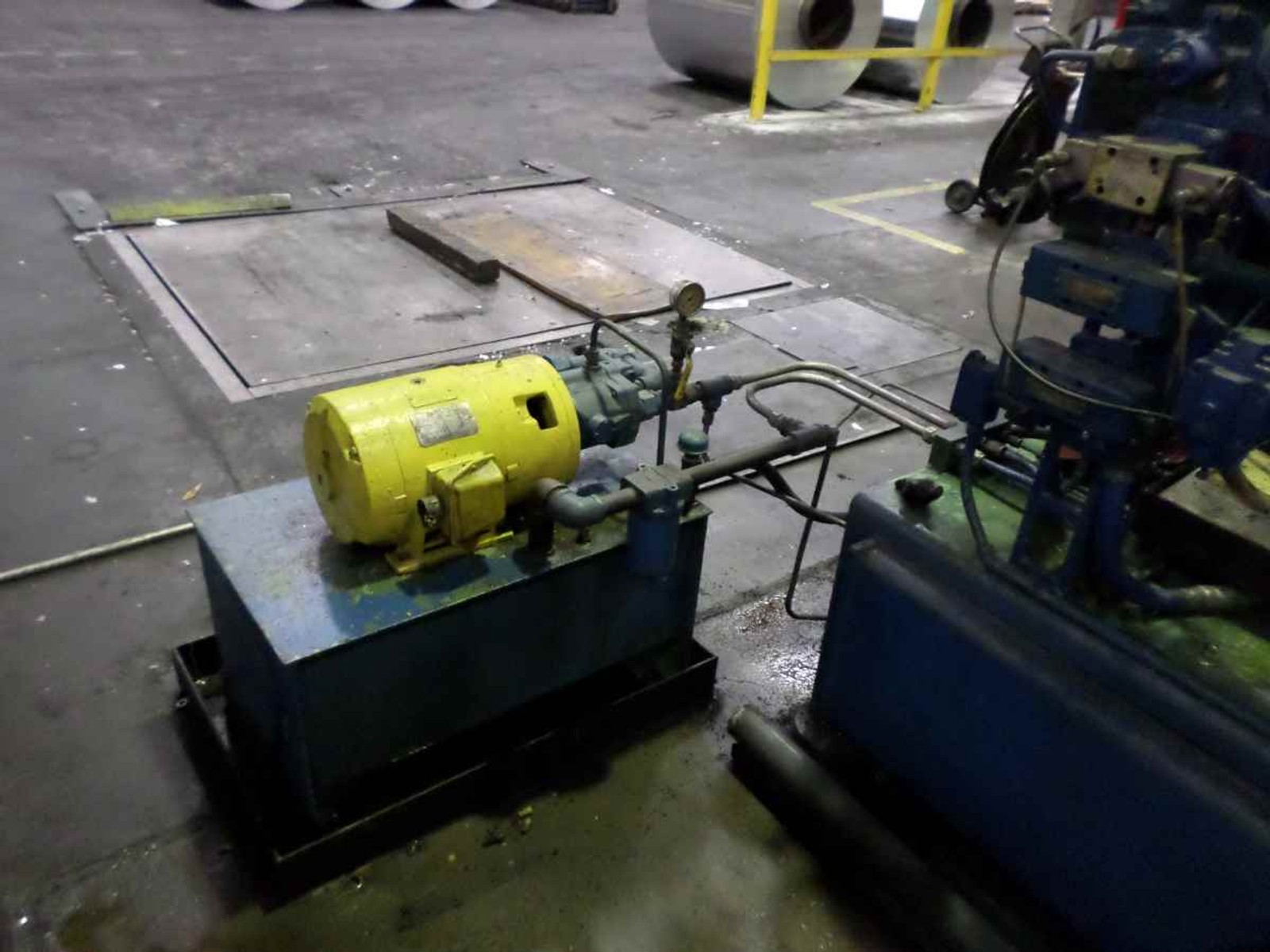

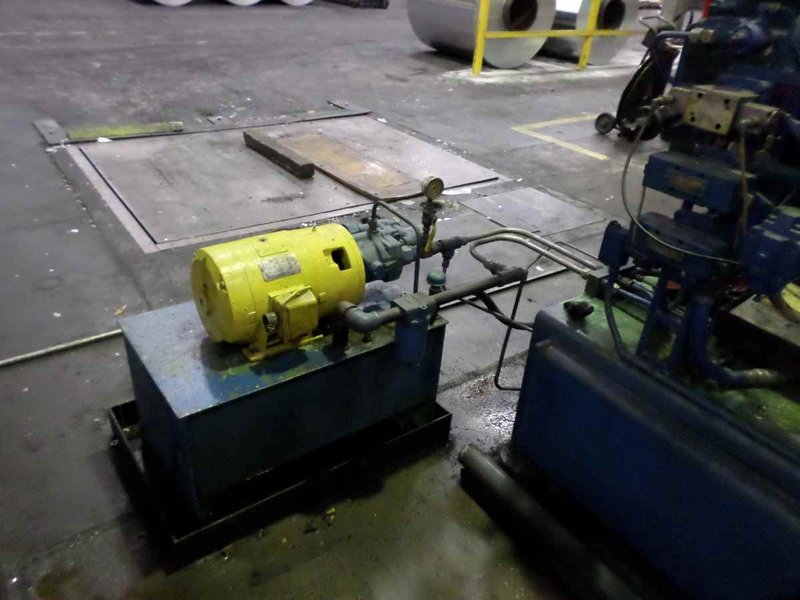

(2) Hydraulic Power Unit

TOOLING: To Be Determined
