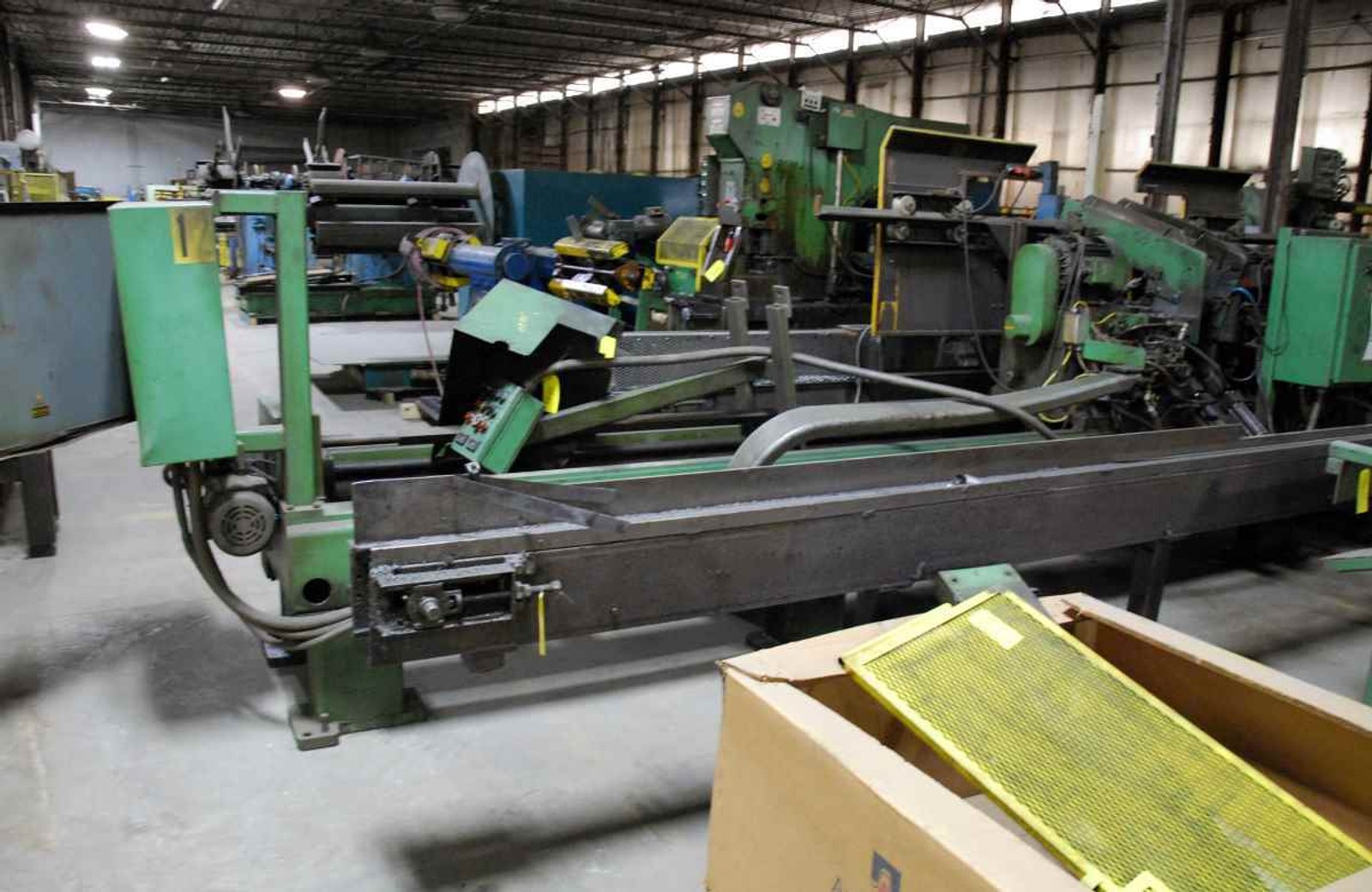

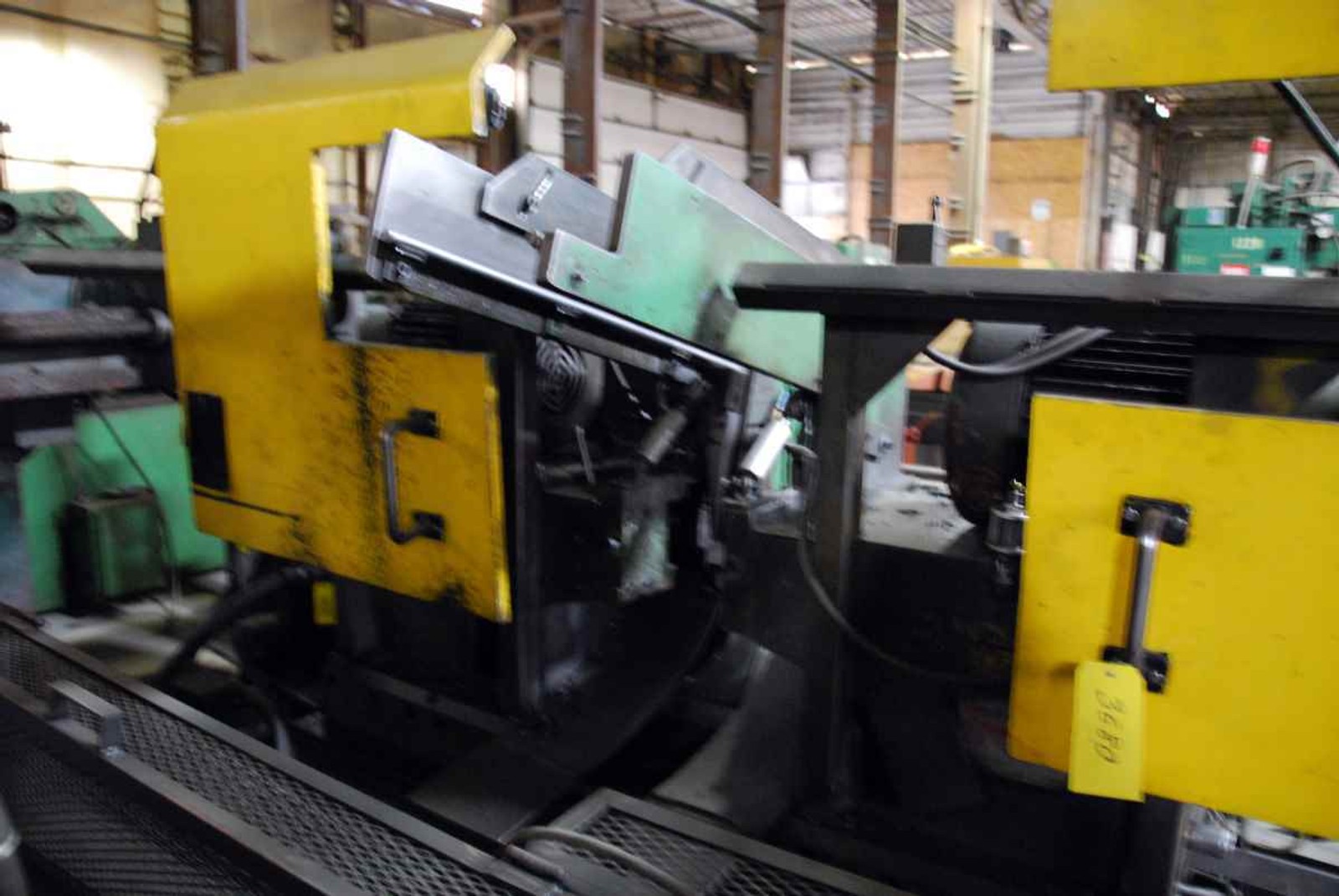

3" (76.2 mm) x .120" (3.04 mm) HAVEN #912 Double End Facer

Manufacturer

HAVEN

Category

Tube Machinery

Type

TUBE END FINISHING MACHINERY

Stock

3729

Model

912

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3729
MANUFACTURER: HAVEN
MODEL NUMBER: 912
SERIAL NUMBER: 2752

SPECIFICATIONS:
Maximum Tube Diameter: 3″ (76.2 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Wall Thickness: .120″ (3.04 mm)
Minimum Wall Thickness: .028″ (.711 mm)
Length: 6″ – 120″

Cutters:
– Dedicated Carbide Inserted NC Type Cutters
– Quick Change Tooling
– Adjustable Carbide Inserted Cutter
Tube Finish:
– 30 Degree I.D. Chamfer, 30 Degree O.D. Chamfer
– End Face Flat & Square to Center Line of Tube
Feed: Adjustable, Electric
Power: 440 – 460 VAC, 60 Hz, 40 AMP
Pneumatic: 80 PSI – 4 Bar
Production Rate: 500 – 3,000 Parts Per Hour
Length Tolerance: +/- .005″
Length Readout: Digital in Inches and mm

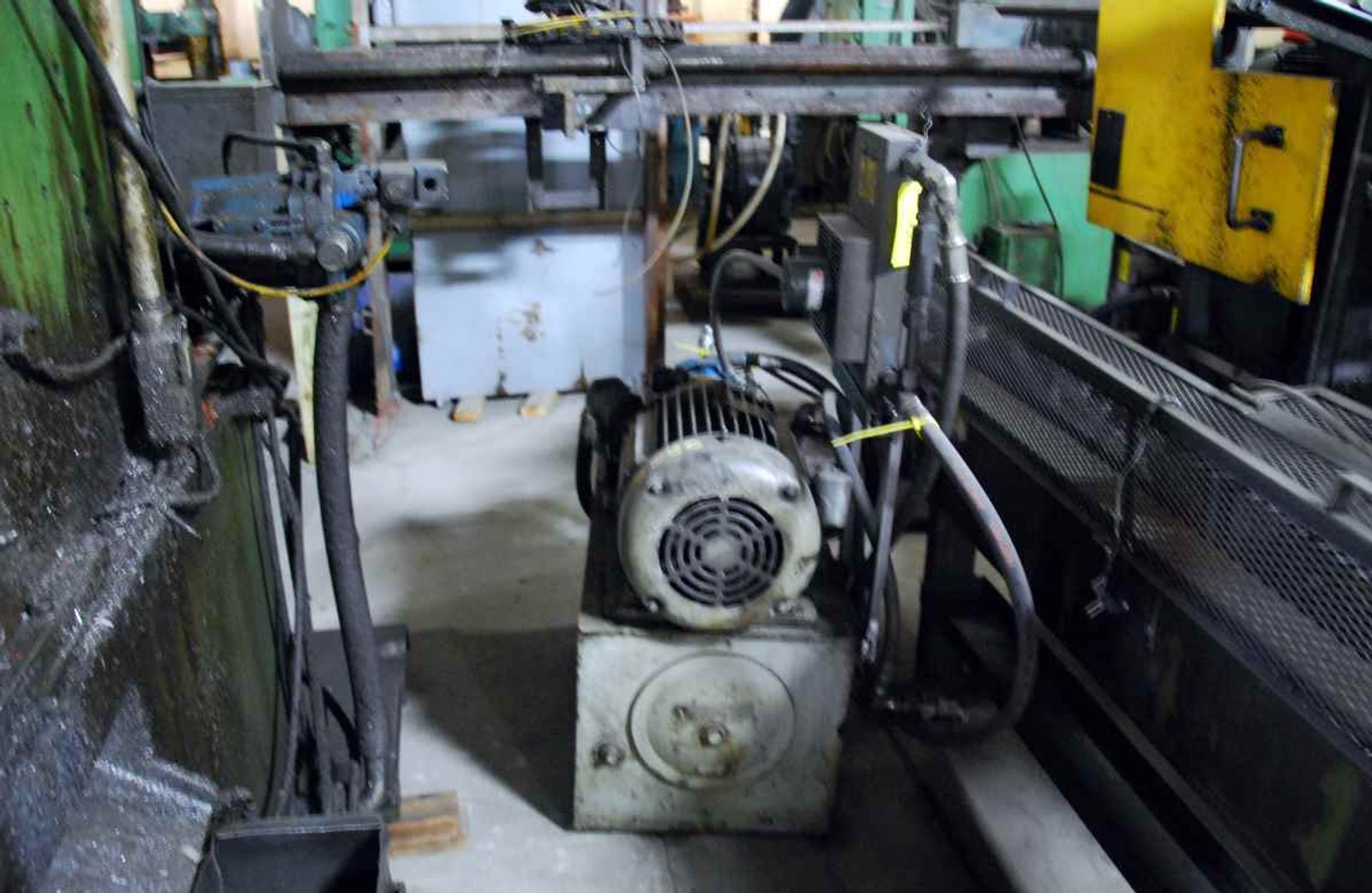

Spindle Drives: (2) 7.5 HP Motors

NOTE:
Missing Hydraulic Unit

OVERALL DIMENSIONS: 20′ x 7′ x 6.5′
APPROXIMATE WEIGHT: 6,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
