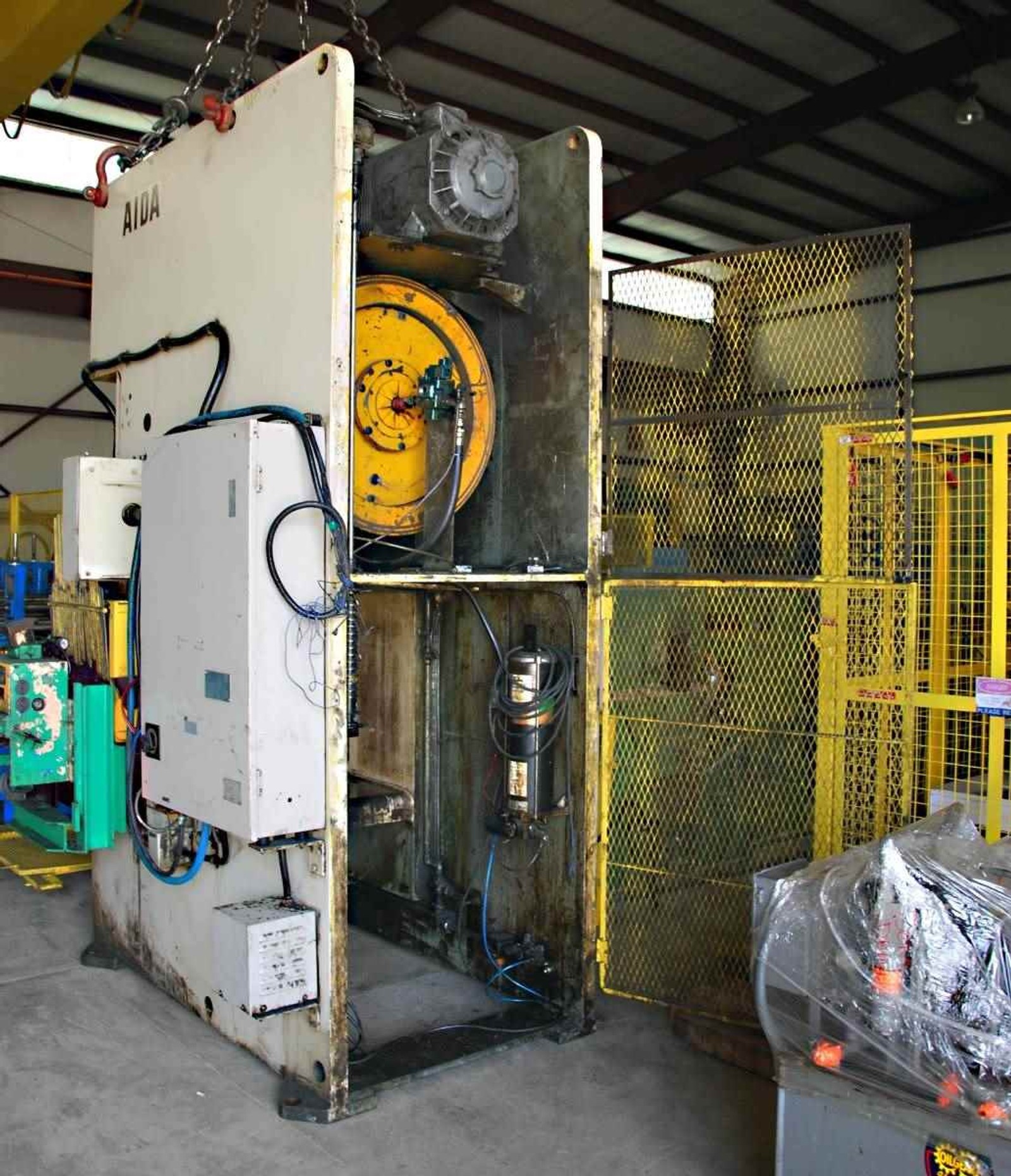

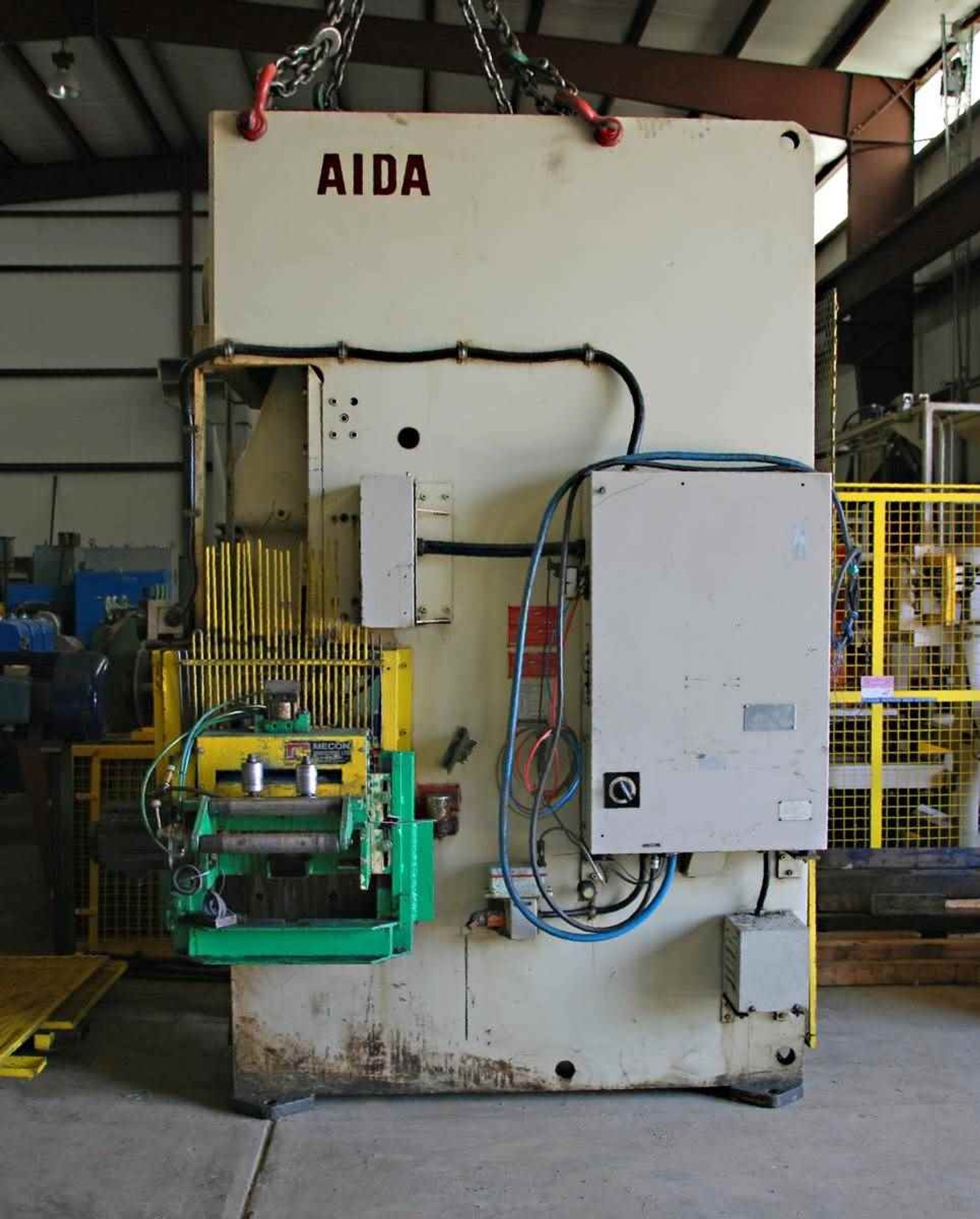

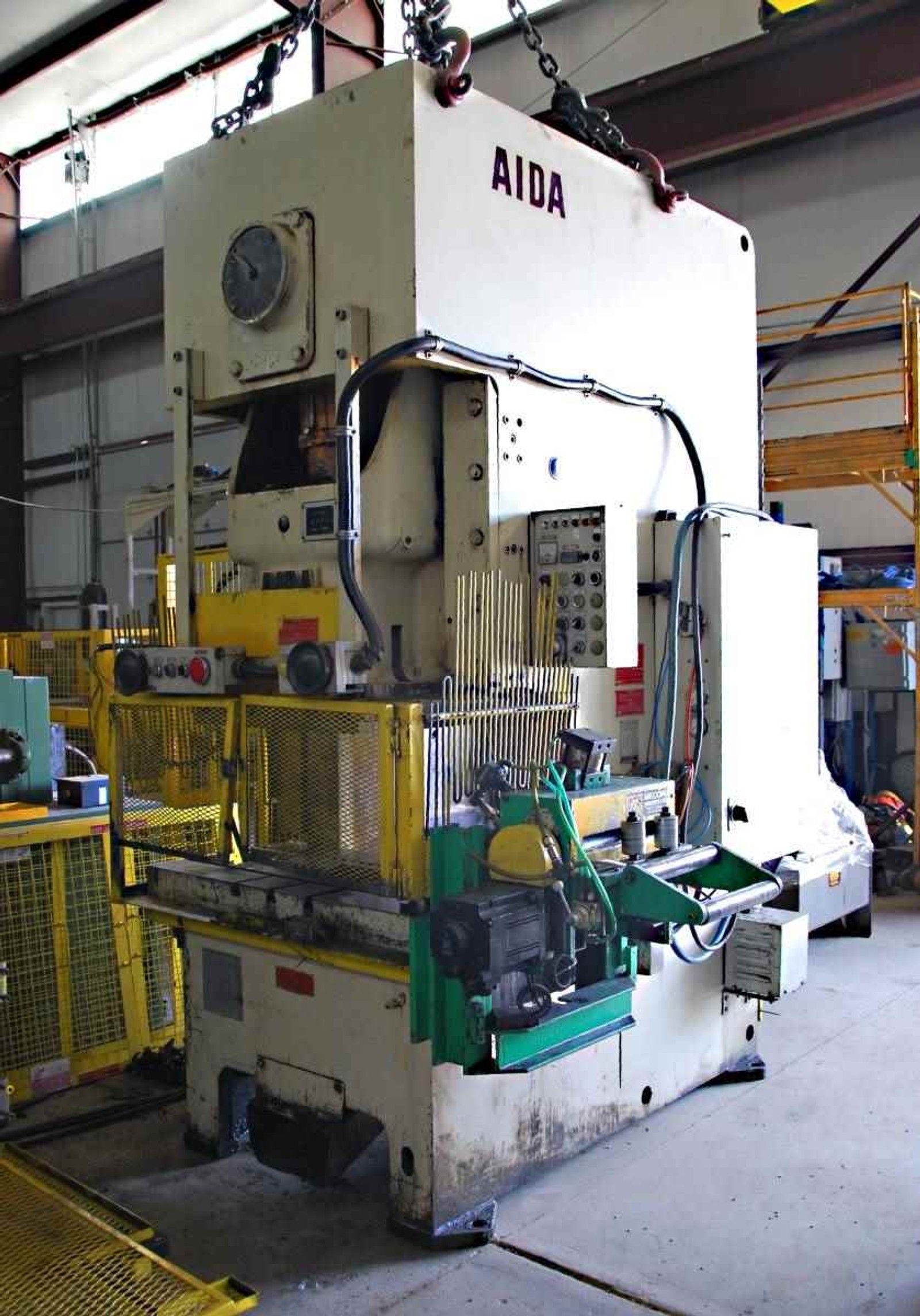

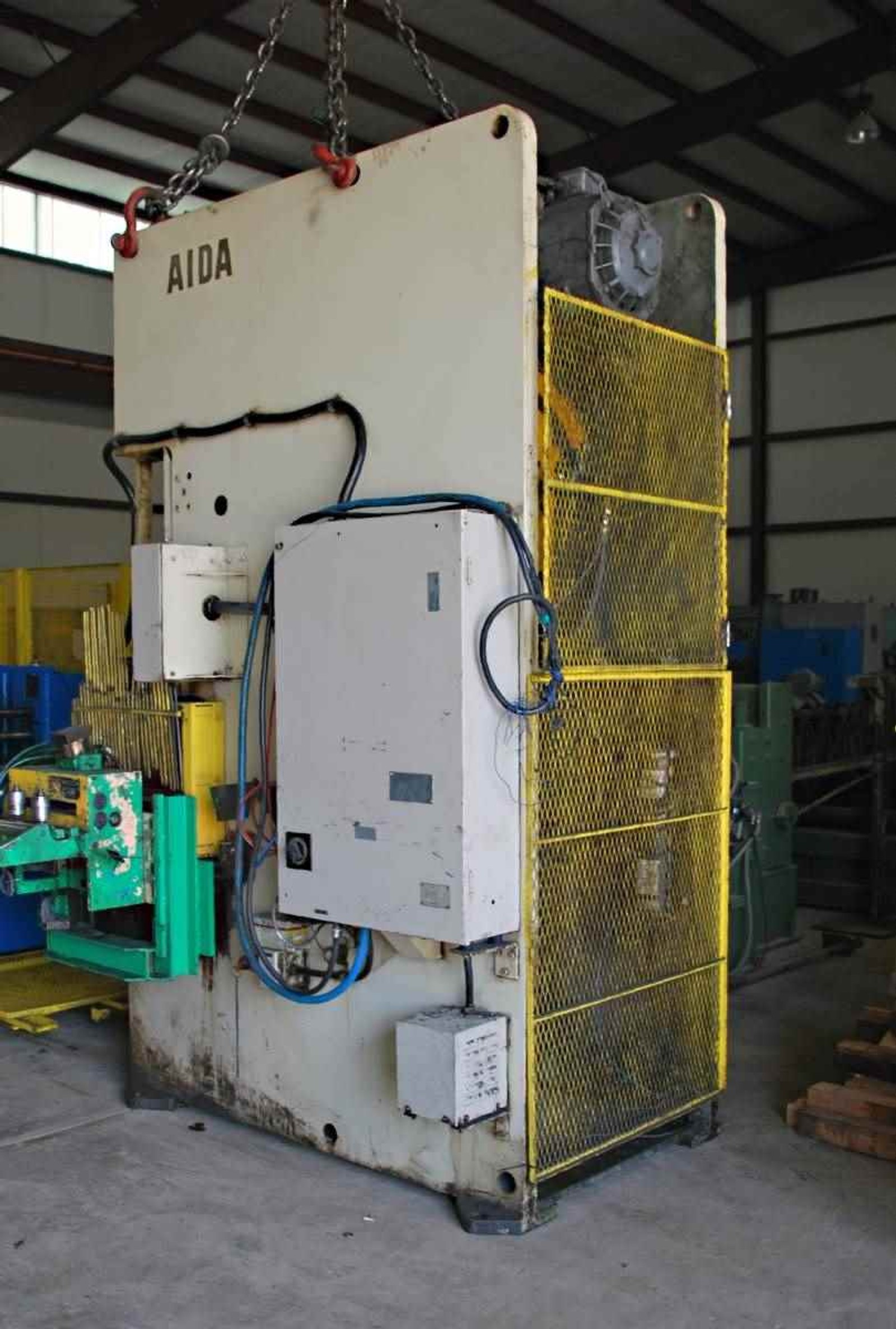

165 Ton x 5.11" AIDA Mechanical Press

Manufacturer

AIDA

Category

Fabricating Machines

Type

CUT-OFFS, PRESS TYPE

Stock

3476C

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3476C
MANUFACTURER: AIDA
MODEL NUMBER: NC1-15(1)
SERIAL NUMBER: 00215-5910
YEAR: 1985

SPECIFICATIONS:
Capacity: 165 Ton
Blanking Capacity: 130 Ton
Slide Stroke: 5.11" (130 mm)
Strokes Per Minute: 40 – 85
Die Height: 13.77" (350 mm)
Slide Adjustment: 3.93" (100 mm)
Slide Area: 27.55" (700 mm) (Left – Right), 22.83" (580 mm) (Front – Back)

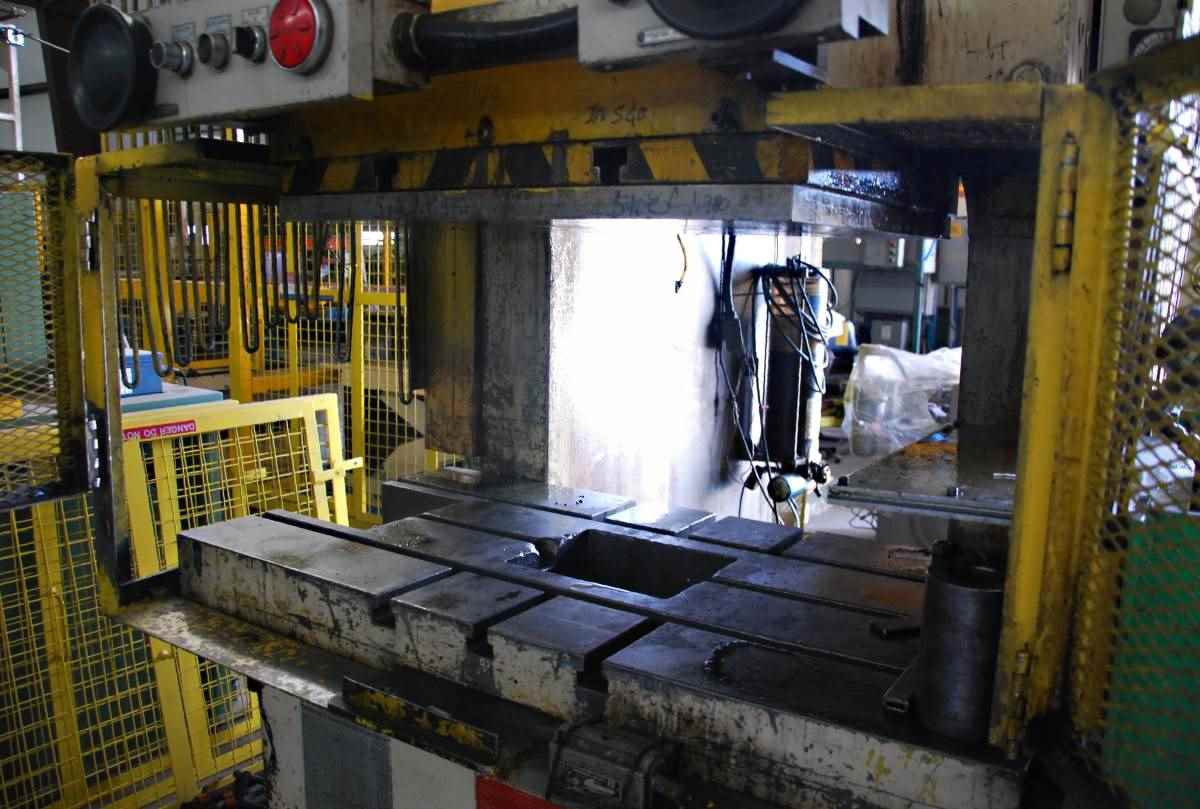

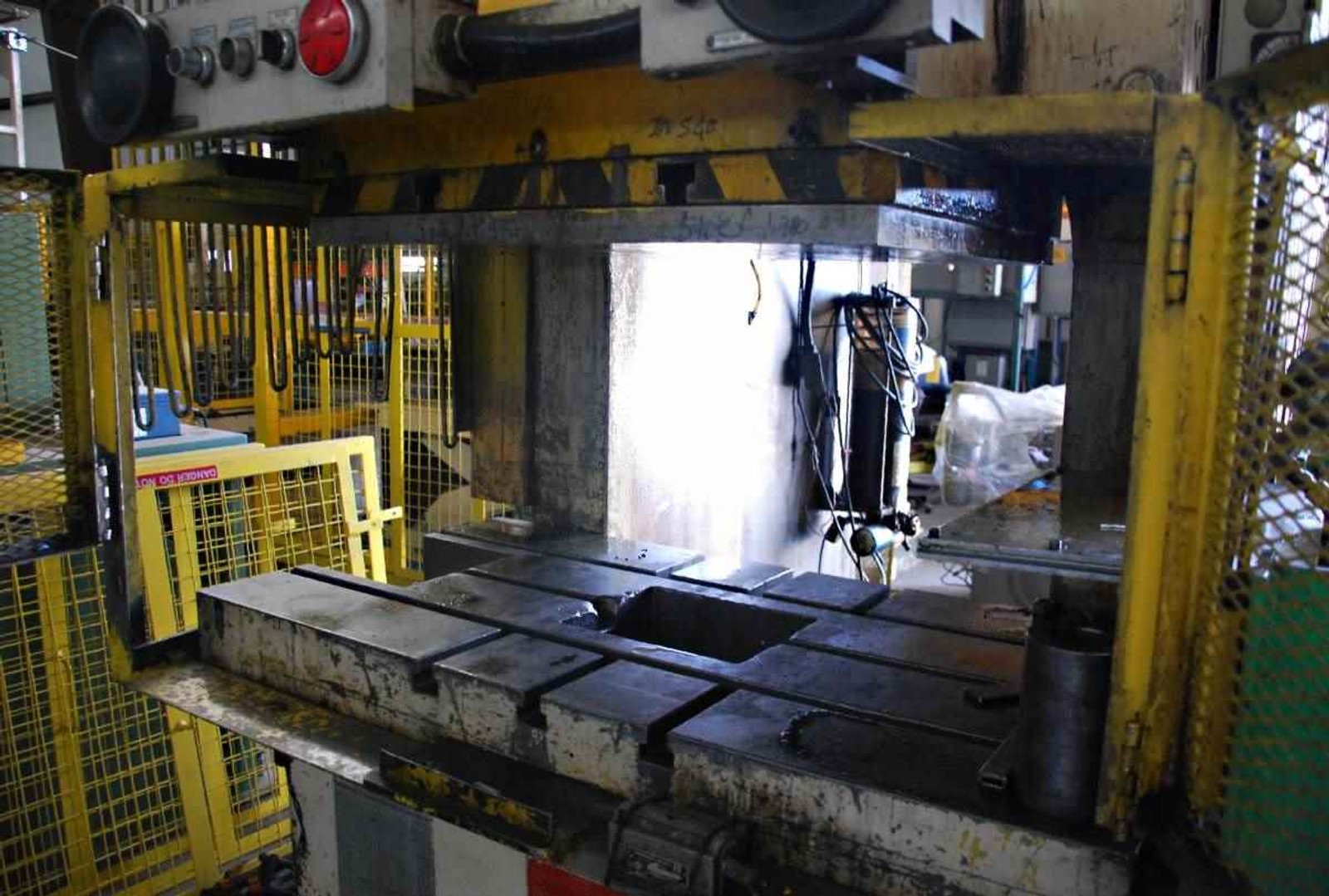

Bolster Area: 46.06" (1170 mm) (Left – Right), 23.62" (600 mm) (Front – Back)

EQUIPPED WITH:

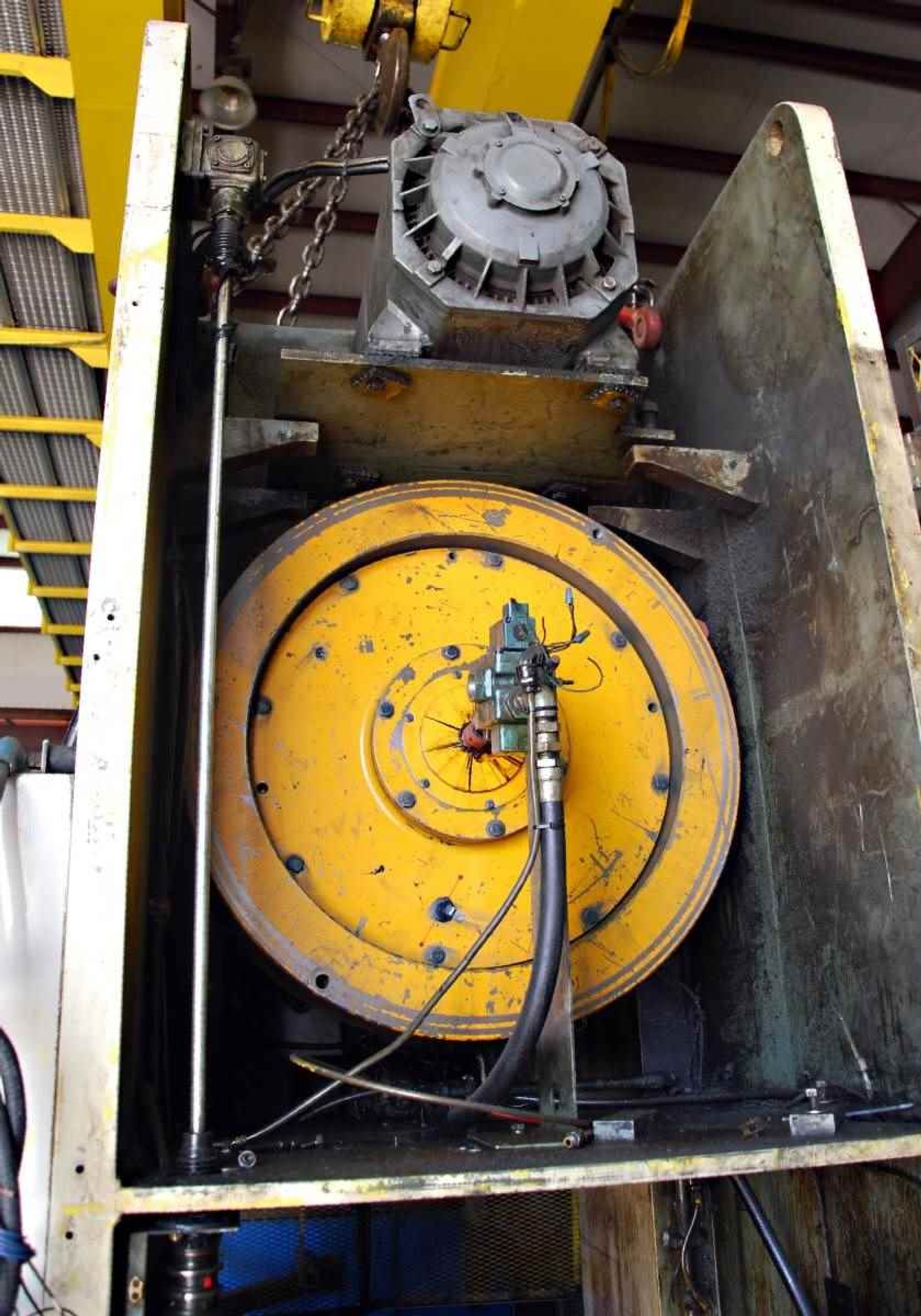

15 HP Motor: 460 / 3 / 60

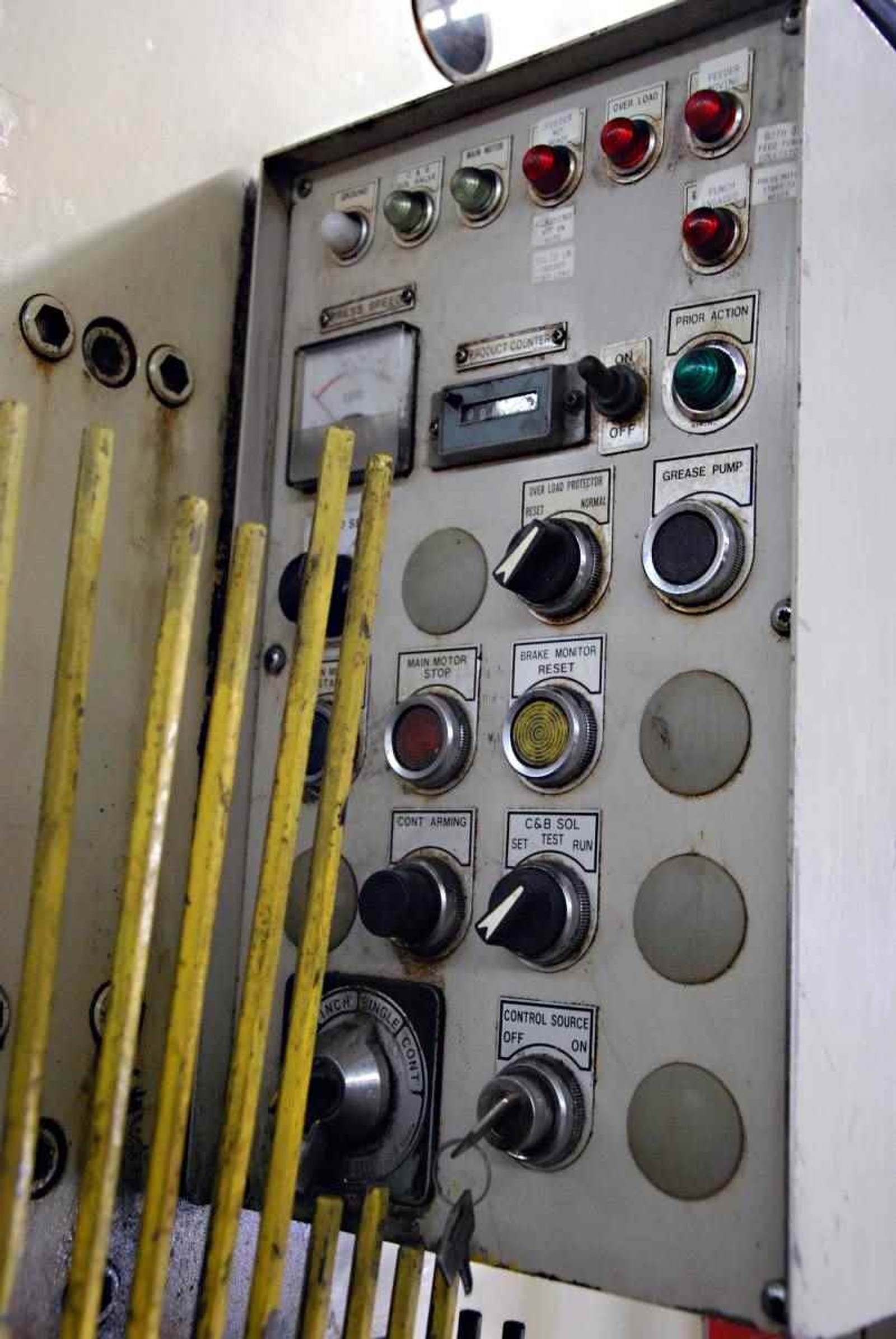

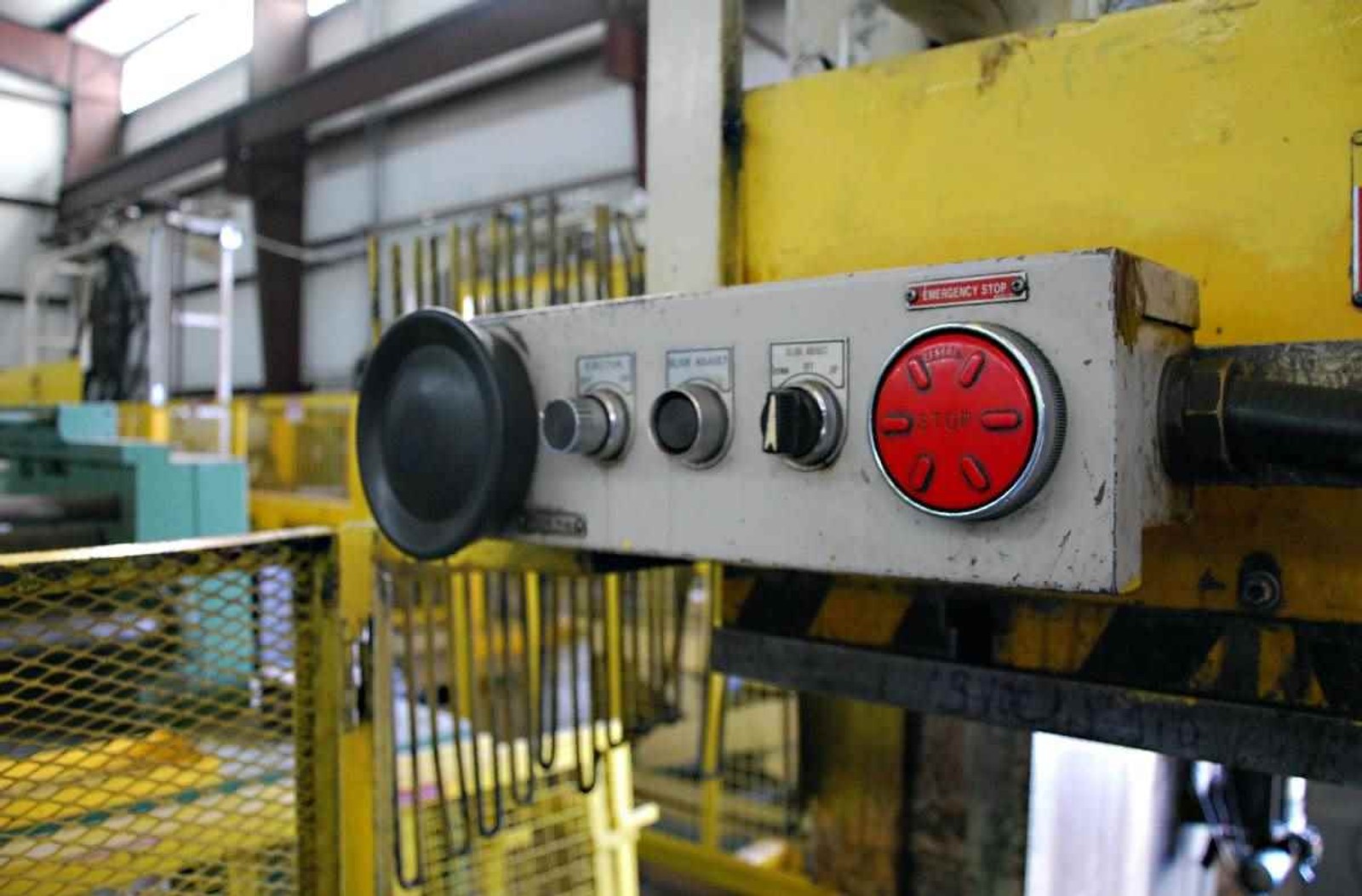

Push Button Panel

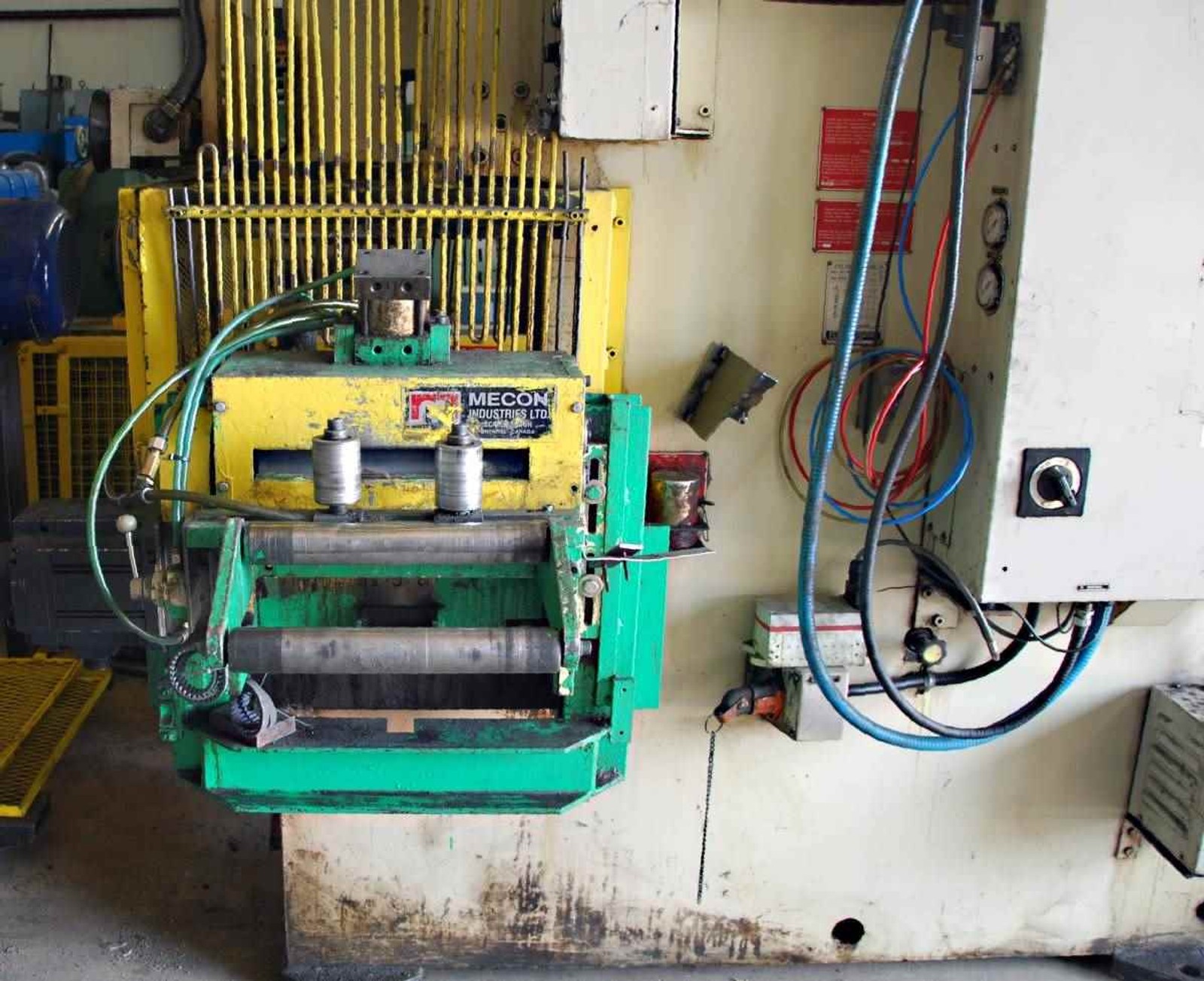

Servo Feeder

OVERALL DIMENSIONS: 7′ x 6.5′ x 10′
APPROXIMATE WEIGHT: 18,000 Lbs.

LOCATION: Universal Warehouse, Perrysburg, Ohio
