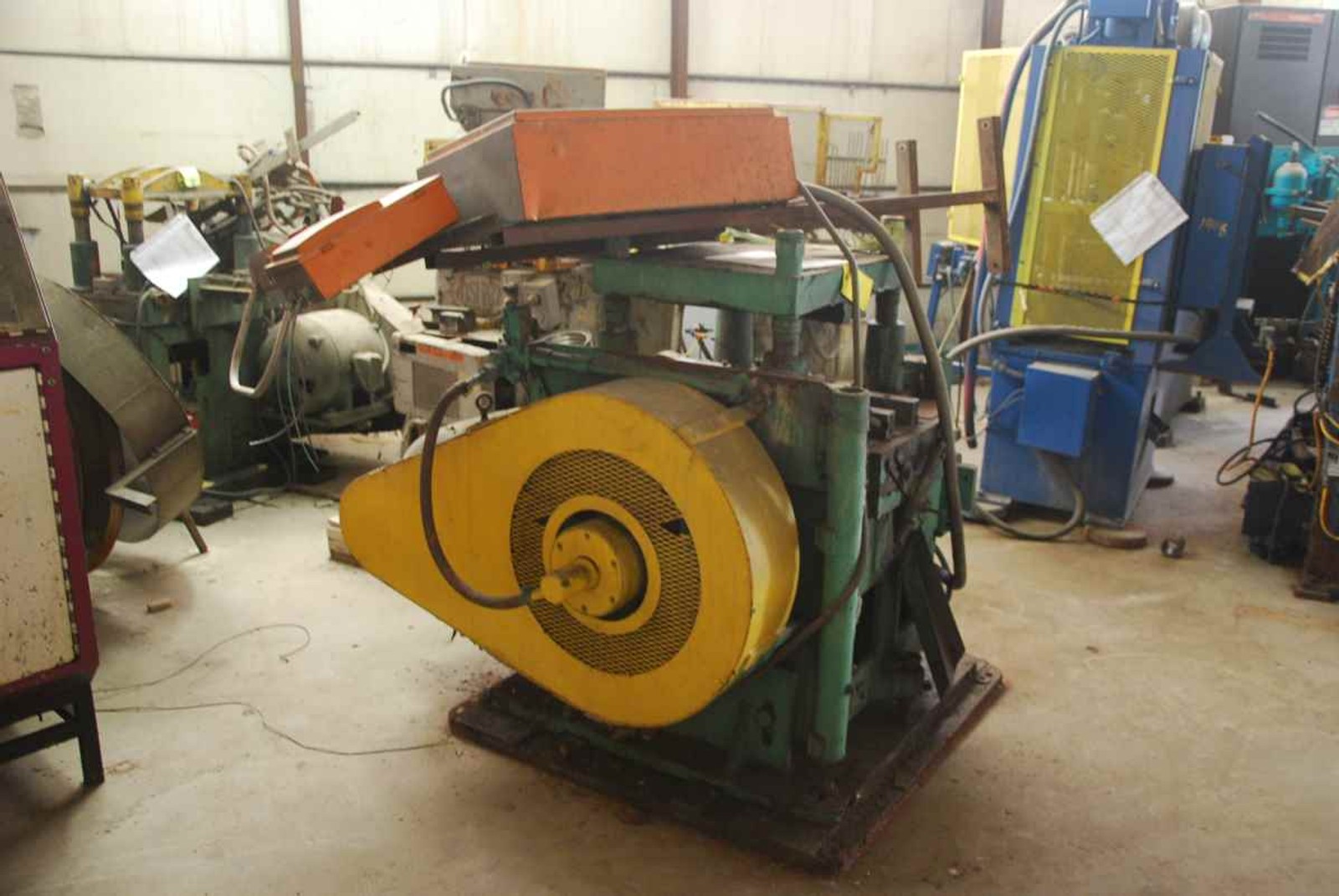

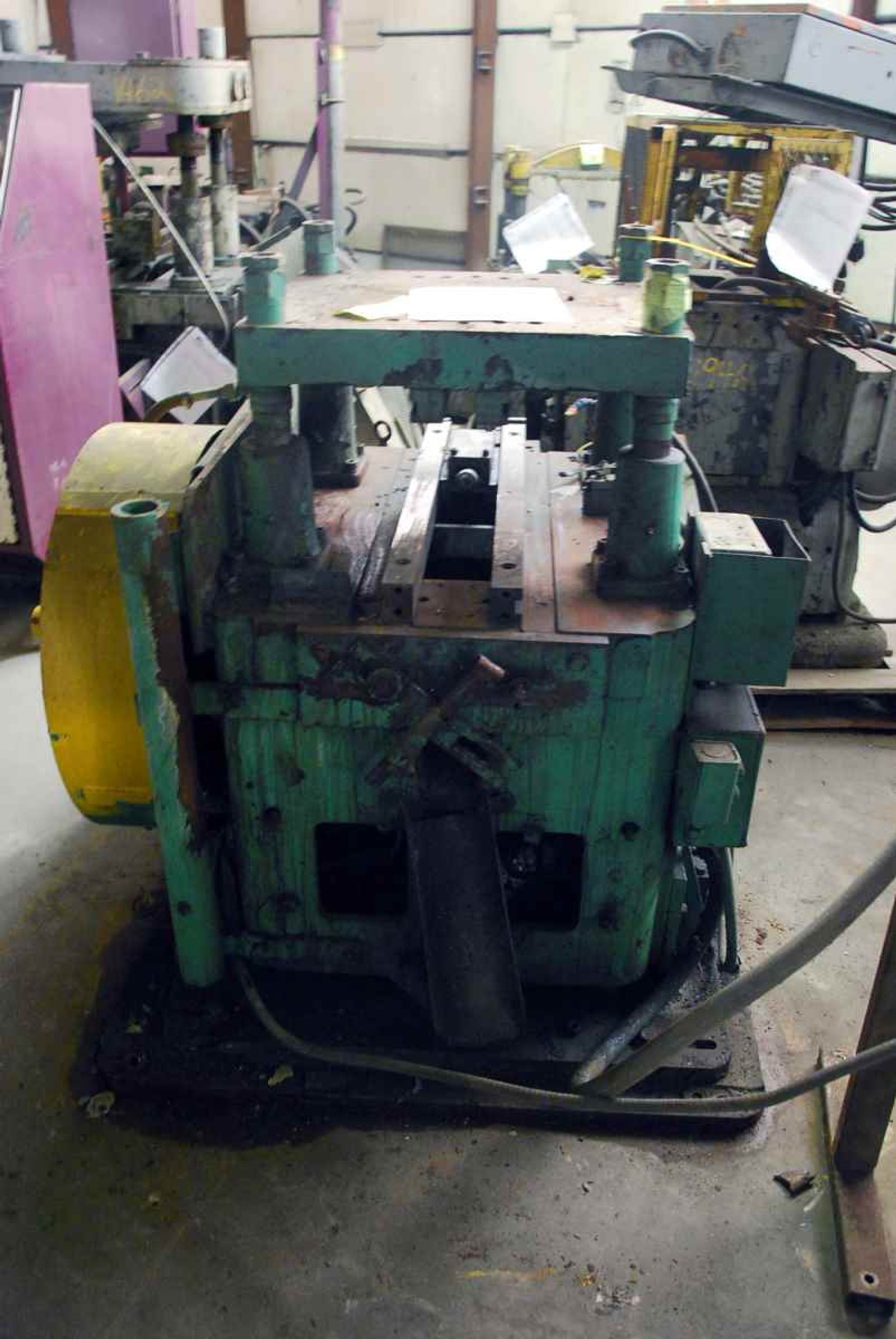

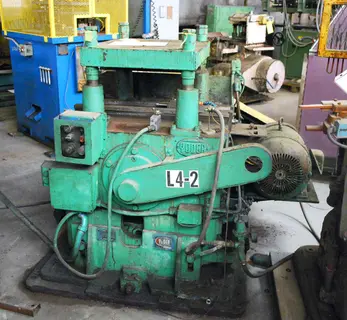

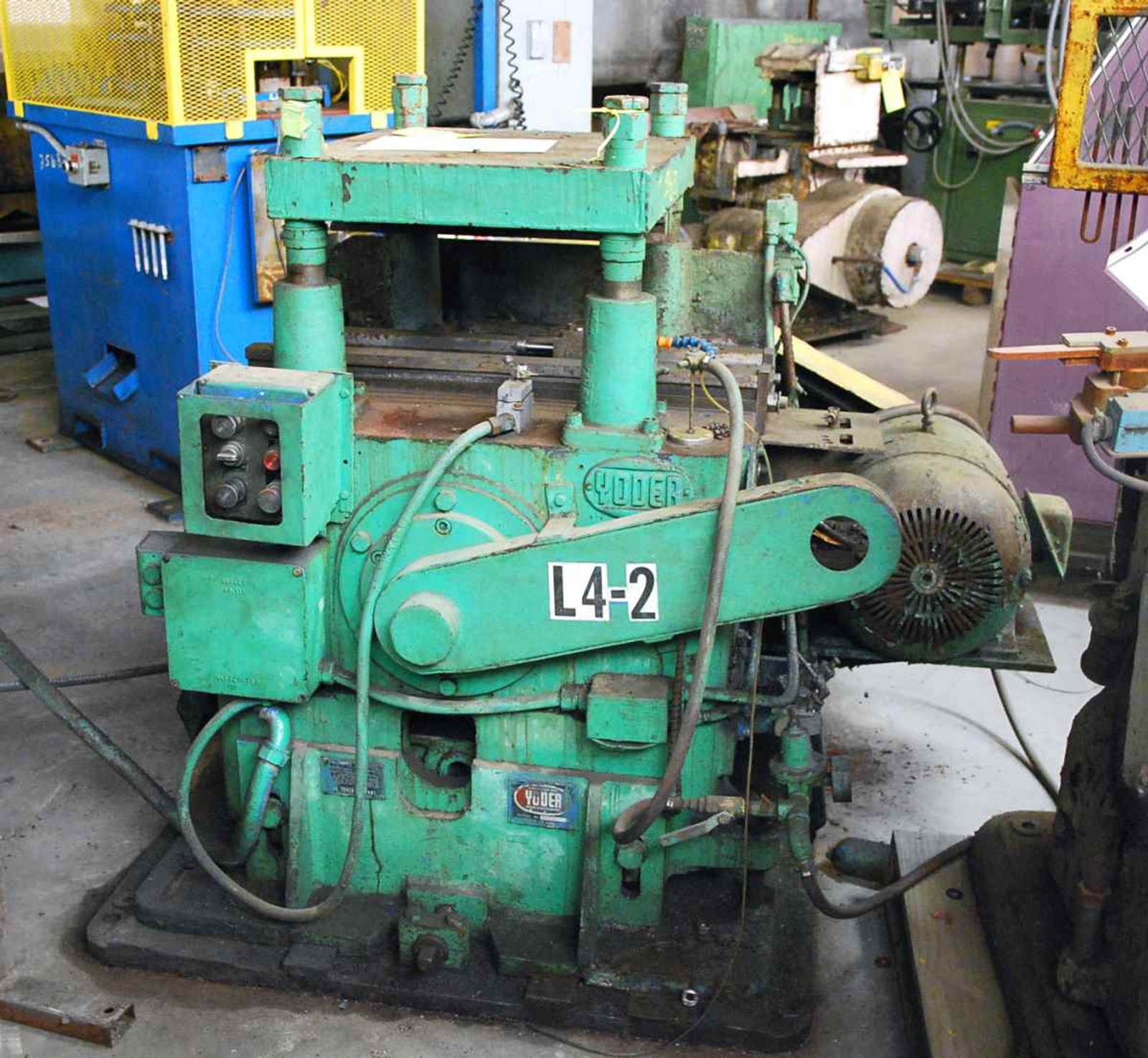

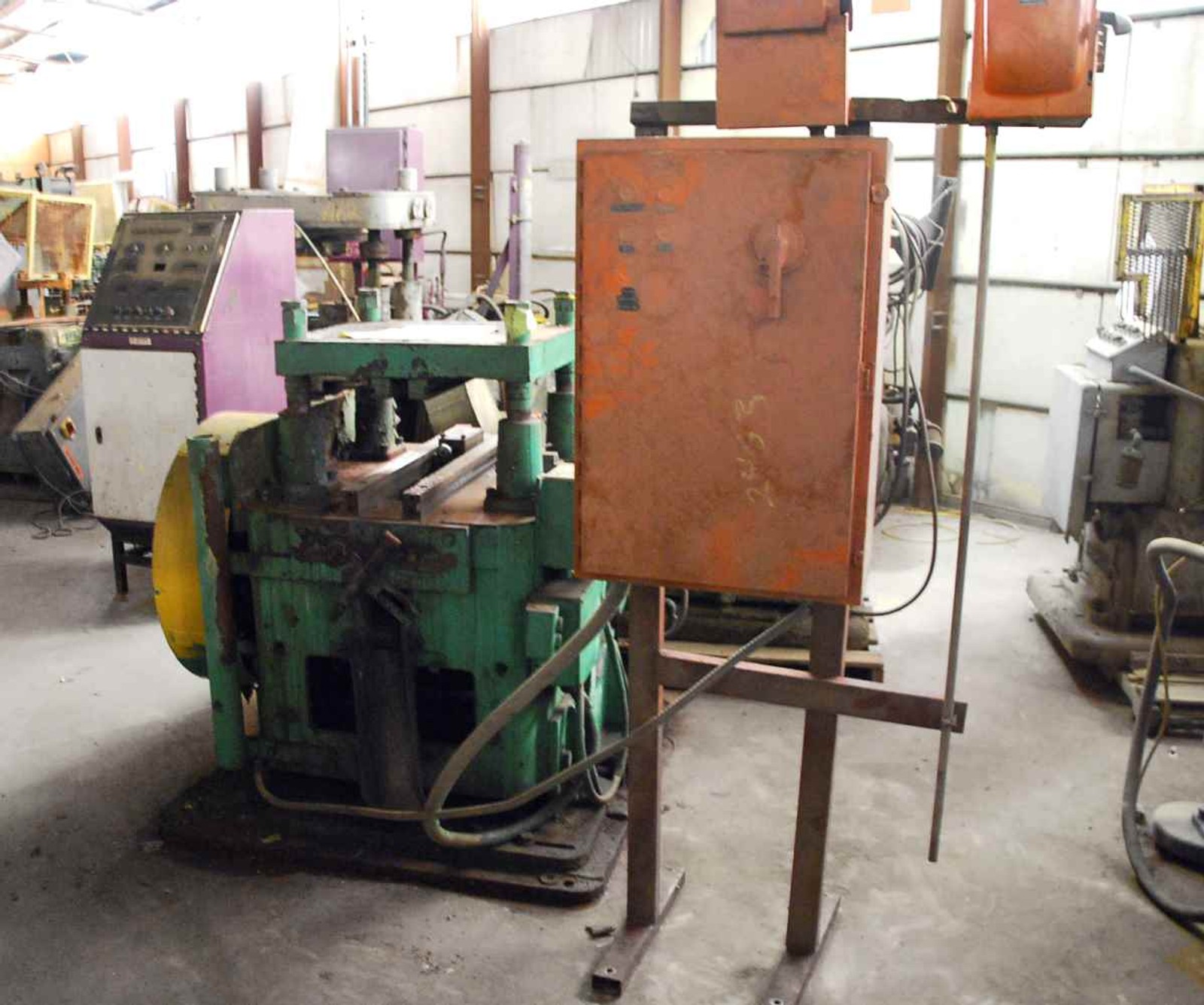

40 Ton x 1" YODER #P-40, 4-Post Cut-Off Press

Manufacturer

YODER

Category

Fabricating Machines

Type

CUT-OFFS, PRESS TYPE

Stock

2463

Model

P40

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 2463
MANUFACTURER: YODER
MODEL NUMBER: P-40
SERIAL NUMBER: 7929

SPECIFICATIONS:
Cutting Capacity, Mild Steel: .600 Sq. In.
Cutting Stroke: 1"
Cutting Strokes Per Minute: 50
Stock Speed: 150 FPM Maximum
Shortest Cut at Maximum Speed: 36"
Distance Between Posts: 15" (Front – Back) x 19" (Right – Left)
Post Diameter: 2-1/4"

EQUIPPED WITH:
MINSTER Combination Air Clutch & Brake
Motor: 7.5 HP, 1160 RPM
Adjustable Base & Scrap Chute, Push Buttons

NOTE: No Die Set

OVERALL DIMENSIONS: 4′ x 5′ x 5′
APPROXIMATE WEIGHT: 5,200 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
