1-1/2" (38.1 mm) x .100" (2.54 mm) BETARAM Double Cut Tube Cut-Off

Manufacturer

BETARAM

Category

Tube Machinery

Type

TUBE MACHINERY, (Cut Off)

Stock

2544B

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

UTUBE NUMBER: 2544B
MANUFACTURER: BETARAM
MODEL NUMBER: OA – 2.5 – FD (ASE – 4873)
SERIAL NUMBER: E – 24
JOB NUMBER: EQ – 78

SPECIFICATIONS:
Maximum Tube Diameter: 1-1/2" (38.1 mm)
Minimum Tube Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .100" (2.54 mm)
Speed: 50 – 300 FPM
Material: C-1008 to C-1020 Low Carbon Steel Plus 409 to 439
Stainless Steel 60 KSI Tensile and 55 KSI Yield
Line Direction: Right to Left

EQUIPPED WITH:
TALLEYRAND Digital Length Control Cabinet

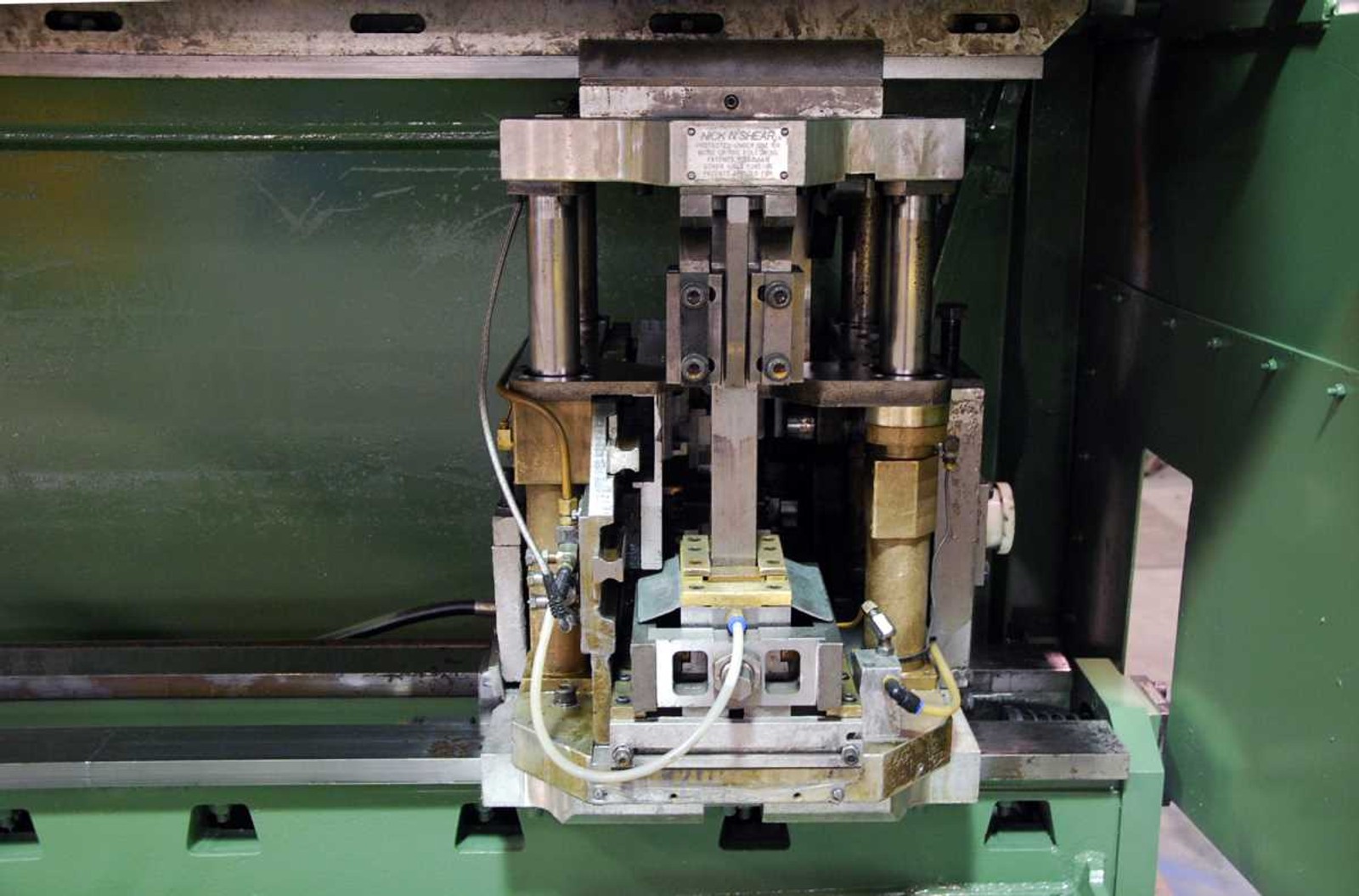

Double Cut Die Set
Hydraulic Accelerator
Hydraulic Clutch and Brake

CONDITION: Good As Taken From Service

OVERALL DIMENSIONS: 31′ x 6′ x 8-1/2′
APPROXIMATE WEIGHT: 24,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
