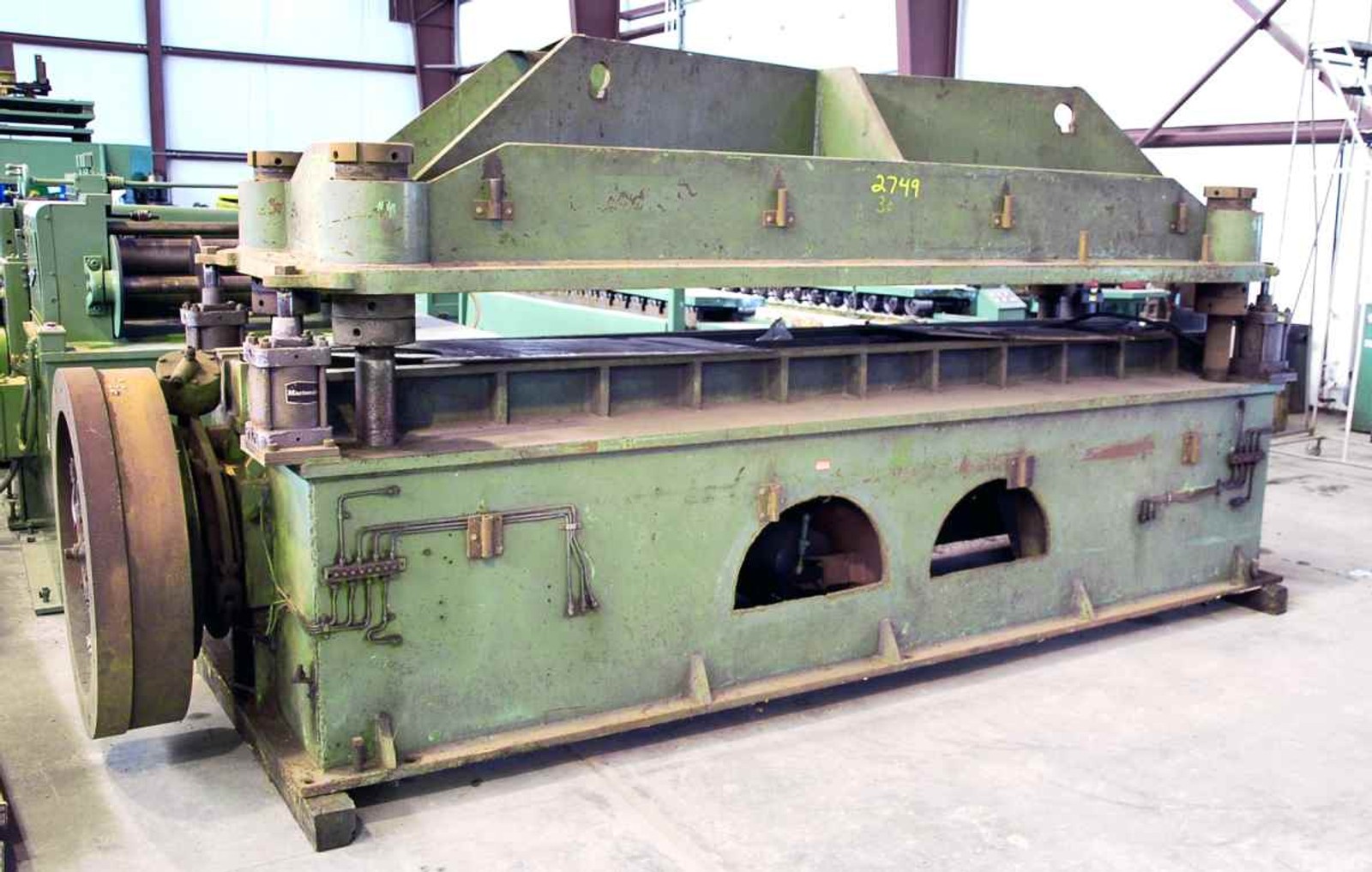

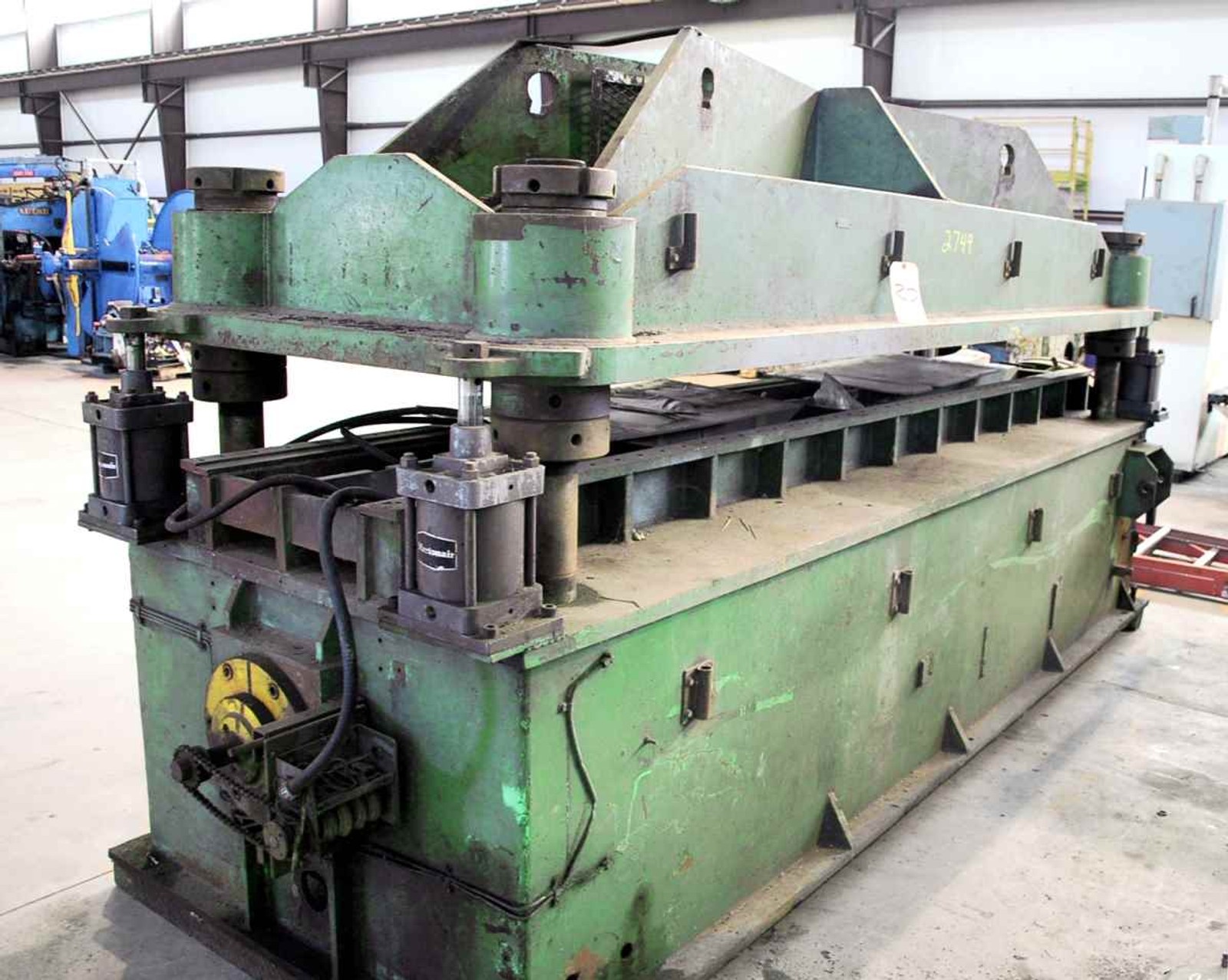

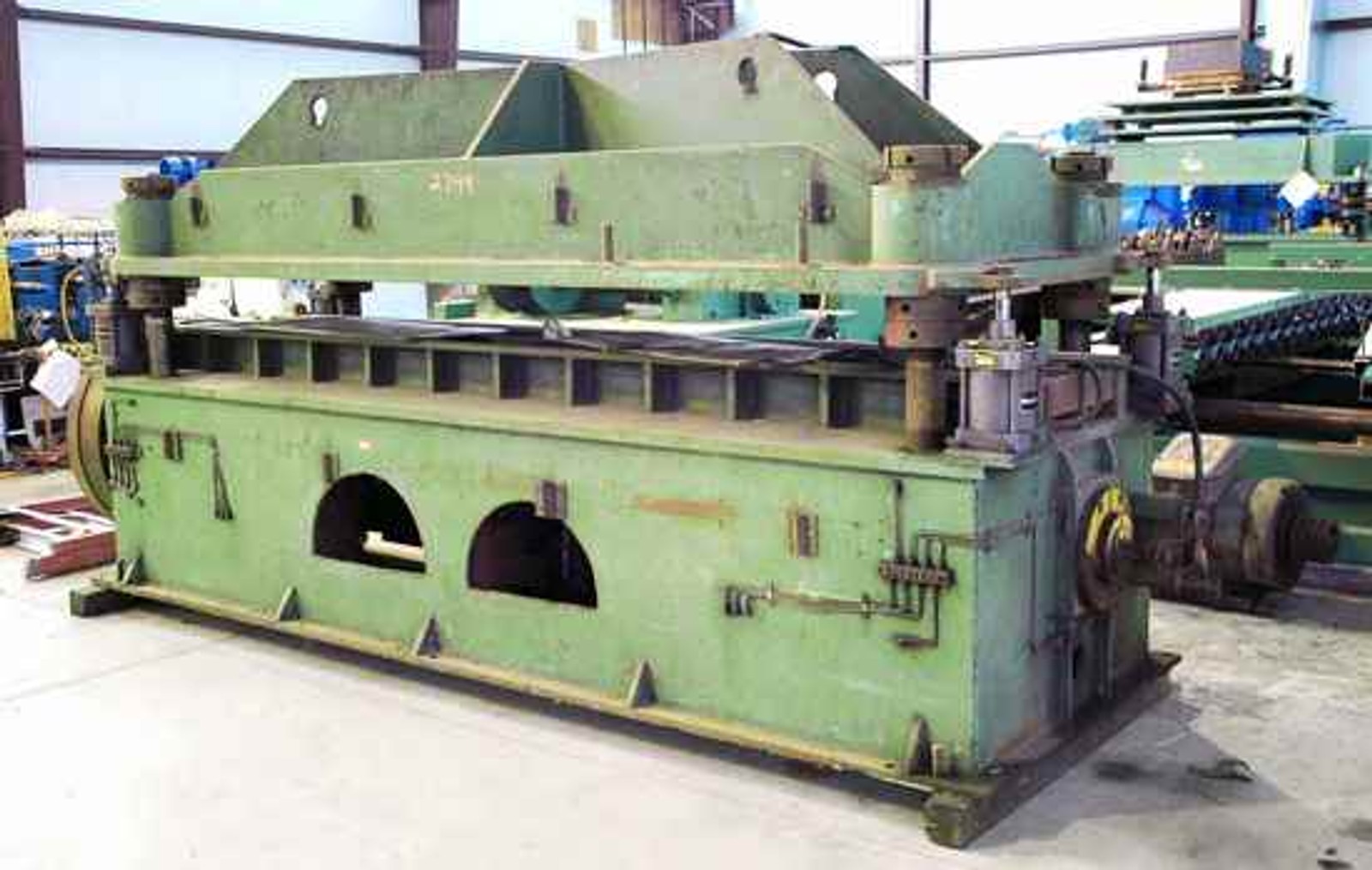

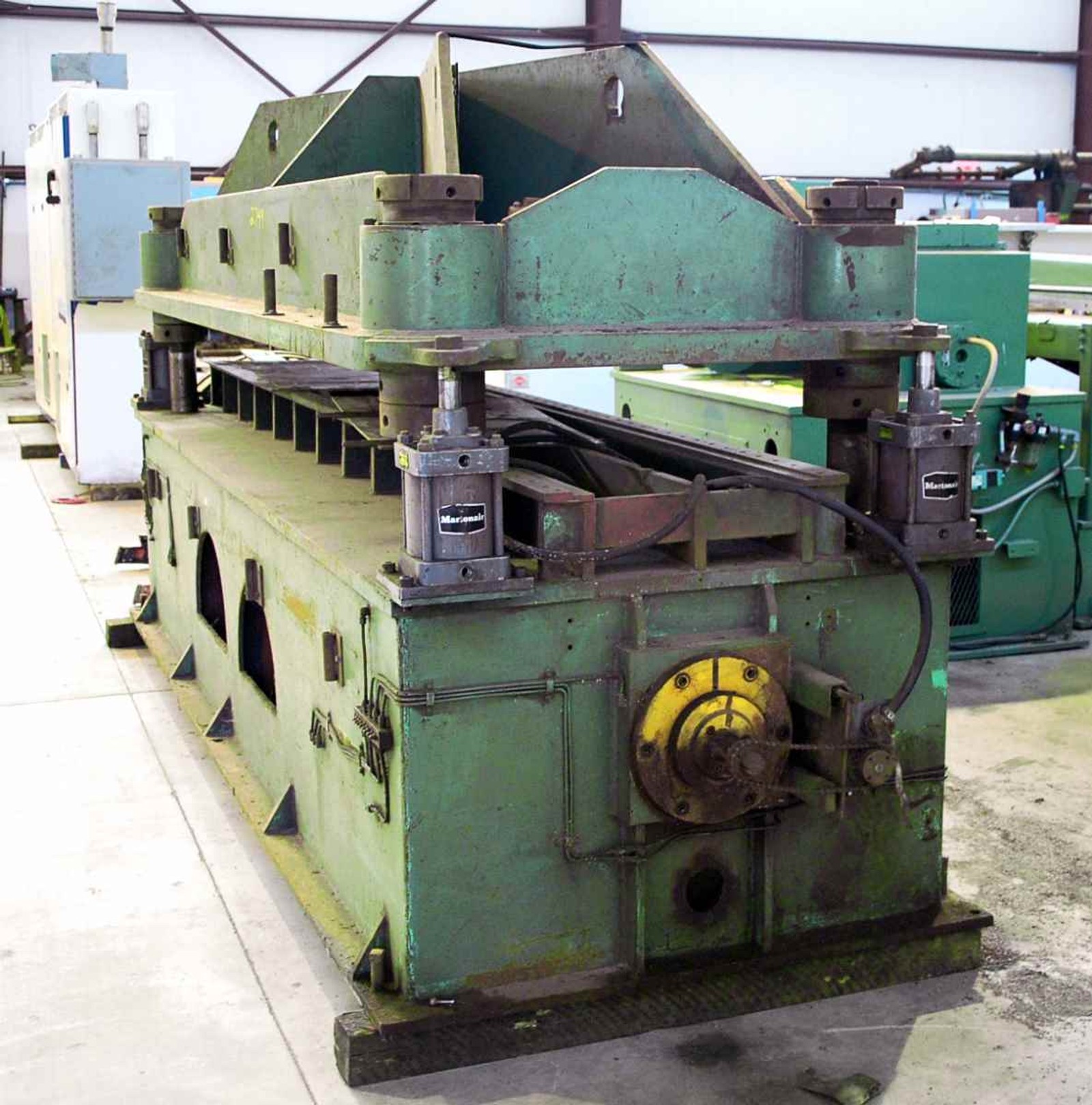

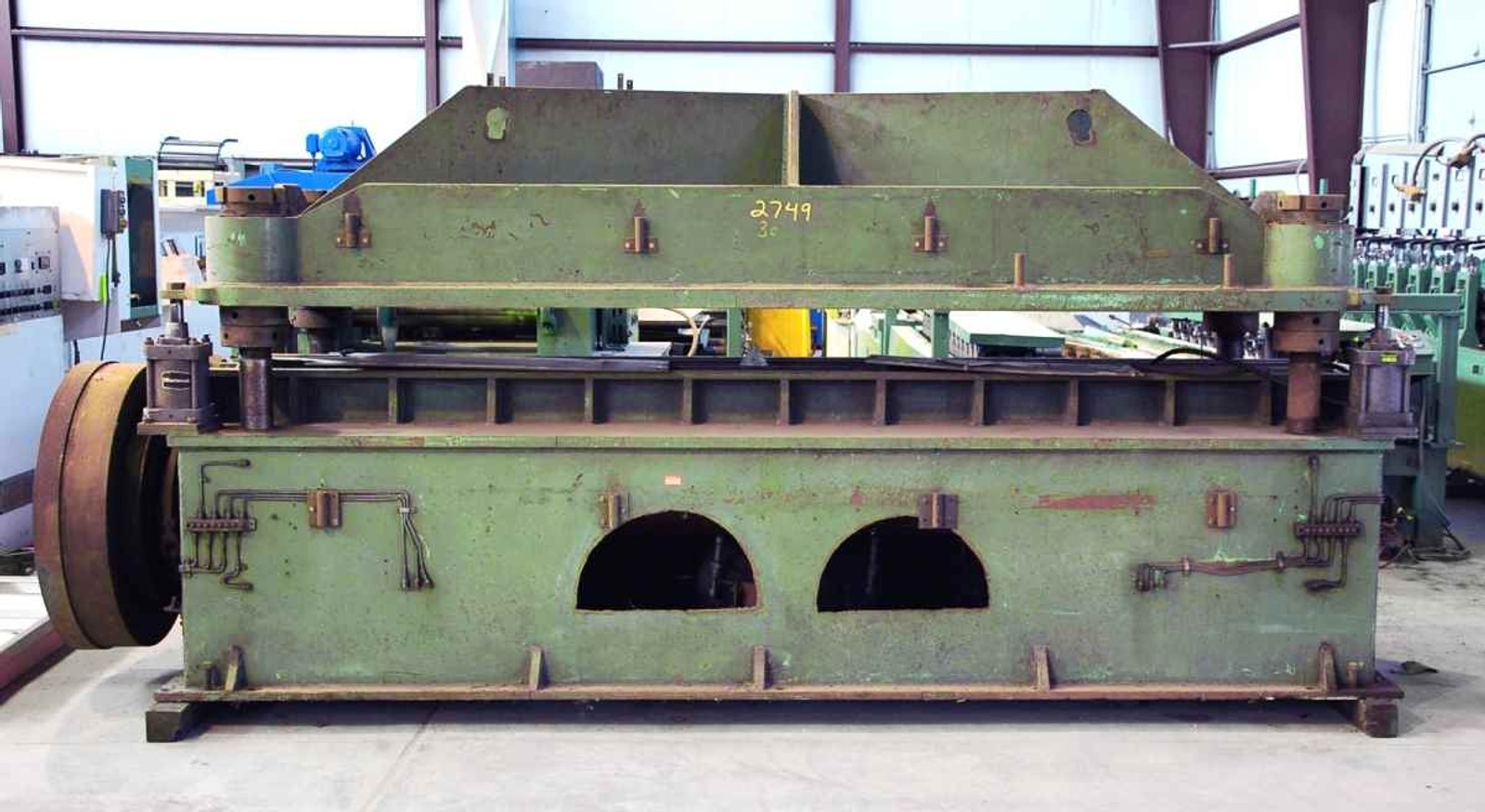

100 Ton (EST.) x 4" (EST.) YODER 4-Post Cut-Off Press

Manufacturer

YODER

Category

Fabricating Machines

Type

CUT-OFFS, PRESS TYPE

Stock

2749

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 2749
MANUFACTURER: YODER
MODEL NUMBER:
SERIAL NUMBER:
YEAR: 1970

SPECIFICATIONS:
Capacity: 100 Ton (Approximate)
Stroke: 4" (Approximate)
Ram Adjustment: 1-1/2" (Approximate)
Shut Height: 12"
Ram Area: 46" (Front to Back) x 137" (Left to Right)
Bed Area: 47" (Front to Back) x 144" (Left to Right)
Distance Between Posts: 31" (Front to Back) x 122" (Right to Left)
Bed Height From Floor: 31"
Diameter of Posts: 3-3/4" (Approximate)
Flywheel Size: 37" Diameter x 8-1/2" Face
Ram Plate Thickness: 2-1/4"
Bed Plate Thickness: 1-1/4"

EQUIPPED WITH:
Air Clutch & Brake
Centralized Lube System
(4) Air Counter Lifts
Motor: A/C Main Drive Motor
Rotary Cam Limit Switch

APPROXIMATE WEIGHT: 17,000 Lbs.
OVERALL DIMENSIONS: 14′ x 4′ 7" x 6′ 4"
LOCATION: Universal Warehouse, Perrysburg, Ohio
