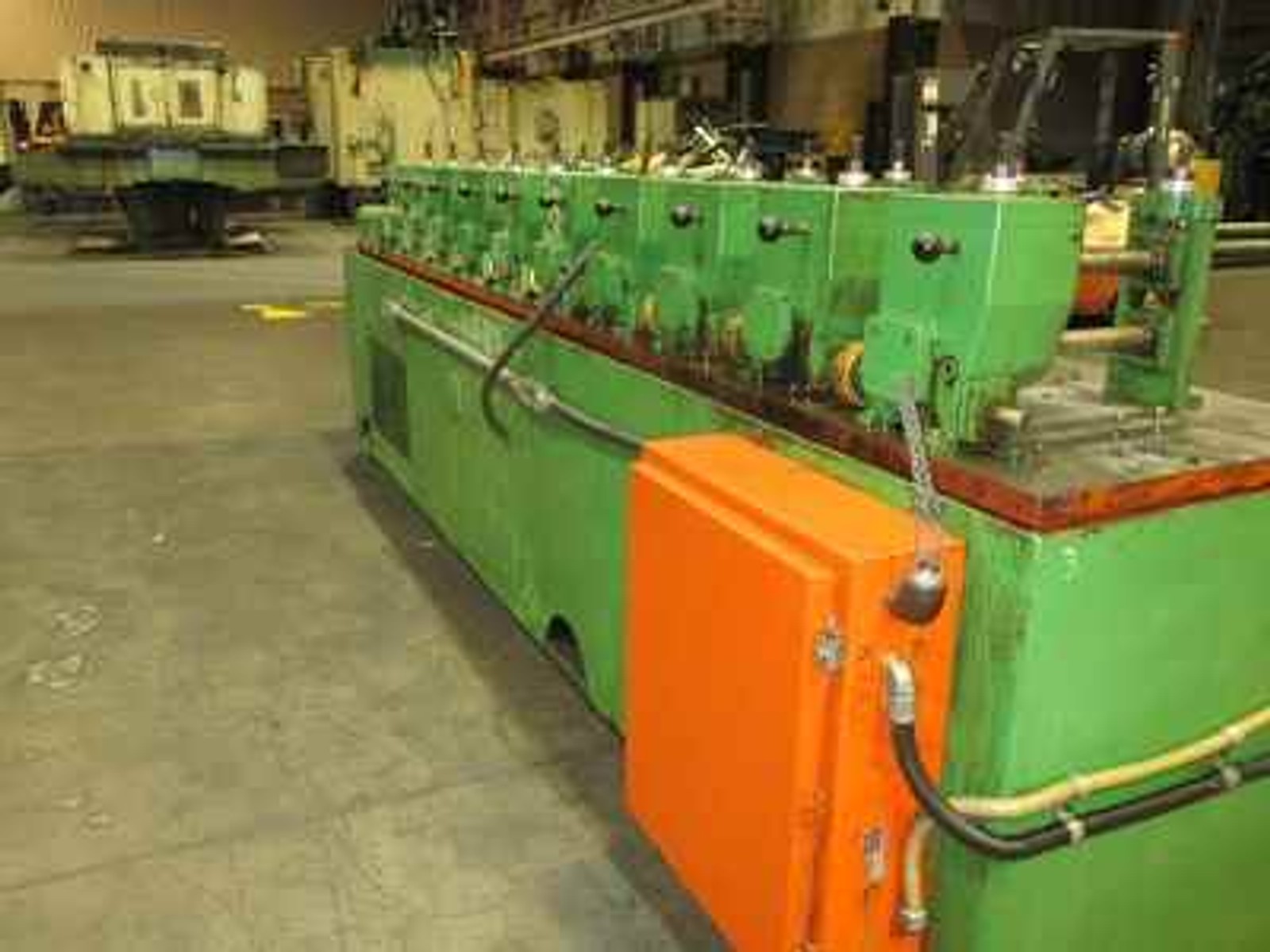

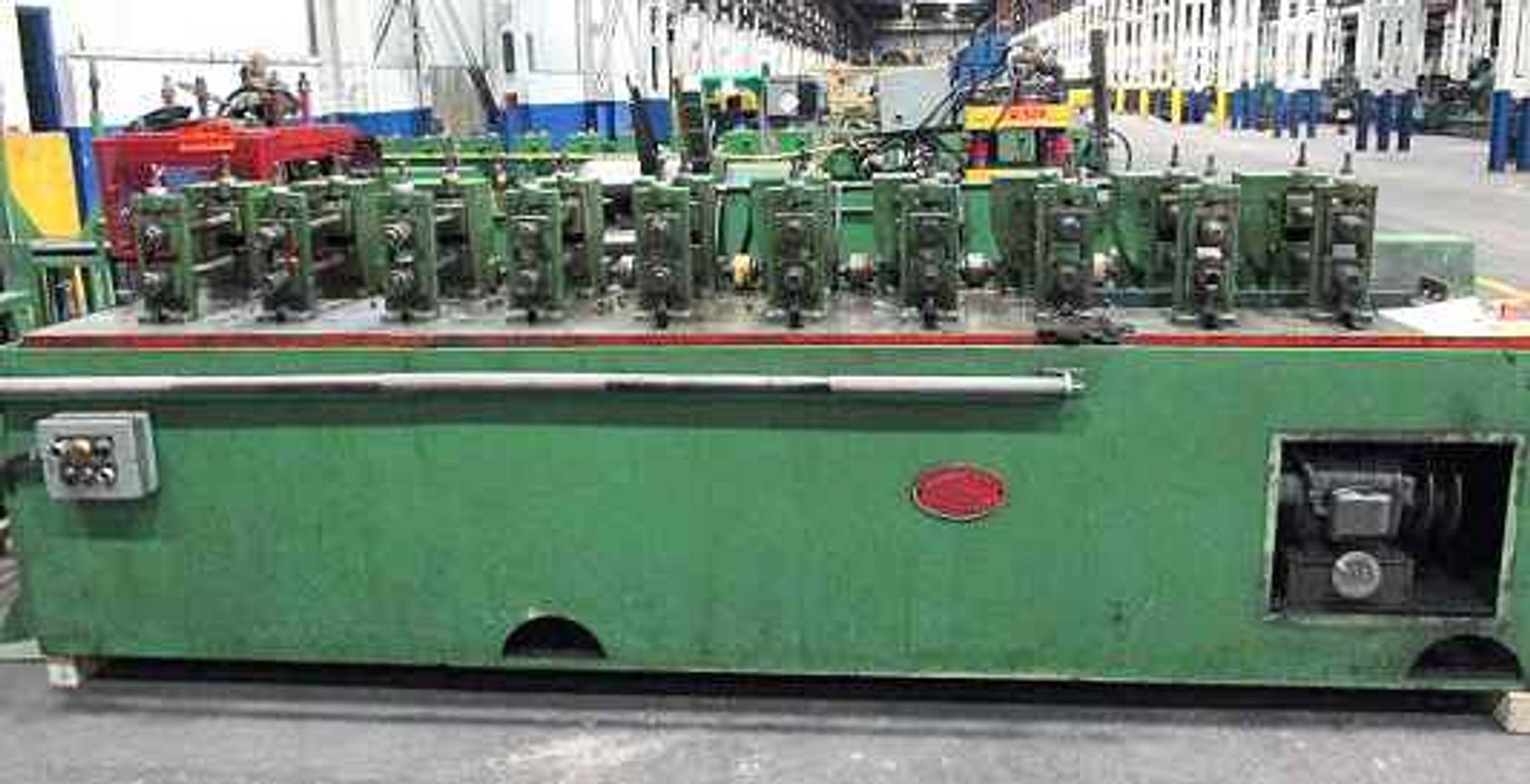

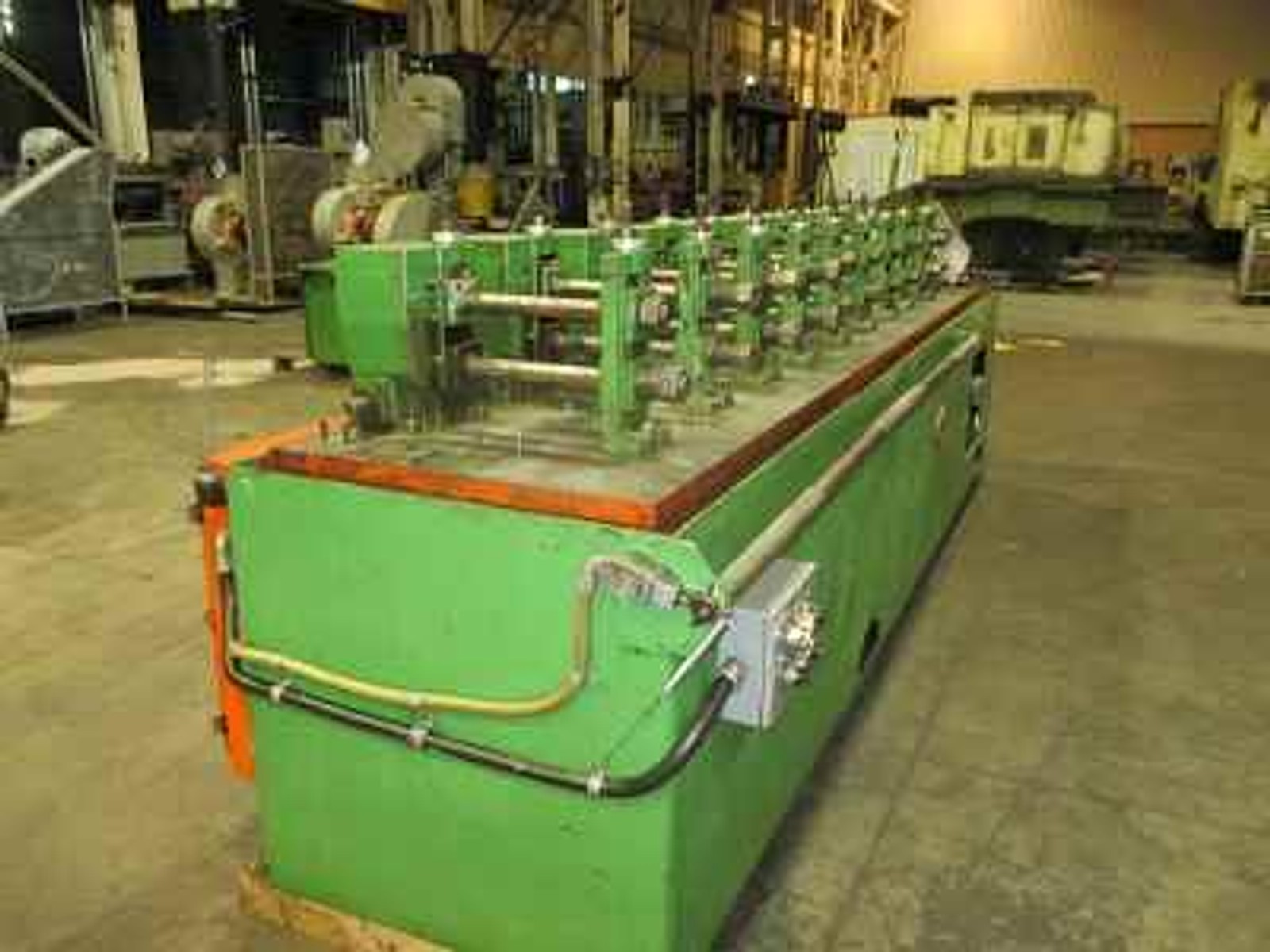

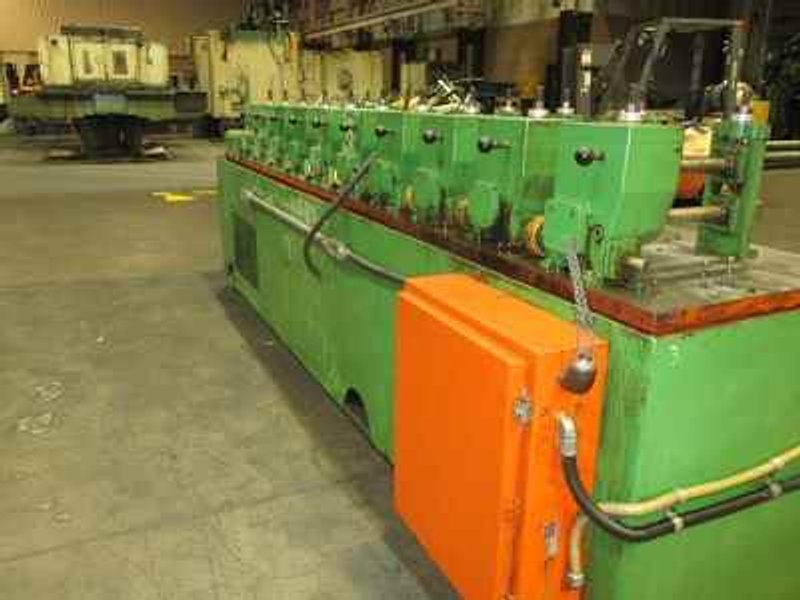

10 Stand x 1-1/4" x 10" B&K/MV Rollforming Line

10 Stand x 1-1/4" x 10" B&K/MV Rollforming Line

Name: 10 Stand x 1-1/4" x 10" B&K/MV Rollforming Line
Brand: B & K
SKU: 3086

Manufacturer

B & K

Spec Sheet

UTUBE NUMBER: 3086
MANUFACTURER: B&K / MV
MODEL NUMBER:
SERIAL NUMBER:
YEAR:

SPECIFICATIONS:
Number of Stands: 10
Line Direction: Right to Left
Roll Space: 10″
Horizontal Centers: 12″
Vertical Adjustment: 4″ – 5″
Base to Center Lower Spindle: 4″
Spindle Diameter: 1-1/4″
Base Working Surface: 26-1/2″
Base Coolant Trough: 31-1/2″
Pass Line: 38″
Line Speed: 150 FPM

EQUIPPED WITH:
Push Button Motor Starter
Safety Stop Bar
Coolant Tank
Straightener
Mandrel Type Uncoiler

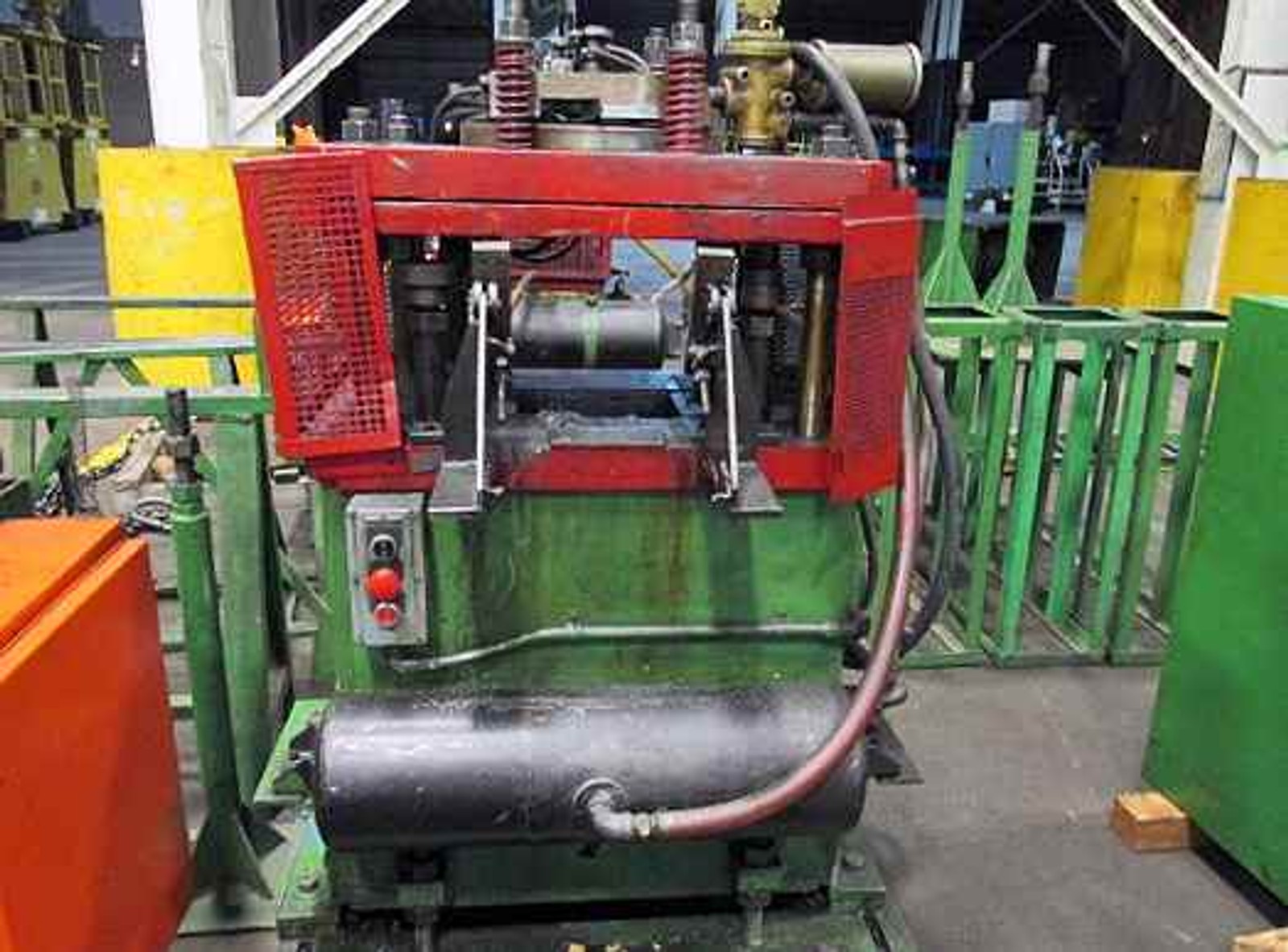

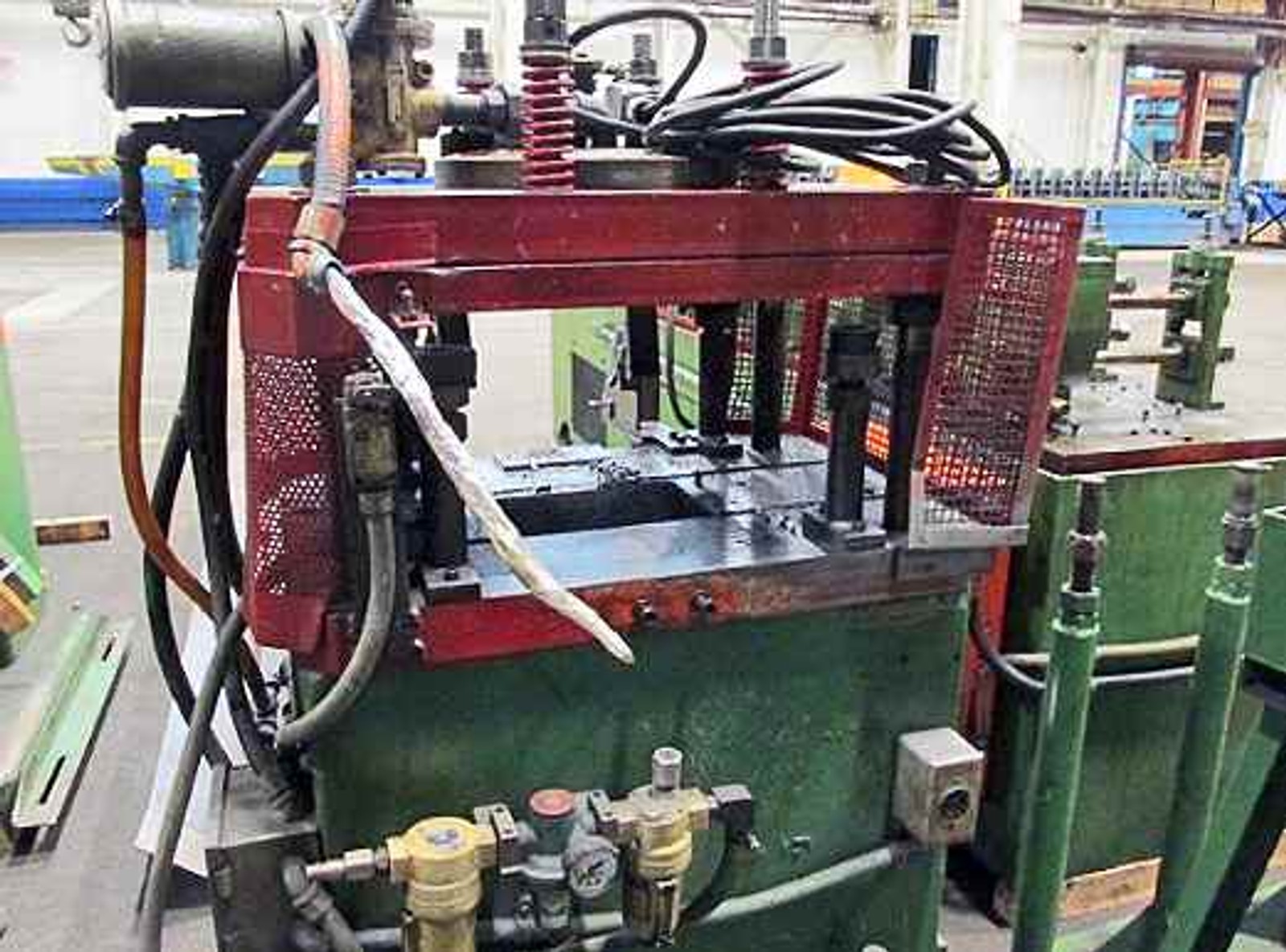

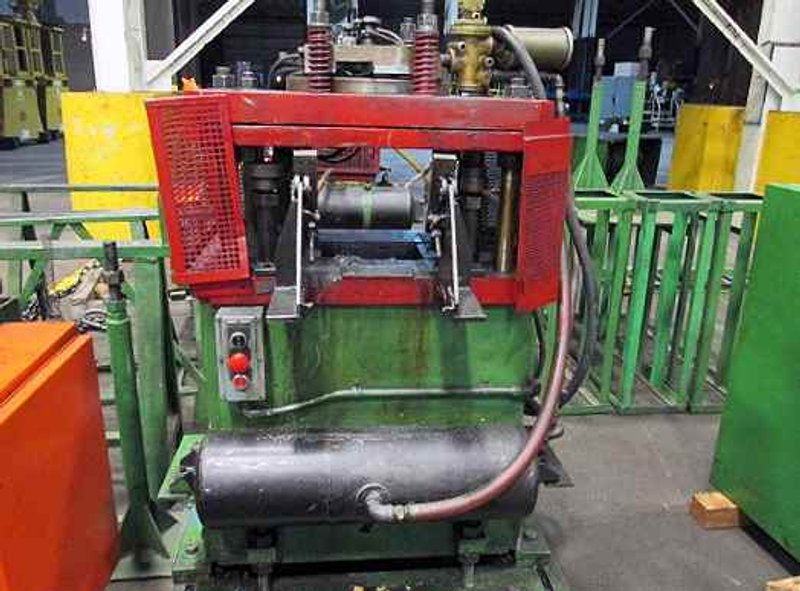

MV 15 Ton Pneumatic 4 Post Cut-Off
14′ Run Off Table
5 HP 3 Phase Motor
