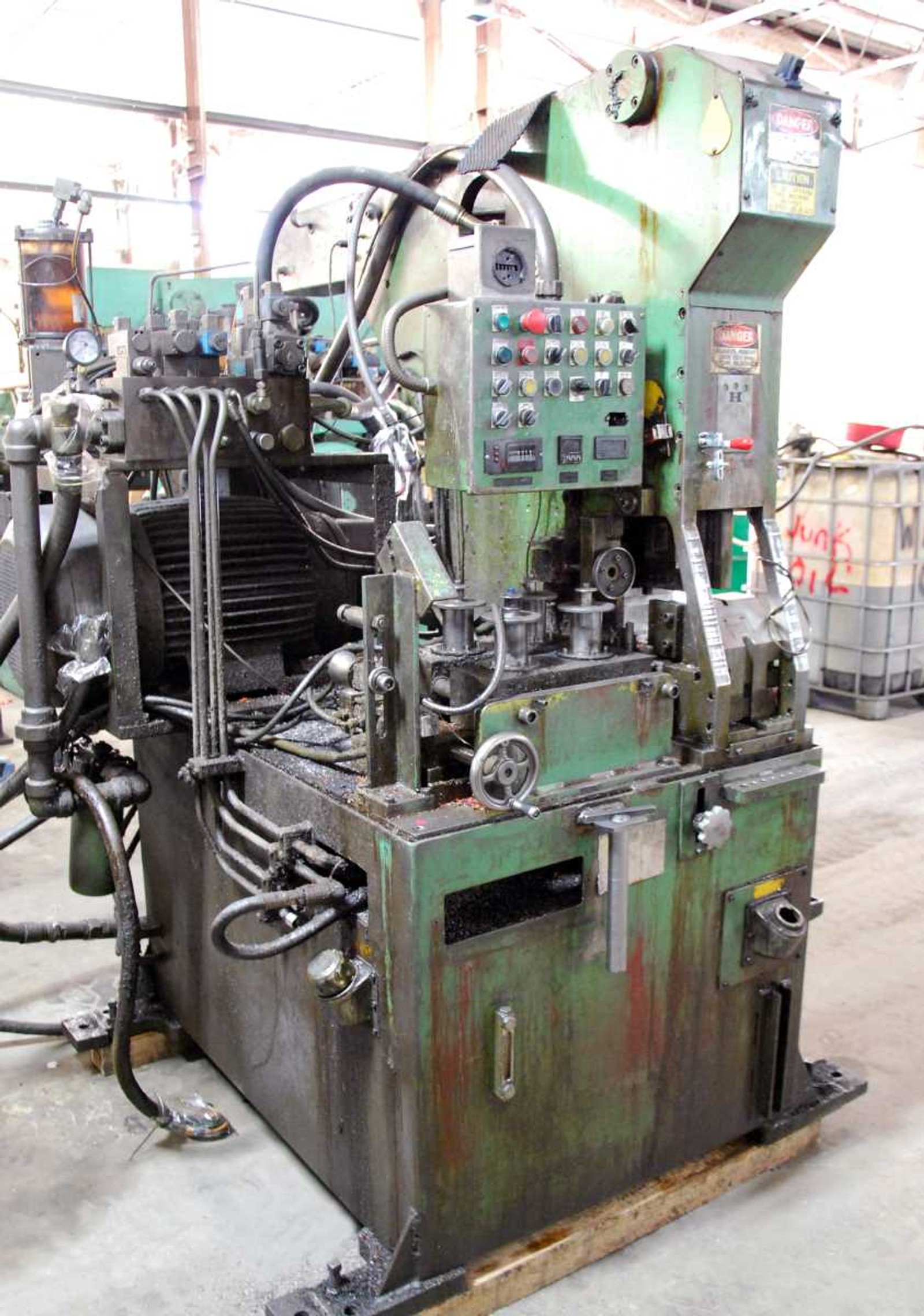

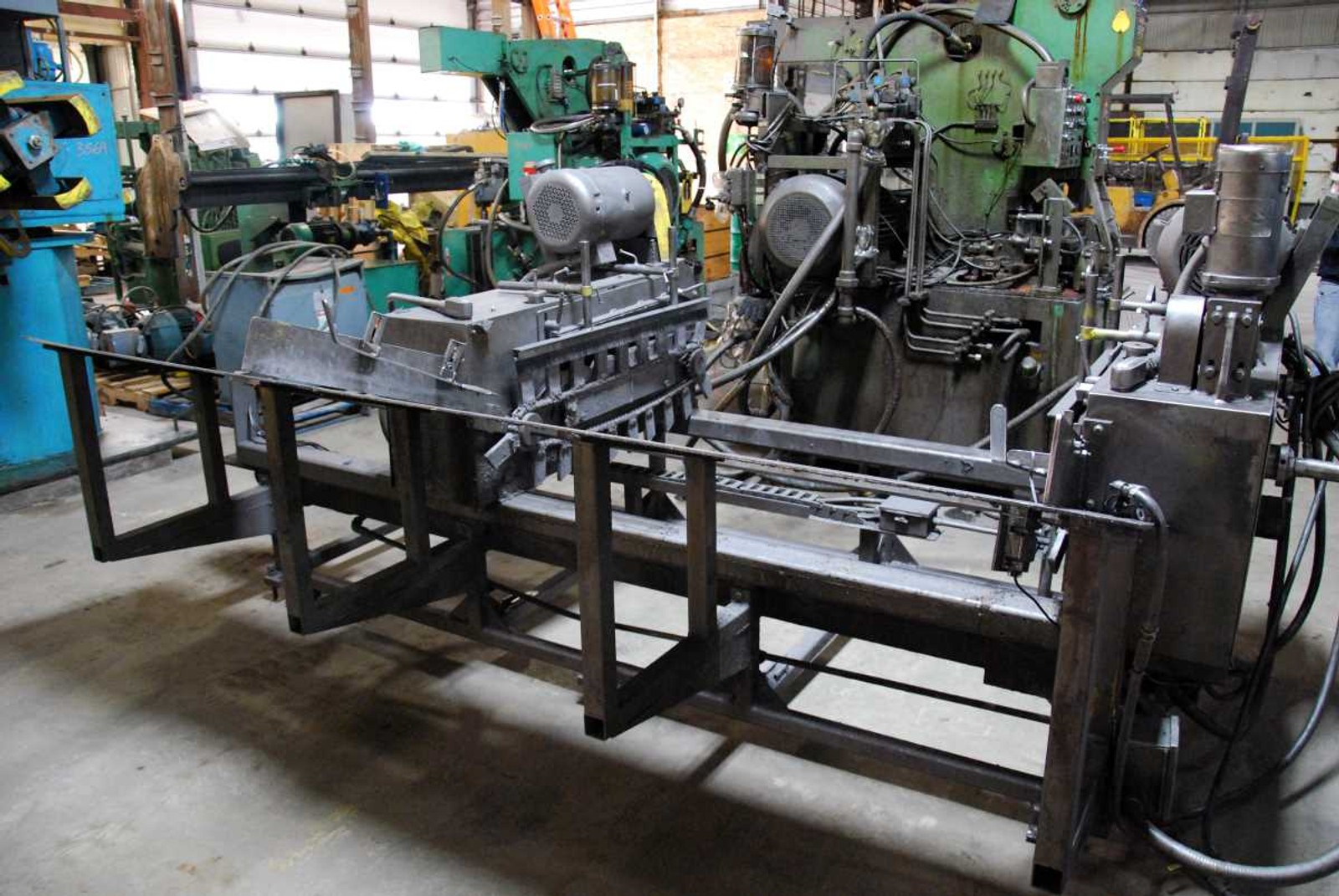

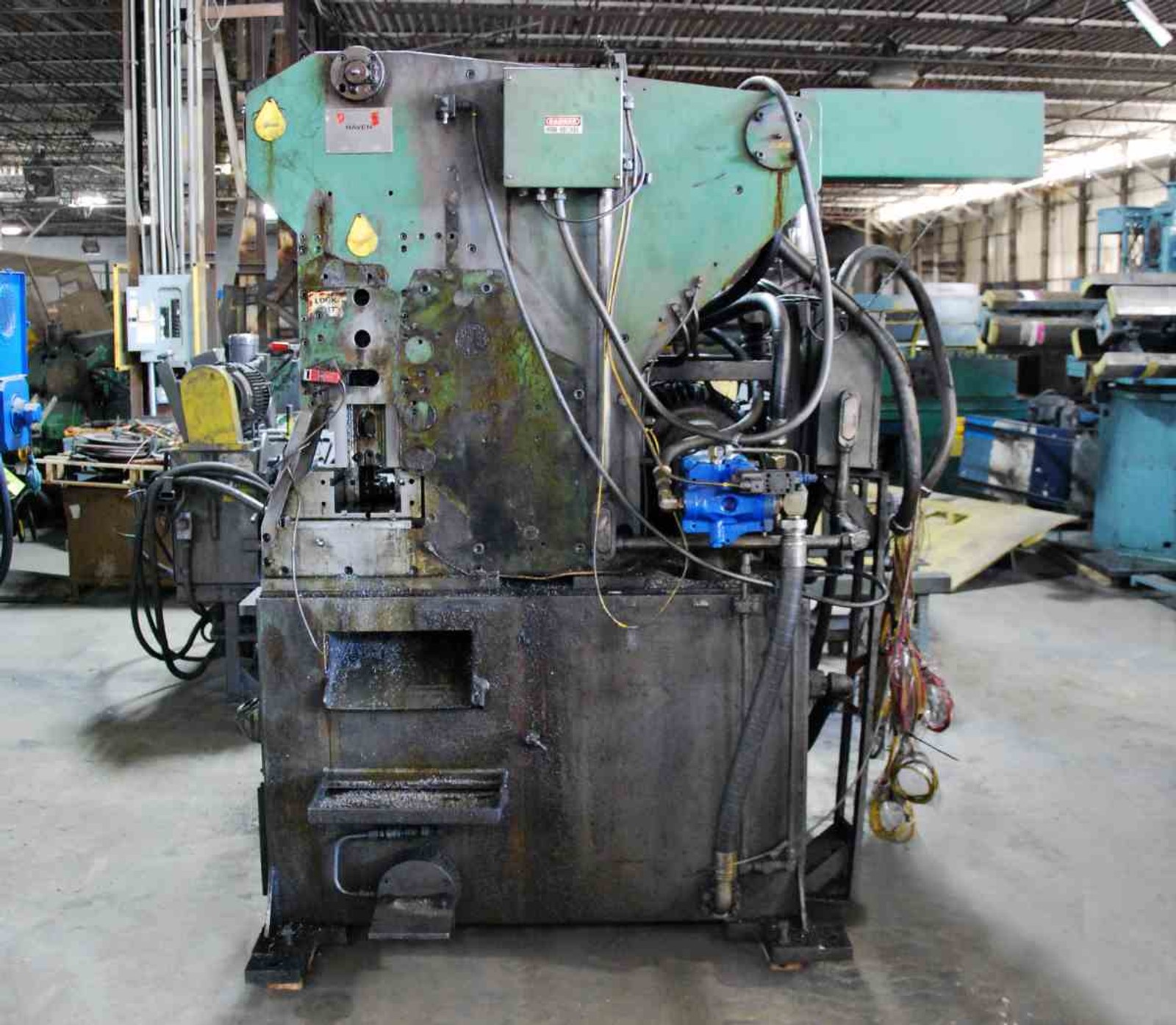

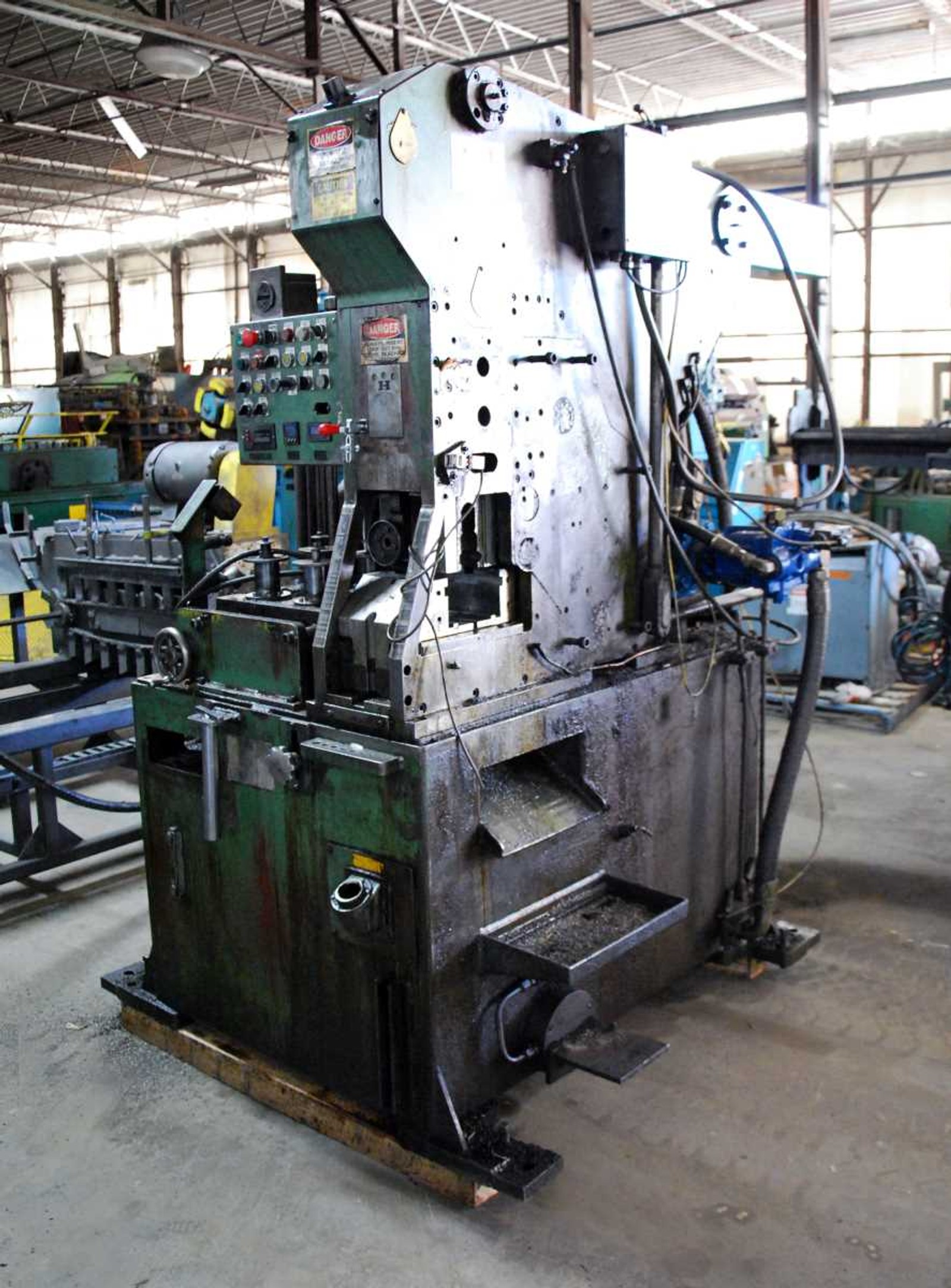

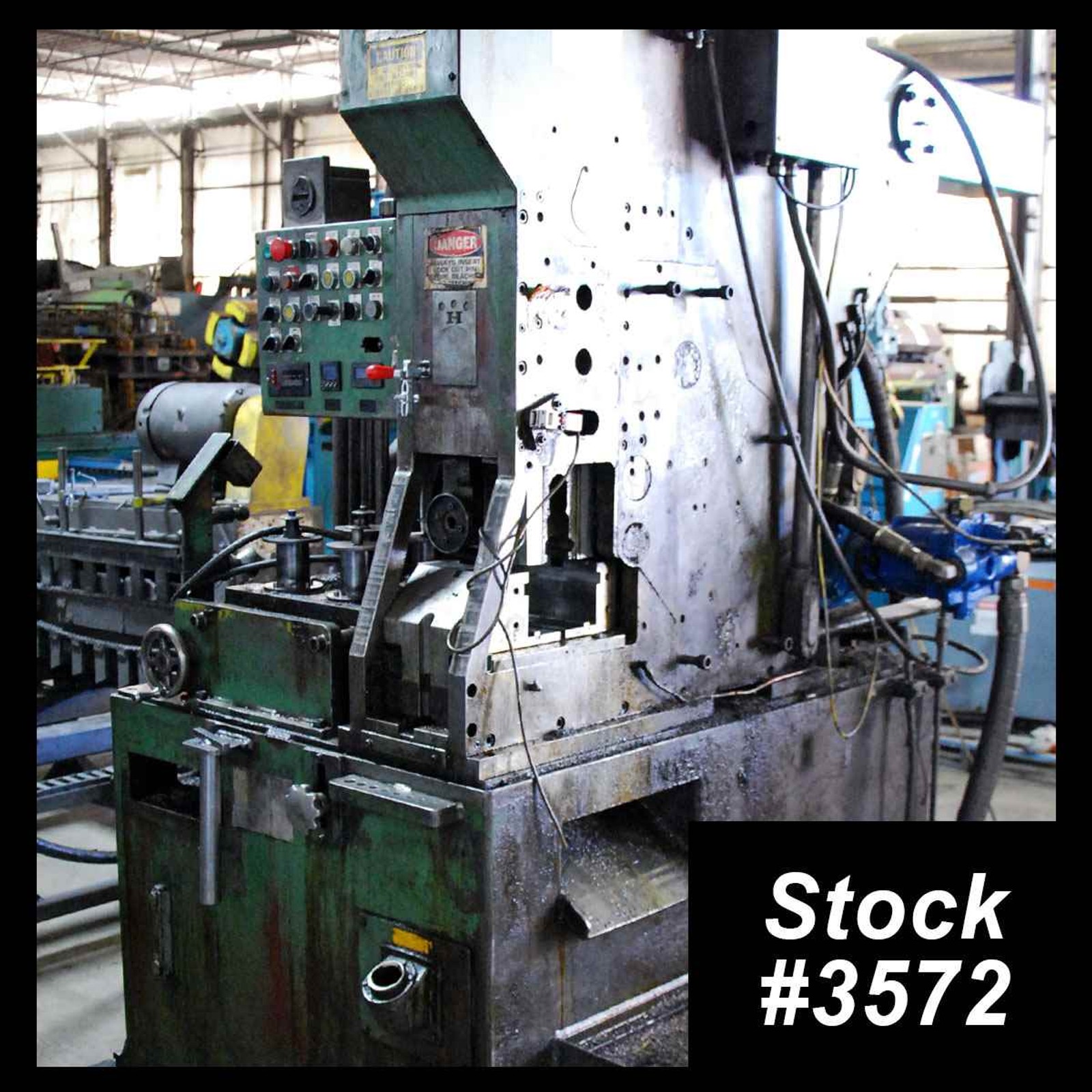

3" (76.2 mm) x .120" (3.04 mm) HAVEN 872 Tube Re-Cut w/20' Bundle Loader

Manufacturer

HAVEN

Category

Tube Machinery

Type

TUBE MACHINERY, (Cut Off)

Stock

3572

Model

872

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

UTUBE NUMBER: 3572
MANUFACTURER: HAVEN
MODEL NUMBER: 872
SERIAL NUMBER: 3960
YEAR:

SPECIFICATIONS:
Maximum Tube Diameter: 3" (76.2 mm)
Maximum Squares & Rectangles: 3" (76.2 mm) Diagonal
Minimum Tube Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .120" (3.04 mm)
Line Direction: Left to Right
Cycle Speeds: Up to 5,000 Cycles/Hr
Maximum Cut Length: 6′

EQUIPPED WITH:

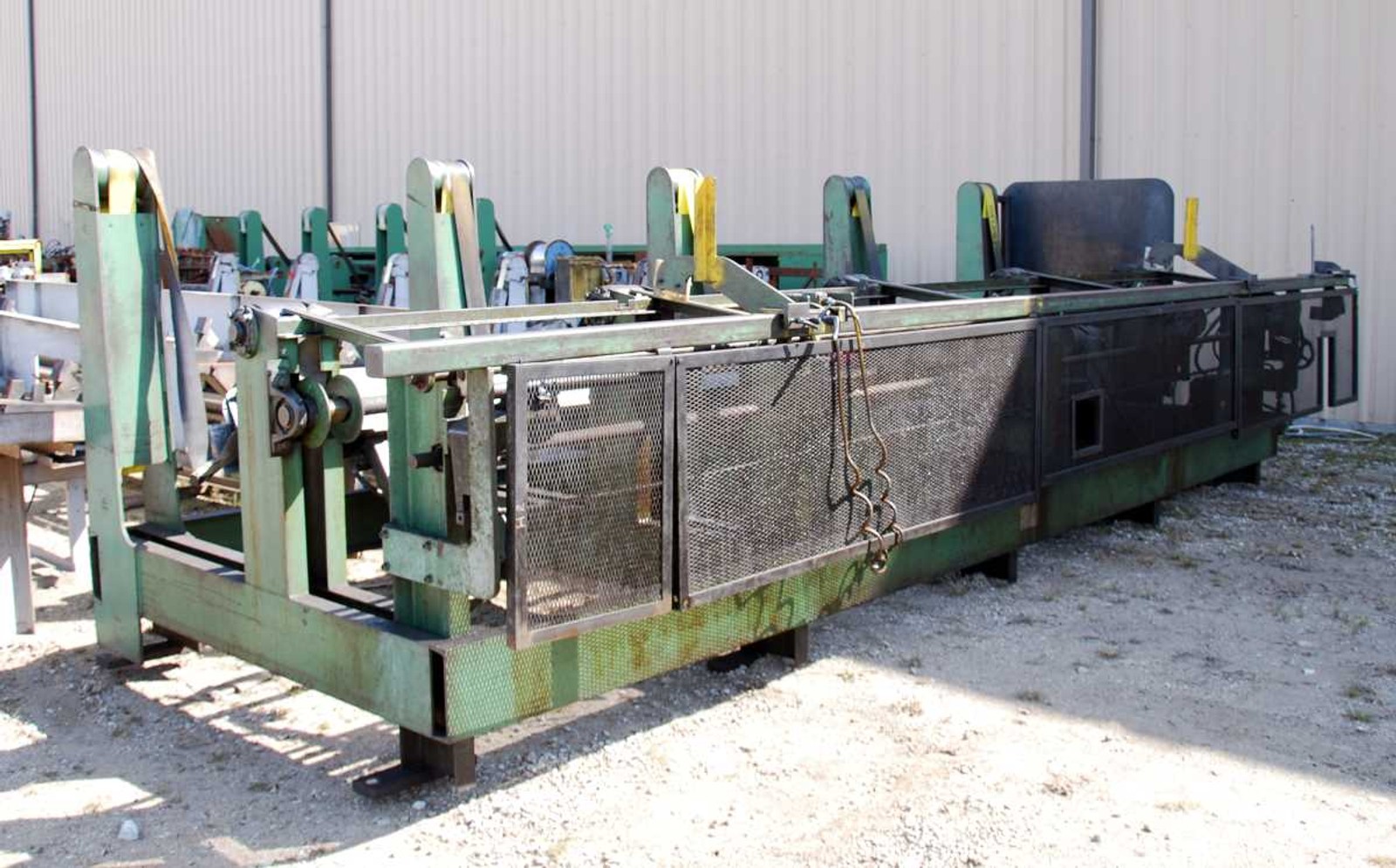

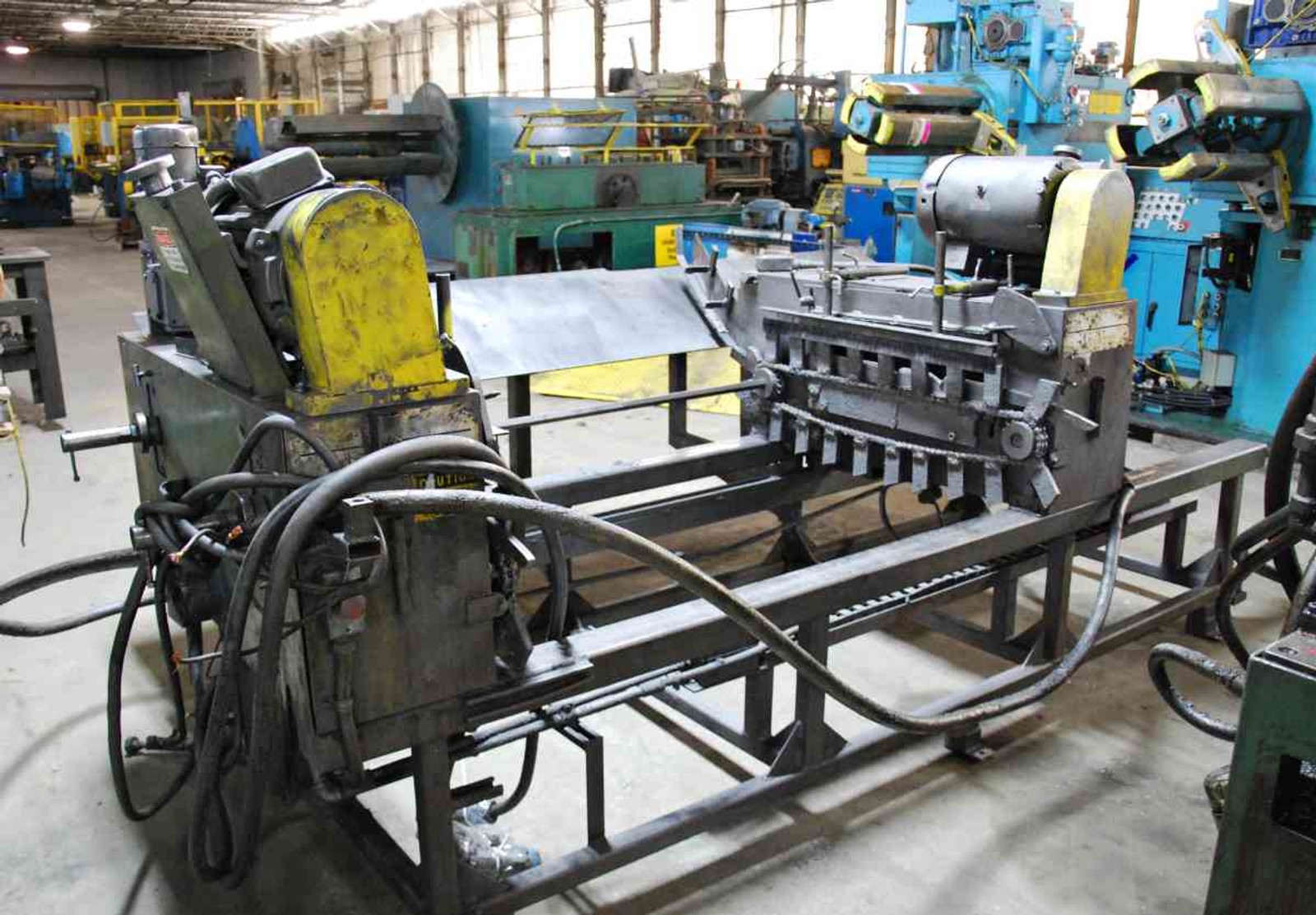

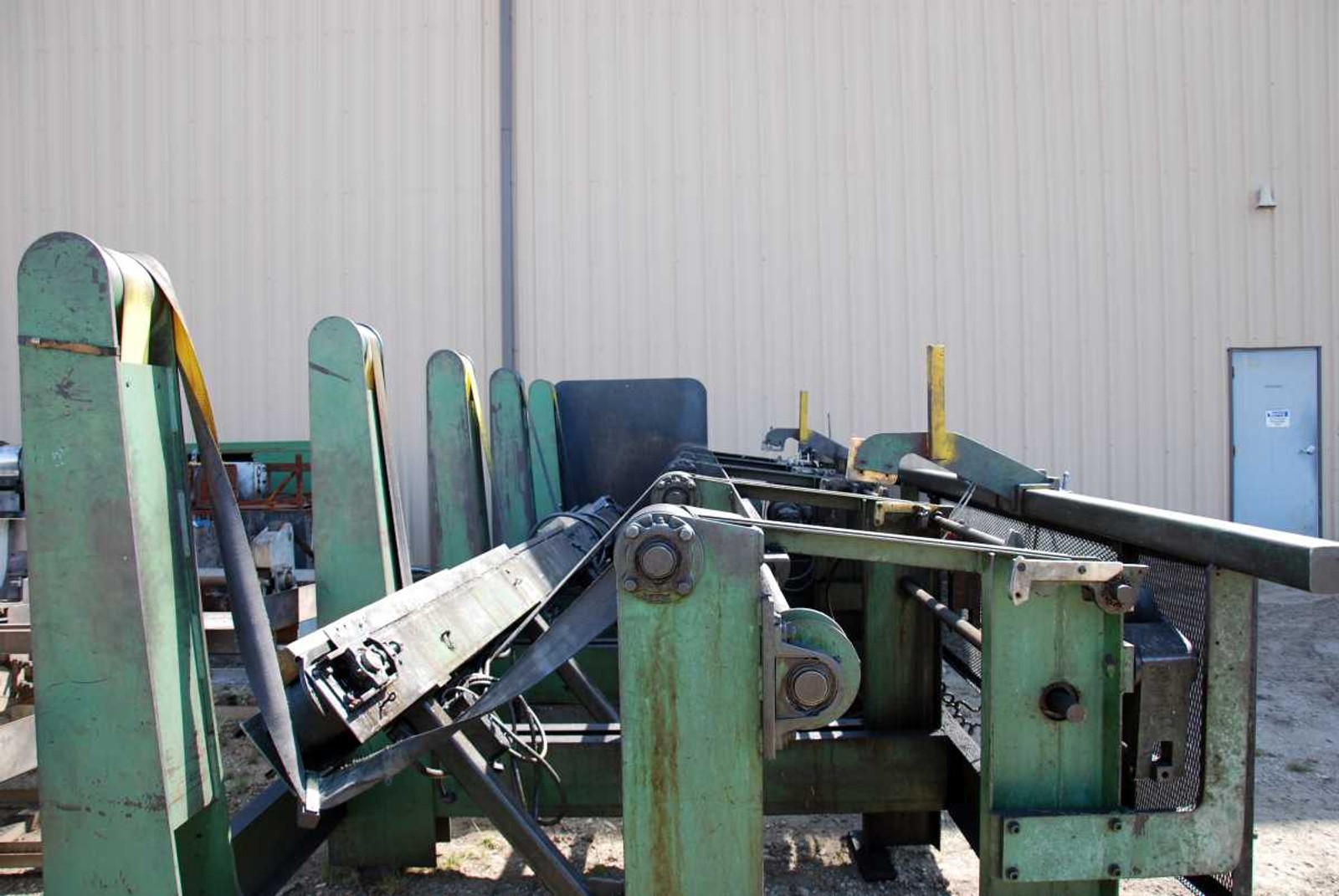

20′ Bundle Loader

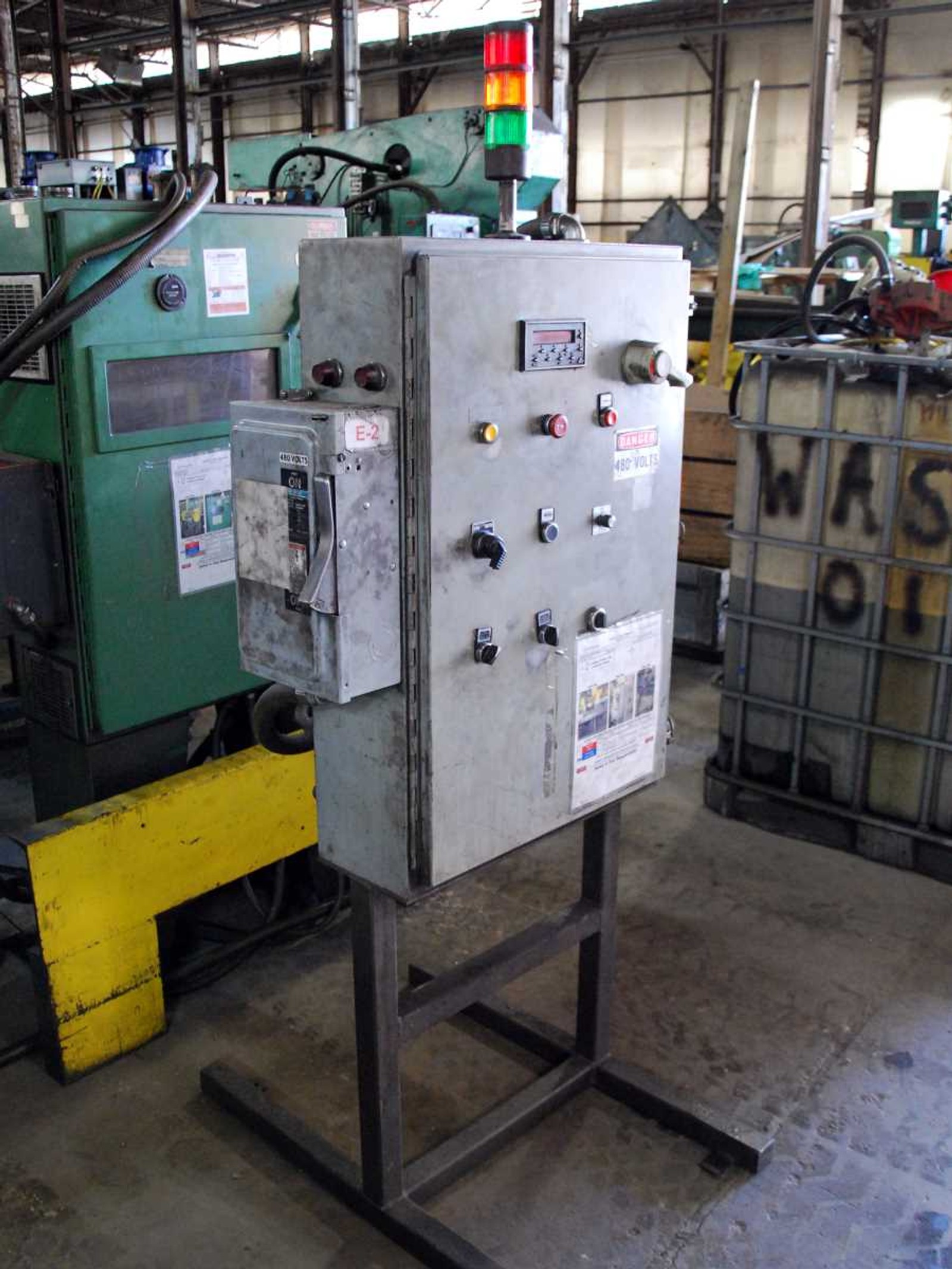

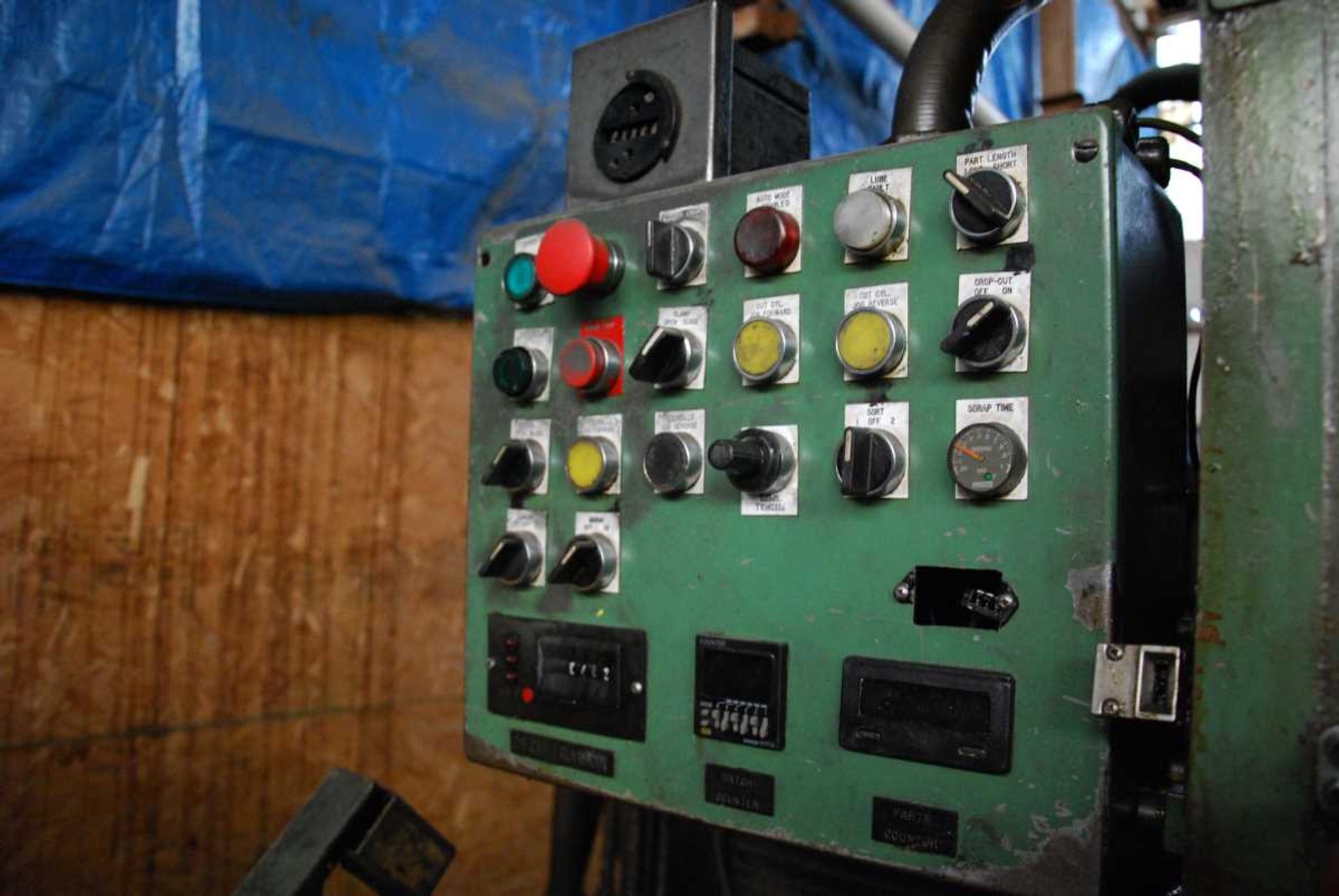

Push Button Console

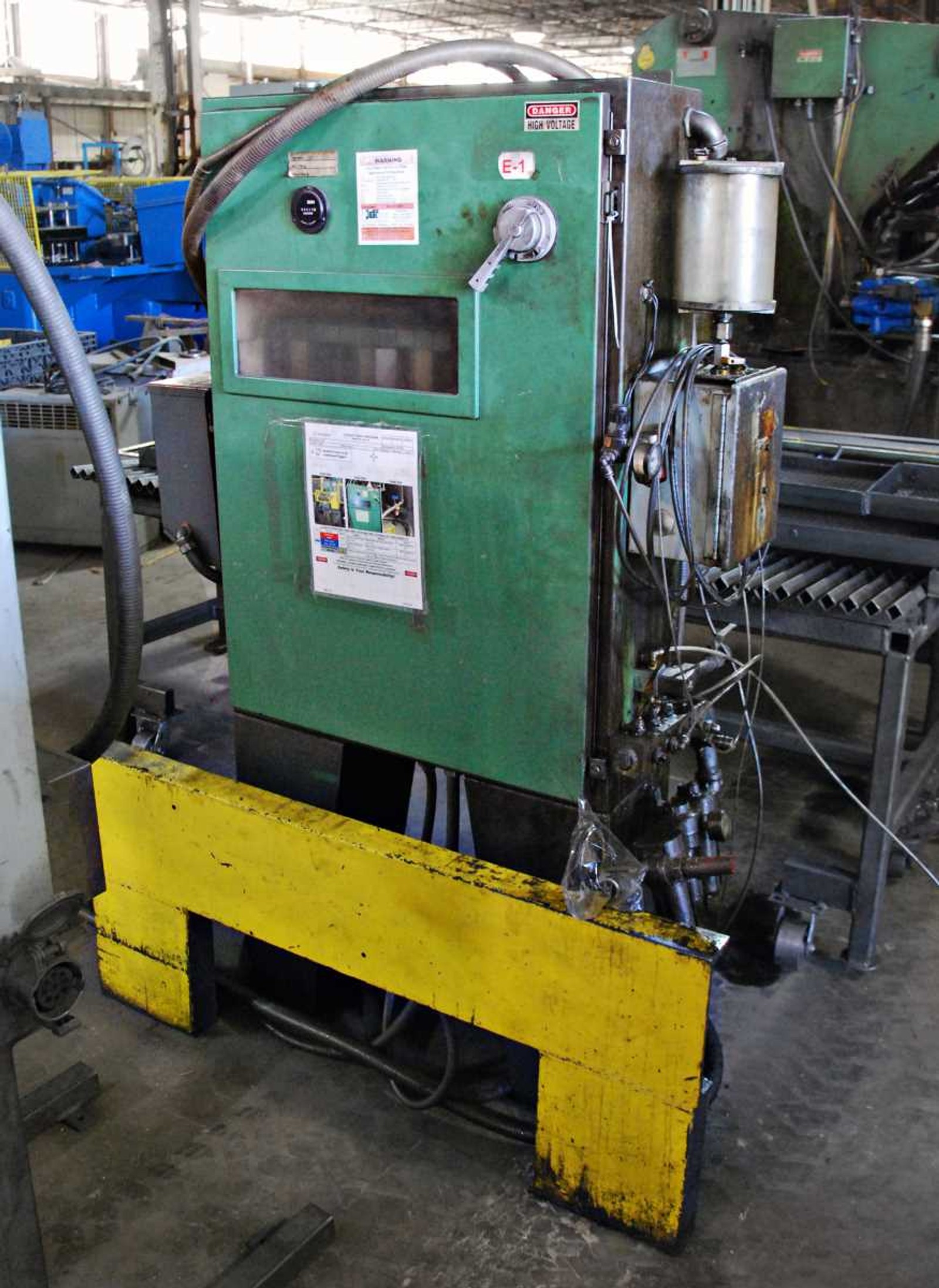

VICKERS Hydraulic Pump
Target Assembly
Central Grease System
30 HP Motor: 230 / 460 / 60 Hz / 3 Phase

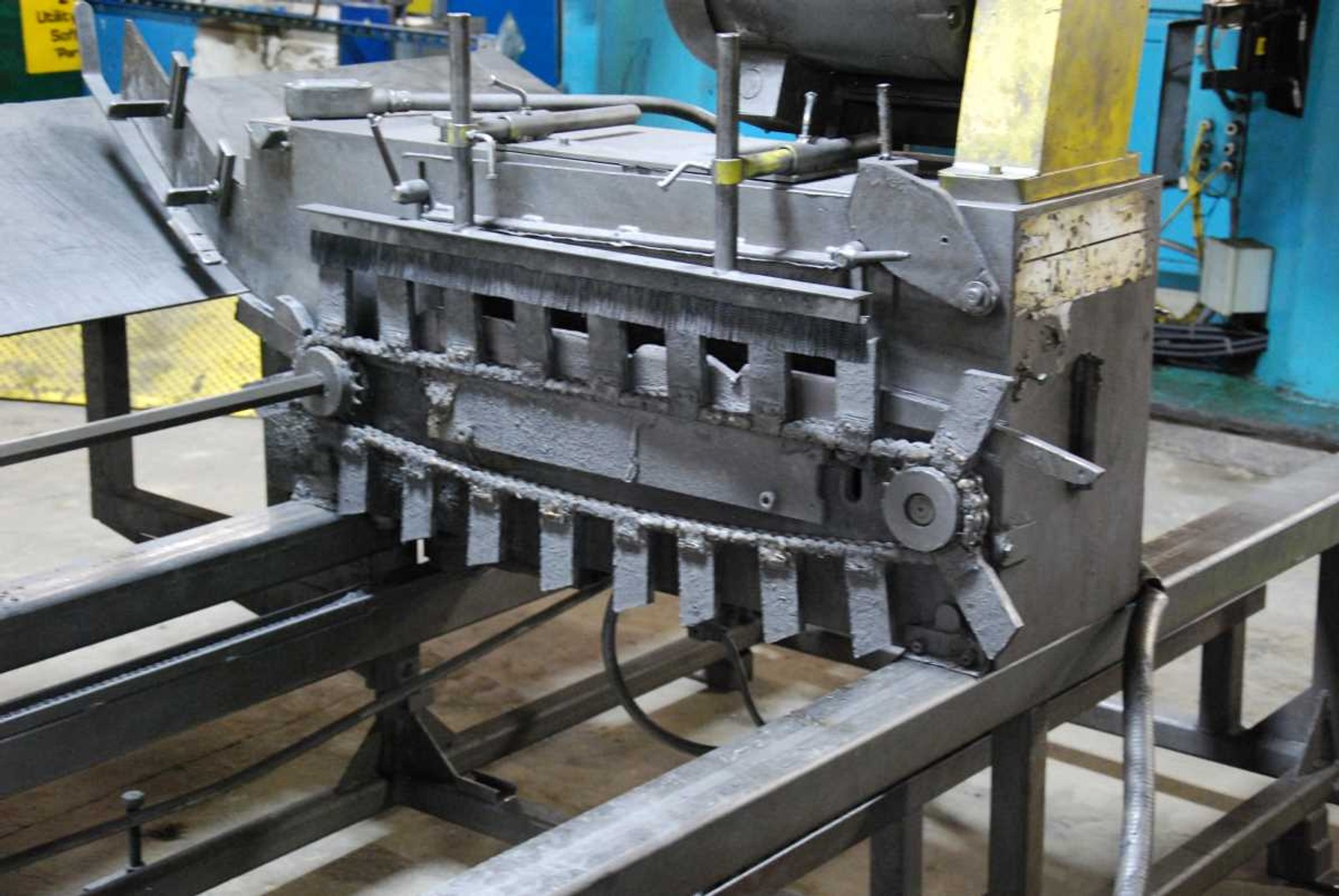

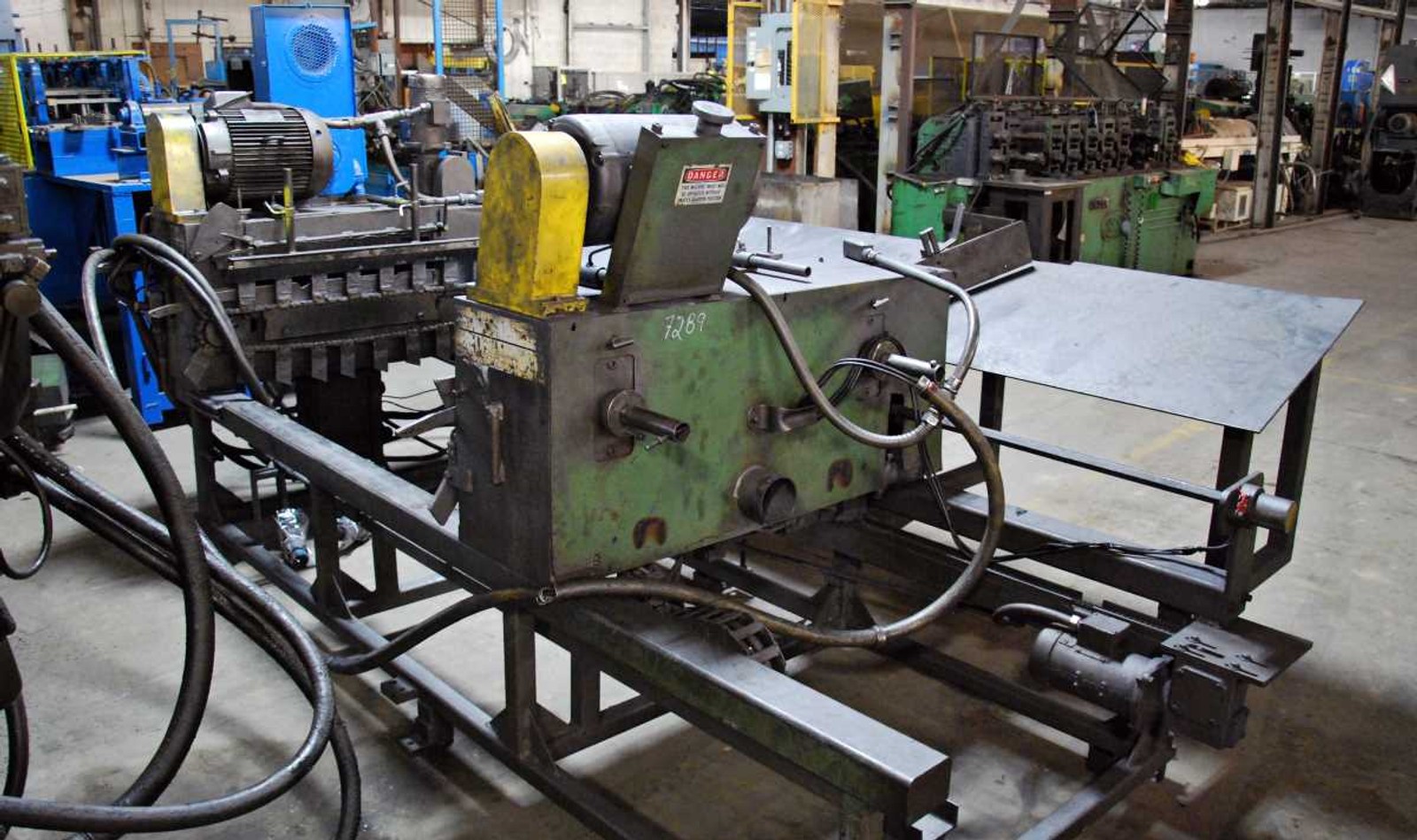

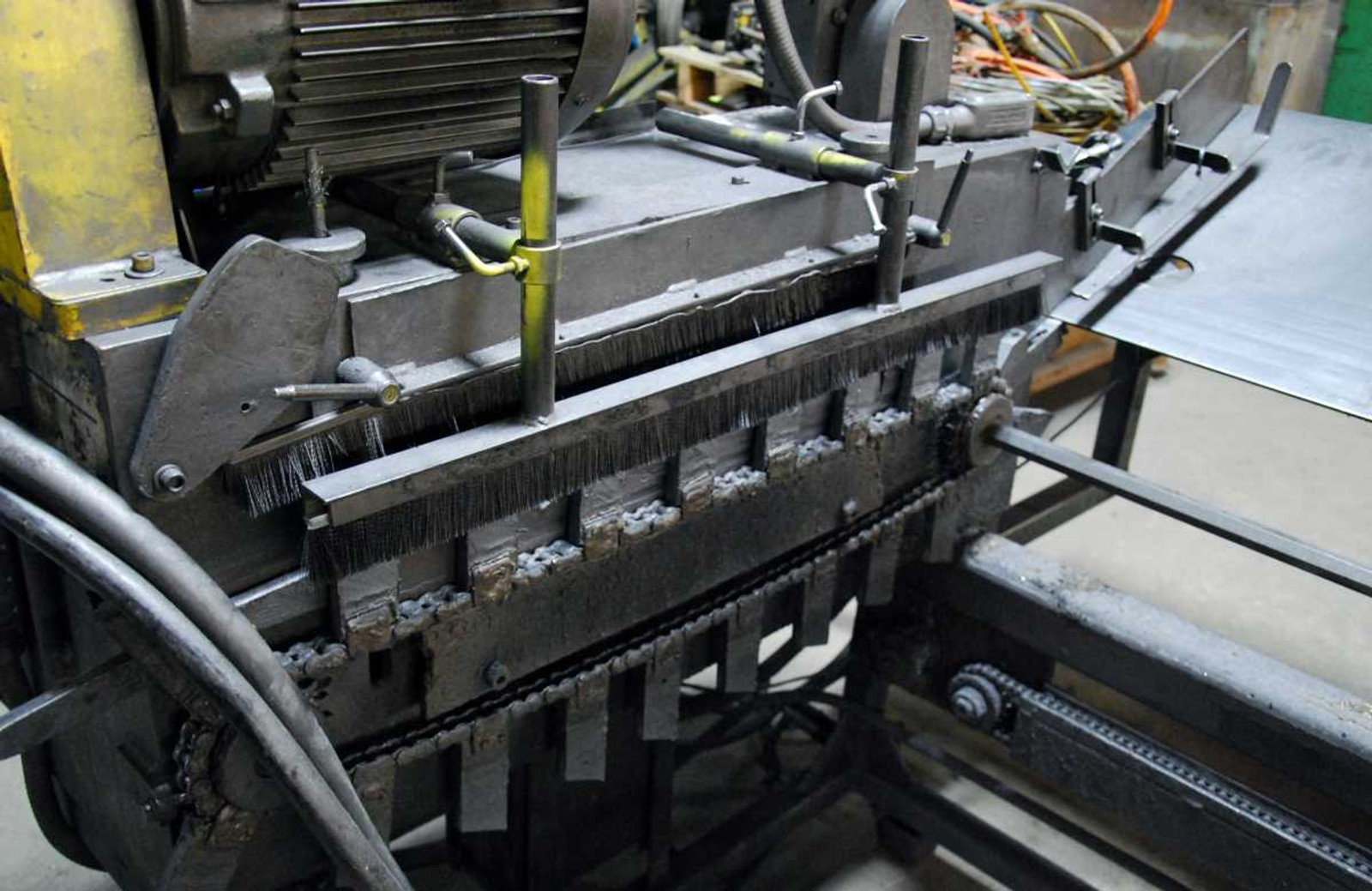

BUCKEYE Double End Brush Machine
Air Heat Exchanger for Cooling Hydraulic Oil

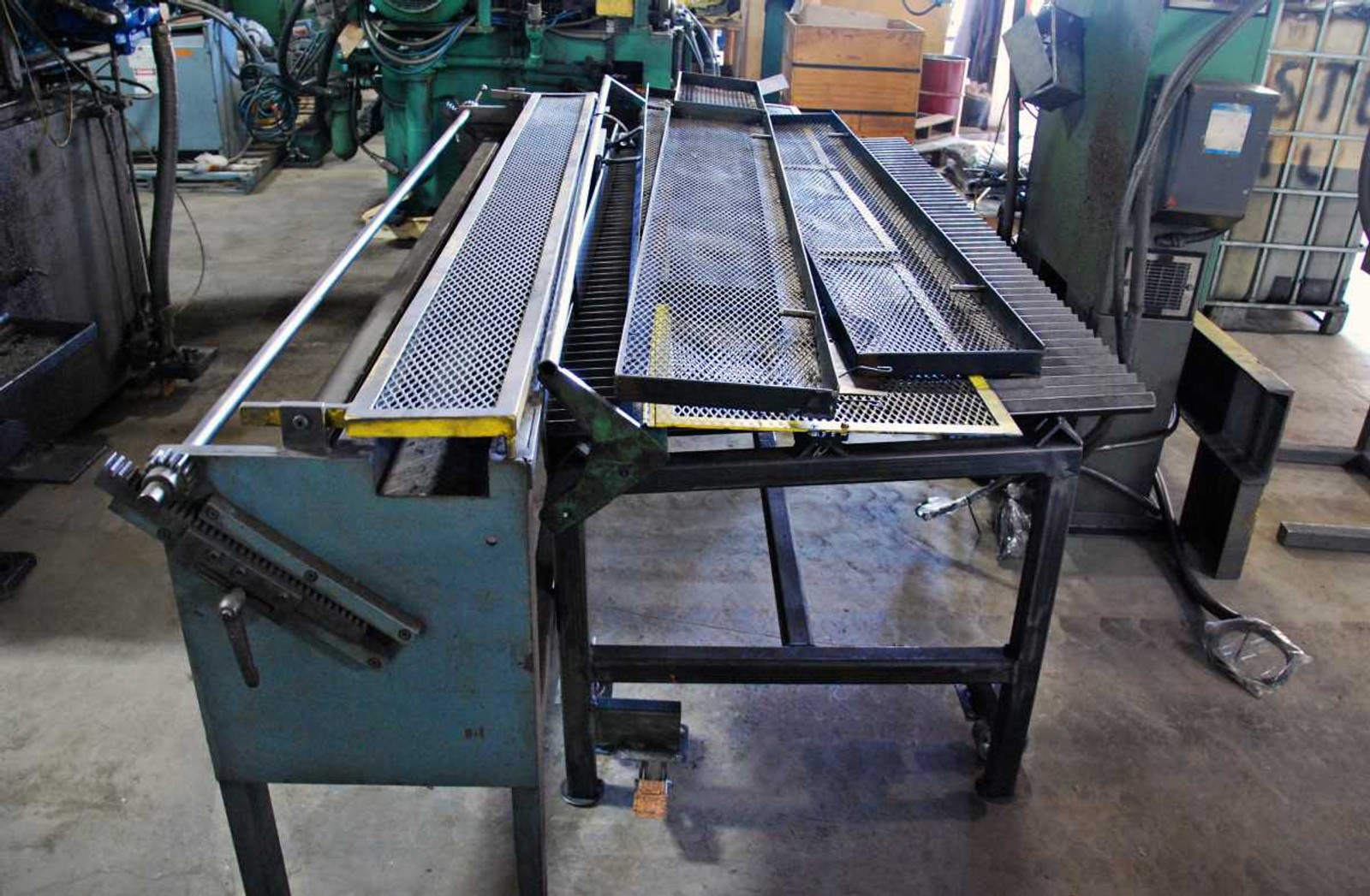

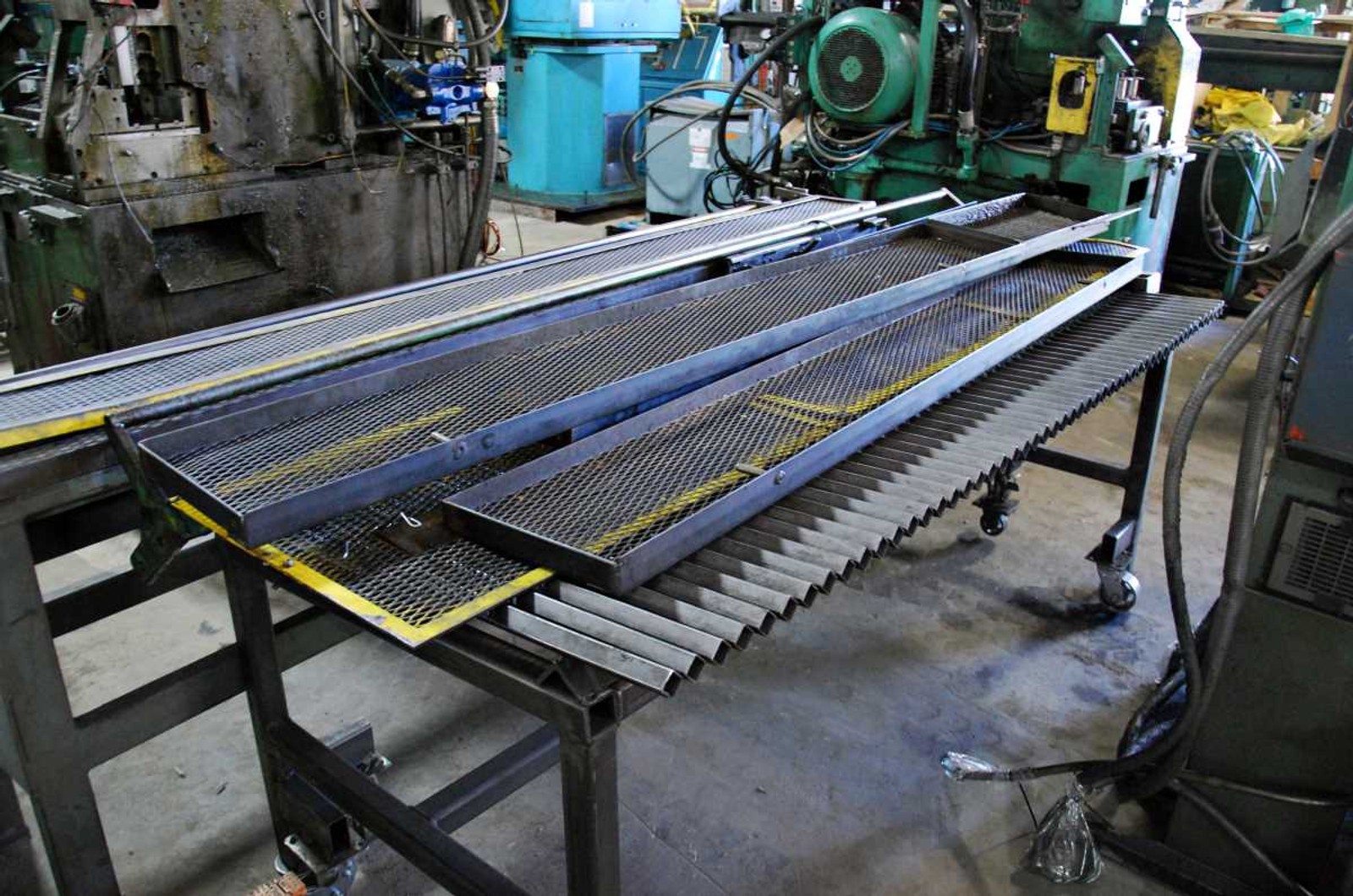

Exit Conveyor

CONDITION: Good As Taken From Service (was running production in 2018)

OVERALL DIMENSIONS: 1 Truckload
APPROXIMATE WEIGHT: 17,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
