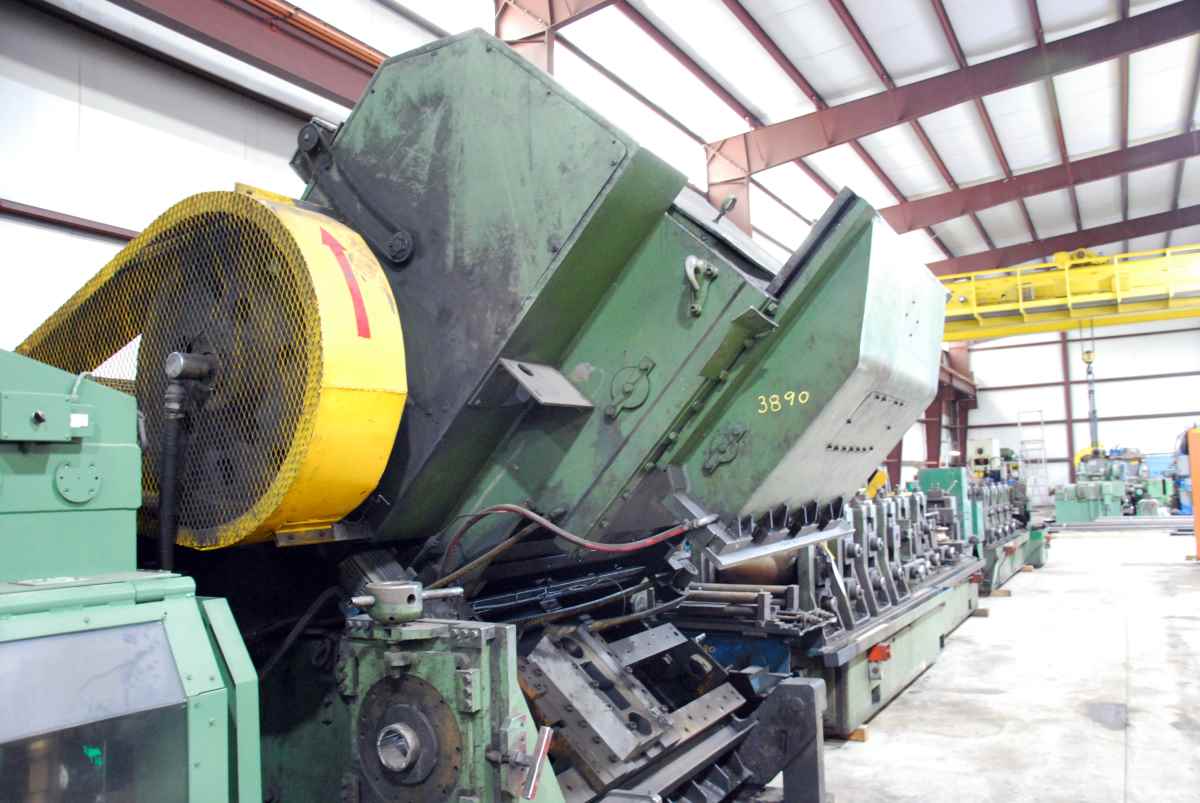

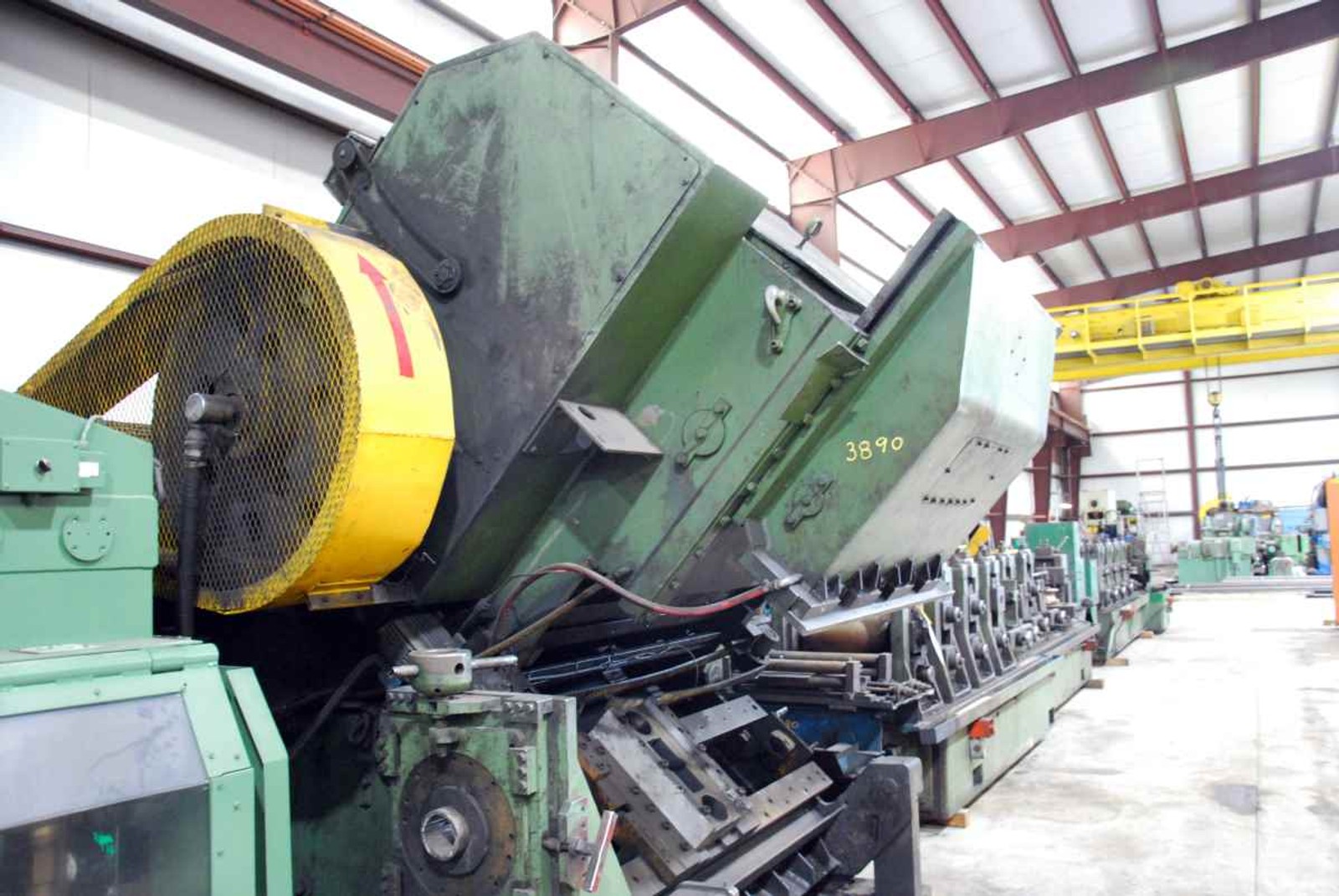

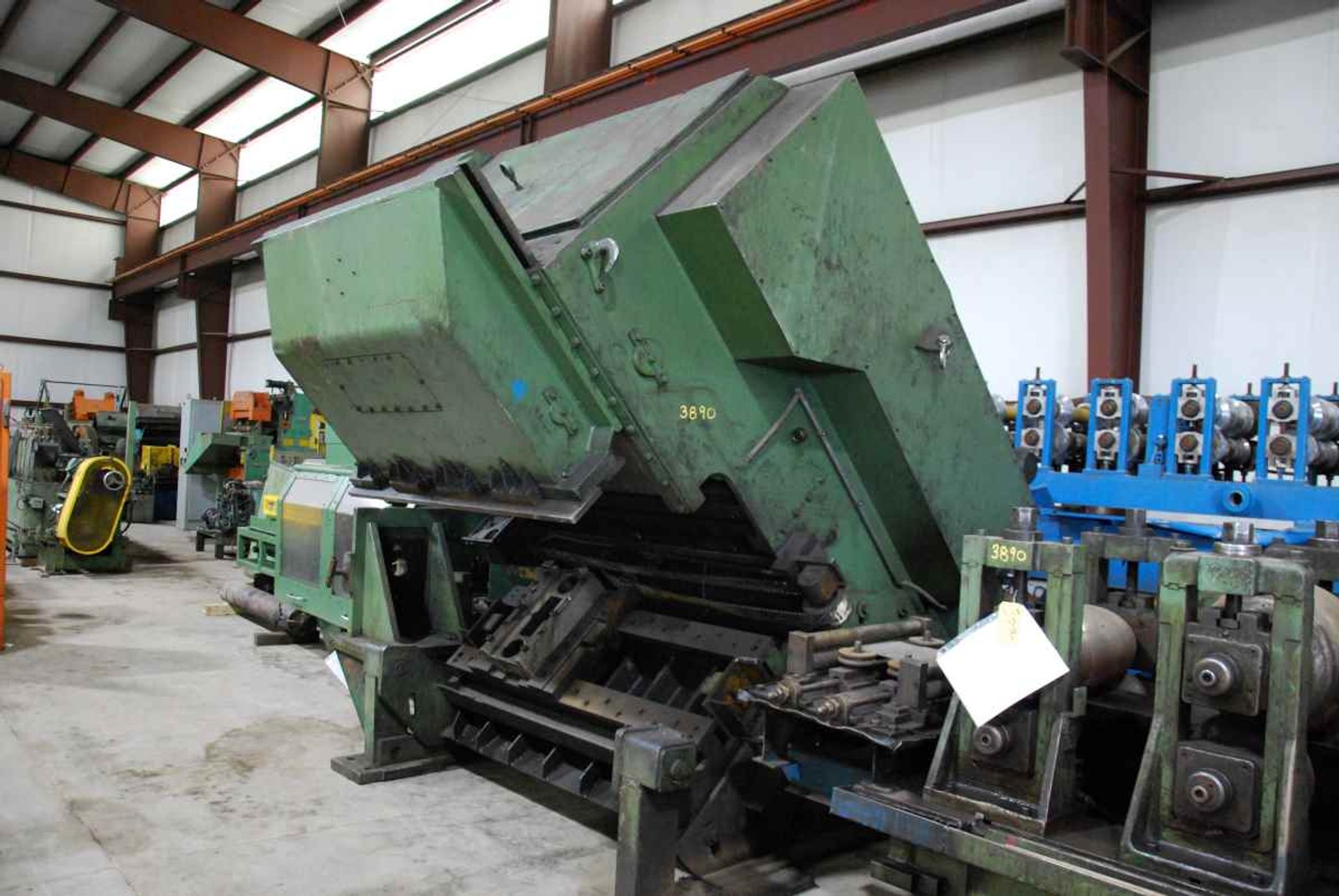

5" (127 mm) x .250" (6.35 mm) ALPHA TC-16-200 Cut-Off

Manufacturer

ALPHA

Category

Tube Machinery

Type

TUBE MACHINERY, (Cut Off)

Stock

3917

Model

TC-16-200

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3917
MANUFACTURER: ALPHA INDUSTRIES
MODEL NUMBER: TC-16
SERIAL NUMBER: 3589-1-45

SPECIFICATIONS:
Maximum Tube Diameter: 5″ (127 mm)
Minimum Tube Diameter: 1″ (25.4 mm)
Maximum Wall Thickness: .250″ (6.35 mm)
Minimum Wall Thickness: .035″ (.889 mm)
Maximum Mill Speed: 200 FPM
Maximum C.P.M.: 20
Clutch: Air
Die Clamp: Hydraulic
Floor to Center Line of Tube: 36″

EQUIPPED WITH:
Motor: 30 HP, 440/220/3/60
Tooling: Misc. Jaws, and Die Set with Slides

APPROXIMATE WEIGHT: 22,000 Lbs.
OVERALL DIMENSIONS: 9′ 2″ L x 10′ W x 10′ H
LOCATION: Universal Warehouse, Perrysburg, Ohio
