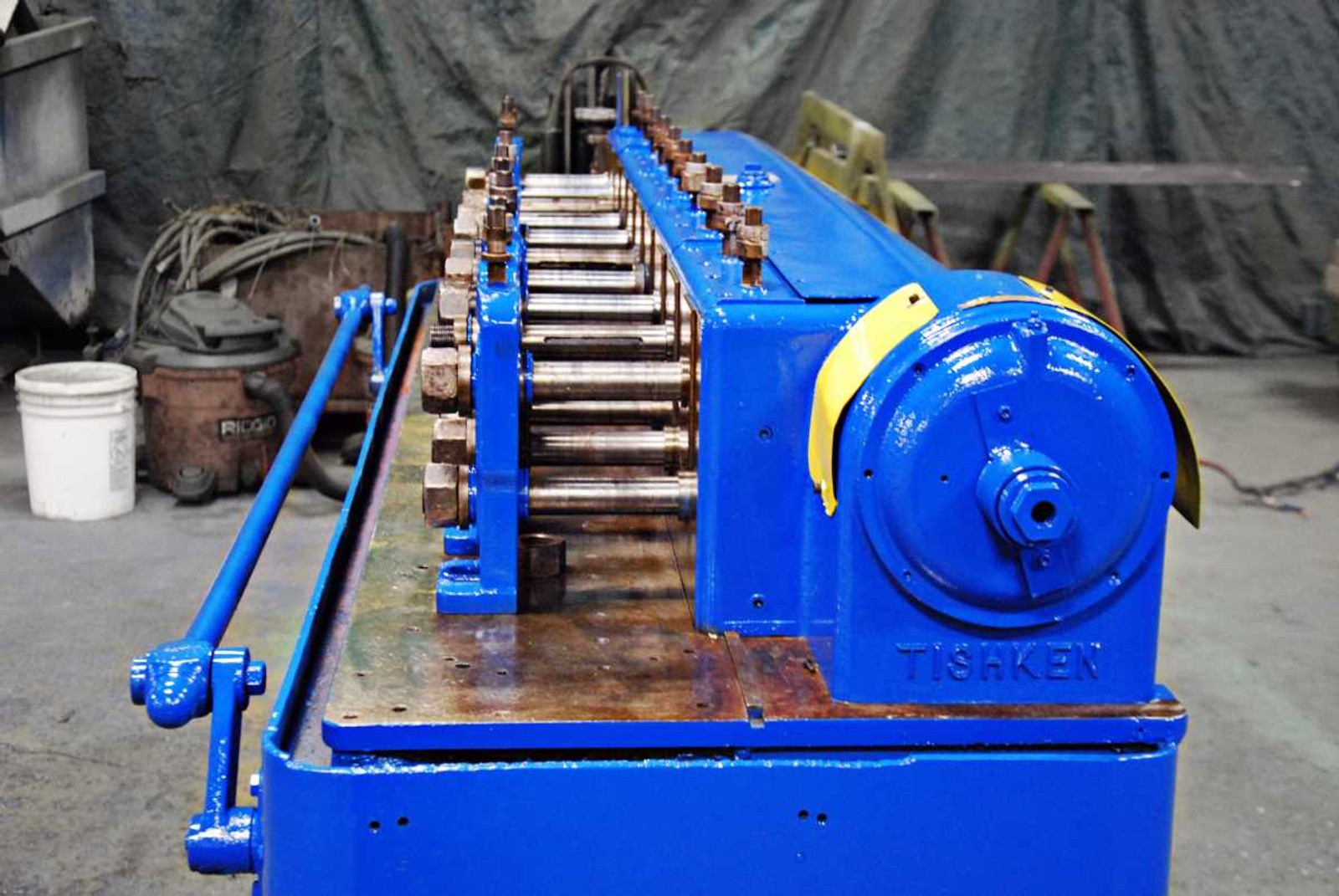

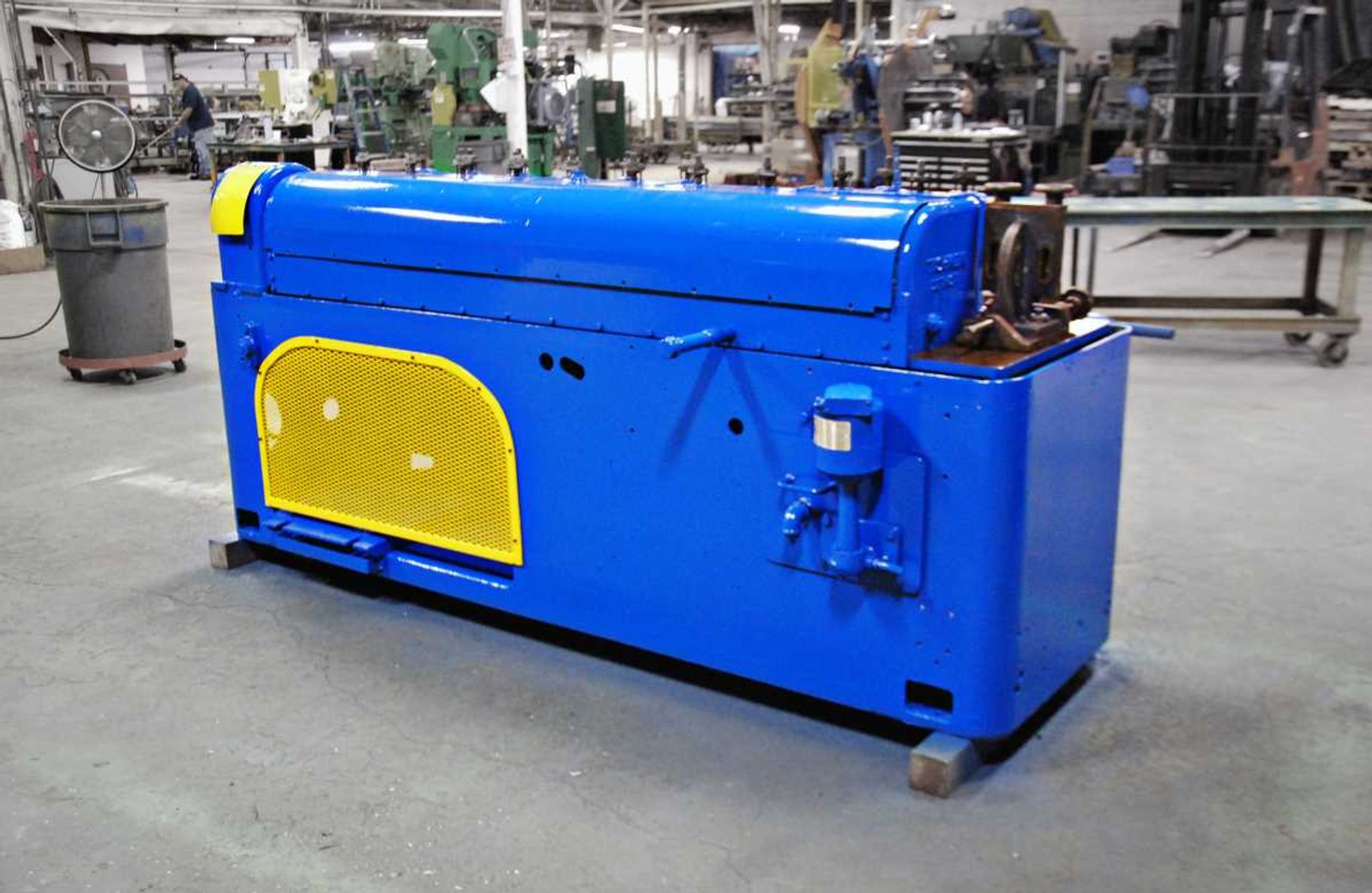

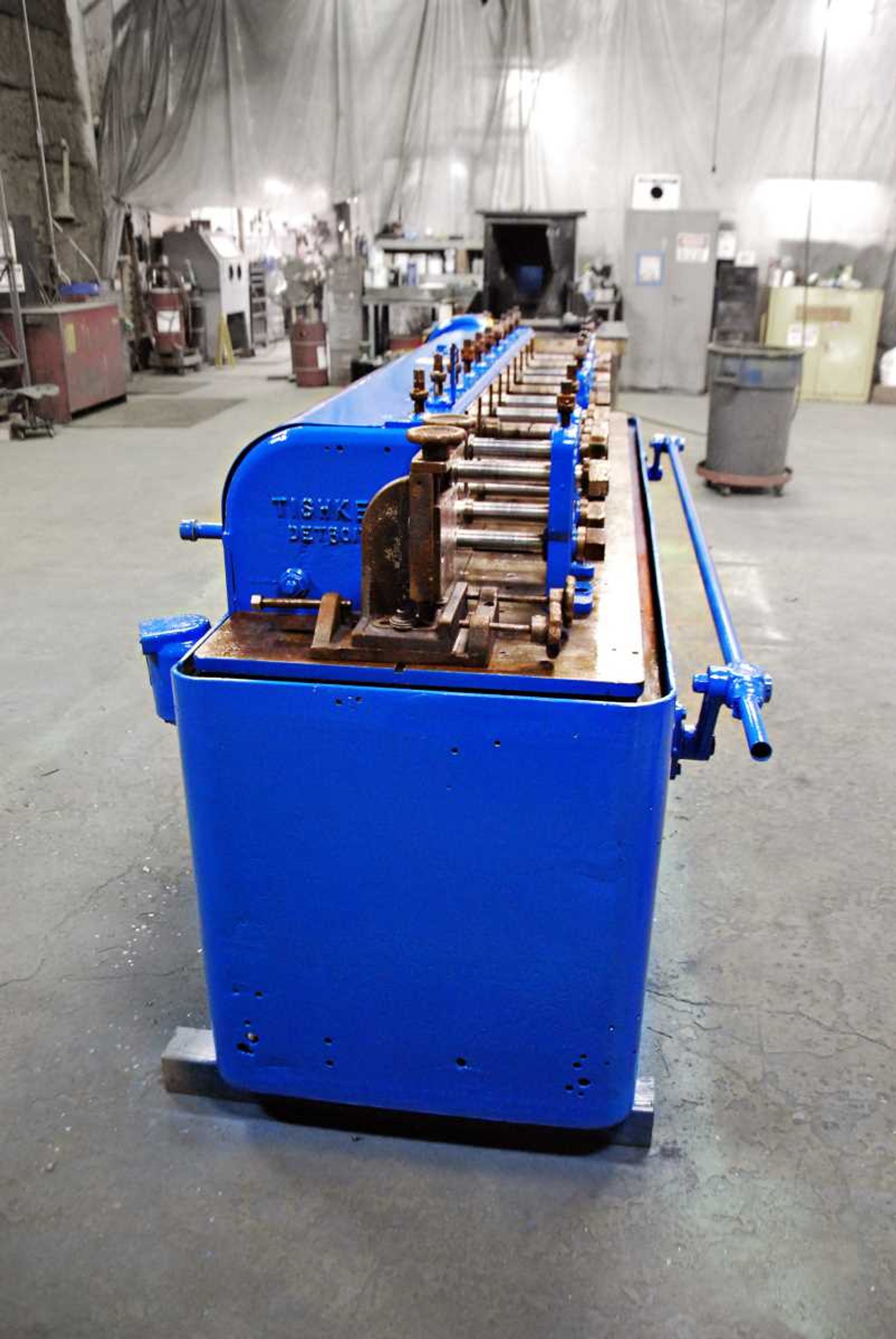

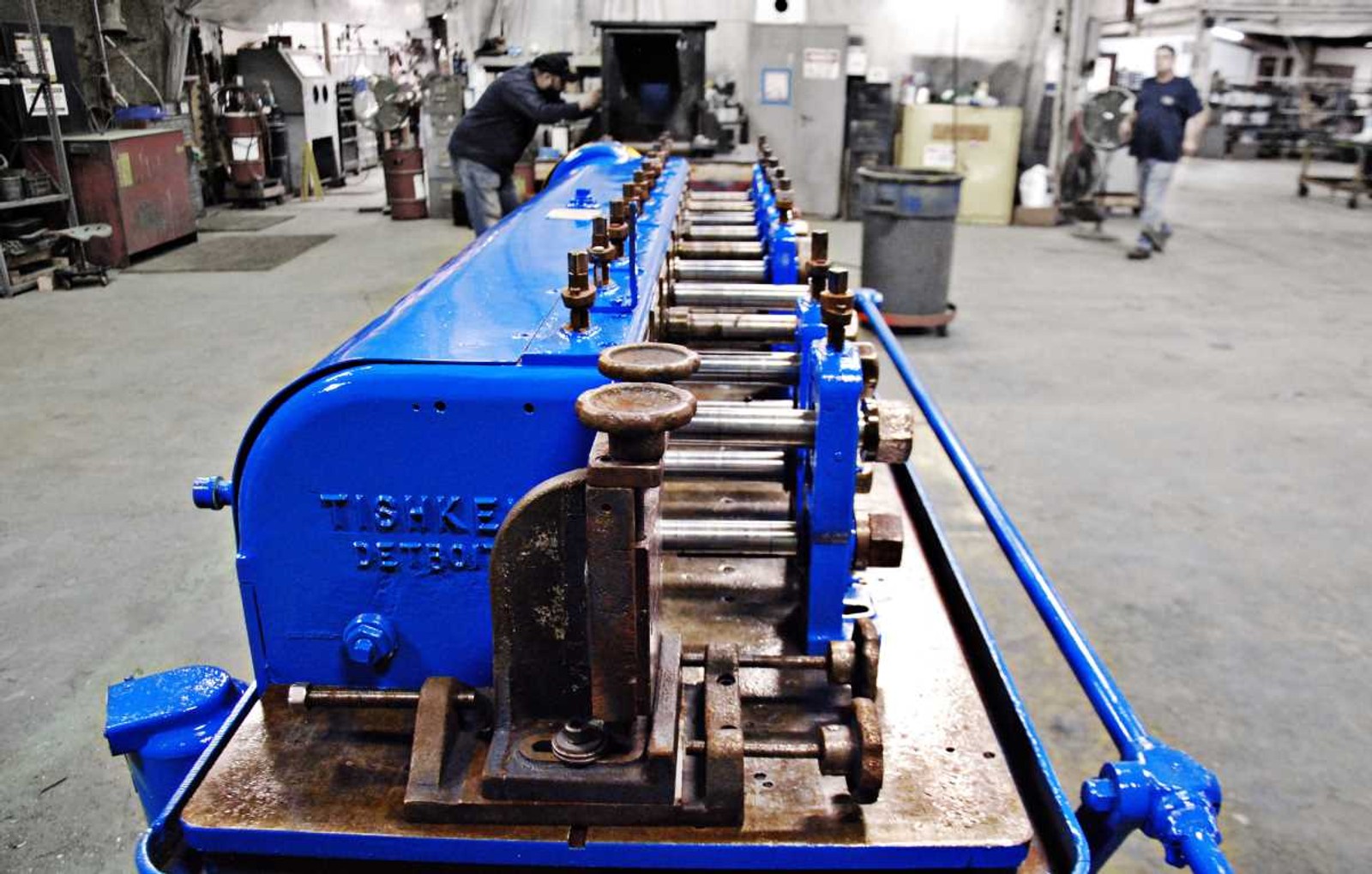

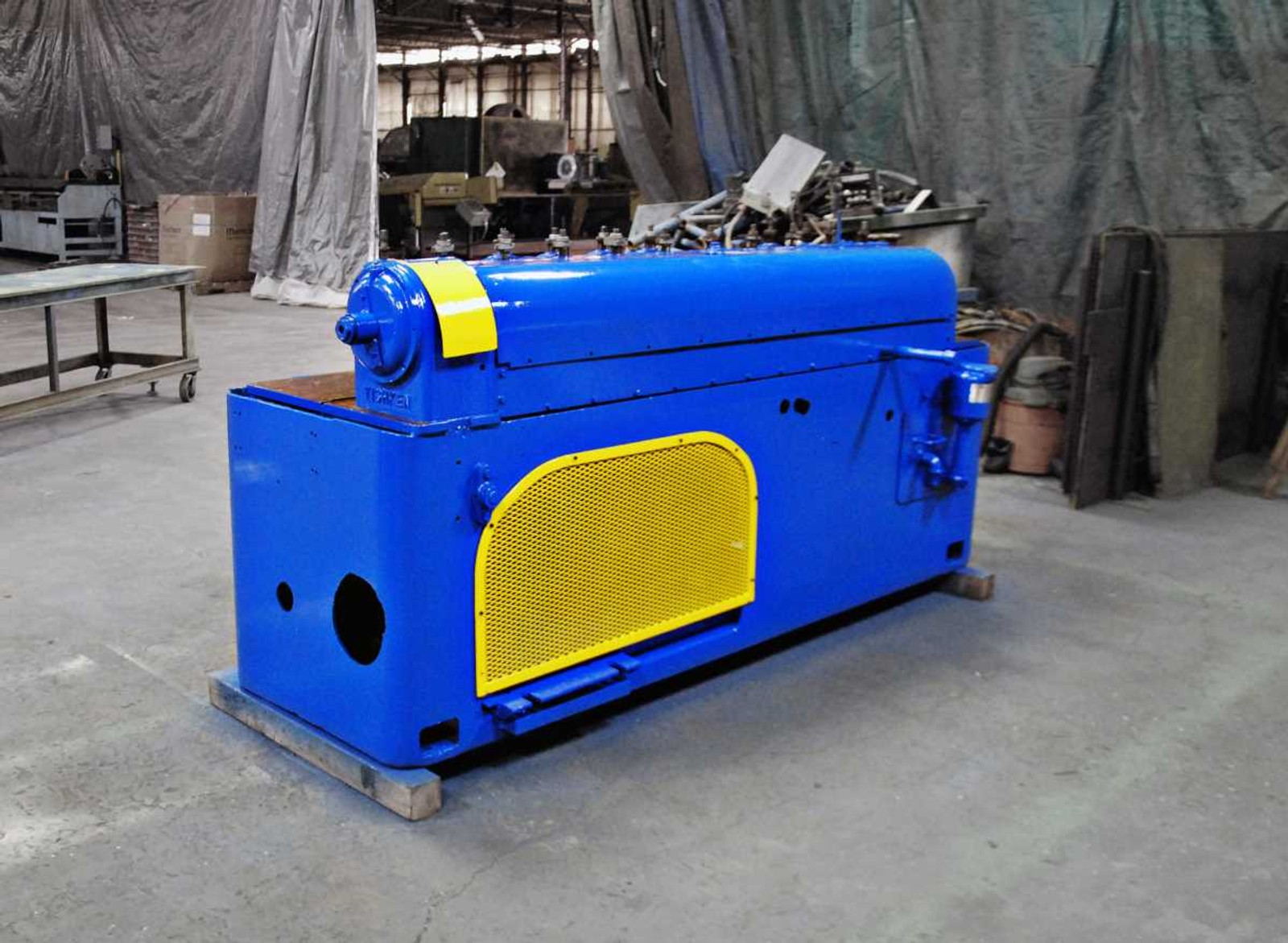

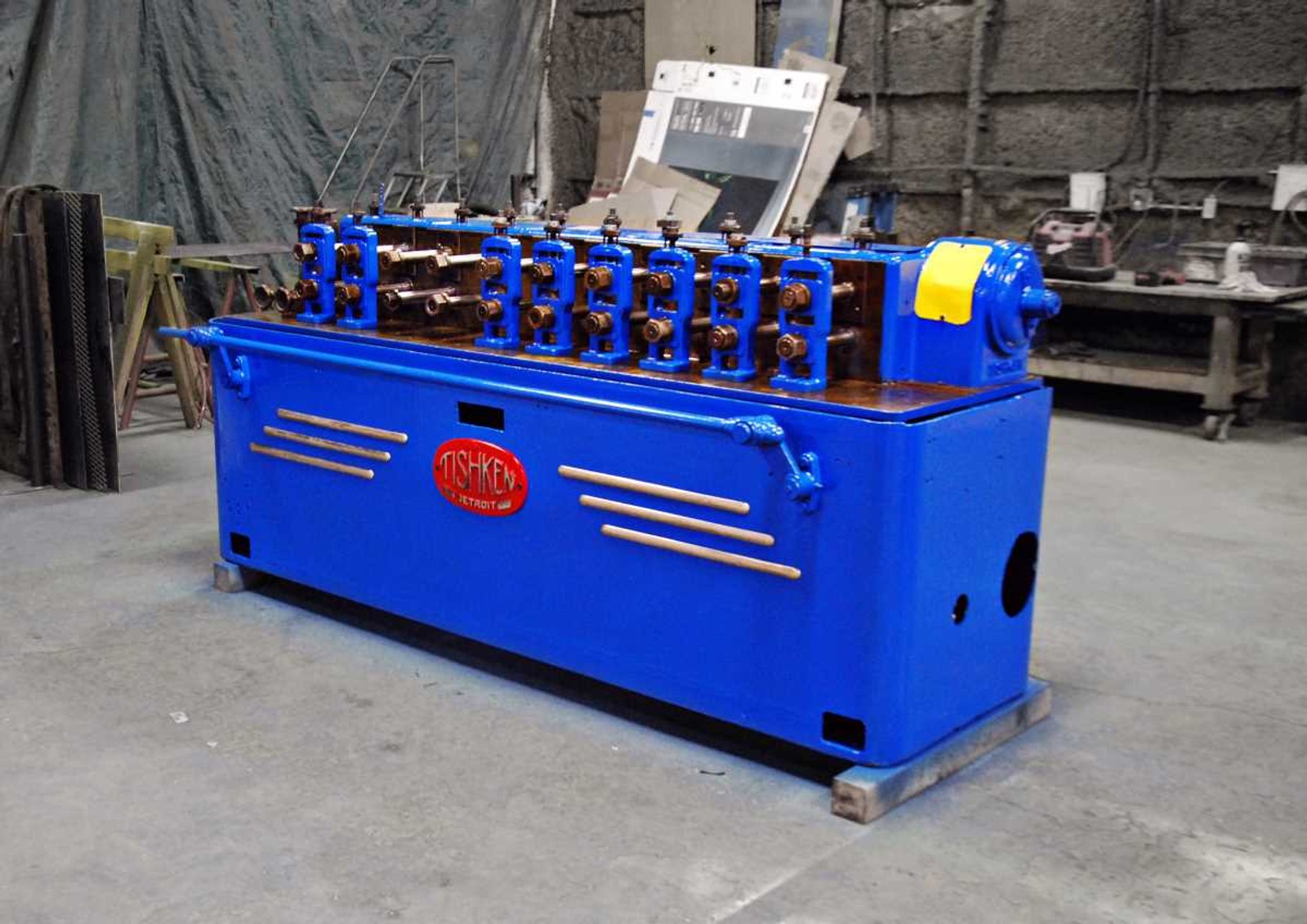

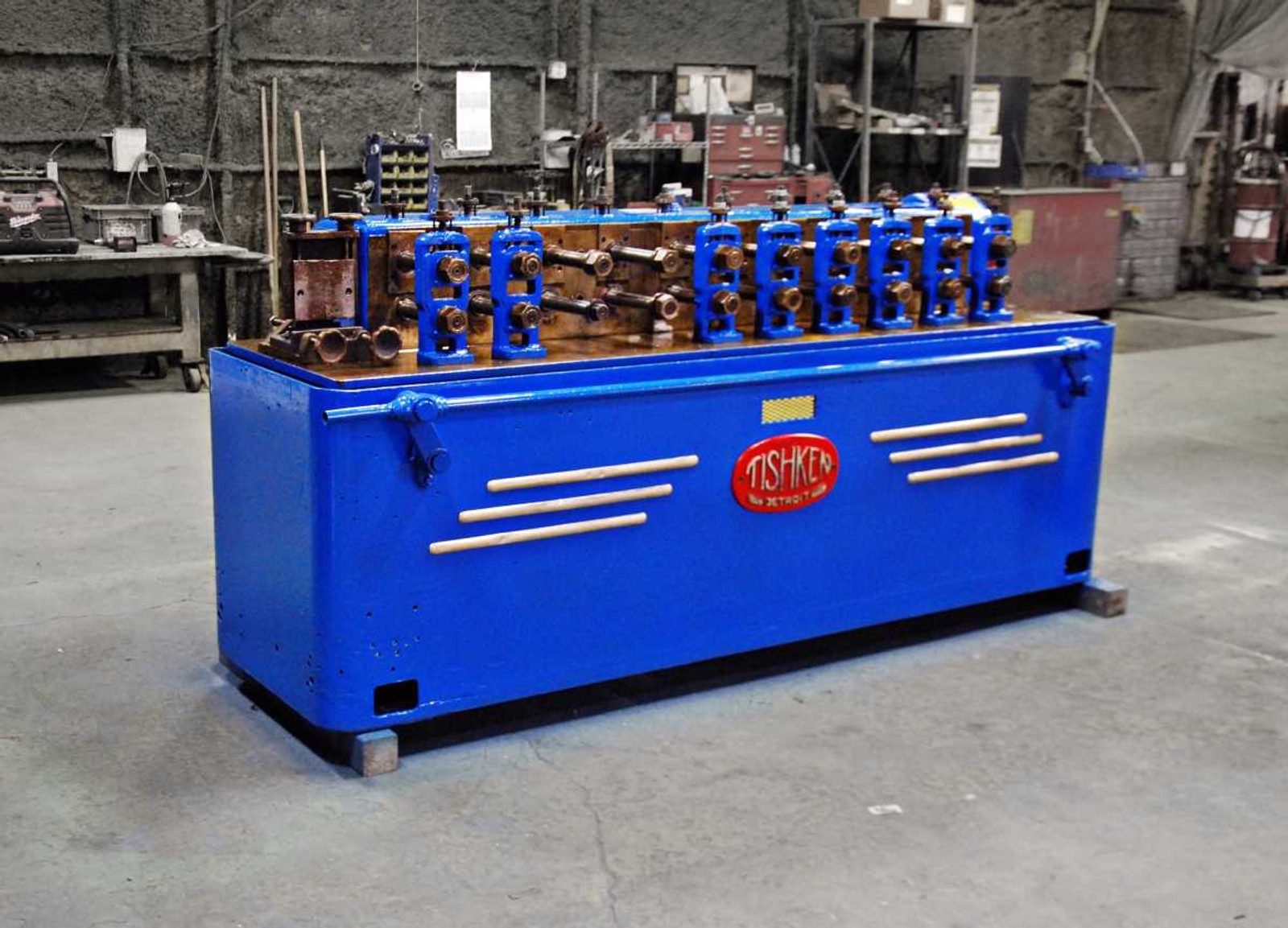

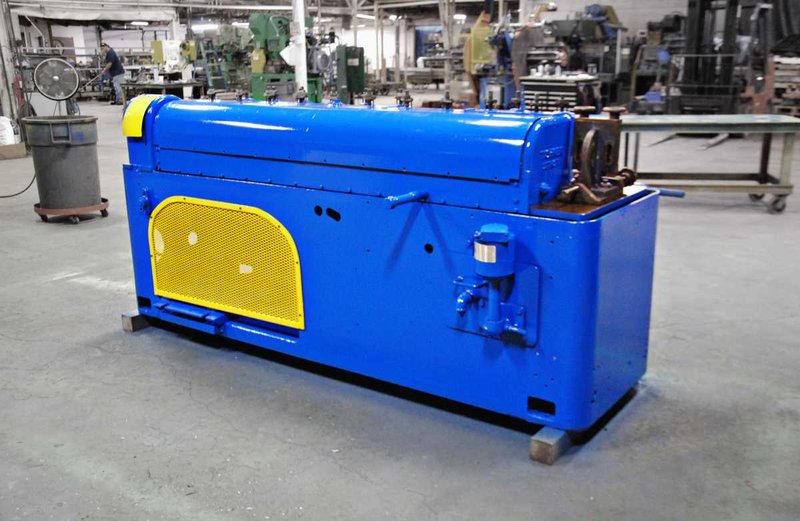

10 Stand x 1-1/2" x 6" TISHKEN #110 MLW12 Rollformer

10 Stand x 1-1/2" x 6" TISHKEN #110 MLW12 Rollformer

Name: 10 Stand x 1-1/2" x 6" TISHKEN #110 MLW12 Rollformer
Brand: TISHKEN
SKU: 2953

Manufacturer

TISHKEN

Spec Sheet

UTUBE NUMBER: 2953
MANUFACTURER: TISHKEN
MODEL NUMBER: 110 MLW 12
SERIAL NUMBER: 5456 1053
YEAR:

SPECIFICATIONS:
Number of Stands: 10
Line Direction: Right to Left
Spindle Diameter: 1-1/2″
Roll Space: 6″
Horizontal Centers: 8″
Vertical Adjustment: 4″ – 5″
Base Top to Center Lower Spindle: 4″
Spindle Key Size: 1/4″
Gearing: Equal

EQUIPPED WITH:
Straightener Stand
Electronics: 220 – 440 Volt, 60 HZ, 1430 RPM, 3 Phase, 20 HP Motor
Coolant Pump
Missing 2 Outboard Stands

OVERALL DIMENSIONS: 4′ x 9′ x 5′ 6″
APPROXIMATE WEIGHT: 5,800 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
