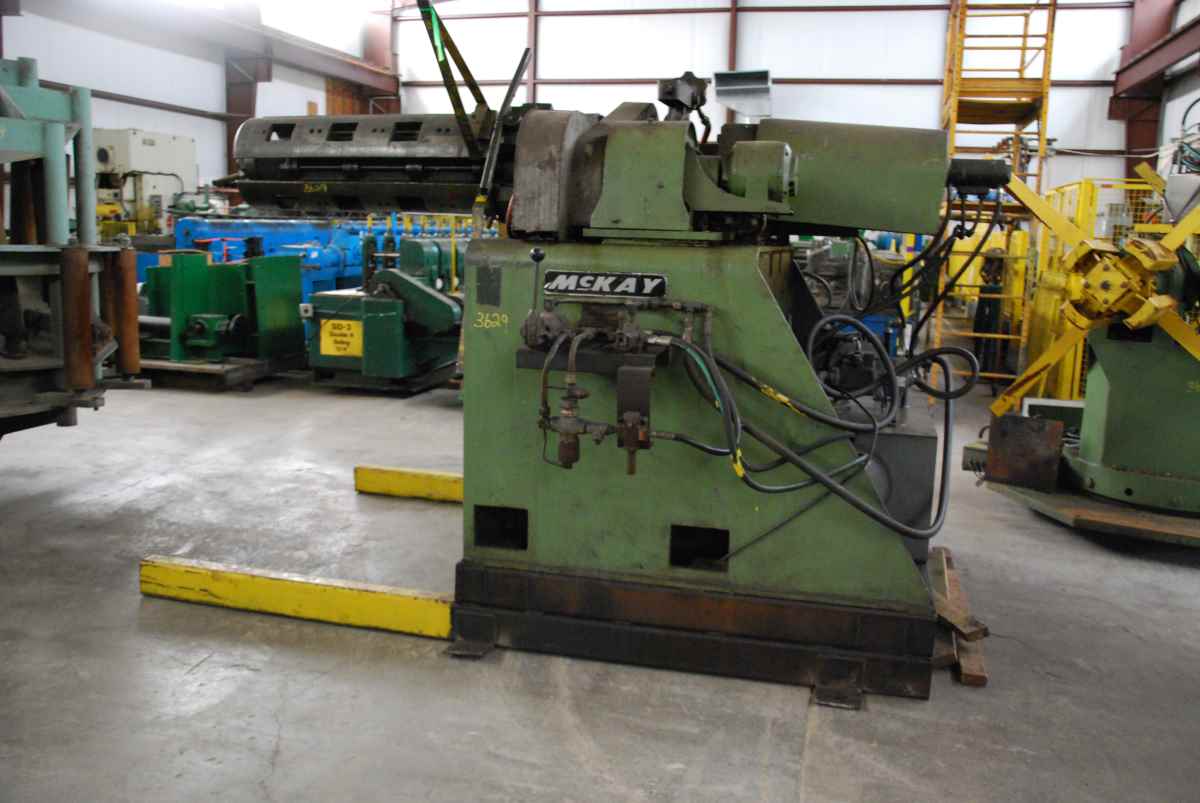

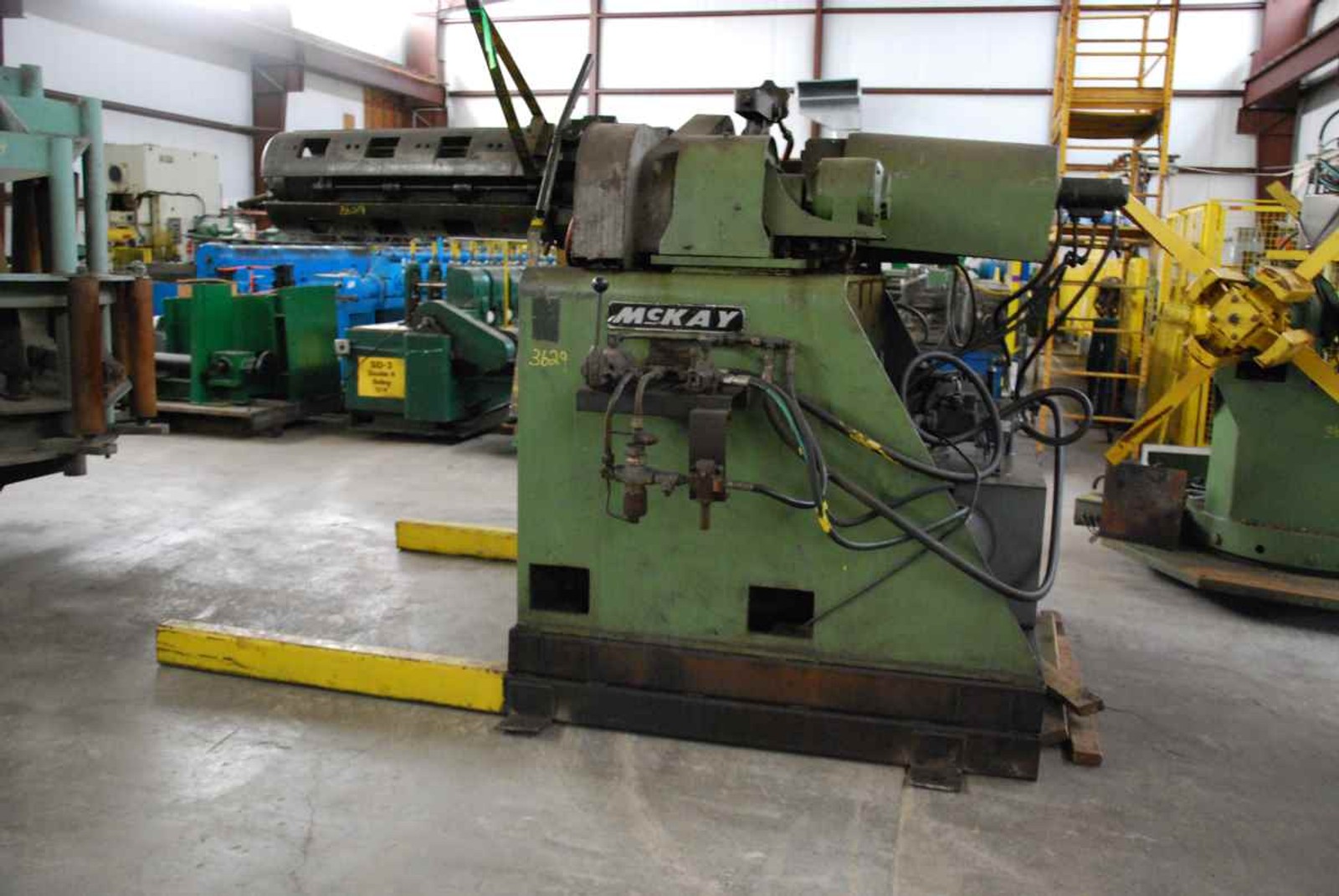

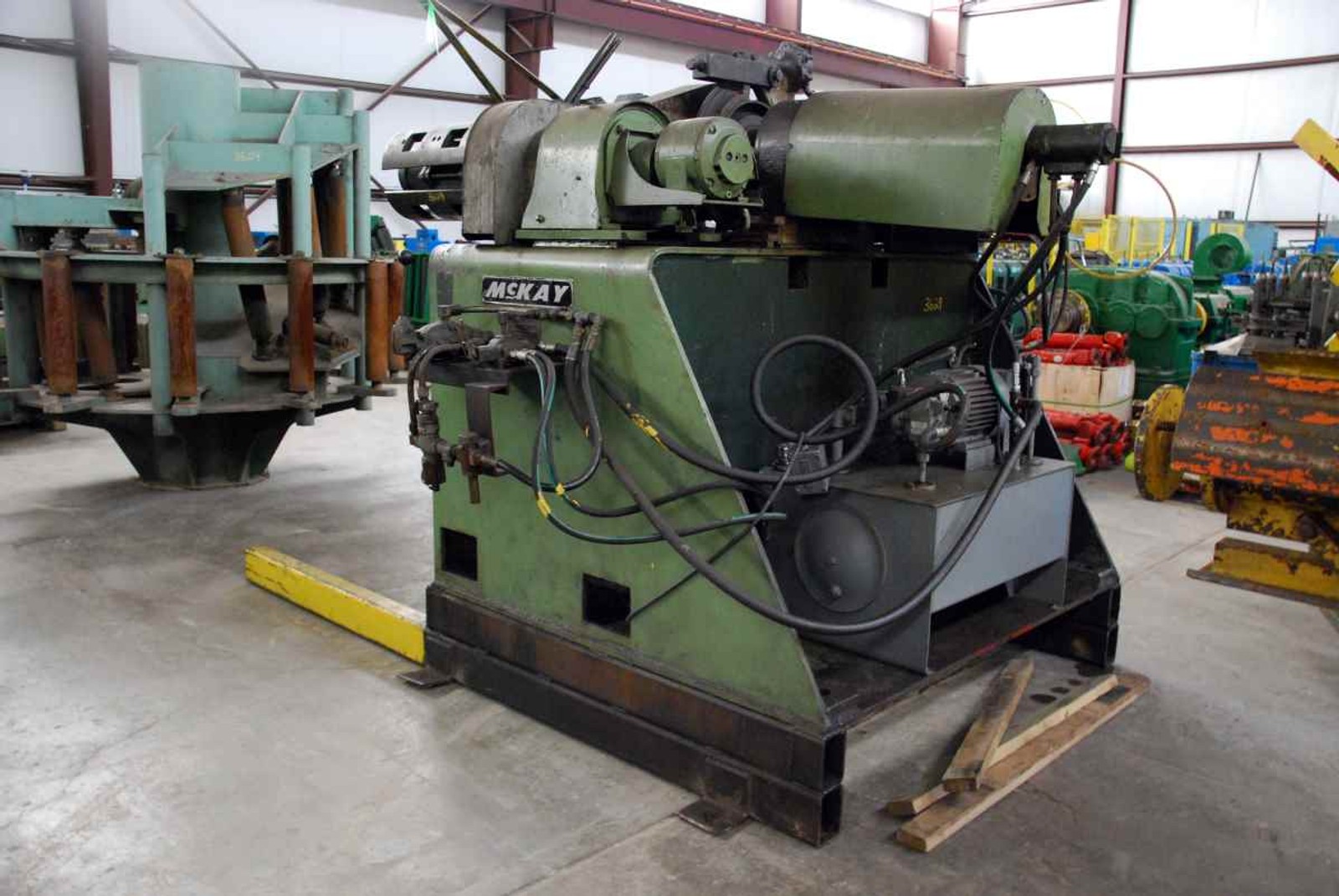

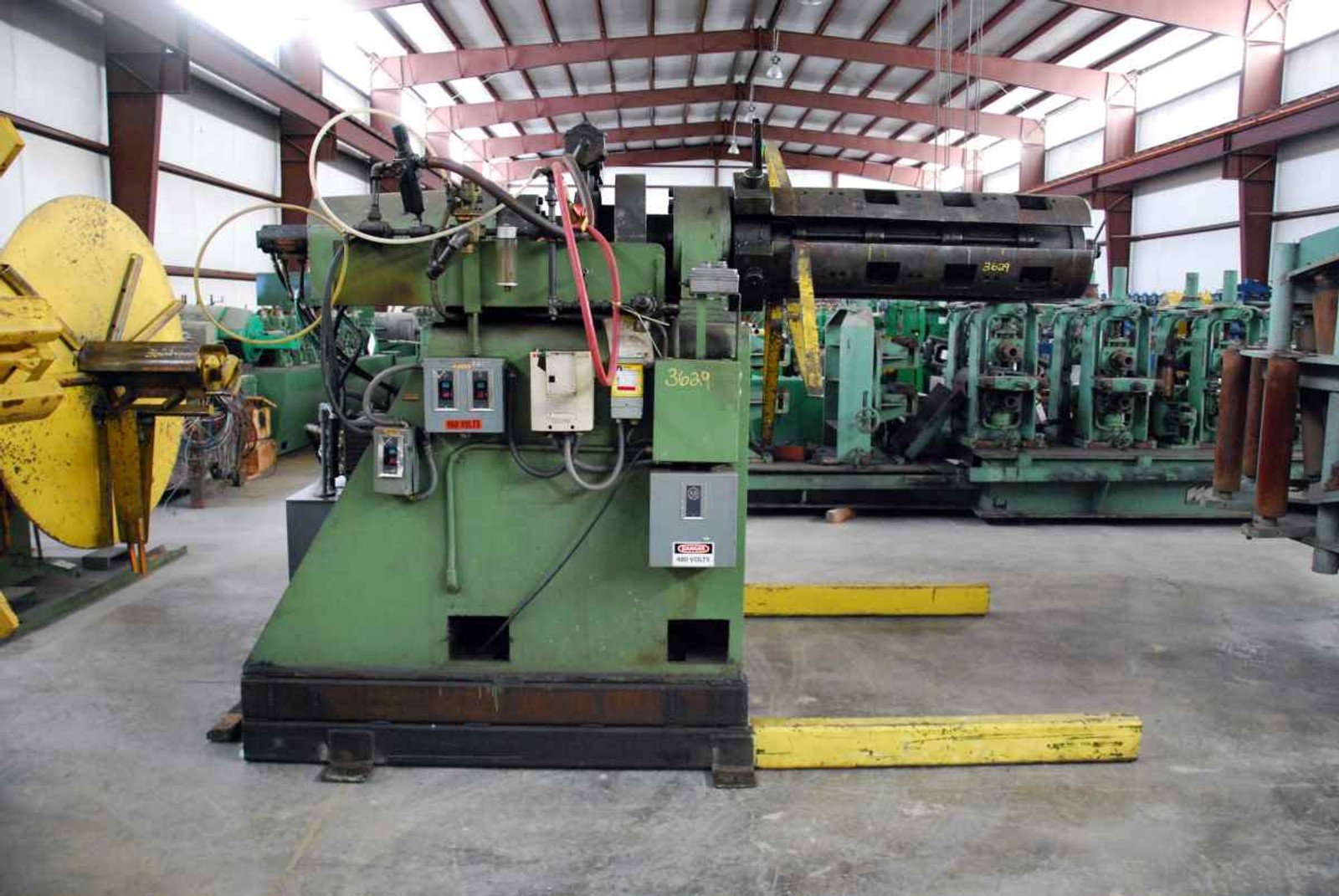

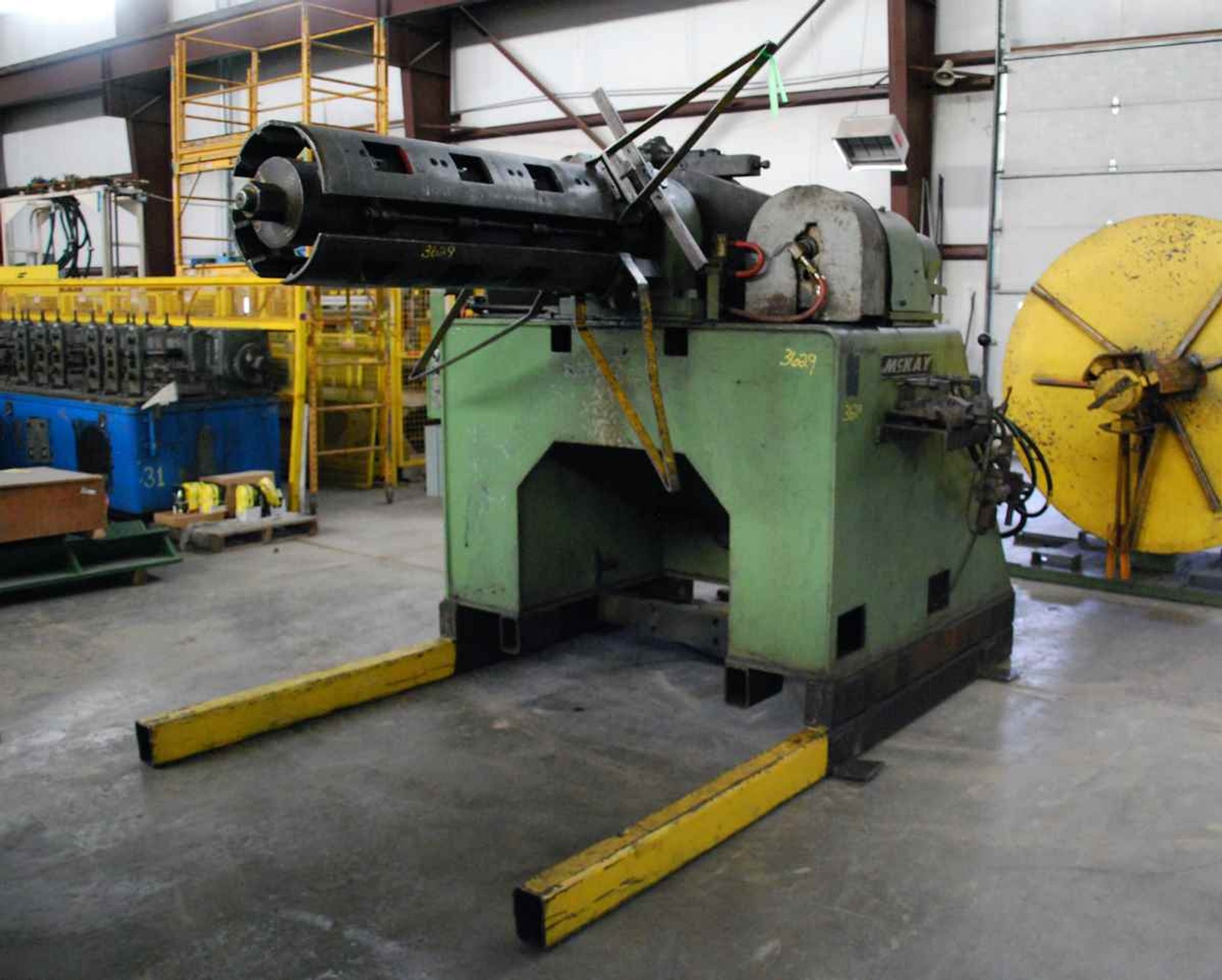

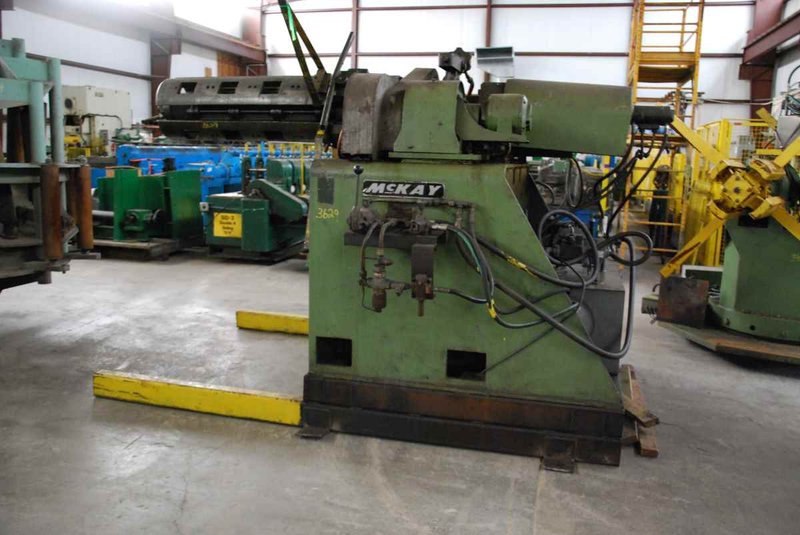

15,000 Lb. (est.) x 42" MCKAY Driven Hydraulic Single Uncoiler

Manufacturer

MCKAY

Type

UNCOILERS

Stock

3629

Model

None listed

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 3629
MANUFACTURER: MCKAY
MODEL NUMBER:
SERIAL NUMBER: 7605
YEAR:

SPECIFICATIONS:
Maximum Coil Weight: 15,000 Lbs. (Approximate)
Maximum Coil Width: 42″
Coil I.D. Range: 16″ – 22″
Maximum Coil O.D.: 96″

EQUIPPED WITH:

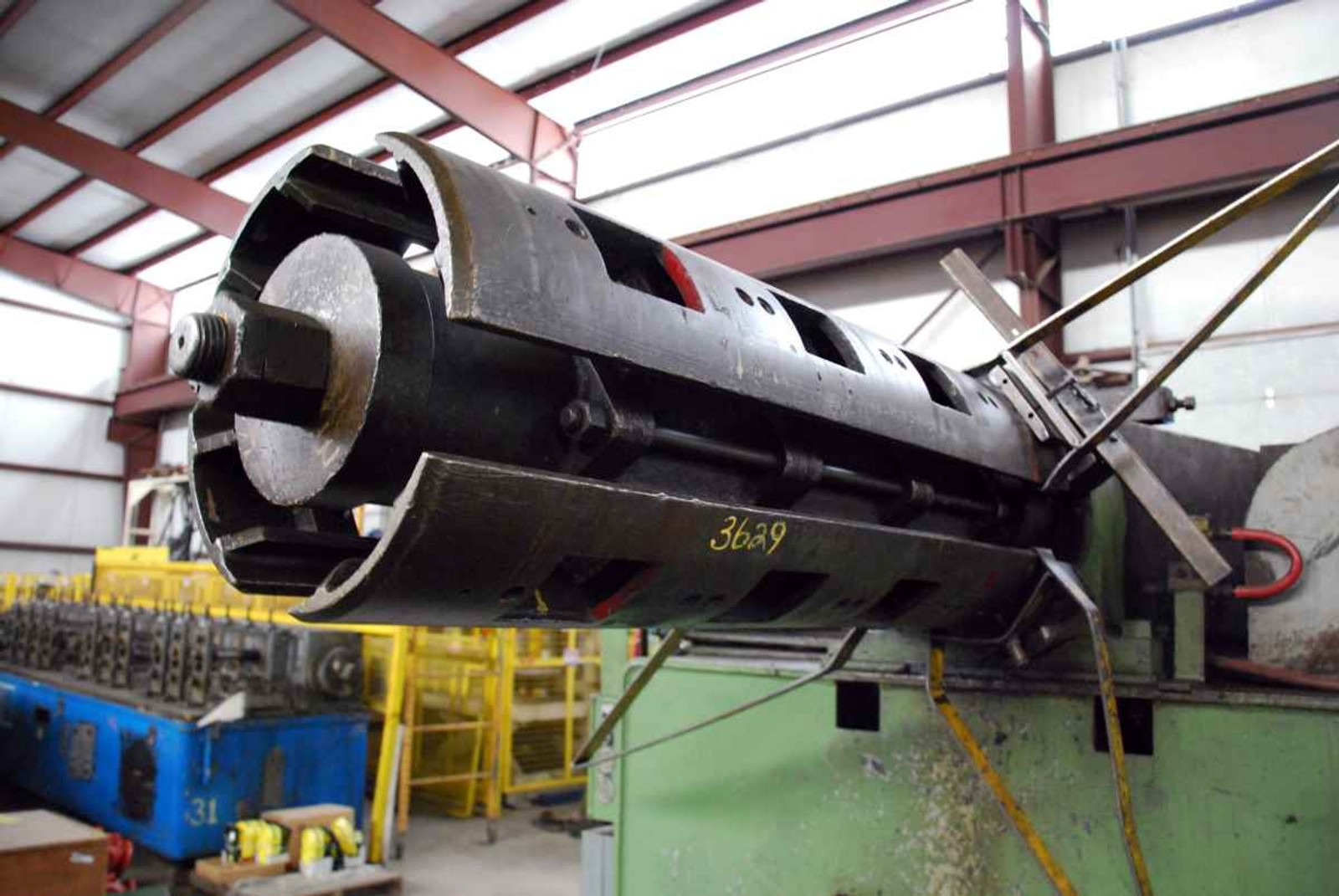

4 Arm Hydraulic Expansion
Hydraulic Unit
(3) Coil Keepers
Air Brake
Motor, 5 HP

OVERALL DIMENSIONS: 7′ x 9′ x 7′
APPROXIMATE WEIGHT: 1,500 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
