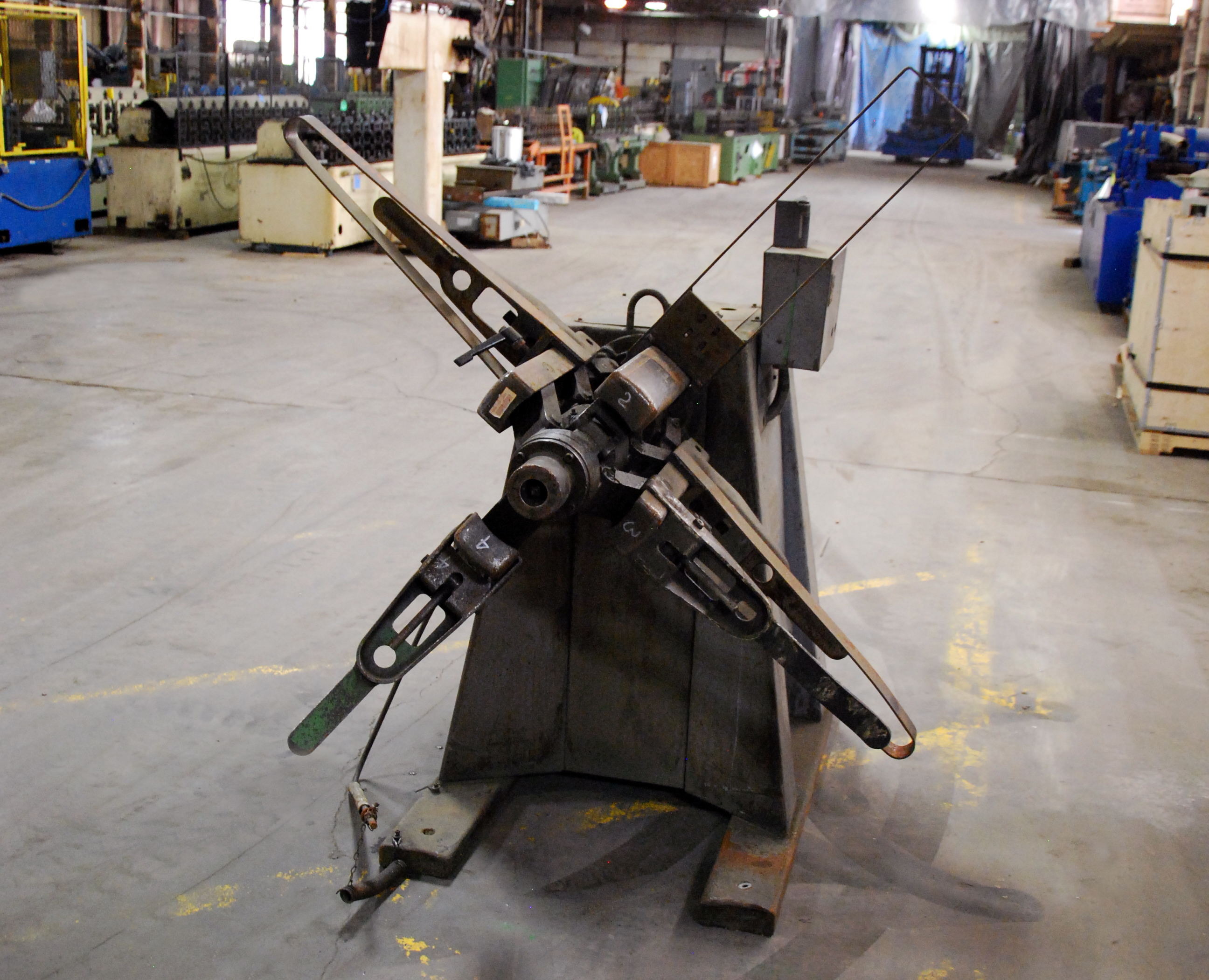

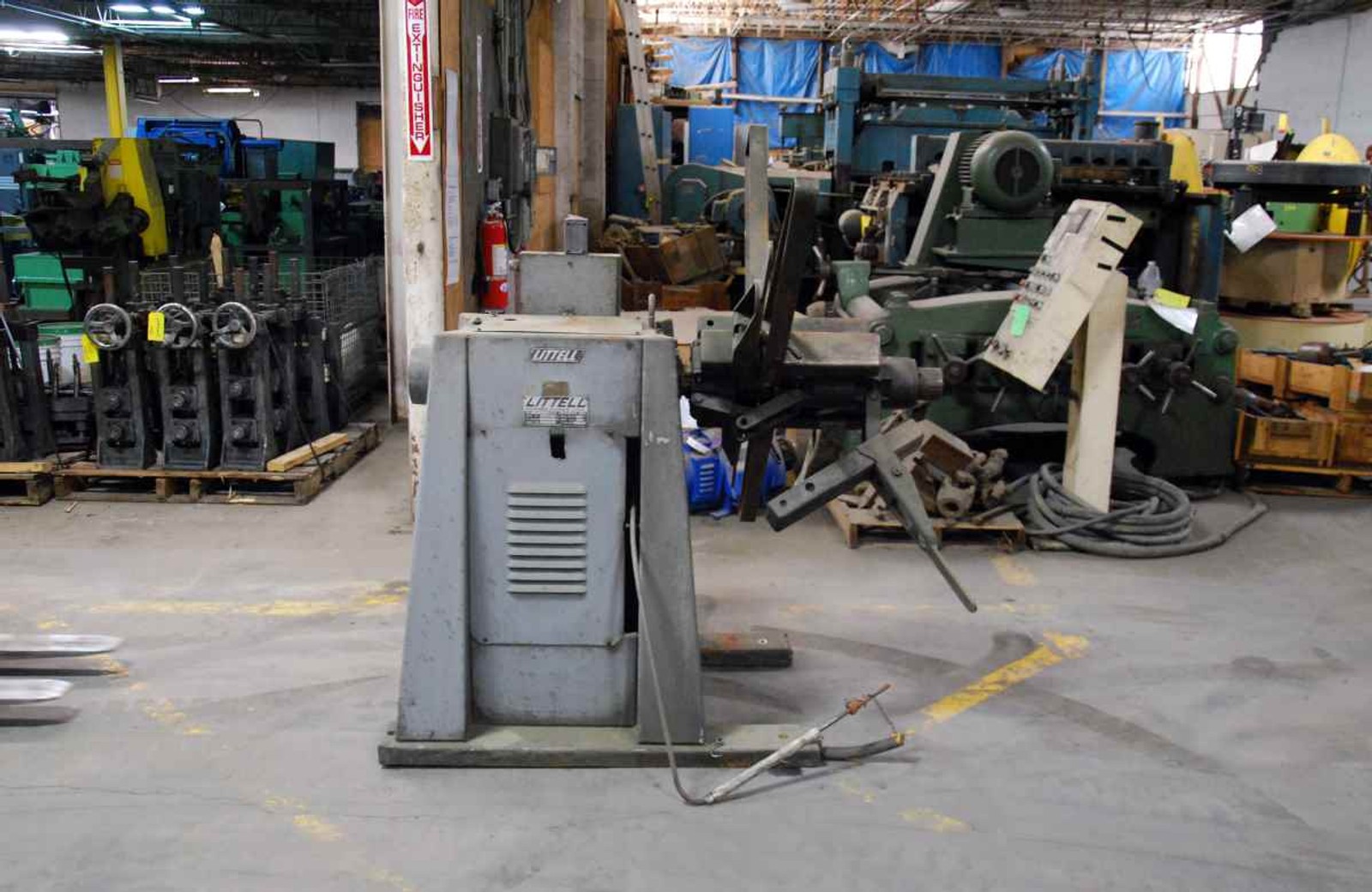

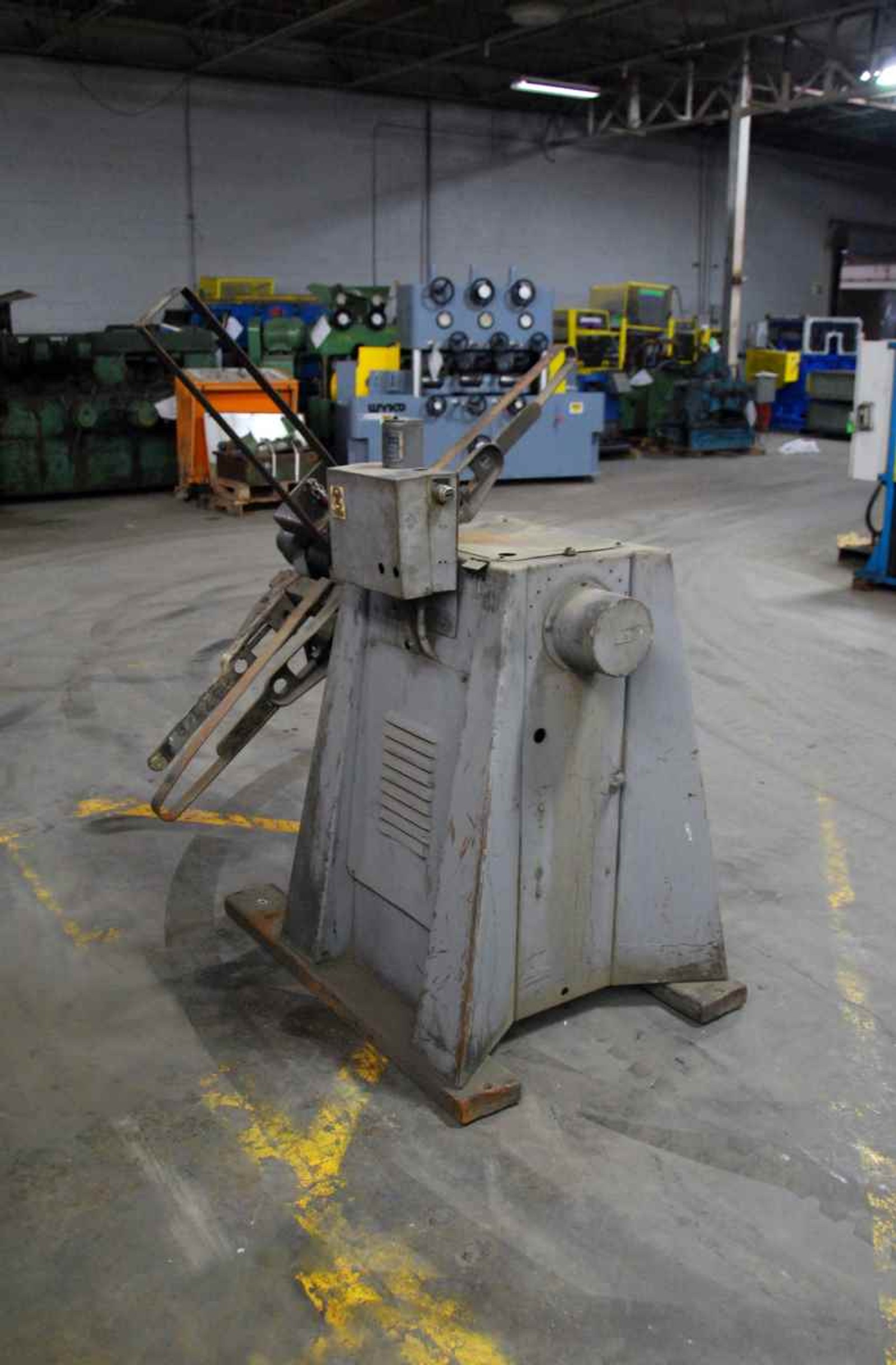

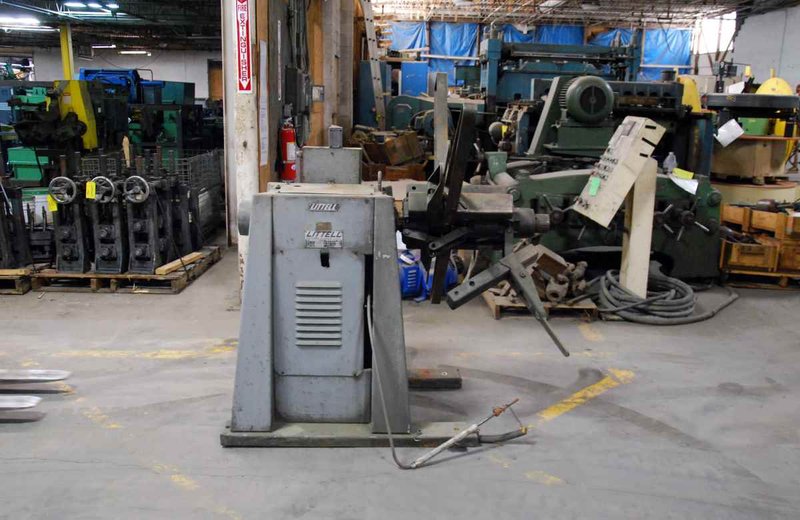

2,000 Lb. x 12" LITTELL #20-12 Single Uncoiler - Motorized

2,000 Lb. x 12" LITTELL #20-12 Single Uncoiler - Motorized

Name: 2,000 Lb. x 12" LITTELL #20-12 Single Uncoiler - Motorized
Brand: LITTELL
SKU: 3912

Manufacturer

LITTELL

Spec Sheet

UTUBE NUMBER: 3912
MANUFACTURER: LITTELL
MODEL NUMBER: 20-12
SERIAL NUMBER: 83925-78

PARTS MACHINE

SPECIFICATIONS:
Maximum Coil Weight: 2,000 Lbs.
Maximum Coil Width: 12″
Coil I.D. Range: 15″ – 20″
Maximum Coil O.D.: 48″

EQUIPPED WITH:
Manual 4-Arm Expansion
Electric Brake
4-Keepers
Motor
Dancer Arm

NOTE: Needs work, missing pins in all 4-arms.

OVERALL DIMENSIONS: 4′ x 4′ x 5′
APPROXIMATE WEIGHT: 1,500 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
