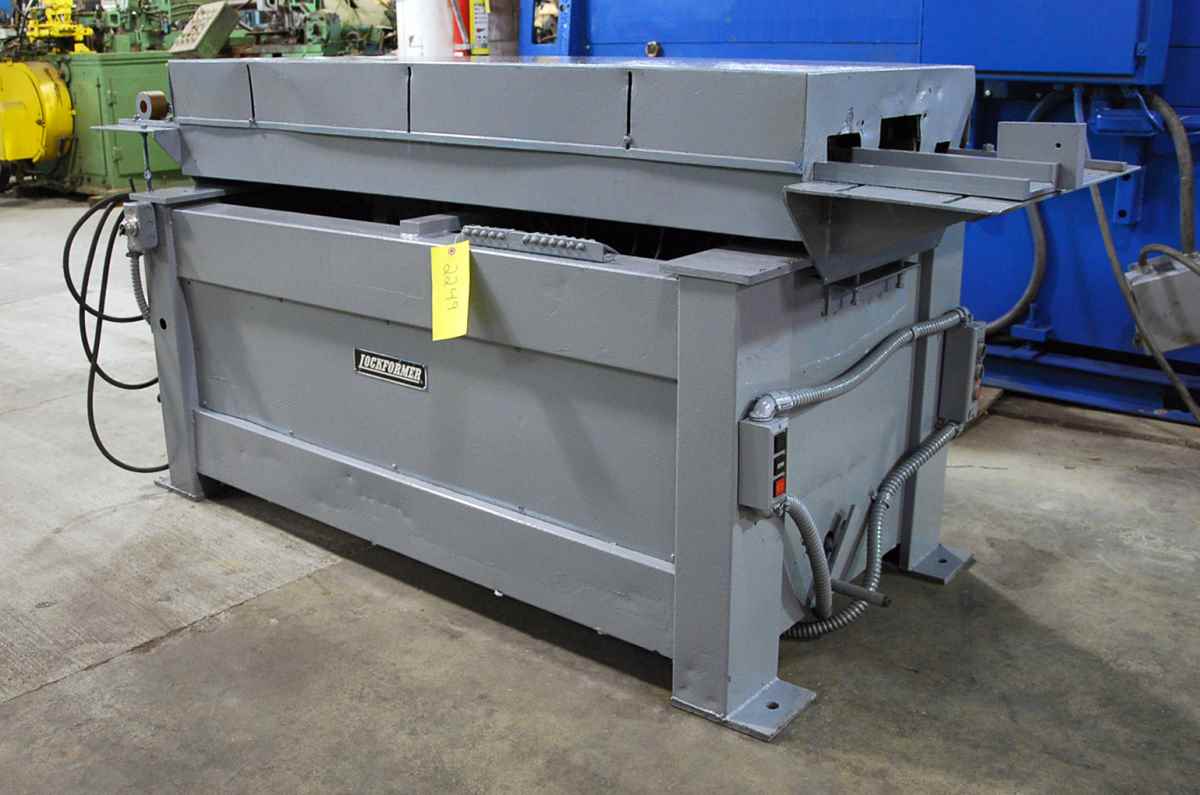

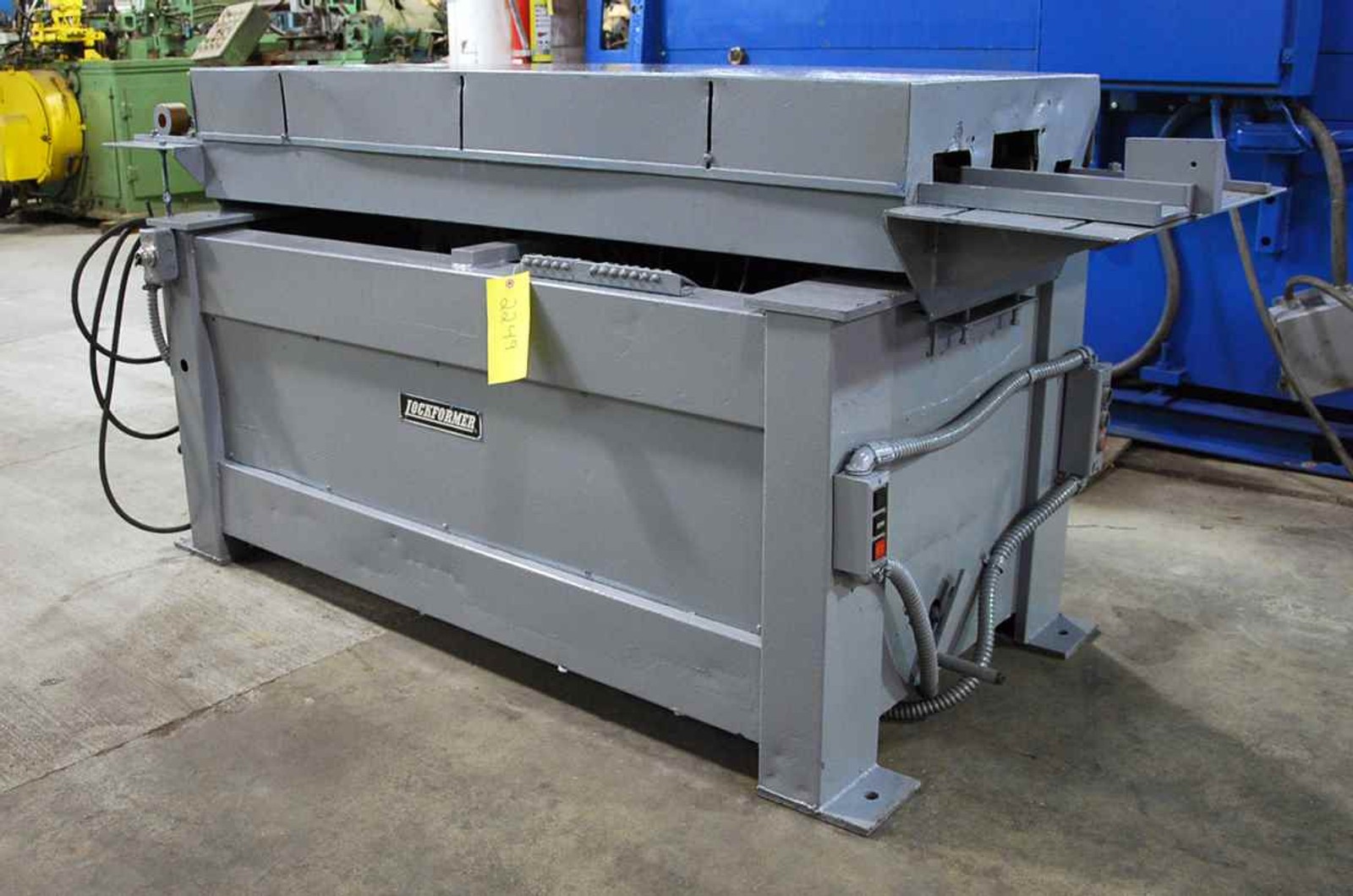

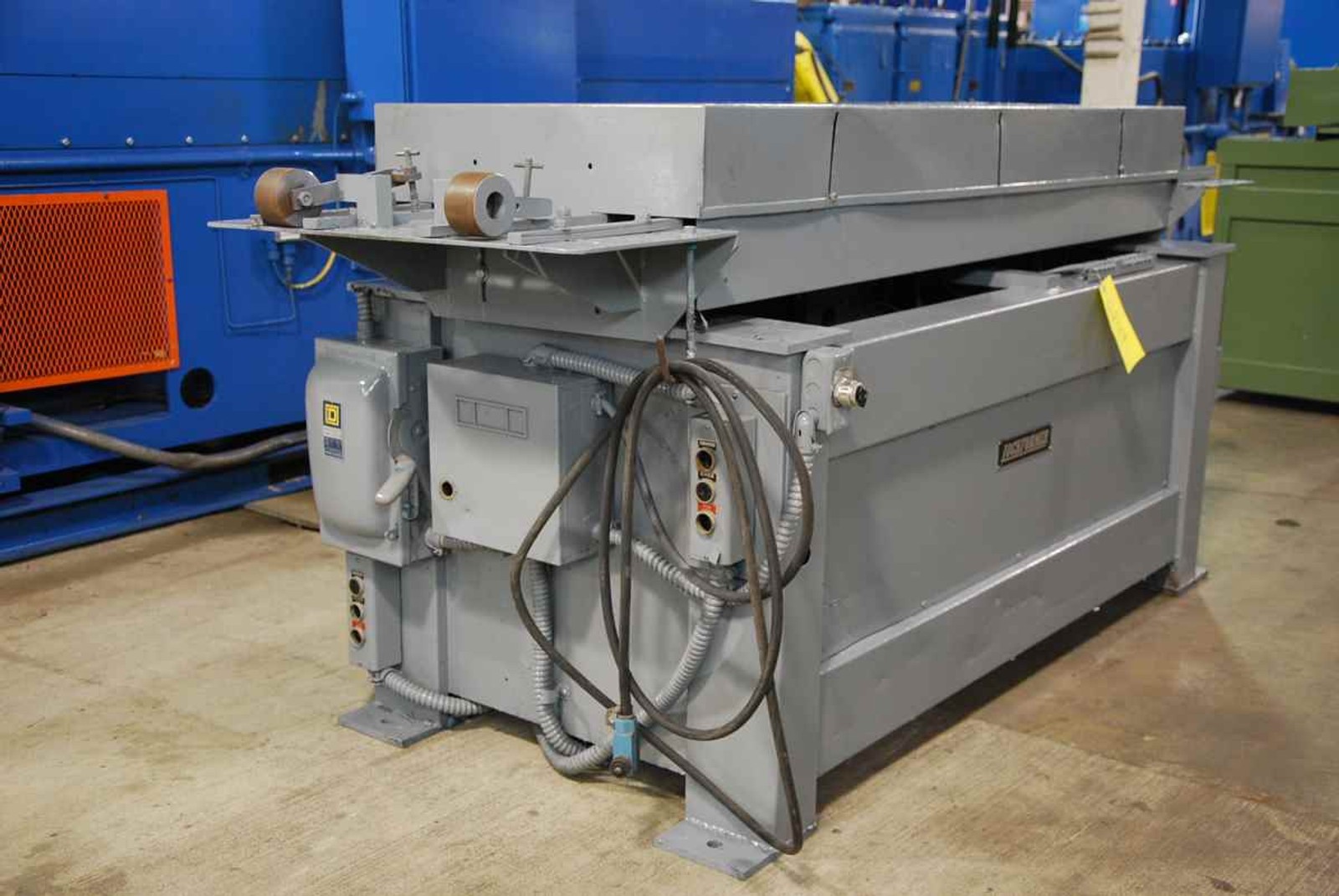

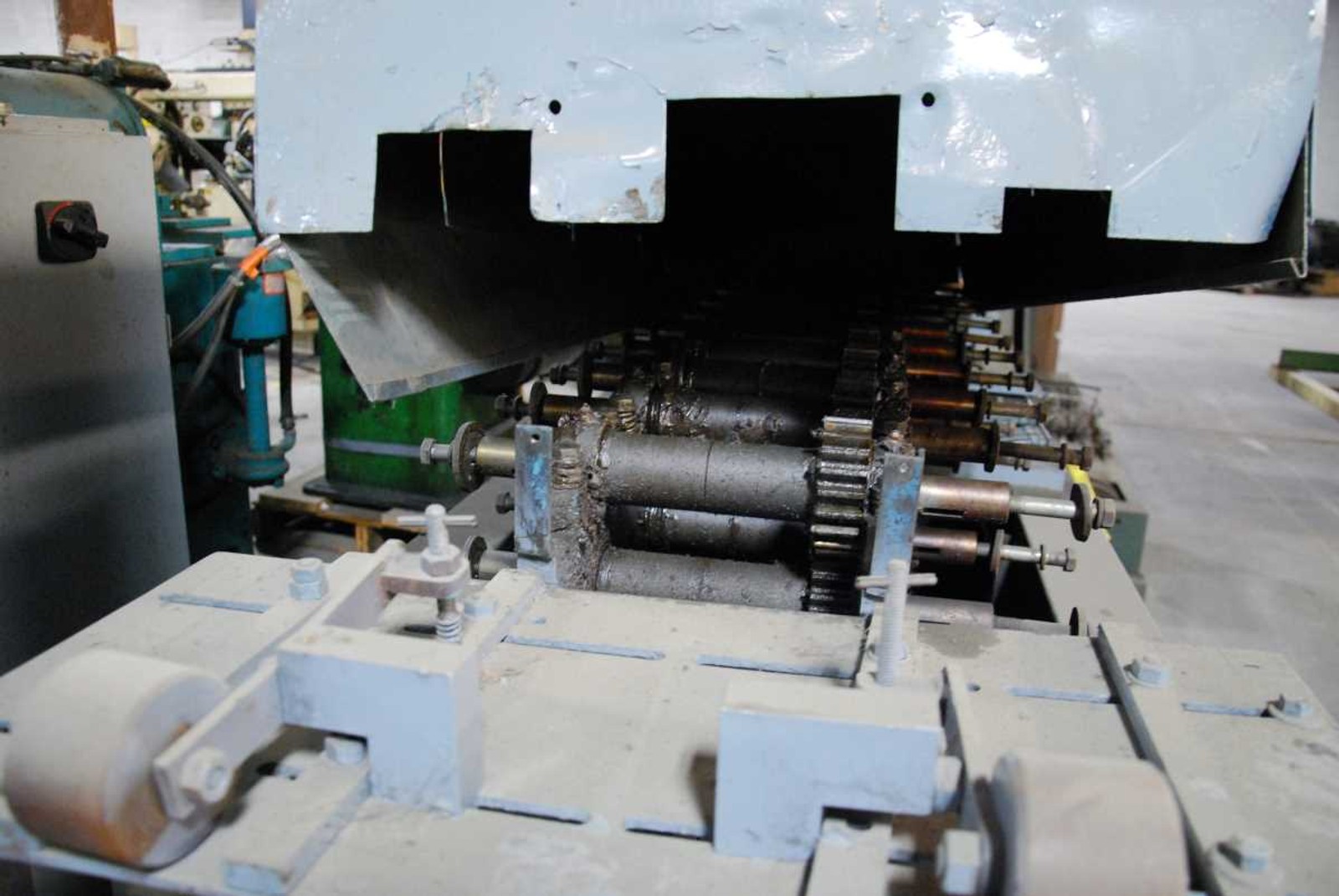

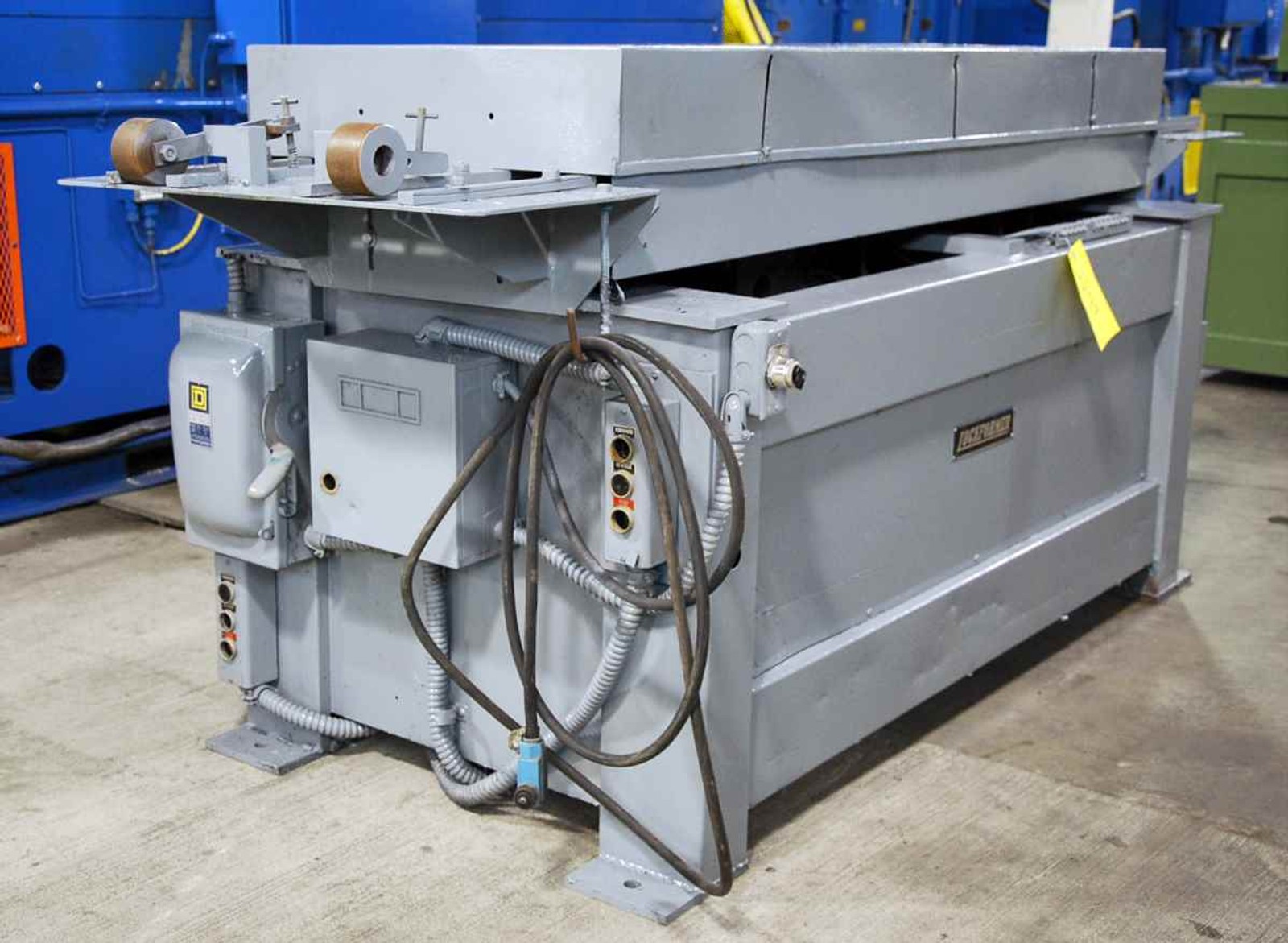

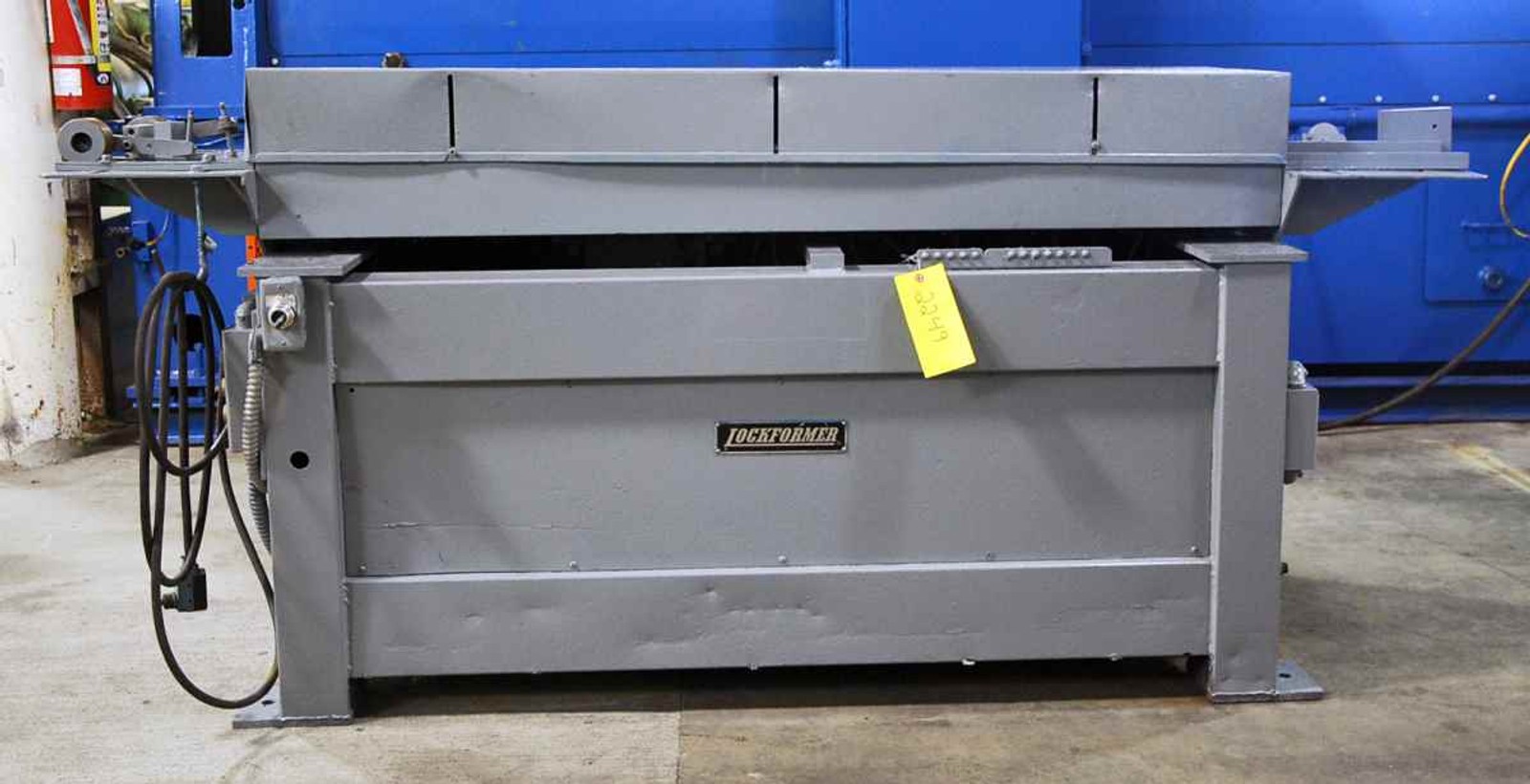

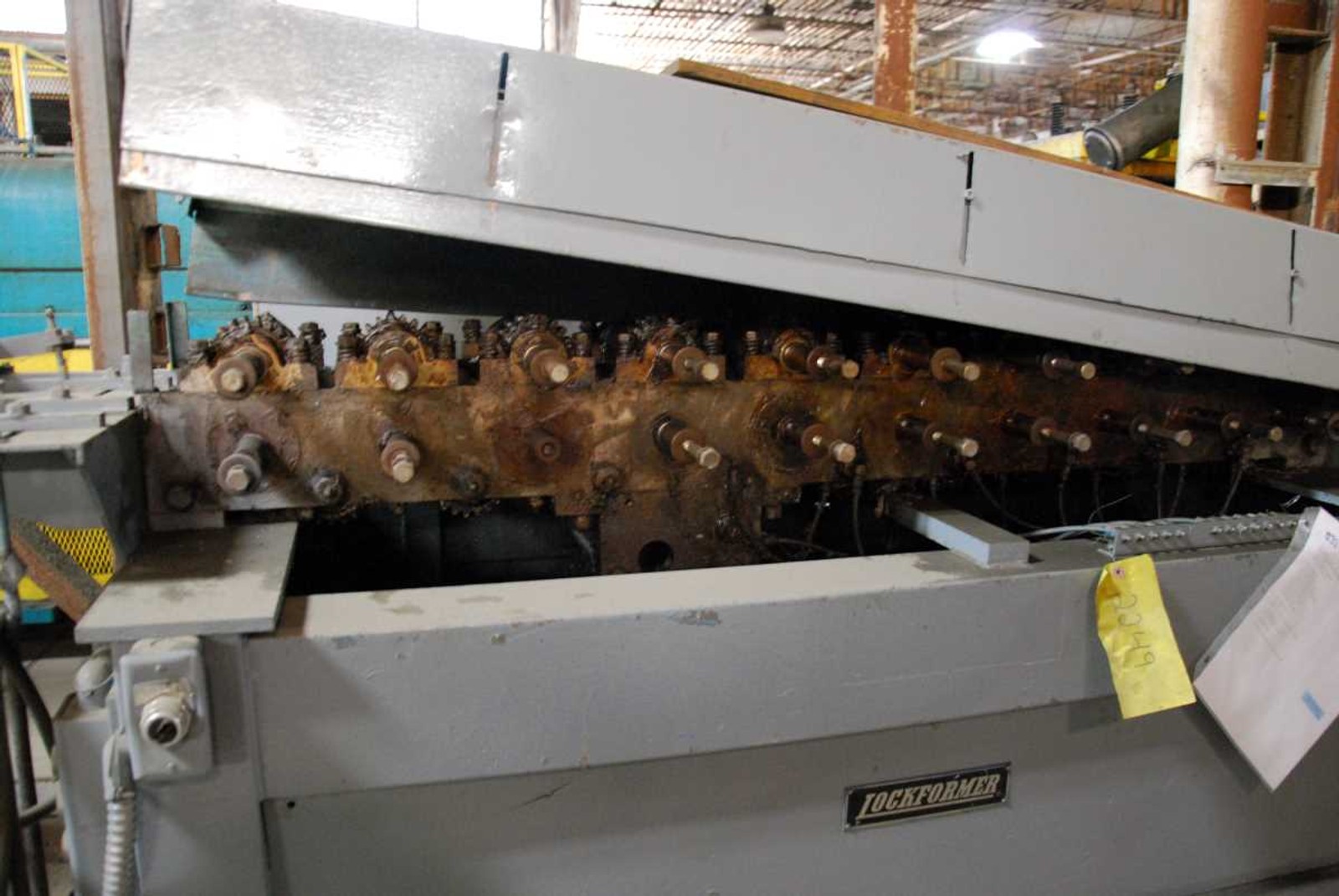

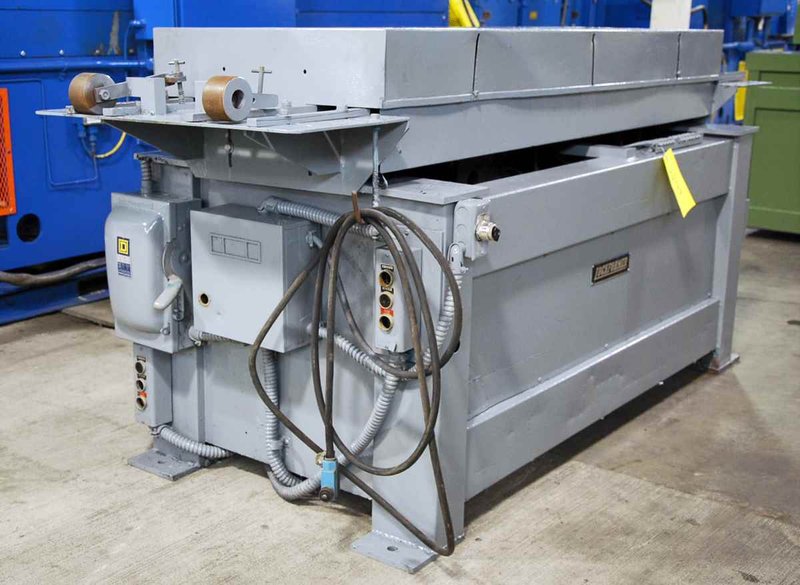

10 Stand x 1-1/8" x 6" LOCKFORMER Roll former

10 Stand x 1-1/8" x 6" LOCKFORMER Roll former

Name: 10 Stand x 1-1/8" x 6" LOCKFORMER Roll former
Brand: LOCKFORMER
SKU: 2249

Manufacturer

LOCKFORMER

Spec Sheet

UTUBE NUMBER: 2249
MANUFACTURER: LOCKFORMER
SERIAL NUMBER: SO 1383

SPECIFICATIONS:
Number of Stands: 10
Line Direction: Right to Left
Roll Shaft Diameter: 1-1/8"
Roll Space: 6" Center, 2-1/2" Outsides
Horizontal Centers: 6"
Vertical Center: 3-1/2"
Base to Lower Shaft: 3-1/4"
Shaft Keyway Size: 1/4"
Capacity: 20 Gauge
Gear Driven, Equal Geared

EQUIPPED WITH:
Strip Guide
Motor: 5 HP, 208, 220 / 440 / 3 / 60 – 1730 RPM

CONDITION: Good

OVERALL DIMENSIONS: 7′ 3" x 3′ x 3′ 4"
APPROXIMATE WEIGHT: 2,000 Lb.

LOCATION: Universal Warehouse, Perrysburg, Ohio

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
