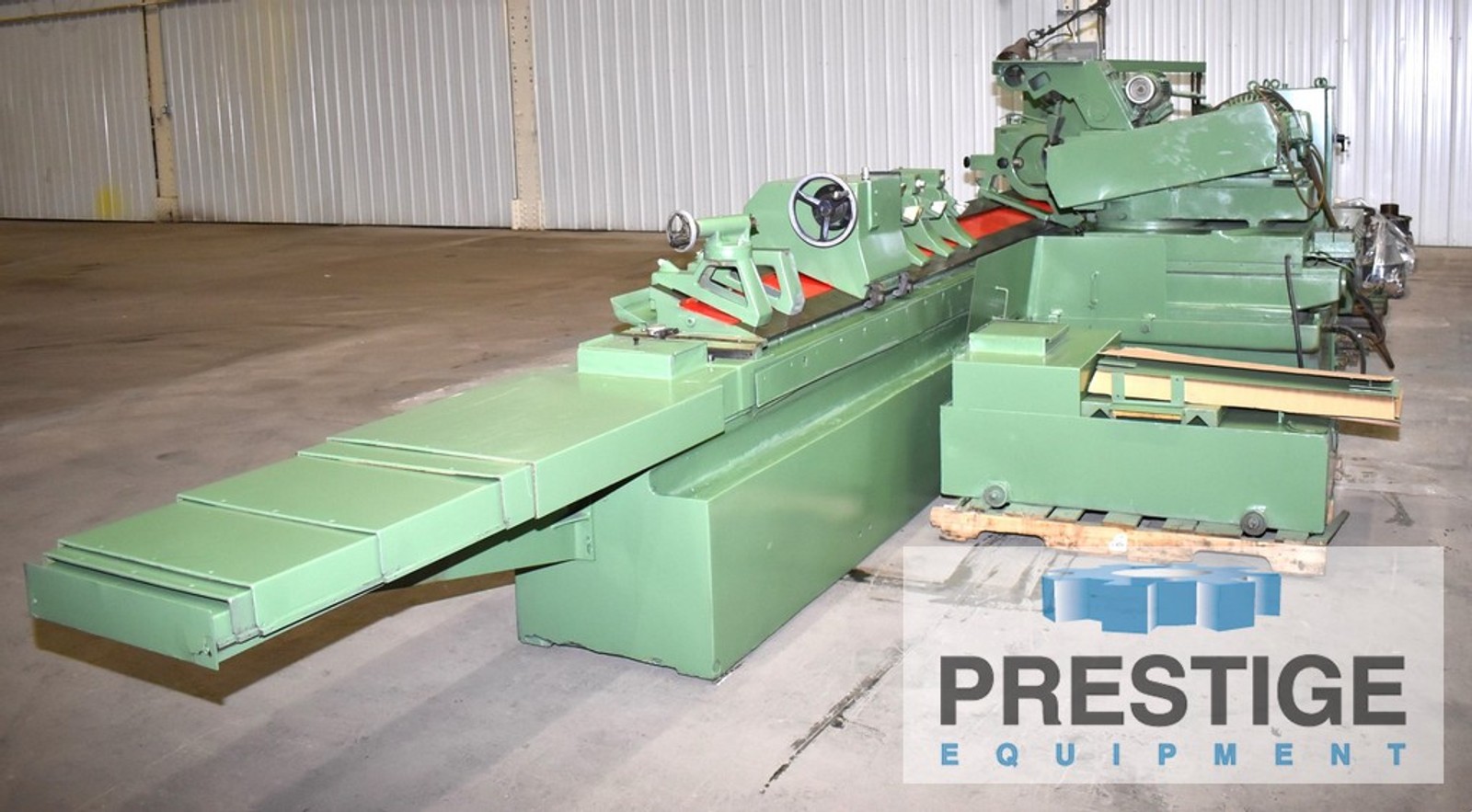

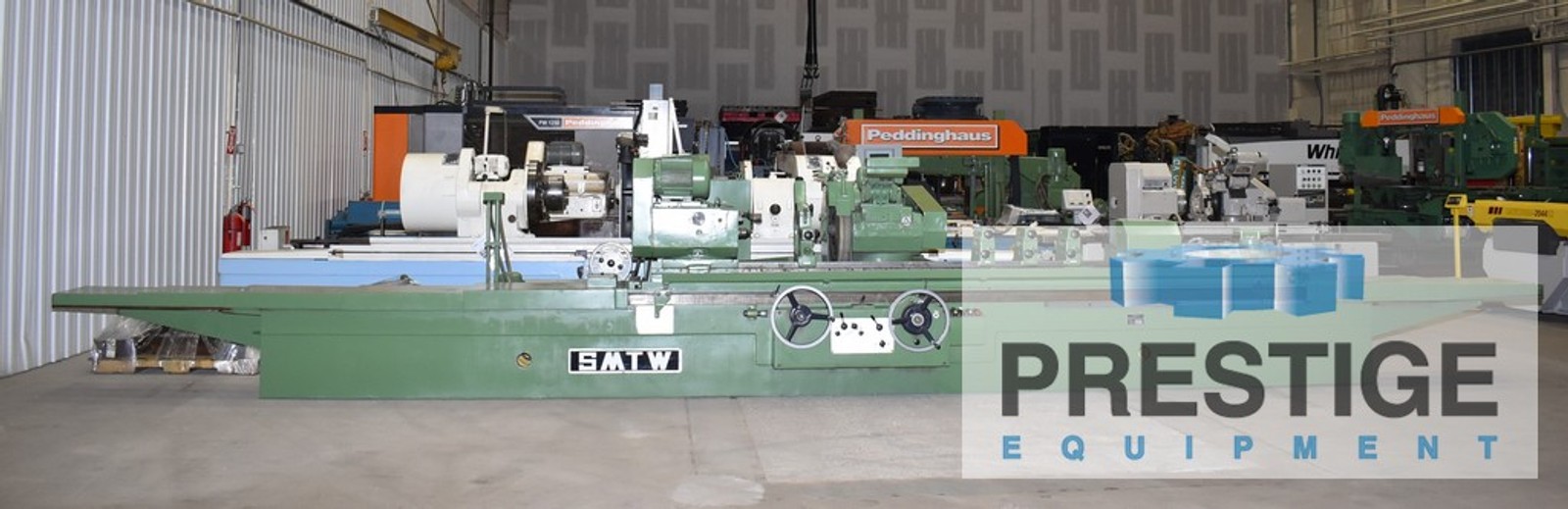

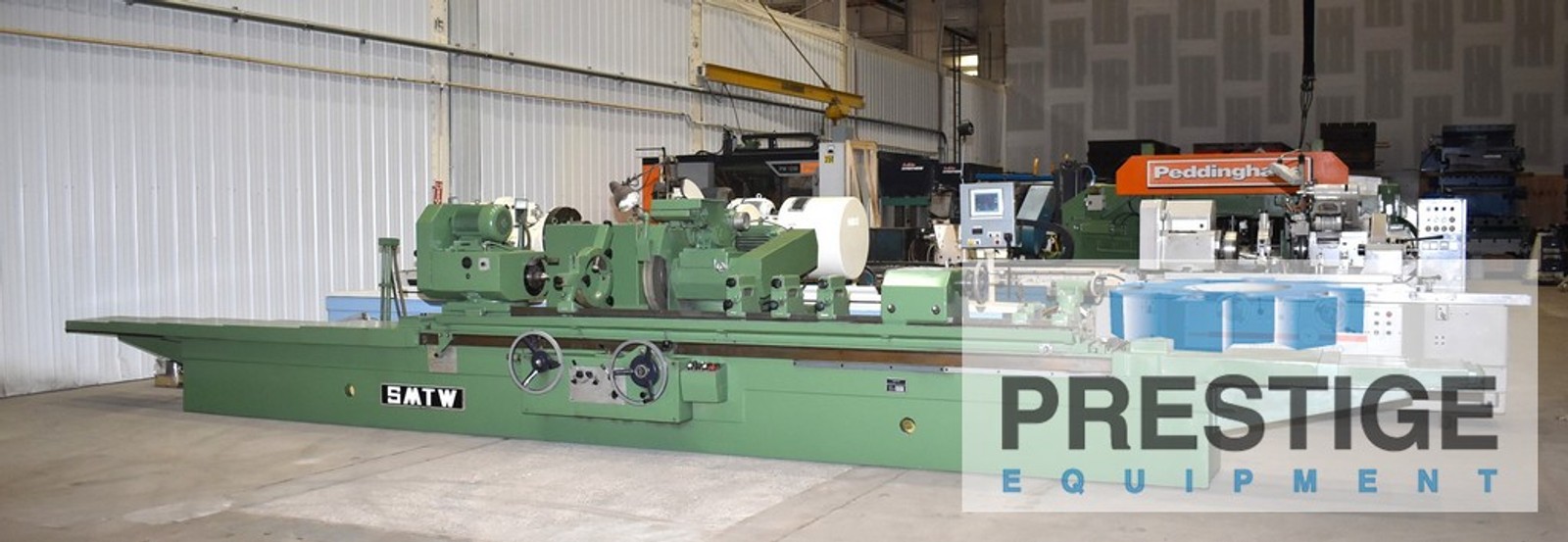

SMTW ECOTECH M1450BX120 Universal Cylindrical Grinder, 20" x 120", Head Swivel, Internal Att., Taper, Coolant, #32732

Manufacturer

SMTW

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, UNIVERSAL

Stock

32732

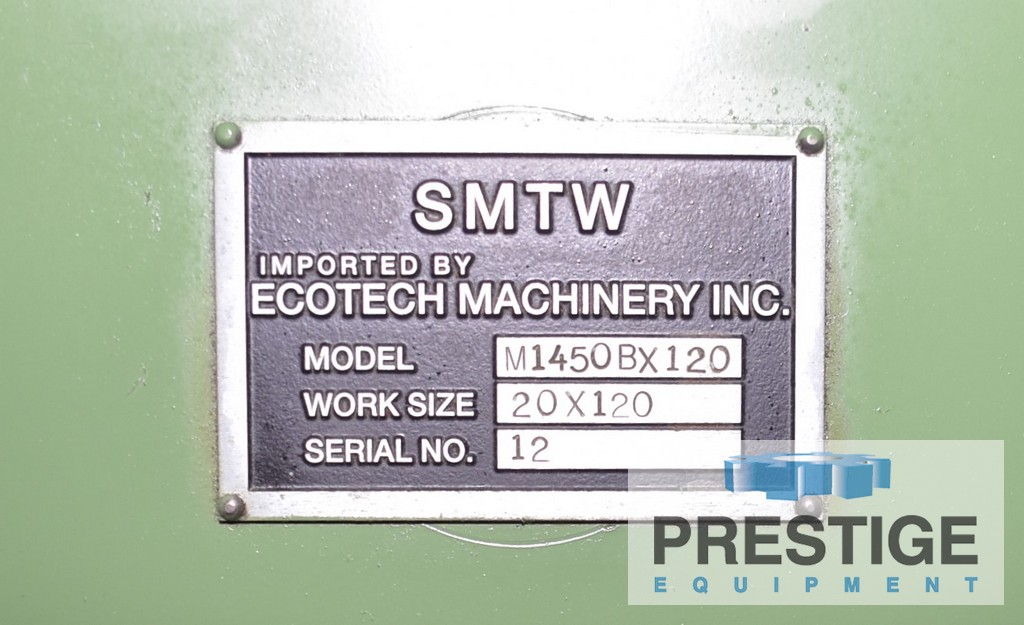

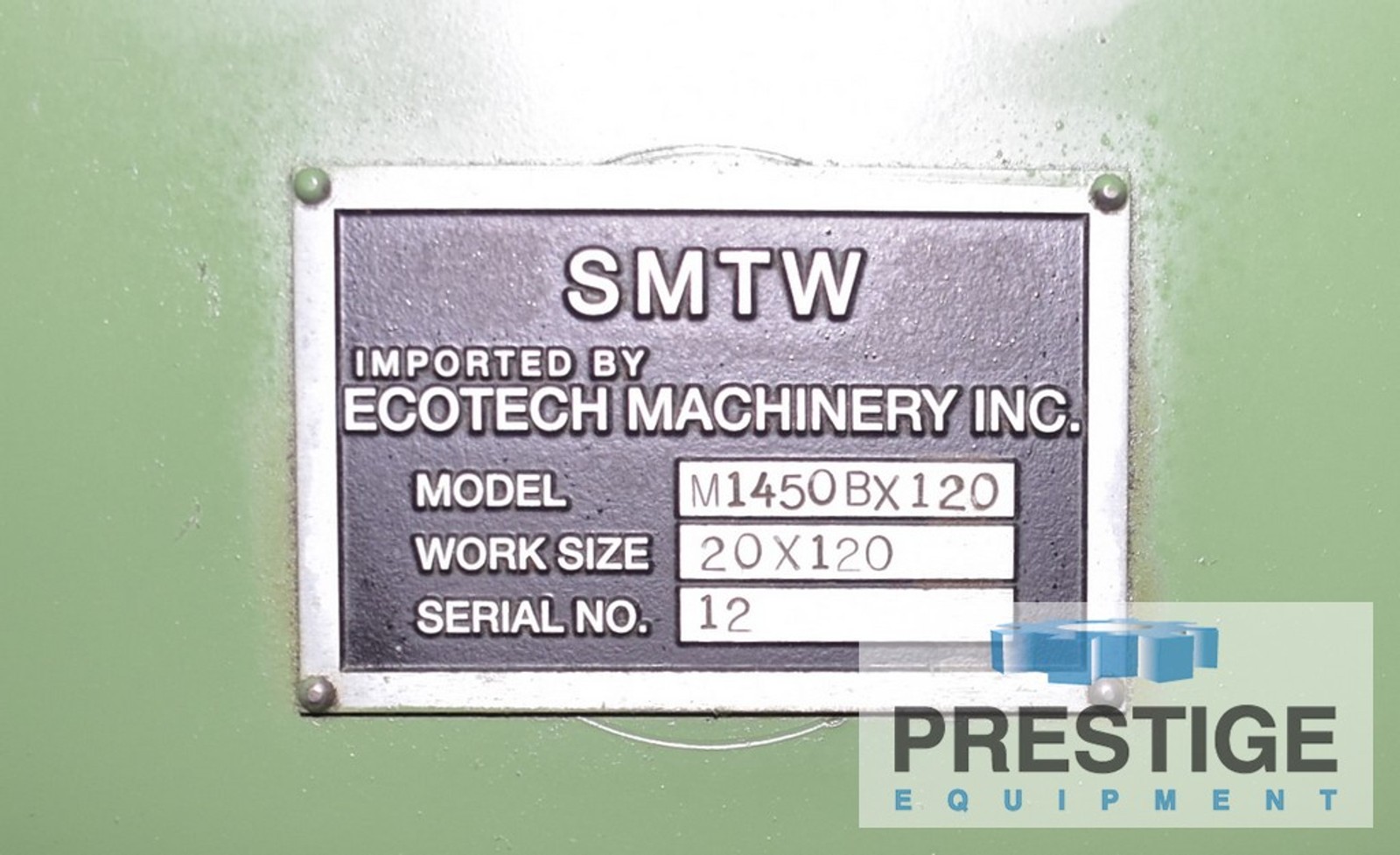

Model

M1450BX120

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32732

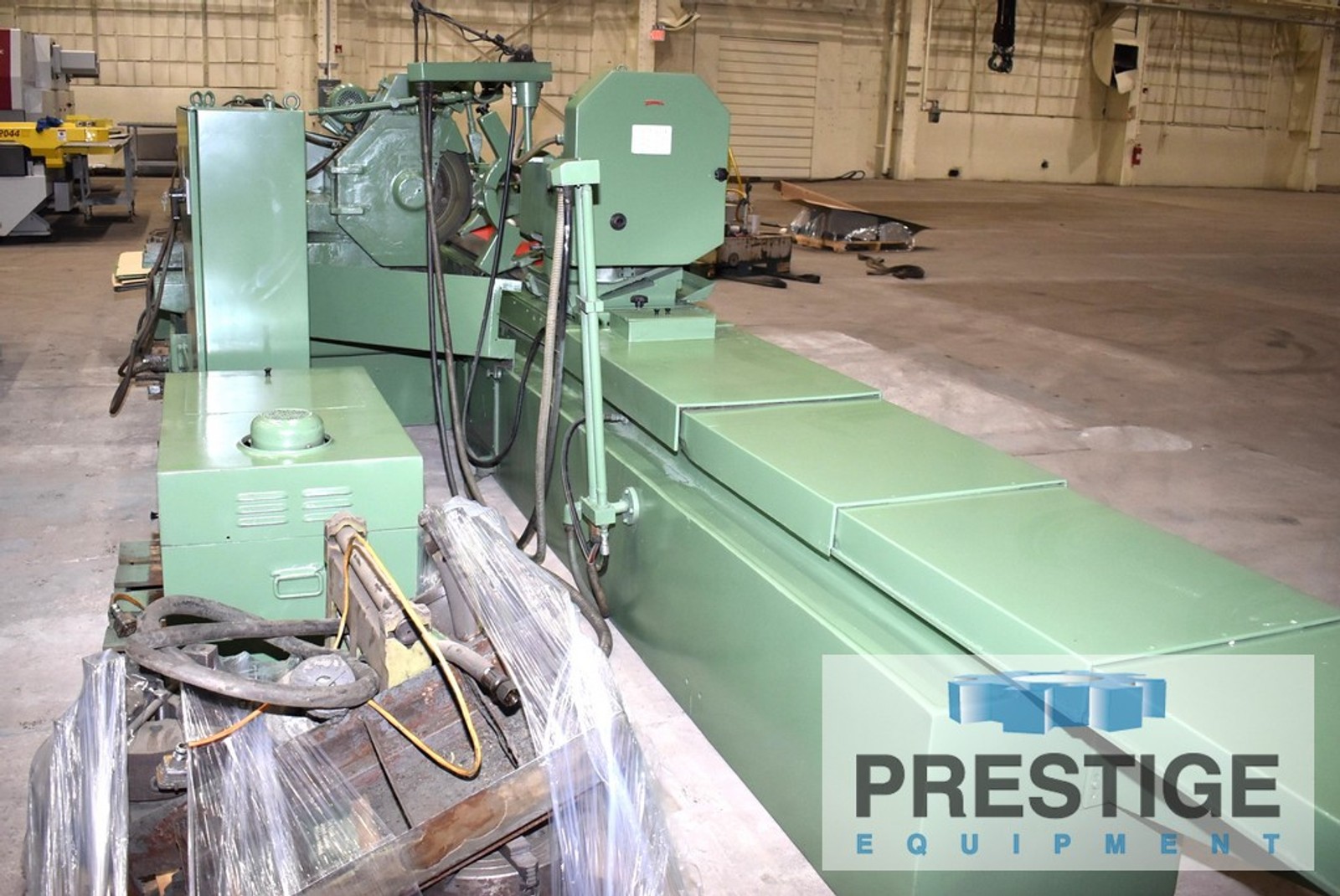

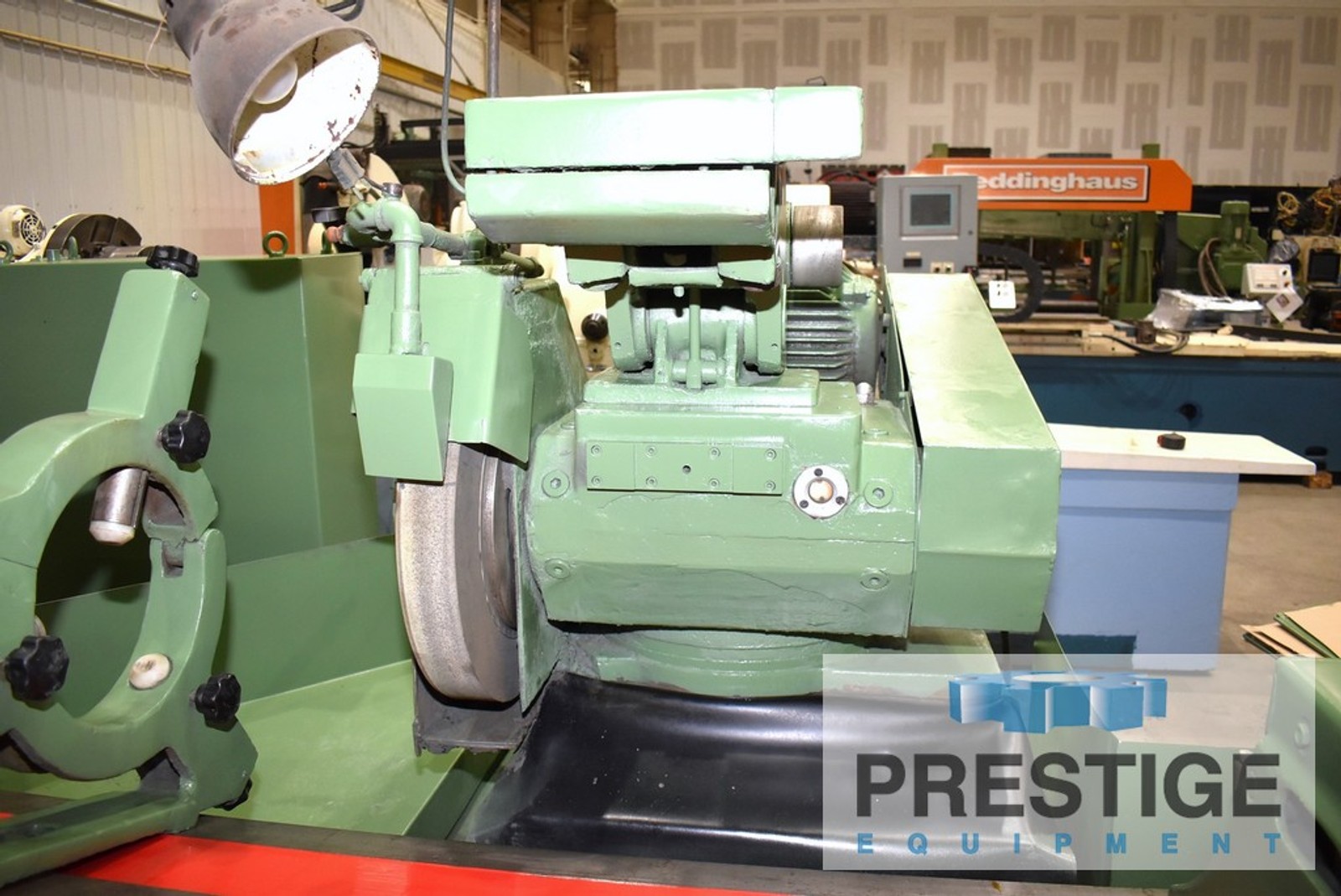

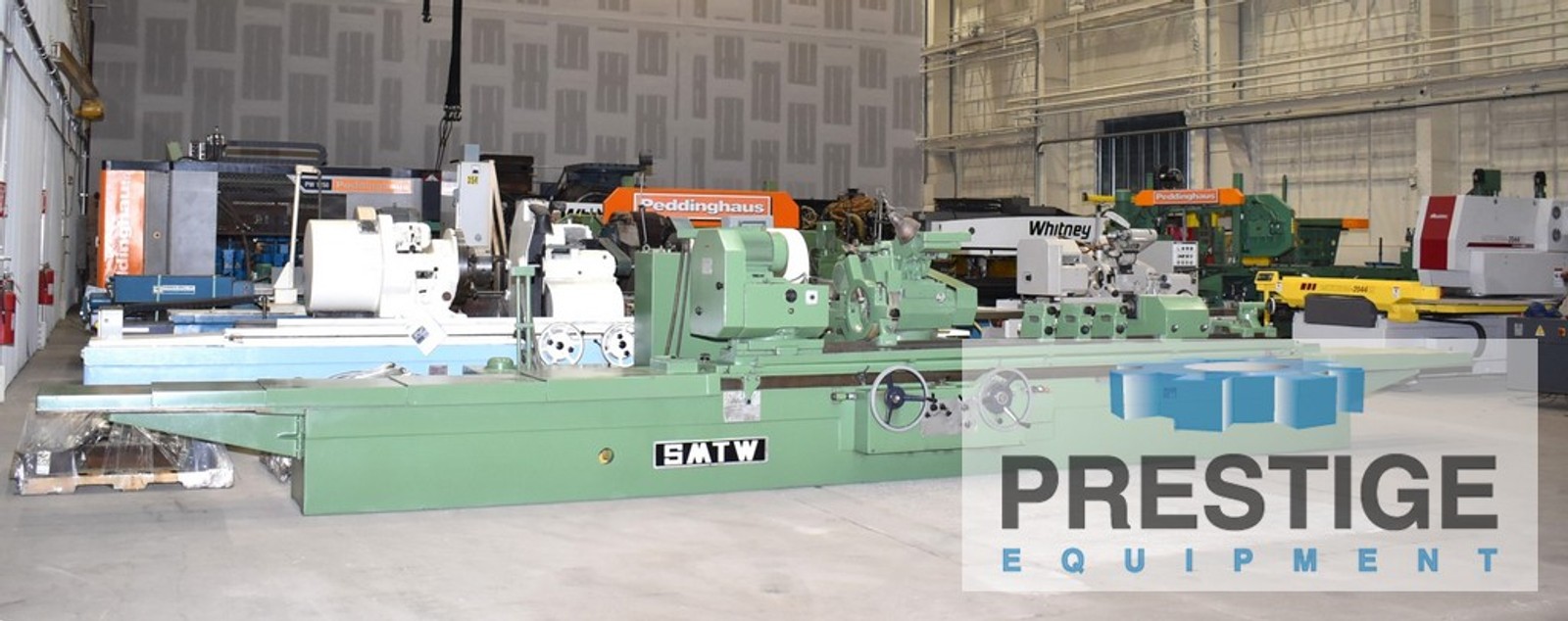

SMTW ECOTECH M1450BX120 20" x 120" Universal Cylindrical Grinder With Internal Attachment

FEATURES:
Internal Grinding Attachment
Table Taper Swivel
Dresser
Coolant System

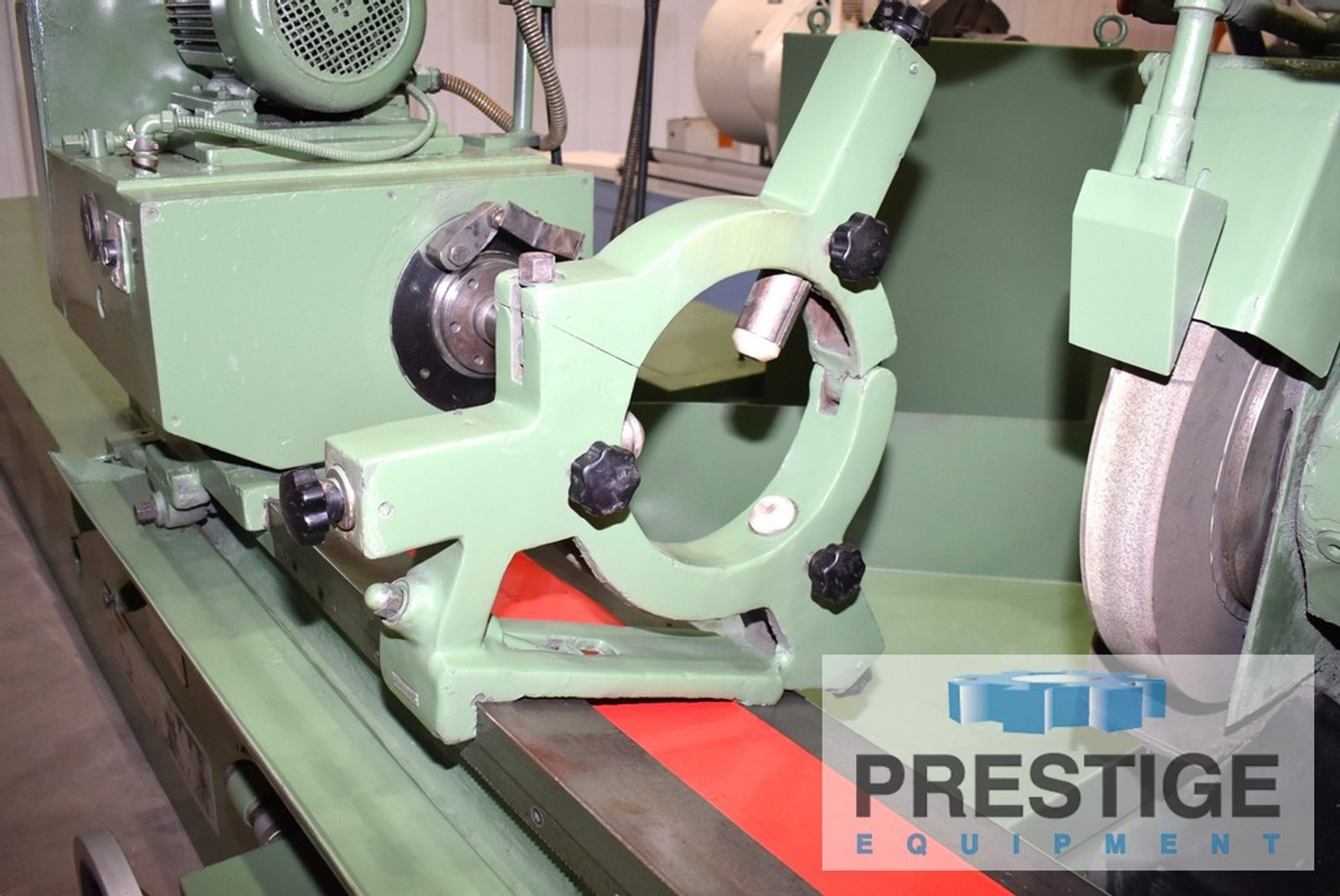

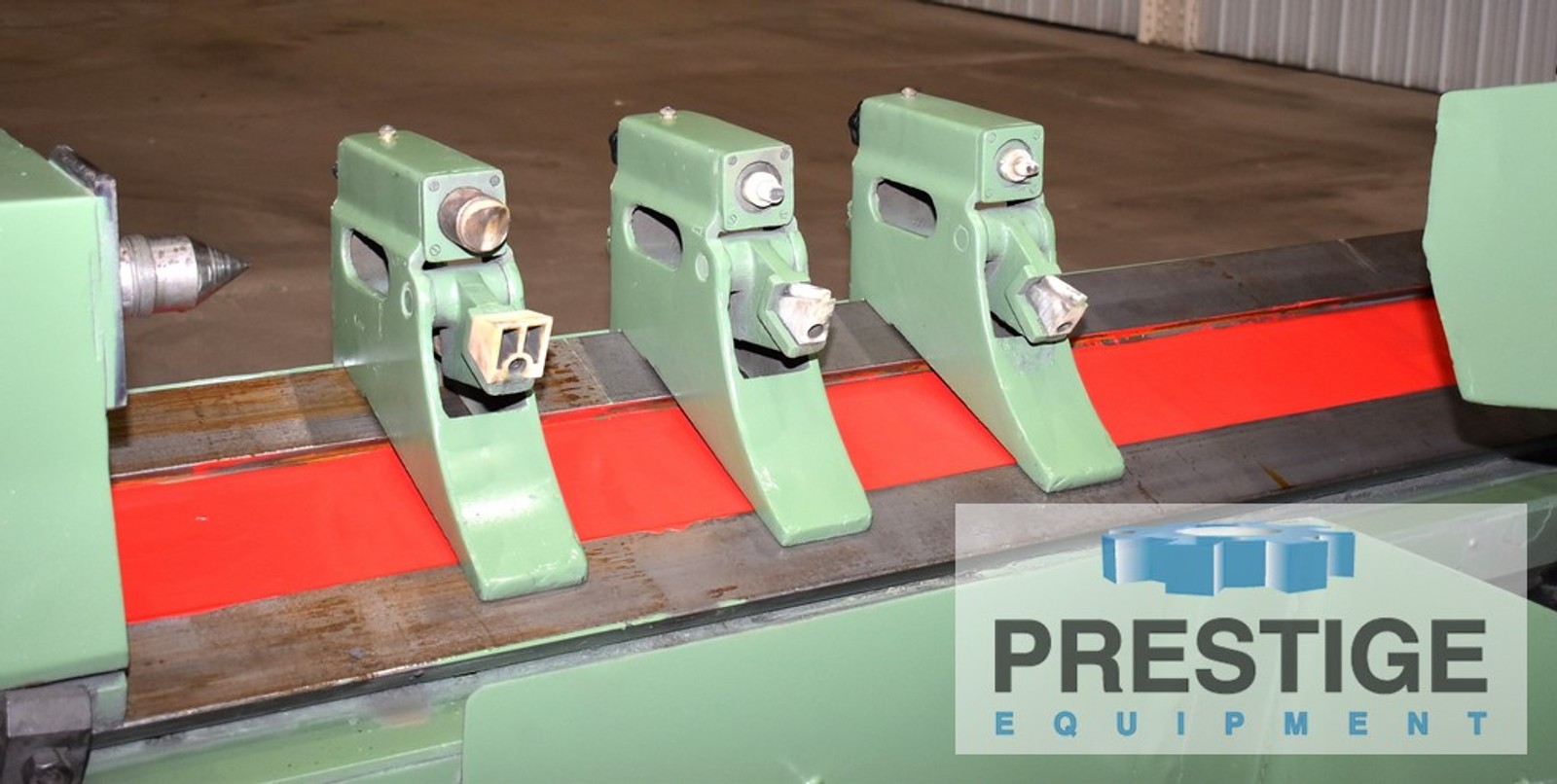

3 Point Steady Rest
12" 4-Jaw Chuck
Misc. Tooling

CAPACITY:
Max. Swing ............................ 20"
Max. Distance Between Centers ......... 120"
Variable Work Head Speeds ............. 23-250 RPM

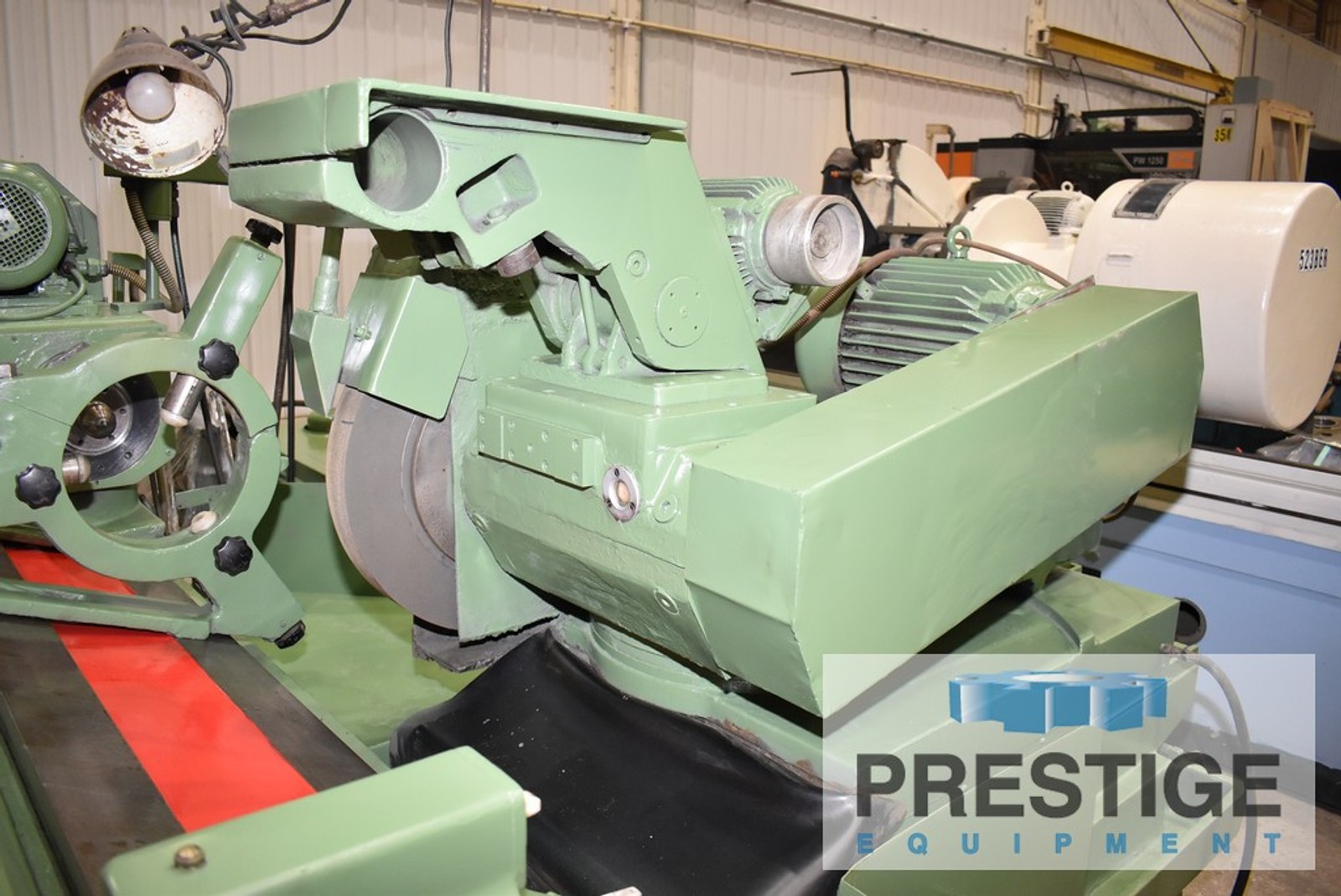

Grinding Wheel Size ................... 20" x 3" X 12"
Grinding Wheel Speeds ................. 665/1330 RPM
Grinding Wheel Motor .................. 7.5 / 10 HP
Grinding Head Swivel .................. +/- 30 Degrees
Internal Grinding Head Speed .......... 1,000 - 6,000 RPM
Internal Grinding Head Motor .......... 2 HP
Table Swivel .......................... -2/+5 Degrees

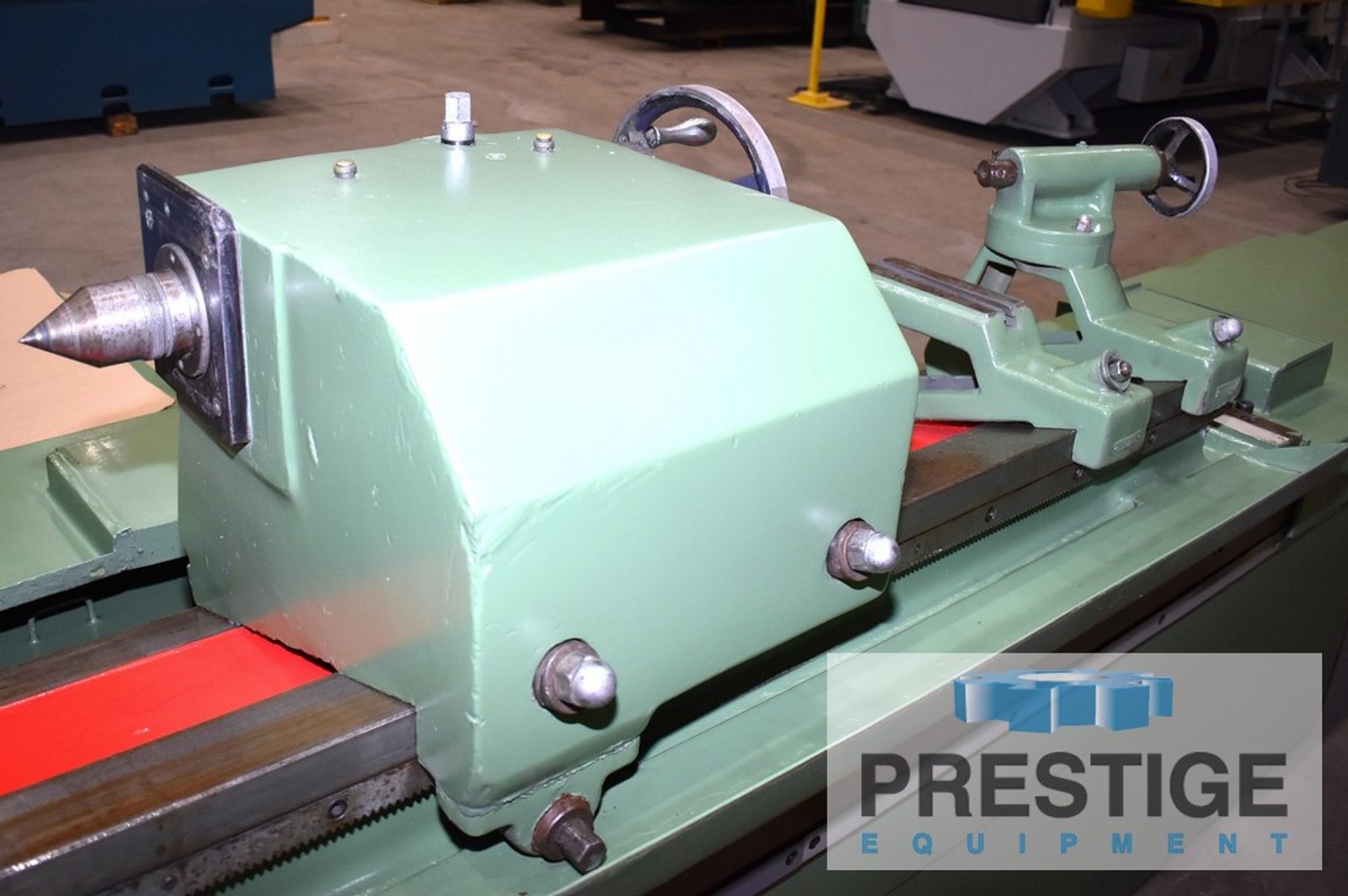

Tailstock Taper ....................... 6 MT
Power Rapid Traverse to Wheel Head .... 30 IPM
Approximate Weight .................... 30,000 lbs.
Dimensions ............................ 416" LR x 96" FB

EQUIPPED WITH:
Internal Grinding Attachment
Table Taper Swivel
Dresser
Coolant System
3 Point Steady Rest
12" 4-Jaw Chuck
Misc. Tooling

NOTE:
Inspect In Our Philadelphia PA Warehouse
