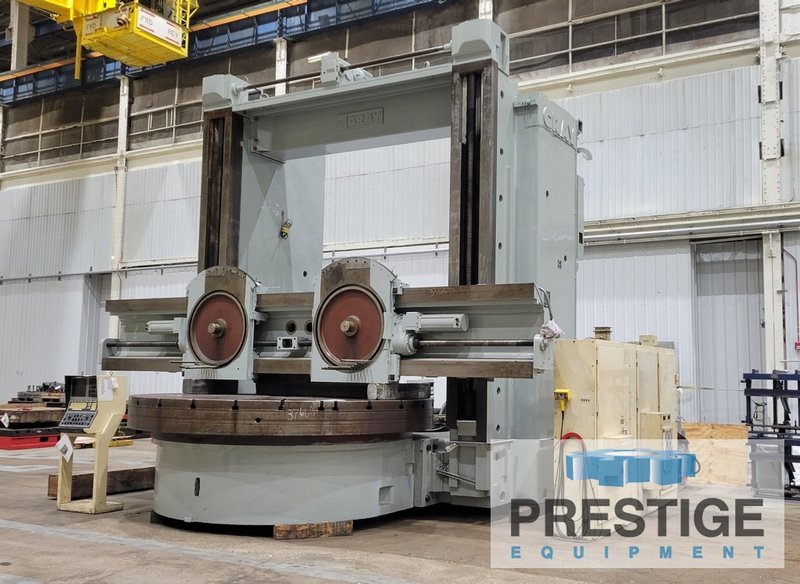

144" Gray Series 300, 2-Rams, 151" Swing, 120" Under Rail, 100 Ton Wt.Cap, G & L CNC, #31395

Manufacturer

GRAY

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

31395

Model

Series 300 Heavy Duty

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31395

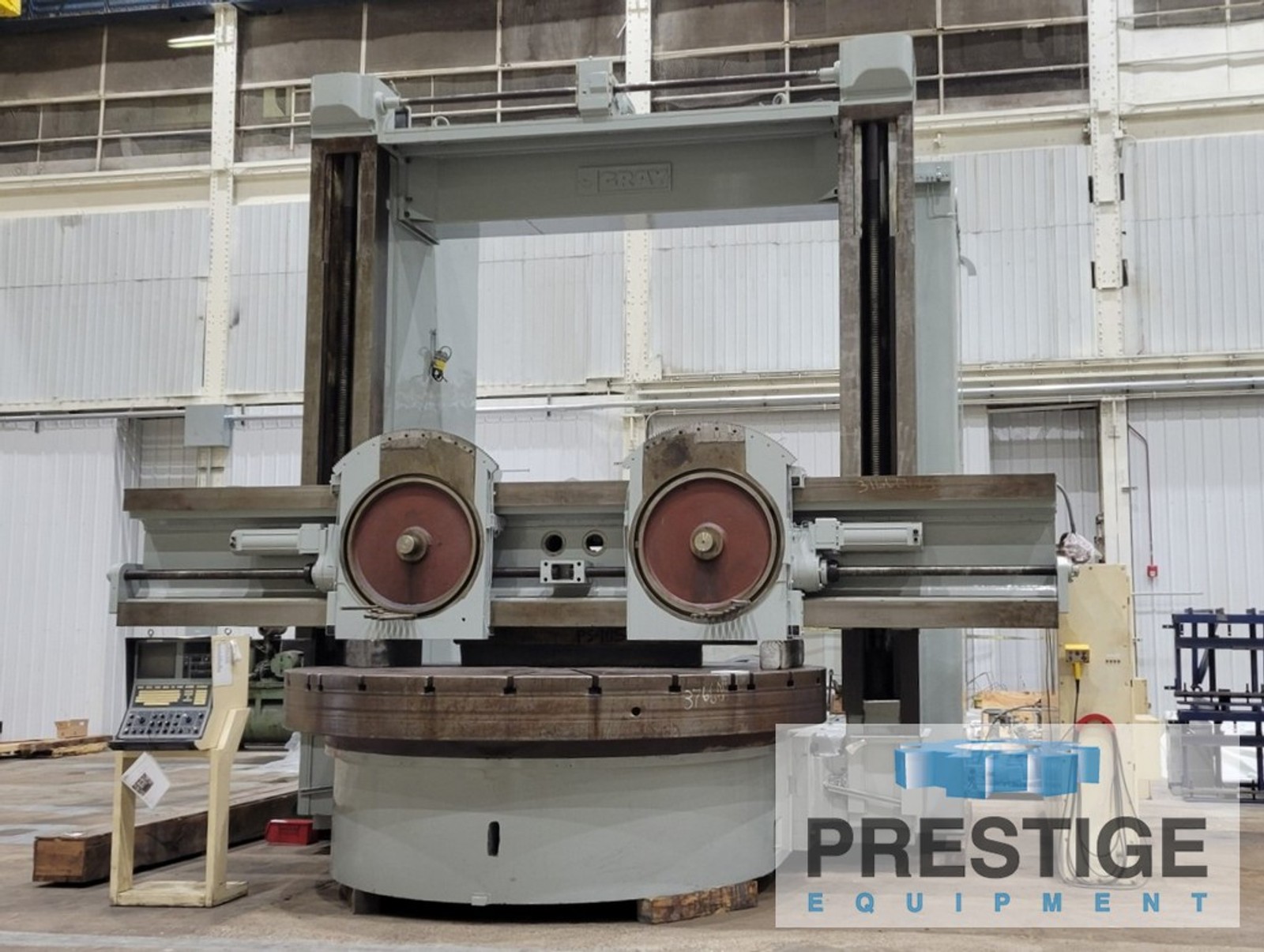

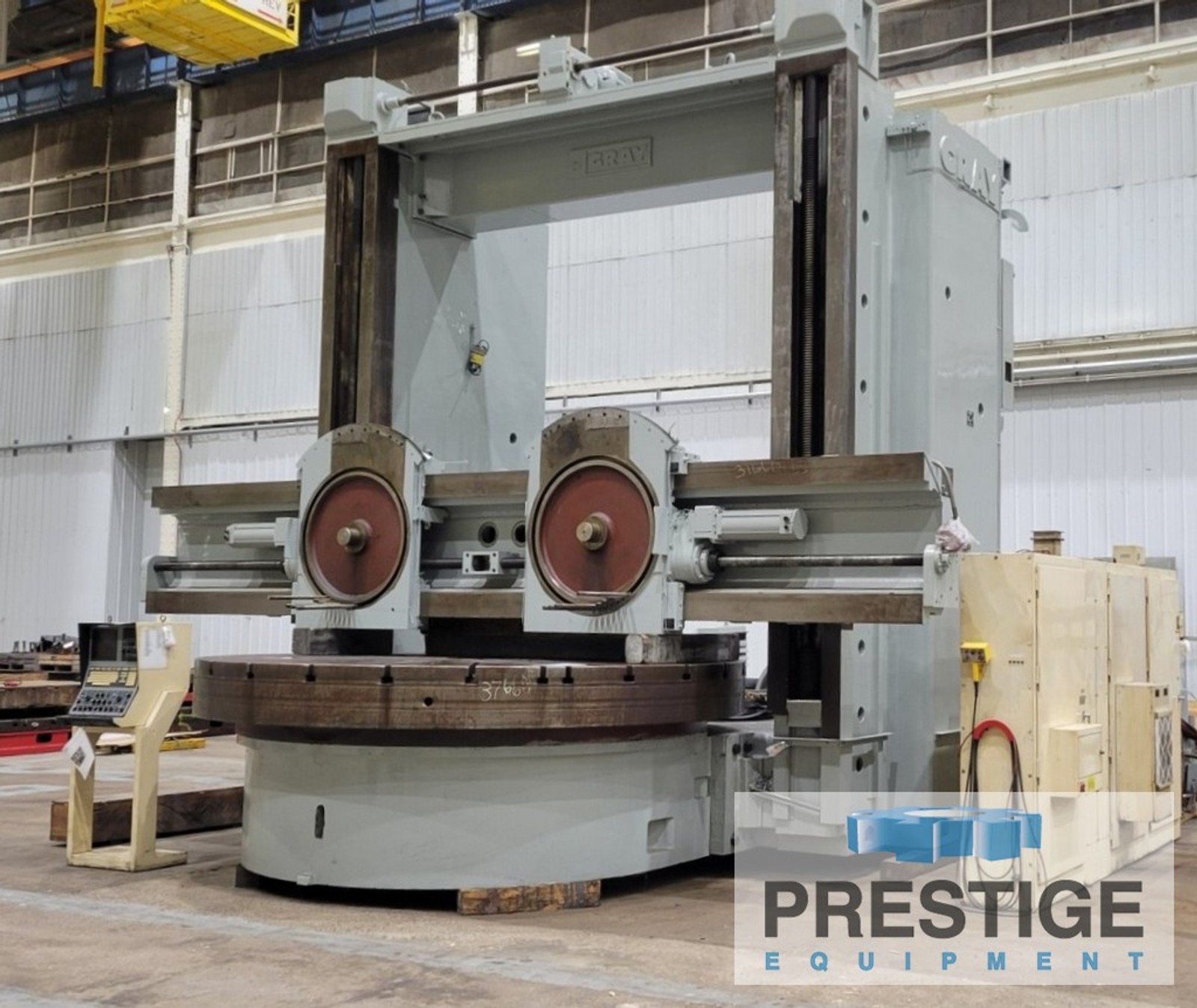

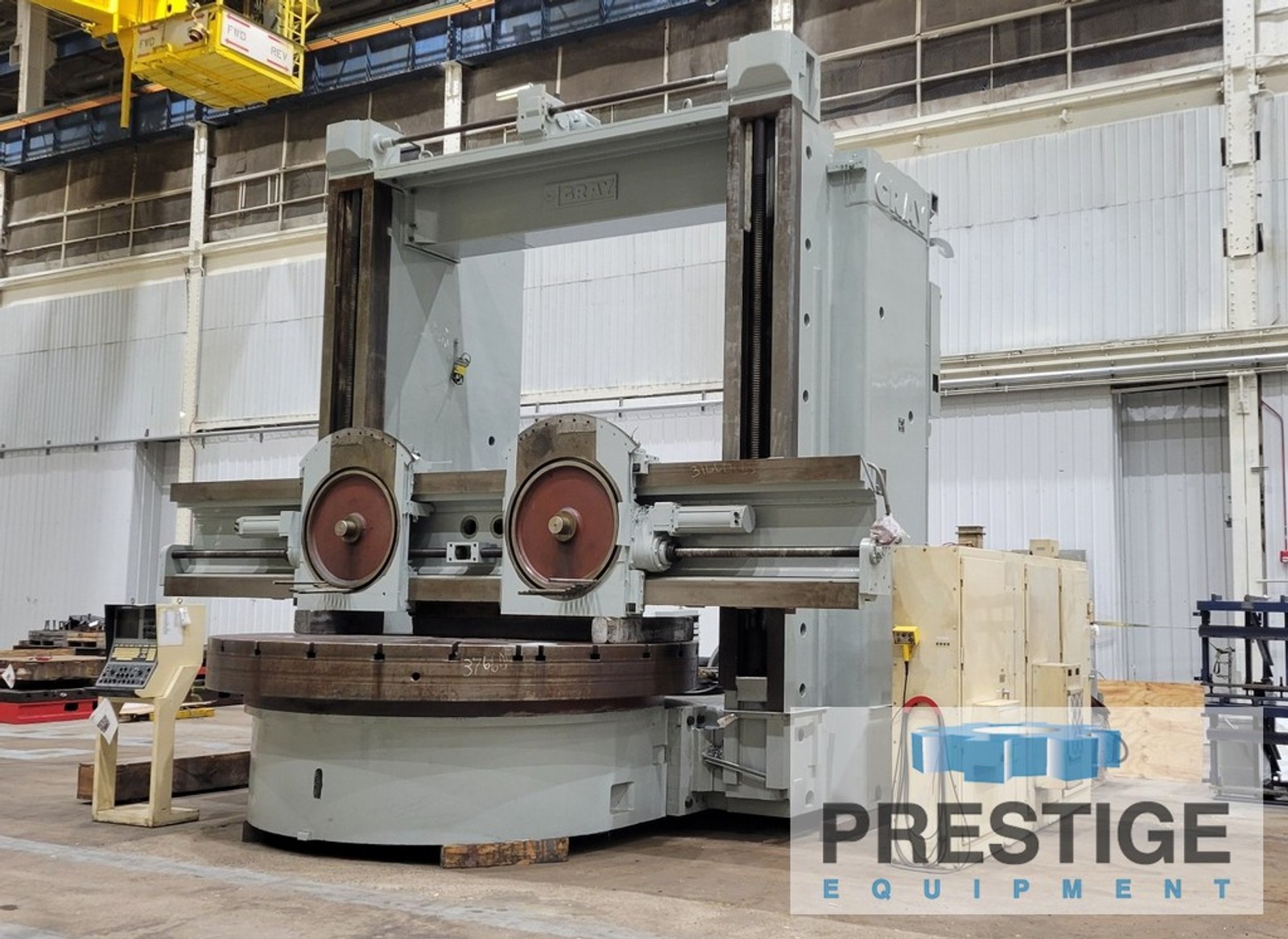

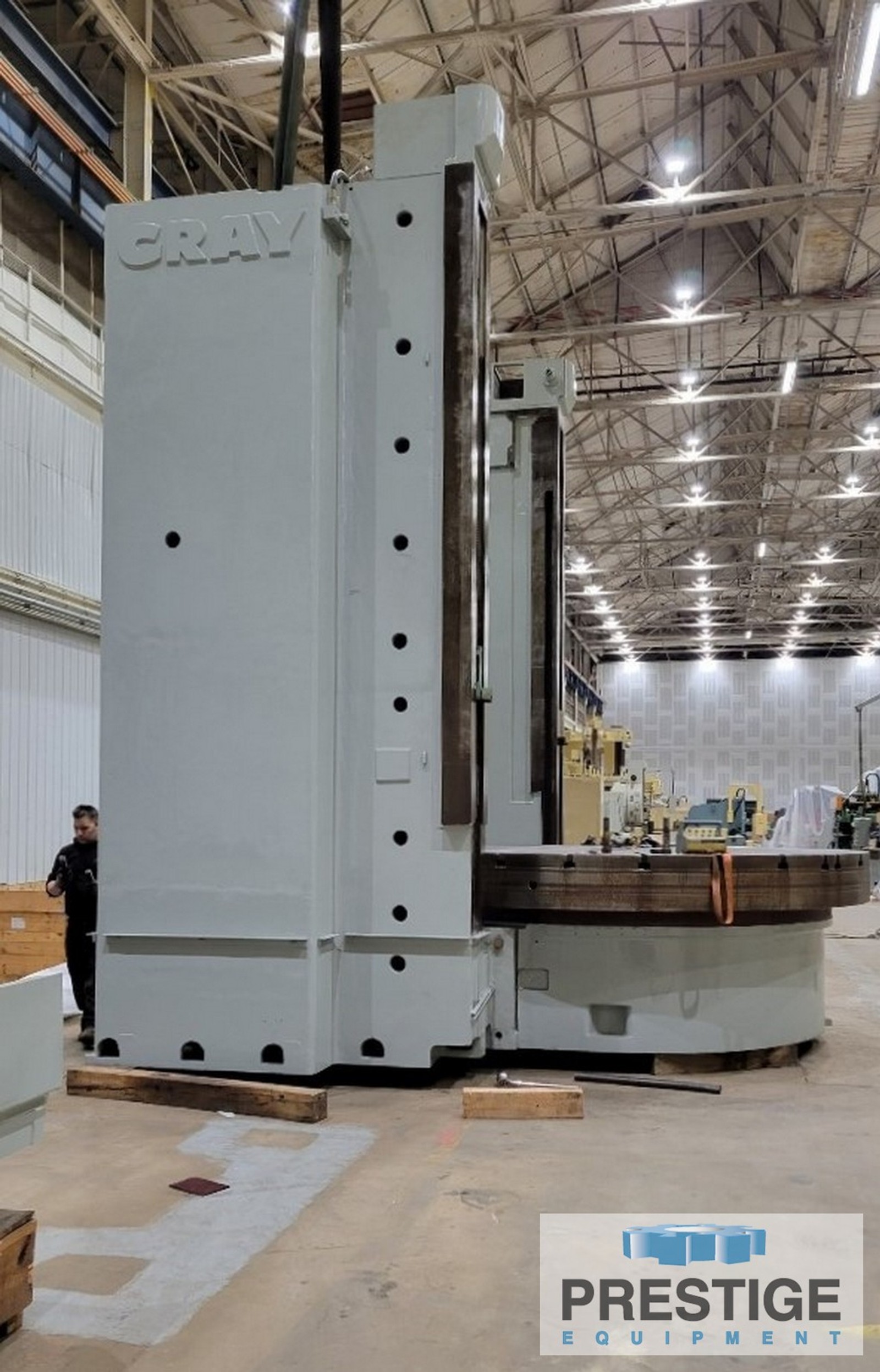

Gray 144" Heavy Duty 4-Axis CNC Vertical Boring Mill

FEATURES:

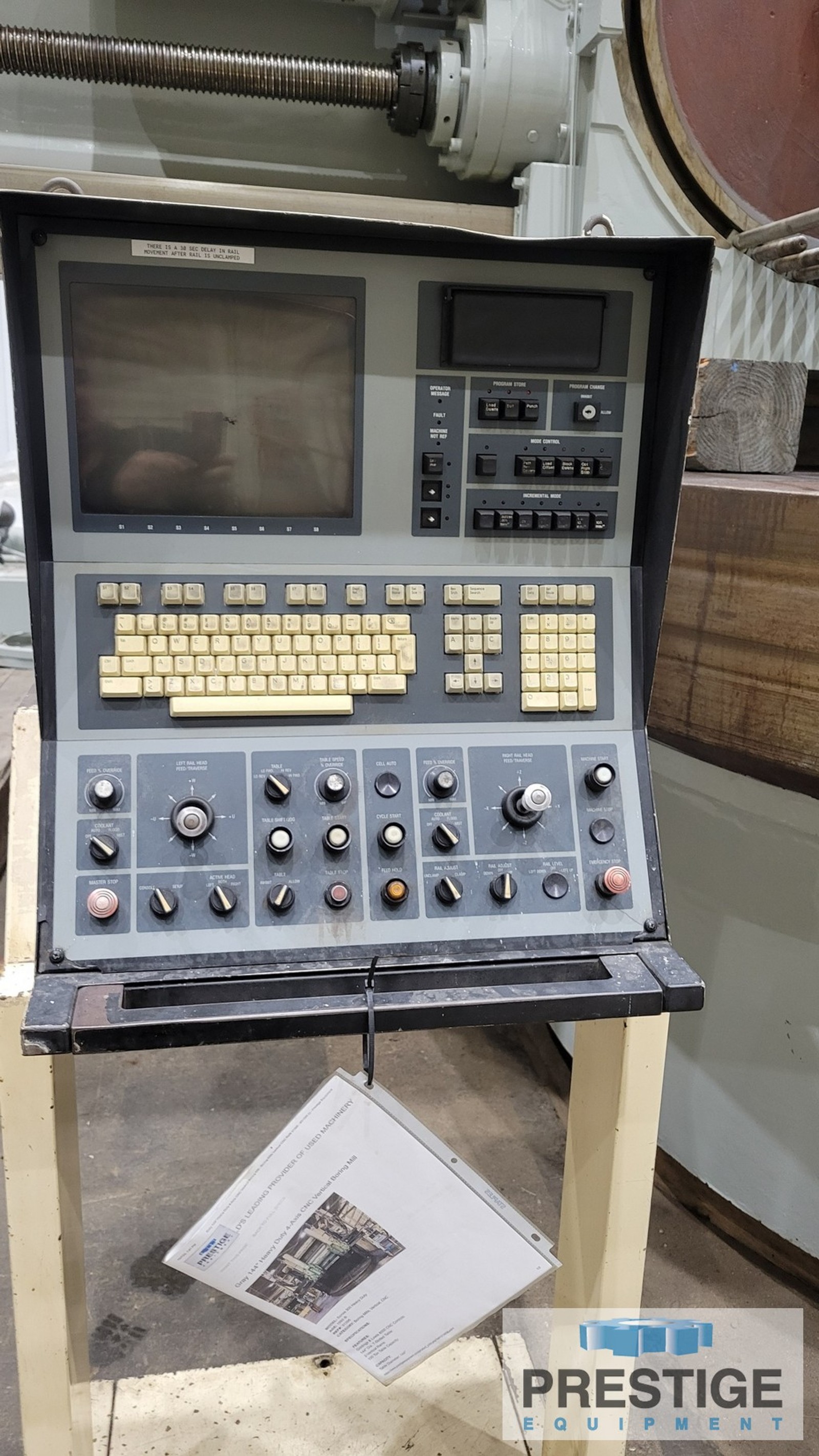

Giddings & Lewis 8000 CNC Controls
144" Dia. T-Slotted Table

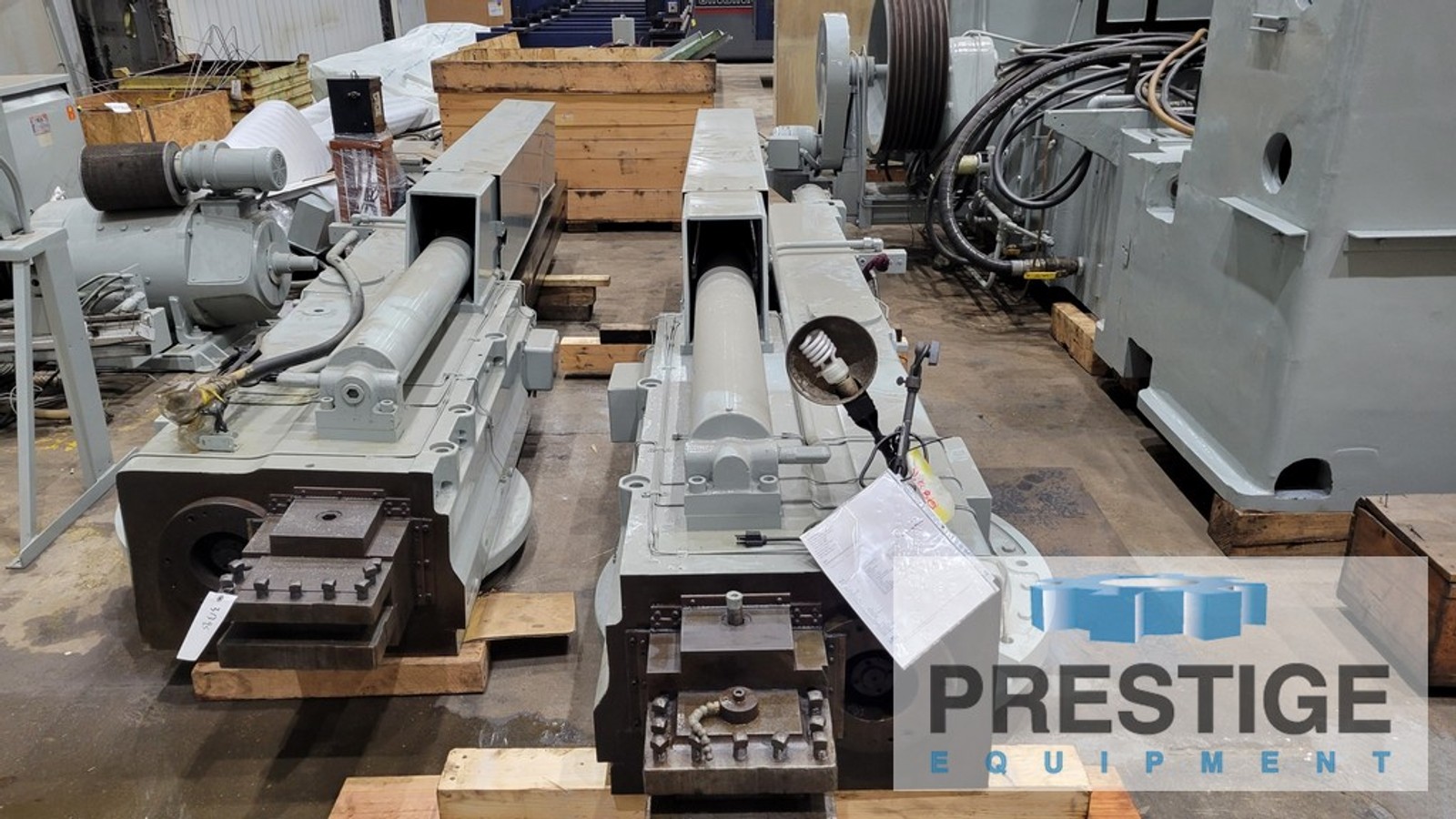

2-Vertical Rams
100 Ton Table Capacity

CAPACITY:
Table Diameter ........................ 144"
Maximum Swing ......................... 151"
Maximum Height Under Cross Rail ....... 120"
Maximum Under Ram or Tool Block........ 112"
Ram Stroke ............................ 96"
Table Capacity ........................ 100 Ton
Table Speeds, Infinitely Variable ..... .8-50 RPM
Table Speed Ranges .................... 2
Feeds, Infinitely Variable ............ .0005-2.0 IPR

Giddings & Lewis 8000 CNC Controls
144" Dia. T-Slotted Table
2-Vertical Vertical Rams
Ram Travel Past Table Center
Power Rail Elevation

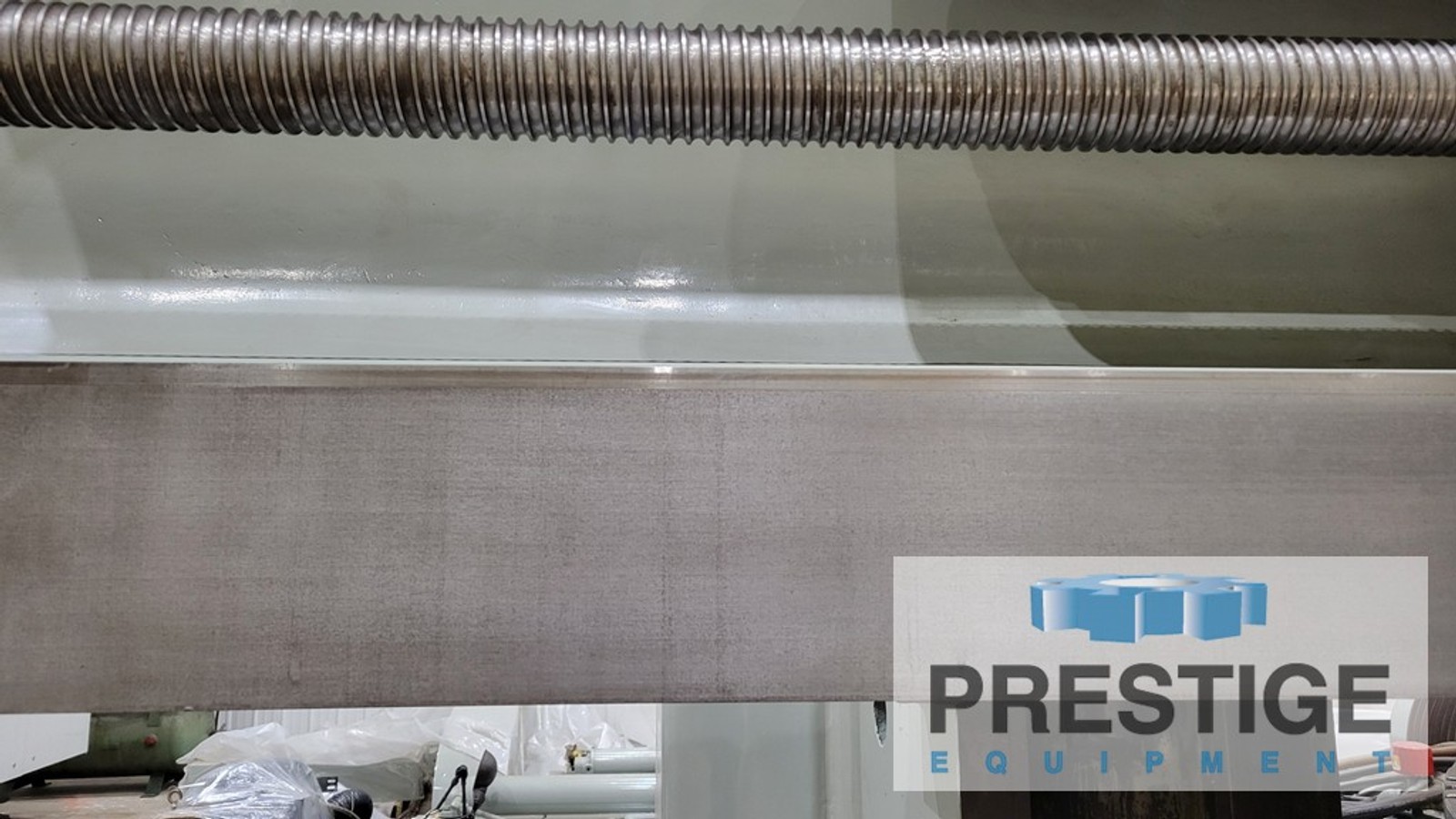

Hardened Wear Strips on rail
75 HP Table Drive Motor

NOTE:
Complete Retrofit By Giddings & Lewis in Late 1990's
